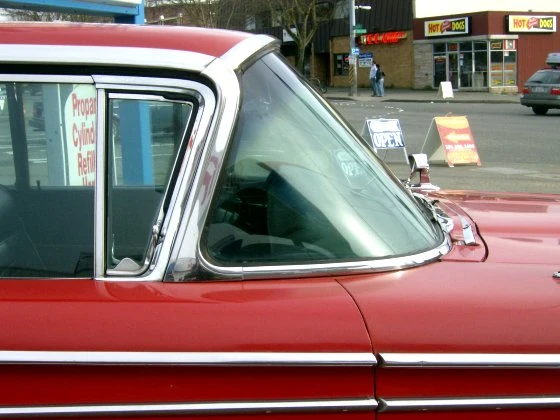

Panoramic-windshield

Panoramic (wrap-around) windshield on a 1959 Edsel Corsair

The windshield or windscreen of an aircraft, car, bus, motorbike or tram is the front window. Modern windshields are generally made of laminated safety glass, a type of treated glass, which consists of two (typically) curved sheets of glass with a plastic layer laminated between them for safety, and are glued into the window frame. Motorbike windshields are often made of high-impact acrylic plastic.

Usage[]

Windshields protect the vehicle's occupants from wind and flying debris such as dust, insects, and rocks, and providing an aerodynamically formed window towards the front. UV Coating may be applied to screen out harmful ultraviolet radiation. On motorbikes their main function is to shield the rider from wind, though not as completely as in a car, whereas on sports and racing motorcycles the main function is reducing drag when the rider assumes the optimal aerodynamic configuration with his or her body in unison with the machine, and does not shield the rider from wind when sitting upright.

Safety[]

Early windshields were made of ordinary window glass, but that could lead to serious injuries in the event of a crash. A series of lawsuits led up to the development of stronger windshields. The most notable example of this is the Pane vs. Ford case of 1917 that decided against Pane in that he was only injured through reckless driving. They were replaced with windshields made of toughened glass and were fitted in the frame using a rubber or neoprene seal. The hardened glass shattered into many mostly harmless fragments when the windshield broke. These windshields, however, could shatter from a simple stone chip. In 1919, Henry Ford solved the problem of flying debris by using the new French technology of glass laminating. Windshields made using this process were two layers of glass with a cellulose inner layer. This inner layer held the glass together when it fractured. Between 1919 and 1929, Ford ordered the use of laminated glass on all of his vehicles.[1]

Raked windshield 1952 DeSoto

Split and raked windshield on a 1952 DeSoto. Note the panes of glass are flat.

Modern, glued-in windshields contribute to the vehicle's rigidity, but the main force for innovation has historically been the need to prevent injury from sharp glass fragments. Almost all nations now require windshields to stay in one piece even if broken, except if pierced by a strong force. Properly installed automobile windshields are also essential to safety; along with the roof of the car, they provide protection to the vehicle's occupants in the case of a roll-over accident.

Other aspects[]

In many places, laws restrict the use of heavily tinted glass in vehicle windshields; generally, laws specify the maximum level of tint permitted. Some vehicles have noticeably more tint in the uppermost part of the windshield to block sunglare.

In aircraft windshields, an electric current is applied through a conducting layer of tin(IV) oxide to generate heat to prevent icing. A similar system for automobile windshields, introduced on Ford vehicles as "Quickclear" in Europe ("InstaClear" in North America) in the 1980s and through the early 1990s, used this conductive metallic coating applied to the inboard side of the outer layer of glass. Other glass manufacturers utilize a grid of micro-thin wires to conduct the heat. These systems are more typically utilized by European auto manufacturers such as Jaguar and Porsche.

Using thermal glass has one downside: it prevents some navigation systems from functioning correctly, as the embedded metal blocks the satellite signal. This can be resolved by using an external antenna.

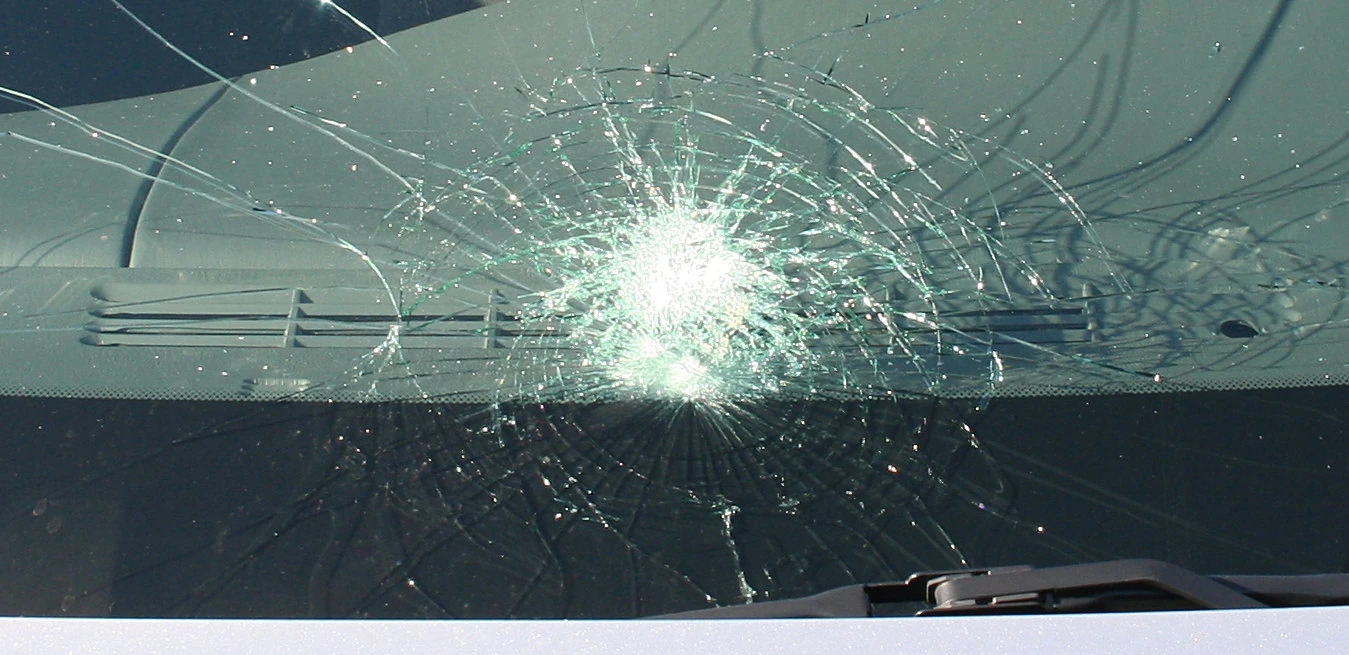

Windshield-spiderweb

Automobile windshield displaying "spiderweb" cracking typical of laminated safety glass.

Terminology[]

The term windshield is used generally throughout North America. The term windscreen is the usual term in the British Isles and Australasia for all vehicles. In the US windscreen refers to the mesh or foam placed over a microphone to minimize wind noise, while a windshield refers to the front window of a car. In the UK, the terms are reversed, although generally, the foam screen is referred to as a microphone shield, and not a windshield.

Today’s windshields are a safety device just like seat belts and air bags. The installation of the auto glass is done with an automotive grade urethane designed specifically for automobiles. The adhesive creates a molecular bond between the glass and the vehicle. If the adhesive bond fails at any point on the glass it can reduce the effectiveness of the air bag and substantially compromise the structural integrity of the roof. (Raymond Clough)

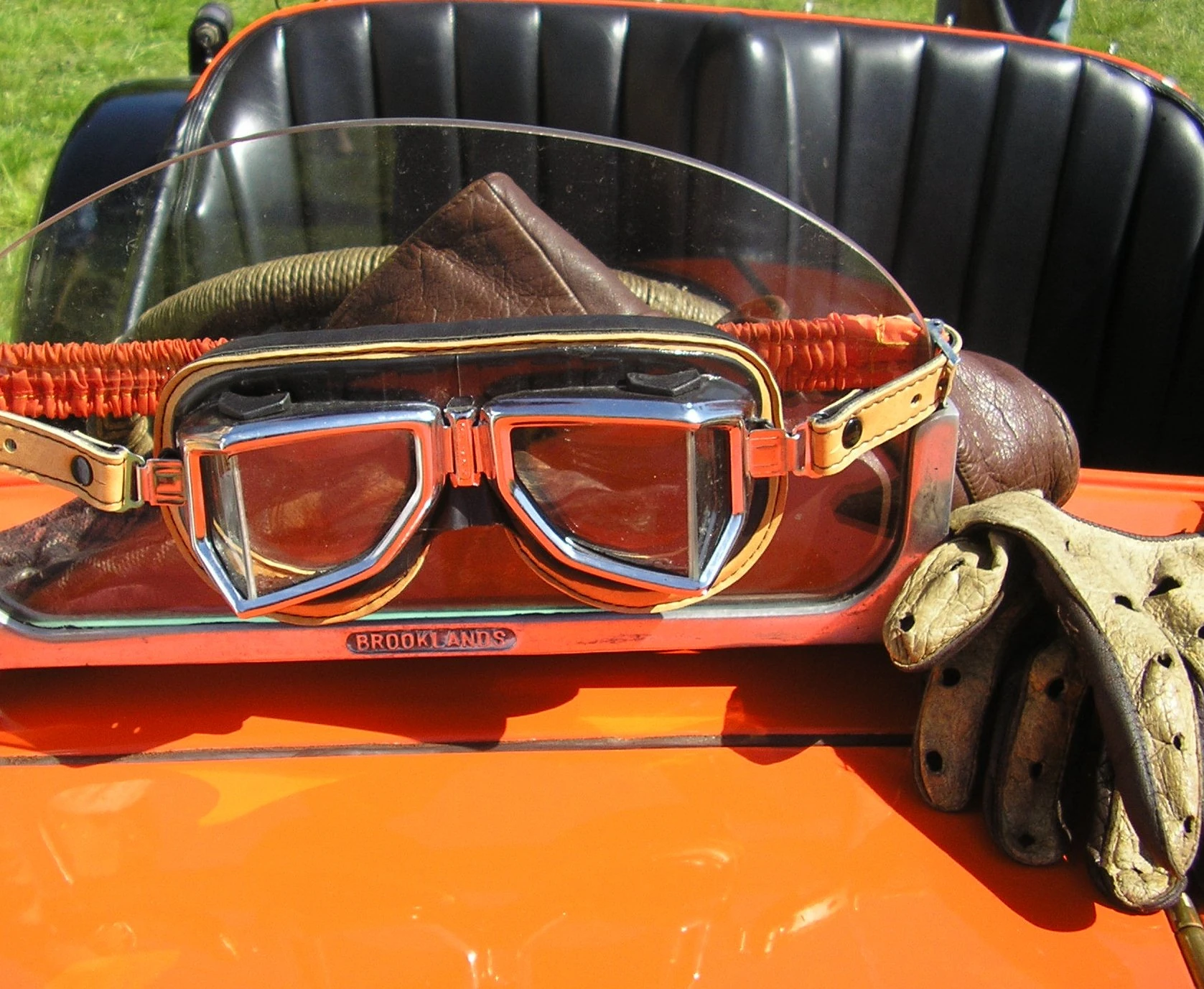

BrooklandsGoggles

Brookland aeroscreen on a 1931 Austin Seven Sports.

Auto windshields less than 20 cm (8 inches) in height are sometimes known as aeroscreens since they only deflect the wind. The twin aeroscreen setup (often called Brooklands) was popular among older sports and modern cars in vintage style.

A wiperless windshield is a windshield that uses a mechanism other than wipers to remove snow and rain from the windshield. The concept car Acura TL features a wiperless windshield using a series of jet nozzles in the cowl to blow pressurized air onto the windshield.

Repair of stone-chip and crack damage[]

According to the US National Windshield Repair Association many types of stone damage can be successfully repaired. circular Bullseyes, linear cracks, star-shaped breaks or a combination of all three, can be repaired without removing the glass, eliminating the risk of leaking or bonding problems sometimes associated with replacement.

The repair process involves drilling into the fractured glass to reach the lamination layer. Special clear adhesive resin is injected under pressure and then cured with ultraviolet light. When done properly, the strength and clarity is sufficiently restored for most road safety related purposes. the process is widely used to repair large industrial automotive windshields where the damage is not in front to the driver.

Disposal[]

Waste disposal of laminated glass is no longer permitted in landfill in most European countries as the End of Life Vehicles Directive (ELV) is implemented. A study[2] by Surrey University and Pilkington Glass proposes that waste laminated glass is placed into a separating device such as a rolling mill where the glass is fragmented and the larger cullet is mechanically detached from the inner film. The application of heat then melts the laminating plastic, usually Polyvinyl Butyral "PVB" enabling both the glass and the interior film to be recycled. The PVB recycling process is a simple procedure of melting and reshaping it. A Yorkshire consortium of CO2Sense and Ecofillers Ltd estimate that in the UK the potential market for recycled PVB in 2020 may reach a value of around 5000 GDB.

See also[]

  • Driver visibility
  • Windshield wiper
  • Motorcycle windshield
  • BS 857

References[]

  1. [1] National Glass Association - "Your Windshield is Not Just a "Wind-Shield" Any More"
  2. [2]

Manufacturing Processes Reference Guide: Robert H. Todd, Dell K. Allen, and Leo Alting How It's Made: Windshields
