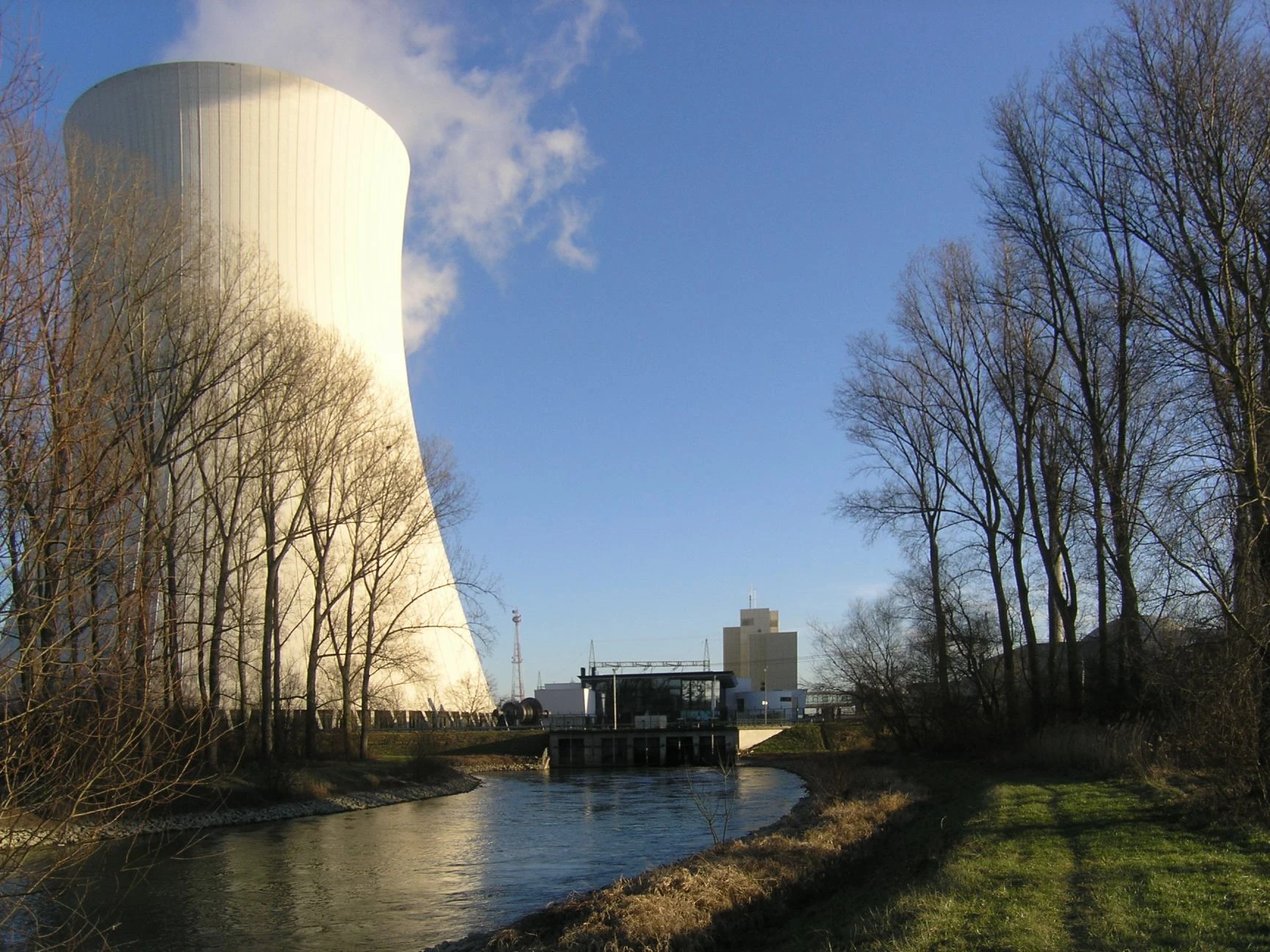

KKP Auslauf

Cooling tower and water discharge of a nuclear power plant

Water cooling is a method of heat removal from components and industrial equipment. As opposed to air cooling, water is used as the heat conductor. Water cooling is commonly used for cooling vehicle internal combustion engines and large industrial facilities such as steam electric power plants, hydroelectric generators, petroleum refineries and chemical plants.[1] Other uses include cooling the barrels of machine guns, cooling of lubricant oil in pumps; for cooling purposes in heat exchangers; cooling products from tanks or columns, and recently, cooling of various major components inside high-end personal computers. The main mechanism for water cooling is convective heat transfer.[citation needed]

Nomenclature[]

Cooling water is the water removing heat from a machine or system. Cooling water may be recycled through a recirculating system or used in a single pass once-through cooling (OTC) system. Recirculating systems may be open if they rely upon cooling towers or cooling ponds to remove heat or closed if heat removal is accomplished with negligible evaporative loss of cooling water. A heat exchanger or condenser may separate non-contact cooling water from a fluid being cooled,[2] or contact cooling water may directly impinge on items like saw blades where phase difference allows easy separation. Environmental regulations emphasize the reduced concentrations of waste products in non-contact cooling water.[3]

Advantages[]

Water is inexpensive and non-toxic. The advantages of using water cooling over air cooling include water's higher specific heat capacity, density, and thermal conductivity. This allows water to transmit heat over greater distances with much less volumetric flow and reduced temperature difference.

For cooling CPU cores its primary advantage is that its tremendously increased ability to transport heat away from source to a secondary cooling surface allows for large, more optimally designed radiators rather than small, inefficient fins mounted directly on the heat source.

The water jacket around an engine is also very effective at deadening mechanical noises, which makes the engine quieter. However, the primary disadvantage is that it costs significantly more than an air-cooled engine system.[citation needed]

Disadvantages[]

Water accelerates corrosion of metal parts and is a favourable medium for biological growth. Dissolved minerals in natural water supplies are concentrated by evaporation to leave deposits called scale. Cooling water often requires addition of chemicals to minimize corrosion and insulating deposits of scale and biofouling.[4] In water cooling systems for electronic devices the use of deionized water is required, which must be carefully controlled in order to avoid contamination, which would cause a decrease in resistance of the water and subsequently increase risk of short circuits.

Open method[]

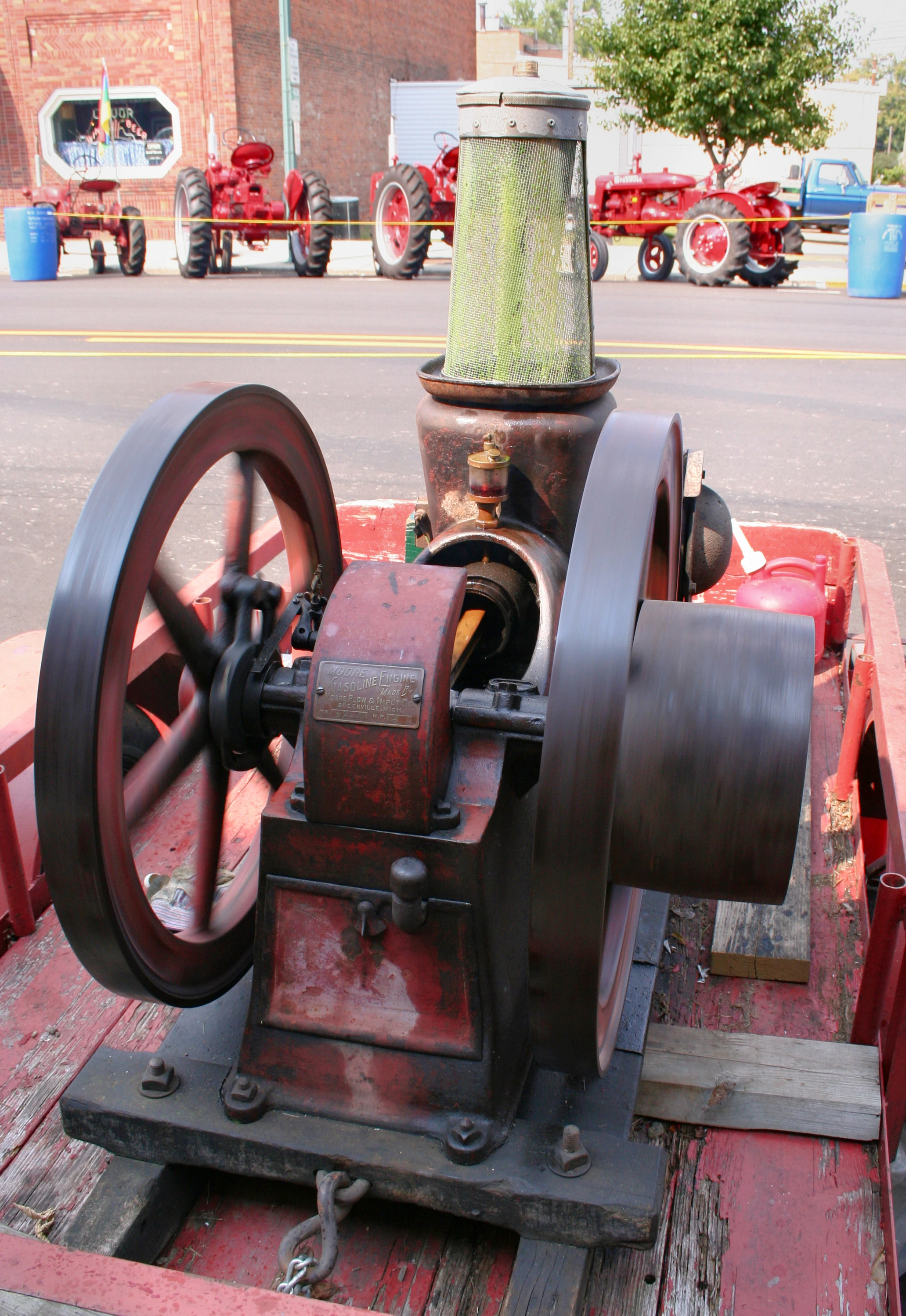

Moore-single-cylinder-gasoline-engine

An antique gasoline engine with an evaporative cooler and mesh screen to improve evaporation. Water is pumped up to the top and flows down the screen to the tank.

An open water cooling system makes use of evaporative cooling, lowering the temperature of the remaining (unevaporated) water. This method was common in early internal combustion engines, until scale buildup was observed from dissolved salts and minerals in the water. Modern open cooling systems continuously waste a fraction of recirculating water as blowdown to remove dissolved solids at concentrations low enough to prevent scale formation. Some open systems use inexpensive tap water, but this requires higher blowdown rates than deionized or distilled water. Purified water systems still require blowdown to remove accumulation of byproducts of chemical treatment to prevent corrosion and biofouling.[5]

Automotive usage[]

Pressurization[]

Modern automotive cooling systems are slightly pressurized, often to 15 psi. This raises the boiling-point of the coolant and reduces evaporation.[6]

Antifreeze[]

The use of water cooling carries the risk of damage from freezing. Automotive and many other engine cooling applications require the use of a water and antifreeze mixture to lower the freezing point to a temperature unlikely to be experienced. Antifreeze also inhibits corrosion from dissimilar metals and can increase the boiling point, allowing a wider range of water cooling temperatures.[6] Its distinctive odor also alerts operators to cooling system leaks and problems that would go unnoticed in a water-only cooling system. The heated water can also be used to warm the air conditioning system inside the car, if so desired.

Other additives[]

Other less common chemical additives are products to reduce surface tension. These additives are meant to increase the efficiency of automotive cooling systems. Such products are used to enhance the cooling of underperforming or undersized cooling systems or in racing where the weight of a larger cooling system could be a disadvantage.[citation needed]

Power electronic and transmitters[]

Since approximately 1930 it is common to use water cooling for tubes of powerful radio transmitters. As these devices uses high operation voltages ( around 10 kV), the use of deionized water is required and it has to be carefully controlled. Modern solid-state transmitters can be built so, that even high power transmitters do not require water cooling. Water cooling is however also sometimes used for thyristors of HVDC valves, for which also the use of deionized water is required.[citation needed]

Computer usage[]

See also: Computer cooling

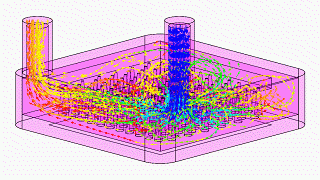

CFD Liquid Cooled Cold Plate v4

This 40 mm by 40 mm by 10 mm impingement type liquid cooled cold plate (heat sink) animation, was created using high resolution CFD analysis, and shows temperature contoured flow trajectories, predicted using a CFD analysis package, courtesy of NCI.

CFD Water Cooled Copper Cold Plate

This 60mm diameter by 10mm high impingement type water cooled copper cold plate (heat sink) animation, was created using high resolution CFD analysis, and shows temperature contoured flow trajectories, predicted using a CFD analysis package, courtesy of NCI.

Cooling hot computer components with various fluids has been in use since at least as far back as the development of Cray-2 'super computer' in 1982, using Fluorinert. Through the 1990s, water cooling for home PCs slowly gained recognition amongst enthusiasts, but it started to become noticeably more prevalent after the introduction of AMD's hot-running Athlon processor in mid 2000. As of 2011, there are several manufacturers of water cooling components and kits, and some custom computer retailers include various setups of water cooling for their high performance systems.

Water cooling can be used to cool many computer components, but especially the CPU. Water cooling usually uses a CPU water block, a water pump, and a heat exchanger (usually a radiator with a fan attached). Water cooling can allow quieter (potentially fanless) operation, or improved processor speeds (overclocking), or a balance of both. Less commonly, GPUs, Northbridges, Southbridges, hard disk drives, memory, voltage regulator modules (VRMs), and even power supplies can be water-cooled.[citation needed]

Water coolers for desktop computers were, until the end of the 1990s, homemade. They were made from car radiators (or more commonly, a car's heater core), aquarium pumps and home-made water blocks, laboratory-grade PVC and silicone tubing and various reservoirs (home made using plastic bottles, or constructed using cylindrical acrylic or sheets of acrylic, usually clear) and or a T-Line. More recently a growing number of companies are manufacturing water-cooling components compact enough to fit inside a computer case. This, and the trend to CPUs of higher power dissipation, has greatly increased the popularity of water cooling, although only a very small minority of nome computers are water-cooled.

Dedicated overclockers occasionally use vapor-compression refrigeration or Peltier-Seebeck effect (thermoelectric coolers) in place of more common standard heat exchangers. Water cooling systems in which water is cooled directly by the evaporator coil of a phase change system are able to chill the circulating coolant below the ambient air temperature (impossible with a standard heat exchanger) and, as a result, generally provide superior cooling of the computer's heat-generating components. The downside of phase-change or thermoelectric cooling is that it uses much more electricity, and antifreeze must be added due to the low temperature. Additionally, insulation, usually in the form of lagging around water pipes and neoprene pads around the components to be cooled, must be used in order to prevent damage caused by condensation of water vapour from the air on chilled surfaces. Common places from which to borrow the required phase transition systems are a household dehumidifier or air conditioner.

An alternative cooling system, which enables components to be cooled below the ambient temperature, but which obviates the requirement for antifreeze and lagged pipes, is to place a thermoelectric device (commonly referred to as a 'Peltier junction' or 'pelt' after Jean Peltier, who documented the effect) between the heat-generating component and the water block. Because the only sub-ambient temperature zone now is at the interface with the heat-generating component itself, insulation is required only in that localized area. The disadvantage to such a system is that pelts typically dissipate a lot of power, and the water cooling system must remove this heat in addition to that generated by the component.

Another possible danger is damaging condensation, due to the ambient air right around the pelt being cold. A proper installation requires that the Peltier be "potted" with silicone epoxy. The epoxy is applied around the edges of the device, preventing air from entering or leaving the interior.

Apple's Power Mac G5 was the first mainstream desktop computer to have water cooling as standard. Dell followed suit by shipping their XPS computers with liquid cooling[citation needed], using thermoelectric cooling to help cool the liquid. Currently, Dell's only computers to offer liquid cooling are their Alienware desktops.[7]

Industrial usage[]

See also: Cooling tower
A Marley industrial cooling tower

A Marley mechanical induced draft cooling tower

Industrial cooling towers may use river water, coastal water (seawater), or well water as their source of fresh cooling water. The large mechanical induced-draft or forced-draft cooling towers in industrial plants continuously circulate cooling water through heat exchangers and other equipment where the water absorbs heat. That heat is then rejected to the atmosphere by the partial evaporation of the water in cooling towers where upflowing air is contacted with the circulating downflow of water. The loss of evaporated water into the air exhausted to the atmosphere is replaced by "make-up" fresh river water or fresh cooling water. Since the evaporation of pure water is replaced by make-up water containing carbonates and other dissolved salts, a portion of the circulating water is also continuously discarded as "blowdown" water to prevent the excessive build-up of salts in the circulating water.[8]

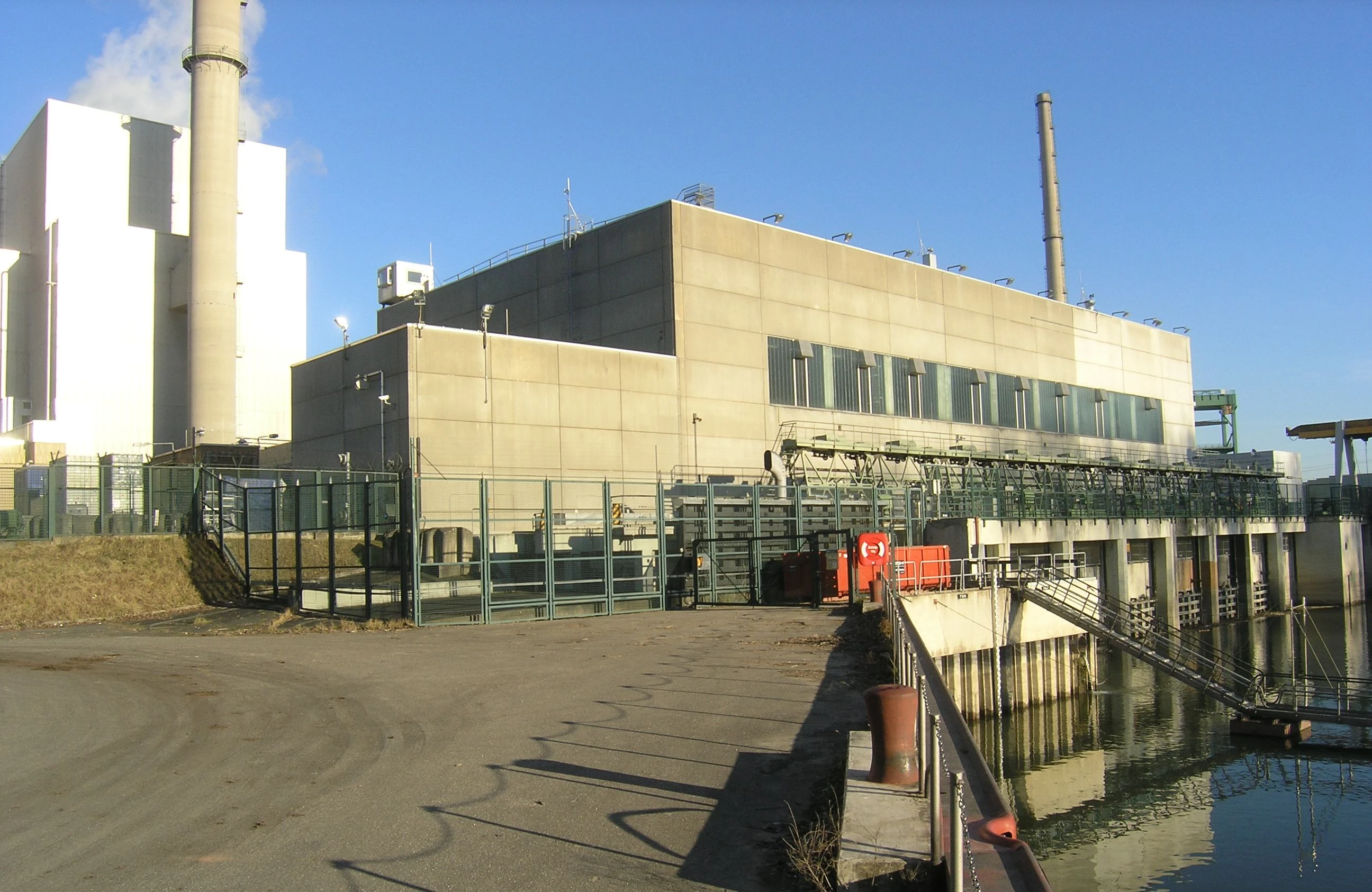

KKP Einlauf

Cooling water intake of a nuclear power plant

On very large rivers, but more often at coastal and estuarine sites, "direct cooled" systems are often used, instead. These industrial plants do not use cooling towers and the atmosphere as a heat sink, but put the waste heat to the river or coastal water instead. These OTC systems thus rely upon a good supply of river water or seawater for their cooling needs. The warmed water is returned directly to the aquatic environment, often at temperatures significantly (to aquatic life) above the ambient receiving water. Thermal pollution of rivers, estuaries and coastal waters is a consideration when sitting such plants.

High-grade industrial water (produced by reverse osmosis) and potable water are sometimes used in industrial plants requiring high-purity cooling water.

Some nuclear reactors use heavy water as cooling. Heavy water is employed in nuclear reactors because it is a weaker neutron absorber. This allows for the use of less enriched fuel. For the main cooling system, normal water is preferably employed through the use of a heat exchanger, as heavy water is much more expensive. Reactors that use other materials for moderation (graphite) may also use normal water for cooling.

Environmental considerations[]

Water is a favorable environment for many life forms. Water cooling may alter natural water environments and create new environments. Flow characteristics of recirculating cooling water systems encourage colonization by sessile organisms to use the circulating supply of food, oxygen and nutrients. Volumes of water lost during evaporative cooling may decrease natural habitat for aquatic organisms. Water temperature increases modify aquatic habitat by increasing biochemical reaction rates and decreasing oxygen saturation capacity of the habitat. Temperature increases initially favour a population shift from those requiring the high-oxygen concentration of cold water to those enjoying advantages of increased metabolic rates in warm water.[9] Temperatures may become high enough to support thermophilic populations.

Biofouling of heat exchange surfaces can reduce heat transfer rates of the cooling system; and biofouling of cooling towers can alter flow distribution to reduce evaporative cooling rates. Biofouling may also create differential oxygen concentrations increasing corrosion rates. OTC and open recirculating systems are most susceptible to biofouling. Biofouling may be inhibited by temporary habitat modifications. Temperature differences may discourage establishment of thermophilic populations in intermittently operated facilities; and intentional short term temperature spikes may periodically kill less tolerant populations. Biocides have been commonly used to control biofouling where sustained facility operation is required.[10]

Large OTC flow rates may immobilize slow-swimming organisms including fish and shrimp on screens protecting the small bore tubes of the heat exchangers from blockage. High temperatures or pump turbulence and shear may kill or disable smaller organisms passing the screens entrained with the cooling water.[11] More agile aquatic predators consume organisms impinged on the screens; and warm water predators and scavengers colonize the cooling water discharge to feed on entrained organisms.

Manufactured metals tend to revert to ores via electrochemical reactions of corrosion. Water can accelerate corrosion as both an electrical conductor and solvent for metal ions and oxygen. Corrosion reactions proceed more rapidly as temperature increases.[4] Preservation of machinery in the presence of hot water has been improved by addition of chemicals including zinc, chromates and phosphates. The first two have toxicity concerns;[12] and the last has been associated with eutrophication.[13] Residual concentrations of biocides and corrosion inhibitors are of potential concern for OTC and blowdown from open recirculating systems.[14] With the exception of machines with short design life, closed recirculating systems require periodic cooling water treatment or replacement raising similar concern about ultimate disposal of cooling water containing chemicals used with environmental safety assumptions of a closed system.

Industrial cooling water regulations
The U.S. Clean Water Act requires the Environmental Protection Agency (EPA) to issue regulations on industrial cooling water intake structures.[15] EPA issued final regulations for new facilities in 2001 (amended 2003).[16] Other EPA regulations for existing facilities were challenged in litigation and EPA issued new proposed regulations in March 2011.[17]

Cooling water chemistry[]

Water contains varying amounts of impurities from contact with the atmosphere, soil, and containers. Cooling water treatments add other chemicals attempting to maintain satisfactory heat exchange.

Solids[]

Total dissolved solids or TDS (sometimes called filtrable residue) is measured as the mass of residue remaining when a measured volume of filtered water is evaporated.[18] Salinity measures water density or conductivity changes caused by dissolved materials.[19] Probability of scale formation increases with increasing total dissolved solids. Solids commonly associated with scale formation are calcium and magnesium carbonate and sulphate. Corrosion rates initially increase with salinity in response to increasing electrical conductivity, but then decrease after reaching a peak as higher levels of salinity decrease dissolved oxygen levels.[4]

Hydrogen[]

Water ionizes into hydronium (H3O) cations and hydroxyl (OH) anions. The concentration of ionized hydrogen (as protonated water) is expressed as pH.[20] Low pH values increase rate of corrosion while high pH values encourage scale formation. Amphoterism is uncommon among metals used in water cooling systems, but aluminum corrosion rates increase with pH values above 9. Galvanic corrosion may be severe in water systems with copper and aluminum components. Acid may be added to cooling water systems to prevent scale formation if the pH decrease will offset increased salinity and dissolved solids.[21]

Phosphorus and chromium[]

Concentrations of polyphosphates or phosphonates with zinc and chromates or similar compounds have been maintained in cooling systems to keep heat exchange surfaces clean so a film of gamma iron oxide and zinc phosphate may inhibit corrosion by passivating anodic and cathodic reaction points.[22] These increase salinity and total dissolved solids, and phosphorus compounds may provide the limiting essential nutrient for algal growth contributing to biofouling of the cooling system or to eutrophication of natural aquatic environments receiving blowdown or OTC water. Chromates reduce biofouling in addition to effective corrosion inhibition, but residual toxicity in blowdown or OTC water has encouraged reduced chromate concentrations and use of less flexible corrosion inhibitors.[12] Blowdown may also contain chromium leached from cooling towers constructed of wood preserved with chromated copper arsenate.

Oxygen[]

Some groundwater contains very little oxygen when pumped from wells, but most natural water supplies include dissolved oxygen. Corrosion increases with increasing oxygen concentrations.[4] Dissolved oxygen approaches saturation levels in cooling towers. Dissolved oxygen is desirable in blowdown or OTC water being returned to natural aquatic environments.

Biocides[]

Chlorine may be added in the form of hypochlorite to decrease biofouling, but is later reduced to chloride to minimize toxicity of blowdown or OTC water returned to natural aquatic environments. Hypochlorite is increasingly destructive to wooden cooling towers as pH increases. Chlorinated phenols have been used as biocides or leached from preserved wood in cooling towers. Both hypochlorite and pentachlorophenol have reduced effectiveness at pH values greater than 8.[23] Non-oxidizing biocides may be more difficult to detoxify prior to release of blowdown or OTC water to natural aquatic environments.
