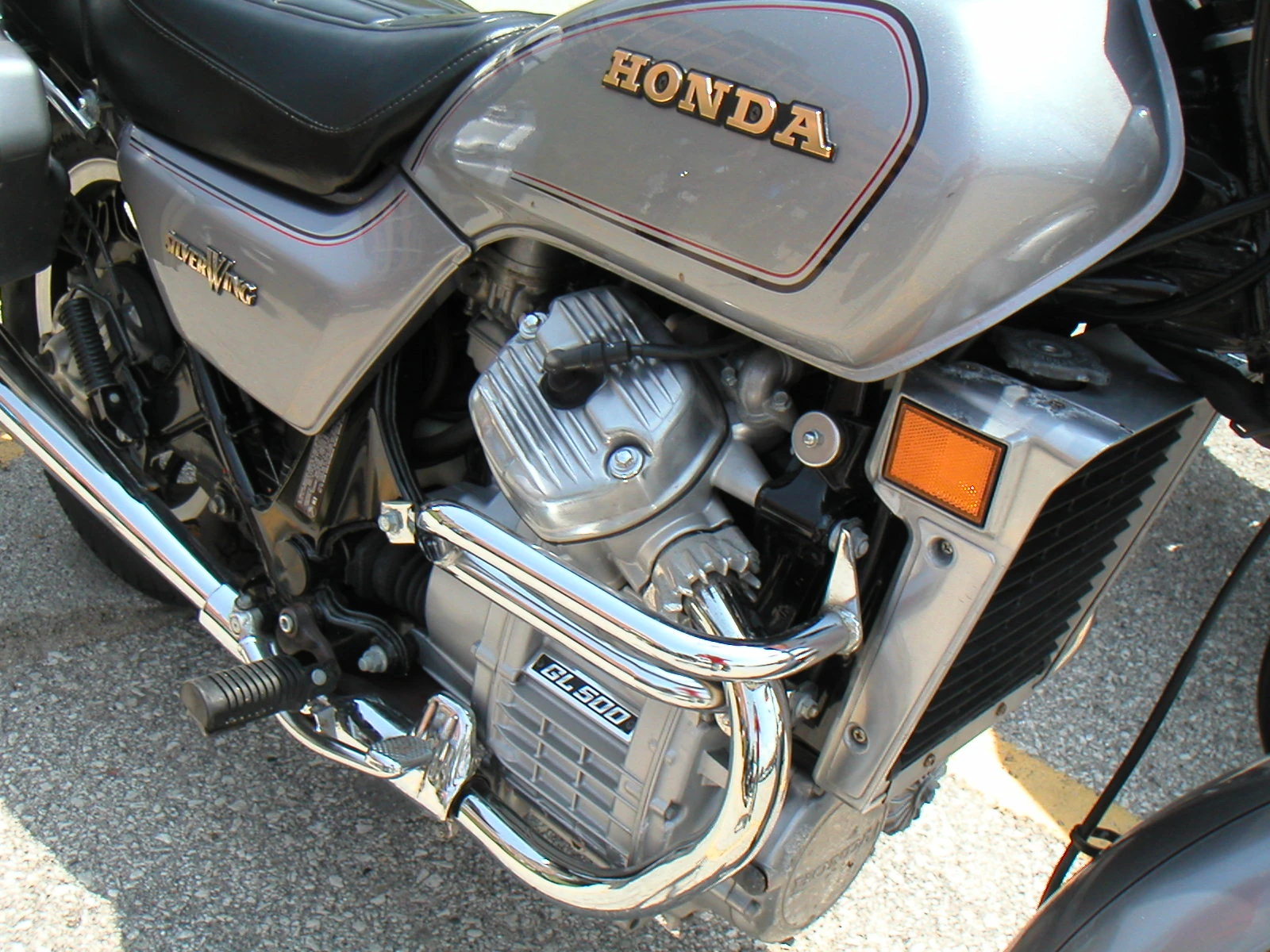

  Honda GL500 Silver Wing with a longitudinally mounted V- twin. |

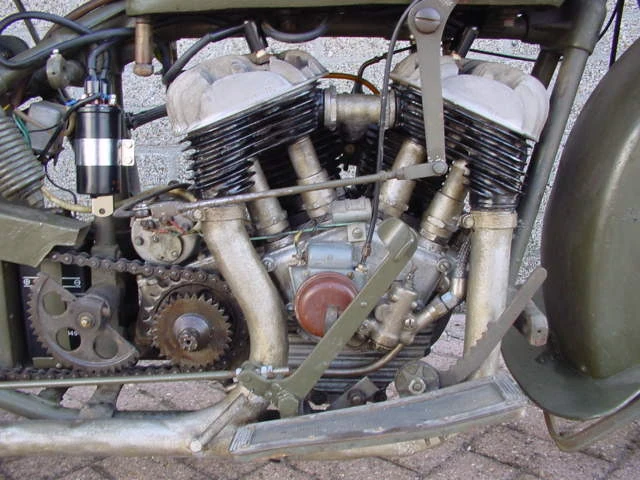

  Sokół transversely mounted V-twin. |
.jpg){kind=link}
A V-twin engine is a two-cylinder internal combustion engine where the cylinders are arranged in a V configuration.
Configurations[]
Crankshaft configuration[]
Most V-twin engines have a single crankpin, which is shared by both connecting rods. The connecting rods may sit side-by-side (so the cylinders are offset), or they may be "fork & blade" items which have the same plane (whereby the cylinders are not offset).
Some notable exceptions include the Moto Guzzi 500cc (with 120° V angle and 180° crank pin offset) that Stanley Woods rode to win the 1935 Isle of Man TT;[1] the 1983 Honda Shadow 750, claimed as being the first V-twin with an offset-dual-pin crankshaft;[2] and the 1987 Suzuki VX 800, 45° V angle with 45° crank pin offset in USA and 75° crank pin offset for the rest of the world.[3]
V angles[]
Generally, any two-cylinder motorcycle engine with its two cylinders arranged more than 0° and less than 180° apart is referred to as a V-twin. Although Ducati use the name "L-twin" for their 90° twin engine (with its front cylinder nearly horizontal and the rear cylinder almost vertical), there is no technical distinction between V-twin and L-twin engines; and these are merely names used by convention.
A 90° V-twin will, with a correct counterweight, yield perfect primary and secondary balance,[4] and although its firing intervals are uneven, they are not unpleasant.[citation needed] A V-twin with an angle of less than 90° is more compact and has more even firing intervals, but has significantly poorer mechanical balance. Offset crankpins are sometimes used to reduce the resulting vibration.[4]
| V angle | Examples |
|---|---|
| 26° | Matchless Silver Arrow |
| 42° | Indian Powerplus, Chief, Scout |
| 45° | Crocker Motorcycles Harley-Davidson Sokół 1000 Suzuki VX800, Boulevard C50, Boulevard C90, Boulevard S50, Boulevard S83 |
| 47.5° | Vincent Rapide Series A |
| 48° | Yamaha MT-01, XV1600, XV1700 |
| 50° | AJS S3 BSA Model E, G14, Y13 Husqvarna Motorcycles Brough Superior SS100 (JAP engine) Kawasaki Vulcan 1500, 1600 Matchless Model X Victory Motorcycles Vincent Rapide Series B, C |
| 52° | Honda Shadow, Transalp, Deauville, XRV750 Africa Twin Kawasaki Vulcan 1700 & 2000 |
| 54° | Suzuki Boulevard C109R, Boulevard M50, Boulevard M90, Boulevard M109R |
| 55° | Kawasaki Vulcan 800, 900 |
| 56.25° | S&S X-Wedge Engine |
| 60° | Britten V1000 Harley-Davidson VRSC Highland Motorcycles Aprilia RSV Mille, Tuono (Rotax engines) Yamaha XV250, XVS250 |
| 70° | Suzuki RGV250(VJ23) Yamaha XVS650 |
| 72° | Moto Morini 350, 500 1125R (Rotax engine) Voxan |
| 75° | Hyosung GT250, GV250 KTM 1190 RC8 Yamaha TR1, Virago, XVS1100 |
| 77° | Aprilia RXV/SXV |
| 80° | Honda CX series Rotax 810, 660, 490 |
| 87° | Moto Morini Corsaro 1200[5] |
| 90° | Aprilia RS250, SL 750 Shiver, NA 850 Mana Bimota V Due Briggs & Stratton Cagiva Ducati Folan 290 Gilera GP 800 Hesketh V1000 Honda VTR250, VTR1000, XL1000V & XL125V Varadero Hyosung GT650, GV650 Kawasaki Prairie 650, V-Force Mazda Moto Guzzi Suzuki RGV250(VJ21&VJ22), SV650, SV1000, TL1000, V-Strom |
| 120° | 1934 Moto Guzzi 500cc |
| 170° | Zündapp KS 601 |
Orientations[]
The terms longitudinal engine and transverse engine are most often used to refer to the crankshaft orientation,[6][7] however, some sources, most prominently Moto Guzzi, use the terminology in the opposite way.
A Moto Guzzi Technical Services representative tried to explain to LA Times columnist Susan Carpenter that Moto Guzzi engines are "called 'transverse' because the engine is mounted with the crankshaft oriented front to back instead of left to right."[8] In spite of this, it is could be assumed that those who call V-twin motorcycle engines "transverse" when they are mounted with the crankshaft front-to-back and the cylinders sticking out the sides are saying that to them, the engine's axis is the line passing from one cylinder to the other, at a right angle to the crankshaft, rather than going by the crankshaft's axis.[9] Highly technical sources, such as V. Cossleter's Motorcycle Dynamics, or Gaetaeno Cocco's Motorcycle Design and Technology are careful not simply to use the terms "longitudinal engine" or "transverse engine," but rather to specify that they mark the engine's orientation based on the crankshaft, and so they will say "transverse crankshaft engine" or "longitudinal crankshaft engine",[6][10] or, conversely, "transversely mounted cylinders" in referenced to the classic BMW orientation, with a longitudinal crankshaft and cylinders at a right angle to the axis of the frame.[11]
Transverse crankshaft mounting[]
 |
This section does not cite any references or sources. Please help improve this article by adding citations to reliable sources. Unverifiable material may be challenged and removed. (August 2010) |
The engine can be mounted in transverse crankshaft position as on Harley-Davidsons, Ducatis and many recent Japanese motorcycles. This layout produces a twin cylinder motorcycle engine that is little or no wider than a single. A narrower engine can be mounted lower in the frame with handling benefits. A significant disadvantage of this configuration for air-cooled engines is that the two cylinders receive different air-flows and cooling of the rear cylinder tends to be restricted. Cooling problems are somewhat mitigated by having all "four" sides of each cylinder exposed to air flow. This differs from a parallel-twin cylinder engine which has a distinct front, back, and sides, but the inside of each cylinder is not exposed to airflow as the cylinders are typically joined together with a cam chain running up through the block in-between the cylinders.
Some transverse V-twins create further cooling problems for themselves by placing the hot exhaust port (and pipe) of the rear cylinder towards the back of the motorcycle. The advantage of this arrangement is that the two cylinders can share their carburettor, further contributing to the essentially low power nature of this set-up.
Longitudinal crankshaft mounting[]
The longitudinal crankshaft two-cylinder V as seen on Moto-Guzzis and some Hondas is less common. This orientation is suited to shaft drive, eliminating the need for a 90° bevel gear at the transmission end of the shaft. A longitudinal crankshaft engine fits neatly into a typical motorcycle frame, leaving ample room for the transmission, and cooling is facilitated by cylinder heads and exhausts protruding into the air stream.[12] Longitudinal crankshaft mounting is associated with a torque reaction that tends to twist the motorcycle to one side on sharp acceleration or when opening the throttle in neutral and in the opposite direction on sharp deceleration. Many modern motorcycle manufacturers correct for this effect by rotating flywheels or alternators in the opposite direction to that of the crankshaft.[13][14]
Automobile use[]
BSA made a V-twin car starting in 1921, then introduced a three-wheeler in 1929.[15]
V-twin engines, adapted from motorcycles, were featured in Morgan three-wheelers made from 1911 to 1939. A number of Morgan-inspired models are produced today including the Triking Cyclecar, which uses a Moto-Guzzi V-twin;[16] the Ace Cycle Car, which uses a V-twin Harley-Davidson engine;[17] and the JZR which uses engines from the Honda CX series.[18]
Mazda made 356 cc and 571 cc V-twins beginning in 1960 for the Mazda R360.[19][20]
Commercial use[]
Commercial equipment such as pressure washers, lawn and garden tractors, tillers, generators and water pumps use V-twin engines when that equipment is large enough to need more power, usually in excess of 16 horsepower, than can be provided by a single-cylinder engine. These V-twin engines have horizontal or vertical crankshafts, usually have 90-degree crankshaft angles, and are usually forced-air–cooled. The V-twin configuration gives these engines a smaller footprint and less vibration, in the absence of balancing shafts, than other two-cylinder configurations.
Manufacturers of such engines include Honda with its V-twin series engines;[21] Kawasaki with its FD, FH, FS, and FX series;[22] Subaru with its EH series;[23] Briggs & Stratton with its Professional and Intek V-twin Series;[24] Tecumseh with its OV691EA and TVT691 engines;[25] and Kohler.[26]
