Triumph Spitfire
1974 Triumph Spitfire4
Manufacturer Standard Motor Company[1]
Triumph Motor Company (Leyland Motors)
Production 1962–1980
Assembly Canley, Coventry, England
Australia [2]
Body style(s) 2-seat sports convertible
Layout FR layout
Wheelbase 83 in (2,108 mm)
Length 145 in (3,683 mm)
Width 57 in (1,448 mm)
Height 48 in (1,219 mm) hood up.
Curb weight 1,568 lb (711 kg) to 1,750 lb (790 kg) (unladen U.K.spec)
Related Triumph Herald, Triumph Vitesse, Triumph GT6
Designer Giovanni Michelotti

The Triumph Spitfire is a small English two-seat sports car, introduced at the London Motor Show in 1962.[3] The vehicle was based on a design produced for Standard-Triumph in 1957 by Italian designer Giovanni Michelotti. The platform for the car was largely based upon the chassis, engine, and running gear of the Triumph Herald saloon, and was manufactured at the Standard-Triumph works at Canley, Coventry. As was typical for the manufacture of cars in this era, the bodywork was fitted onto a separate structural chassis, but for the Spitfire, being designed as an open top or convertible sports car from the outset, the ladder chassis was reinforced for additional rigidity by the use of structural components within the bodywork. The Spitfire was provided with a manual hood for weather protection, the design improving to a folding hood for later models. In addition factory manufactured hard-tops could also be purchased and fitted for use in winter months.

Models[]

Five separate Spitfire models were sold during the production run:

Model name Engine Year Number built
Triumph Spitfire 4 (Mark 1) 1147 cc inline 4 Oct 1962 – Dec 1964 45,753[1]
Triumph Spitfire 4 Mark 2 1147 cc inline 4 Dec 1964 – Jan 1967 37,409[1]
Triumph Spitfire Mark 3 1296 cc inline 4 Jan 1967– Dec 1970 65,320[1]
Triumph Spitfire Mark IV 1296 cc inline 4 Nov 1970 – Dec 1974 70,021[1]
Triumph Spitfire 1500 1493 cc inline 4 Dec 1974 – Aug 1980 95,829[1]

Origins[]

The Triumph Spitfire was originally devised by Standard-Triumph to compete in the small sports car market which had opened up with the introduction of the Austin-Healey Sprite. The Sprite had used the basic drive train of the Austin A30/35 in a light body to make up a budget sports car; Triumph's idea was to use the mechanicals from their small saloon, the Herald, to underpin the new project. Triumph had one advantage, however; where the Austin A30 range was of unitary construction, the Herald featured a separate chassis. It was Triumph's intention to cut that chassis down and clothe it in a sports body, saving the costs of developing a completely new chassis / body unit.

Italian designer Michelotti—who had already penned the Herald—was commissioned for the new project, and came up with a traditional, swooping body. Wind-up windows were provided (in contrast to the Sprite/Midget, which still featured sidescreens, also called curtains, at that time), as well as a single-piece front end which tilted forwards to offer unrivalled access to the engine. At the dawn of the 1960s, however, Standard-Triumph was in deep financial trouble, and unable to put the new car into production; it was not until the company was taken over by the Leyland organisation funds became available and the car was launched. Leyland officials, taking stock of their new acquisition, found Michelotti's prototype hiding under a dust sheet in a corner of the factory and rapidly approved it for production.

Spitfire 4 or Mark I[]

Triumph Spitfire 4 (Mark I)

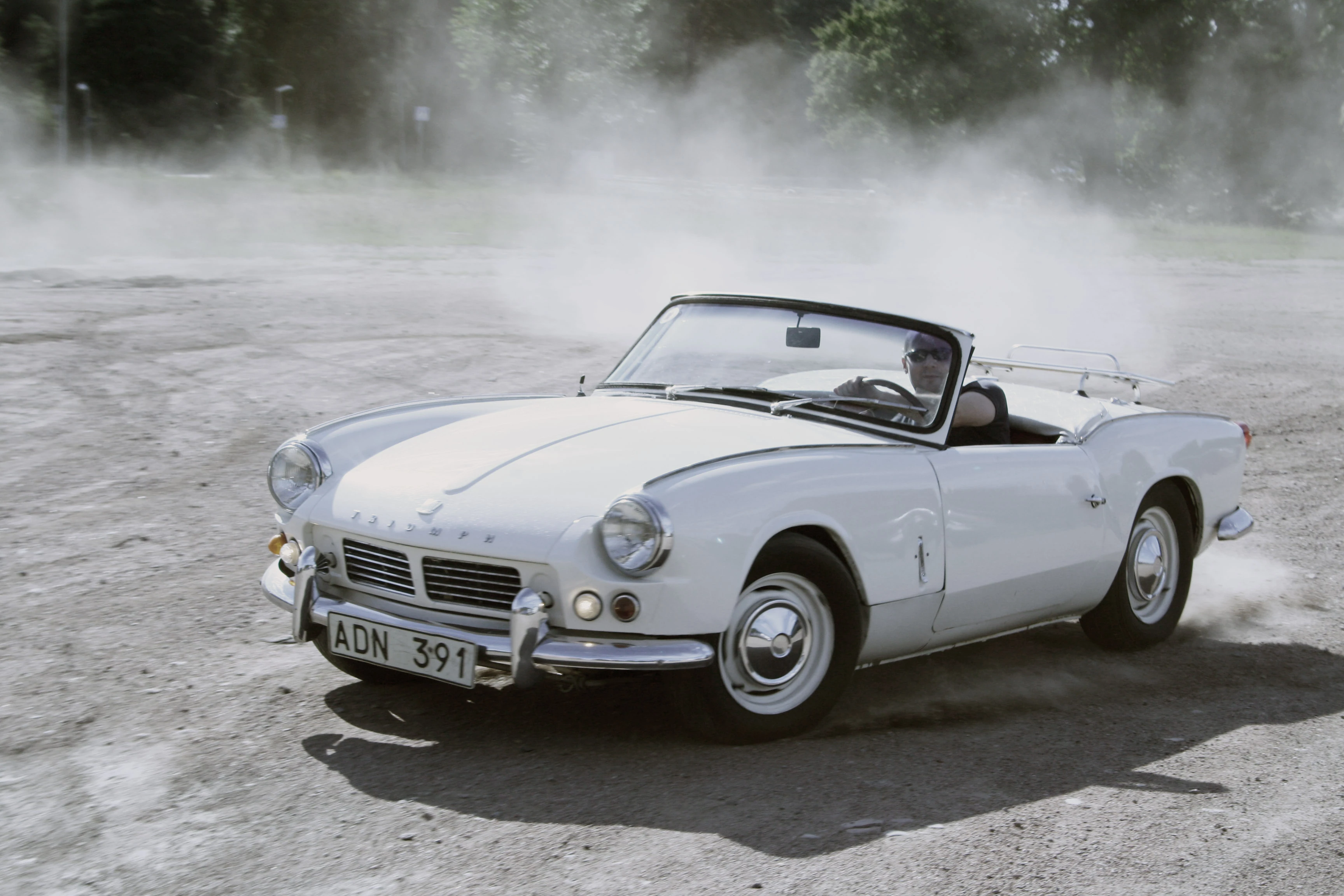

Triumph Spitfire (Ottawa British Car Show '10)
Production 1962–1964
45,753 made
Engine(s) 1,147 cc (1.1 l) I4
Transmission(s) 4-speed manual with optional overdrive on top and third from 1963 onwards
Curb weight 1,568 lb (711 kg) (unladen U.K.-spec)

The production car changed little from the prototype, although the full-width rear bumper was dropped in favour of two part-bumpers curving round each corner, with overriders. Mechanicals were basically stock Herald. The engine was an 1,147 cc (1.1 l) 4-cylinder with a pushrod OHV cylinder head and 2 valves per cylinder, mildly tuned for the Spitfire, fed by twin SU carburettors. Also from the Herald came the rack and pinion steering and coil-and-wishbone front suspension up front, and at the rear a single transverse-leaf swing axle arrangement. This ended up being the most controversial part of the car: it was known to "tuck in" and cause violent over steer if pushed too hard, even in the staid Herald. In the sportier Spitfire (and later the 6-cylinder Triumph GT6 and Triumph Vitesse) it led to severe criticism. The body was bolted to a much-modified Herald chassis, the outer rails and the rear outriggers having been removed; little of the original Herald chassis design was left, and the Spitfire used structural outer sills to stiffen its body tub.

The Spitfire was an inexpensive small sports car and as such had very basic trim, including rubber mats and a large plastic steering wheel. These early cars were referred to both as "Triumph Spitfire Mark I" and "Spitfire 4",[1] not to be confused with the later Spitfire Mark IV.

In UK specification the in-line four produced 63 bhp (47 kW) at 5750 rpm, and 67 lb·ft (91 N·m)of torque at 3500 rpm. This gave a top speed of 92 mph (148 km/h), and would achieve 0 to 60 mph (97 km/h) in 17.3 seconds. Average fuel consumption was 31mpg.[1]

For 1964 an overdrive option was added to the 4-speed manual gearbox to give more relaxed cruising.[3] Wire wheels and a hard top were also available.[3]

Spitfire Mark II[]

Triumph Spitfire Mark II

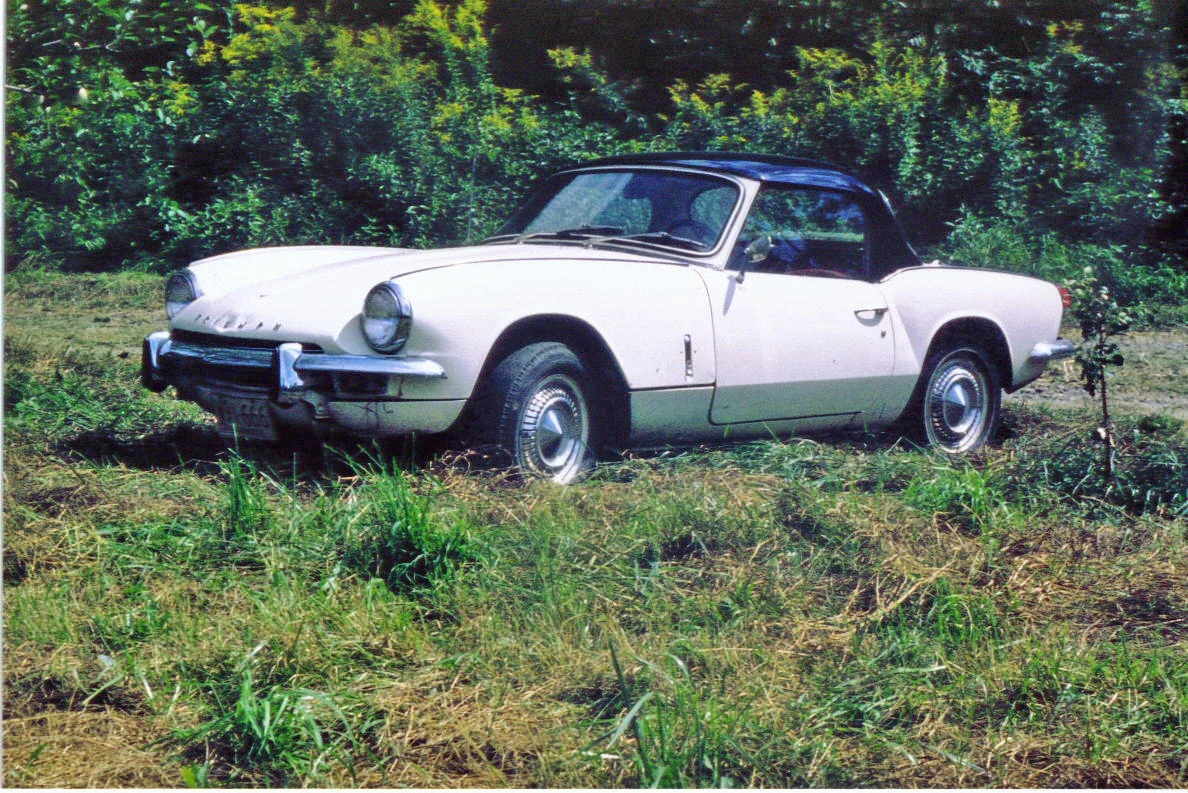

1965TriumphSpitfire
Production 1965–1967
37,409 made
Engine(s) 1,147 cc (1.1 l) I4
Transmission(s) 4-speed manual with optional overdrive on top and third
Curb weight 1,568 lb (711 kg)(unladen U.K.spec)

In March 1965 the Spitfire Mark II was launched. It was very similar to the Mark I but featured a more highly tuned engine, through a revised camshaft design, a water-cooled intake manifold, and tubular exhaust manifold, increasing the power to 67 bhp (50 kW) at 6000 rpm.[1] The coil-spring design clutch of the Mark I was replaced with a Borg and Beck diaphragm spring clutch. The exterior trim was modified with a new grille and badges. The interior trim was improved with redesigned seats and by covering most of the exposed surfaces with rubber cloth. The original moulded rubber floor coverings were replaced with moulded carpets.[1]

It was introduced at a base price of £550, compared to the Sprite's £505 and the Midget's £515.[1] Top speed was claimed to be 96 mph (154 km/h) and its 0–60 mph time of 15.5 seconds was considered "lively".[1] The factory claimed that at highway speeds (70 mph (110 km/h)) the car achieved 38.1 miles per imperial gallon (7.41 L/100 km/31.7 mpg-US).[1]

Spitfire Mark III[]

Triumph Spitfire Mark III
1968 Triumph Spitfire Mk III
Production 1967–1970
65,320 made
Engine(s) 1,296 cc (1.3 l) I4
Transmission(s) 4-speed manual with optional overdrive on top and third
Curb weight 1,568 lb (711 kg)(unladen U.K.spec)

The Mark III, introduced in March 1967, was the first major facelift to the Spitfire. The front bumper was raised in response to new crash regulations, and although much of the bonnet pressing was carried over, the front end looked quite different. The rear lost the overriders from the bumper but gained reversing lights as standard (initially as two separate lights on either side of the number plate, latterly as a single light in a new unit above the number plate); the interior was improved again with a wood-veneer instrument surround. A folding hood replaced the earlier "build it yourself" arrangement. For most of the Mark III range, the instrument cluster was still centre-mounted (as in the Mark I and Mark II) so as to reduce parts bin counts (and thereby production costs) for right-hand and left-hand drive versions.

The 1147 cc engine was replaced with a bored-out 1296 cc unit (the bore increasing from 69.3 mm (2.73 in) to 73.7 mm (2.90 in), stroke retained at 76 mm (3.0 in)), as fitted on the new Triumph Herald 13/60 and Triumph 1300 saloons. In SU twin-carburettor form, the engine put out a claimed 75 bhp (56 kW), and 75 lb·ft (102 N·m) of torque at 4000 rpm, and made the Mark III a comparatively quick car by the standards of the day.[citation needed] Popular options continued to include wire wheels, a hard top and a Laycock de Normanville overdrive, and far more relaxed and economical cruising at high speeds. The Mark III was the fastest Spitfire yet, achieving 60 mph (97 km/h) in 14.5 seconds,[1] and reaching a top speed of 95 mph (153 km/h). Average fuel consumption was improved slightly at 33mpg.[1] The Mark III actually continued production into 1971, well after the Mark IV was introduced.[1]

On 8 February 1968, Standard-Triumph General Manager George Turnbull personally drove the 100,000th| Triumph Spitfire off the end of the Canley production line.[4] More than 75% of the total production had been exported outside the UK, including 45% to the USA and 25% to mainland European markets.[4]

Starting in 1969, however, US-bound models had to be changed to comply with new safety/emission regulations; models produced after 1969 are sometimes referred to as "federal" Spitfires. The changes included a slight decrease in power (68 bhp) due to emissions control, the instrument panel was moved in front of the driver, and new seats were introduced with integrated headrests to help against whiplash. Also the wood dash was replaced with a matte black finish.

Spitfire Mark IV[]

Triumph Spitfire Mark IV
Triumph Spitfire Mark IV - 1972
Production 1970–1974
70,021 made
Engine(s) 1,296 cc (1.3 l) I4
Transmission(s) 4-speed manual with optional overdrive on top and third
Curb weight 1,717 lb (779 kg)(unladen UK spec)

The Mark IV brought the most comprehensive changes to the Spitfire. It featured a completely re-designed cut-off rear end, giving a strong family resemblance to the Triumph Stag and Triumph 2000 models, both of which were also Michelotti-designed. The front end was also cleaned up, with a new bonnet pressing losing the weld lines on top of the wings from the older models, and the doors were given recessed handles and squared-off glass in the top rear corner. The interior was much improved: a proper full-width dashboard was provided, putting the instruments ahead of the driver rather than over the centre console. This was initially black plastic however was replaced with wood in 1973.

The engine continued at 1296 cc, but in 1973 was modified with larger big-end bearings to rationalise production with the TR6 2.5 litre engines, which somewhat decreased its "revvy" nature; there was some detuning, to meet new emissions laws, which resulted in the new car being a little tamer than the Mark III. Peak power was reduced to 63 bhp (47 kW) at 6000 rpm, and the peak torque was now 69 lb·ft (94 N·m) at 3500 rpm.[1] With the overall weight also increasing to 1,717 lb (779 kg) the performance dropped as a consequence, 0 to 60 mph (97 km/h) now being achieved in 16.2 seconds and the top speed reducing to 90 mph (140 km/h).[1] The overall fuel economy also dipped to 32mpg.[1] The gearbox gained synchromesh on its bottom gear.

An all-new hardtop was also available, with rear quarter-lights and a flatter rear screen.

By far the most significant change, however, was to the rear suspension, which was de-cambered and redesigned to eliminate the unfortunate tendencies of the original swing-axle design. The Triumph GT6 and Triumph Vitesse had already been modified, and the result on all these cars was safe and progressive handling even at the limit.

The Mark IV went on sale in the UK at the end of 1970 with a base price of £735.[1]

Spitfire 1500[]

Triumph Spitfire 1500

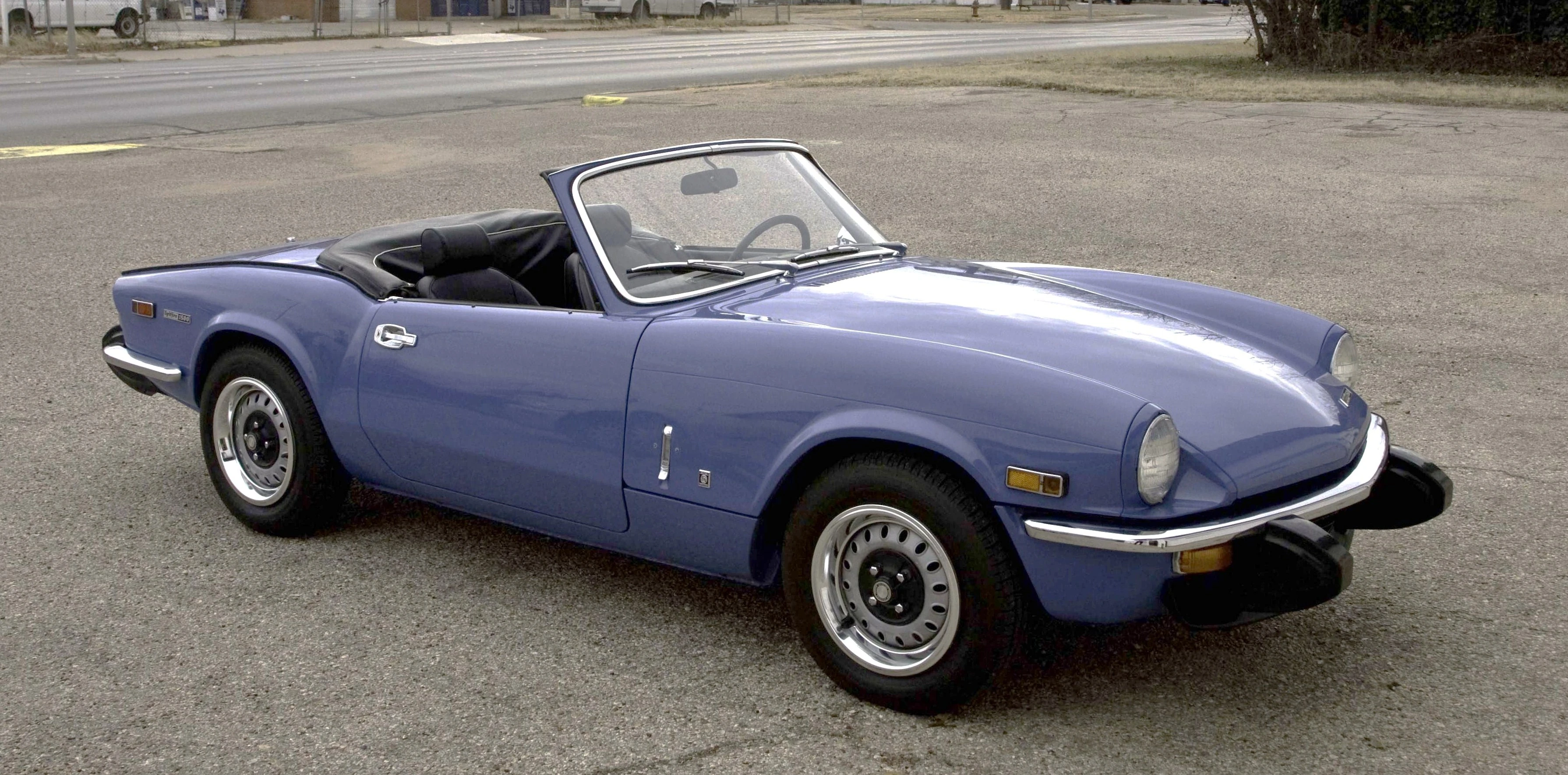

1980 Triumph Spitfire 1500 Heritage Motor Centre, Gaydon
Production 1974–1981
95,829 made
Engine(s) 1,493 cc (1.5 l) I4
Transmission(s) 4-speed manual with optional overdrive on top and third
Curb weight 1,750 lb (790 kg)(unladen U.K.-spec)

In 1973 in the United States and Canada, and 1975 in the rest of the world, the 1500 engine was used to make the Spitfire 1500. Although in this final incarnation the engine was rather rougher and more prone to failure than the earlier units, torque was greatly increased by increasing the cylinder stroke to 87.5 mm (3.44 in), which made it much more drivable in traffic.[1] The reason for the engine problems was the continued use of three main bearings for the crankshaft.[citation needed]

While the rest of the world saw 1500s with the compression ratio reduced to 8.0:1, the American market model was fitted with a single Zenith-Stromberg carburettor and a compression ratio reduced to 7.5:1 to allow it to run on lower octane unleaded fuel,[1] and after adding a catalytic converter and exhaust gas recirculating system, the engine only delivered 53 bhp (40 kW) with a fast 0–60 time of 14.3 seconds.[5] The notable exception to this was the 1976 model year, where the compression ratio was raised to 9.1:1. This improvement was short-lived, however, as the ratio was again reduced to 7.5:1 for the remaining years of production.

In the UK the 9:1 compression ratio, less restrictive emissions control equipment, and the Type HS2 SU carburettors now being replaced with larger Type HS4 models,[1] led to the most powerful variant to date. The 1500 Spitfire now produced 71 bhp (53 kW) at 5500 rpm, and produced 82 lb·ft (111 N·m) of torque at 3000 rpm.[1] Top speed was now at the magical 100 mph (160 km/h) mark, and 0 to 60 mph (97 km/h) was reached in 13.2 seconds.[1] Fuel economy was reduced to 29mpg.[1]

The American market Spitfire 1500 is easily identified by the big plastic over-riders and wing mounted reflectors on the front and back wings. The US specification models up to 1978 still had chrome bumpers, but on the 1979 and 1980 models these were replaced by black rubber bumpers with built-in over-riders. Chassis extensions were also fitted under the boot to support the bumpers.

Detail improvements continued to be made throughout the life of the Mark IV, and included reclining seats with "chequered brushed nylon centre panels" and head restraints, introduced for domestic market cars early in 1977 along with a new set of column stalk operated minor controls (as fitted already in the TR7) replacing the old dashboard mounted knobs and switches.[6] Also added for the model's final years were a wood dash, hazard flashers and an electric screen washer, in place of the previous manual pump operated ones.[6] Options such as the hard top, tonneau cover, map light and overdrive continued to be popular, but wire wheels ceased to be available.

The 1980 model was the last and the heaviest of the entire run weighing in at 1,875 lb (850.5 kg).[1] Base prices for the 1980 model year were $5,995 in the US and £3,631 in the UK.[1] The last Spitfire, an Inca Yellow UK-market model with hardtop and overdrive, rolled off the assembly line at Canley in August 1980, shortly before the factory closed. It was never sold and is now displayed at the British Motor Heritage museum at Gaydon.

Die-Cast models[]

  • Dinky Toys produced a model of the Spitfire 4 in the 1960s
  • Lledo Vanguards produced models of both the Spitfire 4 and the Mark 3 in the 2000s
  • Vitesse produced a model of the Mark IV in the 2000s
  • Sun Star produced a 1:18 scale die-cast model of a 1970 MkIV Spitfire in the 2000s
  • Minichamps produced a 1:43 Spitfire 1500 in both Green and Mimosa Yellow
  • A 1:18 scale die-cast model of a MkIV Spitfire has also been produced under the label Chrono. Possibly the same die-cast, released by Sun Star under a different name.

Gallery[]

Preservation[]

List known surviving examples here;

Template:PML Triumph Spitfire

See also[]

References[]

  1. 1.00 1.01 1.02 1.03 1.04 1.05 1.06 1.07 1.08 1.09 1.10 1.11 1.12 1.13 1.14 1.15 1.16 1.17 1.18 1.19 1.20 1.21 1.22 1.23 1.24 1.25 1.26 1.27 Robson, Graham (1982). Triumph Spitfire and GT6. London: Osprey Publishing Ltd, 187. ISBN 0-85045-452-2.
  2. SPITTY TIPS — 19. Australian Spitfire Colours Retrieved on 30 March 2012
  3. 3.0 3.1 3.2 "Used car test: 1970 Triumph Spitfire Mk.3", Autocar 138 (nbr 4022): 26–27. 28 June 1973.
  4. 4.0 4.1 "News and views: 100,000 Triumph Spitfires", Autocar 128 (nbr 3757): page 58. 15 February 1968.
  5. "Triumph Spitfire: Still attractive after all these years", Sports & GT cars. 1980
  6. 6.0 6.1 "Motorweek:New Models ... Spitfire", Motor: 2. 5 March 1977.

Further reading[]

  • Peter G. Strasman and J.H. Haynes. (1987). Triumph Spitfire owner's workshop manual. Haynes. ISBN 1-85010-022-5.
  • Porter, Lindsay (1988). Triumph Spitfire, GT6, Herald Vitesse: Guide to Purchase and D.I.Y. Restoration. G T Foulis. ISBN 0-85429-583-6.
  • British Leyland (1992). Competition Preparation Manual, reprint, Brooklands Books. ISBN 1-870642-60-0.
