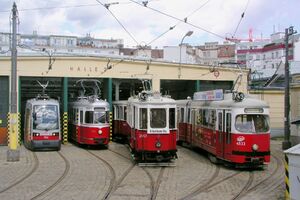

Trams in Vienna, one of the largest existing networks in the world

Three rail tracks 350
Rail transport
Operations
Track
Maintenance
High-speed
Gauge
Stations
Trains
Locomotives
Rolling stock
Railways
History
Attractions
Terminology
By country
Accidents

Modelling

This box: view · talk · edit

A tram (also known as a tramcar; a streetcar or street car; and a trolley, trolleycar, or trolley car) is a passenger rail vehicle which runs on tracks along public urban streets and also sometimes on separate rights of way. Trams powered by electricity, which were the most common type historically, were under the classification of electric street railways. Trams also include horse railways which were widely used in urban areas before electrification.

Trams may also run between cities and/or towns (interurbans, tram-train), and/or partially grade separated even in the cities (light rail). Trams very occasionally also carry freight.

Trams are usually lighter and shorter than conventional trains and rapid transit trains. However, the differences between these modes of public transportation are often unclear. Some trams (for instance tram-trains) may also run on ordinary railway tracks, a tramway may be upgraded to a light rail or a rapid transit line, two urban tramways may be united to an interurban, etc.

Most trams today use electrical power, usually fed by a pantograph; in some cases by a sliding shoe on a third rail or trolley pole. If necessary, they may have several power systems. Certain types of cable car are also known as trams. Another power source is diesel; a few trams use electricity in the streets and diesel in more rural environments. Steam, petrol (gasoline), gas and animals have historically been used as power sources. Horse and mule driven trams do still occur.

Tramways are now included in the wider term "light rail",[citation needed] which also includes segregated systems. Some systems have both segregated and street-running sections, but are usually then referred to as trams, because it is the equipment for street-running which tends to be the decisive factor. Vehicles on wholly segregated light rail systems are generally called trains, although cases have been known of "trains" built for a segregated system being sold to new owners and becoming "trams".

Etymology and terminology[]

Main article: Passenger rail terminology

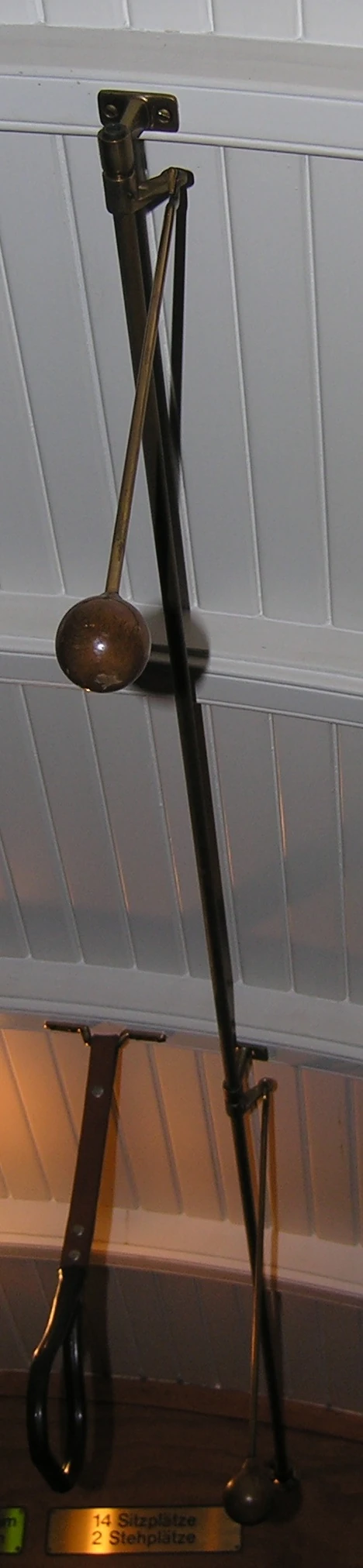

Tramstopsignal

Old tram stop on-demand notifier

The terms tram and tramway were originally (ca. 1500) Scottish words for the type of truck used in coal mines and the tracks on which they ran, probably derived from Middle Flemish tram "beam, handle of a barrow, bar, rung", a North Sea Germanic word of unknown origin meaning the beam or shaft of a barrow or sledge, also the barrow itself. Tram-car is attested from 1873.[1]

Although tram and tramway have been adopted by many languages, they are not used universally in English; North Americans prefer trolley, trolleycar or streetcar. The term streetcar is first recorded in 1840. When electrification came, Americans began to speak of trolleycars or later, trolleys, believed to derive from the troller, a four-wheeled device that was dragged along dual overhead wires by a cable that connected the troller to the top of the car and collected electrical power from the overhead wires, sometimes simply strung, sometimes on a catenary.[2] The trolley pole, which supplanted the troller early on, is fitted to the top of the car and is spring-loaded in order to keep the trolley wheel or alternately, a grooved lubricated "skate", at the top of the pole, firmly in contact with the overhead wire. The terms trolley pole and trolley wheel both derive from the troller.[3] Trams using trolley-pole current collection are normally powered through a single pole, grounded through the wheels and rails. The motor circuit is designed to allow electrical current to flow through the underframe. Although this use of "trolley" for tram was not adopted in Europe, the term was associated with "trolleybus": a rubber-tyred vehicle without tracks, which draws its power from overhead wires.

Modern trolley cars often use a metal shoe with a carbon insert instead of a trolley wheel, or have a pantograph. In North America, trams are sometimes called trolleys, even though strictly this may be incorrect: for example, cable cars, or conduit cars that draw power from an underground supply.

Tourist buses made to look like streetcars are sometimes called trolleys in the U.S. (tourist trolley). Open, low-speed segmented vehicles on rubber tires, generally used to ferry tourists short distances, can be called trams, for example on the Universal Studios backlot tour.

Electric buses, which use twin trolley poles (one for live current, one for return) but have wheels with tyres rolling on a hard surface rather than tracks, are called trolleybuses, trackless trolleys (particularly in the Northeastern U.S.), or sometimes (in the UK, as well as in Seattle and Vancouver) simply trolleys.

History[]

Main article: History of trams

Technical developments[]

Horse-drawn[]

Main article: Horsecar

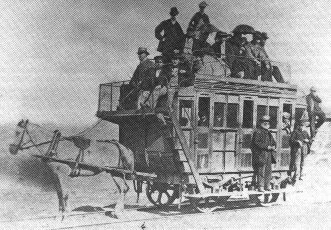

Horsetrain1870

The Welsh Swansea and Mumbles Railway ran the world's first passenger tram service

Nuvola apps kview External images
Searchtool Watch video of horse tram in Belfast in 1901

The very first tram was on the Swansea and Mumbles Railway in south Wales, UK; it was horse-drawn at first, and later moved by steam and electric power. The Mumbles Railway Act was passed by the British Parliament in 1804, and the first passenger railway (similar to streetcars in the US some 30 years later) started operating in 1807.[4] The first streetcars, also known as horsecars in North America, were built in the United States and developed from city stagecoach lines and omnibus lines that picked up and dropped off passengers on a regular route without the need to be pre-hired. These trams were an animal railway, usually using teams of horses and sometimes mules to haul the cars, usually two as a team. Occasionally other animals were put to use, or humans in emergencies. The first streetcar line, developed by Irish-American John Stephenson, was the New York and Harlem Railroad's Fourth Avenue Line which ran along the Bowery and Fourth Avenue in New York City. Service began in 1832. It was followed in 1835 by New Orleans, Louisiana, which has the oldest continuously operating street railway system in the world, according to the American Society of Mechanical Engineers.[5]

First Horsecar in Manchester, NH

Manchester, New Hampshire's first horsecar, dating from 1877, and on display about 1908

These early forms of public transport developed out of industrial haulage routes or from the omnibus that first ran on public streets, using the newly invented iron or steel rail or 'tramway'. These were local versions of the stagecoach lines and picked up and dropped off passengers on a regular route, without the need to be pre-hired. Horsecars on tramlines were an improvement over the omnibus as the low rolling resistance of metal wheels on iron or steel rails (usually grooved from 1852 on), allowed the animals to haul a greater load for a given effort than the omnibus and gave a smoother ride. The horse-drawn streetcar combined the low cost, flexibility, and safety of animal power with the efficiency, smoothness, and all-weather capability of a rail right-of-way.

Steam[]

Main article: Tram engine
Staz sancasciano

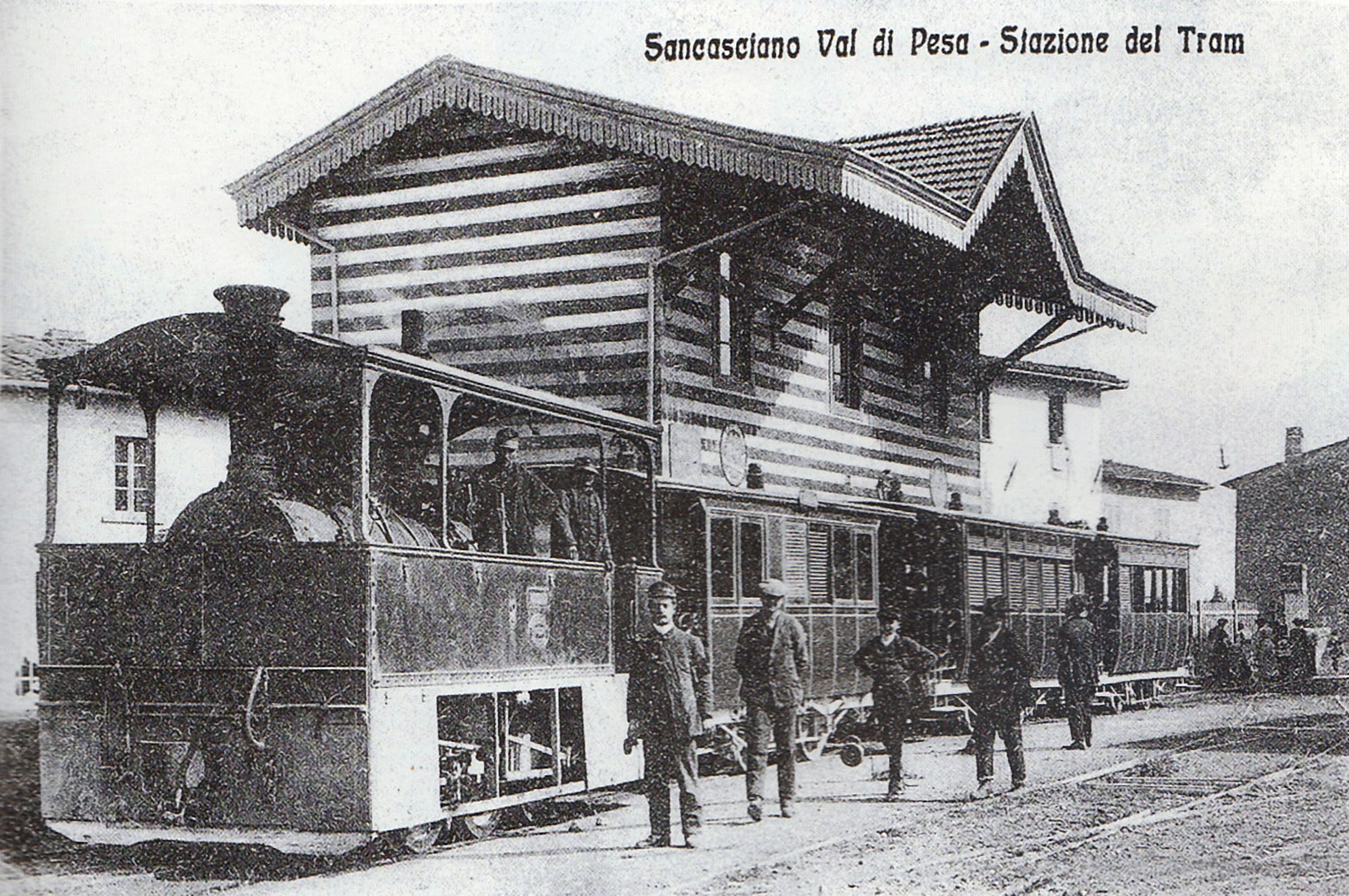

Steam hauled tram in Italy c 1890s

The first mechanical trams were powered by steam. Generally, there were two types of steam tram. The first and most common had a small steam locomotive (called a tram engine in the UK) at the head of a line of one or more carriages, similar to a small train. Systems with such steam trams included Christchurch, New Zealand; Sydney, Australia; other city systems in New South Wales; Munich, Germany (from August 1883 on)[6] and the Dublin & Blessington Steam Tramway in Ireland. Steam tramways also were used on the suburban tramway lines around Milan; the last Gamba de Legn ("Peg-Leg") tramway ran on the Milan-Magenta-Castano Primo route in late 1958.[citation needed]

Tram engines usually had modifications to make them suitable for street running in residential areas. The wheels, and other moving parts of the machinery, were usually enclosed for safety reasons and to make the engines quieter. Measures were often taken to prevent the engines from emitting visible smoke or steam. Usually the engines used coke rather than coal as fuel to avoid emitting smoke. And condensers or superheating were used to avoid emitting visible steam.

The other style of steam tram had the steam engine in the body of the tram, referred to as a tram engine or steam dummy. The most notable system to adopt such trams was in Paris. French-designed steam trams also operated in Rockhampton, in the Australian state of Queensland between 1909 and 1939. Stockholm, Sweden, had a steam tram line at the island of Södermalm between 1887 and 1901. A major drawback of this style of tram was the limited space for the engine, so that these trams were usually underpowered.

Cable-hauled[]

Main article: Cable car (railway)
11 Cable Car on Powell St crop, SF, CA, jjron 25.03

A San Francisco cable car: a cable pulled system, still operating as of 2012

The next type of tram was the cable car, pulled along a track by a moving cable. The power to move the cable is normally provided at a site away from the actual operation. The first cable car line was tested in San Francisco, in 1873. The second city to operate cable trams was Dunedin in New Zealand, from 1881 to 1957. A large cable system operated in Melbourne, Victoria, Australia, from 1885 to 1940. There were also two isolated cable lines in Sydney, New South Wales, Australia. A line in Washington DC ran to Georgetown (where some of the vaults can still be seen today.) Los Angeles also had several cable car lines, including the Second Street Cable Railroad, which operated from 1885 to 1889, and the Temple Street Cable Railway, which operated from 1886 to 1898. In Dresden, Germany, in 1901 an elevated suspended cable car following the Eugen Langen one-railed floating tram system started operating.

Cable Cars operated on Highgate Hill in North London and Kennington to Brixton Hill In South London.

They also worked around "Upper Douglas" in the Isle of Man, Cable Car 72/73 being the sole survivor of the fleet.

Cable cars suffered from high infrastructure costs, since an expensive system of cables, pulleys, stationary engines and vault structures between the rails had to be provided. They also require strength and skill to operate, to avoid obstructions and other cable cars. The cable had to be dropped at particular locations and the cars coast, for example when crossing another cable line. Breaks and frays in the cable, which occurred frequently, required the complete cessation of services over a cable route, while the cable was repaired. After the development of electrically powered trams, the more costly cable car systems declined rapidly.

Cable cars were especially effective in hilly cities as their undriven wheels cannot slip on the rails as they climb a steep hill. The cable physically pulls the car up the hill at a steady pace, unlike a low-powered steam or horse-drawn car. Cable cars do have wheel brakes, but the cable can also hold the car going downhill at a constant speed.

2e40x-020493santanastasio

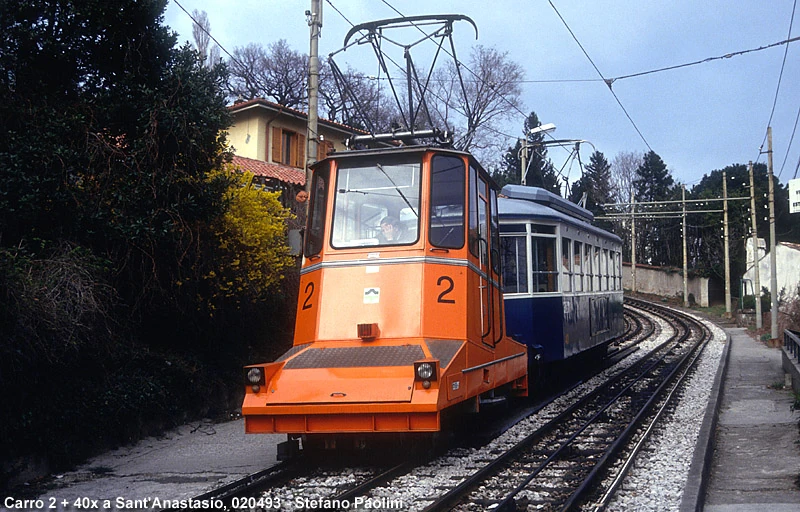

Former second generation cable tractor, used between 1978 and 2005, assisting a tramcar on the cable section of the Opicina Tramway in Trieste, Italy.

This concept partially explains their survival in San Francisco. However, the most extensive cable system in the U.S. was in Chicago, a much flatter city. The largest cable system in the world, in the city of Melbourne, Victoria, Australia, had at its peak 592 trams running on 74 kilometres of track.

The San Francisco cable cars, though significantly reduced in number, continue to perform a regular transportation function, in addition to being a tourist attraction. A single line also survives in Wellington, New Zealand (rebuilt in 1979 as a funicular but still called the "Wellington Cable Car").

Hybrid funicular[]

The Opicina Tramway in Trieste operates a hybrid funicular system where the trams are pushed uphill by cable tractors.

Electric (trolley cars)[]

Main article: History of electric trams
Halle ad Saale Strassenbahn

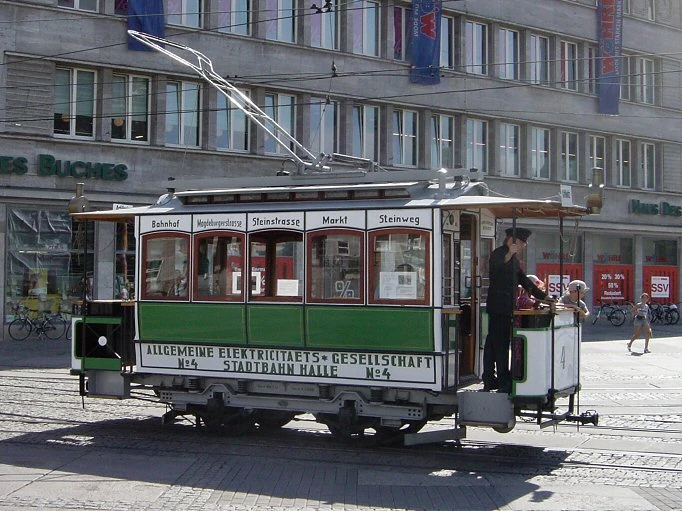

Historic German electric tram

Electric trams (known as streetcars or trolleys in North America) were first experimentally installed in Saint Petersburg, Russia, invented and tested by Fyodor Pirotsky as early as 1880. These trams, like virtually all others mentioned in this section, used either a trolley pole or a pantograph, to feed power from electric wires strung above the tram route. Nevertheless, there were early experiments with battery-powered trams but these appear to have all been unsuccessful. The first trams in Bendigo, Australia, in 1892, were battery-powered but within as little as three months they were replaced with horse-drawn trams. In New York City some minor lines also used storage batteries. Then, comparatively recently, during the 1950s, a longer battery-operated tramway line ran from Milan to Bergamo.

The first regular electric tram service using pantographs or trolley poles, the Gross-Lichterfelde Tramway, went into service in Lichterfelde, a suburb of Berlin, Germany, by Siemens & Halske AG, in May 1881.[7] The company Siemens still exists.

Another was by John Joseph Wright, brother of the famous mining entrepreneur Whitaker Wright, in Toronto in 1883. Earlier installations proved difficult or unreliable. Siemens' line, for example, provided power through a live rail and a return rail, like a model train, limiting the voltage that could be used, and providing electric shocks to people and animals crossing the tracks.[8] Siemens later designed his own method of current collection, from an overhead wire, called the bow collector.

In 1883, Magnus Volk constructed his 2 feet (610 mm) gauge Volk's Electric Railway along the eastern seafront at Brighton, England. This two kilometer line, re-gauged to 2 feet 9 inches (840 mm) in 1884, remains in service to this day, and is the oldest operating electric tramway in the world. The first tram for permanent service with overhead lines was the Mödling and Hinterbrühl Tram in Austria. It began operating in October 1883, but was closed in 1932.

File:0794 Glasgow Trams c1902.theora.ogv

Trams in Glasgow, filmed by the Mitchell & Kenyon film company in 1901 or 1902[9]

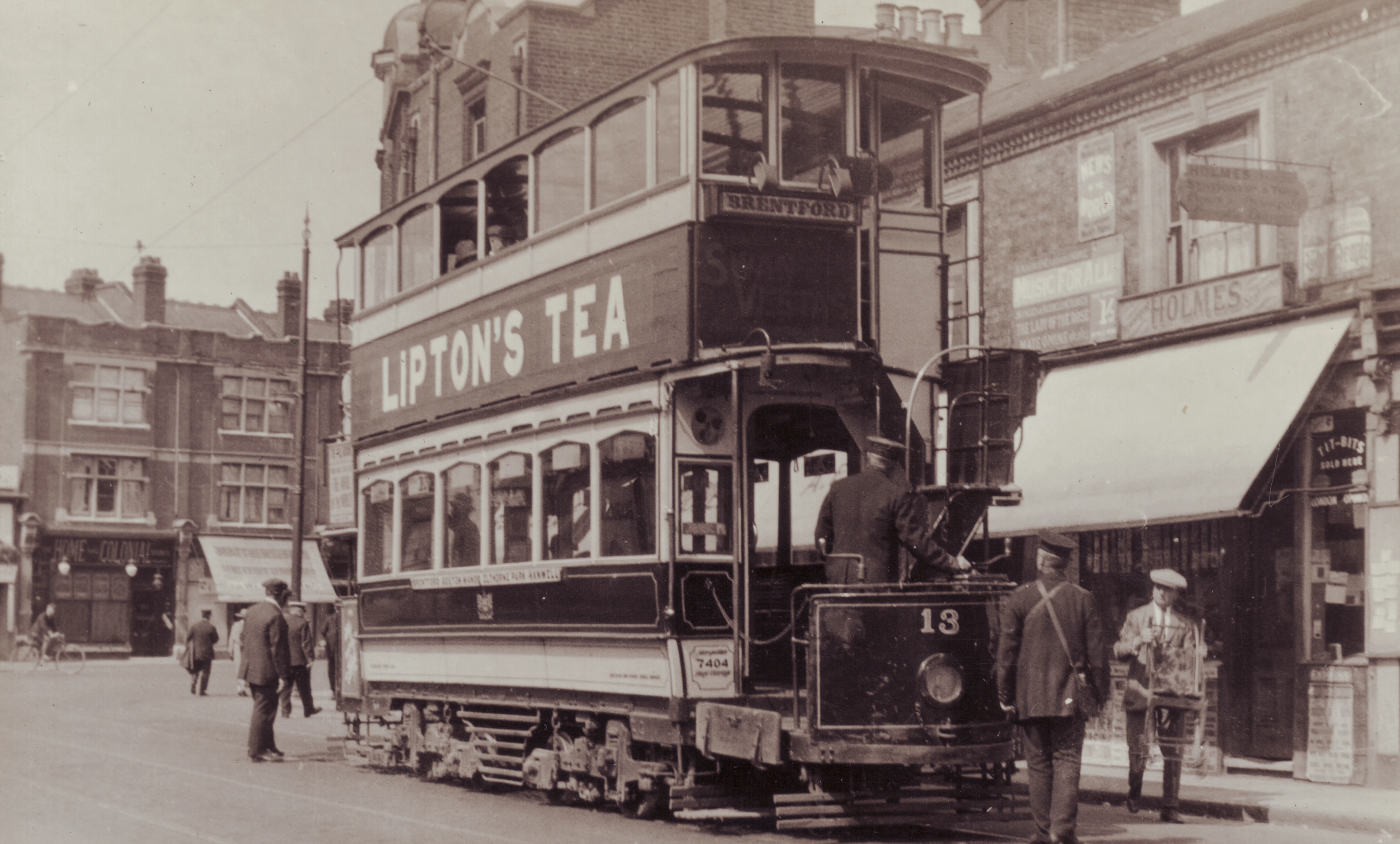

Tram in hanwell boston road

A double deck London tram in 1910

Multiple functioning experimental electric trams were exhibited at the 1884 World Cotton Centennial World's Fair in New Orleans, Louisiana, but they were not deemed good enough to replace the Lamm fireless engines that then propelled the St. Charles Avenue Streetcar in that city.

Electric trams were first tested in service in the United States in Richmond, Virginia, in 1888, in the Richmond Union Passenger Railway built by Frank J. Sprague, though the first commercial installation of an electric streetcar in the United States was built in 1884 in Cleveland, Ohio and operated for a period of one year by the East Cleveland Street Railway Company.[10]

The first electric street tramway in Britain, the Blackpool Tramway, was opened on 29 September 1885 using conduit collection along Blackpool Promenade. Since the closure of the Glasgow Corporation Tramways in 1962, this has been the only first-generation operational tramway in the UK.

HCRY-Peter-Witt-TTC-2984

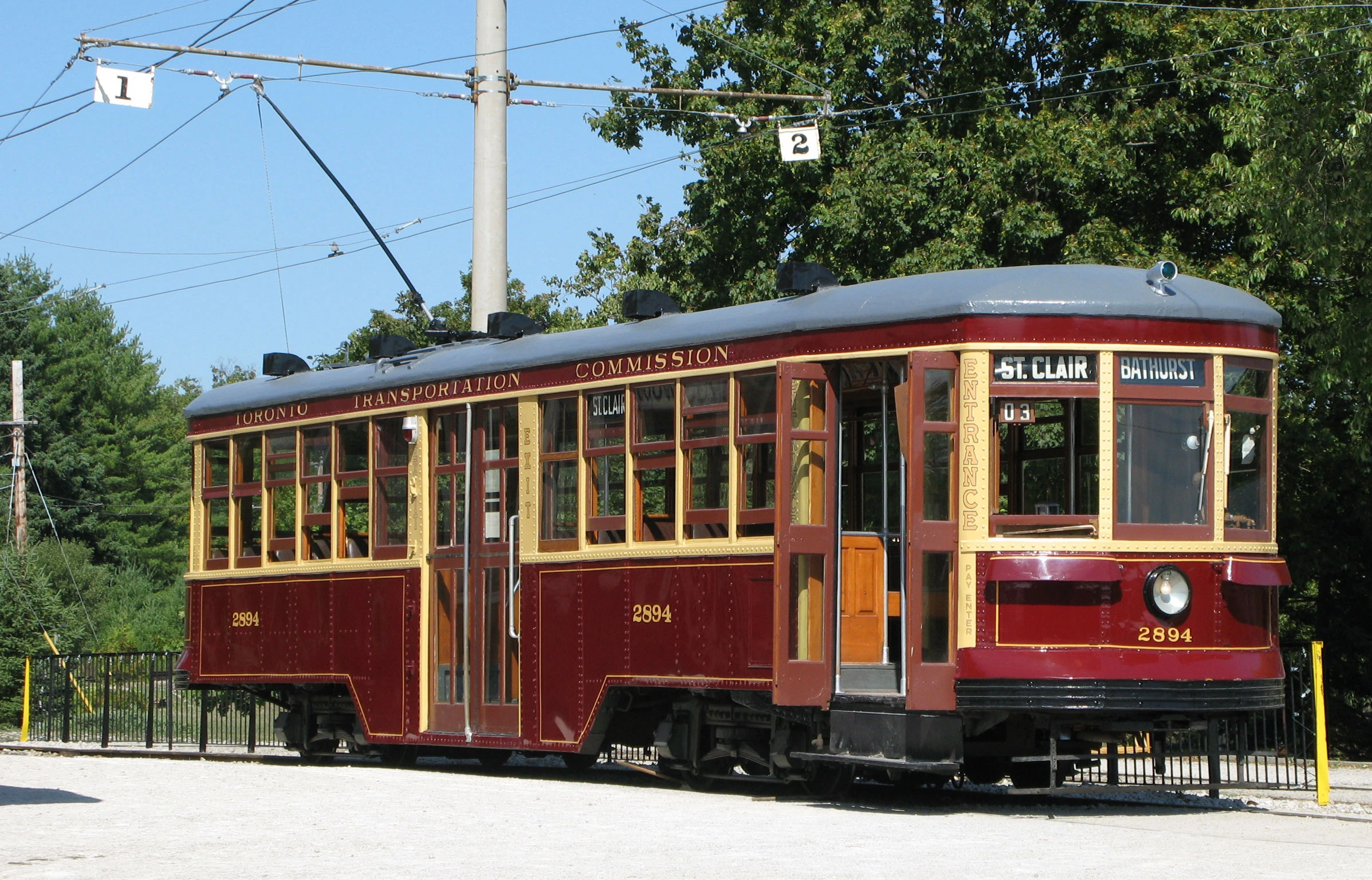

Fully restored 1920 Toronto streetcar

Sarajevo had the first electric trams on the continent of Europe, with a city-wide system in 1885.[11] Budapest established its tramway system in 1887, and this line has grown to be the busiest tram line in Europe, with a tram running every 60 seconds at rush hour (however Istanbul's line T1, with a minimum headway of two minutes, probably carries more passengers – 265,000 per day). Bucharest and Belgrade[12] ran a regular service from 1894.[13][14] Ljubljana introduced its tram system in 1901 – it closed in 1958.[15]

In Australia there were electric systems in Sydney, Newcastle, Broken Hill, Melbourne, Geelong, Ballarat, Bendigo, Brisbane, Adelaide, Perth, Kalgoorlie, Laverton, Hobart and Launceston. By the 1970s, the only trams remaining in Australia were the Melbourne system and a single line connecting Adelaide to the beachside suburb of Glenelg. An unusual line that operated from 1889 to 1896 connected Box Hill, then an outer suburb of Melbourne, to Doncaster, then a favoured picnic spot but now a dormitory suburb. In recent years the Melbourne system, generally recognised as one of the largest in the world, has been considerably moderrnised and expanded. The Adelaide line has also been extended to the Entertainment Centre, and there are plans to expand further.

In 1904 trams were put into operation in Hong Kong. The Hong Kong Tramway is still in operation today and uses double-decker trams exclusively.

Gas trams[]

In the late 19th and early 20th centuries a number of systems in various parts of the world employed trams powered by gas, naphtha gas or coal gas in particular. Gas trams are known to have operated between Alphington and Clifton Hill in the northern suburbs of Melbourne, Australia (1886–1888); in Berlin and Dresden, Germany; in Estonia (1920s–1930); between Jelenia Góra, Cieplice, and Sobieszów in Poland (from 1897); and in the UK at Lytham St Annes, Neath (1896–1920), and Trafford Park, Manchester (1897–1908).

Comparatively little has been published about gas trams. However, research on the subject was carried out for an article in the October 2011 edition of "The Times", the historical journal of the Australian Association of Timetable Collectors.[16][17]

A tram system powered by compressed gas is due to open in Malaysia in 2012.[18]

Other power sources[]

Bensinmotorvagn

The only petrol-driven tram of Stockholms Spårvägar, on line 19 in the 1920s

In some places, other forms of power were used to power the tram. Hastings and some other tramways, for example Stockholms Spårvägar in Sweden and some lines in Karachi, used petrol trams. Paris operated trams that were powered by compressed air using the Mekarski system.

Galveston Island Trolley in Texas operates diesel trams due to the city's hurricane-prone location, which would result in frequent damage to an electrical supply system.

Although Portland, Victoria promotes its tourist tram[19] as being a cable car it actually operates using a hidden diesel motor. The tram, which runs on a circular route around the town of Portland, uses dummies and salons formerly used on the extensive Melbourne cable tramway system and now beautifully restored.

Design[]

Low floor[]

Škoda 15T, DOD Střešovice

Entirely low-floor Škoda ForCity in Prague

Braunschweiger Trams

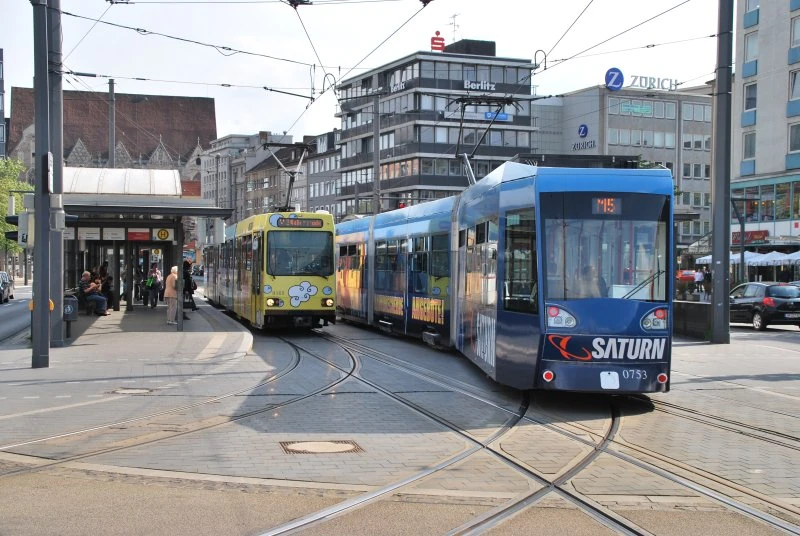

Two Trams in Braunschweig, Germany. The left one is an 1981 high-floor tram, the right one a 2007 low-floor

The latest generation of light rail vehicles is of partial or fully low-floor design, with the floor 300 to 360 mm (11.8 to 14.2 in) above top of rail, a capability not found in older vehicles. This allows them to load passengers, including those in wheelchairs, directly from low-rise platforms that are not much more than raised footpaths/sidewalks. This satisfies requirements to provide access to disabled passengers without using expensive wheelchair lifts, while at the same time making boarding faster and easier for other passengers. Various companies have developed particular low-floor designs, varying from part-low-floor (with internal steps between the low-floor section and the high-floor sections over the bogies), e.g. Citytram[20] and Siemens S70, to 100% low-floor, where the floor passes through a corridor between the drive wheels, thus maintaining a relatively constant (stepless) level from end to end of the tram. However, prior to the introduction of the Škoda ForCity,[citation needed] this carried the mechanical penalty of requiring bogies to be fixed and unable to pivot (except for less than 5 degrees in some trams) and thus reducing curve negotiation. This creates undue wear on the tracks and wheels. However, passengers appreciate the ease of boarding and alighting from low-floor trams and moving about inside 100% low-floor trams. Passenger satisfaction with low-floor trams is high.[21] Low-floor trams are now running in many cities around the world, including Amsterdam, Dublin, Hiroshima, Houston, Istanbul, Melbourne, Milan, Prague, Riga, Strasbourg, Vienna, Zagreb, Helsinki and Zürich.

Articulated[]

Combino Supra 2036 in Budapest

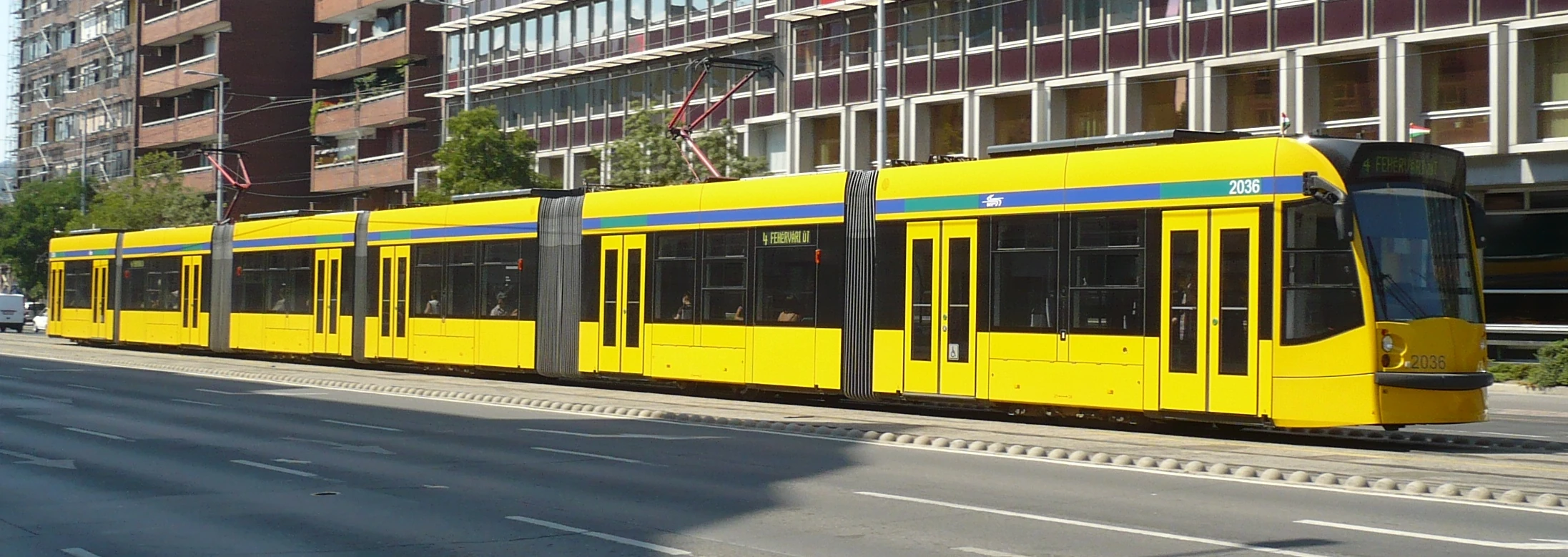

Combino Supra articulated tram in Budapest

Articulated trams, invented and first used by the Boston Elevated Railway in 1912–13[22] at a total length of about twelve meters long (40 ft) for each pioneering example of twin-section articulated tram car, have two or more body sections, connected by flexible joints and a round platform at their pivoting midsection(s). Like articulated buses, they have increased passenger capacity. In practice, these trams can be up to 53 metres (170 ft) long[23] (such as in Budapest, Hungary),[24] while a regular tram has to be much shorter. With this type, the articulation is normally suspended between carbody sections. In the Škoda ForCity, which is the world's first 100% low floor tram with pivoting bogies, a Jacobs bogie supports the articulation between the two or more carbody sections. An articulated tram may be low-floor variety or high (regular) floor variety. Newer model trams may be up to 72 metres (240 ft) long and carry 510 passengers at a comfortable 4 passengers/m2. At crush loadings this would be even higher.[25]

Double decker[]

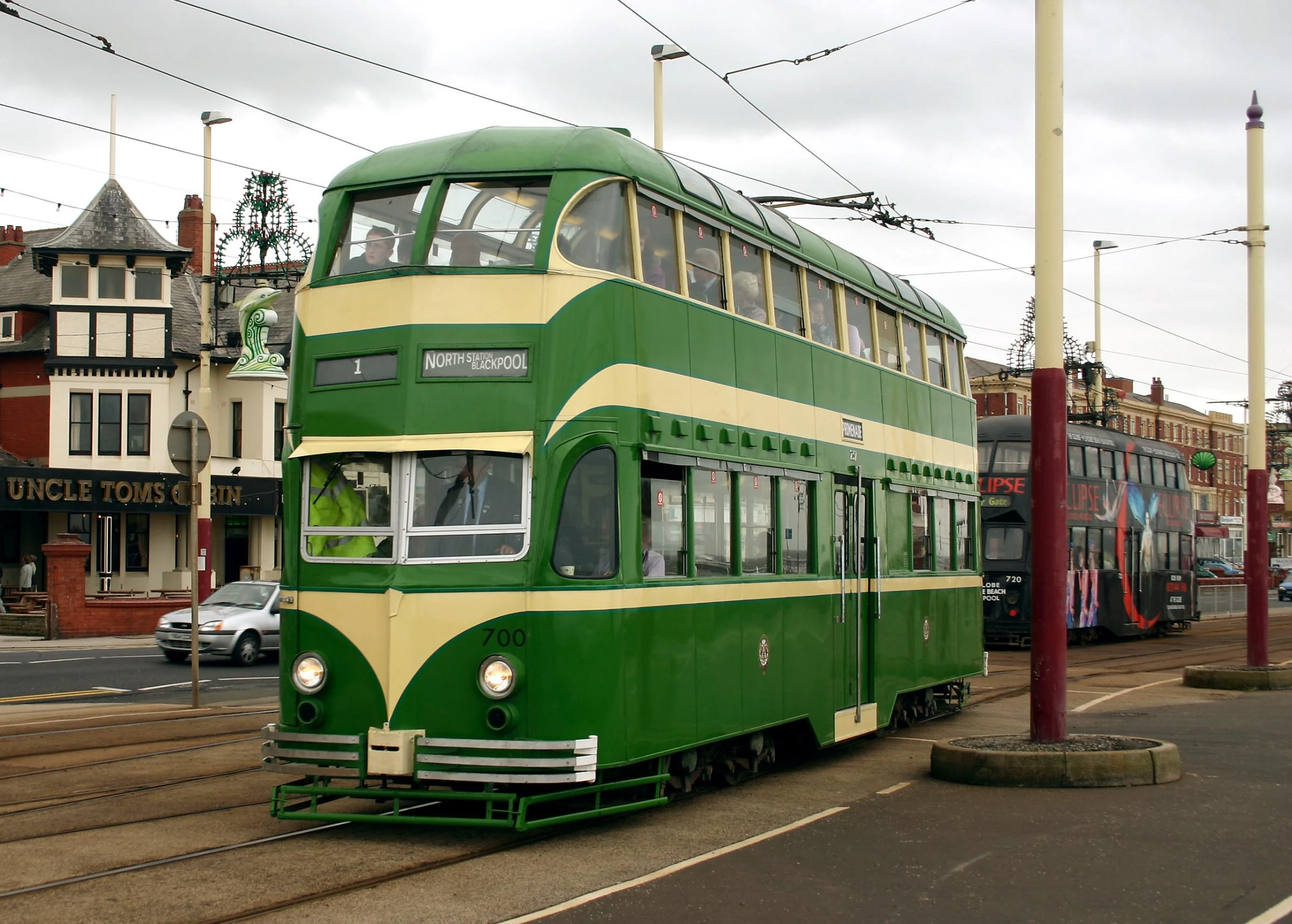

700 and 720 at bispham

Double-decker tram in Blackpool.

Main article: Double-decker tram

Double decker trams were commonplace in Great Britain and Dublin Ireland before most tramways were torn up in the 1950s and 1960s.

Hobart, Tasmania, Australia made extensive use of double decker trams. Arguably the most unusual double decker tram used to run between the isolated Western Australian outback village of Laverton and its small suburb of Gwalia.

Double decker trams still operate in Alexandria, Blackpool and Hong Kong.

Tram-train[]

Main article: Tram-train

Tram-train operation uses vehicles such as the Flexity Link and Regio-Citadis, which are suited for use on urban tram lines and also meet the necessary indication, power, and strength requirements for operation on main-line railways. This allows passengers to travel from suburban areas into city-centre destinations without having to change from a train to a tram.

It has been primarily developed in Germanic countries, in particular Germany and Switzerland. Karlsruhe is a notable pioneer of the tram-train.

Non-commuter trams[]

Cargo trams[]

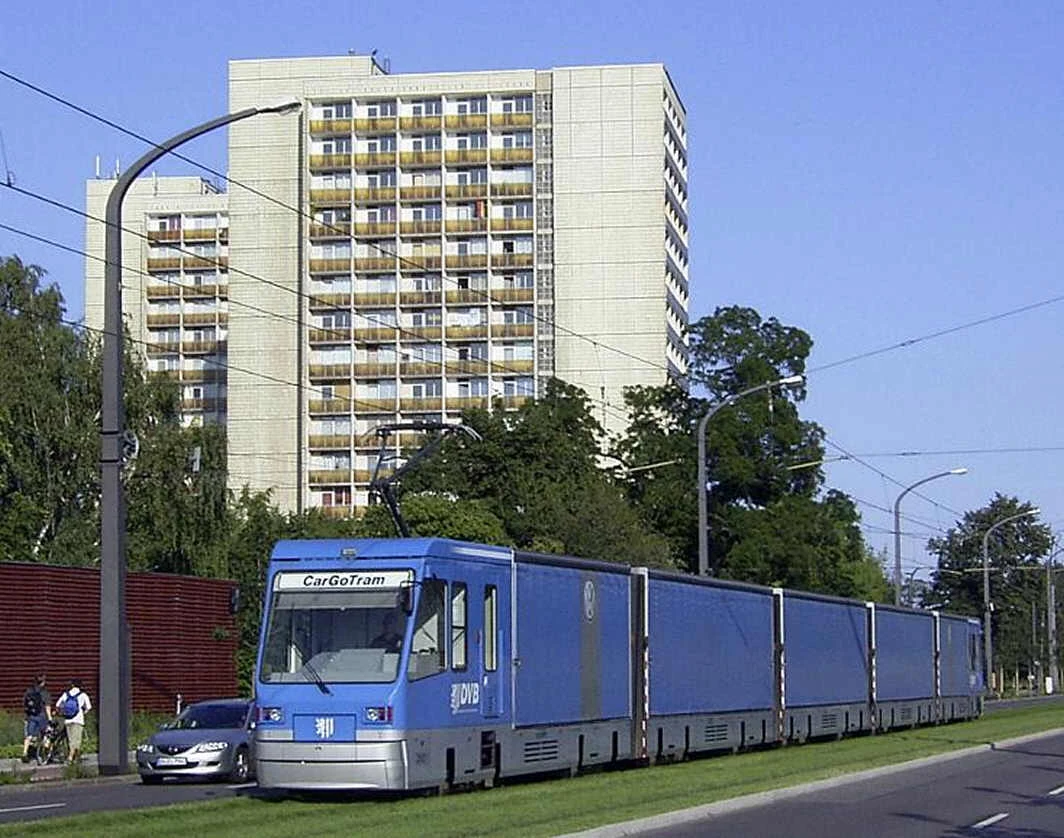

VW-Cargotram-Dresden

CarGoTram run by Volkswagen in Dresden, Germany on a section of grassed track. It delivers parts to the Transparent Factory.

Goods have been carried on rail vehicles through the streets, particularly near docks and steelworks, since the 19th century (most evident on the Weymouth Harbour Tramway in Weymouth, Dorset[26]), and Belgian vicinal tramway routes were used to haul timber and coal from Blégny colliery. Several of the US interurbans carried freight. At the turn of the 21st century, a new interest has arisen in using urban tramway systems to transport goods. The motivation now is to reduce air pollution, traffic congestion and damage to road surfaces in city centres. Dresden has a regular CarGoTram service, run by the world's longest tram trainsets (59.4 metres (195 ft)), carrying car parts across the city centre to its Volkswagen factory.[27] Vienna and Zürich use trams as mobile recycling depots. Kislovodsk had a freight-only tram system comprising one line which was used exclusively to deliver bottled Narzan mineral water to the railway station.[28]

In the spring of 2007, Amsterdam piloted a cargo tram operation, aiming to reduce particulate pollution by 20% by halving the number of lorries—currently 5,000—unloading in the inner city during the permitted timeframe from 07:00 till 10:30. The pilot, operated by City Cargo Amsterdam, involved two cargo trams, operating from a distribution centre and delivering to a "hub" where electric trucks delivered to the final destination.

The trial was successful, releasing an intended investment of €100 million in a fleet of 52 cargo trams distributing from four peripheral "cross docks" to 15 inner-city hubs by 2012. These specially built vehicles would be 30 feet (9.14 m) long with 12 axles and a payload of 30 tonnes (33.1 short tons; 29.5 long tons). On weekdays, trams are planned to make 4 deliveries per hour between 7 a.m. and 11 a.m. and two per hour between 11 a.m. and 11 p.m. With each unloading operation taking on average 10 minutes, this means that each site would be active for 40 minutes out of each hour during the morning rush hour. In early 2009 the scheme was suspended owing to the financial crisis impeding fund-raising.[29]

Between 1927 and 1977, three different Freight Cars operated in Melbourne.[30]

Hearse-tram[]

Specially appointed hearse trams were used for funerals in Milan, Italy, from the 1880s (initially horse-drawn) to the 1920s. The main cemeteries, Cimitero Monumentale and Cimitero Maggiore, included funeral tram stations. Additional funeral stations were located at Piazza Firenze and at Porta Romana.[31]

In the mid-1940s at least one special hearse tram was used in Turin, Italy. It was introduced due to the wartime shortage of automotive fuel.[32]

Newcastle, NSW, Australia also operated two hearse trams[33] between 1896 and 1948.

Dog car[]

In Melbourne a "dog car" was used between 1937 and 1955 for transporting dogs and their owners to the Royal Melbourne Showgrounds.[30]

Contractors' mobile offices[]

Two former passenger cars from the Melbourne system were converted and used as mobile offices within the Preston Workshops between 1969 and 1974, by personnel from Commonwealth Engineering and ASEA who were connected with the construction of Melbourne's Z Class cars.[30]

Restaurant trams[]

A number of systems have introduced restaurant trams, particularly as a tourist attraction. This is specifically a modern trend. Inter alia, tram systems which have or have had restaurant trams include: Adelaide, Australia; Bendigo, Australia; Brussels, Belgium, Christchurch, New Zealand, (currently suspended pending post earthquake infrastructure assessment); Melbourne, Australia; Milan, Italy; Moscow, Russia; Turin, Italy; Zürich, Switzerland.

These type of vehicles are particularly popular in Melbourne where three of the iconic "W" class trams have been converted to restaurant trams. All three often run in tandem and there are usually different sittings for meals. Bookings often close months in advance.

Bistro trams with buffets operate between Krefeld and Düsseldorf in Germany,[34] while Helsinki in Finland has a pub tram.

Other[]

Most systems had cars that were converted to specific uses on the system, other than simply the carriage of passengers. As just one example, the Melbourne system used or uses the following: a Ballast Motor, Ballast Trailers, a Blow Car, Breakdown Cars, Conductors and/or Drivers' Instruction Cars, a Laboratory Testing Car, a Line Marking Car, a Pantograph Testing Car, Per Way Locomotives, Rail Grinders, a Rail Hardner Loco., a Scrapper Car, Scrubbers, Sleeper Carriers, Track Cleaners, a Welding Car, a Wheel Transport Car and a Workshops Locomotive.[30]

After World War Two, in both Warsaw and Wrocław, Poland, so-called tramways-nurseries[35] were in operation, collecting children from the workplaces of their parents (often tram employees). These mobile nursuries either carried the children around the system or delivered them to the nursery school run by transport company.[36]

Many systems have passenger carrying vehicles with all-over advertising on the exterior and/or the interior.

Tramway operation[]

There are two main types of Tramways, the classic tramway build in the early 20th century with the tram system operating in mixed traffic and the later type which is most often associated with the tram system having its own right of way. Tram systems that have their own right of way are often called Light Rail but this does not always hold true. Though these two systems differ in their operation their equipment is much the same.

Infrastructure and equipment
Tram stop
Main article: Tram stop
Controls
Main article: Tram controls
Track
Main article: Tramway track
Power supply
  • Ground-level power supply
  • Conduit current collection

Tram and light-rail transit systems around the world[]

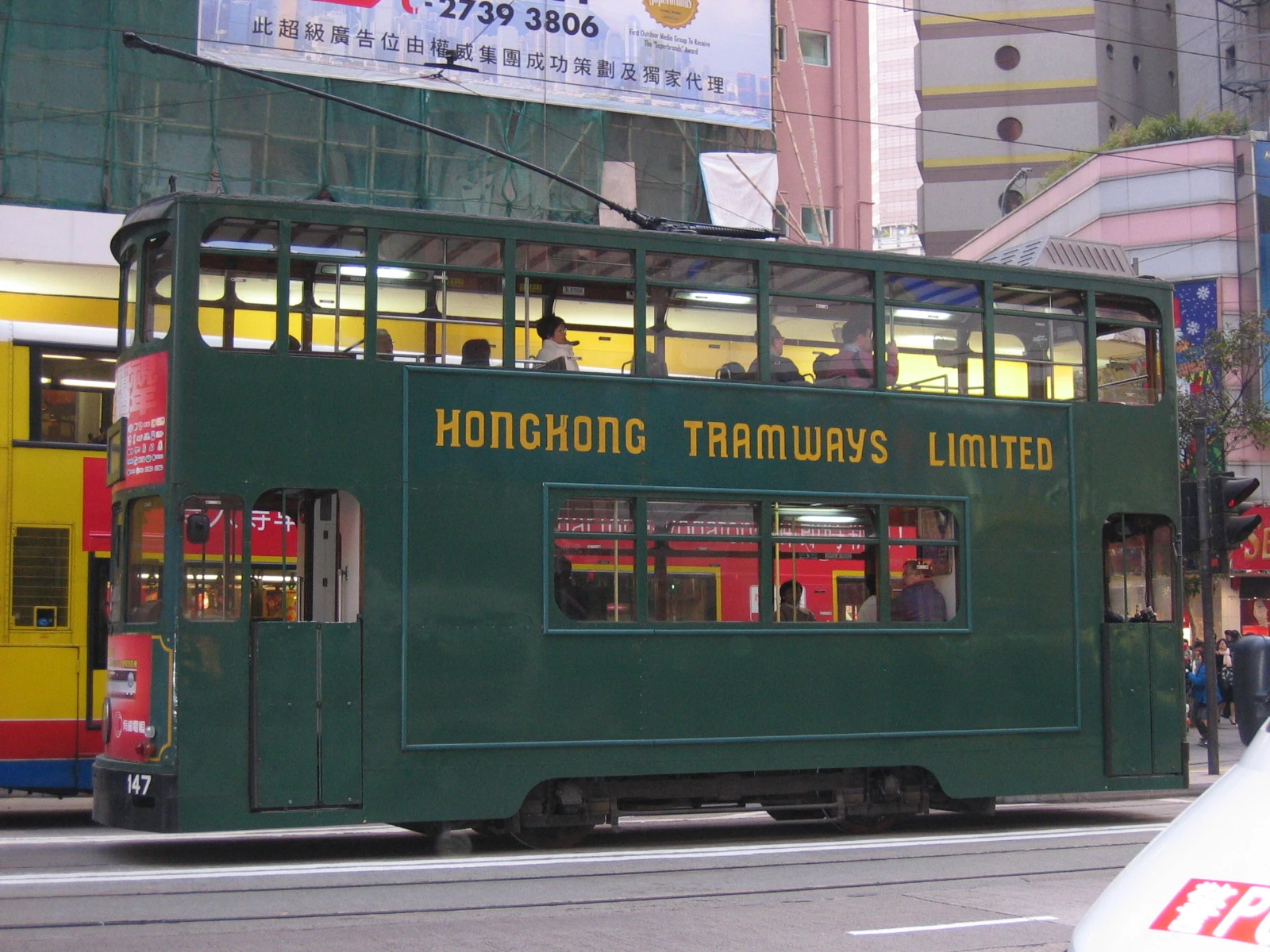

HKtram

Double-decker trams continue to run in Hong Kong.

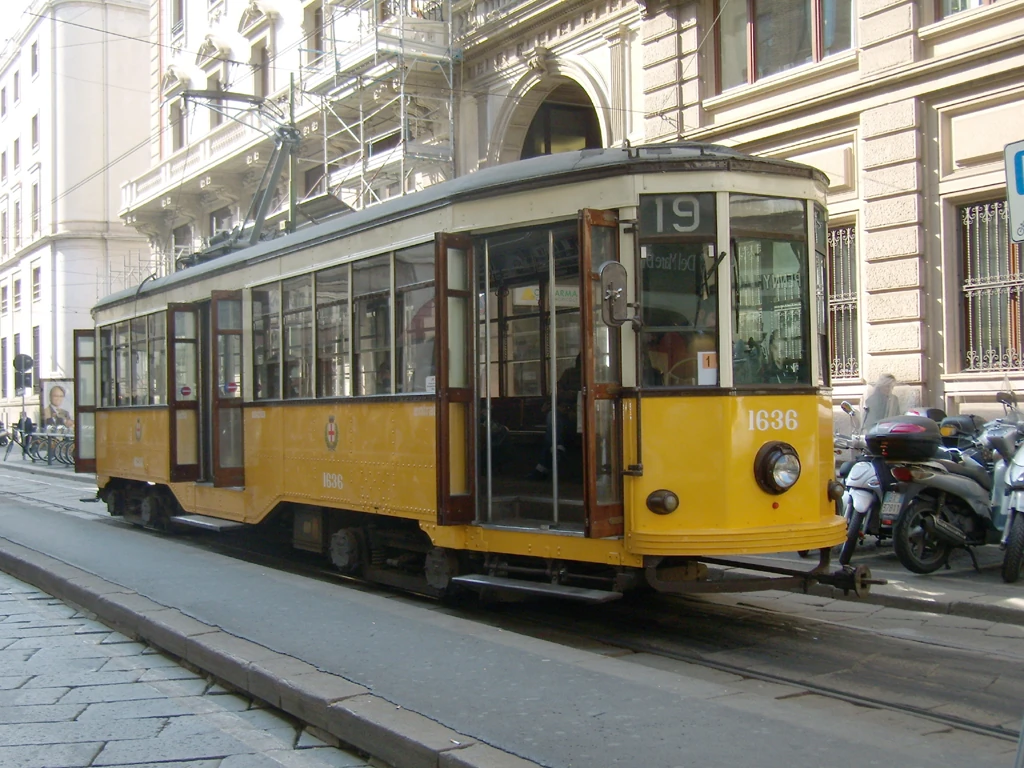

Milano tram via Cantù

Peter Witt tram car in Milan, Italy, restored to the original livery.

See also: List of tram and light-rail transit systems
Main article: Tram and light-rail transit systems

Throughout the world there are many tram systems; some dating from the late 19th or early 20th centuries. However a large number of the old systems were closed during the mid-20th century because of such perceived drawbacks as route inflexibility and maintenance expense. This was especially the case in North American, British, French and other West European cities. Some traditional tram systems did however survive and remain operating much as when first built over a century ago. In the past twenty years their numbers have been augmented by modern tramway or light rail systems in cities that had discarded this form of transport.

Popularity[]

Tramways with tramcars (British English) or street railways with streetcars (American English) were common throughout the industrialised world in the late 19th and early 20th centuries but they had disappeared from most British, Canadian, French and U.S. cities by the mid-20th century.[37]

By contrast, trams in parts of continental Europe continued to be used by many cities, although there were contractions in some countries, including the Netherlands.[38]

Since 1980 trams have returned to favour in many places, partly because their tendency to dominate the roadway, formerly seen as a disadvantage, is now considered to be a merit. New systems have been built in the United States, Great Britain, Ireland, France and many other countries.

In Milan, Italy, the old "Ventotto" trams are considered by its inhabitants a "symbol" of the city.

Largest tram systems[]

Brno-Tram-5-JPG

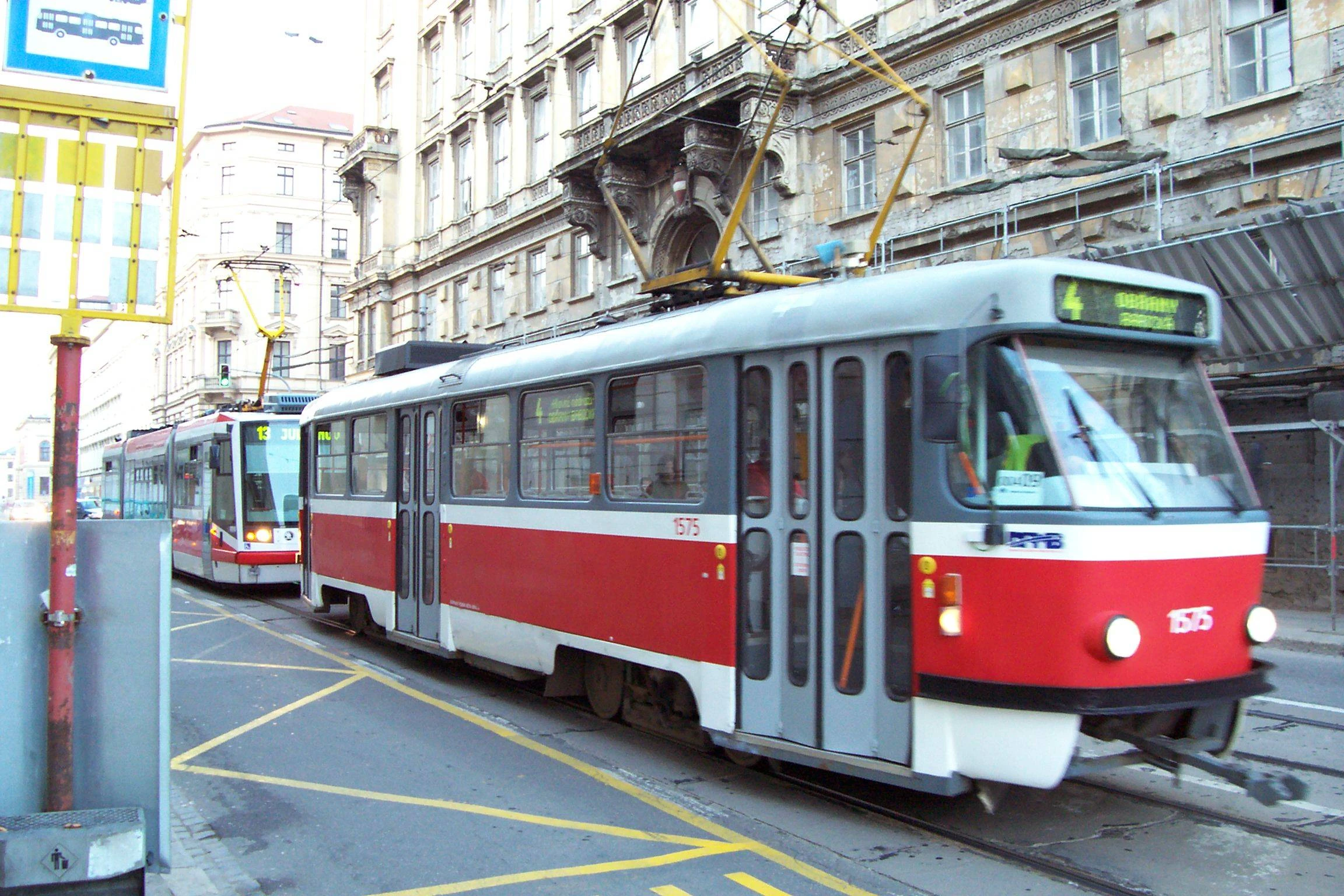

Czech Tatra T3 – 14,113 units sold worldwide make it one of the highest-selling types of tram.

The Silesian Interurbans in Poland and the Trams in Melbourne, Australia, are claimed to be the largest tram networks in the world. Before its decline the BVG in Berlin operated a very large network with 634 km of route. The largest tram system ever with 857 km existed in Buenos Aires before the 1960s. During a period in the 1980s the world's largest tram system was in Leningrad, USSR, being included in Guinness World Records.

The longest single tram line in the world is the Belgian Coast tram, which runs almost the entire length of the Belgian coast. Other large systems include (but not limited to) Vienna , Budapest, Leipzig, Prague, Kiev, Turin, Milan, Warsaw, Amsterdam, Brussels, Zagreb, Zurich, Bucharest and Toronto.

Until the system started to be converted to trolleybus (and later bus) in the 1930s, the first-generation London network was also one of the world's largest, with 526 km (327 mi) of route in 1934.[39] While the largest streetcar network in the world used to be located in Chicago, with over 850 kilometres (530 mi) of track,[40] all of it was converted to bus service by the late 1950s.

On the basis of work effectiveness, another measure of size is patronage. The ten largest systems are (figures in millions of passengers carried per year):

  • 1. St Petersburg: 476 million
  • 2. Budapest: 364 million
  • 3. Prague: 350 million
  • 4. Warsaw: 270 million
  • 5. Moscow: 251 million
  • 6. Vienna: 240 million
  • 7. Zagreb: 214 million
  • 8. Zurich: 199 million
  • 9. Brno: 188 million
  • 10. Melbourne: 182.7 million (despite having the largest tram network in the world)
  • (Sources: most recent annual reports of operators)

Asia[]

Toyama Chiho Railway Centram 9002 01

Toyama Centram, Japan

Main article: Trams in Asia

Tramway systems were well established in the Asian region at the start of the 20th century, but started a steady decline during the mid to late 1930s. The 1960s marked the end of its dominance in public transportation with most major systems closed and the equipment and rails sold for scrap; however, some extensive original lines still remain in service in Hong Kong and Japan. In recent years there has been renewed interest in the tram with modern systems being built in Japan, the Philippines, and South Korea.

Trams still operate in Calcutta, India. Trams were discontinued in Bombay, India in 1960. There were Trolley Buses also in Bombay (now called Mumbai), the last of which operated between Mazagon and Grant Road, which was discontinued in the late 1970s.

The first Japanese tram line was inaugurated in 1895 as the Kyoto Electric Railroad. The tram reached its zenith in 1932 when 82 rail companies operated 1,479 kilometers of track in 65 cities. The tram declined in popularity through the remaining years of the 1930s, a trend that was accelerated by the damage of the War and continued through the Occupation and rebuilding years. During the 1960s many of the remaining operational tramways were shut down and dismantled in favor of auto, bus, and rapid rail service; however, when one compares the number of operational lines that survived this era to their American counterparts, they can be defined as quite extensive.

Europe[]

Bombardier Flexity Berlin

New Berlin MetroTrams

Main article: Trams in Europe

In many European cities much tramway infrastructure was lost in the mid-20th century, though not always on the same scale as in other parts of the world such as North America. Most of Eastern Europe retained tramway systems until recent years but some cities are now reconsidering their transport priorities. In contrast, some Western European cities are rehabilitating, upgrading, expanding and reconstructing their old tramway lines. Many Western European towns and cities are also building new tramway lines.

North America[]

CLRVs 4049 and 4090 Eastbound on King

Streetcars in Toronto operate the largest such system in North America.

Main article: Streetcars in North America
Main article: Great American Streetcar Scandal

In North America trams are generally known as streetcars or trolleys[dubious ]; the term tram is more likely to be understood as a tourist trolley, an aerial tramway, or a people-mover.

In most North American cities, streetcar lines were largely torn up in the mid-20th century for a variety of financial, technological and social reasons, mainly as a result of the Great American Streetcar Scandal. Exceptions included Boston, New Orleans, Newark, Seattle, Philadelphia (with a much smaller network than once had existed), Pittsburgh, San Francisco and Toronto. In a trend started in the 1980s, some American cities have brought back streetcars, examples of these being Memphis, Portland, Tampa, Little Rock and Seattle. Several additional cities, such as Washington, D.C., Tucson and Detroit are planning or proposing to do the same. Pittsburgh kept most of its streetcar system serving the city and many suburbs until 27 January 1967, making it the longest-lasting large-network U.S. streetcar system. In the late 20th century, several cities installed light rail systems, in part along the same corridor as the old streetcars.

Toronto currently has the largest streetcar system in the Americas in terms of track length and ridership, operated by the Toronto Transit Commission. It is the only streetcar system existing in Canada, not including the light rail systems that some Canadian cities currently operate, or heritage streetcar lines operating only seasonally. Toronto's system uses Canadian Light Rail Vehicles and Articulated Light Rail Vehicles, after a history of using PCCs, Peter Witt cars, and horse-drawn carriages. The TTC has ordered a fleet of Bombardier's Flexity Outlook (also used in some European tram systems) as a replacement and is currently in acceptance testing.[41] Streetcars once existed in Edmonton and Calgary, but both cities have since converted their systems to support light rail vehicles instead. Streetcars also once existed in Ottawa, Montreal, Kitchener, Hamilton, Kingston and Peterborough. Some cities have restored their old streetcars and run them as a heritage feature for tourists, like the Vancouver Downtown Historic Railway.

Australia and New Zealand[]

JettyRd Glenelg

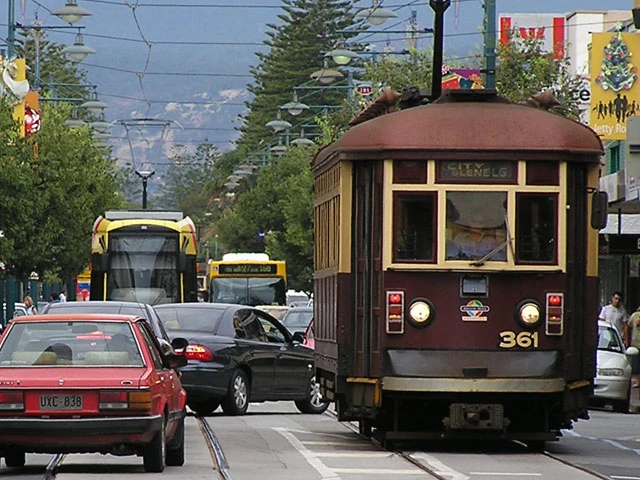

A heritage H-Class model (foreground) and modern Flexity tram (background) in Glenelg, Adelaide

Main article: Trams in Australia

In Australia, trams are used extensively only in Melbourne, and to a lesser extent, Adelaide, all other major cities having largely dismantled their networks by the 1970s. Sydney reintroduced its tram in 1997 as a modern system (Metro Light Rail), while Ballarat reintroduced their trams as a heritage system. Bendigo had a heritage system for a while which has recently been upgraded to a simple public transport system through an increase in frequency. Christchurch also reintroduced heritage trams, albeit over a new CBD route, but the system was greatly destroyed by the earthquake of 2011 and their reintroduction is currently tied into the debates about what form the city should take in the future. Auckland has recently introduced heritage trams into the Wynyard area, near the CBD, however former Melbourne trams are used as no operable former Auckland cars are believed to exist.

A distinctive feature of many Australian trams was the early use of a lowered central section between bogies (wheel-sets). This was intended to make passenger access easier, by reducing the number of steps required to reach the inside of the vehicle. It is believed that the design first originated in Christchurch in the first decade of the 20th century. Cars with this design feature were frequently referred to as "drop-centres". Trams built since the 1970s have had conventional high or low floors.

The trams made by Boon & Co. of Christchurch, New Zealand in 1906–07 for use in Christchurch may have been the first with this feature; they were referred to as drop-centres or Boon cars. Trams for Christchurch and Wellington built in the 1920s with an enclosed section at each end and an open-sided middle section were also known as Boon cars, but did not have the drop-centre.

South America[]

Tranvía del Este (Buenos Aires, septiembre 2008)

Puerto Madero Tramway in Buenos Aires

Buenos Aires in Argentina had once one of the most extensive tramway networks in the world with over 857 km (535 mi) of track, most of it dismantled during the 1960s in favor of bus transportation. Now slowly coming back, the 2 km Puerto Madero Tramway running in the Puerto Madero district is spearheading the move with extensions to Retiro station and La Boca in the planning stages. Another line, the PreMetro line E2 system feeding the Line E of the Buenos Aires Subway has been operating for the past few years on the outskirts of Buenos Aires, and a unique leisure "Tren de la Costa", an artery that stretches for 15 kilometres by the River Plate, from Olivos to the village of Tigre has also been running in Buenos Aires.

Also in the city Mendoza, in Argentina, a new tramway system is in construction, the Metrotranvía of Mendoza, which will have a route of 12.5 km and will link five districts of the Greater Mendoza conurbation. The opening of the system is scheduled for August 2011.

In Medellín, Colombia, there is a tram line under construction and the opening schedule is for December 2011.[42]

Pros and cons of tram systems[]

All transit services, except personal rapid transit, involve a trade-off between speed and frequency of stops. Services that stop frequently have a lower overall speed, and are therefore less attractive for longer trips. Metros, light rail, monorail, and bus rapid transit are all forms of rapid transit, which generally signifies high speed and widely spaced stops. Trams are often used as a form of local transit, making frequent stops. Thus, the most meaningful comparison of advantages and disadvantages is with other forms of local transit, primarily the local bus.

Advantages[]

Zagrepcanka

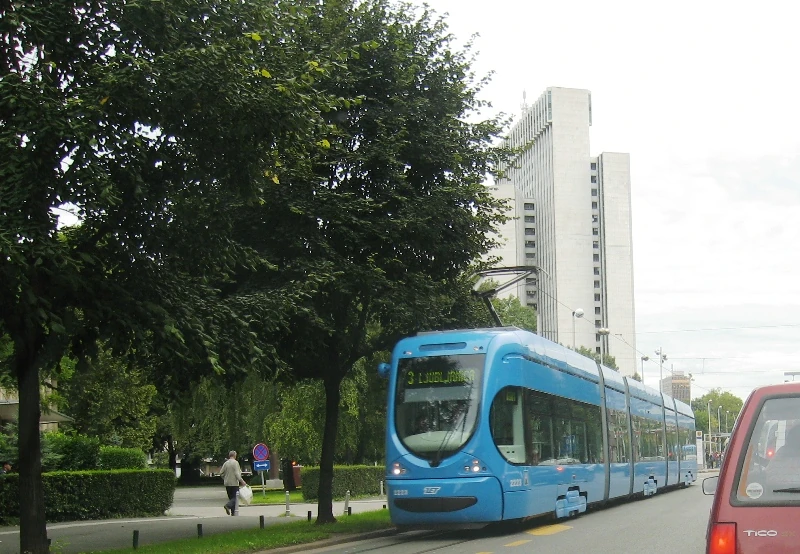

CROTRAM Zagreb, Croatia

  • Steel wheels on steel track create about one-seventh as much friction as rubber tyres on bitumen, thus creating dramatically less pollution when carrying the same load.[43]
  • Unlike omnibuses, but like trolleybuses, (electric) trams give off no exhaust emissions at point of use.
  • Most trams can be driven from either end (the major exception being the PCC car used in North America). This means that the infrastructure needed at termini can be quite simple. In comparison, trolleybuses usually require loops that take up much space, and omnibuses often travel over a circular route at termini thus doing damage to more roads, as well as being confusing to potential passengers.
  • Compared to motorbuses the noise of trams is generally perceived to be less disturbing.[citation needed] However, the use of solid axles with wheels fixed to them causes slippage between wheels and tracks when negotiating curves. This produces a characteristic squeal.
  • They can use overhead wire set to be shared with trolleybuses (a three wire system).
  • The existence of a fixed route gives people confidence in the robustness and long-term future of the system, allowing them to rely on it and build their lifestyles around it. A bus route could be cancelled at any time, but a tram line is far less likely to close down.
  • Some trams can adapt to the number of passengers by adding more cars during rush hour (and removing them during off-peak hours). No additional driver is then required for the trip in comparison to buses.
  • In general, trams provide a higher capacity service than buses.
  • Multiple entrances allow trams to load faster than suburban coaches, which tend to have a single entrance. This, combined with swifter acceleration and braking, lets trams maintain higher overall speeds than buses, if congestion allows.[44]
  • The trams' stops in the street are easily accessible, unlike stations of subways and commuter railways placed underground (with several escalators, stairways etc.) or in the outskirts of the city center.
  • Rights-of-way for trams are narrower than for buses. This saves valuable space in cities with high population densities and/or narrow streets.
  • Trams can trackshare with mainline railways, servicing smaller towns without requiring special track as in Stadtbahn Karlsruhe and at greater speed than buses.
  • Passenger comfort is normally superior to buses because of controlled acceleration and braking and curve easement. Rail transport such as used by trams provides a smoother ride than road use by buses.
  • Because the tracks are visible, it is easy for potential riders to know where the routes are.
  • Because trams run on rails, the ride is far more comfortable than that of a rubber-tyred bus. Blemishes in the road surface are far less noticeable.
  • Vehicles run more efficiently and overall operating costs are lower.[45]
  • Trams can run on renewable electricity without the need for very expensive and short life batteries.[46]
  • Consistent market research and experience over the last 50 years in Europe and North America shows that car commuters are willing to transfer some trips to rail-based public transport but not to buses. Typically light rail systems attract between 30 and 40% of their patronage from former car trips. Rapid transit bus systems attract less than 5% of trips from cars, less than the variability of traffic.[46]

Disadvantages[]

  • Tram infrastructure (such as island platforms) occupies urban space at ground-level, sometimes to the exclusion of other users.
  • The capital cost is higher than for buses, even though a tramcar usually has a much longer lifetime than a bus.
  • One study concluded that it would cost less to buy new fuel efficient cars for the low income riders of light rail who do not have cars than it does to subsidize light rail.[47] However, others assert the study was "poorly researched and analytically deficient"[48] or otherwise deficient.[49]
  • Trams can cause speed reduction for other transport modes (buses, cars) when stops in the middle of the road do not have pedestrian refuges, as in such configurations other traffic cannot pass whilst passengers alight or board the tram.
  • When operated in mixed traffic, trams are more likely to be delayed by disruptions in their lane. Buses, by contrast, can sometimes manoeuver around obstacles. Opinions differ on whether the deference that drivers show to trams—a cultural issue that varies by country—is sufficient to counteract this disadvantage.

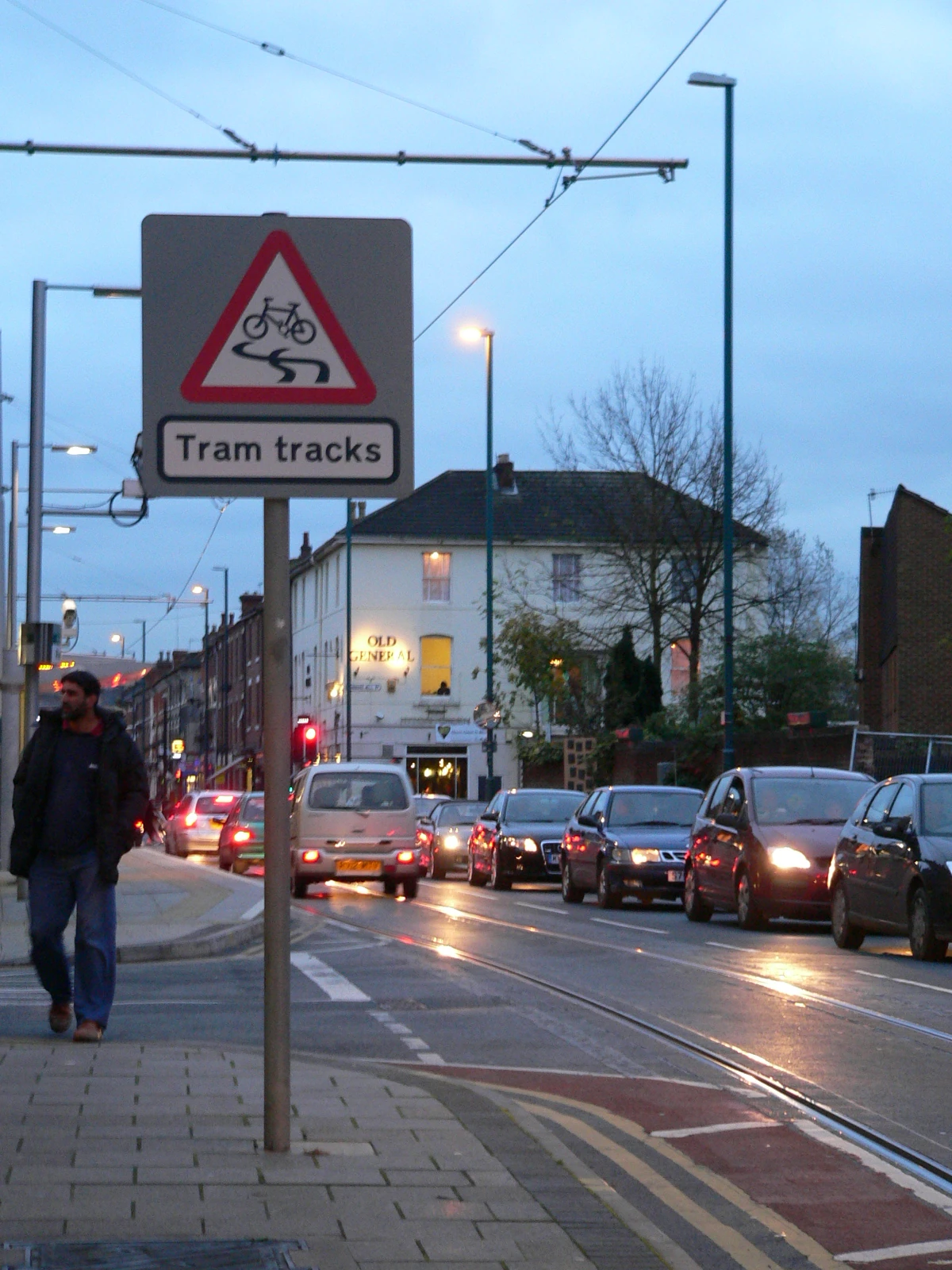

NET-tram tracks warning

Sign warning cyclists of tram tracks

  • Tram tracks can be hazardous for cyclists, as bikes, particularly those with narrow tyres, may get their wheels caught in the track grooves.[50] It is possible to close the grooves of the tracks on critical sections by rubber profiles that are pressed down by the wheelflanges of the passing tram but that cannot be lowered by the weight of a cyclist. If not well-maintained, however, these lose their effectiveness over time.
  • When wet, tram tracks tend to become slippery and thus dangerous for bicycles and motorcycles, especially in traffic.[50][51][52] In some cases, even cars can be affected.[53]
  • Steel wheel trams are noisier than rubber-wheeled buses or trolleybuses when cornering if there are no additional measures taken (e.g. greasing wheel flanges, which is standard in new-built systems). In older trams, the wheels are fixed onto axles so they have to rotate together, but going around curves, one wheel or the other has to slip, and that causes loud unpleasant squeals. A related improvement is rubber isolation between the wheel disc and the rim, as used on Boston (Massachusetts, U.S.) Green Line 3400 and 3600 series cars. These cars are much quieter than those with solid metal wheels. (This construction requires a flexible cable to electrically connect the tire to the wheel body.)[citation needed]
  • Trams usually have less effective suspension systems than buses, which tends to negate the ride quality benefits of steel rails.[citation needed]
  • The opening of new tram and light rail systems has sometimes been accompanied by a marked increase in car accidents, as a result of drivers' unfamiliarity with the physics and geometry of trams.[54] Though such increases may be temporary, long-term conflicts between motorists and light rail operations can be alleviated by segregating their respective rights-of-way and installing appropriate signage and warning systems.[55]
  • Rail transport can expose neighbouring populations to moderate levels of low-frequency noise. However, transportation planners use noise mitigation strategies to minimize these effects.[56] Most of all, the potential for decreased private motor vehicle operations along the trolley's service line because of the service provision could result in lower ambient noise levels than without.
  • In the event of a breakdown or accident, or even roadworks and maintenance, a whole section of the tram network can be blocked. Buses and trolleybuses can often get past minor blockages, although trolleybuses are restricted by how far they can go from the wires. Conventional buses can divert around major blockages as well, as can most modern trolleybuses that are fitted with auxiliary engines or traction batteries. The tram blockage problem can be mitigated by providing regular crossovers so a tram can run on the opposite line to pass a blockage, although this can be more difficult when running on road sections shared with other road users or when both tracks happen to be blocked. On extensive networks diversionary routes may be available depending on the location of the blockage. Breakdown related problems can be reduced by minimising the situations where a tram would be stuck on route, as well as making it as simple as possible for another tram to rescue a failed one.
  • The most nowadays advantage of tram – the other road(secluded paths to avoid traffic), which often cannot be crossed by other vehicles(by law, or physical lacking of the other path) can be achieved nowadays in other ways, sometimes cheaper for the whole new system like ULTra or sometimes just by secluded bus roads, with petrol/gas or electric buses(in this case even some commuters like Paris and BHNS (fr. Bus àHaut Niveau de Service, eng. High Level Service Bus) ordered buses looking similar to new trams, e.g. Solaris Urbino 18 Hybrid MetroStyle).

In other media[]

In literature[]

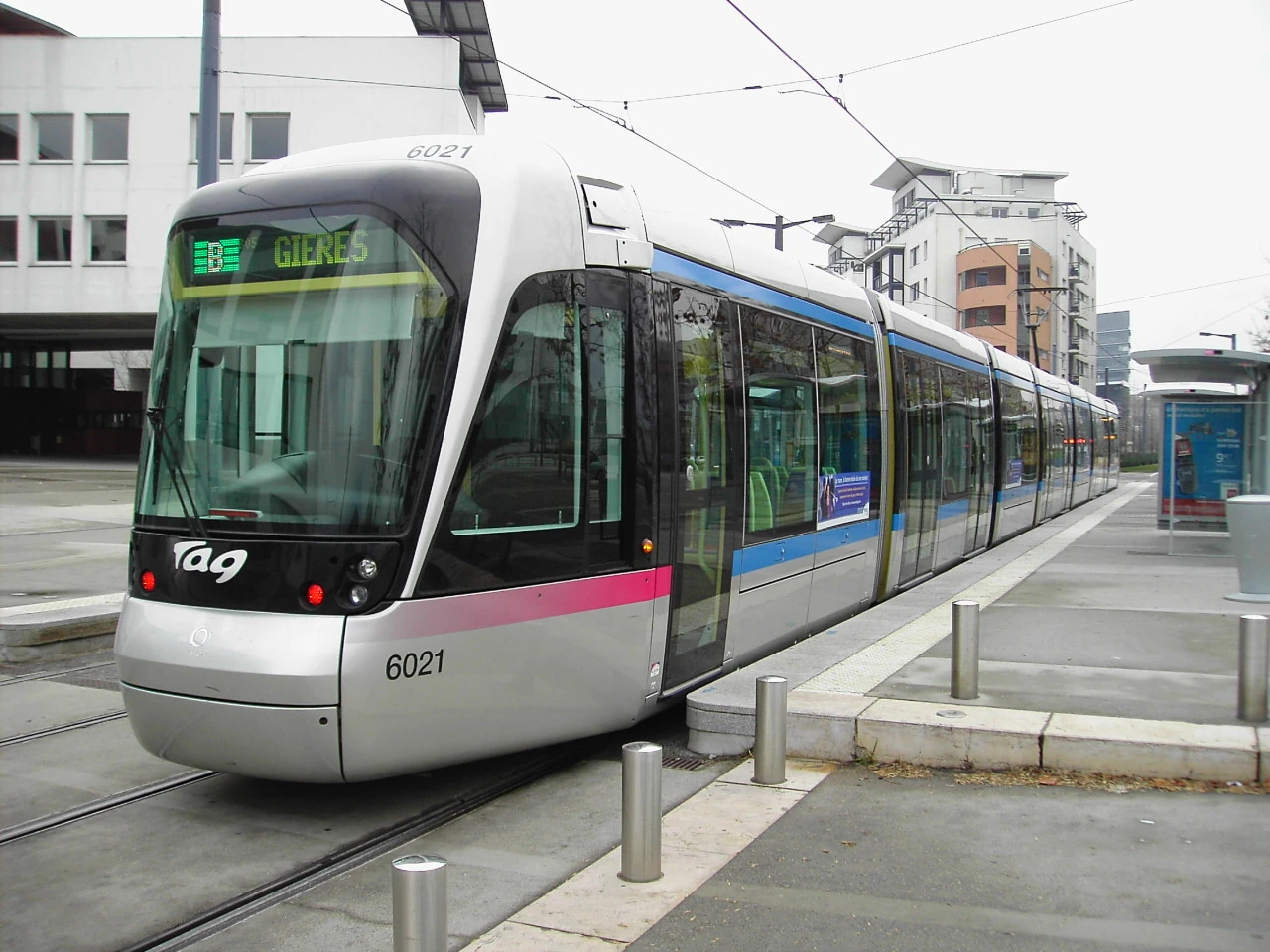

Tramway-grenoble

Tramway de Grenoble, Grenoble, France

One of the earliest literary references to trams occurs on the second page of Henry James's novel The Europeans:

From time to time a strange vehicle drew near to the place where they stood—such a vehicle as the lady at the window, in spite of a considerable acquaintance with human inventions, had never seen before: a huge, low, omnibus, painted in brilliant colours, and decorated apparently with jingling bells, attached to a species of groove in the pavement, through which it was dragged, with a great deal of rumbling, bouncing, and scratching, by a couple of remarkably small horses.

Published in 1878, the novel is set in the 1840s, though horse trams were not introduced in Boston till the 1850s. Note how the tram's efficiency surprises the European visitor; how two "remarkably small" horses sufficed to draw the "huge" tramcar.

James also makes comical reference to the novelty and excitement of trams in Portrait of a Lady (1881):

Henrietta Stackpole was struck with the fact that ancient Rome had been paved a good deal like New York, and even found an analogy between the deep chariot-ruts traceable in the antique street and the overjangled iron grooves which express the intensity of American life.[57]

A quarter of a century later, Joseph Conrad described Amsterdam's trams in chapter 14 of The Mirror of the Sea (1906): From afar at the end of Tsar Peter Straat, issued in the frosty air the tinkle of bells of the horse tramcars, appearing and disappearing in the opening between the buildings, like little toy carriages harnessed with toy horses and played with by people that appeared no bigger than children.

In episode 6 (Hades) of James Joyce's Ulysses (1918), the party on the way to Paddy Dignam's funeral in a horse-drawn carriage idly debates the merits of various tramway improvements:

- I can't make out why the corporation doesn't run a tramline from the parkgate to the quays, Mr Bloom said. All those animals could be taken in trucks down to the boats.
- Instead of blocking up the thoroughfare, Martin Cunningham said. Quite so. They ought to.
- Yes, Mr Bloom said, and another thing I often thought is to have municipal funeral trams like they have in Milan, you know. Run the line out to the cemetery gates and have special trams, hearse and carriage and all. Don't you see what I mean?
– O that be damned for a story, Mr Dedalus said. Pullman car and saloon diningroom.
– A poor lookout for Corny [the undertaker], Mr Power added.
– Why? Mr Bloom asked, turning to Mr Dedalus. Wouldn't it be more decent than galloping two abreast?[58]

In his fictionalised but autobiographical Memoirs of an Infantry Officer, published in 1930, Siegfried Sassoon's narrator ruminates from his hospital bed in Denmark Hill, London, in 1917 that "Even the screech and rumble of electric trams was a friendly sound; trams meant safety; the troops in the trenches thought about trams with affection."[59]

Danzig trams figure extensively in the early stages of Günter Grass's Die Blechtrommel (The Tin Drum). In the last chapter the novel's hero Oskar Matzerath and his friend Gottfried von Vittlar steal a tram late at night from outside Unterrath depot on the northern edge of Düsseldorf.

It is a surreal journey. Von Vittlar drives the tram through the night, south to Flingern and Haniel and then east to the suburb of Gerresheim. Meanwhile, inside, Matzerath tries to rescue the half-blind Victor Weluhn (who had escaped from the siege of the Polish post office in Danzig at the beginning of the book and of the war) from his two green-hatted would-be executioners. Mazerath deposits his briefcase, which contains Sister Dorotea's severed ring finger in a preserving jar, on the dashboard "where professional motorman put their lunchboxes". They leave the tram at the terminus and the executioners tie Weluhn to a tree in von Vittlar's mother's garden and prepare to machine-gun him. But Matzerath drums, Weluhn sings, and together they conjure up the Polish cavalry, who spirit both victim and executioners away. Matzerath asks von Vittlar to take his briefcase in the tram to the police HQ in the Fürstenwall, which he does.

The latter part of this route is today served by tram route 703 terminating at Gerresheim Stadtbahn station ("by the glassworks" as Grass notes, referring to the famous glass factory).[60]

In his 1967 spy thriller An Expensive Place to Die, Len Deighton misidentifies the Flemish coast tram: "The red glow of Ostend is nearer now and yellow trains rattle alongside the motor road and over the bridge by the Royal Yacht Club[61]..."[62]

In popular culture[]

  • Dziga Vertov's experimental 1929 film Man with a Movie Camera includes shots of trams (at 10 and 42 minutes).
  • The Rev W. Awdry wrote about GER Class C53 called Toby the Tram Engine, which starred his The Railway Series with his faithful coach, Henrietta.
  • A Streetcar Named Desire (play)
  • A Streetcar Named Desire (1951 film)
  • Black Orpheus (1959), of which the main male character Orfeu is a tram driver in Rio de Janeiro's tram system.
  • Toonerville Folks comic strip (1908–55) by Fontaine Fox featuring the "Toonerville Trolley that met all the trains."
  • The children's TV show Mister Rogers' Neighborhood featured a trolley.
  • The central plot of the film Who Framed Roger Rabbit involves Judge Doom, the villain, dismantling the streetcars of Los Angeles.
  • "The Trolley Song" in the film Meet Me in St. Louis received an Academy Award nomination.
  • The 1944 World Series was also known as the "Streetcar Series".
  • Malcolm (film), an Australian film about a tram enthusiast who uses his inventions to pull off a bank heist.
  • Luis Buñuel filmed La Ilusión viaja en tranvía[63] (English: Illusion Travels by Streetcar) in Mexico in 1953.
  • In Akira Kurosawa's film Dodesukaden a mentally ill boy pretends to be a tram conductor.
  • The Stompin' Tom Connors song "To It And At It" mentions a man who "can't afford the train, he's sittin' on a streetcar, but he's eastbound just the same."
  • The predominance of trams (trolleys) gave rise to the disparaging term trolley dodger for residents of the borough of Brooklyn in New York City. That term, shortened to "Dodger" became the nickname for the Brooklyn Dodgers (now the Los Angeles Dodgers).
  • Jens Lekman has a song titled "Tram No. 7 to Heaven", a reference to line 7 of the Gothenburg tram which passes through his native borough of Kortedala.
  • The band Beirut has a song titled "Fountains and Tramways" on the EP Pompeii.
  • The Elephant Will Never Forget, an 11-minute film made in 1953 by British Transport Films to celebrate the London tram network at the time of the last few days of its operation.
  • A W-class tram was used at the opening ceremony of the 2006 Commonwealth Games in Melbourne.
  • The Full Monty, set in Sheffield, managed to squeeze a tram passing in the background into three scenes.
  • 2009 Thomas Haggerty composed and produced 'Tram' generations 1, 2 and 3 for the popular group TRAM.
  • A collaboration between John Ward and Elizabeth Harrod: "a great tram."
  • In Chrome Shelled Regios, trams are being used in the Academy City Zuelni.
  • Trams feature in the opening credits of the world's longest running TV soap opera Coronation Street, set in a fictional suburb of Greater Manchester. A Blackpool tram killed one of the main characters in 1989 and the most recent faked accident involved a tram (modelled on the Manchester Metrolink) careering off a viaduct into the set in 2009.
Corrie crash

Coronation Street tram crash 2009

Trolleys buses HO

German models of trams (Düwag and Siemens) and a bus in H0 scale

In the news[]

  • In the Tottenham Outrage in 1909, two armed robbers hijacked a tram and were chased by the police in another tram.
  • On 7 June 1926 Catalan architect Antoni Gaudí was knocked down by a Barcelona tram and subsequently died.

In scale modelling[]

Model trams are popular in HO scale (1:87) and O scale (1:48 in the US and generally 1:43,5 and 1:45 in Europe and Asia). They are typically powered and will accept plastic figures inside. Common manufacturers are Roco and Lima, with many custom models being made as well. The German firm Hödl[64] and the Austrian Halling[65] specialize in 1:87 scale.[66]

In the US, Bachmann Industries is a mass supplier of HO trams and kits. Bowser Manufacturing has produced white metal models for over 50 years.[67] There are many boutique vendors offering limited run epoxy and wood models. At the high end are highly detailed brass models which are usually imported from Japan or Korea and can cost in excess of $500. Many of these run on Error: gauge specification "16.5mm" not known gauge track, which is correct for the representation of 4 ft 8+12 in (1,435 mm) (standard gauge) in HO scale as in US and Japan, but incorrect in 4 mm (1:76.2) scale, as it represents 4 ft 8+12 in (1,435 mm). This scale/gauge hybrid is called OO scale. O scale trams are also very popular among tram modellers because the increased size allows for more detail and easier crafting of overhead wiring. In the US these models are usually purchased in epoxy or wood kits and some as brass models. The Saint Petersburg Tram Company[68] produces highly detailed polyurethane non-powered O Scale models from around the world which can easily be powered by trucks from vendors like Q-Car.[69]

In the US, one of the best resources for model tram enthusiasts is the East Penn Traction Club of Philadelphia.[70]

It is thought that the first example of a working model tramcar in the UK built by an amateur for fun was in 1929, when Frank E. Wilson created a replica of London County Council Tramways E class car 444 in 1:16 scale, which he demonstrated at an early Model Engineer Exhibition. Another of his models was London E/1 1800, which was the only tramway exhibit in the Faraday Memorial Exhibition of 1931. Together with likeminded friends, Frank Wilson went on to found the Tramway & Light Railway Society[71] in 1938, establishing tramway modelling as a hobby.

Types[]

  • AKSM
  • Articulated Light Rail Vehicle
  • Avanto
  • Birney
  • Citadis
  • Citytram
  • Canadian Light Rail Vehicle
  • Combino
  • Crotram
  • Dick Kerr Type Tram
  • Funicular (Incline)
  • DL
  • Double-decker tram
  • DUEWAG
  • Eurotram
  • Flexity Swift
  • Gothawagen
  • GTL
  • Horsecar
  • К
  • Konstal
  • PESA
  • PCC
  • Peter Witt streetcar
  • Sirio
  • Soviet/Latvian RVR
  • Soviet/Russian tramcars LM/LVS, MTV, KTM, Spektr
  • Škoda ForCity and oth.
  • Tatra T3
  • Tatra KT4
  • TMK 2200
  • Tramino
  • Tramway Français Standard
  • TW 6000
  • Ultra Low Floor
  • US Standard Light Rail Vehicle
  • Vario[disambiguation needed InterlanguageLinks-Asset-Pencil-Hover]
  • W class Melbourne tram
  • ZGT

Regional[]

  • Trams in Africa
  • Trams in Asia
  • Trams in Australia
  • Trams in Europe
  • Trams in New Zealand
  • Streetcars in North America
  • Trams in South America

See also[]

  • Air brake (rail)
  • Armoured tram
  • Capabus
  • Cater MetroTrolley
  • CarGoTram
  • Dual-mode transit
  • Funicular (Incline Tram)
  • Girder rail
  • GM streetcar conspiracy
  • Ground level power supply
  • Haytor Granite Tramway
  • Heritage streetcar
  • Interurban
  • Light rail
  • List of light-rail transit systems
  • List of town tramway systems
  • List of tram and light-rail transit systems
  • List of tram builders
  • List of transport museums
  • Premetro
  • Railway electrification system
  • Trams and roundabouts
  • Streetcar suburb
  • Toronto PCCspecification
  • Tourist trolley
  • Tram accident
  • Tram and light-rail transit systems
  • Tram controls
  • Tram spotter
  • Tram stop
  • Tramway track
  • Tramways & Urban Transit
  • Trolleybus

References[]

  1. Online Etymology Dictionary, etymonline.com. Retrieved 4 April 2009.
  2. Robert C. Post: Urban Mass Transit, p.43, from Google Books.com. Retrieved 13 February 2009.
  3. Middleton, William D. (1967). The Time of the Trolley, p. 60. Milwaukee: Kalmbach Publishing. ISBN 0-89024-013-2.
  4. The Mumbles Train from Welcome to Wales., welshwales.co.uk. Retrieved 11 February 2009.
  5. Bellis, Mary. "History of Streetcars and Cable Cars". inventors.about.com. Retrieved on 10 January 2007.
  6. Münchner Straßenbahn. tram-muenchen.de.
  7. "This is how some of the world's familiar..." Popular Mechanics, May 1929, pg. 750. via Google Books.
  8. Wood, E. Thomas. "Nashville now and then: From here to there". Retrieved on 7 August 2007.
  9. "Glasgow Trams c1902 – Phantom rides on trams around the city". Scotland on Screen. Creative Scotland, National Library of Scotland and Education Scotland. Retrieved on 26 April 2012.
  10. American Public Transportation Association. "Milestones in U.S. Public Transportation History". Retrieved on 18 December 2008.[dead link]
  11. Sarajevo through history. Retrieved 11 February 2009.
  12. City of Belgrade – Important Years in City History Retrieved 7 December 2010.
  13. Trams of Hungary. Retrieved 11 February 2009.
  14. Transport History in Bucharest. Retrieved 11 February 2009.
  15. "Historical Highlights". Ljubljanski potniški promet [Ljubljana Passenger Transport]. Retrieved on 25 April 2012.
  16. refer: http://www.aattc.org.au/
  17. The research included consultation of copies of the "Alphington Gazette" in the State Library of Victoria and the following websites: http://markthefitter.blogspot.com/2008_11_01_archive.html http://www.google.com.au/search?q=%22gas+tram%22+Northcote+history&rls=com.microsoft:en-au:IE-SearchBox&ie=UTF-8&oe=UTF-8&sourceid=ie7&rlz=1I7GGLL_en-GB&redir_esc=&ei=R1MvTpXqGamdmQW4ofga http://www.ceti.pl/js29a/ciepl/en,ecal.html
  18. Malaysia: first compressed natural gas tram in the world will be ready next year. Ngvjournal.com.
  19. http://www.google.com.au/search?q=Portland+Tram&rls=com.microsoft:en-au:IE-SearchBox&ie=UTF-8&oe=UTF-8&sourceid=ie7&rlz=1I7GGLL_en-GB&redir_esc=&ei=RPExTqDCHKzzmAWQuZTxCg
  20. Citytram. Trampower.co.uk.
  21. Yarratrams Newsletter No 8. Retrieved 12 February 2009.
  22. MBTA (2010). "About the MBTA-The "El"". MBTA. Retrieved on 8 December 2010.
  23. Draemmli.info (German)
  24. Hungarian Wikipedia (Hungarian)
  25. Avenio, Then new generation trams from Siemens, Transportation.siemens.com
  26. Weymouth Harbour Tramway. Transportdiversions.com.
  27. George G. Wynne: 'CarGo Tram' Provides Freight Service on Dresden's Light Rail Tracks, apta.com. Retrieved 12 February 2009.
  28. Clean and efficient freight tram delivers goods – Amsterdam, NL, eukn.org. Retrieved 12 February 2009.
  29. Samenwest 5 December 2006, NOS3 television news 7 March 2007, Amsterdams Stadblad 4 June 2008
  30. 30.0 30.1 30.2 30.3 "Destination City. Electric Rolling Stock of the Melbourne & Metropolitan Tramways Board", various editions, Australian Electric Traction Association, Melbourne.
  31. Giornale della Reale società italiana d'igiene, Seduta del 5 febbrajo 1882, Archive.org
  32. (Italian) Tramditorino.it
  33. Tram hearse used in Newcastle, New South Wales : About New South Wales. About.nsw.gov.au.
  34. "Weltpremiere:Speisewagen im Straßenbahnnetz".
  35. [1]
  36. [2]
  37. Jeffrey Spivak: Streetcars are back from Landscape Architecture Department, UC Davis. Retrieved 10 February 2009. ucdavis.edu
  38. (French) Musée des Transports Urbains – Histoire., amtuir.org Retrieved 11 February 2009.
  39. London Passenger Transport Board: Annual Report, 1938
  40. Welcome to the Shore Line Interurban Historical Society | Chicago Surface Lines. Shore-line.org.
  41. National Post Staff (Septempber 27, 2012). "Next-generation streetcars arrive in Toronto for trials". Retrieved on October 31, 2012.
  42. Metrotranvia deal signed, Railway Gazette International, railwaygazette.com – Retrieved 22 June 2009
  43. Interview with The Hon. Tim Fischer on the Australian Broadcasting Corporation's Radio National Breakfast program on Monday 1 August 2011 <http://www.abc.net.au/rn/breakfast/> regarding his book Trains Unlimited <http://www.harpercollins.com.au/books/Trains-Unlimited-Tim-Fischer/?isbn=9780730497400>.
  44. Streetcar and Local Bus Comparative Review from Vancouver City, vancouver.ca. Retrieved 13 February 2009.
  45. Why are trams different from buses from Trams for Bath. Retrieved 13 February 2009.
  46. 46.0 46.1 Sustainable Light Rail – professor Lewis Lesley. Claverton Energy Group Conference, Bath October 2008, claverton-energy.com
  47. Molly D. Castelazo and Thomas A. Garrett (July 2004) Light Rail: Boon or Boondoggle?. The Regional Economist, Federal Reserve Bank of St. Louis.
  48. Haynes C. Goddard (10 August 2004). "Comments on "Light Rail: Boon or Boondoggle?" by Molly D. Castelazo and Thomas A. Garrett, in The Regional Economist, July 2004, St. Louis Federal Reserve Bank." (PDF). Center for Transportation Excellence. Retrieved on 19 February 2012.
  49. Lyndon Henry and David D. Dobbs (2007-05). "St. Louis Metrolink Light Rail – Rebuttal to Federal Reserve Board". Retrieved on 19 February 2012.
  50. 50.0 50.1 https://www.bv.com.au/general/bikes-and-riding/10429/ . Retrieved 6 June 2011
  51. scroll near the end. Retrieved 6 June 2011. Rulesoftheroad.ie.
  52. accessed 06.06 11. En.wikipedia.org.
  53. accessed 06.06.2011. Smh.drive.com.au.
  54. Charles S. McCaleb, Rails, Roads & Runways: The 20-Year Saga of Santa Clara County's Transportation Agency, (San Jose: Santa Clara County Transportation Agency, 1994), 67. Besides recounting statistics and anecdotes, this source also reprints a San Jose Mercury News cartoon of one such accident, in which a bemused tow truck driver quips, "Dang! Rod Diridon was right! The trolley does reduce the number of vehicles on the road!"
  55. Transit Cooperative Research Program (TCRP) Report 69: Light Rail Service: Pedestrian and Vehicular Safety, Transportation Research Board TRB.org
  56. Transit Cooperative Research Program (TCRP) Report 23: Wheel/Rail Noise Control Manual, Transportation Research Board, TRB.org
  57. p. 313 of Penguin edition
  58. pp. 94–5 of Penguin edition
  59. Part 9, p. 163 of the Faber & Faber edition
  60. The chapter Die letzte Straßenbahn oder Anbetung eines Weckglases (The last tram or Adoration of a Preserving Jar). See page 584 of the 1959 Büchergilde Gutenberg German edition and page 571 of the 1961 Secker & Warburg edition, translated into English by Ralph Manheim
  61. Ryco.be. Ryco.be.
  62. Chapter 38, p. 198 of the Companion Book Club edition
  63. IMDb.com
  64. Hödl, horlf-linir8.de
  65. Halling.at. Halling.at.
  66. (German) Marktübersicht Straßenbahnmodelle, from Strassenbahnfreunden-Hemer.de
  67. Bowser – Company History 1961 to Present. bowser-trains.com Retrieved 14 February 2009.
  68. Saint Petersburg Tram Company, sptc.spb.ru
  69. Q-Car, qcarcompany.com. Retrieved 2 September 2009.
  70. East Penn Traction Club, eastpenn.org. Retrieved 14 February 2009.
  71. Tramway & Light Railway Society, tramwayinfo.com

Further reading[]

  • Accattatis, Antonio. 2007. "Linee tranviarie a Torino" (ISBN 978-88-87911-78-7). Firenze: Phasar Edizioni.
  • Arrivetz, Jean. 1956. "Les Tramways Français" (No ISBN). Lyon: Editions Omni-Presse.
  • Bett, W. C., and J. C. Gillam. 1962. "Great British Tramway Networks (4th Edition)", ISBN 0-900433-03-5. London: Light Railway Transport League.
  • Blower, James M., and Robert S. Korach. 1966. "The NOT&L Story" (CERA Bulletin 109) (No ISBN). Chicago: Central Electric Railfans' Association.
  • Brimson, Samuel. 1983. "The Tramways of Australia" (ISBN 0-949825-01-8). Sydney: Dreamweaver Books.
  • Brinson, Carroll. 1977. "Jackson: A Special Kind of Place" (LCCN 77-081145) (No ISBN). Jackson, Mississippi: City of Jackson.
  • Buckley, R. J. 1984. "Tramways and Light Railways of Switzerland and Austria" (ISBN 0-900433-96-5). Milton Keynes, UK: Light Rail Transit Association.
  • Canfield, Joseph M. (ed.) 1965. "Electric Railways of Northeastern Ohio" (CERA Bulletin 108) (No ISBN). Chicago: Central Electric Railfans' Association.
  • Canfield, Joseph M. (ed.) 1968. "West Penn Traction" (CERA Bulletin 110) (No ISBN). Chicago: Central Electric Railfans' Association.
  • Canfield, Joseph M. 1969. "Badger Traction" (CERA Bulletin 111) (No ISBN). Chicago: Central Electric Railfans' Association.
  • Canfield, Joseph M. 1972. "TM: The Milwaukee Electric Railway & Light Company" (CERA Bulletin) (No ISBN). Chicago: Central Electric Railfans' Association.
  • Carlson, Norman (ed.), with Robert J. Levis (Research Coordinator). 1975. "Iowa Trolleys" (CERA Bulletin 114) (No ISBN). Chicago: Central Electric Railfans' Association.
  • Chandler, Allison. 1963. "Trolley Through the Countryside" (No ISBN). Denver: Sage Books.
  • Chandler, Allison, and Stephen D. Maguire, with Mac Sebree. 1980. "When Oklahoma Took The Trolley" (Interurbans Special 71) (ISBN 0-916374-35-1). Glendale (CA), US: Interurban Press.
  • Charlton, E. Harper. 1955. "Street Railways of New Orleans" (Interurbans Specian No. 17, No ISBN). Los Angeles: Interurbans.
  • Cox, Harold E. 1991. "Diamond State Trolleys – Electric Railways of Delaware." Forty Fort (PA), US: Harold E. Cox.
  • Davies, W. K. J. 1986. "100 years of the Belgian vicinal: SNCV/NMVB, 1885–1985 : a century of secondary rail transport in Belgium" (ISBN 0-900433-97-3). Broxbourne, UK: Light Rail Transit Association.
  • Dunbar, Charles S. 1967. "Buses, Trolleys & Trams" Great Britain: Paul Hamlyn Ltd. [republished 2004 with ISBN 0-7537-0970-8 or 9780753709702]
  • Dyer, Peter, and Peter Hodge. 1988. "Cane Train: The Sugar-Cane Railways of Fiji" (ISBN 0-908573-50-2). Wellington: New Zealand Railway and Locomotive Society Inc.
  • "Electric Railways of Indiana Part II, The" (CERA Bulletin 102) (No ISBN). 1958. Chicago: Central Electric Railfans' Association.
  • "Electric Railways of Michigan, The" (CERA Bulletin 103) (No ISBN). 1959. Chicago: Central Electric Railfans' Association.
  • Fetters, Thomas. 1978. "Palmetto Traction: Electric Railways of South Carolina" (No ISBN) Forty Fort (PA), US: Harold E. Cox.
  • Fletcher, Ken. 1995. "Centennial State Trolleys: The Life and Times of Colorado Streetcars" (ISBN 0-918654-51-3). Golden (CO), US: Colorado Railroad Museum.
  • Gragt, Frits van der. 1968. "Europe's Greatest Tramway Network" (No ISBN). Leiden, Netherlands: E.J. Brill.
  • Hamm, Edward. 1992. "The Public Service Trolley Lines in New Jersey" (ISBN 0-933449-12-7). Poli (IL), US: Transportation Trains.
  • Harper, James P. 1953. "Electric Railways of Wisconsin" (CERA Bulletin 97) (No ISBN). Chicago: Central Electric Railfans' Association.
  • Hennick, Louis C., and E. Harper Charlton. 1999. "Street Railways of Louisiana" (ISBN 1-56554-564-8). Gretna (LA), US: Pelican.
  • Hilton, George W. 1997. "The Cable Car in America: A New Treatise upon Cable or Rope Traction As Applied to the Working of Street and Other Railways", Revised Edition (ISBN 0-8047-3051-2). Stanford (CA), US: Stanford University Press.
  • Howarth, W. Des. 1971. "Tramway Systems of Southern Africa" (No ISBN). Johannesburg: published by the author.
  • Janssen, William C. 1954. "The Illinois Traction System" (CERA Bulletin 98) (No ISBN). Chicago: Central Electric Railfans' Association.
  • Keenan, David. 1979. "Tramways of Sydney" (ISBN 0-909338-02-7). Sans Souci (NSW), Australia: Transit Press.
  • King, B. R., and J. H. Price. 1995. "The Tramways of Portugal (4th Edition)" (ISBN 0-948106-19-0). London: Light Rail Transit Association.
  • Krambles, George. 1952. "Electric Railways of Ohio" (CERA Bulletin 96) (No ISBN). Chicago: Central Electric Railfans' Association.
  • Kramer, Frederick A., with Ed Wadhams. "Connecticut Company's Streetcars" (ISBN 0-911868-82-8). Newton (NJ), US: Carstens.
  • MacCowan, Ian. 1992. "The Tramways of New South Wales" (ISBN 0-949600-25-3). Oakleigh (Victoria) Australia: published by the author.
  • McCarthy, Ken. 1983. "Steaming Down Argent Street: A History of the Broken Hill Steam Tramways 1902–1926" (ISBN 0-909372-13-6). Sutherland (NSW), Australia: The Sydney Tramway Museum.
  • Middleton, William D. 1967. The Time of the Trolley (ISBN 0-89024-013-2). Milwaukee (WI), US: Kalmbach Publishing.
  • Misek, Frank J. 1956. "The Electric Railways of Iowa" (CERA Bulletin 100) (No ISBN). Chicago: Central Electric Railfans' Association.
  • Misek, Frank J. (ed.). 1958. "The Electric Railways of Indiana Part I" (CERA Bulletin 101) (No ISBN). Chicago: Central Electric Railfans' Association.
  • Misek, Frank J. (ed.). 1960. "The Electric Railways of Indiana Part III" (CERA Bulletin 104) (No ISBN). Chicago: Central Electric Railfans' Association.
  • Molloy, D. Scott. 1998. "All Aboard: The History Of Mass Transportation In Rhode Island" (ISBN 0-7524-1256-6). Mount Pleasant (SC), US: Arcadia Publishing.
  • Morrison, Allen. 1989. "The Tramways of Brazil – A 130-Year Survey" (ISBN 0-9622348-1-8) [3]. New York: Bonde Press.
  • Morrison, Allen. 1992. "The Tramways of Chile – 1858–1978" (ISBN 0-9622348-2-6) [4]. New York: Bonde Press.
  • Morrison, Allen. 1996. "Latin America by Streetcar: A Pictorial Survey of Urban Rail Transport South of the U.S.A." (ISBN 0-9622348-3-4). New York: Bonde Press.
  • Myers, Rex. 1970. "Montana's Trolleys: Book 1, Helena" (No ISBN). Los Angeles: Interurbans.
  • Meyers, Stephen L.: Manhattan's lost streetcars, Arcadia, 2005. ISBN 0-7385-3884-1
  • Nye, David E.: Electrifying America : social meanings of a new technology, 1880–1940, MIT Press, Cambridge, Massachusetts c1990. ISBN 0-262-14048-9
  • Olson, Russell L. 1976. "The Electric Railways of Minnesota" (No ISBN). Hopkins (MN), US: Minnesota Transportation Museum.
  • Orr, Richard. 1996 O&CB: Streetcars of Omaha and Council Bluffs (ISBN 0-9653505-0-9). Omaha: published by the author.
  • Pabst, Martin. 1989. "Tram & Trolley in Africa" (ISBN 3-88490-152-4). Krefeld: Röhr Verlag GMBH.
  • Peschkes, Robert. "World Gazetteer of Tram, Trolleybus, and Rapid Transit Systems."
Part One, Latin America (ISBN 1-898319-02-2). 1980. Exeter, UK: Quail Map Company.
Part Two, Asia+USSR / Africa / Australia (ISBN 0-948619-00-7). 1987. London: Rapid Transit Publications.
Part Three, Europe (ISBN 0-948619-01-5). 1993. London: Rapid Transit Publications.
Part Four, North America (ISBN 0-948619-06-6). 1998. London: Rapid Transit Publications.
  • Reifschneider, Felix E. 1947. "Toonervilles of the Empire State" (No ISBN). Orlando (FL), U.S.: published by the author.
  • Reifschneider, Felix E. 1948. "Trolley Lines of the Empire State" (No ISBN). Orlando (FL), U.S.: published by the author.
  • Röhr, Gustav. 1986. "Schmalspurparadies Schweiz", Band 1: Berner Oberland, Jura, Westschweiz, Genfer See, Wallis (ISBN 3-921679-38-9). Aachen: Schweers + Wall.
  • Rowsome, Frank; Stephan McGuire, tech. ed. (1956). A Trolley Car Treasury: A Century of American Streetcars—Horsecars, Cable Cars, Interurbans, and Trolleys. New York: McGraw-Hill.
  • Schramm, Jack E., and William H. Henning. 1978. "Detroit's Street Railways, Volume I" (CERA Bulletin 117) (No ISBN). Chicago: Central Electric Railfans' Association.
  • Schramm, Jack E., William H. Henning and Thomas J. Devorman. 1980. "Detroit's Street Railways, Volume II" (CERA Bulletin 120) (No ISBN). Chicago: Central Electric Railfans' Association.
  • Schramm, Jack E., William H. Henning and Andrews, Richard R. 1984. "Detroit's Street Railways, Volume III: When Eastern Michigan Rode the Rails" (CERA Bulletin 123) (No ISBN). Chicago: Central Electric Railfans' Association.
  • Schweers, Hans. 1988. "Schmalspurparadies Schweiz", Band 2: Nordostschweiz, Mittelland, Zentralschweiz, Graubünden, Tessin (ISBN 3-921679-46-X). Aachen: Schweers + Wall.
  • "Smaller Electric Railways of Illinois, The" (CERA Bulletin 99) (No ISBN). 1955. Chicago: Central Electric Railfans' Association.
  • Stewart, Graham. 1985. "When Trams Were Trumps in New Zealand" (OCLC 12723934). Wellington: Grantham House Publishing.
  • Stewart, Graham. 1993 "The End of the Penny Section" (revised and enlarged edition) (ISBN 1-86934-037-X). Wellington: Grantham House Publishing.
  • "Straßenbahnatlas ehem. Sowjetunion / Tramway Atlas of the former USSR" (ISBN 3-926524-15-4). 1996. Berlin: Arbeitsgemeinschaft Blickpunkt Straßenbahn, in conjunction with Light Rail Transit Association, London.
  • "Straßenbahnatlas Rumänien" (compiled by Andreas Günter, Sergei Tarknov and Christian Blank; ISBN 3-926524-23-5). 2004. Berlin: Arbeitsgemeinschaft Blickpunkt Straßenbahn.
  • Swett, Ira, with Fred Fellow. 1954. "Interurbans of Utah" (Interurbans Special 15) (No ISBN). Los Angeles: Interurbans.
  • Swett, Ira. 1970. "Montana's Trolleys 2: Butte, Anaconda, BAP" (Interurbans Special 50) (No ISBN). Los Angeles: Interurbans.
  • Swett, Ira. 1970. "Montana's Trolleys – III: Billings, Bozeman, Great Falls, Missoula, Proposed Lines, The Milwaukee Road (Interurbans Special 51) (No ISBN). Los Angeles: Interurbans.
  • "Tramway & Light Railway Atlas – Germany 1996" (ISBN 0-948106-18-2). 1995. Berlin: Arbeitsgemeinschaft Blickpunkt Straßenbahn, in conjunction with Light Rail Transit Association, London.
  • Turner, Kevin. 1996. "The Directory of British Tramways: Every Passenger-Carrying Tramway, Past and Present" (ISBN 1-85260-549-9). Somerset, UK: Haynes.
  • Waller, Michael H., and Peter Walker. 1992. "British & Irish Tramway Systems since 1945" (ISBN 0-7110-1989-4). Shepperton (Surrey), UK: Ian Allan Ltd.

External links[]

Commons-logo
Wikimedia Commons has media related to:

Template:Modes of Public Transport

Smallwikipedialogo This page uses some content from Wikipedia. The original article was at Tram. The list of authors can be seen in the page history. As with Tractor & Construction Plant Wiki, the text of Wikipedia is available under the Creative Commons by Attribution License and/or GNU Free Documentation License. Please check page history for when the original article was copied to Wikia


Advertisement
