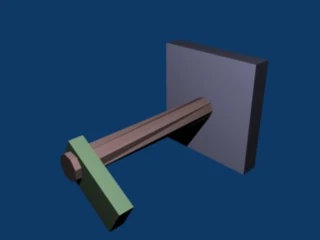

Torsion-Bar no-load

A torsion bar with no load applied.

Torsion-Bar with-load

A torsion bar with a load applied.

Front axle section torsion bar 2

A front VW Beetle suspension cross-section

A torsion bar suspension, also known as a torsion spring suspension or torsion beam suspension, is a general term for any vehicle suspension that uses a torsion bar as its main weight bearing spring. One end of a long metal bar is attached firmly to the vehicle chassis; the opposite end terminates in a lever, the torsion key, mounted perpendicular to the bar, that is attached to a suspension arm, a spindle, or the axle. Vertical motion of the wheel causes the bar to twist around its axis and is resisted by the bar's torsion resistance. The effective spring rate of the bar is determined by its length, cross section, shape and material.

UsageEdit

Torsion bar suspensions are used on combat vehicles or tanks like the T-72 (many tanks from late in World War II used this suspension), and on trucks and SUVs from Ford, Dodge, GM, Mitsubishi, Mazda, Nissan and Toyota. Manufacturers change the torsion bar or key to adjust the ride height, usually to compensate for heavier or lighter engines. While the ride height may be adjusted by turning the adjuster bolts on the stock torsion key, rotating the stock key too far can bend the adjusting bolt and (more importantly) place the shock piston outside its standard travel. Over-rotating the torsion bars can also cause the suspension to hit the bump-stop prematurely, causing a harsh ride. Aftermarket forged-metal torsion key kits use relocked adjuster keys to prevent over-rotation, and shock brackets to keep the piston travel in the stock range.

Advantages and disadvantagesEdit

The main advantages of a torsion bar suspension are durability, easy adjustability of ride height, and small profile along the width of the vehicle. It takes up less of the vehicle's interior volume compared to coil springs. A disadvantage is that torsion bars, unlike coil springs, usually cannot provide a progressive spring rate. In most torsion bar systems, ride height (and therefore many handling features) may be changed by simply adjusting bolts that connect the torsion bars to the steering knuckles. In most cars with this type of suspension, swapping torsion bars for a different spring rate is usually an easy task.

LevelingEdit

Some vehicles use torsion bars to provide automatic levelling, using a motor to pre-stress the bars to provide greater resistance to load and, in some cases (depending on the speed with which the motors can act), to respond to changes in road conditions. Height adjustable suspension has been used to implement a wheel-change mode where the vehicle is raised on three wheels so that the remaining wheel is lifted off the ground without the aid of a jack.

HistoryEdit

Before World War II, the front wheel drive Citroen Traction Avant (1934) had independent front torsion bar suspension and a flexible trailing dead axle, also sprung by torsion bars. The flexibility of the axle beam provided wheel location features like a twist beam axle.[1] The Czechoslovakian Tatra cars designed by Professor Hans Ledwinka in the mid-1930s used all round independent torsion bar suspension, along with air cooled rear engines. Also in the 1930s, prototypes of the first Volkswagen Beetle incorporated torsion bars—especially its transverse mounting style. Ledwinka's concept had been copied by Ferdinand Porsche, whose successors later had to acknowledge the influence of Ledwinka's sophisticated Tatra models on the Porsche-designed Kdf-Wagen of 1938 (later renamed the VW Beetle), a post-war lawsuit resulting in a DM3,000,000 settlement paid by Volkswagen to Ringhoffer-Tatra in 1961.

The system was applied to many new combat vehicle designs during the Second World War. It was used extensively in European cars Renault, Citroën and Volkswagen, as well as by Packard in the 1950s. The Packard used torsion bars at both front and rear, and interconnected the front and rear systems to improve ride quality. The then revolutionary Jaguar E-Type introduced in 1961 had a unique torsion bar front suspension and an independent coil spring rear suspension using four shock absorbers with concentric springs.

The most famous American passenger car application was the Chrysler system used beginning with the 1957 model year, although Chrysler's "Torsion-Aire" suspension was only for the front; the same basic system (longitudinal mounting) was maintained until the 1981 introduction of the K-car. A reengineered torsion bar suspension, introduced with the 1976 Dodge Aspen, introduced transverse-mounted torsion bars (possibly based on the Volkswagen Type 3 passenger car) until production ended in 1989 (with Chrysler's M platform). Light duty Dodge trucks however continue to use torsion bars on their front suspension.

General Motors has used torsion bars since 1966, starting with the E-platform vehicles (Oldsmobile Toronado, Cadillac Eldorado), 4 wheel drive S-10 pickups & Astro vans, and since 1988, full size trucks (GMT400, GMT800, and GMT900 series).

Porsche used torsion bar suspension for their 911 series from 1963 until 1989 with the introduction of the 964. They are also used in the rear suspension of the 924, 944, and 968.

VariationsEdit

Some front-wheel drive automobiles use a related type of torsion beam suspension, usually called a twist beam rear suspension, in which the rear wheels are carried on trailing arms connected by a laterally mounted torsion beam. The torsion beam functions both as wheel locating arm and as an anti-roll bar to resist lateral motion of the wheels as the body leans in turns. Its advantages are that it is inexpensive to manufacture and install, and engages a minimum amount of interior volume, leaving more space for the carriage of passengers, cargo, and other components. Because the torsion beam acts in the lateral plane, not vertically, the twist beam axle cannot provide ride height adjustment, and it suffers, to some extent, similar car handling limitations as other beam axle suspensions. However these limitations may not be apparent on the road, because of the trend towards firmer, more sporty suspension setups with more limited wheel travel. Twist-beam rear suspensions were pioneered on the Volkswagen Golf[citation needed] in the early 1970s, and remain common on compact cars and minivans.Some street trucks and suvs have that type of front end such as the ford ranger and ford explorer

Other usesEdit

Torsion bars were sometimes used instead of conventional coil valve springs in some older motorcycles, such as the Honda CB450. They were also used in the door mechanism of the DeLorean DMC-12 automobile.

ReferencesEdit

  1. "Torsion Bars Support Car Without Springs" Popular Mechanics, October 1934 drawings explaining Citroen Traction Avant suspension in detail
