A throttle is the mechanism by which the flow of a fluid is managed by constriction or obstruction. An engine's power can be increased or decreased by the restriction of inlet gases (i.e., by the use of a throttle), but usually decreased. The term throttle has come to refer, informally and incorrectly, to any mechanism by which the power or speed of an engine is regulated. What is often termed a throttle (in an aviation context) is more correctly called a thrust lever. For a steam engine, the steam valve that sets the engine speed/power is often known as a regulator.

Internal combustion engines Edit

USPatent6518683

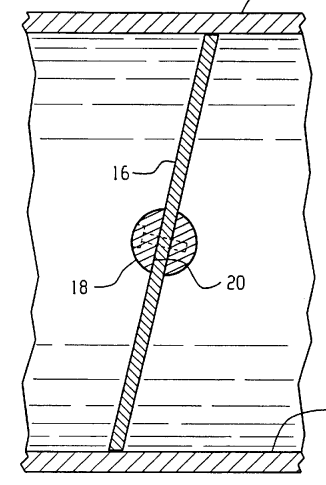

A cross-section view of a throttle valve

In a gasoline internal combustion engine, the throttle is a valve that directly regulates the amount of air entering the engine, indirectly controlling the charge (fuel + air) burned on each cycle due to the fuel-injector or carburetor maintaining a relatively constant fuel/air ratio. In a motor vehicle the control used by the driver to regulate power is sometimes called the throttle pedal or accelerator.

The throttle is typically a butterfly valve. In a fuel-injected engine, the throttle valve is placed on the entrance of the intake manifold, or housed in the throttle body. In a carbureted engine, it is found in the carburetor.

When a throttle is wide open, the intake manifold is usually at ambient atmospheric pressure. When the throttle is partially closed, a manifold vacuum develops as the intake drops below ambient pressure.

Usually the throttle valve is controlled with a throttle pedal or lever via a direct mechanical linkage. In vehicles with electronic throttle control, the manual throttle control sends a signal to the Engine Control Unit (ECU), which then directly controls the position of the throttle valve. This means that the operator does not have direct control over the throttle valve; the ECU can finely control the valve in order to reduce emissions or maximize performance.

In a reciprocating-engine aircraft, the throttle control is usually a hand-operated lever or knob. It controls the engine power, which may or may not reflect in a change of RPM, depending on the propeller installation (fixed-pitch or constant speed).[1]

The power output of a diesel engine is controlled by regulating the quantity of fuel that is injected into the cylinder. Because the engines do not need to control air volumes, they lack a butterfly valve in the intake tract. An exception to this generalization is newer diesel engines meeting stricter emissions standards, where a throttle is used to generate intake manifold vacuum, thereby allowing the introduction of exhaust gas (see EGR) to lower combustion temperatures and thereby minimize NOx production.

Throttle body Edit

Throttlebody

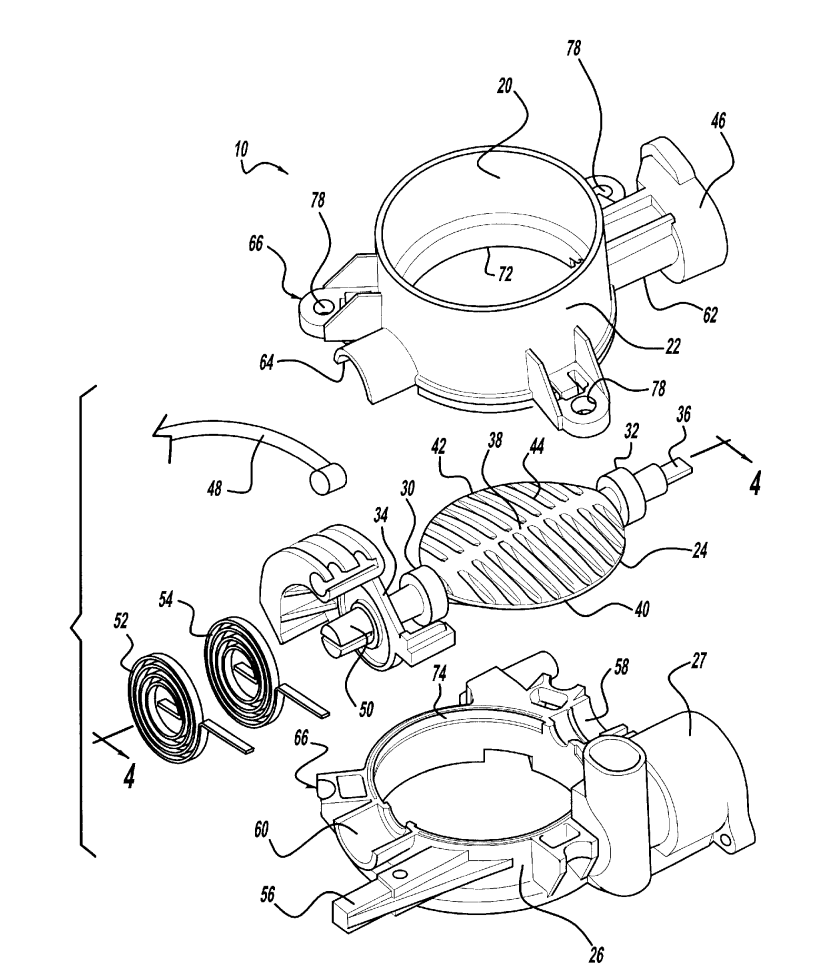

The components of a typical throttle body

In fuel injected engines, the throttle body is the part of the air intake system that controls the amount of air flowing into the engine, in response to driver accelerator pedal input in the main. The throttle body is usually located between the air filter box and the intake manifold, and it is usually attached to, or near, the mass airflow sensor.

The largest piece inside the throttle body is the throttle plate, which is a butterfly valve that regulates the airflow.

On many cars, the accelerator pedal motion is communicated via the throttle cable, to activate the throttle linkages, which move the throttle plate. In cars with electronic throttle control (also known as "drive-by-wire"), an electric motor controls the throttle linkages and the accelerator pedal connects not to the throttle body, but to a sensor, which sends the pedal position to the Engine Control Unit (ECU). The ECU determines the throttle opening based on accelerator pedal position and inputs from other engine sensors.

Throttle body

Throttle body showing throttle position sensor. The throttle cable attaches to the curved, black portion on the left. The copper-coloured coil visible next to this returns the throttle to its idle position when the pedal is released.

When the driver presses on the accelerator pedal, the throttle plate rotates within the throttle body, opening the throttle passage to allow more air into the intake manifold. Usually an airflow sensor measures this change and communicates with the ECU. The ECU then increases the amount of fuel being sent to the fuel injectors in order to obtain the desired air-fuel ratio. Often a throttle position sensor (TPS) is connected to the shaft of the throttle plate to provide the ECU with information on whether the throttle is in the idle position, wide-open throttle (WOT) position, or somewhere in between these extremes.

Throttle bodies may also contain valves and adjustments to control the minimum airflow during idle. Even in those units that are not "drive-by-wire", there will often be a small electric motor driven valve, the Idle Air Control Valve (IACV), that the ECU uses to control the amount of air that can bypass the main throttle opening.

Bmw e92 m3 engine3

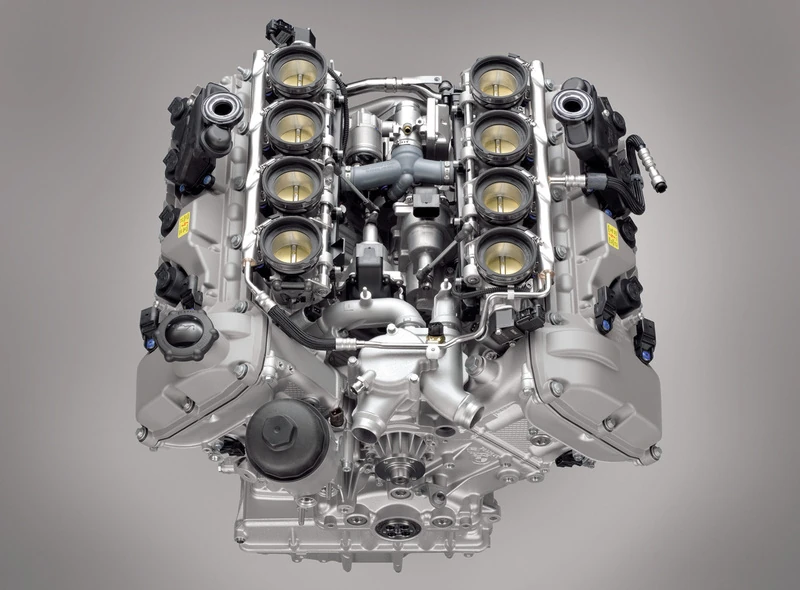

Image of BMW S65 from the e92 BMW M3 showing eight individual throttle bodies

Many cars have a single throttle body. Others employ more than one, chained together by linkages to improve throttle response. At the extreme, high performance cars like the E92 BMW M3 and high performance motorcycles like the Yamaha R6 use a separate throttle body for each cylinder, often called "individual throttle bodies" or ITBs.

A throttle body is somewhat analogous to the carburetor in a non-injected engine. Carburetors combine the functionality of the throttle body and fuel injectors into one in order to modulate the amount of air flow and to combine air and fuel together. Cars with throttle body injection (called TBI by General Motors and CFI by Ford) locate the fuel injectors in the throttle body, thereby allowing an older engine to be converted from carburetor to fuel injection without significantly altering the engine design.

Other engines Edit

Most engines have some kind of throttle control, though the particular way that power is regulated is often different.

Liquid rockets are throttled by controlling the pumps that send liquid fuel and oxidizer to the combustion chamber.

Solid rockets are not controllable once their solid fuel is ignited.

Hybrid rockets, like the one used in 'Space Ship One', use solid fuel and liquid oxidizer; thus, throttling is possible through the oxygen pumps, as in a full liquid rocket motor.

In a jet engine, engine output is also directly controlled by changing the amount of fuel flowing into the combustion chamber, usually with an autothrottle. In some instances, a "throttle" is known as a "thrust lever" (as in most Airbus and Boeing aircraft). This is chiefly due to the fact that "throttle" is associated with traditional gasoline engines.[2]
