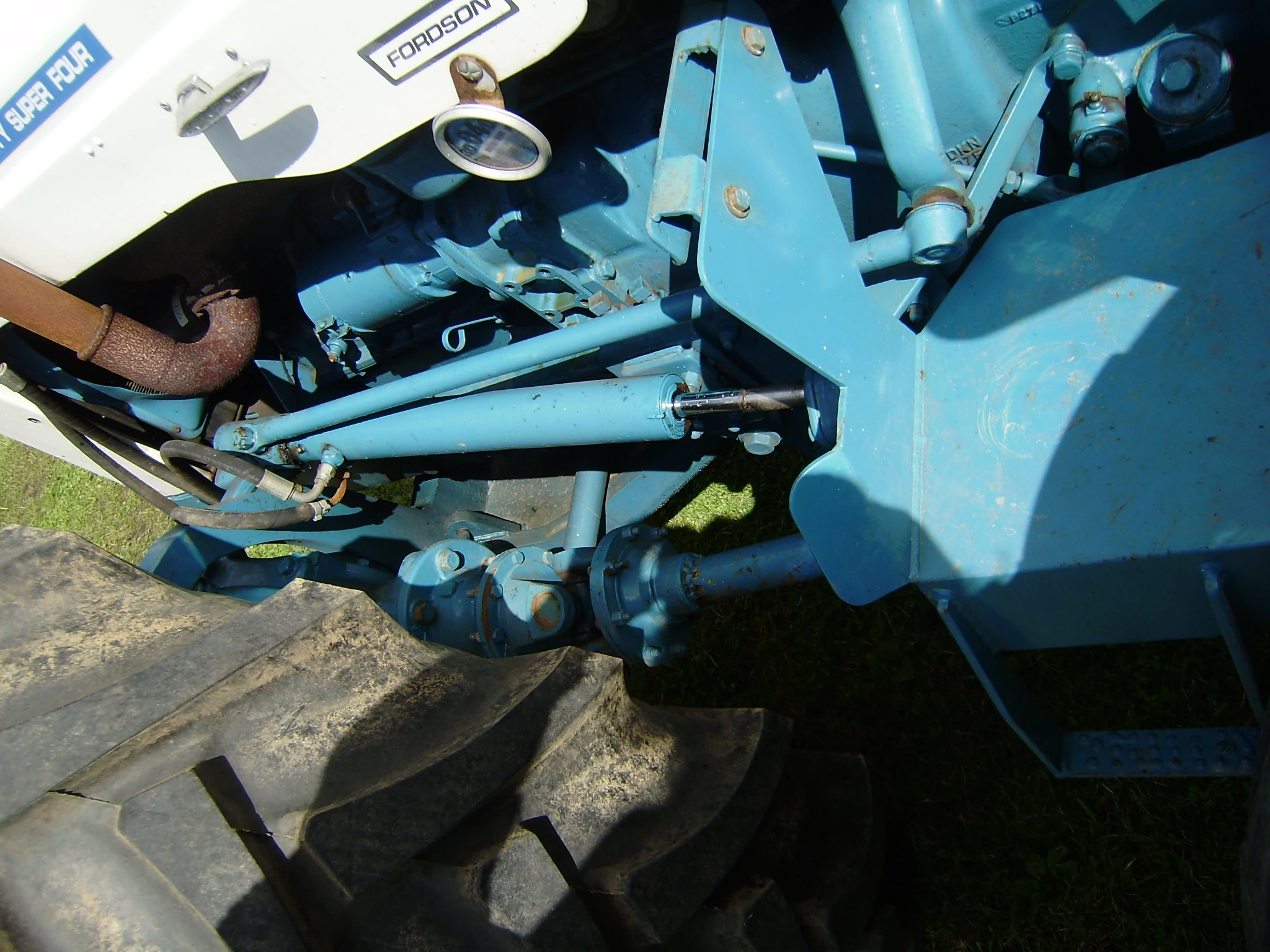

County steering gear-P8100557

Power Steering ram on a County 4-wd tractor

Suspension

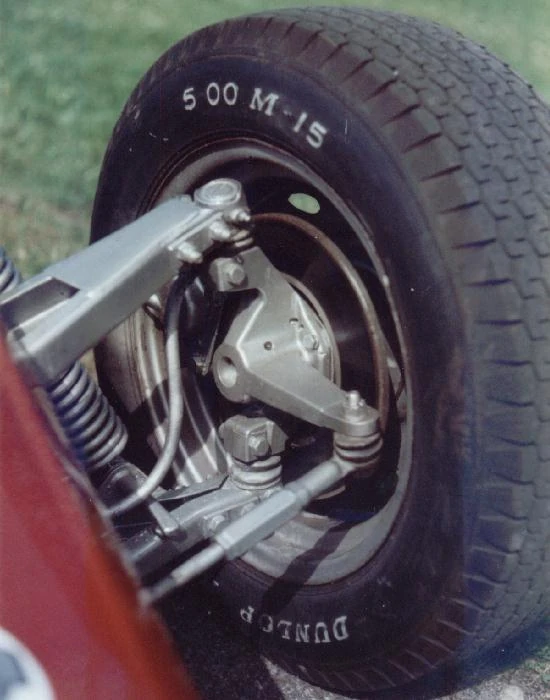

Part of car steering mechanism: tie rod, steering arm, king pin axis (using ball joints).

Steering is the term applied to the collection of components, linkages, etc. which will allow a vessel (ship, boat) or vehicle (car, motorcycle, bicycle) to follow the desired course. An exception is the case of rail transport by which rail tracks combined together with railroad switches (and also known as 'points' in British English) provide the steering function.

Introduction[]

The most conventional steering arrangement is to turn the front wheels using a hand–operated steering wheel which is positioned in front of the driver, via the steering column, which may contain universal joints (which may also be part of the collapsible steering column design), to allow it to deviate somewhat from a straight line. Other arrangements are sometimes found on different types of vehicles, for example, a tiller or rear–wheel steering. Tracked vehicles such as bulldozers and tanks usually employ differential steering — that is, the tracks are made to move at different speeds or even in opposite directions, using clutches and brakes, to bring about a change of course or direction.

Wheeled vehicle steering[]

Basic geometry[]

Ackermann turning

Ackermann steering geometry

Caster angle

Caster angle θ indicates kingpin pivot line and gray area indicates vehicle's tire with the wheel moving from right to left. A positive caster angle aids in directional stability, as the wheel tends to trail, but a large angle makes steering more difficult.

Curves described by the rear wheels of a conventional automobile. While the vehicle moves with a constant speed it's inner and outer rear wheels don't.

The basic aim of steering is to ensure that the wheels are pointing in the desired directions. This is typically achieved by a series of linkages, rods, pivots and gears. One of the fundamental concepts is that of caster angle - each wheel is steered with a pivot point ahead of the wheel; this makes the steering tend to be self-centering towards the direction of travel.

The steering linkages connecting the steering box and the wheels usually conforms to a variation of Ackermann steering geometry, to account for the fact that in a turn, the inner wheel is actually travelling a path of smaller radius than the outer wheel, so that the degree of toe suitable for driving in a straight path is not suitable for turns. The angle the wheels make with the vertical plane also influences steering dynamics (see camber angle) as do the tires.

Rack and pinion, recirculating ball, worm and sector[]

Steer system

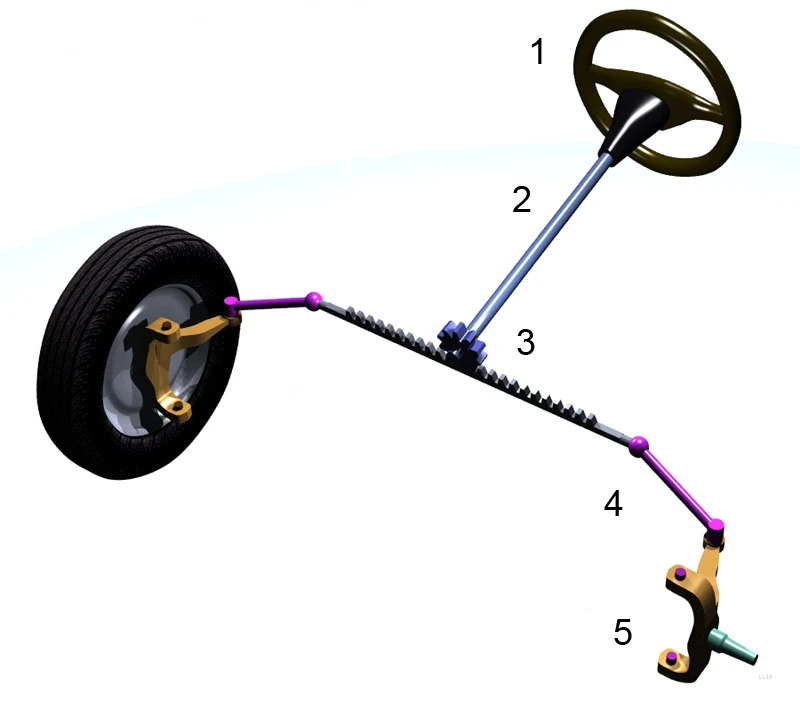

Rack and pinion steering mechanism: 1 Steering wheel; 2 Steering column; 3 Rack and pinion; 4 Tie rod; 5 Kingpin.

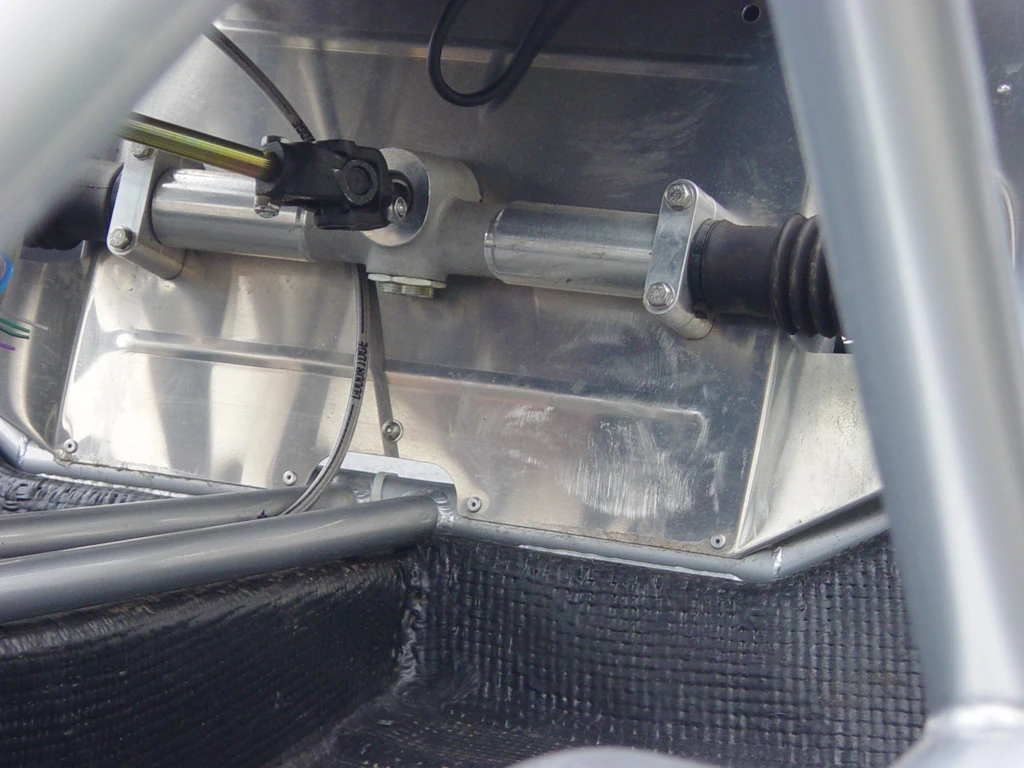

WrightspeedStearingRack4888

Rack and pinion unit mounted in the cockpit of an Ariel Atom sports car chassis. For most high volume production, this is usually mounted on the other side of this panel

Many modern cars use rack and pinion steering mechanisms, where the steering wheel turns the pinion gear; the pinion moves the rack, which is a linear gear that meshes with the pinion, converting circular motion into linear motion along the transverse axis of the car (side to side motion). This motion applies steering torque to the swivel pin ball joints that replaced previously used kingpins of the stub axle of the steered wheels via tie rods and a short lever arm called the steering arm.

The rack and pinion design has the advantages of a large degree of feedback and direct steering "feel". A disadvantage is that it is not adjustable, so that when it does wear and develop lash, the only cure is replacement.

Older designs often use the recirculating ball mechanism, which is still found on trucks and utility vehicles. This is a variation on the older worm and sector design; the steering column turns a large screw (the "worm gear") which meshes with a sector of a gear, causing it to rotate about its axis as the worm gear is turned; an arm attached to the axis of the sector moves the Pitman arm, which is connected to the steering linkage and thus steers the wheels. The recirculating ball version of this apparatus reduces the considerable friction by placing large ball bearings between the teeth of the worm and those of the screw; at either end of the apparatus the balls exit from between the two pieces into a channel internal to the box which connects them with the other end of the apparatus, thus they are "recirculated".

The recirculating ball mechanism has the advantage of a much greater mechanical advantage, so that it was found on larger, heavier vehicles while the rack and pinion was originally limited to smaller and lighter ones; due to the almost universal adoption of power steering, however, this is no longer an important advantage, leading to the increasing use of rack and pinion on newer cars. The recirculating ball design also has a perceptible lash, or "dead spot" on center, where a minute turn of the steering wheel in either direction does not move the steering apparatus; this is easily adjustable via a screw on the end of the steering box to account for wear, but it cannot be entirely eliminated because it will create excessive internal forces at other positions and the mechanism will wear very rapidly. This design is still in use in trucks and other large vehicles, where rapidity of steering and direct feel are less important than robustness, maintainability, and mechanical advantage.

The worm and sector was an older design, used for example in Willys and Chrysler vehicles, and the Ford Falcon (1960s).[1]

Other systems for steering exist, but are uncommon on road vehicles. Children's toys and go-karts often use a very direct linkage in the form of a bellcrank (also commonly known as a Pitman arm) attached directly between the steering column and the steering arms, and the use of cable-operated steering linkages (e.g. the Capstan and Bowstring mechanism) is also found on some home-built vehicles such as soapbox cars and recumbent tricycles.

Power steering[]

Main article: Power steering

Power steering helps the driver of a vehicle to steer by directing some of the its power to assist in swivelling the steered roadwheels about their steering axes. As vehicles have become heavier and switched to front wheel drive, particularly using negative offset geometry, along with increases in tire width and diameter, the effort needed to turn the wheels about their steering axis has increased, often to the point where major physical exertion would be needed were it not for power assistance. To alleviate this auto makers have developed power steering systems: or more correctly power-assisted steering—on road going vehicles there has to be a mechanical linkage as a fail safe. There are two types of power steering systems; hydraulic and electric/electronic. A hydraulic-electric hybrid system is also possible.

A hydraulic power steering (HPS) uses hydraulic pressure supplied by an engine-driven pump to assist the motion of turning the steering wheel. Electric power steering (EPS) is more efficient than the hydraulic power steering, since the electric power steering motor only needs to provide assistance when the steering wheel is turned, whereas the hydraulic pump must run constantly. In EPS, the amount of assistance is easily tunable to the vehicle type, road speed, and even driver preference. An added benefit is the elimination of environmental hazard posed by leakage and disposal of hydraulic power steering fluid. In addition, electrical assistance is not lost when the engine fails or stalls, whereas hydraulic assistance stops working if the engine stops, making the steering doubly heavy as the driver must now turn not only the very heavy steering—without any help—but also the power-assistance system itself.

Speed Sensitive Steering[]

An outgrowth of power steering is speed sensitive steering, where the steering is heavily assisted at low speed and lightly assisted at high speed. The auto makers perceive that motorists might need to make large steering inputs while manoeuvering for parking, but not while traveling at high speed. The first vehicle with this feature was the Citroën SM with its Diravi layout[citation needed], although rather than altering the amount of assistance as in modern power steering systems, it altered the pressure on a centring cam which made the steering wheel try to "spring" back to the straight-ahead position. Modern speed-sensitive power steering systems reduce the mechanical or electrical assistance as the vehicle speed increases, giving a more direct feel. This feature is gradually becoming more common.

Four-wheel steering[]

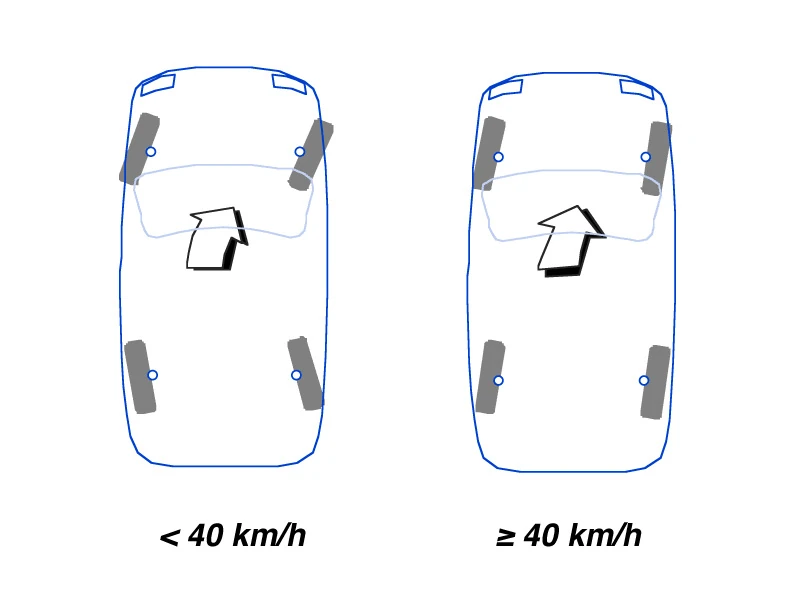

4WSselect

Speed-dependent four-wheel steering.

Caldwell vale tractor

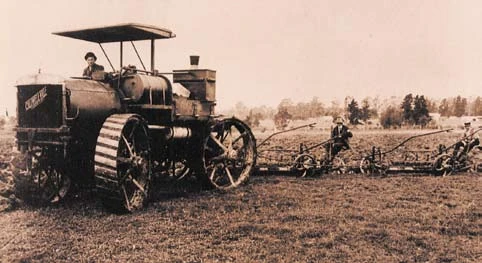

Early example of four-wheel steering. 1910 photograph of 80 hp Caldwell Vale tractor in action.

Mercedes Kübelwagen G5

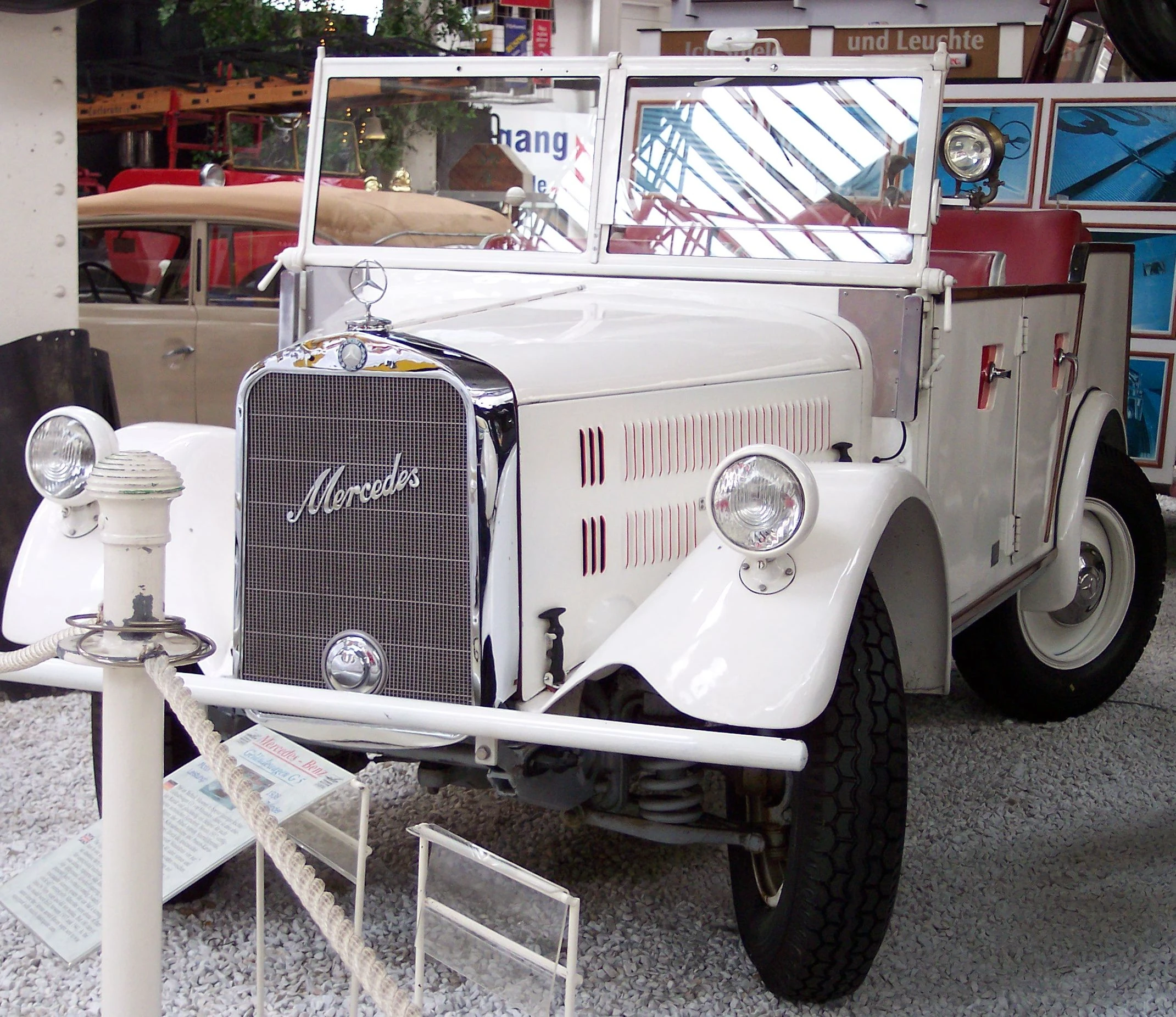

1937 Mercedes-Benz Type G 5 with four-wheel steering.

Quadrasteer61

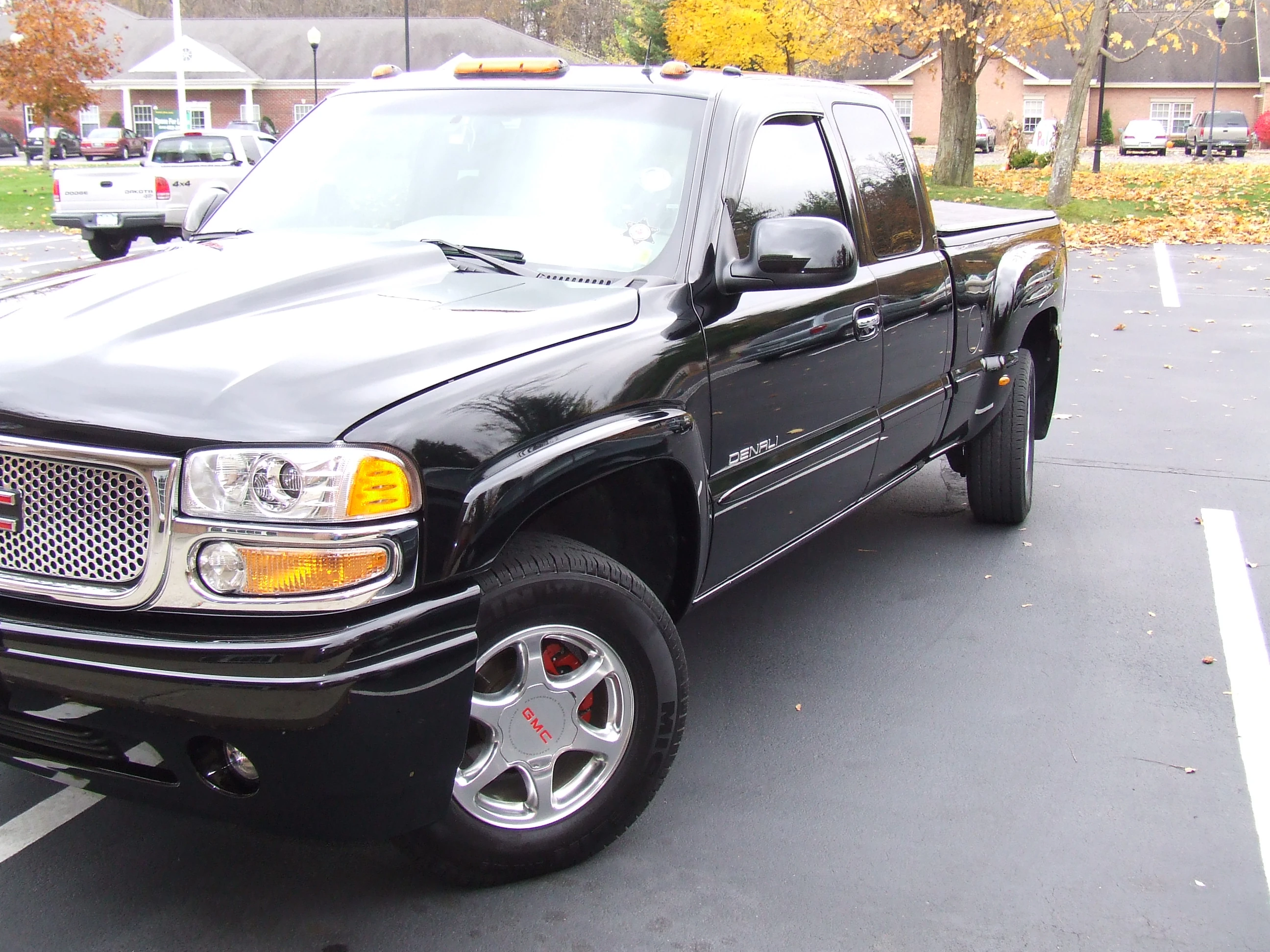

Sierra Denali with Quadrasteer, rear steering angle.

Arnhem-Trolleybus-4-wheel-steering

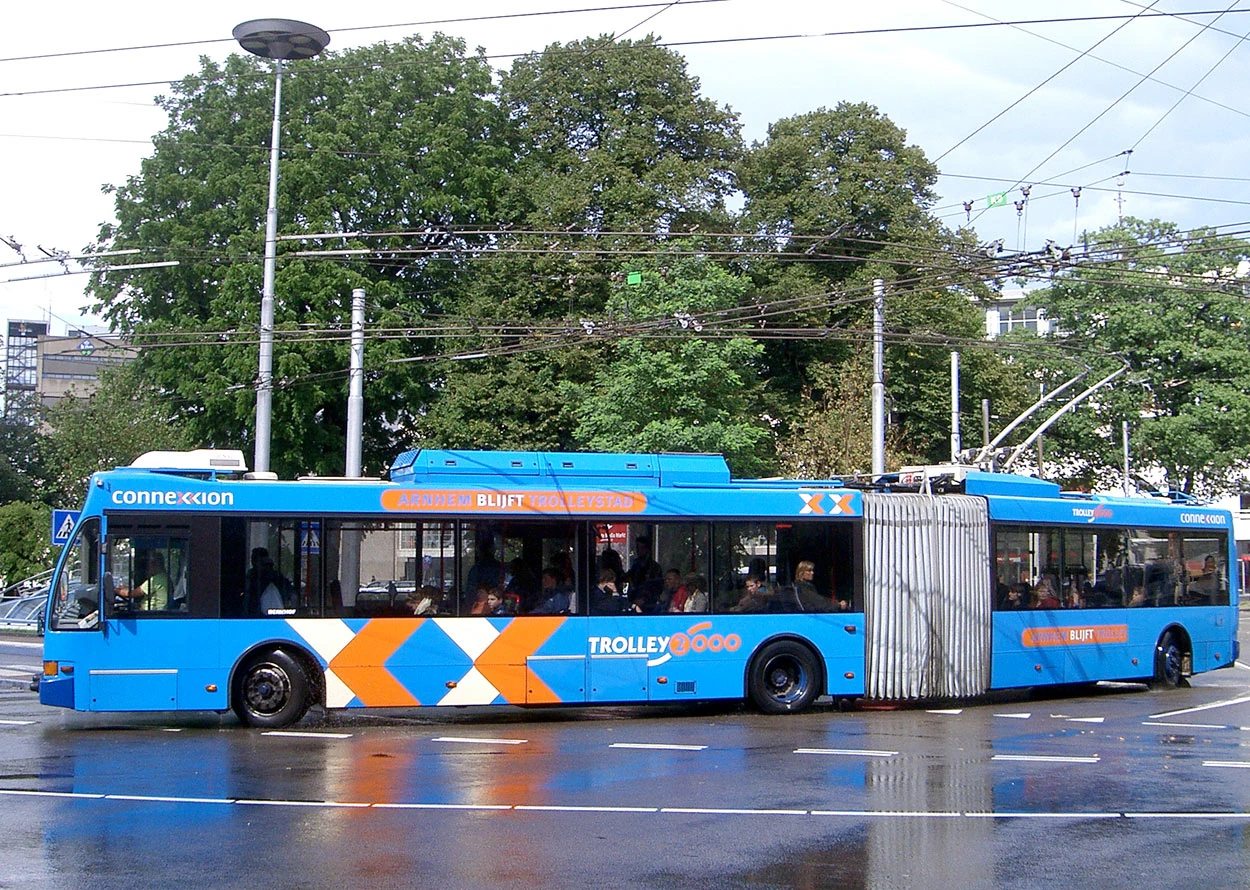

Articulated Arnhem trolleybus demonstrating its four-wheel steering on front and rear axles (2006).

Turbine Blade Delivery to Tower No 11 - geograph.org

Heavy transport trailer with all-wheel steering remote controlled by a steersman walking at the rear of the trailer (2008).

Bauma 2007 Telescopic Handler Liebherr 2

2007 Liebherr-Bauma telescopic handler using crab steering.

HAMM DV70 Tandemwalze im Hundegang

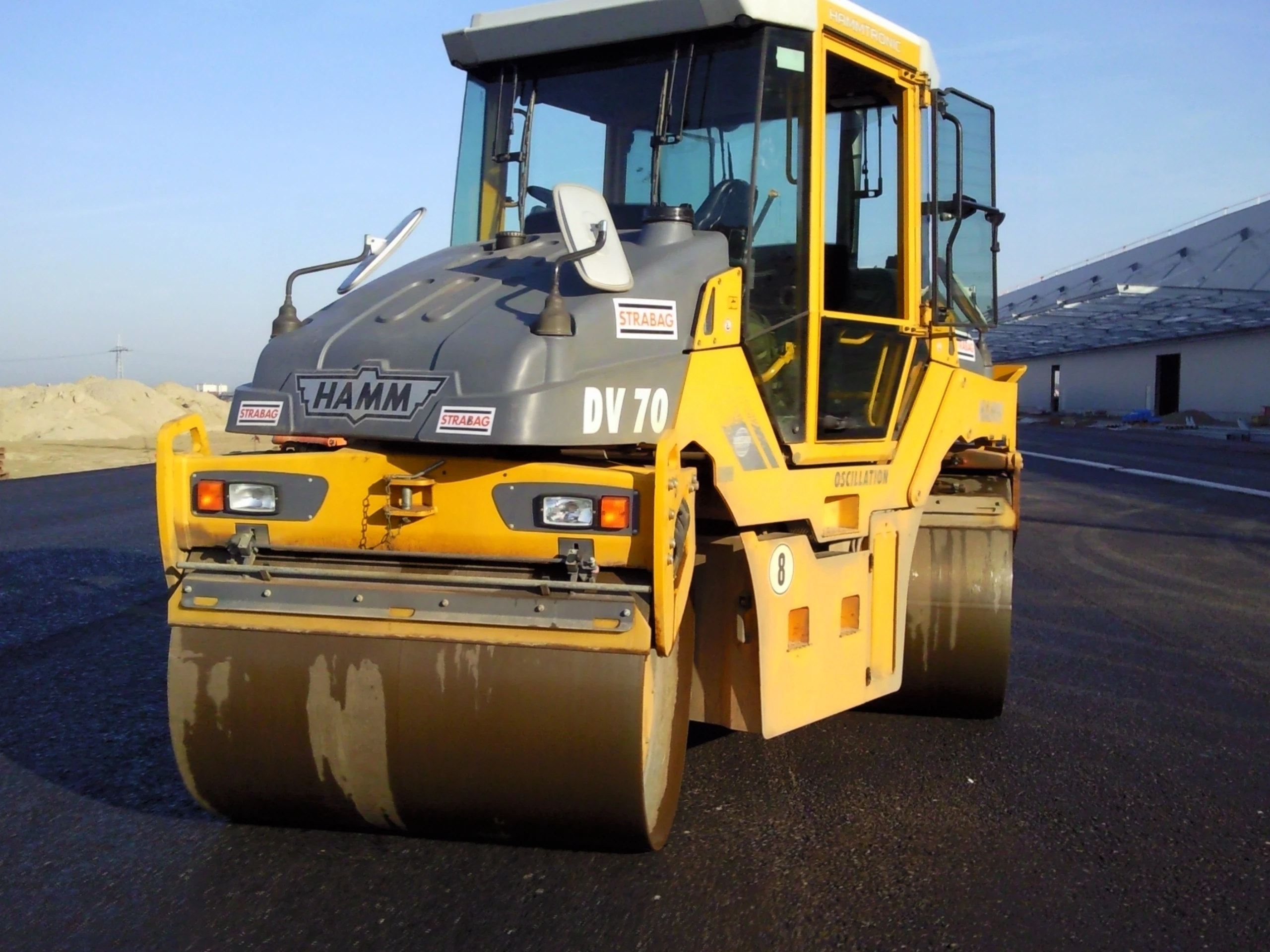

Hamm DV70 tandem roller using crab steering to cover maximum road surface (2010).

Slurry applicator - geograph.org

Agricultural slurry applicator using crab steering to minimise soil compaction (2009).

Four-wheel steering (or all-wheel steering) is a system employed by some vehicles to improve steering response, increase vehicle stability while maneuvering at high speed, or to decrease turning radius at low speed.

Active four-wheel steering[]

In an active four-wheel steering system, all four wheels turn at the same time when the driver steers. In most active four-wheel steering systems, the rear wheels are steered by a computer and actuators. The rear wheels generally cannot turn as far as the front wheels. There can be controls to switch off the rear steer and options to steer only the rear wheel independent of the front wheels. At low speed (e.g. parking) the rear wheels turn opposite of the front wheels, reducing the turning radius by up to twenty-five percent, sometimes critical for large trucks or tractors and vehicles with trailers, while at higher speeds both front and rear wheels turn alike (electronically controlled), so that the vehicle may change position with less yaw, enhancing straight-line stability. The "Snaking effect" experienced during motorway drives while towing a travel trailer is thus largely nullified.[dubious ]

Four-wheel steering found its most widespread use in monster trucks, where maneuverability in small arenas is critical, and it is also popular in large farm vehicles and trucks. Some of the modern European Intercity buses also utilize four-wheel steering to assist maneuverability in bus terminals, and also to improve road stability.

Previously, Honda had four-wheel steering as an option in their 1987–2000 Prelude and Honda Ascot Innova models (1992–1996). Mazda also offered four-wheel steering on the 626 and MX6 in 1988. General Motors offered Delphi's Quadrasteer in their consumer Silverado/Sierra and Suburban/Yukon. However, only 16,500 vehicles have been sold with this system since its introduction in 2002 through 2004. Due to this low demand, GM discontinued the technology at the end of the 2005 model year.[2] Nissan/Infiniti offer several versions of their HICAS system as standard or as an option in much of their line-up. A new "Active Drive" system is introduced on the 2008 version of the Renault Laguna line. It was designed as one of several measures to increase security and stability. The Active Drive should lower the effects of under steer and decrease the chances of spinning by diverting part of the G-forces generated in a turn from the front to the rear tires. At low speeds the turning circle can be tightened so parking and maneuvering is easier.

Production cars with active four wheel steering[]
  • BMW 850CSi (optional)
  • BMW 7-Series (2009 onwards, part of sport package) [3]
  • BMW 5-series (2011 onwards, Integral Active Steering option)
  • Chevrolet Silverado (2002–2005) (high and low speed)
  • Efini MS-9 (high and low speed)
  • GMC Sierra (2002–2005) (high and low speed)
  • GMC Sierra Denali (2002–2004) (high and low speed)
  • Honda Prelude (high and low speed, mechanical from 1987 to 1991, computerized from 1992–2001)
  • Honda Accord (1991) (high and low speed, mechanical)
  • Honda Ascot Innova (1992) (high and low speed, computerized from 1992–1996)
  • Infiniti FX50 AWD (option on Sports package) (2008–Present) (high and low speed, fully electronic)
  • Infiniti G35 Sedan (option on Sport models) (2007–Present) (high speed only?)
  • Infiniti G35 Coupe (option on Sport models) (2006–Present) (high speed only)[4]
  • Infiniti J30t (touring package) (1993–1994)
  • Infiniti M35 (option on Sport models) (2006–Present) (high speed only?)
  • Infiniti M45 (option on Sport models) (2006–Present) (high speed only?)
  • Infiniti Q45t (1989–1994) (high speed only?)
  • Lexus GS (2013 onwards, if equipped with optional Lexus Dynamic Handling)
  • Mazda 929 (1992–1995)(computerised, high and low speed)(all models)
  • Mazda 626 (1988) (high and low speed)
  • Mazda MX-6 (1989–1997) (high and low speed)
  • Mazda RX-7 (optional, computerized, high and low speed)
  • Mazda Eunos 800 (1996–2003) (Optional, computerized, high and low speed)
  • Mercedes-Benz Vito (London Taxi variant)
  • Mitsubishi Galant/Sigma (high speed only)
  • Mitsubishi GTO (also sold as the Mitsubishi 3000GT and the Dodge Stealth) (Mechanical) (high speed only)
  • Nissan Cefiro (A31) (high speed only)
  • Nissan 180SX (HICAS option)
  • Nissan 240SX/Silvia (option on SE models) (high speed only)
  • Nissan 300ZX (all Twin-Turbo Z32 models) (high speed only)
  • Nissan Laurel (later versions) (high speed only)
  • Nissan Fuga/Infiniti M (high speed only)
  • Nissan Silvia (option on all S13 models) (high speed only)
  • Nissan Skyline GTS, GTS-R, GTS-X (1986) (high speed only)
  • Nissan Skyline GT-R (high and low speed)
  • Renault Laguna (only in GT version of 3rd generation which was launched October 2007, GT launched on April 2008)
  • Subaru Alcyone SVX JDM (1991–1996) (Japanese version: "L-CDX" only) (high speed only)
  • Toyota Aristo (1997) (high and low speed?)
  • Toyota Camry / Vista JDM 1988–1999 (Optional) [5]
  • Toyota Carina ED / Toyota Corona EXiV (world's first dual-mode switchable 2WS to 4WS)
  • Toyota Celica (option on 5th and 6th generation, 1990–1993 ST183 and 1994–1997 ST203) (Dual-mode, high and low speed)
  • Toyota Soarer (UZZ32)
Crab steering[]

Crab steering is a special type of active four-wheel steering. It operates by steering all wheels in the same direction and at the same angle. Crab steering is used when the vehicle needs to proceed in a straight line but under an angle (i.e. when moving loads with a reach truck, or during filming with a camera dolly), or when the rear wheels may not follow the front wheel tracks (i.e. to reduce soil compaction when using rolling farm equipment).

Passive rear wheel steering[]

Many modern vehicles offer a form of passive rear steering to counteract normal vehicle tendencies. For example, Subaru used a passive steering system to correct for the rear wheel's tendency to toe-out. On many vehicles, when cornering, the rear wheels tend to steer slightly to the outside of a turn, which can reduce stability. The passive steering system uses the lateral forces generated in a turn (through suspension geometry) and the bushings to correct this tendency and steer the wheels slightly to the inside of the corner. This improves the stability of the car, through the turn. This effect is called compliance understeer and it, or its opposite, is present on all suspensions. Typical methods of achieving compliance understeer are to use a Watt's Link on a live rear axle, or the use of toe control bushings on a twist beam suspension. On an independent rear suspension it is normally achieved by changing the rates of the rubber bushings in the suspension. Some suspensions will always have compliance oversteer due to geometry, such as Hotchkiss live axles or a semi-trailing arm IRS.

Passive rear wheel steering is not a new concept, as it has been in use for many years, although not always recognised as such. For example, Jaguar independent rear suspension incorporated a small amount of passive rear wheel steering since 1961.

Articulated steering[]

ChelProm Front-end single-bucket loaders PK-27

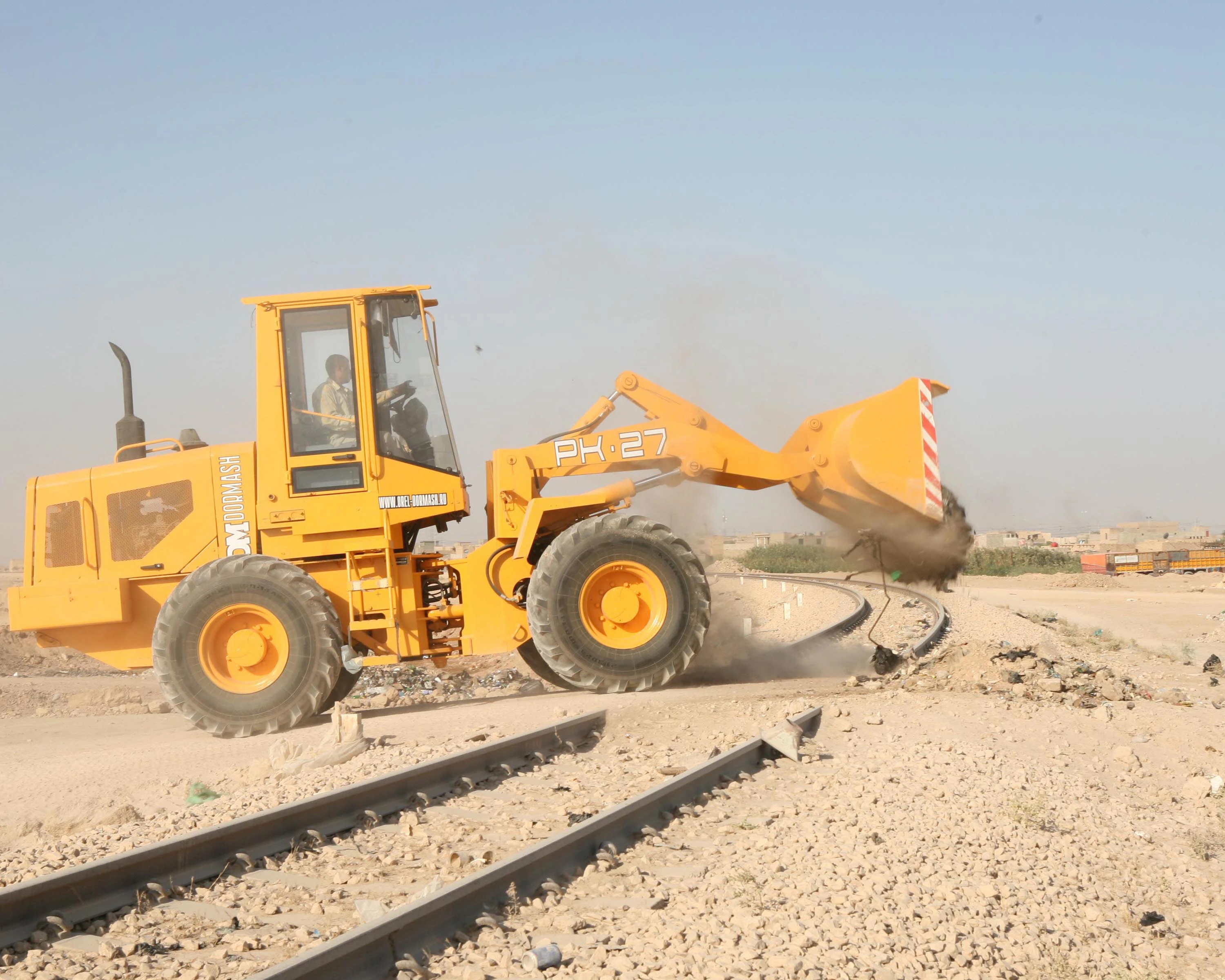

Front loader with articulated steering (2007).

Articulated steering is a system by which a four-wheel drive vehicle is split into front and rear halves which are connected by a vertical hinge. The front and rear halves are connected with one or more hydraulic cylinders that change the angle between the halves, including the front and rear axles and wheels, thus steering the vehicle. This system does not use steering arms, king pins, tie rods, etc. as does four-wheel steering. If the vertical hinge is placed equidistant between the two axles, it also eliminates the need for a central differential, as both front and rear axles will follow the same path, and thus rotate at the same speed. Long road trains, articulated buses, and internal transport trolley trains use articulated steering to achieve smaller turning circles, comparable to those of shorter conventional vehicles. Articulated haulers have very good off-road performance.

Rear wheel steering[]

A few types of vehicle use only rear wheel steering, notably fork lift trucks, camera dollies, early pay loaders, Buckminster Fuller's Dymaxion car, and the ThrustSSC.[6]

Rear wheel steering tends to be unstable because in turns the steering geometry changes hence decreasing the turn radius (oversteer), rather than increase it (understeer). A rear wheel steered automobile exhibits non-minimum phase behavior.[7] It turns in the direction opposite of how it is initially steered. A rapid steering input will cause two accelerations, first in the direction that the wheel is steered, and then in the opposite direction: a "reverse response." This makes it harder to steer a rear wheel steered vehicle at high speed than a front wheel steered vehicle.

Steer-by-wire[]

Lunar vehicle

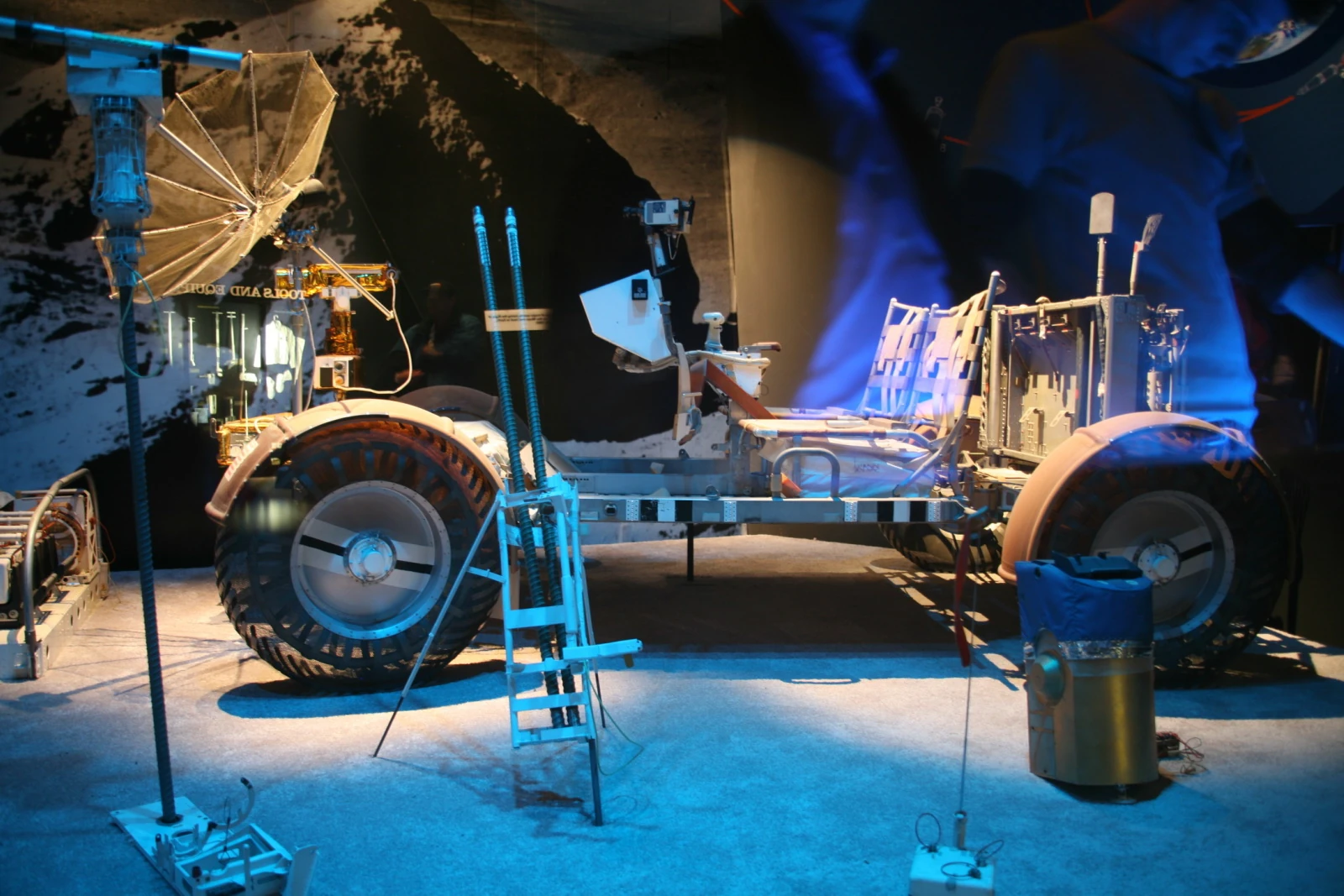

1971 Lunar Roving Vehicle (LRV) with joystick steering controls.

Honda EV-STER twin-lever steering 2012 Tokyo Auto Salon

2012 Honda EV-STER "Twin Lever Steering" concept.

The aim of steer-by-wire technology is to completely do away with as many mechanical components (steering shaft, column, gear reduction mechanism, etc.) as possible. Completely replacing conventional steering system with steer-by-wire holds several advantages, such as:

  • The absence of steering column simplifies the car interior design.
  • The absence of steering shaft, column and gear reduction mechanism allows much better space utilization in the engine compartment.
  • The steering mechanism can be designed and installed as a modular unit.
  • Without mechanical connection between the steering wheel and the road wheel, it is less likely that the impact of a frontal crash will force the steering wheel to intrude into the driver's survival space.
  • Steering system characteristics can easily and infinitely be adjusted to optimize the steering response and feel.

As of 2007 there are no production cars available that rely solely on steer-by-wire technology due to safety, reliability and economic concerns, but this technology has been demonstrated in numerous concept cars and the similar fly-by-wire technology is in use in both military and civilian aviation applications. Removing the mechanical steering linkage in road going vehicles would require new legislation in most countries.

Safety[]

Main article: Automobile safety

For safety reasons all modern cars feature a collapsible steering column (energy absorbing steering column) which will collapse in the event of a heavy frontal impact to avoid excessive injuries to the driver. Airbags are also generally fitted as standard. Non-collapsible steering columns fitted to older vehicles very often impaled drivers in frontal crashes, particularly when the steering box or rack was mounted in front of the front axle line, at the front of the crumple zone. This was particularly a problem on vehicles that had a rigid separate chassis frame, with no crumple zone. Most modern vehicle steering boxes/racks are mounted behind the front axle on the front bulkhead, at the rear of the front crumple zone.

Collapsible steering columns were invented by Bela Barenyi and were introduced in the 1959 Mercedes-Benz W111 Fintail, along with crumple zones. This safety feature first appeared[when?] on cars built by General Motors after an extensive and very public lobbying campaign enacted by Ralph Nader. Ford started to install collapsible steering columns in 1968.[8]

Audi used a retractable steering wheel and seat belt tensioning system called procon-ten, but it has since been discontinued in favor of airbags and pyrotechnic seat belt pre-tensioners.

Cycles[]

Steering is crucial to the stability of bicycles and motorcycles. For details, see articles on bicycle and motorcycle dynamics and countersteering. Steering monocycles and unicycles is especially complicated.

Watercraft steering[]

Ships and boats are usually steered with a rudder. Depending on the size of the vessel, rudders can be manually actuated, or operated using a servomechanism, or a trim tab/servo tab system. Boats using outboard motors steer by rotating the entire drive unit. Boats with inboard motors sometimes steer by rotating the propeller pod only (i.e. Volvo Penta IPS drive). Modern ships with diesel-electric drive use azimuth thrusters. Boats driven by oars (i.e. rowing boats, including gondolas) or paddles (i.e. canoes, kayaks, rafts) are steered by generating a higher propulsion force on the side of the boat opposite of the direction of turn. Jet skis are steered by weight-shift induced roll and water jet thrust vectoring. Water skis and surfboards are steered by weight-shift induced roll only.

Aircraft and hovercraft steering[]

Airplanes, missiles, airships and hovercraft are usually steered by rudder and/or thrust vectoring. Jet packs and flying platforms are steered by thrust vectoring only. Helicopters are steered by cyclic control, changing the thrust vector of the main rotor(s), and by anti-torque control, usually provided by a tail rotor (see helicopter flight controls).

Other types of steering[]

Tunnel boring machines are steered by hydraulic rams tilting the cutter head. Rail track vehicles (i.e. trains, trams) are steered by curved guide tracks, including switches, and articulated undercarriages. Land yachts on wheels and kite buggies are steered similarly to cars. Ice yachts and bobsleighs are steered by rotating the front runners out of the direction of travel. Snowmobiles steer the same way by rotating the front skis. Tracked vehicles (i.e. tanks) steer by increasing the drive force on the side opposite of the direction of turn. Horse-drawn sleighs and dog sleds are steered by changing the direction of pull. Zero-turn lawn mowers use independent hydraulic wheel drives to turn on the spot.

See also[]

  • Active Yaw Control (AYC)
  • Bump Steer
  • Camber angle
  • Camber thrust
  • Caster angle
  • DIRAVI
  • Drifting
  • Dry steering
  • HICAS
  • Kingpin
  • Power steering
  • Skid steer
  • Steer-by-wire
  • Steering damper
  • Steering kickback
  • Steering law
  • Steering ratio
  • Steering wheel
  • Steering wheel (ship)
  • Tiller
  • Torque steering
  • Turning radius
  • Vehicle dynamics
