Sentinel Waggon Works Ltd
Predecessor Alley & MacLellan
Successor Transport Vehicles (Warrington) Ltd
Founded 1915
Defunct 1956
Headquarters Shrewsbury, Shropshire, United Kingdom
Products agriculture machinery lorry, railway locomotives

Sentinel Waggon Works Ltd was a British company based in Shrewsbury, Shropshire, England that made steam powered lorries ("road locomotives"), railway locomotives and later diesel engined lorries and locomotives.

History[edit | edit source]

Alley & MacLellan[edit | edit source]

The company began life in 1906 as Alley & MacLellan based in Polmadie, Glasgow, Scotloand. Alley & MacLellan began producing steam road vehicles in 1906 when they introduced a 5 ton vertical boiler wagon, which featured a 2 cylinder undertype engine and chain drive.

Move to Shrewsbury[edit | edit source]

The company changed its name to Sentinel Waggon Works Ltd when a new factory was opened at Shrewsbury in 1915. There were several other slight changes to the name over the company's lifetime when further infusions of working capital were required to obviate financial problems.

Alley & MacLellan's early wagon was so successful that it remained in production with relatively few updates until the launch of Sentinel's famous Super in 1923. The company also produced steam railway locomotives and railcars, for the LMS railway company and industrial customers.

In 1917, the company was bought by William Beardmore & Co Ltd.

Sentinel Waggon Works (1920) Ltd[edit | edit source]

In 1920, after financial problems, the company was reorganized as Sentinel Waggon Works (1920) Ltd.

Sentinel, along with Foden, dominated the steam market, but the 1930s saw the demise of both companies' ranges as new legislation forced the development of lighter lorries, Sentinel surviving the longest.

In 1934 Sentinel launched a new and advanced steamer - the S type which had a single-acting 4-cylinder underfloor engine with longitudinal crankshaft and an overhead worm-drive axle. It was lighter and featured a modernized driver's cab with a set-back boiler and was available in four, six and eight-wheel form, designated S4, S6 and S8. In spite of its sophisticated design, however, it could not compete with contemporary diesel trucks for all-round convenience and payload capacity, and was phased out in the late 1930s. It was not the end of Sentinel's involvement with steam, however; the company built about 100 "S" type vehicles for export to Argentina as late as 1950, for use by the Río Turbio coal mine.[1] It has been stated that Sentinel were never paid for the last batch of the Rio Turbio production run. At least two of the Rio Turbio Waggons survive in Argentina to this day.

In 1946 Thomas Hill's signed an agency agreement with Sentinel for repair and maintenance of diesel vehicles. In 1947 Sentinel offered to extend the agreement for diesel vehicles to include the steam locomotives and an agency was accepted by Thomas Hill for sales and servicing.

Sentinel (Shrewsbury) Ltd[edit | edit source]

In 1947 the company became Sentinel (Shrewsbury) Ltd, and had developed a new range of diesel lorries. Despite Sentinel's superbly engineered vehicles, sales diminished throughout the 1950s, and by 1956 the company was forced to cease lorry production. The factory was acquired by Rolls-Royce for diesel engine production, and the remaining stock of parts and vehicles was taken over by Sentinel's chief dealer, North Cheshire Motors Ltd of Warrington, who formed a new company, Transport Vehicles (Warrington) Ltd, in 1957 to produce Sentinel-based designs under the TVW name.

In 1963 Thomas Hill's decided to renew the loco agreement and relinquish the diesel vehicle agency, concentrating all efforts on the steam locomotive work.

Rolls-Royce agree to build diesel locomotives[edit | edit source]

Despite the various interesting developments, Rolls-Royce did not consider railway locomotives to be part of their core business. They had agreed to complete all steam locos on order, and four steam receiver locos ordered by Dorman Long in 1956, but only after much consideration did Rolls-Royce finally agree at the end of 1957 to design and build a diesel locomotive of similar weight and power to the 200 hp steam loco that had sold so well. Thomas Hill's would assist in the design and development of these diesel machines and would be the Sole distributor.

Last steam locomotives[edit | edit source]

In 1958 the last two Sentinel steam locos were delivered marking the end of an era. Two of the newly developed steam receiver locos were delivered and proved very satisfactory in service, but Dorman Long were not happy. There had been a change of heart among their engineers as well as a change of circumstances, and they were now favouring diesel locomotives. The last two steam receiver locos were built but never delivered and ultimately all four were converted to diesel hydraulic.

Diesel Production commences[edit | edit source]

The prototype Sentinel diesel locomotive was built and ready to commence trials on the S & M Railway (Shropshire and Montgomeryshire Railway?) early in 1959. It met with the approval and enthusiasm of the Company's prospective customers and before the end of the year 17 locomotives had been sold and delivered. The company was ready to produce a maximum of four locomotives a month.

By 1963 four different Sentinel diesel models were being produced, commencing with the 34 ton chain drive 0-4-0 powered by the Rolls-Royce C6SFL six-cylinder engine of 225 bhp. This was followed within a year by a 48 ton 0-6-0 rod coupled machine, fitted with a Rolls-Royce C8SFL eight-cylinder engine of 325 bhp.

These Sentinels demonstrated their suitability for heavy work, but heavier and more powerful locos were called for, particularly by the steel industry, and before the end of 1963 a 75 ton 0-8-0 powered by 2 x C8SFL engines and a 40 ton 0-4-0 fitted with a C8SFL engine had been added to the range.

Sentinel Steelman[edit | edit source]

A shaft drive 600 hp 0-6-0 machine was now being developed at Shrewsbury to use the new DV8T engine. Considerable interest in this loco was expressed by Stewart and Lloyds mineral division at Corby who were operating more than 20 steam locos, mainly of the Austerity type. This new locomotive Steelman was eventually delivered to Corby in late 1967, about two years overdue. The prototype locomotive proved satisfactory and three more were ordered by Stewart and Lloyds and one by Richard Thomas and Baldwins, Scunthorpe. With Stewart and Lloyds' programme to replace more than 20 steam locos over the next few years the future for Steelman looked good.

Unfortunately for the Company and Rolls-Royce, British Railways, seeing a potential for their Swindon-built class 14 diesel hydraulic locomotives made Stewart and Lloyds an offer of 26 locomotives around three years old at a fraction of their original cost. The Class 14 locomotive had proved rather a white elephant for B.R. but powered by a 650 hp Paxman, Voith Transmission, a rod coupled 0-6-0 capable of doing the work required, it was an offer that Stewart and Lloyds could hardly refuse. New locomotive sales were declining anyway, and the release of such locos onto the industrial market at such prices was disastrous, and regrettably no further "Steelman" locos were built at Shrewsbury.

This was not to be the end of the Steelman. Some 12 years later ICI Billingham wanted two heavy locomotives to replace their ageing Yorkshire Janus locomotives. Their stated wish was to buy the best and most up to date equipment available and in their efforts to achieve this aim, their engineers visited many industrial sites, and steelworks in particular. Their requirements were discussed with all UK locomotive manufacturers, and the final outcome of their investigations was an order for an updated version of the "Sentinel Steelman locomotive". This order was subsequently increased to two machines which were delivered toward the end of 1981.

UK sales of Sentinel locos were now fewer than 10 per year, their only overseas success had been to license the build of 36 0-6-0 locomotives for the railways in Portugal in 1965/6.

Road Vehicles types[edit | edit source]

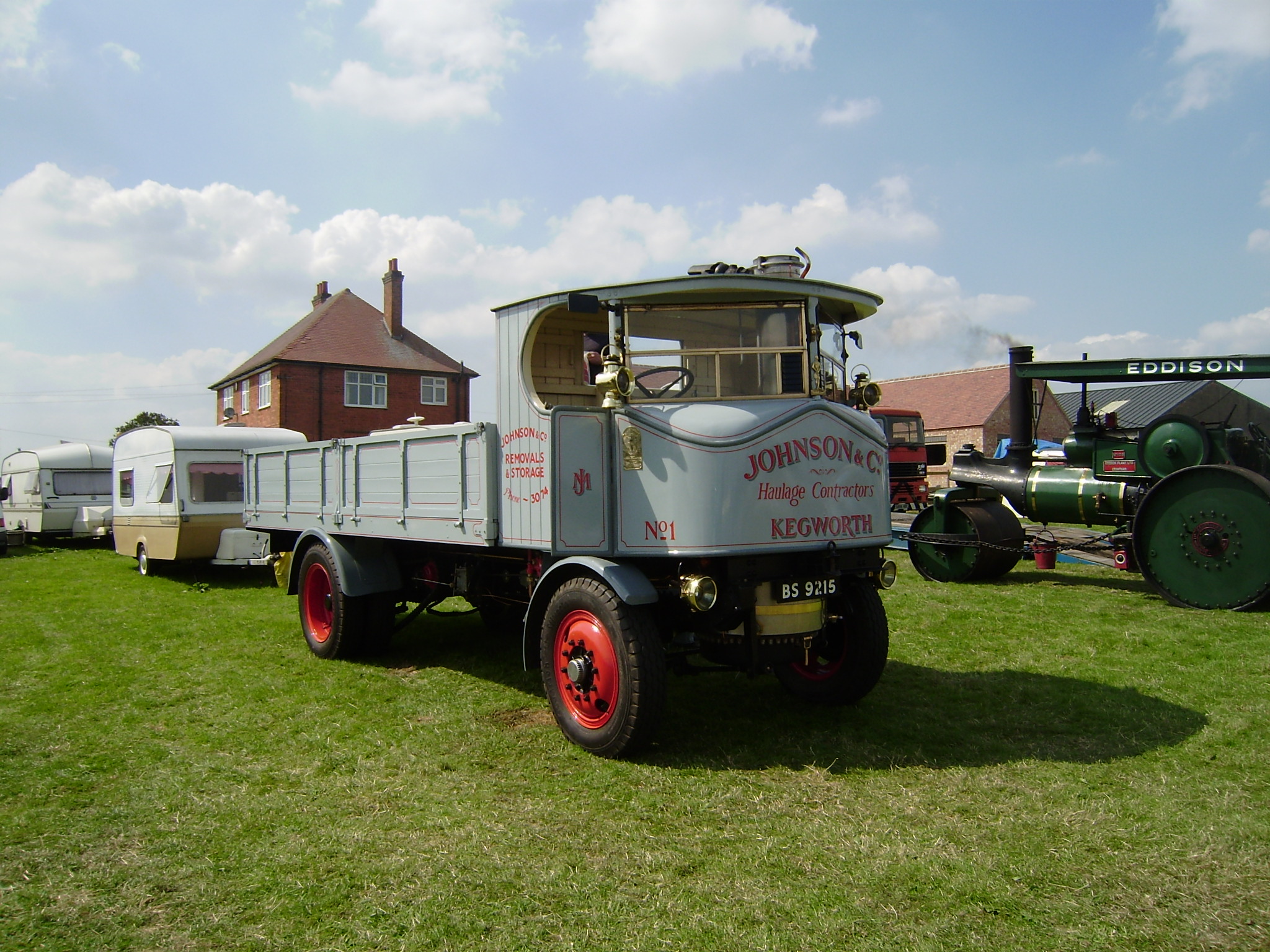

Sentinel Steam lorry s/n 7651 of 1928 reg no.BS9215 at Lymswold show 2008

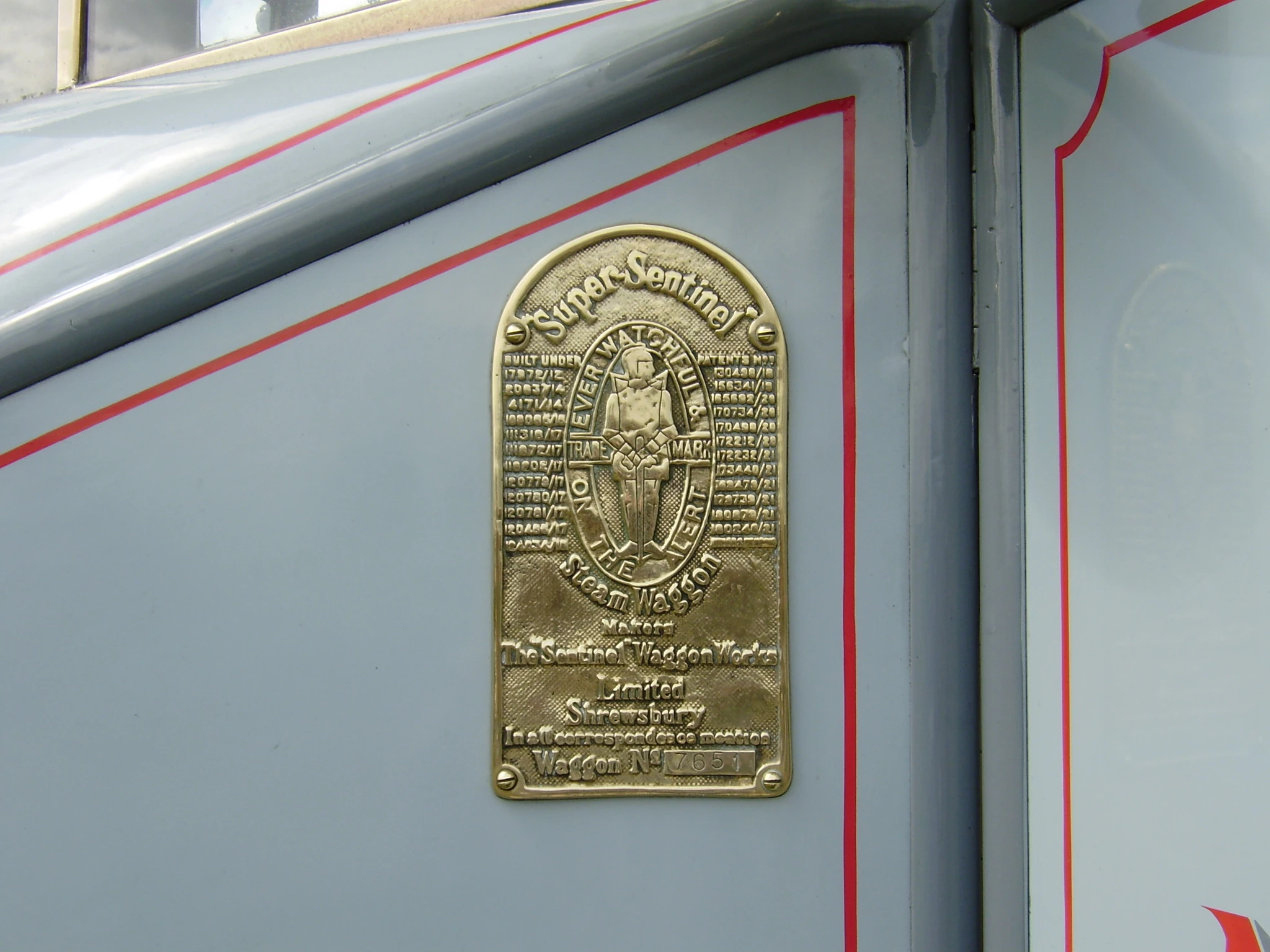

Brass Makers plate

Steam Lorries[edit | edit source]

Diesel Lorries[edit | edit source]

Railway Vehicles[edit | edit source]

The locomotives and railcars (with a few exceptions) used the standard Steam Lorry boilers and engine units.

BE Class[edit | edit source]

Balanced Engine

CE Class[edit | edit source]

Centre Engine

DE Class[edit | edit source]

Double Engine

100 hp Steam Locomotives[edit | edit source]

  • Works no. 6515/1926, Isham Quarries, Northamptonshire, (ex-GWR no. 12)
  • Works no. 7026/19??, British Quarrying Co., Criggion, Montgomeryshire
  • Works no. 7299/1928, Corby Quarries, Rockingham Forest, (ex-Phoenix Tube Works)
  • Works no. 9365/1945, Isham Quarries, Northamptonshire, (ex-Thomas Hill, Rotherham), "Belvedere" preserved at Northamptonshire Ironstone Railway Trust
  • Works no. 9369/1946, Isham Quarries, Northamptonshire, (ex-Williams & Williams, Hooton), "Musketeer" preserved at Northamptonshire Ironstone Railway Trust
  • Works no. 9615/1956, Oxfordshire Ironstone Quarries, Banbury
  • LMS Sentinels 7160-3
  • LMS Sentinel 7164
  • LNER Class Y1
  • LNER Class Y3

200 hp Steam Locomotives[edit | edit source]

  • LNER Class Y10
  • S&DJR Sentinels
  • Works no. 7109/1927, Croydon Gasworks No. 37 "Joyce", preserved

Railcars[edit | edit source]

  • The London and North Eastern Railway bought 80 Sentinel steam railcars between 1925 and 1932.
  • Sentinel provided the sole NZR RM class Sentinel-Cammell steam railcar operated by the New Zealand Railways Department.
  • A Sentinel-Cammell steam railcar ([1]), one of ten supplied to the Egyptian National Railways in 1951, has been preserved by the Quainton Railway Society at the Buckinghamshire Railway Centre, England.

Specials[edit | edit source]

The Doble Shunter[edit | edit source]

  • LMS Sentinel 7192 – so-called as it was fitted with an Abner Doble boiler

The Double Locomotive[edit | edit source]

A special locomotive was produced at Sentinel, for Dorman Long and named "Princess". It consisted of 2 x 0-6-0 chassis coupled together to articulate. One unit carried the cab, a 5 drum oil fired Woolnough boiler and two 100 hp engines. The other unit housed the water and fuel tanks and also two more 100 hp engines providing a total of 400 hp. It was considered a magnificent machine by the staff but unfortunately was the only one of its kind ever built.

The Gyro Locomotive[edit | edit source]

Another special was the Gyro Locomotive. Based on a 200 hp 4 wheeled 0-4-0 frame fitted with two "gyro units" (see Flywheel energy storage ) made by Oerlikon of Switzerland. The gyros were principally a 3 ton horizontal flywheel enclosed vessel filled with low pressure hydrogen. A vertically mounted electric motor/generator was directly coupled to the flywheel shaft. The motor took its power from an overhead supply via a type of pantograph arm raised or lowered by the driver. Power could only be taken whilst the loco was stationary. When the gyros had reached the required speed, the driver would lower the pantograph, switch the motor to generation and controlled the locomotive in a similar way to a diesel electric loco. Charging posts had to be strategically placed around the site.

This machine was specially built for the National Coal Board (NCB) at Seaton Delaval. It operated very satisfactorily but was eventually taken out of service because of site development and its restricted field of operation. In April 1965 it was converted for the NCB to a diesel hydraulic machine.

The Receiver Locomotives[edit | edit source]

The Receiver Locomotives were another special type built just for Dorman Long and were based on the idea of a Fireless locomotive.

Steam locomotives used by UK Main Line Companies[edit | edit source]

Sentinel Rail Loco 9599 at the Elsecar Heritage Centre, South Yorkshire

Preserved Machines[edit | edit source]

Steam wagons (lorries)[edit | edit source]

Know Sentinel Steam wagons in Preservation. To edit Table Click Here. Sentinel no 5644 The Elephant 1924 8,5 ton 9 nhp 757 CTC E.Hondema Vreeling N Holland foto v h The Teichmouth Quay Compagny

Preserved machines built by Sentinel (Shrewsbury) Ltd (TER lists 127 in UK)
view  talk  edit

Engine No. Name Build Date Type Weight Power nhp Reg No. Owner Image Other info
Sentinel no. 190 1907 Waggon 5 ton power ? - Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Sentinel no. 753 - 1914 Wagon - ? V 3057 Grampian Transport Museum 100px Tractor & Construction Plant Wiki:Requested images


Built by Alley & Maclellan of Glasgow
Sentinel no. 1170 The Old Man 1916 Wagon std 8 ton ? nhp V 513 Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Built from parts - Photo here on ccmv.fotopic.net site
Sentinel no. 1286 - 1916 Wagon 6 ton ? nhp AW 2964 Glasgow Transport Museum 100px Tractor & Construction Plant Wiki:Requested images


Built by Alley & Maclellan in Glasgow
Sentinel no. 1465 - 1917 Wagon Supper 6 ton ? nhp AW 3321 Owner ? Sentinel no. 1465 waggon - AW 3321 at Lincoln 2011 - IMG 1546.JPG photo on ccmv.photopic.net site
Sentinel no. 1488 Old No 1 1917 Wagon - ? AW 3407

John Walker family collection

ex Coors Brewery Museum to add 100px Tractor & Construction Plant Wiki:Requested images


This was at the National Brewing Museum (the former Bass Brewery Museum shut down by Coors) now reopened.
Sentinel no. 1716 Unrepeatable 1917 Wagon Std 5 ton ? nhp AW 3833 Owner ? Sentinel no. 1716 - Unrepeatable - AW 3833 at Barleylands 09- IMG 8635.jpg Was at Essex Country Show 2009
Sentinel no. 1718 - 1917 Wagon - ? AW 3835 The Science Museum 100px Tractor & Construction Plant Wiki:Requested images


In storage.[2]
Sentinel no. 1960 - 1918 Wagon std 5 ton ? nhp AW 4131 Owner ? Sentinel sn 1960 waggon AW 4131 at strumpshaw 09 - IMG 0021.jpg Was at Strumpshaw Hall Steam Museum Rally
Sentinel no. 2307 The Shrewsbury Belle 1919 Waggon 6 ton ? nhp AW 4693 Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Sentinel no. 2973 - 1920 Waggon 6 ton ? nhp AW 6682 Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Sentinel no. 3373 - 1920 Waggon 6 ton ? nhp AW 7963 Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Sentinel no. 3459 - 1920 waggon 6 ton ? nhp AW 6481 Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Photo here on ccmv.fotopic.net site
Sentinel no. 3549 - 1920 waggon std 6 ton ? AW 8451 Owner ? to add At Bedfordshire Steam & Country Fair
Livery of "The Cement Marketing Company London"
Sentinel no. 3748 - 1920 Waggon 6 ton ? nhp AW 8933 Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Chassis and some parts only
Sentinel no. 3899 ex Elizabeth 1921 Waggon ? ? ET 1969 Owner ? 100px Tractor & Construction Plant Wiki:Requested images


At GDSF 2009 (Photo here on ccmv.fotopic.net site
Sentinel no. 3976 Aquarius 1921 Wagon Std 6 ton ? NY 344 Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Sentinel no. 5104 The Duchess 1923 Super waggon 6 ton ? nhp CA 6395 Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Photo here on ccmv.photopic.net site
Sentinel no. 5256 - 1926 Super Waggon 6 ton ? KC 5071 Owner ? to add At Bedfordshire Steam and Country Fayre in 2008 photo here
Sentinel no. 5260 Tiger 1924 Wagon super 6 ton ? RS 5540 Owner ? Sentinel no. 5260 (plate 5665) SW - Tiger - RS 5540 at GDSF 08 - IMG 0839.jpg At GDSF in 2008 (photo here on ccmv.fotopic.net )
Sentinel no. 5335 (plate is on 9592) - - - - - - - 100px Tractor & Construction Plant Wiki:Requested images


Plate only - carried on Sentinel no. 9593
Sentinel no. 5407 Midnight 1924 Wagon super 6 ton ? FA 1803 Owner ? To add photo here on [[ccmv.fotopic.net
Sentinel no. 5471 Jubilee 1924 Waggon super 6 ton ? nhp HO 6314 Owner ? 100px Tractor & Construction Plant Wiki:Requested images


At Preston Services New Year open Day 2010 - Photo here
Sentinel no. 5509 1924 Waggon 6 ton power ? PD 1701 Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Three-way tipper
Sentinel no. 5518 1924 W 6 ton power ? ? Owner ? 100px Tractor & Construction Plant Wiki:Requested images


rebuilt with new chassis
Sentinel no. 5558 Maggie May 1924 Tractor 6 ton 9 nhp PD 1854 Tim Clarke, Cheshire Sentinel no. 5554 Maggie May - PD 1854 at Shugborough 08 - P6220154.jpg At Shugborough Hall Rally 2008
Sentinel no. 5638
Non UK resident
- 1924 Wagon 6 ton ? Non UK Vehicle Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Not in UK (see Steam Scenes web site)
Sentinel no. 5644 The Elephant 1924 Tractor ? ? 757 CTC Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Non UK engine
Sentinel no. 5676 Big Tam 1924 Waggon Sup 6 ton ? EC 5927 Summerlee Heritage Park 100px Tractor & Construction Plant Wiki:Requested images


Sentinel no. 5718 date built Waggon ? ton ? Reg no. ? Sandstone Estates South Africa 100px Tractor & Construction Plant Wiki:Requested images


Non UK engine - Photos on Steam Scenes
Sentinel no. 5778 (Misidentified) - - - - - See Sentinel no. 5256 - Previously listed in 2008 TER but now identified as 5256
Sentinel no. 5929 - - - - See Sentinel no. 7651 - 100px Tractor & Construction Plant Wiki:Requested images


Now identified as Sentinel no. 7651
Sentinel no. 6072 - 1925 Wagon class SUP 6 ton power IY 8056 Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Sentinel no. 6079 - 1925 wagon 6 ton ? nhp YL 2835 R. Goodwill, Yorkshire Sentinel no. 6079 SW - YL 2835 at Pickering 09 - IMG 3457.jpg At Duncombe Park & Pickering 2009
Sentinel no. 6203 - 1926 Portable - ton 1 nhp - Preston Services, Kent 100px Tractor & Construction Plant Wiki:Requested images


Unique example in UK ?
Sentinel no. 6327 Yorkshireman 1925 waggon 6 ton ? nhp NE 4770 owner ? 100px Tractor & Construction Plant Wiki:Requested images


Photo here at Wood Green on ccmv.fotopic.net
Sentinel no. 6400 - - - - - - - Plate is on 8666 See Sentinel no. 8666
Sentinel no. 6426 - 1925 ? Timber Tractor ? ton ? nhp BF 5417 D. Maris, Derbyshire Sentinel no. 6426 Timber tractor At Belvoir 2010 - IMG 2538.jpg Under restoration
presented at Belvoir Castle Steam Festival 2010
Fitted with Winch unit - Repatriated from Australia
Sentinel no. 6504 Black Prince 1925 tractor 6 ton - NT 8347 Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Sentinel no. 6680 - 1926 wagon sup 6 ton - NT 9133 owner, Sheffield 100px Tractor & Construction Plant Wiki:Requested images


Sentinel no. 6695 - 1926 Tractor 6 ton - EX 1638 owner ? 100px Tractor & Construction Plant Wiki:Requested images


-
Sentinel no. 6722 (Plate only) - - - - - add plate photo Plate is on Sentinel no. 8109
Sentinel no. 6725 - 1926 SW - Supper 6 ton ? nhp KA 5574 G. Woolley, Bedfordshire Sentinel no. 6725 - SW - KA 5574 at Hollowell 2011 - Picture 017+.jpg Hollowell Steam Rally 2011 Photo here
Sentinel no. 6729 1926 type weight power Owner ? 100px Tractor & Construction Plant Wiki:Requested images


?
Sentinel no. 6795 1927 Waggon weight power ? Reg no. ? Sandstone Estates in South Africa 100px Tractor & Construction Plant Wiki:Requested images


Non UK Engine
Sentinel no. 6842 - 1927 Tractor - ? KA 6147 Liverpool Museum Sentinel tractor no. 6842 - KA 6147 at liverpool museum - DSCF2999.JPG In the Liverpool Museums collection (Has made an occasional appearance at transport days)
Sentinel no. 6887 William III 1927 Waggon Sup 5 ton power DL 5478 Owner ?, Saffron Walden 100px Tractor & Construction Plant Wiki:Requested images


ex Vectis Knight
Sentinel no. 6979 - 1927 waggon super 5 ton ? nhp YH 5763 Owner ? Sentinel no. 6979 SW - YH 5763 at GDSF 08 - IMG 0793.jpg At GDSF 2008
Sentinel no. 7222 Texas Jack date ? Tractor weight power TJ 1826 Owner ?, In South Africa 100px Tractor & Construction Plant Wiki:Requested images


Sentinel no. 7525 1928 type weight power Reg no. ? Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Sentinel no. 7527 Yana 1928 tractor 5 ton power ? MP 5939 Owner ?, Stafford 100px Tractor & Construction Plant Wiki:Requested images


Sentinel no. 7591 - 1928 SW Type Super DG 4 5 ton ? nhp WE 3236 H.P.Bell, Leven, Yorkshire Sentinel no. 7591 SW - WE 3236 at Harewood 08 - IMG 0413.jpg At Harewood 2008 & Pickering 2009
3-way tipping Wagon.
Sentinel no. 7651 - 1928 SW - 5 hp BS 9215 M. Johnson, of Leicestershire Sentinel steam lorry no7651.JPG Lincoln Steam Rally & Lymswold Vintage Rally 2008
Sentinel no. 7954 Shrewsbury Knave 1929 Wagon Super 6 ton ? PG 2414 Owner ?, 100px Tractor & Construction Plant Wiki:Requested images


Sentinel no. 7966 Nippy 1929 Wagon type DG6 6 ton ? nhp UW 2522 B. Cousins, ? Sentinel no 7966 Nippy reg UW 2522 at Bloxham 09 - IMG 5854.jpg First rally since 7 year restoration - Bloxham Steam Rally 2009
Sentinel no. 8009 - 1929 DG4 Wagon ? ton power ? YD 7509 Owner ?, Colne lancs 100px Tractor & Construction Plant Wiki:Requested images


Sentinel no. 8016 1929 DG8 waggon 12 ton power ? UX 5355 Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Reconstructed with new Chassis + some old parts
Sentinel no. 8070 1929 DG4 waggon weight ? power ? TE 9662 Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Tar Sprayer
Sentinel no. 8084 1929 DG4 waggon weight ? power ? TE 9906 Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Reconstruction
Sentinel no. 8109 Deborah 1929 Waggon 5 ton power ? YC 7914 Owner ?, Reading 100px Tractor & Construction Plant Wiki:Requested images


Carries plate from 6722
Sentinel no. 8122 - 1929 Wagon DG4 (tar tanker) 6 ton ? OF 5783 David Hilditch, Welshpool Sentinel no. 8122 Tar wagon - OF 5783 at Onslow Park 09 - IMG 6666.jpg At Onslow Park 2009 & Kemble 2008,
Sentinel no. 8213 Shrewsbury Knight 1930 DG5 wagon 9.5 ton power ? GF 8655 Owner ?, Haywards Heath 100px Tractor & Construction Plant Wiki:Requested images


Sentinel no. 8351 The Aberdeen Docker 1930 Wagon DG6 ? - RG 1417 G. Scott, Scotland Sentinel no. 8351 - SW - The Aberdeen Docker - RG 1417 at Pickering 09 - IMG 3404.jpg At the Bedfordshire Steam & Country Fayre in 2008
Sentinel no. 8381 Kirsty 1930 Waggon 6 ton power KF 2110 Owner ?, Retford 100px Tractor & Construction Plant Wiki:Requested images


Sentinel no. 8393 HMS Sultan 1930 Wagon super 6 ton - DX 9048 HMS Sultan, Gosport Hants Sentinel no. 8393 - waggon - HMS Sultan - DX 9048 at GDSF 08 - IMG 0985.jpg At GDSF in 2008 & Kemble 2009
Sentinel no. 8413 1931 type weight power UY 9878 Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Sentinel no. 8415 date built Waggon weight power TS 2138 Owner ?, In South Africa 100px Tractor & Construction Plant Wiki:Requested images


Photo on Steam Scenes
Sentinel no. 8448 - 1930 Wagon SD DG4 ? ? UX 8724 I. M. Woollett, Buckinghamshire Sentinel no. 8448 - UX 8724 at Tinkers Park 2010 - IMG 6188.jpg at the Kemble 2008 + Tinkers Park Rally 2010
Sentinel no. 8454 - 1931 Wagon DG4 3 way tipper ? ? UX 7958 ? Formerly Buxworth Steam Co., now in Ireland ? 100px Tractor & Construction Plant Wiki:Requested images


Sold at Cheffins Auction Feb 2003 for £60,000.(OG no. 158, April 2003) photo here
Sentinel no. 8562 Garian 1931 DG6P waggon weight power FD 6603 Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Sentinel no. 8571 - 1931 Wagon DG4P 6 ton ? KF 6482 The Goddard family collection, Shrewsbury Sentinel no. 8571 Wagon reg KF 6482 at Bromyard 08 - P7060116.jpg AT Bromyard Gala & Kemble 2008
Sentinel no. 8590 Elizabeth 1931 Wagon DG6P (Bus conversion) 11 ton ? GT 2827 Vern, North Yorkshire Sentinel Steam Bus ELIZABETH at Whitby - geograph.org.uk - 1605303.jpg The Old Glory Steam Bus
Runs trips round Whitby, North Yorkshire
Sentinel no. 8595 - 1931 Wagon Super DG4 ? ? TM 9486 Charles and Roger Mathews collection, Ontario Canada 100px Tractor & Construction Plant Wiki:Requested images


Featured in Old Glory Magazine no. 158, April 2003
Sentinel no. 8606 1931 DG4 wagon weight power ? VE 6492 Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Sentinel no. 8646 - 193? Wagon Super DG4P ? ? - Charles and Roger Mathews collection, Ontario Canada 100px Tractor & Construction Plant Wiki:Requested images


Featured in OG no. 158, April 2003
Sentinel no. 8666
(carries plate from 6400)
- 1931 Waggon DG4 ? ton ? nhp OD 1572 owner ? Sentinel DG4P no. 6400 (8666) - Tar Sprayer (OD 1572) at Tinkers Park 2014 - IMG 1354.JPG At Tinkers Park Rally 2014
Sentinel no. 8694 1934 DG4 waggon 5.5 ton power ? YG 746 Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Sentinel no. 8714 Martha 1932 Wagon DG4P (Bus) 7 ton ? KG 1123 Saunders Collection, Hitchin Herts Sentinel no. 8714 Bus - Martha - KG 1132 at Cumbria 09 - IMG 0496.jpg A Steam bus conversion Photo before conversion
Sentinel no. 8756 Brutus 1933 Tractor TDG 11 ton ? VN 4294 ex Bressingham Steam Museum 100px Tractor & Construction Plant Wiki:Requested images


Formerly in the collection at the Bressingham Steam Museum, Norfolk photo here
Sentinel no. 8770 Sonie 1933 Wagon ? ton power ? - Sandstone Estates, South Africa 100px Tractor & Construction Plant Wiki:Requested images


Photos on Steam Scenes
Sentinel no. 8777 Old Bill 1932 Tractor TDG weight power JB 1655 Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Sentinel no. 8784 Callow Rock date built DG4P waggon 6.5 ton power YD 6587 Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Exported to Australia before 1996
Sentinel no. 8803 - 1933 Wagon type DG6 ? ton 10 nhp ? YD 7012 Ian Fearnley, Leeds, West Yorkshire Sentinel no. 8803 DG6 wagon - YD 7012 at Masham 09 - IMG 0259.jpg At Harewood, Driffield 2008 & Duncombe Park, Masham 2009
Sentinel no. 8821 - 1933 Wagon S6 10 ton ? BRF 200 P. Walker, Ackenthwaite ? to add In Livery of Tarmac - At Shrewsbury Steam Rally 2011
Sentinel no. 8827 Mr Therm/Duch lady 1933 Wagon S4 6 tons 120BHP UJ 2225 Owner Jim Stanley, Basildon, Essex 100px Tractor & Construction Plant Wiki:Requested images


Recently refurbished in new livery Photo here on ccmv.fotopic.net site
Sentinel no. 8834 - Waggon S4 ? ? WN 5963 Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Parts only ? (vehicle existence suspect according to TER 2012)
Sentinel no. 8843 - 1933 S4 Wagon
3-way tipper
? ? UJ 2112 J. Goold, Bath to add Photo here on ccmv.fotopic.net At Shrewsbury Steam Rally 2011 site
Sentinel no. 8846 ' 1933 S4 waggon ? ton power ? YD 8184 Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Sentinel no. 8850 The Lion 1933 Wagon S4 ? ? FJ 9248 Owner ?, Kent 100px Tractor & Construction Plant Wiki:Requested images


At GDSF 2001 as an "As found" wreck.
Sentinel no. 8884 Endon Flyer 1933 S4 5 ton ? nhp TJ 3319 A. Williamson, Stoke on Trent, Staffs Sentinel no. 8884 S4 - Endon Flyer - TJ 3319 - at Klondyke ST 09 - IMG 4713.jpg At Klondyke Mill Autumn Steam Party 2009
Sentinel no. 8928 - 1934 Wagon S6 ? ? JG 4222 (UJT 333) R. Hazell & Sons collection, ? Sentiel no. 8928 S6 reg JG 4222 at Woodcote 09 - IMG 8091.jpg At Woodcote Rally 2009
Sentinel no. 8933 - 1934 Wagon S4 ? ? WV 4705 Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Sentinel no. 8942 1934 S4 waggon weight power ATN 320 Owner ?, Retford 100px Tractor & Construction Plant Wiki:Requested images


Sentinel no. 8945 His Lordship 1934 Wagon S4F 6 ton ? RG 4187 Charles Pye, Hampshire Sentinel no. 8945 - RG 4187 at Tinkers Park 2010 - IMG 6204.jpg At Tinkers Park Rally 2010
Sentinel no. 8957 1934 S4 waggon weight ? power ? BPD 969 Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Sentinel no. 8970 - date built ? S4 Waggon ? ton ? nhp WT 8985 Mr & Mrs Cowhill, Doncaster S. Yorks To add At Masham 2010 (Part restored)
Sentinel no. 8980 1934 S4 waggon weight power TJ 4651 Owner ?, Isle of Man 100px Tractor & Construction Plant Wiki:Requested images


Sentinel no. 8992 Prince 1934 S4 waggon 7 ton power ? TJ 4148 Owner ?, Australia 100px Tractor & Construction Plant Wiki:Requested images


exported in 1986
Sentinel no. 9003 Pendle Lady 1934 Wagon S4 ? ? VE 9963 Peter Wareing collection, Lancashire Sentinel wagon sn 9003 Pendle lady reg VE 9963 at Southport 09 - IMG 7535.jpg Shown at Southport Vintage Rally Scorton & Cumbria2009
Sentinel no. 9009 1934 S4 waggon weight power AKR 471 Owner ?, Selby Yorkshire to addd. 100px Tractor & Construction Plant Wiki:Requested images


at Driffield 2018
Sentinel no. 9016 - 1934 Wagon S4 6 ton ? HV 3865 Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Sentinel no. 9023 Name ? 1934 S4 waggon weight power AKR 958 Owner ?, Herts 100px Tractor & Construction Plant Wiki:Requested images


Sentinel no. 9031 1934 S4 7 ton power US 5431 Owner ?, Aberdeen 100px Tractor & Construction Plant Wiki:Requested images


repatriated 2008 from USA
Sentinel no. 9032 - 1934 Wagon S4 6 ton ? US 5430 V. Goold, Bath to add At GDSF 2008 & Shrewsbury Steam Rally 2011
Sentinel no. 9074 Proctors Pride 1934 Wagon S4 6 ton ? BEV 466 R. Hazell & Sons collection, ? Sentinel no 9074 (Proctors Pride) reg BEV 466 at Bloxham 09 - IMG 5874.jpg At Bloxham Steam Rally & Woodcote Rally 2009
Sentinel no. 9075 Holmevalian 1934 Wagon S4 6 ton ? BEV 467 P & K Jewel, ? Sentinel no. 9075 Holmevalian reg BEV 467 at Lister Tyndale 09 - IMG 4097.jpg At GDSF 2008 & Lister Tyndale 2009
Sentinel no. 9084 - 1934 Wagon S6 ? ? FH 8870 Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Sentinel no. 9086 1934 S4 waggon weight power SE 4013 Owner ?, Oldham, Lancs 100px Tractor & Construction Plant Wiki:Requested images


Sentinel no. 9087 1934 type weight power FJ 9904 Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Sentinel no. 9097 Jupiter/King Arthur 1934 Tractor TDG ? ? ARE 195 The Claude Jessett Collection, East Sussex Sentinel no. 9097 - ARE 195 - Timber tractor at Tinkers Park 2010 - IMG 6192.jpg At GDSF 2008 + Tinkers Park Rally 2010
Sentinel no. 9101 Harry's Lad 1934 S6 weight power BMG 714 Owner ? to add 100px Tractor & Construction Plant Wiki:Requested images


Harewood 2010
Sentinel no. 9103 1934 S6 waggon weight power KUX 205 Owner ?, ? 100px Tractor & Construction Plant Wiki:Requested images


Sentinel no. 9105 The Shrewsbury Flyer 1934 Wagon S8 ? tons ? nhp UJ 3652 R. Hazell & Sons collection, ? Sentinel no. 9105 - Shrewsbury Flyer reg UJ 3652 at Woodcote 09 - IMG 8086.jpg At Woodcote Rally 2009
Sentinel no. 9142 Pocahontas 1934 Wagon S6T (LHD) ? ? OAS 562 Owner ?, Taunton 100px Tractor & Construction Plant Wiki:Requested images


Imported from USA 2005
Sentinel no. 9151 - 1934 (1960s) Steam Bus (freelance replica) ? ? JH 9994 Owner ?, Devizes Wiltshire 100px Tractor & Construction Plant Wiki:Requested images


Freelance bus body added in 1960's
Sentinel no. 9163 1935 S4 waggon ? ton power AER 800 Owner ?, Reading 100px Tractor & Construction Plant Wiki:Requested images


Sentinel no. 9178 1935 S4 waggon weight power TS 3??8 Sandstone Estates In South Africa 100px Tractor & Construction Plant Wiki:Requested images


Images on Steam scenes here
Sentinel no. 9192 - 1935 Wagon S4 5 ton ? CML 781 Ex C. M. Peach
Sold by Cheffins 2010
Sentinel no. 9192 Wagon reg CML 781 at Stourport 09 - IMG 9004.jpg At GDSF 2008 & Stourport Steam Rally 2009 (now in Cadbury's livery)
Sentinel no. 9198 1935 S4 waggon weight power BYK 744 Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Sentinel no. 9207 1935 S4 waggon weight power BYL 484 Owner ?, Hampshire 100px Tractor & Construction Plant Wiki:Requested images


Sentinel no. 9208 - 1935 Wagon S4 ? ? BYL 485 Owner ? 100px Tractor & Construction Plant Wiki:Requested images


At Barleylands Show in 2008
Sentinel no. 9213 An Gaidmeal 1935 Wagon S4 ? ? UJ 5862 Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Sentinel no. 9236 Queen Mary 1936 Tractor TDG ? ? AAM 483 Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Sentinel no. 9242
Non UK Resident
- 1936 Wagon S4 ? ? - Charles and Roger Mathews collection, Ontario Canada 100px Tractor & Construction Plant Wiki:Requested images


Featured in OG no. 158, April 2003
Sentinel no. 9251 Name ? 1936 S4 waggon (chassis) - - CXW 13 Owner ?, Wales 100px Tractor & Construction Plant Wiki:Requested images


Chassis only (TER 2012)
Sentinel no. 9276 1936 S4 waggon weight power DKN 380 Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Sentinel no. 9277 Peggy 1937 S4 wagon (Van body) 5 ton ? DKN 687 Owner ?, Newport IOW 100px Tractor & Construction Plant Wiki:Requested images


At GDSF in 2008
Sentinel no. 9278 - 1936 Wagon S4 6 ton ? BTD 868 Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Sentinel no. 9293 - 1937 Wagon S4 6 ton ? UJ 9497 Stuart Gray collection, Hitchin, Hertfordshire Sentinel no. 9293 SW - UJ 9497 at St.Albans 09 - IMG 1826.jpg At GDSF in 2008 & St.Albans Steam Rally 2009
Sentinel no. 9307 Prince 1937 Wagon S4 6 ton ? DYY 134 Owner ? 100px Tractor & Construction Plant Wiki:Requested images


At Gloucester Steam Extravaganza in 2008
Sentinel no. 9330 1937/8 S4 wagon weight power Reg no. ? Sandstone Estates, in South Africa 100px Tractor & Construction Plant Wiki:Requested images


Photos on steam scenes
Sentinel no. 9346 1938 S4 waggon weight power CXB 783 Owner ?, USA 100px Tractor & Construction Plant Wiki:Requested images


Exported to USA in 1978
Sentinel no. 9347 1938 S4 waggon weight power FGC 930 Owner ?, Herts 100px Tractor & Construction Plant Wiki:Requested images


Remains in a scrapyard of the youngest Sentinel wagon in preservation in UK[3]
Sentinel Waggon - Typhoo Typhoo Circa 1970s Waggon ? ton ? JCN 898J Owner ?, Rotherham, S Yorks. to add 100px Tractor & Construction Plant Wiki:Requested images


Built from Sentinel shunter engine in a ERF 6 wheel chassis with box body
Sentinel no. 9593 (Plate from 5335) - ~ 1993 Tractor SUP (Rail loco engine) ? ? SV 5525 Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Sentinel rail loco engine no. 9593
Sentinel no. ? - SW ? hp Photo to add xyz Steam Rally 2008
Sentinel no. ? Name ? date built type weight power Reg no. ? Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Machine types Key: References
SW = Steam Wagon, PE = Portable engine, Plg = Ploughing Engine, RR = Road Roller, SRL = Showman'sroad locomotive, ST = steam tractor, TE = Traction Engine


Scale Models (Live steam)[edit | edit source]

1/2 size Sentinel steam wagon Ruthus at Elvaston Steam Rally in 2009

Diesel Lorries[edit | edit source]

List of Preserved Sentinel lorries
view  talk  edit

Registration No. Make-Model or type no Build-Year Engine-Make/Type Weight/class Chassis/Body type Owner
(if known)
Photo Were seen/Featured Other info
100px


100px


Please add any truck with known reg or serial no. with Photo if possible.
Create a page (link) for an individual truck by linking the reg or serial number using [[Truck make-model-reg no.|reg number]] or [[Truck make-model-serial no.|serial number]] in the relevant column. Then once saved click the red link to start the new page and add info on that truck.

See also[edit | edit source]

References[edit | edit source]


Sources[edit | edit source]

  • Ian Allan ABC of British Railways Locomotives, 1948 edition

External links[edit | edit source]

Smallwikipedialogo.png This page uses some content from Wikipedia. The original article was at Sentinel. The list of authors can be seen in the page history. As with Tractor & Construction Plant Wiki, the text of Wikipedia is available under the Creative Commons by Attribution License and/or GNU Free Documentation License. Please check page history for when the original article was copied to Wikia


Community content is available under CC-BY-SA unless otherwise noted.
