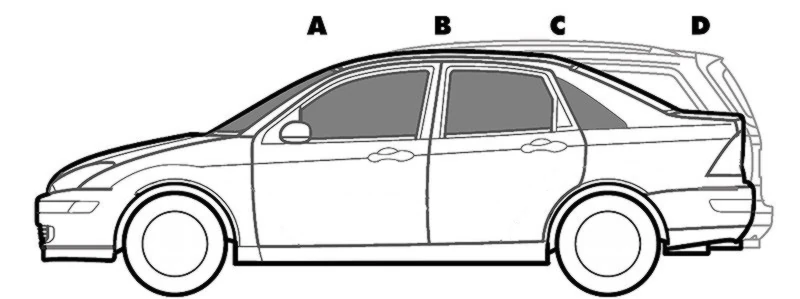

Three body styles with pillars and boxes

Typical pillar configurations of a sedan (three box), station wagon (two box) and hatchback (two box) from the same model range.

Wagon and sedan

Diagram of a sedan (three box) over a station wagon (two box) from the same model range.

A saloon car (British English, Irish English, New Zealand English) or sedan (American English; pronounced /sɨˈdæn/), is a passenger car in a three-box configuration with A, B & C-pillars and principal volumes articulated in separate compartments for engine, passenger and cargo.[1] The passenger compartment features two rows of seats and adequate passenger space in the rear compartment for adult passengers. The cargo compartment is typically in the rear, with the exception of some rear-engined models, such as the Renault Dauphine, Tatra T613, Volkswagen Type 3 and Chevrolet Corvair. It is one of the most common car body styles, However, 4-door sedans are smaller than a 5-door minivan, 5-door hatchback, 5-door SUV or a 5-door station wagon and 4-door LWB sedans are smaller than a 5-door LWB minivan, 5-door LWB hatchback, 5-door LWB SUV or a 5-door LWB station wagon, Variations of the sedan style include the close-coupled sedan, club sedan, convertible sedan, fastback sedan, hardtop sedan, notchback sedan, and sedanet.

Types of sedans[]

Several versions of the body style exist, including four-door, two-door, and fastback variants of both.

A sedan seats four or more people and has a fixed roof that is full-height up to the rear window. The roof structure will typically have a fixed B-pillar on sedan models. Most commonly it is a four-door; two-door models are rare, but they do occur (more so historically). In the U.S., the term sedan has been used to denote a car with fixed window frames, as opposed to the hardtop style without a "B" pillar and where the sash, if any, winds down with the glass. However, true hardtops have become increasingly rare.

Four-door sedans can have either two or three side windows: One in each door (vent windows not counted), and the possible third integrated in the "C"-pillar.

Notchback sedans[]

Chevrolet Impala in light blue

1962 Chevrolet Impala, a typical notchback sedan

A notchback sedan is a three-box sedan, where the passenger volume is clearly distinct from the trunk volume of the vehicle (when seen from the side). The roof is on one plane, generally parallel to the ground, the rear window at a sharp angle to the roof, and the trunk lid is also parallel to the ground.

Fastback sedans[]

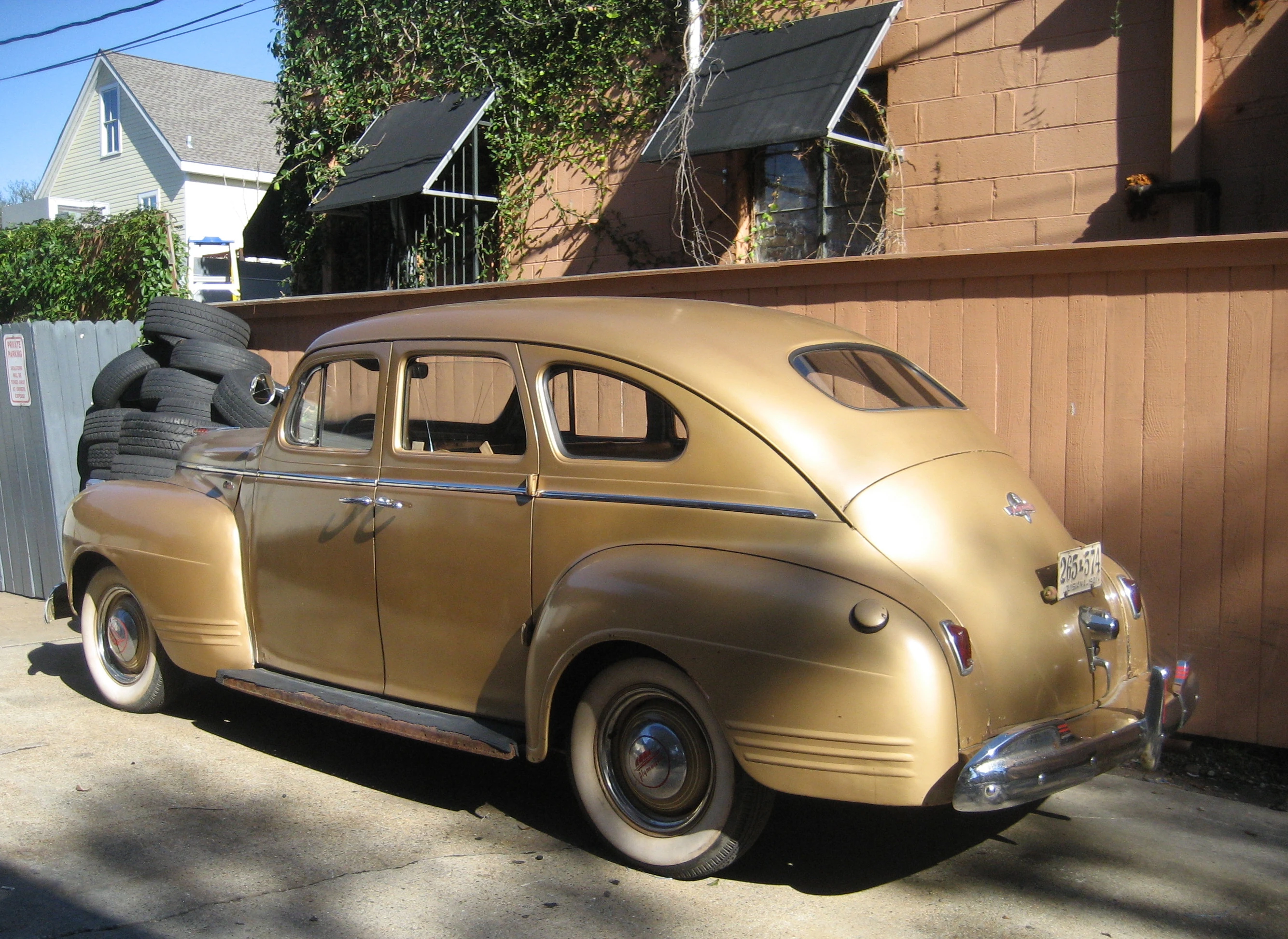

Magazine41PlymouthBackRight

1941 Plymouth fastback sedan

A fastback sedan is a two-box sedan, with continuous slope from the roof to the base of the decklid, but excludes the hatchback feature. Marketing terminology is often misleading in this area - for example, Daimler AG calls the Mercedes-Benz CLS-Class sedan a four-door coupé because its semi-fastback design tries to give the impression of a coupé. Certain sedans are edging close to being one-box vehicles, where the windshield is steeply raked from the hood/bonnet and the rear window slopes toward almost the end of the car, leaving just a short rear deck that is part of the trunk lid - the 2006 4-door JDM Honda Civic is an example of this. They are not fastbacks because their bodyline changes from the roof to the rear deck. Their steeply raked rear windows end with a decklid that does not continue down to the bumper. Instead, their rear ends are tall - sometimes in a Kammback style - to increase trunk space.

Typically this design is chosen for its aerodynamic advantages. Automakers can no longer afford the penalty in fuel consumption produced by the traditional notchback three box form.

Two-door sedans[]

See also: Coupé

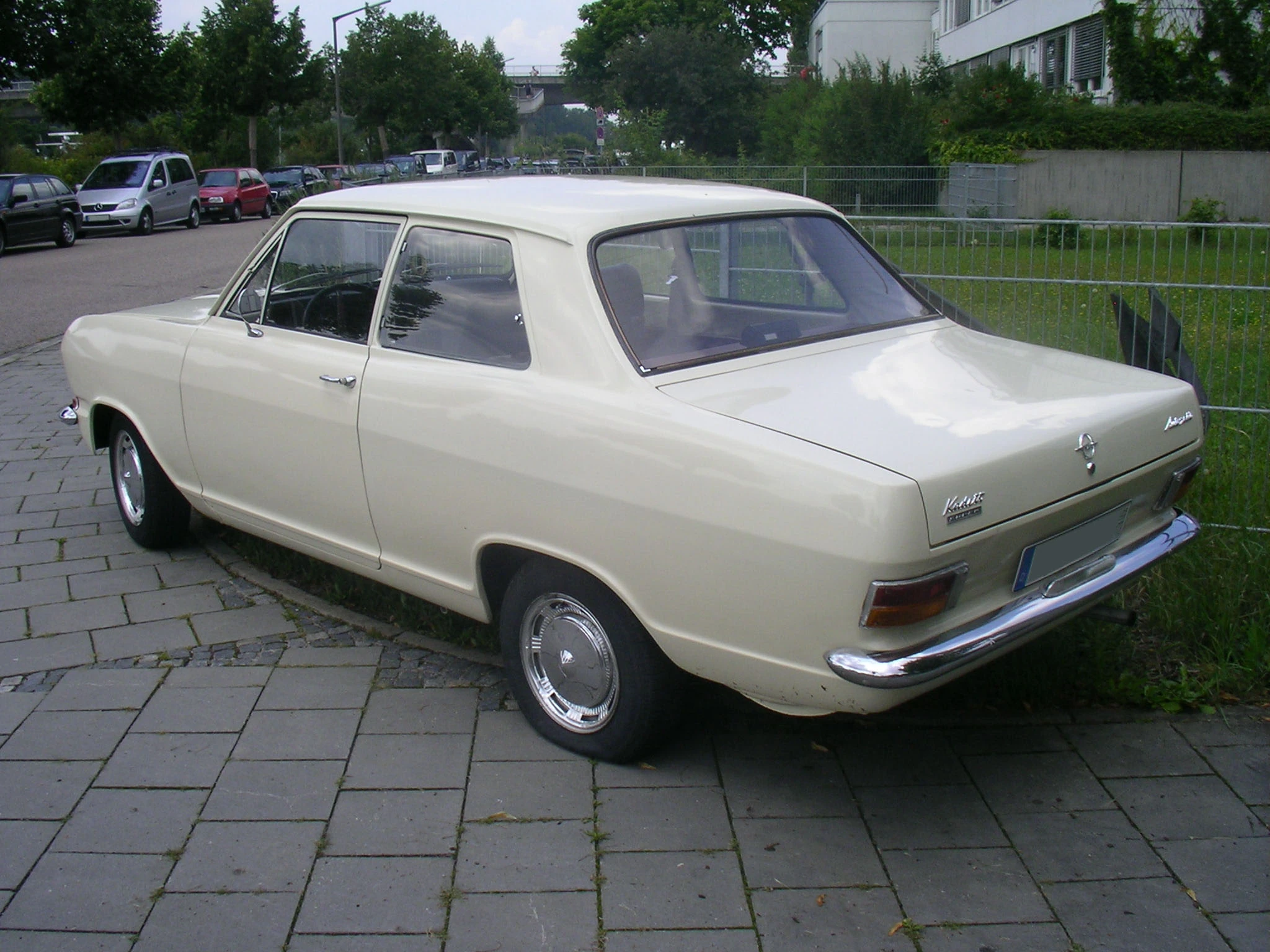

Opel Kadett B Automatic Heck

Opel Kadett B two-door sedan

The Society of Automotive Engineers defines such a vehicle as any two-door model with rear accommodation greater than or equal to 33 cubic feet (930 L) in volume (a calculation made by adding the legroom, shoulder room, and headroom).[citation needed] By this standard, the Chevrolet Monte Carlo, Ferrari 612 Scaglietti, and Mercedes-Benz CL-Class coupés are all two-door sedans. Only a few sources, however (including the magazine Car and Driver), use the two-door sedan label in this manner.

In the popular vernacular, a two-door sedan is defined by appearance and not by volume; vehicles with a B-pillar between the front and rear windows are generally called two-door sedans, while hardtops (without the pillar, and often incorporating a sloping backlight) are called coupés.

The Mazda RX-8 meets the volume requirement to be called a sedan, but it has vestigial rear-hinged rear doors, so some call it 2+2-door sedan. Another term for a coupé endowed with rear-hinged doors is a "quad coupé." However, this may simply be vernacular, based on a possible copyright by General Motors, for its Saturn Ion Quad-Coupe.

Hardtop sedans[]

Main article: Hardtop
1958 Ambassador 4-d hardtop

1958 AMC Ambassador hardtop sedan

In historic terminology a sedan will have a frame around the door windows, while the hardtop has frameless door glass. A true hardtop sedan design also has no "B" pillar (the roof support behind the front doors). This body style has an open feel, but requires extra underbody strengthening for structural rigidity. The hardtop design can be considered separately (i.e., a vehicle can be simply called a four-door hardtop), or it can be called a hardtop sedan. During the 1960s and 1970s, hardtop sedans were often sold as sport sedans by American manufacturers and were among the top selling body styles. During the 1980s, automakers in the U.S. focused on removing weight and increasing strength, and their new four-door sedans with B-pillars were called pillared hardtops or pillared sedans. The sport sedan term has since been appropriated for other uses. In Japan, and among Japanese manufacturers worldwide, the hardtop design was popular among luxury sedans throughout the 1990s.

Hatchback sedans[]

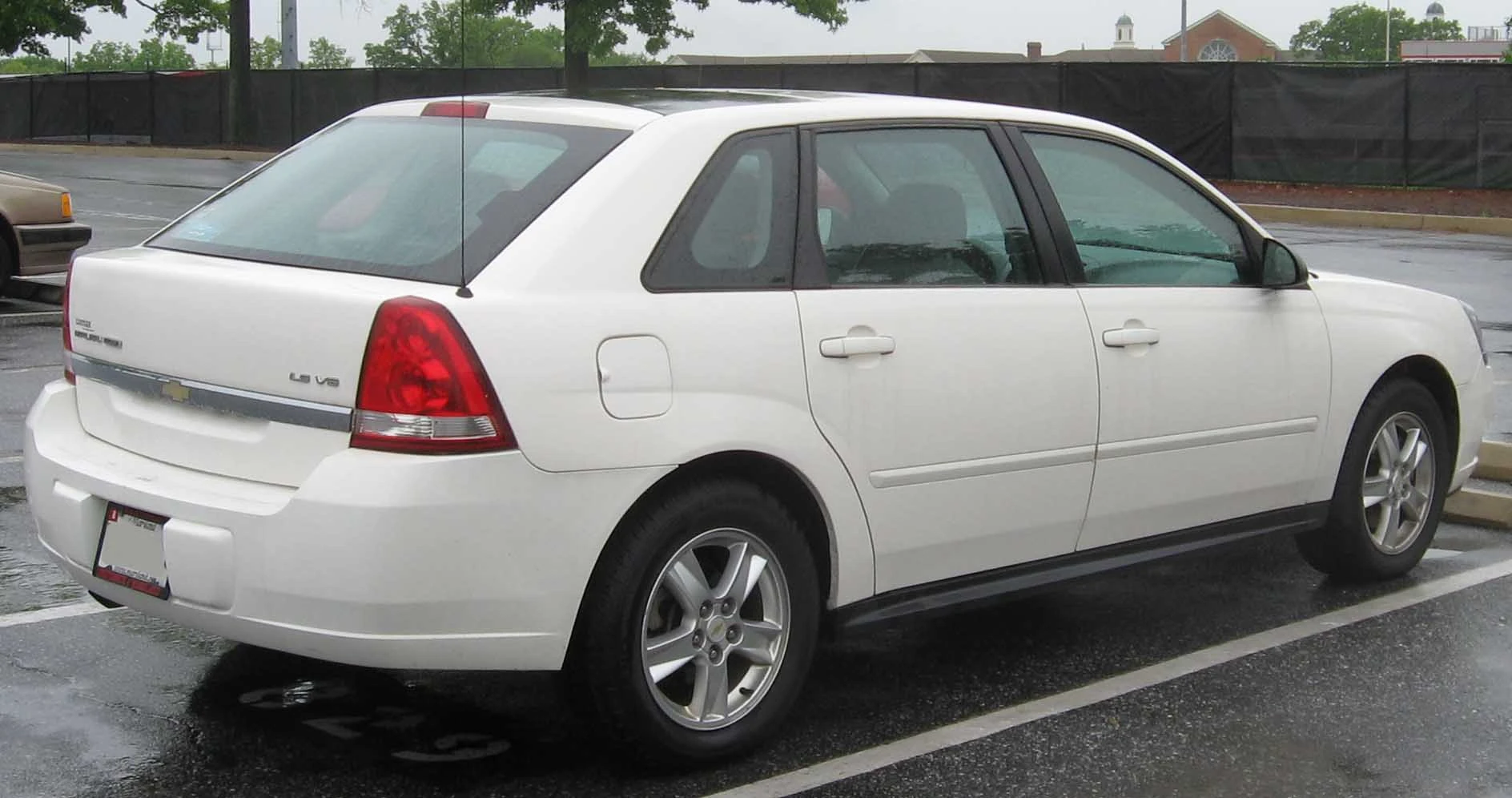

2004-2005 Chevrolet Malibu MAXX LS

Chevy Malibu Maxx hatchback sedan

Hatchback (a.k.a. liftback) sedans typically have the fastback profile, but instead of a trunk lid, the entire back of the vehicle lifts up (using a liftgate or hatch). A vehicle with four passenger doors and a liftgate at the rear can be called a four-door hatchback, four-door hatchback sedan, or five-door sedan. An example of such is the Chevrolet Malibu Maxx and Audi A5 Sportback. There can also be two-door hatchback sedans (three-door sedans), by the same technical explanation for two-door sedans. Examples of this design are the Volkswagen Golf, and Chevrolet Chevette.

Chauffeured sedans[]

Main article: Limousine

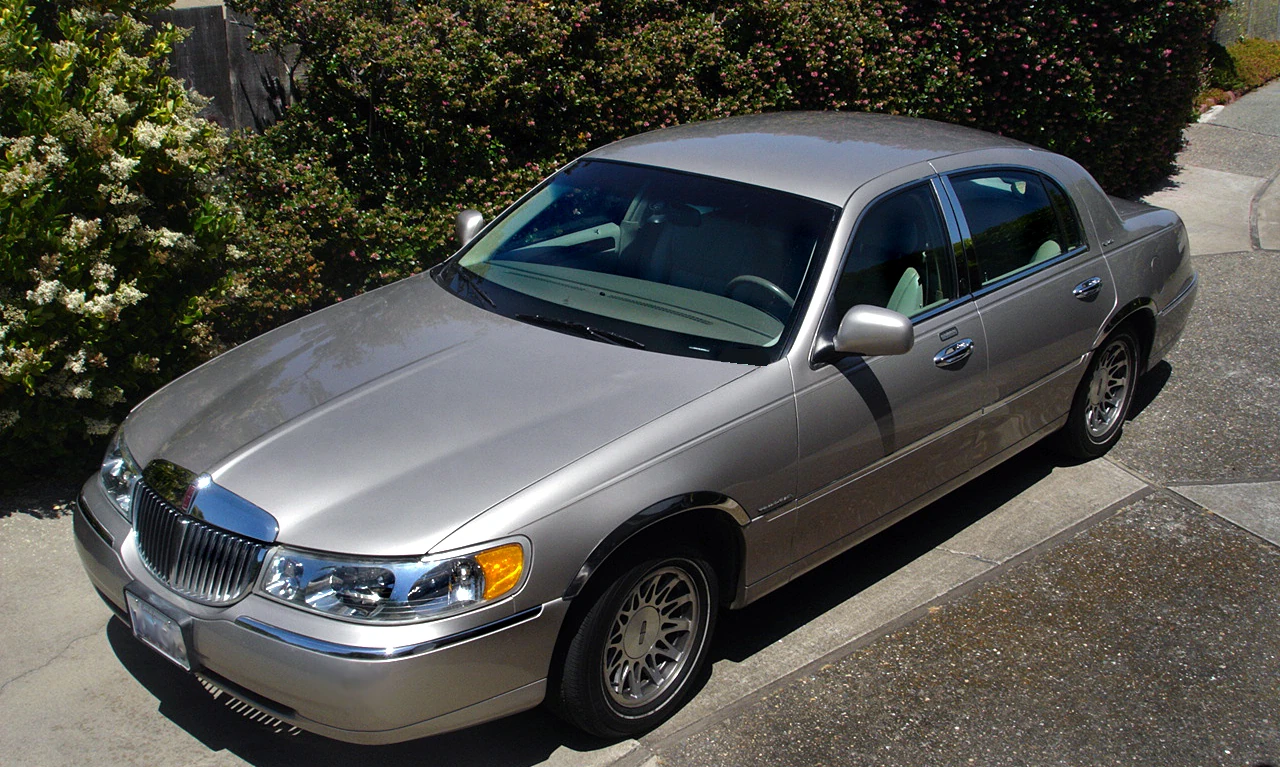

Luxury Car 2

The Lincoln Town Car is often used as a chauffeured car in the U.S.

Strictly speaking limousine sedans have a separate compartment for the driver and the passenger compartment is long enough to contain at least two comfortable, forward-facing bench seats. Vehicles used for these means are usually Lincoln Town Car, Cadillac, Mercedes, or Rolls-Royce or Maybach for the more wealthy. The term limousine can refer to a large sedan, especially if hired from a service. Chauffeured limousines are primarily used by individuals for weddings, businesses for meetings, as well as for airport and sightseeing transportation. Chauffeurs are professional drivers, usually with experience in the transportation industry or tourism industry. Chauffeured sedans are owned either by private owners, livery services, or corporations. Large corporations as well as governments commonly provide luxury sedans to top executives, as well as VIP guests. Chauffeured sedans, such as the Lincoln Town Car, may also be stretched into limousines that are capable of seating up to twenty people.

Terminology[]

Sedan-chair

Sedan chair carried by two people

Origin[]

Main article: Litter (vehicle)

The word sedan is possibly derived from a southern Italian dialect derivative of Italian sedia "chair" (the first sedan was said to have been introduced from Naples). However, Portuguese and Spanish navigators and colonists encountered litters of various sorts in India, Japan, Mexico, and Peru. They were imported into Spain in the late sixteenth century. Soon the fashion spread into France and then England. All the names for these derived from the root "sed-" from the Latin "sella" - the traditional name for a carried chair.[2]

The first automobile to use the configuration was the 1899 Renault Voiturette Type B. The first closed car, for at least 4 persons, which used the word sedan was the 1911 Speedwell sedan, which was manufactured by the Speedwell Motor Co in Dayton, Ohio.[3] But even before that time completely closed cars were called saloons or limousines, like the 1905 Rational 4-door limousine[4] or the 1907 Renault 4-door limousine[5] or the 1910 Stella 2-door saloon.[6] The words saloon or limousine do not exclusively mean a fully closed car.[7] Cars which are called sedans are always fully closed.

The derivation from the town of Sedan, Ardennes in France, where it was said to have been made or first used, lacks historical evidence, according to Oxford English Dictionary.

International terminology[]

In American English and American Spanish, the term sedan is used (accented as "sedán" is in Spanish). The engine compartment, at the front, is covered by the hood; the cargo compartment at the rear is called the trunk.

In British English, a car of this configuration is called a saloon. The engine compartment cover is the bonnet, the cargo-compartment boot is at the rear. Hatchback sedans are known simply as hatchbacks (not hatchback saloons); long-wheelbase luxury sedans may be referred to as limousines.

The British English term saloon is sometimes used by British car manufacturers in the United States. For example, the Rolls-Royce Park Ward was sold as a saloon in the United States, while the smaller Silver Seraph was called a sedan.

In Australia the American term sedan is used, albeit with the British terms boot and bonnet being retained. In New Zealand the British terms are used, but the American terms are understood by most of the population. In other languages, sedans are known as berline (French), berlina (European Spanish, European Portuguese, Romanian, and Italian); although these terms also may include hatchbacks. These terms, besides sedan, derive from types of horse-drawn carriages. In German, the term limousine is used for sedans, as well as for limousines.

See also[]

American English British English Euro Car Segment[8] Euro NCAP 1997 - 2009 Euro NCAP[9] Examples
Microcar Microcar, Bubble car A-segment mini cars Supermini Passenger car Isetta, Smart Fortwo
Subcompact car City car Fiat 500, Daewoo Matiz, Peugeot 107, Toyota iQ
Supermini B-segment small cars Ford Fiesta, Volkswagen Polo, Ford Figo, Opel Corsa, Peugeot 207
Compact car Small family car C-segment medium cars Small family car Ford Focus, Opel Astra, Toyota Auris, Volkswagen Golf, Chevrolet Cruze
Mid-size car Large family car D-segment large cars Large family car Ford Mondeo, Opel Insignia, Volkswagen Passat, Chevrolet Malibu, IKCO Samand
Entry-level luxury car Compact executive car Alfa Romeo 159, BMW 3 Series, Lexus IS, Volvo S60, Audi A4, Cadillac CTS
Full-size car Executive car E-segment executive cars Executive car Ford Crown Victoria, Holden Commodore, Toyota Crown, Chrysler 300C, Chevrolet Impala
Mid-size luxury car Lexus GS, BMW 5 Series, Jaguar XF, Lincoln LS, Audi A6, Volvo S80, Cadillac CTS
Full-size luxury car Luxury car F-segment luxury cars  - Audi A8, Maserati Quattroporte, Lincoln Town Car, Mercedes S-Class, Cadillac DTS
Sports car Sports car S-segment sport coupes  - Chevrolet Corvette, Porsche 911, Ferrari 458 Italia, Nissan Z-car, Lamborghini Gallardo
Grand tourer Grand tourer  - Jaguar XK, Ferrari 612 Scaglietti, Maserati GranTurismo
Supercar Supercar  - Bugatti Veyron, Ferrari Enzo, Pagani Zonda
Convertible Convertible  - BMW 6 Series, Mercedes CLK, Volvo C70, Volkswagen Eos, Chevrolet Camaro
Roadster Roadster Roadster sports Roadster Audi TT, Honda S2000, Lotus Elise, Mazda MX-5, Porsche Boxster,
 - Leisure activity vehicle M-segment multi purpose cars Small MPV MPV Ford Tourneo Connect, Peugeot Partner, Škoda Roomster
 - Mini MPV Opel Meriva, Fiat Idea, Citroen C3 Picasso
Compact minivan Compact MPV, Midi MPV Mazda5, Opel Zafira, Ford C-Max, Volkswagen Touran, Peugeot 5008
Minivan Large MPV Large MPV Chrysler Town and Country, Ford Galaxy, Honda Odyssey, Peugeot 807
Mini SUV Mini 4x4 J-segment sport utility cars (including off-road vehicles) Small Off-Road 4x4 Off-roader Daihatsu Terios, Mitsubishi Pajero iO, Suzuki Jimny, Jeep Wrangler
Compact SUV Compact 4x4 BMW X3, Ford Escape, Honda CR-V, Toyota RAV4, Chevy Equinox, Jeep Liberty
 - Coupé SUV  - Isuzu VehiCROSS, SsangYong Actyon, BMW X6
Mid-size SUV Large 4x4 Large Off-Road 4x4 Ford Explorer, Jeep Grand Cherokee, Volkswagen Touareg, Chevrolet Tahoe
Full-size SUV Cadillac Escalade EXT, Chevrolet Suburban, Range Rover, Toyota Land Cruiser, Jeep Commander
Mini pickup truck Pick-up  - Pick-up Pickup Chevrolet Montana, Fiat Strada, Volkswagen Saveiro
Mid-size pickup truck Chevrolet Colorado, Ford Ranger, Mitsubishi Triton/L200, Nissan Navara
Full-size pickup truck Dodge Ram, Ford F-150, GMC Sierra, Nissan Titan, Toyota Tundra
Full-size Heavy Duty pickup truck Chevrolet Silverado , Ford Super Duty
