The Rover 8 was a name given to three early models of car from the British Rover car company. The original one, produced between 1904 and 1912, was the first production Rover car. The name was used again from 1911 to 1912 on a new car with a Knight sleeve-valve engine and finally from 1919 to 1925 on a twin-cylinder light car.

Rover 8 1904-1912Edit

Rover 8

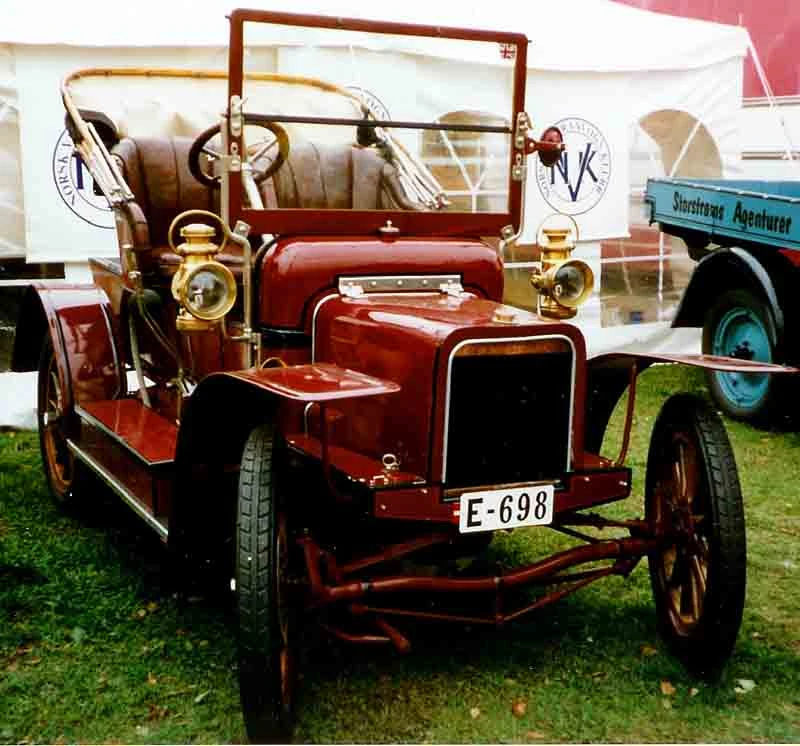

Rover 1905.jpg
Manufacturer Rover
Production 1904-1912
Engine(s) 1.3 L single-cylinder
Transmission(s) 3-speed manual
Curb weight approx. 10.5 long cwt (0.53 t)[1]
Designer Edmund W. Lewis

The car, designed by Edmund W. Lewis who had joined Rover from Daimler, had an unusual design. Instead of the conventional chassis, the car used a backbone formed by the engine crankcase, the gearbox housing, the propshaft housing and the rear axle. This backbone frame had no suspension at the rear apart from the tyres, but the body was mounted onto the rear axle using semi-elliptic springs. The front axle was suspended from the frame by a transverse leaf spring.[1][2]

The single-cylinder engine displaced 1327 cc with a bore of 114 mm (4.5 in) and stroke of 130 mm (5.1 in).[2][3] It had an unusual pedal control that changed over the valve operating cams to provide extra engine braking.[1][2]

By 1907, Rover had discontinued the backbone frame and was using an ash chassis with steel flitch plates.[4] Robert Jefferson and Robert Weallas drove a Rover 8 from Coventry to Istanbul, becoming the first people to cross Europe in an automobile.[4]

Most of this series of Rover 8 cars seem to have had a very basic open two seat body with no windscreen or other weather protection.

At launch the Rover 8 cost £200 on the home market.

Rover 8 1911-1912Edit

Rover 8
Manufacturer Rover
Production 1911-1912
Engine(s) 1.0 L single-cylinder Sleeve-valve
Wheelbase 84 in (2,100 mm)
Width 57 in (1,400 mm)

The 1911 Rover 8 turned away from conventional engines using a single-cylinder 1052 cc sleeve-valve unit. Daimler had a licence to produce the Knight sleeve-valve engine and as the dimensions of the one advertised by Rover were identical it is probable that this was their source. Whether components or complete engines were bought is not known, but Daimler never sold a single-cylinder sleeve-valve car.

Very few were made.

Rover 8 1919-1925Edit

Rover 8
Rover 8 at Newport Quay 2011-06-08.jpg
Manufacturer Rover
Production 1919-1925
17,700 made[5]
Successor Rover 9/20
Engine(s) 1.0 or 1.1 L two-cylinder side valve
Transmission(s) 3 speed manual
Wheelbase 88 or 94 inches (2235 or 2388 mm)[6]
Length 123 or 135 inches (3124 or 2429 mm)[6]
Width 58 inches (1473 mm)[6]
Designer Jack Sangster

The all new Rover 8 light car was designed by Jack Sangster largely before he joined Rover and was built in a new factory in Tyseley, Birmingham and driven to Coventry to have its body fitted. It was a great sales success for the company.

The air-cooled, side valve, engine was a horizontal twin and was originally of 998 cc capacity but this increased to 1135 cc in 1923. The original engine had a peak output of 13 bhp (9.7 kW) at 2600 rpm.[7] Although there was a conventional looking radiator it was a dummy. Cooling was supplied through air scoops on the side of the bonnet and it was rumoured that after hard driving at night the cylinder heads could be seen glowing red through them,[5][8] although this was likely to be an exaggeration.[8] The three speed gearbox was in-unit with the engine and drove the rear wheels via a worm wheel type rear axle. A dynamo was belt driven from the propeller shaft. An electric starter was optional from 1923.[7]

The car was based on a simple perimeter frame with quarter-elliptic leaf springs all around.[8] Unusually for the time, rack and pinion steering was used. Brakes were fitted to the rear wheels only with a separate set of shoes for the handbrake. The wheelbase was extended from 88 inches (2,200 mm) to 94 inches (2,400 mm) in 1924 to allow genuine four seat bodies to be offered including a fabric four seat saloon.[7]

Open two and four seat bodies were usual but some closed 2 seat coupés were also made from 1923 as well as light commercials. The car cost £230 in 1919, but was reduced to £139 by 1925.[5] It could attain 45 mph (72 km/h) and could return 45 miles per gallon (imperial).[5]

The Rover 8 was made under licence in Germany, with a slightly larger engine, by Peter-und-Moritz between 1921 and 1923.[7][9]

Surviving examplesEdit

GalleryEdit

add your photos here

References Edit

  1. 1.0 1.1 1.2 David Burgess, Wise (1970). Vintage Motorcars, Illustrated by Peter Griffin, UK: National Magazine, 12. SBN 852230078.
  2. 2.0 2.1 2.2 Robson, Graham (1977). The Rover Story: A Century of Success, First Edition, Cambridge, UK: Patrick Stephens. ISBN 1-85260-175-2.
  3. David Burgess, Wise (1970). Vintage Motorcars, Illustrated by Peter Griffin, UK: National Magazine, 48. SBN 852230078.
  4. 4.0 4.1 David Burgess, Wise (1970). Vintage Motorcars, Illustrated by Peter Griffin, UK: National Magazine, 15. SBN 852230078.
  5. 5.0 5.1 5.2 5.3 Baldwin, N. (1994). A-Z of cars of the 1920s. UK: Bay View Books. ISBN 1-870979-53-2.
  6. 6.0 6.1 6.2 Culshaw; Horrobin (1974). Complete Catalogue of British Cars. London: Macmillan. ISBN 0-333-16689-2.
  7. 7.0 7.1 7.2 7.3 Wood, Jonathan (January). Bowler, Michael. ed., "Rover 8", The Automobile (Cranleigh, UK: Enthusiast Publishing) 25(11). ISSN 0955–1328.
  8. 8.0 8.1 8.2 Wise, David Burgess (1970). Vintage Motorcars, Illustrated by Peter Griffin, UK: National Magazine, 29. SBN 852230078. “The chassis was as basic as could be, merely a channel steel rectangle with minimal cross-bracing, and quarter-elliptic springs bolted on at each corner.”
  9. Posthumus, Cyril [1977] (1977). "Slump and Recovery", The Story of Veteran & Vintage Cars, John Wood, illustrator, Feltham, Middlesex, UK: Hamlyn, 78. ISBN 0-600-39155-8. “One of Britain's best light cars of the early '20s, the Rover Eight with its front-mounted flat-twin aircooled engine brought reliable motoring to thousands. It was even built under licence as the Peter-und-Moritz in Germany.”
