Roths Industries, Inc. (1945 –1960) was a manufacturer of small garden tractors and other agricultural equipment founded by Herbert C. Roths in Alma, Michigan, USA. The company manufactured Garden King Walking Tractors, BesRo Riding Tractors, Columbia III Planter-Fertilizer Attachments, and Till Ro Stalk Cutters.
- Walkbehind Tractor Models: Model W-Garden King, Model G-Roths Tractor, Model T-Terrier, Terra-Tiller
- Riding Tractor Models: Model W-BesRo, Model R-BesRo, Country Boy, Little Jeff
History[]
Herbert Carl Roths was born in Edna, Iowa in 1902 and passed away in St. Louis, Michigan in 1978. At the time of his first patent, Herbert Roths was a resident of Alpena, Michigan, and the company must have been in the early stages of foundation. With the submission of the second patent, the late Roths had settled into Alma, in Gratiot County, Michigan.

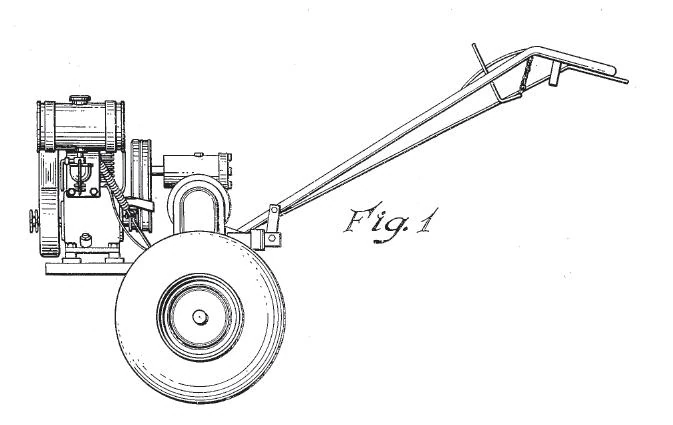

Roths Garden Tractor Patent No. D157432 on December 19, 1946
The first patent (D146,947) was applied for by Herbert C. Roths on August 24, 1945 for the design of an ornamental tractor. This patent was awarded on June 17, 1947. At the time of the second patent (D157,432), Herbert C. Roths was an assignor to Roths Industries Inc., Alma, Michigan. The patent was applied for on December 19, 1946 and awarded on February 21, 1950. The second patent was a garden tractor design which would later become the Roths Garden King walking tractor. According to these patent records the company was established between mid-1945 to late-1946. The first production Garden King walking tractors were sold in 1946. Over the next few years variations built from the Garden King's parts would become available. The Roths Model-G and Roths BesRo|BesRo]] would borrow many production parts from the Garden King, one of which being the transmission. The company may still have been producing Terrier Tractor and Country Boy, Little Jeff riding tractors as late as 1960.
Herbert Roths had two patents issued in 1970 and 1973 for a transplanting loader and transplanting machine. On these patents his name was stated as Herbert C. O. Roths located at 316 Wilson Drive, Orchard Hills, St. Louis, MI 48880.
Model range[]
Model W - Garden King[]
The Roths Garden King-Model W is a self propelled two-wheel tractor which was introduced sometime around 1946. The number of units produced remains unknown. According to a March 15, 1949 part list, the 6 H.P. standard Garden King walking tractor and reverse drive with 6x12 tires had a domestic shipping weight of 504 pounds (229 kg), a net weight of 420 lb (191 kg), and a list price of $375.00. Later in 1954 this tractor was listed as $345.00.
These tractors may have been sold or licensed to a distributing company in 1946/1947, by the name of General Implement. General Implement sold the Garden King labeled as the GI garden tractor. This may have been a marketing strategy of Roths Industries to reach out to the national agricultural market.
- Type: Two Wheel Walking Tractor with Steeromatic Control. Operator always has control over the cultivator.
- Engine: Wisconsin AB Engine, 3 H.P.
- Transmission: Steeromatic Draft Control, Differential Slip, Forward/Reverse, Automotive type differential carried on four Timken bearings
- Final Drive: Worm and worm gear and differential operating in a bath of oil. On each side of differential housing is chain reduction to final drive axle, each operating in a bath of oil.
- Speed: From 3/4 to 3 miles per hour (1.2–4.8 km/h), speeds variable by throttle control
- Cultivating Clearance: 14 inches (36 cm) through center of tractor
- Wheel Tread Width: Adjustable from 20 to 32 inches (51–81 cm) on tread centers
- Wheels/Tires [1946 to 1947]: Cast Iron Split Rim with 6.00-9 Firestone Industrial Rib 4-Ply Tires
- Wheels/Tires [1947 to 1948]: Cast Iron Split Rim with 4.50-12 Goodyear Studded Tread 4-Ply Tires
- Wheels/Tires [1947 to End]: Cast Iron Split Rim with 6.00-12 Garden Tractor Lug Tires
- Shipping Weight: 560 lb (254 kg) with cultivators
- Colors: Green and Yellow
In 1949, the Model "W" and "WKS" were made available.
- Model W: Wisconsin AB Engine, 3 H.P.
- Model WKS: Wisconsin AKS Engine, 5 H.P.
Attachments include: 36-inch (91 cm) Toolbar Cultivator, 6 Blade Disc (Six 12-inch (30 cm) Blades) Draw Bar Type, 8 Blade Disc (Eight 12-inch (30 cm) Blades) Draw Bar Type, 6 Blade Disc (Six 15-to−16-inch (38–41 cm) Blades) Draw Bar Type, 8 Blade Disc (Eight 15-to−16-inch (38–41 cm) inch Blades) Draw Bar Type, 14 Tooth Expanding Type Harrow (tool), 8-inch (20 cm) Moldboard Plow with rolling coulter, 48-inch (122 cm) Snow Blade, the Columbia III planter with Fertilizer, 36-inch (91 cm) (Special Order) or 40-inch (102 cm) Sickle Bar Mower, Cultipacker and Cane or Vineyard Cultivator.
Model G[]
The Garden King Model W was introduced as a high crop walkbehind garden tractor but sometime in 1947 or 1948 the tractor was also available in a lower stance version. This new design came equipped with a new type ratchet differential drive based on the original Model W differential. By 1950 the tractor had become known as the Model G. To steer this type of tractor, the operator did not have to overcome the power in the drive wheels because of the differential design. When the clutch is disengaged the tractor can be easily moved in forward or backward motion. According to a 1950 magazine advertisement, the Model-G walking tractor had a list price of $175.00.
- Type: Two Wheel Walking Tractor
- Engine: Kohler Model K90R(in 1954). 1 ½ to 2 H.P. or 2 ½ to 3 H.P.
- Transmission: Ratchet Type Differential, Forward/Reverse, Ratchet type differential carries on two Timken bearings
- Drive: An all gear driven unit using Timken bearings on differential and power input shaft of worm
- Speeds: 1 to 3 miles per hour
- Cultivating Clearance: 9 inches through center of tractor
- Wheel Tread Width: Adjustment 16 to 30 inches at center
- Wheels/Tires: Cast Iron Split Rim with 6.00-12 Garden Tractor Lug Tires
- Weight: 385 lbs.
- Colors: Green and Yellow
Model T – Terrier[]
The Terrier Model T was introduced around 1953-1954. According to a 1954 Red Tractor Book data sheet, the Model T walking tractor had a list price of $175.00.
- Type: Two Wheel Walking Tractor
- Engine: 1 ½ to 2 H.P. or 2 ½ to 3 H.P.
- Transmission: Differential, Forward/Reverse
- Drive: An all gear driven unit using Timken bearings on differential and power input shaft of worm
- Auxiliary Power Take-Off Pulley Diameter: 3.5 inches
- Speeds: 1 to 2 ½ miles per hour
- Length: 25 inches
- Overall Length (w/ handles): 52 inches
- Overall Height: 25 inches
- Turning Radius: 17 inches
- Cultivating Clearance: 6 inches through center of tractor
- Wheel Tread Width: 13 inches at center
- Wheels/Tires: 3.00-12
- Shipping Weight: 168
- Colors: Unknown
Attachments include: Cultivator, Bull Dozer Blade, Sickle Bar Mower, Tiller, Rotary Lawn Mower, Furrow and Hiller Plow, Weeder or Hoe attachment, Moldboard Plow, Disc, and swinging draw bar.
Columbia III Planter-Fertilizer[]
In late-1947, the Columbia III Planter had been introduced along with a fertilizer attachment. According to a December 18, 1947 advertisement, the new Columbia III Planter was a power-agitated attachment which had two adjustable opening shoes. The fertilizer was sowed in two bands with the seeds planted in-between the fertilizer bands. Roths Industries stated that this eliminated the danger of damaging the seeds during germination. The planter accurately planted all types of seeds from the smallest flower seed to the largest seed, including Spanish Peanuts in the shell. Any desired seed spacing could be obtained. Roths Industries also had special seed cylinders that could be furnished to suit a wide range of requirements.
According to a March 15, 1949 part list, the Columbia III Planter with Fertilizer Attachment: Push Type Model and Tractor Mounted, both had a domestic shipping weight of 62 lbs, a net weight of 50 lbs, and a list price of $47.50. Also a Furrow Marker was available for the planter(required for Tractor Mounted use) which had a domestic shipping weight of 5 lbs, a net weight of 5 lbs, and a list price of $8.00.
Model W & Model R - BesRo[]
An optional steering assembly with a sulky seat and wheels was available in 1949 to convert the Model W transmission into a riding unit. The BesRo tractor utilized a similar transmission and drive unit as the Model-W Garden King. The idea of the Model W BesRo was developed from Herbert Roths design of an ornamental tractor patent(D146,947). This original tricycle design was known as the BesRo Model W and was precursor to the BesRo Model R. The Model R BesRo used four wheels with the drive unit mounted in the rear. The riding frame was attached to the front of the transmission. The BesRo tractor was phased out of production by the mid-1950s and replaced with the Roths Country Boy.
- Type: Four wheel riding tractor, rear engine drive
- Engine: 7 ½ H.P. heavy duty gas burning engine, Special order for burning No. 1 fuel oil of 38-42 Baume or octane rating 35 or higher.
- Transmission: Automotive type differential carried on four Timken bearings, Forward/Reverse.
- Drive: Worm and worm gear and differential operating in a bath of oil. On each side of differential housing is chain reduction to final drive axle, each operating in a bath of oil.
- Speed: From ¾ to 4 miles per hour.
- Clearance: 17 inches through center of tractor. Front and rear wheels adjustable from 32 to 44 inches on tread centers.
- Wheels/Tires: Cast Iron Split Rim with 6.00-12 Garden Tractor Lug Tires
- Weight: Unknown
- Colors: Green and Yellow
Little Jeff[]
The Roths Little Jeff was introduced sometime around 1956-1957. It is unknown exactly when these were manufactured or how many of these units were sold. These riding tractors had the following available attachments: Bulldozer Blade, Disc Harrow, Cultivator, Sickle Bar, Rotary Mower, Trailing Gang Mowers, Moldboard Plow and optional: Parallel Rear Tool Lift
- Type: Four wheel riding tractor
- Engine: 2 sizes - 3.6 and 4 H.P., Kohler and Continental
- Transmission: 1 Forward speed, 1 Reverse, Standard Automotive Type
- Rear End: Worm Gear Drive with Differential, Timken bearing equipped, Operates in oil bath
- Wheels/Tires(Front): 4.00-8 Pneumatic, Ball Bearing or Timken Bearing
- Wheels/Tires(Rear): 6.00-12 or 6.00-16 Traction Type Tires adjustable on axles
- Weight: ~ 500 pounds
- Length: 74 inches
- Wheel Base: 50 inches
- Front Width: 31 ½ inches
- Front Wheel Tread Width: 27 ½ inches centers
- Rear Width: Variable 31 ½ to 36 inches
- Rear Wheel Tread Width: Variable 25 to 30 inches centers
- Front Ground Clearance: 14 inches
- Rear Ground Clearance: 11 inches under axle
- Height: 40 inches, Seat cushion only 28 inches, Center of gravity less than 20 inches
- Color: Green and Yellow
Country Boy[]
The Roths Country Boy was introduced sometime around 1954-1955. It is unknown how many of these units were manufactured. These riding tractors had the following attachments available: Bulldozer Blade, Disc Harrow, Cultivator, Sickle Bar, Rotary Mower, Trailing Gang Mowers, Moldboard Plow and optional: Parallel Rear Tool Lift
- Type: Four wheel riding tractor
- Engine: 3 sizes - 6.6, 8 ½, 9 H.P., Wisconsin , Clinton, or Kohler
- Transmission: 3 speeds, Forward/Reverse, Standard Automotive Type
- Rear End: Worm Gear Drive with Differential
- Wheels/Tires(Front): 4.00-8, 4.00-12
- Wheels/Tires(Rear): Standard 6.00-16 or Oversize 7.00-16
- Weight: ~ 700 pounds
- Length: 74 inches
- Wheel Base: 50 inches
- Front Width: 31 ½ inches
- Front Wheel Tread Width: 27 ½ inches centers
- Rear Width: Variable 31 ½ to 36 inches
- Rear Wheel Tread Width: Variable 25 to 30 inches centers
- Front Ground Clearance: 14 inches
- Rear Ground Clearance: 11 inches under axle
- Height: Massive Cast Front 40 inches, Seat cushion only 28 inches
- Color: Green and Yellow
