A reciprocating engine, also often known as a piston engine, is a heat engine that uses one or more reciprocating pistons to convert pressure into a rotating motion. This article describes the common features of all types. The main types are: the internal combustion engine, used extensively in motor vehicles; the steam engine, the mainstay of the Industrial Revolution; and the niche application Stirling engine.

Common features in all types[]

There may be one or more pistons. Each piston is inside a cylinder, into which a gas is introduced, either already hot and under pressure (steam engine), or heated inside the cylinder either by ignition of a fuel air mixture (internal combustion engine) or by contact with a hot heat exchanger in the cylinder (Stirling engine). The hot gases expand, pushing the piston to the bottom of the cylinder. The piston is returned to the cylinder top (Top Dead Centre) either by a flywheel or the power from other pistons connected to the same shaft. In most types the expanded or "exhausted" gases are removed from the cylinder by this stroke. The exception is the Stirling engine, which repeatedly heats and cools the same sealed quantity of gas.

In some designs the piston may be powered in both directions in the cylinder in which case it is said to be double acting.

Steam engine nomenclature

Steam piston engine

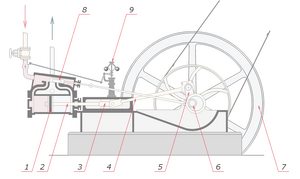

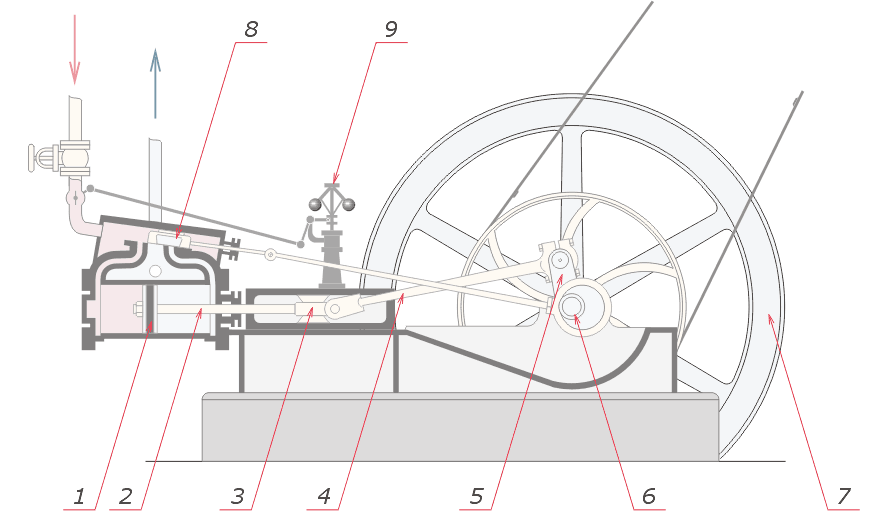

A labeled schematic diagram of a typical single cylinder, simple expansion, double-acting high pressure steam engine. Power takeoff from the engine is by way of a belt.
1 – Piston
2 – Piston rod
3 – Crosshead bearing
4 – Connecting rod
5 – Crank
6 – Eccentric valve motion
7 – Flywheel
8 – Sliding valve
9 – Centrifugal governor.

In all types, the linear movement of the piston is converted to a rotating movement via a connecting rod and a crankshaft or by a swashplate. A flywheel is often used to ensure smooth rotation. The more cylinders a reciprocating engine has, generally, the more vibration-free (smoothly) it can operate. The power of a reciprocating engine is proportional to the volume of the combined pistons' displacement.

A seal needs to be made between the sliding piston and the walls of the cylinder so that the high pressure gas above the piston does not leak past it and reduce the efficiency of the engine. This seal is provided by one or more piston rings. These are rings made of a hard metal which are sprung into a circular groove in the piston head. The rings fit tightly in the groove and press against the cyinder wall to form a seal.

It is common for such engines to be classified by the number and alignment of cylinders and the total volume of displacement of gas by the pistons moving in the cylinders usually measured in cubic centimetres (cm³ or cc) or litres (l) or (L) (US: liter). For example for internal combustion engines, single and two-cylinder designs are common in smaller vehicles such as motorcycles, while automobiles typically have between four and eight, and locomotives, and ships may have a dozen cylinders or more. Cylinder capacities may range from 10 cm³ or less in model engines up to several thousand cubic centimetres in ships' engines.

The compression ratio is a measure of the performance in an internal-combustion engine or a Stirling Engine. It is the ratio between the volume of the cylinder, when the piston is at the bottom of its stroke, and the volume when the piston is at the top of its stroke.

The bore/stroke ratio is the ratio of the diameter of the piston, or "bore", to the length of travel within the cylinder, or "stroke". If this is around 1 the engine is said to be "square", if it is greater than 1, i.e. the bore is larger than the stroke, it is "oversquare". If it is less than 1 , i.e. the stroke is larger than the bore, it is "undersquare".

Cylinders may be aligned in line, in a V configuration, horizontally opposite each other, or radially around the crankshaft. Opposed-piston engines put two pistons working at opposite ends of the same cylinder and this has been extended into triangular arrangements such as the Napier Deltic. Some designs have set the cylinders in motion around the shaft, see the Rotary engine.

BetaStirlingTG4web

Stirling piston engine
Rhombic Drive – Beta Stirling Engine Design showing the second displacer piston (green) within the cylinder which shunts the working gas between the hot and cold ends, but produces no power itself.
Pink – Hot cylinder wall
Dark grey – Cold cylinder wall
Green – Displacer piston
Dark blue – Power piston
Light blue – Flywheels

In steam engines and internal combustion engines, valves are required to allow the entry and exit of gasses at the correct time in the piston's cycle. These are worked by cams or cranks driven by the shaft of the engine. Early designs used the D slide valve but this has been largely superseded by Piston valve or Poppet valve designs. In steam engines the point in the piston cycle at which the steam inlet valve closes is called the cutoff and this can often be controlled to adjust the torque supplied by the engine.

Internal combustion engines operate through a sequence of strokes which admit and remove gases to and from the cylinder. These operations are repeated cyclically and an engine is said to be 2-stroke, 4-stroke or 6-stroke depending on the number of strokes it takes to complete a cycle.

In some steam engines, the cylinders may be of varying size with the smallest bore cylinder working the highest pressure steam. This is then fed through one or more, increasingly larger bore cylinders successively, to extract power from the steam at increasingly lower pressures. These engines are called Compound engines.

History[]

An early known example of rotary to reciprocating motion can be found in a number of Roman saw mills (dating to the 3rd to 6th century AD) in which a crank and connecting rod mechanism converted the rotary motion of the waterwheel into the linear movement of the saw blades.[1]

The reciprocating engine developed in Europe during the 18th century, first as the atmospheric engine then later as the steam engine. These were followed by the Stirling engine and internal combustion engine in the 19th century. Today the most common form of reciprocating engine is the internal combustion engine running on the combustion of petrol, diesel, Liquefied petroleum gas (LPG) or compressed natural gas (CNG) and used to power motor vehicles.

One of the most advanced reciprocating engines ever made was the 28-cylinder, 3,500 hp (2,600 kW) Pratt & Whitney R-4360 "Wasp Major" radial engine which powered the last generation of large piston-engined planes before the jet engine and turboprop took over from 1944 onward. It had a total engine capacity of 71.5 litres (2.52 cu ft).

The largest reciprocating engine in production at present, but not the largest ever built, is the Wärtsilä-Sulzer RTA96-C turbocharged two-stroke diesel engine of 2006 built by Japan’s Diesel United, Ltd. It is used to power the largest modern container ships such as the Emma Mærsk. It is five stories high (13.5 m/44 ft), 27 metres (89 ft) long, and weighs over 2,300 metric tons (2,500 short tons) in its largest 14 cylinders version producing more than 84.42 MW (114,800 bhp). Each cylinder has a capacity of 1,820 litres (64 cu ft), making a total capacity of 25,480 litres (900 cu ft) for the largest versions.

Engine capacity[]

For piston engines, an engine's capacity is the engine displacement, in other words the volume swept by all the pistons of an engine in a single movement. It is generally measured in litres (L) or cubic inches (c.i.d. or cu in or in³) for larger engines, and cubic centimetres (abbreviated cc) for smaller engines. All else being equal, engines with greater capacities are more powerful and provide greater torque at lower speed (rpm) and consumption of fuel increases accordingly, although power and fuel consumption are affected by many factors outside of engine displacement.

Other modern non-internal combustion types[]

Reciprocating engines that are powered by compressed air, steam or other hot gases are still used in some applications such as to drive many modern torpedoes or as pollution-free motive power. Most steam-driven applications use steam turbines, which are more efficient than piston engines.

The French-designed FlowAIR vehicles use compressed air stored in a cylinder to drive a reciprocating engine in a pollution-free urban vehicle.[2]

Torpedoes may use a working gas produced by high test peroxide or Otto fuel II, which pressurise without combustion. The 230 kg (510 lb) Mark 46 torpedo, for example, can travel 11 km (6.8 mi) underwater at 74 km/h (46 mph) fuelled by Otto fuel without oxidant.

Miscellaneous engines[]

There are a large number of unusual varieties of piston engines that have various claimed advantages, many of which see little if any current use:

  • Free-piston engine
  • Swing-piston engine
  • IRIS engine
  • Bourke engine
