A plug-in hybrid electric vehicle (PHEV), plug-in hybrid vehicle (PHV), or plug-in hybrid is a hybrid vehicle which utilizes rechargeable batteries, or another energy storage device, that can be restored to full charge by connecting a plug to an external electric power source (usually a normal electric wall socket). A PHEV shares the characteristics of both a conventional hybrid electric vehicle, having an electric motor and an internal combustion engine (ICE); and of an all-electric vehicle, having a plug to connect to the electrical grid. Most PHEVs on the road today are passenger cars, but there are also PHEV versions of commercial vehicles and vans, utility trucks, buses, trains, motorcycles, scooters, and military vehicles.

The cost for electricity to power plug-in hybrids for all-electric operation has been estimated at less than one quarter of the cost of gasoline.[1] Compared to conventional vehicles, PHEVs reduce air pollution locally and dependence on petroleum. PHEVs may reduce greenhouse gas emissions that contribute to global warming,[2][3] compared with conventional vehicles. PHEVs also eliminate the problem of range anxiety associated to all-electric vehicles, because the combustion engine works as a backup when the batteries are depleted, giving PHEVs driving range comparable to other vehicles with gasoline tanks.[4][5][6] Plug-in hybrids use no fossil fuel during their all-electric range and produce lower greenhouse gas emissions if their batteries are charged from renewable electricity. Other benefits include improved national energy security, fewer fill-ups at the filling station, the convenience of home recharging, opportunities to provide emergency backup power in the home, and vehicle-to-grid (V2G) applications.[7][8]

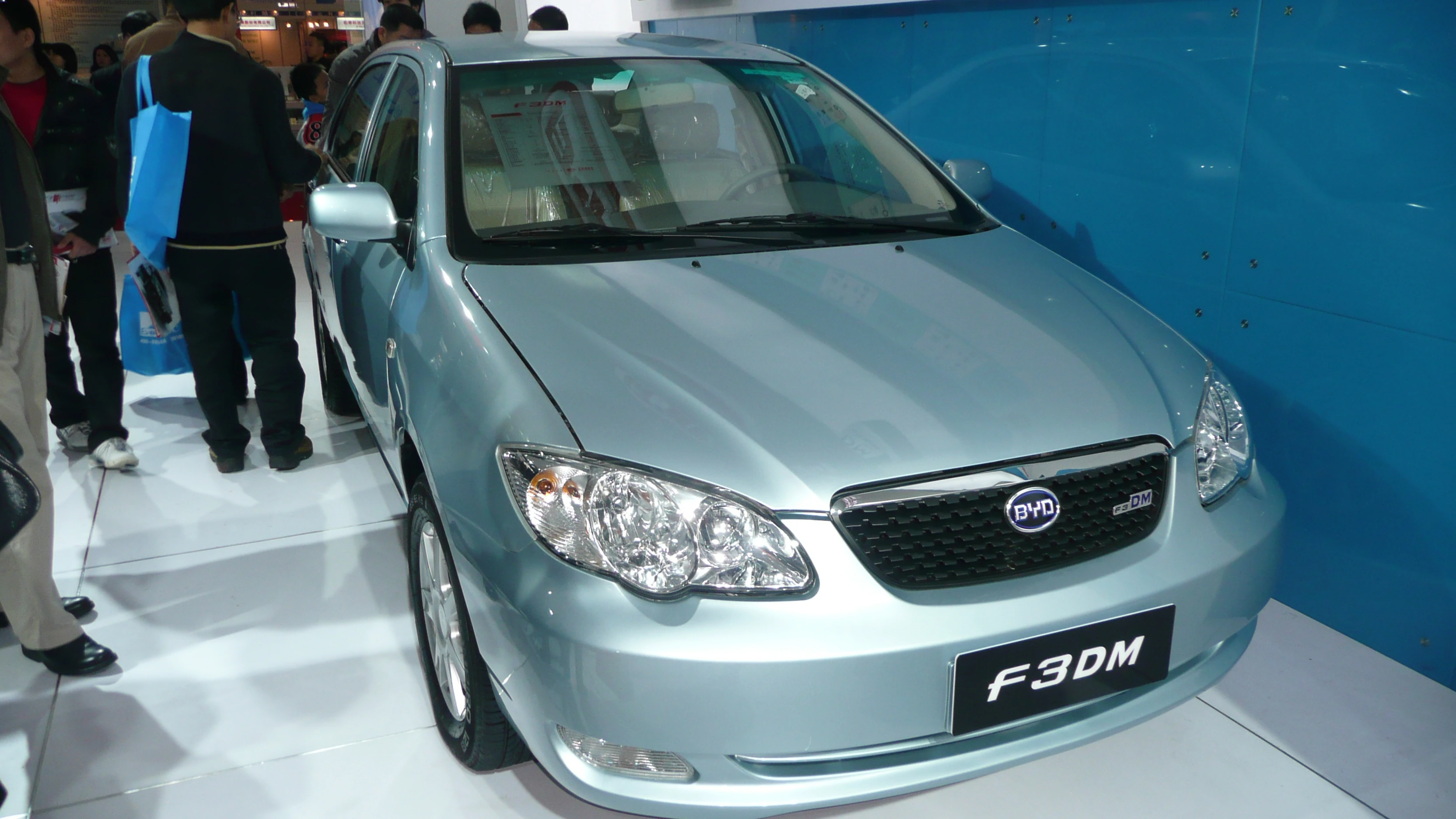

Chinese battery manufacturer and automaker BYD Auto released the F3DM PHEV-62 (PHEV-100 km) to the Chinese fleet market on December 15, 2008[9][10][11] and began sales to the general public in Shenzhen in March 2010.[12][13] General Motors officially launched the Chevrolet Volt PHEV-35 (PHEV-100 km) in the U.S. on November 30, 2010.[14][15] Other plug-in vehicles ongoing demonstration trials or slated to the market for 2011 and 2012 are the Fisker Karma, Toyota Prius Plug-in Hybrid, Ford Escape Plug-in Hybrid, Volvo V70 Plug-in Hybrid, Suzuki Swift Plug-in, and Audi A1 e-tron.

Until 2010 most PHEVs on the road in the US are conversions of conventional hybrid electric vehicles,[5] and the most prominent PHEVs are conversions of 2004 or later Toyota Prius, which have had plug-in charging and more batteries added and their electric-only range extended.[16] Several countries, including the United States and several European countries, have enacted laws to facilitate the introduction of PHEVs through grants and tax credits, emissions mandates, and by financing research and development of advanced batteries and other related technologies.

Terminology[]

HybridsPlusPriusBatteries

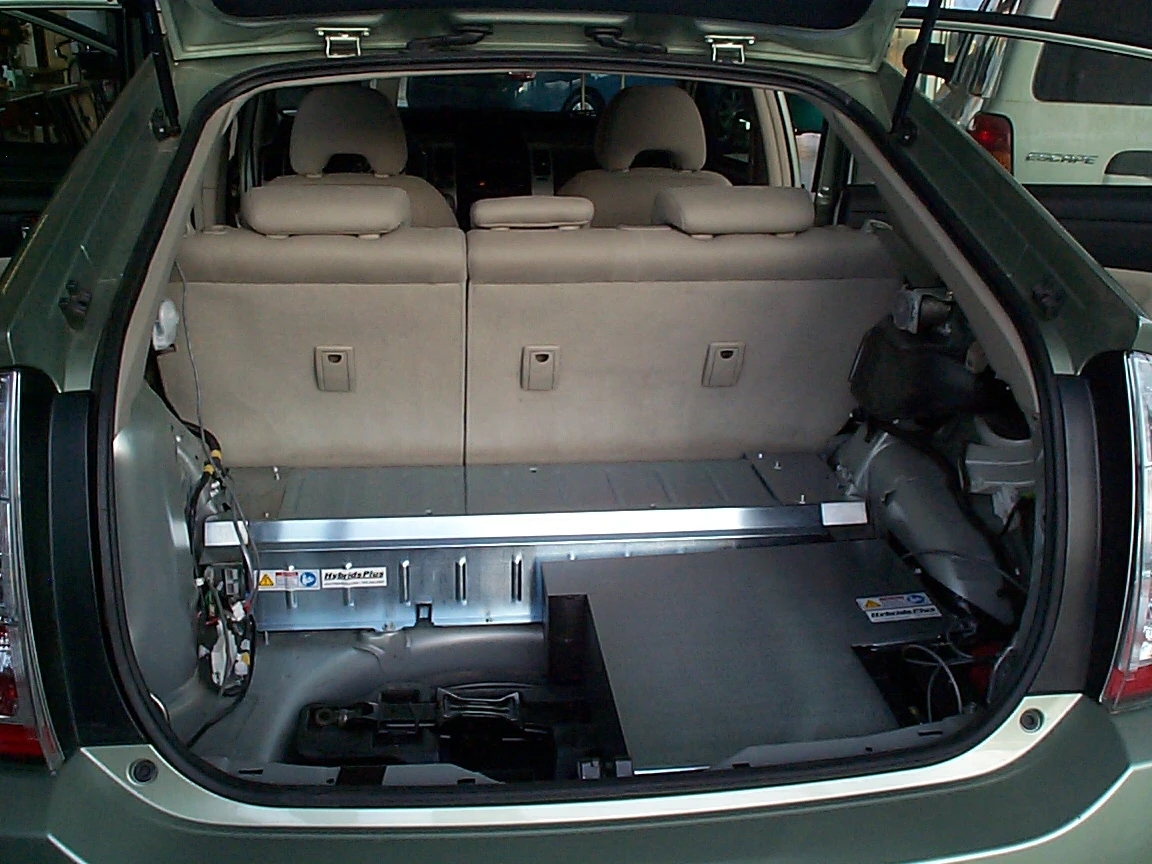

Hybrids Plus plug-in hybrid Toyota Prius conversion with PHEV-30 (30 mile or 48 km all-electric range) battery packs

A plug-in hybrid's all-electric range is designated by PHEV-[miles] or PHEV[kilometers]km in which the number represents the distance the vehicle can travel on battery power alone. For example, a PHEV-20 can travel twenty miles (32 km) without using its combustion engine, so it may also be designated as a PHEV32km.[17]

The Energy Independence and Security Act of 2007 defines a plug-in electric drive vehicle as a vehicle that:

  • draws motive power from a battery with a capacity of at least 4 kilowatt hours;
  • can be recharged from an external source of electricity for motive power; and
  • is a light-, medium-, or heavy-duty motor vehicle or nonroad vehicle.

This distinguishes PHEVs from regular hybrid cars mass marketed today, which do not use any electricity from the grid.

The Institute of Electrical and Electronics Engineers (IEEE) defines PHEVs similarly, but also requires that the hybrid electric vehicle can drive at least ten miles (16 km) in all-electric mode (PHEV-10; PHEV16km), while consuming no gasoline or diesel fuel.[18]

The California Air Resources Board uses the term "off-vehicle charge capable" (OVCC) to mean having the capability to charge a battery from an off-vehicle electric energy source that cannot be connected or coupled to the vehicle in any manner while the vehicle is being driven.[19]

Other popular terms sometimes used for plug-in hybrids are "grid-connected hybrids", "Gas-Optional Hybrid Electric Vehicle" (GO-HEV) or simply "gas-optional hybrids".[20][21][22] General Motors is calling its Chevrolet Volt series plug-in hybrid an "Extended-Range Electric Vehicle".[23]

History[]

Felix-car-batteries-full

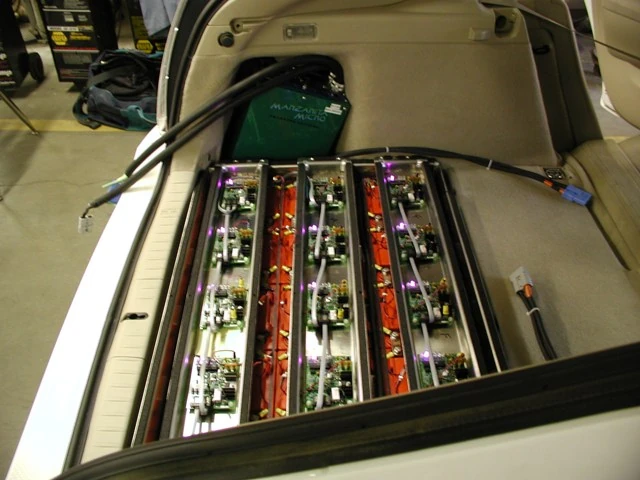

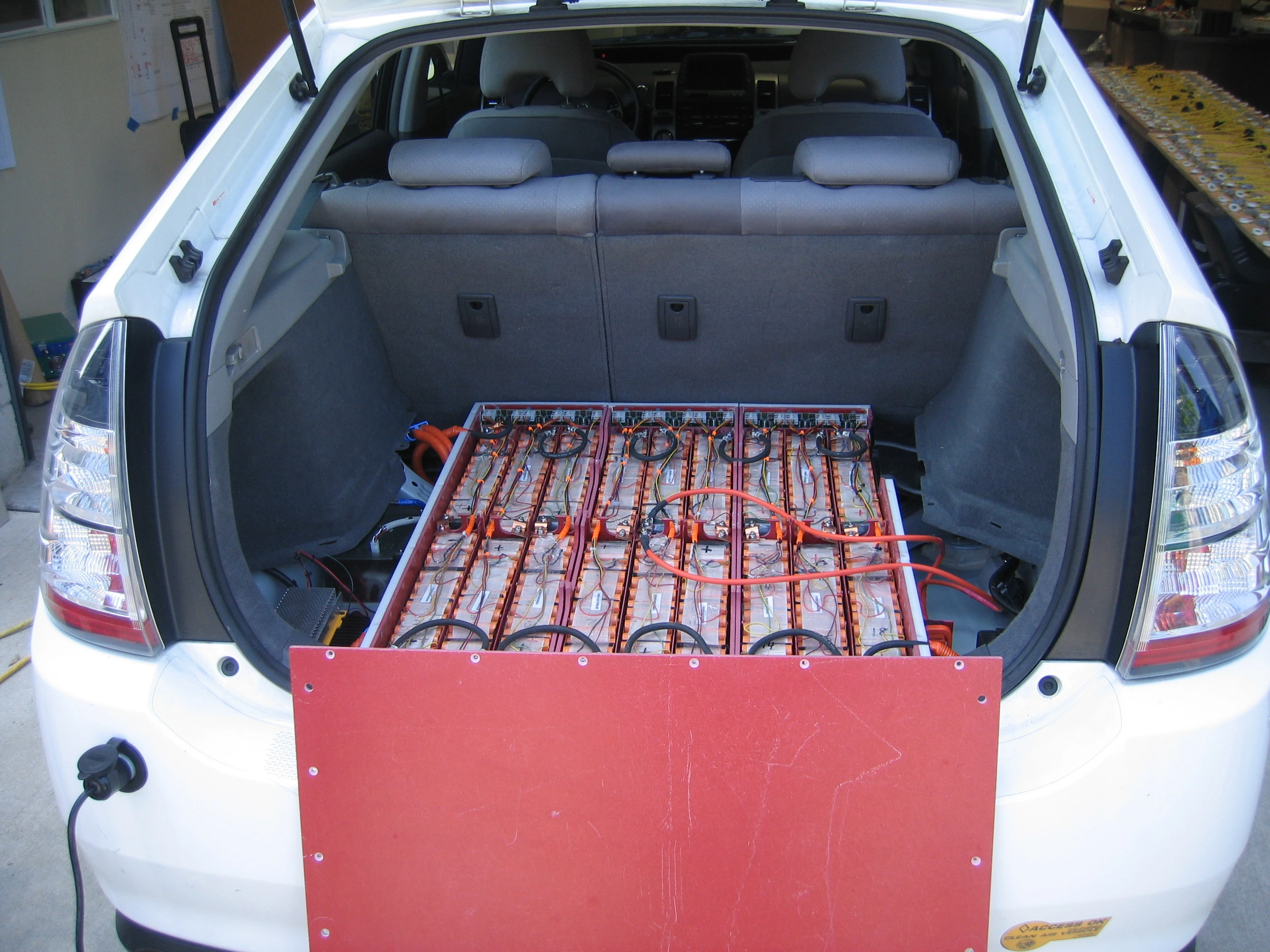

Lithium-ion battery pack, with cover removed, in a CalCars "PRIUS+" plug-in hybrid converted Toyota Prius converted by EnergyCS.

CalCars Plug ins August 2007

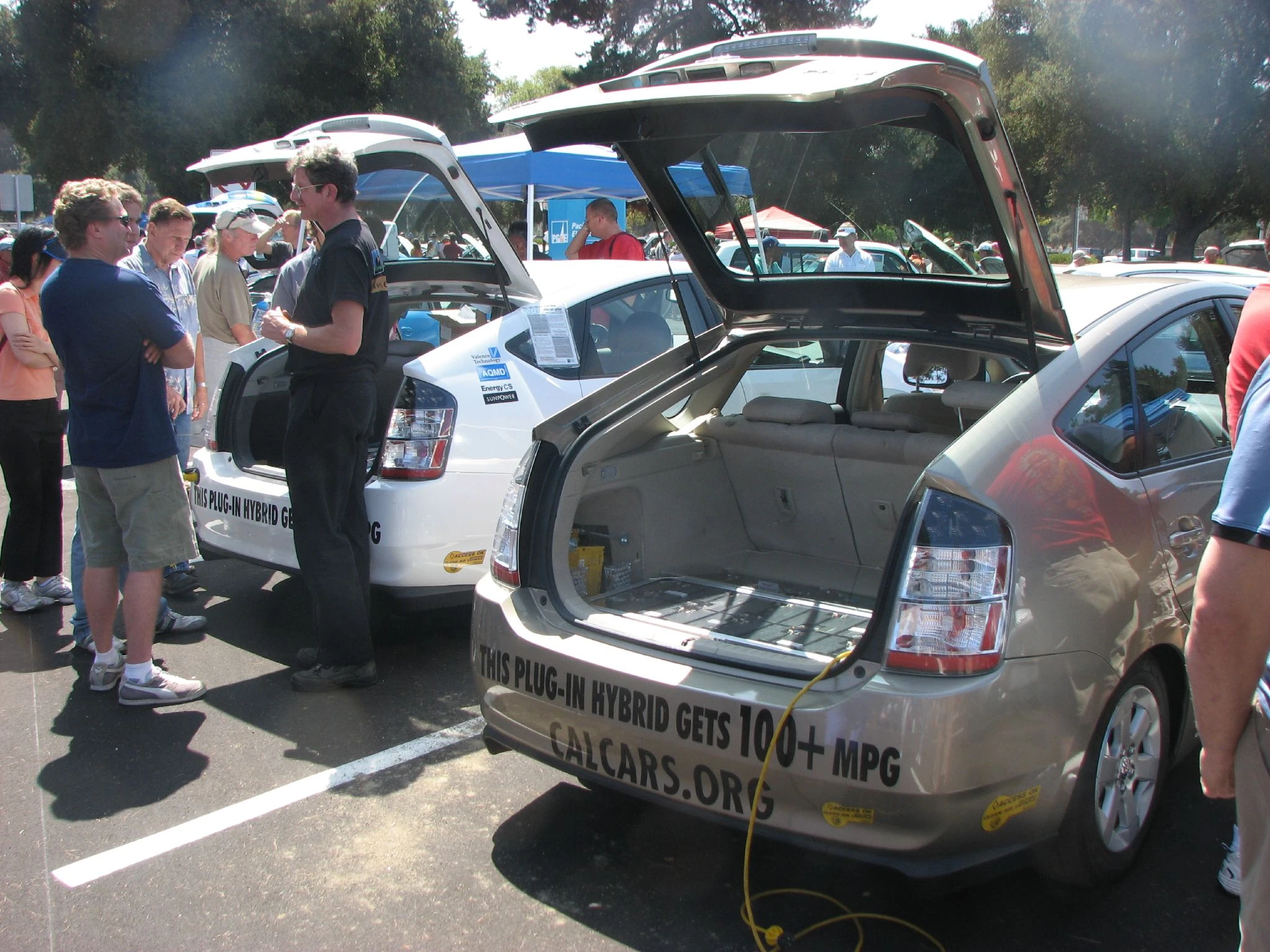

Several plug-in hybrid converted Toyota Prius at Professorville, Palo Alto. The right side car is a Prius + converted by CalCars with a fuel economy of over 100 miles per gallon.

Hybrid vehicles were produced as early as 1899 by Lohner-Porsche. Early hybrids could be charged from an external source before operation. However, the term "plug-in hybrid" has come to mean a hybrid vehicle that can be charged from a standard electrical wall socket. The term itself was coined by UC Davis Professor Andrew Frank[citation needed], who has been called the "father of the plug-in hybrid."[citation needed] The July 1969 issue of Popular Science featured an article on the General Motors XP-883 plug-in hybrid. The concept commuter vehicle housed six 12-volt lead-acid batteries in the trunk area and a transverse-mounted DC electric motor turning a front-wheel drive.[24] The car could be plugged into a standard North American 120 volt AC outlet for recharging.

In 2003, Renault began selling the Elect'road, a plug-in series hybrid version of their popular Kangoo, in Europe. It was sold alongside Renault's "Electri'cité" electric-drive Kangoo battery electric van. The Elect'road had a 150 km (93 mi) range using a nickel-cadmium battery pack and a 500 cc (31 cu in), 16 kilowatt liquid-cooled gasoline "range-extender" engine. It powered two high voltage/high output/low volume alternators, each of which supplied up to 5.5 kW at 132 volts at 5000 rpm.[25] The operating speed of the internal combustion engine—and therefore the output delivered by the generators—varied according to demand. The fuel tank had a capacity of 10 liters (2.6 U.S. gal/2.2 imp gal) and was housed within the right rear wheel arch. The range extender function was activated by a switch on the dashboard. The on-board 3.5 kilowatt charger could charge a depleted battery pack to 95% charge in about four hours from a 240 volts supply.[26] Passenger compartment heating was powered by the battery pack as well as an auxiliary coolant circuit that was supplied by the range extender engine. After selling about 500 vehicles, primarily in France, Norway and the UK, at a price of about €25,000,[25] the Elect'road was redesigned in 2007.

In September 2004, CalCars converted a 2004 Toyota Prius into a prototype of what it called the PRIUS+. With the addition of 130 kg (300 lb) of lead-acid batteries, the PRIUS+ achieved roughly double the fuel economy of a standard Prius and could make trips of up to 15 km (9 mi) using only electric power. The vehicle, which is owned by CalCars technical lead Ron Gremban, is used in daily driving, as well as a test bed for various improvements to the system.[27]

On July 18, 2006, Toyota announced that it "plans to develop a hybrid vehicle that will run locally on batteries charged by a household electrical outlet before switching over to a gasoline engine for longer hauls."[28] Toyota has said it plans to migrate to lithium-ion batteries in future hybrid models,[29] but not in the next-generation Prius, expected in fall 2008.[30] Lithium-ion batteries are expected to significantly improve fuel economy, and have a higher energy-to-weight ratio, but cost more to produce, and raise safety concerns due to high operating temperatures.[30]

On November 29, 2006, GM announced plans to introduce a production plug-in hybrid version of Saturn's Greenline Vue SUV with an all-electric range of 10 mi (16 km).[31] The model's sale is anticipated by fall 2009,[30] and GM announced in January 2007 that contracts had been awarded to two companies to design and test lithium-ion batteries for the vehicle.[32] GM has said that they plan on introducing plug-in and other hybrids "for the next several years".[31]

In January 2007, GM unveiled the prototype of the Chevrolet Volt, which was expected to feature a plug-in capable, battery-dominant series hybrid architecture called E-Flex.[33] Future E-Flex plug-in hybrid vehicles may use gasoline, diesel, or hydrogen fuel cell power to supplement the vehicle's battery. General Motors envisions an eventual progression of E-Flex vehicles from plug-in hybrids to pure electric vehicles, as battery technology improves.[34]

On July 25, Japan's Ministry of Land, Infrastructure and Transport certified Toyota's plug-in hybrid for use on public roads, making it the first automobile to attain such approval. Toyota plans to conduct road tests to verify its all-electric range. The plug-in Prius was said to have an all-electric range of 13 km (8 mi).[35] But later prototypes shown at the 2008 Paris Auto Show had an electric-only range of "just a little over six miles."[36]

Bush-feb07

President Bush with A123Systems CEO on the White House South Lawn examining a Toyota Prius converted to plug-in hybrid with Hymotion technology.

Ford Escape plug-in hybrid

Demonstration Ford Escape plug-in hybrid in New York City.

On August 9, 2007, General Motors vice-president Robert Lutz announced that GM is on track for Chevrolet Volt road testing in 2008 and production to begin by 2010. Announcing an agreement with A123Systems, Lutz said GM would like to have their planned Saturn Vue plug-in on the roads by 2009.[37] The Volt has an all-electric range of 40 mi (64 km). On September 5, Quantum Technologies and Fisker Coachbuild, LLC announced the launch of a joint venture in Fisker Automotive.[38] Fisker intends to build a US$80,000 luxury PHEV-50, the Fisker Karma, anticipated in late 2009.[39] In September, Aptera Motors announced their Typ-1 two-seater. They plan to produce both an electric 2e and a plug-in series hybrid 2h with a common three-wheeled, composite body design. As of 2009, over two thousand hybrid pre-orders have been accepted, and production of the hybrid configuration is expected to begin in 2010.[40]

On October 9, 2007, Chinese manufacturer BYD Automobile Company (which is owned by China's largest mobile phone battery maker) announced that it would be introducing a production PHEV-60 sedan in China in the second half of 2008. BYD exhibited it January 2008 at the North American International Auto Show in Detroit. Based on BYD's midsize F6 sedan, it uses lithium iron phosphate (LiFeP04)-based batteries instead of lithium-ion, and can be recharged to 70% of capacity in just 10 minutes.[41]

On December 2007 Ford delivered the first Ford Escape Plug-in Hybrid of a fleet of 20 demonstration PHEVs to Southern California Edison.[42] As part of this demonstration program Ford also developed the first ever flexible-fuel plug-in hybrid SUV, which was delivered in June 2008.[43] This demonstration fleet of plug-ins has been in field testing with utility company fleets in the U.S. and Canada,[44] and during the first two years since the program began, the fleet has logged more than 75,000 miles.[45] On August 2009 Ford delivered the first Escape Plug-in equipped with intelligent vehicle-to-grid (V2G) communications and control system technology, and Ford plans to equip all 21 plug-in hybrid Escapes with the vehicle-to-grid communications technology.[45] Sales of the Escape PHEV are scheduled for 2012.[44]

In January 2008, a privately run waiting list to purchase the Chevy Volt reached 10,000 members. The list, administered by Lyle Dennis, was started one year prior.[46] Dr. Yi Cui and colleagues at Stanford University's Department of Materials Science and Engineering[47] have discovered that silicon nanowires give rechargeable lithium ion batteries 10 times more charge.[48][49] On January 7, Bob Lutz, the Vice Chairman of General Motors said, "The electrification of the automobile is inevitable."[50] On January 14, Toyota announced they would start sales of lithium-ion battery PHEVs by 2010,[51][52] but later in the year Toyota indicated they would be offered to commercial fleets in 2009.[53]

On March 27, the California Air Resources Board modified their regulations, requiring automobile manufacturers to produce 58,000 plug-in hybrids during 2012 through 2014.[54] This requirement is an asked-for alternative to an earlier mandate to produce 25,000 pure zero-emissions vehicles, reducing that requirement to 5,000.[55] On June 26, Volkswagen announced that they would be introducing production plug-ins based on the Golf compact. Volkswagen uses the term 'TwinDrive' to denote a PHEV.[56] In September, Mazda was reported to be planning PHEVs.[57] On September 23, Chrysler announced that they had prototyped a plug-in Jeep Wrangler and a Chrysler Town and Country mini-van, both PHEV-40s with series powertrains, and an all-electric Dodge sports car, and said that one of the three vehicles would go in to production.[58][59][60][61]

Chevy-Volt-NAIAS-2007-LoRes

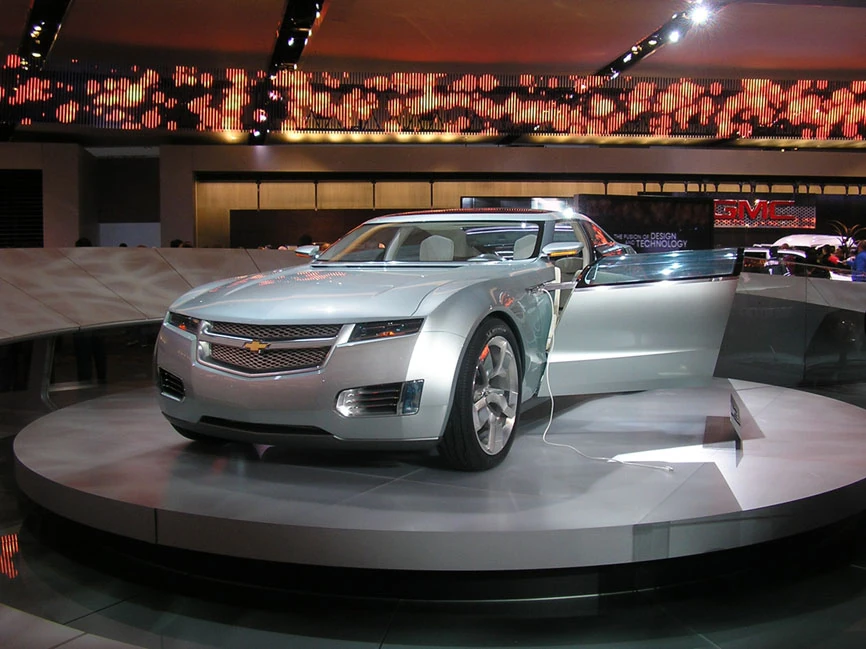

The Chevrolet Volt concept car at North American International Auto Show 2007.

On October 3, the U.S. enacted the Energy Improvement and Extension Act of 2008. The legislation provided tax credits for the purchase of plug-in electric vehicles of battery capacity over 4 kilowatt-hours.[62][63] The federal tax credits were extended and modified by the American Clean Energy and Security Act of 2009, but now the battery capacity must be over 5 Kwh and the credit phases out after the automaker has sold at least 200,000 vehicles in the U.S.[64]

On December 15, 2008 BYD Auto began selling its F3DM PHEV-60 in China, becoming the first production plug-in hybrid sold in the world, though initially was available only for corporate and government customers.[9][10][11] Sales to the general public began in Shenzhen in March 2010,[12][13] but because the F3DM nearly doubles the price of cars that run on conventional fuel, BYD expects subsidies from the local government to make the plug-in affordable to personal buyers.[12]

A global demonstration program involving 600 Toyota Prius Plug-in pre-production test cars began in late 2009 in Japan and by mid 2010 field testing had began in France, Germany, the United Kingdom, Canada, and the United States.[65][66][67][68][69][70]

Volvo Cars, in a joint venture with Vattenfall, a Swedish energy company, began a demonstration project with two Volvo V70 Plug-in Hybrids in Göteborg, Sweden since December 2009. As reported by the test drivers, the V70 Plug-in Hybrid demonstrators have an all-electric range between 20 kilometres (12 mi) to 30 kilometres (19 mi). The test plug-in hybrids were built with a button to allow test drivers to manually choose between electricity or diesel engine power at any time.[71][72] Volvo announced series production of plug-in diesel-electric hybrids as early as 2012. Volvo claimed that its plug-in hybrid could achieve 125 miles per US gallon (1.88 L/100 km/150 mpg-imp), based on the European test cycle.[72][73]

On October 2010 Lotus Engineering unveiled the Lotus CityCar at the 2010 Paris Motor Show, a plug-in series hybrid concept car designed for flex-fuel operation on ethanol, or methanol as well as regular gasoline.[74][75] The lithium battery pack provides an all-electric range of 60 kilometres (37 mi), and the 1.2-liter flex-fuel engine kicks in to allow to extend the range to more than 500 kilometres (310 mi).[74][75] GM officially launched the Chevrolet Volt PHEV-35 (PHEV-100 km) in the U.S. on November 30, 2010.[14][15]

Technology[]

Powertrains[]

Toyota Prius Plug-in Hybrid WAS 2010 8993

Toyota Prius plug-in hybrid demonstration program vehicle at the 2010 Washington Auto Show.

Maker Faire 2008 San Mateo 157

The Toyota Prius converted plug-in hybrid is a series-parallel hybrid.

PHEVs are based on the same three basic powertrain architectures as conventional electric hybrids:[76]

Series hybrids use an internal combustion engine (ICE) to turn a generator, which in turn supplies current to an electric motor, which then rotates the vehicle’s drive wheels. A battery or supercapacitor pack, or a combination of the two, can be used to store excess charge. Examples of series hybrids include the Renault Kangoo Elect'Road, Toyota's Japan-only Coaster light-duty passenger bus, Daimler AG's hybrid Orion bus, the Chevrolet Volt production car, the Opel Flextreme concept car, Swissauto REX VW Polo[77] prototype and many diesel-electric locomotives. With an appropriate balance of components this type can operate over a substantial distance with its full range of power without engaging the ICE. As is the case for other architectures, series hybrids can operate without recharging as long as there is liquid fuel in the tank.[78]

Parallel hybrids, such as Honda's Insight, Civic, and Accord hybrids, can simultaneously transmit power to their drive wheels from two distinct sources—for example, an internal combustion engine and a battery-powered electric drive. Although most parallel hybrids incorporate an electric motor between the vehicle's engine and transmission, a parallel hybrid can also use its engine to drive one of the vehicle's axles, while its electric motor drives the other axle and/or a generator used for recharging the batteries. (This type is called a road-coupled hybrid). The Audi Duo plug-in hybrid concept car is an example of this type of parallel hybrid architecture. Parallel hybrids can be programmed to use the electric motor to substitute for the ICE at lower power demands as well as to substantially increase the power available to a smaller ICE, both of which substantially increase fuel economy compared to a simple ICE vehicle.[79]

Series-parallel hybrids have the flexibility to operate in either series or parallel mode. Hybrid powertrains currently used by Ford, Lexus, Nissan, and Toyota, which some refer to as “series-parallel with power-split,” can operate in both series and parallel mode at the same time. As of 2007, most plug-in hybrid conversions of conventional hybrids utilize this architecture.[80]

Charging systems[]

Batteries are DC devices while grid power is AC. In order to charge the batteries, a DC charger must be utilized. The charger can be located in several locations:

On-board chargers are mounted inside the vehicle. Since the charger takes up space and adds weight, its power capacity is generally limited by practical considerations, avoiding carrying a more powerful charger that can only be fully utilized at certain locations. However, carrying the charger along with the vehicle ensures that power will be available anywhere a power connection can be found.

Off-board chargers can be as large as needed and mounted at fixed locations, like the garage or dedicated charging stations. Built with dedicated wiring, these charger can handle much more power and charge the batteries more quickly. However, as the output of these chargers is DC, each battery system requires the output to be changed for that car. Modern charging stations have a system for identifying the voltage of the battery pack and adjusting accordingly.

Using electric motor's inverter allows the motor windings to act as the transformer coils, and the existing high-power inverter as the AC-to-DC charger. As these components are already required on the car, and are designed to handle any practical power capability, they can be used to form a very powerful form of on-board charger with zero additional weight or size. AC Propulsion uses this charging method, which they refer to as "reductive charging".[81]

Modes of operation[]

Regardless of its architecture, a plug-in hybrid may be capable of charge-depleting and charge-sustaining modes. Combinations of these two modes are termed blended mode or mixed-mode. These vehicles can be designed to drive for an extended range in all-electric mode, either at low speeds only or at all speeds. These modes manage the vehicle's battery discharge strategy, and their use has a direct effect on the size and type of battery required:[82]

Charge-depleting mode allows a fully charged PHEV to operate exclusively (or depending on the vehicle, almost exclusively, except during hard acceleration) on electric power until its battery state of charge is depleted to a predetermined level, at which time the vehicle's internal combustion engine or fuel cell will be engaged. This period is the vehicle's all-electric range. This is the only mode that a battery electric vehicle can operate in, hence their limited range.[83]

Renault-Kangoo-Plug-in-hybrid2

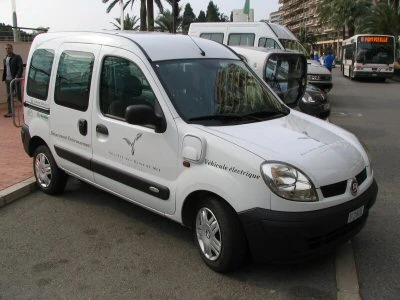

The redesigned Renault Kangoo Elect'road operates in blended mode, using engine and battery power simultaneously.

Blended mode is a kind of charge-depleting mode. It is normally employed by vehicles which do not have enough electric power to sustain high speeds without the help of the internal combustion portion of the powertrain. A blended control strategy typically increases the distance from stored grid electricity compared to a charge-depleting strategy.[84] The Renault Kangoo and some Toyota Prius conversions are examples of vehicles that use this mode of operation. The Electri'cité and Elect'road versions of the Kangoo were charge-depleting battery electric vehicles: the Elect'road had a modest internal combustion engine which extended its range somewhat. Conversions of 2004 and later model Toyota Prius can only run without using the ICE at speeds of less than about 42 mph (68 km/h) due to the limits dictated by the vehicle's powertrain control software. However, at faster speeds electric power can still be used to displace gasoline, thus improving the fuel economy in blended mode and generally doubling the fuel efficiency.

Charge-sustaining mode is used by production hybrid vehicles (HEVs) today, and combines the operation of the vehicle's two power sources in such a manner that the vehicle is operating as efficiently as possible without allowing the battery state of charge to move outside a predetermined narrow band. Over the course of a trip in a HEV the state of charge may fluctuate but will have no net change.[85] The battery in a HEV can thus be thought of as an energy accumulator rather than a fuel storage device. Once a plug-in hybrid has exhausted its all-electric range in charge-depleting mode, it can switch into charge-sustaining mode automatically.

Mixed mode describes a trip in which a combination of the above modes are utilized.[86] For example, a PHEV-20 Prius conversion may begin a trip with 5 miles (8 km) of low speed charge-depleting, then get onto a freeway and operate in blended mode for 20 miles (32 km), using 10 miles (16 km) worth of all-electric range at twice the fuel economy. Finally the driver might exit the freeway and drive for another 5 miles (8 km) without the internal combustion engine until the full 20 miles (32 km) of all-electric range are exhausted. At this point the vehicle can revert back to a charge sustaining-mode for another 10 miles (16 km) until the final destination is reached. Such a trip would be considered a mixed mode, as multiple modes are employed in one trip. This contrasts with a charge-depleting trip which would be driven within the limits of a PHEV's all-electric range. Conversely, the portion of a trip which extends beyond the all-electric range of a PHEV would be driven primarily in charge-sustaining mode, as used by a conventional hybrid.

Electric power storage[]

Further information: Electric vehicle battery, Charging station

PHEVs typically require deeper battery charging and discharging cycles than conventional hybrids. Because the number of full cycles influences battery life, this may be less than in traditional HEVs which do not deplete their batteries as fully. However, some authors argue that PHEVs will soon become standard in the automobile industry.[87] Design issues and trade-offs against battery life, capacity, heat dissipation, weight, costs, and safety need to be solved.[88] Advanced battery technology is under development, promising greater energy densities by both mass and volume,[89] and battery life expectancy is expected to increase.[90]

The cathodes of some early 2007 lithium-ion batteries are made from lithium-cobalt metal oxide. This material is expensive, and cells made with it can release oxygen if overcharged. If the cobalt is replaced with iron phosphates, the cells will not burn or release oxygen under any charge. The price premium for early 2007 conventional hybrids is about US$5000, some US$3000 of which is for their NiMH battery packs. At early 2007 gasoline and electricity prices, that would mean a break-even point after six to ten years of operation. The conventional hybrid premium could fall to US$2000 in five years, with US$1200 or more of that being cost of lithium-ion batteries, providing for a three-year payback. The payback period may be longer for plug-in hybrids, because of their larger, more expensive batteries.[91]

Nickel-metal hydride and lithium-ion batteries can be recycled; Toyota, for example, has a recycling program in place under which dealers are paid a US$200 credit for each battery returned.[92] However, plug-in hybrids typically use larger battery packs than comparable conventional hybrids, and thus require more resources. Pacific Gas and Electric Company (PG&E) has suggested that utilities could purchase used batteries for backup and load leveling purposes. They state that while these used batteries may be no longer usable in vehicles, their residual capacity still has significant value.[93] More recently, General Motors (GM) has said it has been "approached by utilities interested in using recycled Volt batteries as a power storage system, a secondary market that could bring down the cost of the Volt and other plug-in vehicles for consumers."[94]

Lithium iron phosphate (LiMPO4) is a class of cathode materials used in lithium iron phosphate batteries that is getting attention from the auto industry. Valence Technologies produce a lithium iron manganese phosphate (LiFeMgPO4) battery with LG Chem selling lithium iron phospate (LiFePO4) batteries for the Chevy Volt and A123 produces a lithium nano-phosphate battery. The most important merit of this battery type is safety and high-power. Lithium iron phosphate batteries are one of three major types in LFP family, the other two being nano-phosphate and nano-cocrystalline-olivine.

In France, Électricité de France (EDF) and Toyota are installing charging stations for PHEVs on roads, streets and parking lots.[95] EDF is also partnering with Elektromotive, Ltd.[96] to install 250 new charging points over six months from October 2007 in London and elsewhere in the UK.[97] Recharging points also can be installed for specific uses, as in taxicab stands. Project Better Place began in October 2007 and is working with Renault on development of exchangeable batteries (battery swapping).[98]

Ultracapacitors (or "supercapacitors") are used in some plug-in hybrids, such as AFS Trinity's concept prototype, to store rapidly available energy with their high power density, in order to keep batteries within safe resistive heating limits and extend battery life.[99][100] The CSIRO's UltraBattery combines a supercapacitor and a lead acid battery in a single unit, creating a hybrid car battery that lasts longer, costs less and is more powerful than current technologies used in plug-in hybrid electric vehicles (PHEVs).[101]

The optimum battery size varies depending on whether the aim is to reduce oil consumption, running costs, or emissions, but a recent study[102] concluded that "The best choice of PHEV battery capacity depends critically on the distance that the vehicle will be driven between charges. Our results suggest that for urban driving conditions and frequent charges every 10 miles or less, a low-capacity PHEV sized with an AER (all electric range) of about 7 miles would be a robust choice for minimizing gasoline consumption, cost, and greenhouse gas emissions. For less frequent charging, every 20–100 miles, PHEVs release fewer GHGs, but HEVs are more cost effective. "

Conversions of production vehicles[]

Conversion of fossil-fuel vehicles[]

See also: CalCars

Retrofit electrification requires only one-fifth the energy required to build a new vehicle. This is called ACEV-to-PHEV conversion.[103] There are several companies that are converting fossil fuel non-hybrid vehicles (also called all-combustion engine vehicles) to plug-in hybrids:[104][105]

Colorado is going to offer $6,000 credit for PHEV conversions (in addition to a federal 10% credit up to $4,000 for qualifying vehicles).[106]

Conversions of production hybrids[]

WanacheBuild88large

15 lead-acid batteries, PFC charger, and regulators installed into WhiteBird, a PHEV-10 conversion of a Toyota Prius

Main article: Prius+

Aftermarket conversion of an existing production hybrid (a charge-maintaining hybrid) to a plug-in hybrid (called CHEV-to-PHEV conversion[103]) typically involves increasing the capacity of the vehicle's battery pack and adding an on-board AC-to-DC charger. Ideally, the vehicle's powertrain software would be reprogrammed to make full use of the battery pack's additional energy storage capacity and power output.

Many early plug-in hybrid electric vehicle conversions have been based on the 2004 or later model Toyota Prius.[107] Some of the systems have involved replacement of the vehicle's original NiMH battery pack and its electronic control unit. Others, such as A123 Hymotion, the CalCars Prius+, and the PiPrius, piggyback an additional battery back onto the original battery pack, this is also referred to as Battery Range Extender Modules (BREMs).[108] Within the electric vehicle conversion community this has been referred to as a "hybrid battery pack configuration".[109] Early lead-acid battery conversions by CalCars demonstrated 10 miles (15 km) of EV-only and 20 miles (30 km) of double mileage blended mode range.[27]

EDrive Systems use Valence Technology Li-ion batteries and have a claimed 40 to 50 miles (64 to 80 km) of electric range.[110] Other companies offering plug-in conversions or kits for the Toyota Prius (some of them also for Ford Escape Hybrid) include Hymotion, Hybrids Plus Manzanita Micro and OEMtek BREEZ (PHEV-30).[111] AFS Trinity's XH-150 claims that it has created a functioning plug-in hybrid with a 40 miles (64 km) all-electric range and that it has solved the overheating problem that rapid acceleration can cause in PHEVs and extend battery life.[99][100]

The EAA-PHEV project was conceived by CalCars and the Electric Auto Association in October 2005 to accelerate efforts to document existing HEVs and their potential for conversion into PHEVs.[112] It includes a "conversion interest" page.[113] The Electric Auto Association-PHEV "Do-It-Yourself" Open Source community's primary focus is to provide conversion instructions to help guide experienced converters through the process, and to provide a common design that could demonstrate multiple battery technologies. Many members of organizations such as CalCars and the EAA as well as companies like Hybrids Plus, Hybrid Interfaces of Canada, and Manzanita Micro participate in the development of the project.

Plug-In Supply, Inc. of Petaluma, California offers components and assemblies to build the Prius+, the plug-in conversion invented by CalCars.[114] Their lead-acid battery box assembly forms a complete install package, providing access to the spare tire and containing twenty 12 volt lead-acid batteries and all high voltage components and control electronics. The "PbA Battery Box Assembly" is also available without batteries. It provides about 10 miles (16 km) of EV mode range.[115] Conversion time was reduced by plug-in supply to one day.

Oemtek offers a Valence powered lithium iron phosphate conversion that should provide 50 miles (80 km) of all-electric range. The Motor Industry Research Association has announced a retrofit hybrid conversion kit that provides removable battery packs that plug into a wall outlet for charging.[116] Poulsen Hybrid is developing a conversion kit that will add through-the-road plug-in hybrid capability to conventional vehicles by externally mounting electric motors onto two of the wheels.[117]

Enginer Inc. of Troy, Michigan offers universal plugin conversion kits with components and assemblies to build two stage hybrid battery system. Their lithium-ion battery box assembly forms a complete install package, providing access to the spare tire and containing 16/32 lithium phosphate battery cells, a DC/DC converter, a BMS and a charger. It provides about 10 miles (16 km) of EV mode range for under $2000 (2 kW·h model). Longer range 4 kW·h model is also available for $1000 more. Conversion time was reduced to two/three hours.

Advantages[]

Energy resilience and petroleum displacement[]

Each kilowatt hour of battery capacity in use will displace up to 50 US gallons (190 l/42 imp gal) of petroleum fuels per year (gasoline or diesel fuels).[118] Also, electricity is multi-sourced and, as a result, it gives the greatest degree of energy resilience.[119]

Fuel efficiency[]

Main article: Energy conversion efficiency
Erev PHEVseries 98mpg 500px

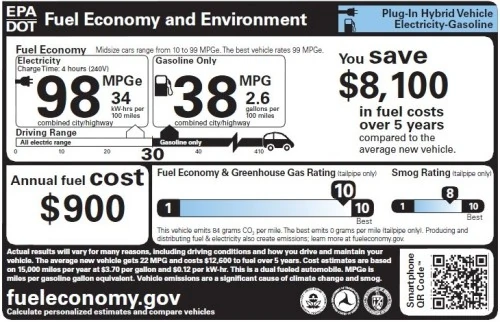

Typical fuel economy label for series plug-in hybrid or extended range electric vehicle
Phev-blended paralell 65mpge 500px

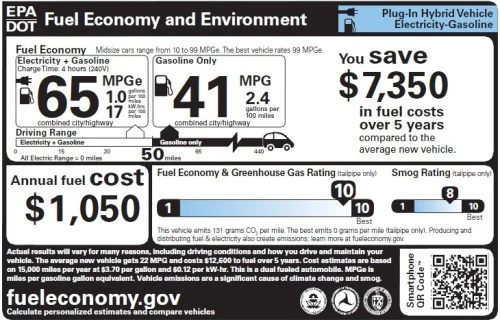

Typical fuel economy label for blended or series-paralell plug-in hybrid

The actual fuel economy for PHEVs depends on their powertrain operating modes, their all-electric range, and the amount of driving between charges. If no gasoline is used the miles per gallon gasoline equivalent (MPG-e) depends only on the efficiency of the electric system. The only mass production PHEV available in the market, the Chevrolet Volt, with an EPA rated all-electric range of 35 miles (56 km), and an additional gasoline-only extended range of 344 miles (554 km) has an EPA combined city/highway fuel economy of 93 MPG-e in all-electric mode, and 37 mpg-US (6.4 L/100 km/44 mpg-imp) in gasoline-only mode, for an overall combined gas-electric fuel economy rating of 60 mpg-US (3.9 L/100 km/72 mpg-imp) equivalent (MPG-e).[120][121] The EPA also included in the Volt's fuel economy label a table showing fuel economy and electricity consumed for five different scenarios: 30, 45, 60 and 75 miles (121 km) driven between a full charge, and a never charge scenario.[121] According to this table the fuel economy goes up to 168 mpg-US (1.40 L/100 km/202 mpg-imp) equivalent (MPG-e) with 45 miles (72 km) driven between full charges.[120]

For the more comprehensive fuel economy and environment label that will be mandatory in the U.S. beginning in model year 2013, the National Highway Traffic Safety Administration (NHTSA) and Environmental Protection Agency (EPA) issued two separate fuel economy labels for plug-in hybrids because of their design complexity, as PHEVS can operate in two or three operating modes: all-electric, blended, and gasoline-only.[122][123] One label is for series hybrid or extended range electric vehicle (like the Chevy Volt), with all-electric and gasoline-only modes; and a second label for blended mode or series-paralell hybrid, that includes a combination of both gasoline and plug-in electric operation; and gasoline only, like a conventional hybrid vehicle.[122][123]

A further advantage of PHEVs is that they have potential to be even more efficient than conventional hybrids because a more limited use of the PHEV's internal combustion engine may allow the engine to be used at closer to its maximum efficiency. While a Prius is likely to convert fuel to motive energy on average at about 30% efficiency (well below the engine's 38% peak efficiency) the engine of a PHEV-70 would be likely to operate far more often near its peak efficiency because the batteries can serve the modest power needs at times when the combustion engine would be forced to run well below its peak efficiency.[83] The actual efficiency achieved depends on losses from electricity generation, inversion, battery charging/discharging, the motor controller and motor itself, the way a vehicle is used (its duty cycle), and the opportunities to recharge by connecting to the electrical grid.

The Society of Automotive Engineers (SAE) developed their recommended practice in 1999 for testing and reporting the fuel economy of hybrid vehicles and included language to address PHEVs. An SAE committee is currently working to review procedures for testing and reporting the fuel economy of PHEVs.[124] The Toronto Atmospheric Fund tested ten retrofitted plug-in hybrid vehicles that achieved an average of 5.8 litres per 100 kilometre or 40.6 miles per gallon over six months in 2008, which was considered below the technology's potential.[125]

In "real world" testing using normal drivers, some Prius PHEV conversions may not achieve much better fuel economy than HEVs. For example, a plug-in Prius fleet, each with a 30 miles (48 km) all-electric range, averaged only 51 mpg-U.S. (4.6 L/100 km/61 mpg-imp) in a 17,000-mile (27,000 km) test in Seattle,[126] and similar results with the same kind of conversion battery models at Google.org. Moreover, the additional battery pack costs $10,000–11,000.[127][128]

Operating costs[]

FedEx Hybrid Sprinter

Former President George W. Bush is shown the PHEV Mercedes-Benz Sprinter van in the US Postal Service

A 2006 research estimate in California found that the operating costs of plug-ins charged at night was equivalent to 75¢ US per US gallon (20¢/L) of gasoline.[1] The cost of electricity for a Prius PHEV is about US$0.03 per mile (US$0.019 per km), based on 0.26 kilowatt-hours per mile (0.16 kW·h/km/0.58 MJ/km) and a cost of electricity of US$0.10 per kilowatt hour.[129][130] During 2008, government and industry researchers tried to determine the optimum all-electric range.[131]

Range anxiety elimination[]

One of the main barriers for the general adoption of all-electric cars is the range anxiety factor, the driver's fear of being stranded by a depleted battery before reaching the final destination.[132][133] Plug-in hybrids, as opposed to pure plug-ins, eliminate the range anxiety concerns because the gasoline engine serves as a back-up to recharge the battery, to provide electric power to the electric motor, or to provide propulsion directly. In the case of the Volt, access to a regular fuel station guarantees similar driving ranges as conventional gasoline-powered automobile.[132][134]

One of the advantages of the PEV design is that the generator can be completely decoupled from the traction. Unlike a conventional engine, which operates over a wide variety of power settings and operational conditions, the range extender can be operated under optimum conditions at all times. High-efficiency power sources that are not suitable for normal automotive use may be perfectly suitable for PEV use. These include advanced close-cycle steam engines, stirling engines, Wankel engines, and microturbines due primarily to their light weight and small size.

Smog[]

The Ontario Medical Association announced that smog is responsible for an estimated 9,500 premature deaths in its province every year.[135] Plug-in hybrids in emission-free electric mode may contribute to the reduction of smog.[125]

Vehicle-to-grid electricity[]

Main article: Vehicle-to-grid

PHEVs and fully electric cars may allow for more efficient use of existing electric production capacity, much of which sits idle as operating reserve most of the time. This assumes that vehicles are charged primarily during off peak periods (i.e., at night), or equipped with technology to shut off charging during periods of peak demand. Another advantage of a plug-in vehicle is their potential ability to load balance or help the grid during peak loads. This is accomplished with vehicle-to-grid technology. By using excess battery capacity to send power back into the grid and then recharge during off peak times using cheaper power, such vehicles are actually advantageous to utilities as well as their owners. Even if such vehicles just led to an increase in the use of night time electricity they would even out electricity demand which is typically higher in the day time, and provide a greater return on capital for electricity infrastructure.[17]

In the UK, VTG would need to comply with generation connection standard "G59/2", which means that it would need an earth rod at the premises, and would be unable to export more than 17 kW without the network firm's permission (which feeding onto one phase, i.e. for a normal house, would not be given - to maintain a balance of load across the three phases).

In October 2005, five Toyota engineers and one Asian AW engineer published an IEEE technical paper detailing a Toyota-approved project to add vehicle-to-grid capability to a Toyota Prius.[136] Although the technical paper described "a method for generating voltage between respective lines of neutral points in the generator and motor of the THS-II (Toyota Hybrid System) to add a function for generating electricity", it did not state whether or not the experimental vehicle could be charged through the circuit, as well. However, the vehicle was featured in a Toyota Dream House, and a brochure for the exhibit stated that "the house can supply electricity to the battery packs of the vehicles via the stand in the middle of the garage", indicating that the vehicle may have been a plug-in hybrid.[137]


In November 2005, more than 50 leaders from public power utility companies across the United States met at the Los Angeles Department of Water and Power headquarters to discuss plug-in hybrid and vehicle-to-grid technology. The event, which was sponsored by the American Public Power Association, also provided an opportunity for association members to plan strategies that public power utility companies could use to promote plug-in hybrid technology. Greg Hanssen and Peter Nortman of EnergyCS and EDrive attended the two-day session, and during a break in the proceedings, made an impromptu display in the LADWP parking lot of their converted Prius plug-in hybrid.[138]

In September 2006, the California Air Resources Board held a Zero Emission Vehicle symposium that included several presentations on V2G technology.[139] In April 2007, Pacific Gas and Electric Company showcased a PHEV at the Silicon Valley Leadership Alternative Energy Solutions Summit with vehicle-to-grid capability, and demonstrated that it could be used as a source of emergency home power in the event of an electrical power failure.[140] Regulations intended to protect electricians against power other than from grid sources would need to be changed, or regulations requiring consumers to disconnect from the grid when connected to non-grid sources will be required before such backup power solutions would be feasible.[141]

Federal Energy Regulatory Commissioner Jon Wellinghoff coined the term "Cash-Back Hybrids" to describe payments to car owners for putting their batteries on the power grid. Batteries could also be offered in low-cost leasing or renting or by donation (including maintenance) to the car owners by the public utilities, in a vehicle-to-grid agreement.[142]

Disadvantages[]

Cost of batteries[]

Main article: Electric vehicle battery

Disadvantages of plug-in hybrids include the additional cost, weight, and size of a larger battery pack. According to a 2010 study by the National Research Council, the cost of a lithium-ion battery pack is about USD 1,700/kW·h of usable energy, and considering that a PHEV-10 requires about 2.0 kW·h and a PHEV-40 about 8 kW·h, the manufacturer cost of the battery pack for a PHEV-10 is around USD 3,000 and it goes up to USD 14,000 for a PHEV-40.[143][144] According to the same study, even though costs are expected to decline by 35% by 2020, market penetration is expected to be slow and therefore PHEVs are not expected to significantly impact oil consumption or carbon emissions before 2030, unless a fundamental breakthrough in battery technologies occur.[143][144][145]

Cost comparison between a PHEV-10 and a PHEV-40[143][145]
(prices for 2010)
Plug-in
type by
EV range
Similar
production
model
Type of
drivetrain
Manufacturer
additional cost
compared to conventional
non-hybrid mid-size
Cost of
battery
pack
Cost of
electric system
upgrade at home
Expected
gasoline
savings
compared
to a HEV
Annual
gasoline
savings
compared
to a HEV(2)
PHEV-10
Prius Plug-in(1)
Parallel
USD 6,300
USD 3,300
More than USD 1,000
20%
70 gallons
PHEV-40
Chevy Volt
Series
USD 18,100
USD 14,000
More than USD 1,000
55%
200 gallons
Notes: (1) Considers the HEV technology used in the Toyota Prius with a larger battery pack. The Prius Plug-in estimated all-electric range is 14.5 mi (23 km)[146]
(2) Assuming 15,000 miles per year.

According to the 2010 NCR study, despite the fact that a mile driven on electricity is cheaper than one driven on gasoline, lifetime fuel savings are not enough to offset plug-ins high upfront costs, and it will take decades before the break even point is achieved.[145] Furthermore, hundreds of billions of dollars in government subsidies and incentives are likely to be required to achieve a rapid plug-in market penetration in the U.S.[144][145]

Lithium iron phosphate batteries from Valence Technologies[147] were used in the first plug-in hybrids from CalCars[148] are providing a conversion for the Toyota Prius priced at $12,000. Hymotion also offers a conversion for $10,000 US but their conversion is only 5 kW where Oemtek's is 9 kW.[149]

Recharging outside home garages[]

Main article: Charging station
Prius RechargeIT 03 2008 at Google's campus

RechargeIT converted plug-in hybrids at Google's Mountain View campus. The garage has recharging facilities powered by solar panels.

Charging stations in SF City Hall 02 2009 02

Three plug-in converted Toyota Prius recharging at San Francisco City Hall public charging station.

E-vehicle charging station at Hillsboro Civic Center - Oregon

On-street electric charging unit located at the Hillsboro Civic Center in Hillsboro, Oregon.

Many authors have assumed that plug-in recharging will take place overnight at home. However, residents of cities, apartments, dormitories, and townhouses do not have garages or driveways with available power outlets, and they might be less likely to buy plug-ins unless recharging infrastructure is developed.[150][151] Electrical outlets or charging stations near their places of residence, or in commercial or public parking lots or streets or workplaces are required for these potential users to gain the full advantage of PHEVs.[151][152] Even house dwellers might need to charge at the office or to take advantage of opportunity charging at shopping centers.[153] However, this infrastructure is not in place today and it will require investments by both the private and public sectors.[152]

Several cities in California and Oregon, and particularly San Francisco and other cities in the San Francisco Bay Area and Silicon Valley, as well as some local private firms such as Google and Adobe Systems, already have deployed charging stations and have expansion plans to attend both plug-ins and all-electric cars.[152] In Google's case, its Mountain View campus has 100 available charging stations for its share-use fleet of converted plug-ins available to its employees.[152][154] Solar panels are used to generate the electricity, and this pilot program is being monitored on a daily basis and performance results are published in RechargeIT website.[154]

Emissions shifted to electric plants in some countries[]

Increased pollution is expected to occur in some areas with the adoption of PHEVs, but most areas will experience a decrease.[155] A study by the ACEEE predicts that widespread PHEV use in heavily coal-dependent areas would result in an increase in local net sulfur dioxide and mercury emissions, given emissions levels from most coal plants currently supplying power to the grid.[156] Although clean coal technologies could create power plants which supply grid power from coal without emitting significant amounts of such pollutants, the higher cost of the application of these technologies may increase the price of coal-generated electricity. The net effect on pollution is dependent on the fuel source of the electrical grid (fossil or renewable, for example) and the pollution profile of the power plants themselves. Identifying, regulating and upgrading single point pollution source such as a power plant—or replacing a plant altogether—may also be more practical. From a human health perspective, shifting pollution away from large urban areas may be considered a significant advantage.[157]

According to a 2009 study by The National Academy of Science, "Electric vehicles and grid-dependent (plug-in) hybrid vehicles showed somewhat higher nonclimate damages than many other technologies."[158] Efficiency of plug-in hybrids is also impacted by the overall efficiency of electric power transmission. Transmission and distribution losses in the USA were estimated at 7.2% in 1995[159] and 6.5% in 2007.[160] By life cycle analysis of air pollution emissions, natural gas vehicles are currently the lowest emitter[citation needed].

Tiered rate structure for electric bills[]

Electric utility companies generally do not utilize flat rate pricing. For example, Pacific Gas and Electric (PG&E) normally charges $0.10 per kilowatt hour (kW·h) for the base tier, but additional tiers are priced as high as $0.30 per kW·h to customers without electric vehicles.[161][162] Some utilities offer electric vehicle users a rate tariff that provides discounts for off-peak usage, such as overnight recharging. PG&E offers a special, discounted rate for plug-in and other electric vehicle customers, the "Experimental Time-of-Use Low Emission Vehicle rate."[163] That tariff gives people much cheaper rates if they charge at night, especially during the summer months.

The additional electrical utilization required to recharge the plug-in vehicles could push many households in areas that do not have off-peak tariffs into the higher priced tier and negate financial benefits.[164] Without an off-peak charging tariff, one study of a certain PHEV-20 model having an all-electric range of 20 miles, gasoline-fueled efficiency of 52.7 mi/gal U.S., and all-electric efficiency of 4 mi/kW·h, found that household electricity customers who consumed 131%–200% of baseline electricity at $0.220/(kW·h) would see benefits if gasoline was priced above US$2.89/US gal; those that consumed 201%–300% of baseline electricity at $0.303/(kW·h) would only see benefits if gas was priced above $3.98; and households consuming over 300% of baseline electricity at $0.346/(kW·h) would only see benefits if gasoline was priced above $4.55 (USD/gal).[165] Off-peak tariff rates can lower the break-even point. The PG&E tariff would change those break-even gasoline prices to USD $1.96, $3.17 and $3.80 per gallon, respectively, for the given PHEV and usage pattern in question.

Customers under such tariffs could see significant savings by being careful about when the vehicle was charged, for example, by using a timer to restrict charging to off-peak hours. Thus, an accurate comparison of the benefit requires each household to evaluate its current electrical usage tier and tariffs weighed against the cost of gasoline and the actual observed operational cost of electric mode vehicle operation.

Piles of Salt Salar de Uyuni Bolivia Luca Galuzzi 2006 a

The Salar de Uyuni in Bolivia is one of the largest known lithium reserves in the world.[166][167]

Lithium availability and supply security[]

See also: Lithium and rare earth metals availability and supply security

Current technology for plug-ins is based on the lithium-ion battery and an electric motor, and the demand for lithium, heavy metals and other rare elements (such as neodymium, boron and cobalt) required for the batteries and powertrain is expected to grow significantly due to the incoming market entrance of plug-ins and electric vehicles in the mid and long term. Some of the largest world reserves of lithium and other rare metals are located in countries with strong resource nationalism, unstable governments or hostile to U.S. interests, raising concerns about the risk of replacing dependence on foreign oil with a new dependence on hostile countries to supply strategic materials.[167][168][169][170]

Currently, the main deposits of lithium are found in China and South America throughout the Andes mountain chain. In 2008 Chile was the leading lithium metal producer, followed by Australia, China, and Argentina.[169][171] In the United States lithium is recovered from brine pools in Nevada.[171][172] Nearly half the world's known reserves are located in Bolivia,[167][169] and according to the US Geological Survey, Bolivia's Salar de Uyuni desert has 5.4 million tons of lithium, which can be used to make lithium batteries for hybrid and electric vehicles.[167][171] Other important reserves are located in Chile, China, and Brazil.[169][171] Regarding rare earth elements, most reserves are located in China, which controls the world market for these elements.[170]

Greenhouse gas emissions[]

See also: Greenhouse gas emissions in plug-in electric vehicles

The effect of PHEVs on greenhouse emissions is complex. Plug-in hybrid vehicles operating on all-electric mode do not emit harmful tailpipe pollutants from the onboard source of power. The clean air benefit is usually local because depending on the source of the electricity used to recharge the batteries, air pollutant emissions are shifted to the location of the generation plants.[173] In the same way, PHEVs do not emit greenhouse gases from the onboard source of power, but from the point of view of a well-to-wheel assessment, the extent of the benefit also depends on the fuel and technology used for electricity generation. From the perspective of a full life cycle analysis, the electricity used to recharge the batteries must be generated from renewable or clean sources such as wind, solar, hydroelectric , or nuclear power for PEVs to have almost none or zero well-to-wheel emissions.[173][174] On the other hand, when PEVs are recharged from coal-fired plants, they usually produce slightly more greenhouse gas emissions than internal combustion engine vehicles.[173] In the case of plug-in hybrid electric vehicle when operating in hybrid mode with assistance of the internal combustion engine, tailpipe and greenhouse emissions are lower in comparison to conventional cars because of their higher fuel economy.[174]

There has been much debate over the potential GHG emissions reductions that can be achieved with PHEV. A study by the Electric Power Research Institute reports that a 338 TW·h or 5.8% increase in power generation needed as a result of PHEV.[175] In the same report the EPRI also states that CO2 emissions could increase by 430 million metric tons.[175] The article concludes:

"In summary, the addition of PHEVs as a significant transportation option adds approximately 6% to the total national electricity demand in 2030 compared to the base case with no PHEVs. Due to the charging profile that results in most of this additional demand occurring during off-peak hours (late night/early morning) there is an increase in the need for baseload generation. The addition of coal-fired generation to meet this need for more baseload generation does not result in any significant differences in annual emissions of SO2, NOx and Hg because of the caps on those pollutants. Therefore, any reductions in emissions of SO2, NOx or Hg from non-electric generating sources would result in a net national decline in these emissions. However, it does result in an appreciable increase in CO2 and PM emissions as this analysis has not assumed any limits on CO2 or PM emissions."

A study by the American Council for an Energy Efficient Economy (ACEEE) predicts that, on average, a typical American driver is expected to achieve about a 15% reduction in net CO2 emissions compared to the driver of a regular hybrid, based on the 2005 distribution of power sources feeding the US electrical grid.[176] The ACEEE study also predicts that in areas where more than 80% of grid-power comes from coal-burning power plants, local net CO2 emissions will increase,[176] while for PHEVs recharged in areas where the grid is fed by power sources with lower CO2 emissions than the current average, net CO2 emissions associated with PHEVs will decrease correspondingly.

A 2007 joint study by the Electric Power Research Institute (EPRI) and the Natural Resources Defense Council (NRDC) similarly found that the introduction of PHEVs into America’s consumer vehicle fleet could achieve significant greenhouse gas emission reductions.[2] The EPRI-NRDC report estimates that, between 2010 and 2050, a shift toward PHEV use could reduce GHG emissions by 3.4 to 10.4 billion metric tons. The magnitude of these reductions would ultimately depend on the level of PHEV market penetration and the carbon intensity of the US electricity sector. In general, PHEVs can be viewed as an element in the "Pacala and Socolow wedges" approach which shows a way to stabilize CO2 emissions using a portfolio of existing techniques, including efficient vehicles.

A 2008 study at Duke University suggests that for PHEV's to reduce greenhouse gas emissions more than hybrids a carbon pricing signal that encourages the development of low carbon power is needed.[177] RAND also in 2008 studied the questions of a carbon tax, carbon cap and trade systems, increasing gasoline tax, and providing renewable energy subsidies under various economic conditions and vehicle type availabilities. RAND found that subsidies were able to provide a smoother transition to new energy sources, especially in the face of energy source price volatility, because subsidies can be structured according to relative costs between renewables and fossil fuel, while taxes and carbon trading schemes alone do not take relative prices of energy into account.[178]

The Minnesota Pollution Control Agency found that if Minnesota's fleet of vehicles making lengthy trips were replaced by plug-in hybrids, CO2 emissions per vehicle would likely decrease. However, unless more than 40% of the electricity used to charge the vehicles were to come from non-polluting sources, replacing the vehicles with non plug-in hybrids would engender a larger decrease in CO2 emissions.[179] Plug-in hybrids use less fuel in all cases, and produce much less carbon dioxide in short commuter trips, which is how most vehicles are used. The difference is such that overall carbon emissions would decrease if all internal combustion vehicles were converted to plug-ins.[155]

In 2009 researchers at Argonne National Laboratory adapted their GREET model to conduct a full well-to-wheels (WTW) analysis of energy use and greenhouse gas (GHG) emissions of plug-in hybrid electric vehicles for several scenarios, considering different on-board fuels and different sources of electricity generation for recharging the vehicle batteries. Three US regions were selected for the analysis, California, New York, and Illinois, as these regions include major metropolitan areas with significant variations in their energy generation mixes. The full cycle analysis results were also reported for the US generation mix and renewable electricity to examine cases of average and clean mixes, respectively[3] This 2009 study showed a wide spread of petroleum use and GHG emissions among the different fuel production technologies and grid generation mixes. The following table summarizes the main results:[3]

PHEV well-to-wheels Petroleum energy use and greenhouse gas emissions
for an all-electric range between 10 and 40 miles (16 and 64 km) with different on-board fuels.(1)
(as a % relative to an internal combustion engine vehicle that uses fossil fuel gasoline)
Analysis Reformulated gasoline
and Ultra-low sulfur diesel
E85 fuel from
corn and switchgrass
Fuel cell
hydrogen
Petroleum energy use reduction
40–60%
70–90%
more than 90%
GHG emissions reduction(2)
30–60%
40–80%
10–100%
Source: Center for Transportation Research, Argonne National Laboratory (2009). See Table 1.[3] Notes: (1) Simulations for year 2020
with PHEV model year 2015. (2) No direct or indirect land use changes included in the WTW analysis for bio-mass fuel feedstocks.[180][181]

The Argonne study found that PHEVs offered reductions in petroleum energy use as compared with regular hybrid electric vehicles. More petroleum energy savings and also more GHG emissions reductions were realized as the all-electric range increased, except when electricity used to recharged was dominated by coal or oil-fired power generation. As expected, electricity from renewable sources realized the largest reductions in petroleum energy use and GHG emissions for all PHEVs as the all-electric range increased. The study also concluded that plug-in vehicles that employ biomass-based fuels (biomass-E85 and -hydrogen) may not realize GHG emissions benefits over regular hybrids if power generation is dominated by fossil sources.[3]

A 2008 study by researchers at Oak Ridge National Laboratory analyzed oil use and greenhouse gas (GHG) emissions of plug-in hybrids relative to hybrid electric vehicles under several scenarios for years 2020 and 2030. Each type of vehicle was assumed to run 20 miles (32 km) per day and the HEV was assumed to have a fuel economy of 40 miles per US gallon (5.9 L/100 km/48 mpg-imp).[182] The study considered the mix of power sources for 13 U.S. regions, generally a combination of coal, natural gas and nuclear energy, and to a lesser extend renewable energy.[182][183] A 2010 study conducted at Argonne National Laboratory reached similar findings, concluding that PHEVs will reduce oil consumption but could produce very different greenhouse gas emissions for each region depending on the energy mix used to generate the electricity to recharge the plug-in hybrids.[184][185] The following table summarizes the main results of the Oak Ridge National Laboratory study for the 2020 scenario:

Comparison of carbon emissions and oil consumption by plug-in hybrids relative to hybrid electric vehicles (HEVs)
by U.S. regional power generation sources on 2020[186]
Region(1) Main
electricity
sources
Share
total
generation
2020
Carbon
emissions
relative to HEVs
Oil
consumption
relative to HEVs
States included in the region(2)
Plug-in hybrid All-electric mode Plug-in hybrid All-electric mode
Northwest Natural gas
Nuclear
84.3%
15.7%
-20.0% -37.2% -47.0% -99.6% Includes ID, MT, NV, OR, UT, SD, WA, and WY.
California Natural gas
Renewable
99.0%
1.0%
-15.3% -26.5% -47.0% -99.6%
Texas Natural gas 100% -15.0% -25.7% -47.0% -99.6%
Florida Natural gas
Oil
96.1%
2.4%
-14.8% -25.3% -45.6% -96.4%
New England Natural gas
Coal
70.3%
15.5%
-11.4% -17.4% -44.3% -93.5% Includes CT, MA, ME, NH, RI, and VT.
Lower Midwest Natural gas
Coal
88.6%
11.4%
-11.0% -16.4% -46.9% -99.4% Includes AR, KS, LA, NM, OK, and TX.
Southwest Natural gas
Coal
83.6%
16.1%
-9.40% -12.8% -46.9% -99.4% Includes AZ, CO, NM, NV, and TX.
Mid-Atlantic Natural gas
Coal
60.6%
37.0%
-1.2% +6.1 -45.4% -95.9% Includes DC, DE, MD, ME, NJ, and PA.
Upper Midwest Natural gas
Coal
47.6%
46.0%
-0.8% +7.2% -46.7% -99.0% Includes IA, MN, MT, ND, NE, SD, and WI.
Southeast Coal
Natural gas
51.9%
44.9%
+2.4% +14.4% -46.7% -98.9% Includes AL, GA, LA, MS, NC, SC, and TN.
New York Oil
Natural gas
67.2%
29.4%
+4.3% +19.0% -8.6% -10.9%
Greater Ohio Coal
Natural gas
65.7%
32.8%
+7.8% +27.0% -46.6% -98.7% Includes IN, KY, MI, OH, VA, and WV.
Greater Illinois Coal
Natural gas
75.4%
24.6%
+11.7% +36.0% -46.5% -98.6% Includes IA, IL, MI, MO, and WI.
Notes: (1) Regions as defined by the North American Electric Reliability Corporation. (2) Some states appear in more than one region because parts of them belong to different regions.

Production and commercialization[]

BYD 02

Launched in December 2008, the BYD F3DM became the world's first mass produced plug-in hybrid automobile.

Chevy Volt EDTA DC 04 2011 1788

Deliveries of the Chevrolet Volt began in the U.S. in December 2010.

Bright IDEA plug-in delivery truck WAS 2010 8908

The Bright IDEA plug-in hybrid delivery truck is available for fleet customers in the U.S.

A survey from Pike Research shows 22% of 1,041 consumers extremely and 26% very interested in buying a PHEV-40-(like the Volt), with 17% willing to pay 20–50% more than a standard vehicle and half willing to pay 5-10% more. Another 34% have some interest for a total of 82%. Pike projects 1.7 million PHEVs on the world's roads by 2015 and half a million annual sales.[187]

Current production models[]

The BYD F3DM became the world's first mass produced plug-in hybrid compact sedan as it went on sale in China to government agencies and corporations on December 15, 2008.[9][10][11] Sales to the general public began in Shenzhen in March 2010[12][13] but because the F3DM nearly doubles the price of cars that run on conventional fuel, BYD Auto is counting on subsidies from the local government to make the plug-in attractive to personal buyers.[12] The F3DM is sold for 149,800 yuan (about USD 21,900),[11] and during its first year in the market the F3DM only sold 48 vehicles.[188][189] The F3DM has a all-electric range of 100 kilometers (60 mi),[190] and is slated to go on sale in Europe and the U.S. in 2011.[188]

General Motors introduced the first Chevrolet Volt off the assembly line on November 30, 2010. Sales and deliveries began in December 2010.[191][192] The Volt will be sold initially only in California, Washington Metropolitan Area, Michigan, Texas, New York, New Jersey and Connecticut.[193] The first cars will be available in Washington D.C., the New York City metropolitan region, California, and Austin, Texas. During the first quarter of 2011 the market will expand to Michigan, the rest of Texas and to all of New York, New Jersey and Connecticut.[194] The restricted roll-out is due to limited production, as GM planned production for 2011 is only 10,000 units.[193][194] Nationwide availability in the U.S. and Canada is scheduled to begin in late 2011 until mid 2012.[193][194][195]

In the United States, the Toyota Prius can now be commercially converted (using aftermarket kits and tax incentives) to a plug-in hybrid by CalCars and a number of third-party companies.[196] On a smaller scale, PHEVs have been sold as commercial passenger vans,[197] utility trucks,[198][199] general and school buses,[200][201] motorcycles, scooters,[202] and military vehicles.[203] Hybrid Electric Vehicle Technologies, Inc converts diesel buses to plug-in hybrids, under contract for the Chicago Transit Authority. Fisher Coachworks is developing a plug-in hybrid, the Fisher GTB-40, which is expected to get about twice the mileage of a regular hybrid electric bus.[204]

Future production[]

At least fourteen car companies of all sizes are exploring or planning to offer a plug-in,[205] including a modular kit car model (XR-3 Hybrid).[206] Conversion kits and services are available to convert production model hybrid vehicles to plug-ins.[99][207] Other plug-in vehicles ongoing demonstration trials or slated to the market for 2011 and 2012 are the Fisker Karma, Toyota Prius Plug-in Hybrid, Ford Escape Plug-in Hybrid, Volvo V70 Plug-in Hybrid, Suzuki Swift Plug-in and the Ford C-Max Energi. A startup in California named Aptera Motors is creating a series drivetrain PHEV version of its concept electric car, the Aptera 2h.

Government support and public deployment[]

See also: Government incentives for plug-in electric vehicles

United States[]

Plug-in hybrids were mentioned as an area of research in President George W. Bush's advanced energy initiative and mentioned in his 2007 State of the Union Address. Incentives for the development of PHEVs are included in the Energy Independence and Security Act of 2007.[208] The Energy Improvement and Extension Act of 2008, signed into law on October 3, 2008, grants a tax break of $2,500 to $7,500 per car for manufacturers of up to 250,000 plug-in hybrid vehicles. President Barack Obama's New Energy for America calls for deployment of 1 million plug-in hybrid vehicles by 2015,[209] and on March 19, 2009, he announced programs directing $2.4 billion to electric vehicle development.[210]

The American Recovery and Reinvestment Act of 2009[211] modifies the tax credits, including a new one for plug-in electric drive conversion kits and for 2 or 3 wheel vehicles.[212] The ultimate total included in the Act that is going to PHEVs is over $6 billion.[213] However the production phase-out trigger is decreased from 250,000 to 200,000 units (but instead of one 250,000 units pot of money shared by all carmakers, 200,000 units sizable funds are created for every carmaker), credits for vehicles over 14,000 pounds (6,400 kg) GVWR are eliminated (by redefining PHEVs to be less than this GVWR), and the maximum credit for vehicles between 10,000 and 14,000 pounds (4,500 and 6,400 kg). GVWR is reduced from $10,000 to $7,500. The battery capacity window of 4–16 kW·h is maintained, but vehicles between 4–5 kW·h battery capacity only receive the minimum credit of $2,500.[214] The battery capacity shift may be an attempt to include the Chevy Volt while limiting the credit available to low all-electric range plug-in models of the Toyota Prius.

In March 2009, as part of the American Recovery and Reinvestment Act, the US Department of Energy announced the release of two competitive solicitations for up to $2 billion in federal funding for competitively awarded cost-shared agreements for manufacturing of advanced batteries and related drive components as well as up to $400 million for transportation electrification demonstration and deployment projects. This announcement will also help meet the President Barack Obama's goal of putting one million plug-in hybrid vehicles on the road by 2015.[215]

The United States House of Representatives passed H.R. 3246, the Advanced Vehicle Technology Act of 2009,[216] $2.85 billion from 2010–2014, 39% for medium- and heavy-duty commercial vehicles for retrofitting advanced vehicle technologies to existing vehicles and to existing truck fleets.[187]

On October 5, 2009, President Barack Obama signed Executive Order 13514 on Federal Leadership in Environmental, Energy, and Economic Performance to accelerate Federal agencies' efforts.[217] For the government's 600,00 vehicle fleet, it requires a 30% reduction in petroleum use by 2020, and for agencies with 20 or more vehicles to reduce petroleum use by 2% annually through 2020.[218]

Public deployments also include:

  • USDOE's FreedomCAR. US Department of Energy announced it would dole out $30 million in funding to three companies over three years to further the development of plug-in hybrids[219]
  • USDOE announced the selection of Navistar Corporation for a cost-shared award of up to $10 million to develop, test, and deploy plug-in hybrid electric (PHEV) school buses.[220]
  • DOE and Sweden have a MOU to advance market integration of plug-in hybrid vehicles[221]
  • PHEV Research Center
  • San Francisco Mayor Gavin Newsom, San Jose Mayor Chuck Reed and Oakland, California Mayor Ron Dellums announced a nine-step policy plan for transforming the Bay Area into the "Electric Vehicle (EV) Capital of the U.S."[222] and of the world[223] There are partnerships with Coulomb, Better Place and others are also advancing. The first charging stations went up in San Jose[223] (more information in Plug-in hybrids in California).
  • Washington State PHEV Pilot Project[224]
  • Texas Governor Rick Perry's proposal for a state $5,000 tax credit for PHEVs in "non-attainment" communities
  • Seattle, that includes City's public fleet converted vehicles, the Port of Seattle, King County and the Puget Sound Clean Air Agency[225]

GM's roadmap for plug-in ready communities includes: consumer incentives to make this early technology more affordable; public and workplace charging infrastructure; consumer-friendly electricity rates and renewable electricity options; government and corporate vehicle purchases; supportive permitting and codes for vehicle charging; and other incentives such as high-occupancy-vehicle (HOV) lanes access[226]

Canada[]

The City of Toronto is supporting public deployment of PHEVs.[227] The Province of Ontario has announced plans to provide rebates of between $4,000 to $10,000 CAD for plug-in hybrids and battery electric vehicles, starting on July 1, 2010 to the first 10,000 purchases only.[228]

European Union[]

Electrification of transport (electromobility) is a priority in the European Union Research Programme. It also figures prominently in the European Economic Recovery Plan presented November 2008, in the frame of the Green Car Initiative. DG TREN will support a large European "electromobility" n project on electric vehicles and related infrastructure with a total budget of around € 50million as part of the Green Car Initiative.[229]

France[]

The French government kicked in $550M and sponsors partnership by Électricité de France with Renault-Nissan and with PSA Peugeot Citroën.[230]

Germany[]

In 2011, the City of Hamburg's hydrogen fuel cell bus trial will be superseded with the current 6 buses to be grounded and replaced by 10 plug-in hybrid buses, to be powered with a combination of electricity and hydrogen.[231]

Spain[]

The MOVELE Plan gives funds to acquire plug-in vehicles.[232]

United Kingdom[]

In November 2007 the then Prime minister Gordon Brown said that renewables will supply 15 per cent of the UK's energy mix by 2020 and emphasised the role that electric and plug-in hybrid cars will play as part of the government's carbon reduction strategy.[233]

Transport for London is planning to include plug-in hybrids in the exemption to the London congestion charge previously available only to fully electric vehicles.[234]

On 21 June 2010, Toyota launched a three-year Prius Plug-in Hybrid Vehicle lease demonstration programme in the UK.[235] The programme was partly funded by the UK Government through the Office for Low Emission Vehicles (OLEV), and provided 20 Toyota Prius Plug-in Hybrid Vehicles to public organisations and business fleet users in the UK.

Supportive organizations[]

Organizations that support plug-in hybrids include the World Wide Fund for Nature, its International Director General James Leape remarked, "the cars of the future ... should, increasingly, be powered by electricity."[236]

Also National Wildlife Federation has done a strong endorsement of PHEVs.[237]

CalCars (with their PHEV news service and "What car makers are saying about PHEVs") is dedicated only to the PHEV and has proposed a Prepayment Plan, where buyers would pay $1,000 to reserve a plug-in car and the federal government would match each payment with $9,000, all of which would go to carmakers.[238] CalCars is also promoting public funds for conversion of internal combustion engines to plug-in vehicles.[239]

Other supportive organizations are Plug In America, the Alliance for Climate Protection, Friends of the Earth, the Rainforest Action Network, Rocky Mountain Institute (Project Get Ready),[240] the San Francisco Bay Area Council,[222] the Apollo Alliance, the Set America Free Coalition,[241] the Silicon Valley Leadership Group, and the Plug-in Hybrid Electric School Bus Project,[242]

FPL and Duke Energy has said that by 2020 all new purchases of fleet vehicles will be plug-in hybrid or all-electric.[243]

NiMH battery patent encumbrance[]

Main article: Patent encumbrance of large automotive NiMH batteries

Some battery formats and chemistries (nickel-metal hydride batteries) suitable for use in PHEVs are tightly patented and have not been licensed for use by PHEV manufacturers, thereby slowing the development of electric cars and PHEVs, particularly before the 2008 Oil Crisis.[5][244][245][246]

See also[]

  • Advanced Technology Vehicles Manufacturing Loan Program
  • Alternative fuel vehicle
  • Automotive industry crisis of 2008–2009
  • CalCars
  • Car Allowance Rebate System
  • Clean Energy Bank
  • Cleanova (a Kangoo derivative)
  • Development mule
  • Electric transportation technology
  • Electric TM4
  • FreedomCAR
  • Fuel economy-maximizing behaviors
  • Funding Opportunity Announcement
  • Genset trailer
  • Glossary of automotive design
  • Government incentives for plug-in electric vehicles
Portal-puzzle Sustainable development portal
Portal-puzzle Energy portal
  • Hybrid tax credit
  • Hymotion
  • Hypercar
  • Inductive charging
  • List of modern production plug-in electric vehicles
  • Low-carbon economy
  • Low-carbon fuel standard
  • Low-energy vehicle
  • Mitigation of global warming
  • Paul Werbos
  • PHEV Research Center
  • Plug In America
  • Plug-in Conference
  • Plug-in electric vehicle (PEV)
  • Plug-in garage
  • United States Council for Automotive Research

References[]

  1. 1.0 1.1 Frank, A., et al., "What are Plug-In Hybrids?" Team Fate (University of California, Davis) Retrieved August 7, 2007; earlier version
  2. 2.0 2.1 Knipping, E. and Duvall, M. (June 2007) "Environmental Assessment of Plug-In Hybrid Electric Vehicles Volume 1: Nationwide Greenhouse Gas Emissions" Electric Power Research Institute and Natural Resources Defense Council. Retrieved July 21, 2007.
  3. 3.0 3.1 3.2 3.3 3.4 A. Elgowainy, A. Burnham, M. Wang, J. Molburg, and A. Rousseau (February 2009). "Well-to-Wheels Energy Use and Greenhouse Gas Emissions Analysis of Plug-in Hybrid Electric Vehicles" (PDF). Center for Transportation Research, Argonne National Laboratory. Retrieved on 2006-06-01. Report ANL/ESD/09-2
  4. Archer, David (2005), "Fate of fossil fuel CO2 in geologic time" (PDF), Journal of Geophysical Research 110(C9): C09S05.1–C09S05.6. Bibcode2005JGRC..11009S05A. doi: 10.1029/2004JC002625 , http://geosci.uchicago.edu/~archer/reprints/archer.2005.fate_co2.pdf. Retrieved on .
  5. 5.0 5.1 5.2 Sherry Boschert (2006). Plug-in Hybrids: The Cars that will Recharge America. New Society Publishers, Gabriola Island, Canada. ISBN 978-0-86571-571-4.
  6. Thomas Friedman (2008). Hot, Flat, and Crowded. Farrar, Strauss and Giroux, New York. ISBN 978-0-374-16685-4. See reviewed by CalCars founder Felix Kramer (September 9, 2008) "T. Friedman's New Bestseller Hot, Flat & Crowded Touts Plug-Ins".
  7. Simpson, A. (2006) Cost-Benefit Analysis of Plug-in Hybrid Electric Vehicle Technology National Renewable Energy Laboratory conference report CP-540-40485 accessed January 7, 2009
  8. "Sustainable transportation based on electric vehicle concepts: a brief overview". Royal Society of Chemistry (2010-05-14). Retrieved on 2010-06-08.
  9. 9.0 9.1 9.2 Crippen, A. (December 15, 2008) "Warren Buffett's Electric Car Hits the Chinese Market, But Rollout Delayed For U.S. & Europe" CNBC. Retrieved December 2008.
  10. 10.0 10.1 10.2 Balfour, F. (December 15, 2008) "China's First Plug-In Hybrid Car Rolls Out" Business Week. Retrieved December 2008.
  11. 11.0 11.1 11.2 11.3 "BYD F3DM Plug-in Hybrid Goes On Sale in China". Green Car Congress (2008-12-15). Retrieved on 2009-02-28.
  12. 12.0 12.1 12.2 12.3 12.4 "BYD Auto To Begin Sales of F3DM Plug-in to Individuals". Green Car Congress (2010-03-23). Retrieved on 2010-03-27.
  13. 13.0 13.1 13.2 "BYD Auto to Offer F3DM Plug-in Hybrid to Chinese Individuals Starting Next Week". Edmunds.com (2010-03-23). Retrieved on 2010-03-27.
  14. 14.0 14.1 Alisa Priddle (2010-11-30). "GM to hire 1,000 in Michigan", The Detroit News. Retrieved on 2010-11-30.
  15. 15.0 15.1 Bill Vlasic (2010-11-30). "G.M. to Hire 1,000 to Engineer More Electric Cars", New York Times. Retrieved on 2010-11-30.
  16. Bichlien Hoang. "Plug-In Hybrid Electric Vehicles (PHEVs): Overview". Institute of Electrical and Electronics Engineers. Retrieved on 2010-03-05.
  17. 17.0 17.1 James, W. (September 2006) "Large Oil and GHG Reductions with Plug-in Hybrid Vehicles" Alternative Transport Energies Conference (Perth, Australia)
  18. IEEE-USA Board of Directors (June 15, 2007) "Plug-In Electric Hybrid Vehicles" Position Statement'.' Retrieved October 3, 2007.
  19. California Air Resources Board (July 2008) "California Certification and Installation Procedures for Off-Vehicle Charge Capable Conversion Systems for 2000 and Subsequent Model Year Hybrid Electric Vehicles". Retrieved January 8, 2009.
  20. "Making the Case for Grid-Connected Hybrids". EV World (2001-09-23). Retrieved on 2010-03-10.
  21. "What's In A Name?". EV World (2005-04-07). Retrieved on 2010-03-10.
  22. "The glossary". The Ergosphere (2005-05-12). Retrieved on 2010-03-10.
  23. "Chevy Volt: The Future is Electrifying". Chevrolet. Retrieved on 2010-03-05.
  24. Popular Science (July, 1969) "Hybrid Car Ready in 1969" pp. 86–87. Retrieved December 31, 2008.
  25. 25.0 25.1 Renault (March 10, 2003) "Kangoo reinvents the electric car" (PDF) press release. Retrieved January 8, 2009.
  26. Holinger, H. (2003) "Renault Electric Kangoo Can Do" EVWorld.com'.' Retrieved July 6, 2007.
  27. 27.0 27.1 "How We Green-Tuned an '04 Prius into a PRIUS+ Plug-In Hybrid!". CalCars.com - The California Cars Initiative. Retrieved on 2006-01-11.
  28. Thomas, Ken (July 19, 2006). "Toyota charging ahead with plans for plug-in hybrid", Chicago Sun-Times/Associated Press. Archived from the original on 2007-11-02.
  29. Lithium Ion Likely to Power Hybrids of the Future Hybrid Synergy View Newsletter, Toyota, April 2007. Retrieved August 7, 2007.
  30. 30.0 30.1 30.2 Halvorson, Bengt. Li-ion Not Ready for Prius. BusinessWeek, June 18, 2007. Retrieved August 7, 2007.
  31. 31.0 31.1 General Motors (November 29, 2006) "GM Announces Intention to Produce Plug-in Hybrid SUV". Retrieved January 8, 2009.
  32. GM Awards Lithium-Ion Battery Development Contracts. GM, January 4, 2007. Retrieved on 2007-08-07.
  33. General Motors (January 7, 2007) "Chevrolet Volt..." press release; video
  34. Green Car Congress (January 15, 2007) The Volt May be First, But E-Flex is the Key. Retrieved April 27, 2007.
  35. Toyota Motor Corporation (July 25, 2007) "Japan Certifies Toyota Plug-in Hybrid for Public-road Tests" JCN Newswire. Retrieved July 25, 2007.
  36. Cunningham, W. (October 2, 2008) "Toyota finally plugs in the Prius," CNet Car Tech
  37. Terlep, S. (August 10, 2007) "GM races ahead with plug-in car" The Detroit News'.' Retrieved September 6, 2007.
  38. "Drive the Future with Fisker Automotive, A New Green American Premium Car Company" (PDF) (September 5, 2007).
  39. Shirouzu, N., and Buckman, R. (January 14, 2008) "Electric-Car Firms Get Star Investors," Wall Street Journal
  40. Aptera Motors (2007) "FAQs" Aptera web site. Retrieved January 21, 2008.
  41. Edmunds (October 15, 2007) "Detroit Show Preview: BYD's New Plug-in Hybrid on Sale Next Year" Edmunds Inside Line. Retrieved October 26, 2007.
  42. "Ford Delivers First Escape Plug-In Hybrid To Southern California Edison". Media.Ford.Com. Retrieved on 2010-11-27.
  43. "Ford Motor Company - Press Release - Ford Motor Company Delivers Flexible Fuel, Plug-In Vehicle to Department of Energy". Ford.com. Retrieved on 2010-11-27.
  44. 44.0 44.1 "Ford Escape Plug-in Hybrid". hybridCars.com. Retrieved on 2010-04-21.
  45. 45.0 45.1 "Ford Unveils 'Intelligent' System for Plug-In Hybrids To Communicate with the Electric Grid". Ford.com. Retrieved on 2010-11-27.
  46. Dennis, L.J. (January 26, 2008) "Chevy Volt Waiting List Hits 10,000 Members," GM-Volt.com. Retrieved January 26, 2008.
  47. "Yi Cui Group". Stanford.edu. Retrieved on 2010-11-27.
  48. Serpo, Alex. "A tenfold improvement in battery life? - CNET News". News.com. Retrieved on 2010-11-27.
  49. ""High-performance lithium battery anodes using silicon nanowires" - pp.31–35: Nature Nanotechnology". Nature.com. Retrieved on 2010-11-27.
  50. Naughton, K. (December 31, 2007) "Bob Lutz: The Man Who Revived the Electric Car" Newsweek
  51. Plug-in car production race is on (Chicago Tribune)
  52. "News Releases". TOYOTA (2008-01-14). Retrieved on 2010-11-27.
  53. Ohnsman, A. (August 28, 2008) "Toyota Plans Electric Car, Earlier Plug-In Prius Test" Bloomberg. Retrieved December 2008.
  54. "Preliminary Summary of Air Resources Board Action (3/27/08) - Zero Emission Vehicle (ZEV) Program" www.arb.ca.gov
  55. California Air Resources Board (March 27, 2008) "ARB passes new ZEV amendment - Measure could produce 65,000 cleaner vehicles by 2012" (government agency release)
  56. Thompson (June 26, 2008) "VW starts testing electric cars, sees launching them by 2010" (Forbes) accessed December 2009
  57. 28 August 2008 (2008-08-28). "Mazda plans Volt rival". Autocar. Retrieved on 2010-11-27.
  58. Associated Press (September 23, 2008) "Chrysler plans to sell electric car in 2010" New York Daily News
  59. Pakulski, Gary T.. "Chrysler switching gears, to add electric car by 2010; 3 prototypes include Jeep Wrangler". toledoblade.com. Retrieved on 2010-11-27.
  60. Chrysler unveils electric car that gets 150 miles a charge[dead link]
  61. Posted 9.24.08 at 10:01 am (2010-11-10). "Chrysler Reveals Alternative-Energy Prototypes - Popular Science". Popsci.com. Retrieved on 2010-11-27.
  62. Schoenberger, R. (October 2, 2008) "Bailout bill includes tax breaks for buyers of plug-in hybrid vehicles," Cleveland Plain Dealer
  63. Vijayenthiran, V. (October 3, 2008) "Bush signs $7,500 plug-in hybrid tax credit bill into law," MotorAuthority.com
  64. "Nissan will sell electric car for just over $25K". Yahoo Finance (2010-03-30). Retrieved on 2010-03-30.
  65. "TMC Introduces 'Prius Plug-in Hybrid' into Key Markets". Toyota News release (2009-12-14). Retrieved on 2010-04-09.
  66. "Toyota, EDF and Strasbourg Launch Large-Scale, 3-Year Plug-in Hybrid Demonstration Project". Green Car Congress (2010-04-28). Retrieved on 2010-04-28.
  67. "Toyota, EDF trial plug-in Prius in Britain", Reuters (2010-01-11). Retrieved on 2010-06-28.
  68. English, Andrew (2010-01-05). "Toyota Plug-In Prius review", The Telegraph. Retrieved on 2010-04-10.
  69. Scott Deveau (2010-03-25). "Toyota tests Prius plug-in hybrid in Canada", Financial Post. Retrieved on 2010-04-09.
  70. Brad Berman (2010-06-11). "Prius Plug-in Hybrid Arrives at Ultra-Green Portland State University". PlugInCars.com. Retrieved on 2010-06-17.
  71. Vattenfall (September 2010). "Having a plug-in hybrid as your family car -what is it actually like?". PluginCars.com. Retrieved on 2010-09-05. pp. 3-4
  72. 72.0 72.1 "Volvo Reports Reactions from First Drivers of Volvo V70 Plug-in Hybrid". PluginCars.com (2010-10-01). Retrieved on 2010-10-05.
  73. John Voelcker (2009-06-02). "Volvo to Introduce Plug-In Diesel by 2012". Fox News. Retrieved on 2009-06-04.
  74. 74.0 74.1 "Lotus unveils range-extended electric city car concept in Paris". AutoblogGreen (2010-10-02).
  75. 75.0 75.1 Mark Gillies (2010-10-02). "Lotus City Car Concept - Auto Shows", Car and Driver. Retrieved on 2010-10-04.
  76. Union of Concerned Scientists (2006) "Hybrids Under the Hood (part 2) -- Drivetrains" Hybridcenter.org. Retrieved May 31, 2007
  77. Schwoerer, Martin (2010). "REX Means Range". http://evworld.com. Retrieved on 2011-06413.
  78. Layton, J; Nice, K (2007). "How Hybrid Cars Work". HowStuffWorks.com. Retrieved on 2007-06-19.
  79. BC Climate Exchange (2005) "Hybrid Basics" Hybrid Experience Report. Retrieved June 19, 2007.
  80. Toyota Motor Corporation (2006) "Series Parallel Hybrid System" Hybrid Synergy Drive. Retrieved June 19, 2007.
  81. "AC Propulsion's Reductive Charger"
  82. Green Car Congress (September 29, 2006) Plug-ins Progress. Retrieved April 27, 2007.
  83. 83.0 83.1 Gonder, J. and Markel, T. (2007) "Energy Management Strategies for Plug-In Hybrid Electric Vehicles" (PDF) technical report NREL/CP-540-40970 presented at SAE World Congress, April 16–19, 2007, Detroit, Michigan
  84. Santini, et al. (September 27, 2006) Energy and Petroleum Consumption Attributes of Plug-in Hybrids (PDF). Retrieved April 29, 2007.
  85. Tony Markel/NREL: "Plug-in HEV Vehicle Design Options and Expectations" (PDF). Retrieved April 27, 2007.
  86. EAA-PHEV wiki: Mixed-mode. Retrieved April 29, 2007.
  87. Roim, J. and Frank, A. (April 2006) "Hybrid Vehicles Gain Traction" Scientific American pp. 72–9
  88. Bullis, K. (August 3, 2006) "Are Lithium-Ion Electric Cars Safe?" Technology Review (Cambridge, Mass.: MIT)
  89. Fleissner, C. (8/14/06) "Johnson Controls partnership wins new contract" Wisconsin Technology Network
  90. Altair Nanotechnologies Inc. (September 7, 2006) "Altair Nanotechnologies Details Long Life Features of Its Nano-Titanate Battery" Business Wire press release
  91. Voelcker, J. (January 2007) "Lithium Batteries for Hybrid Cars" IEEE Spectrum
  92. Toyota Motor Co (2004) "Hybrid Hype? Fact and Fiction Surrounding the New Technology" Toyota.com'.' Retrieved July 8, 2007.
  93. Woody, Todd. "PG&E's Battery Power Plans Could Jump Start Electric Car Market". (Blog). Green Wombat, 2007-06-12. Retrieved on 2007-08-19.
  94. Jansen, Matt. "Toyota laughs while Chevy Volt battery power is ripped in half". (Blog). tech.blorge, 2008-6-16. Retrieved on 2008-6-17.
  95. Électricité de France (September 5, 2007) "EDF et Toyota annoncent un partenariat technologique en Europe relatif aux véhicules hybrides rechargeables" press release. Retrieved October 10, 2007.
  96. Elektromotive, Ltd. (2007) "Elektromotive: The ultimate zero-emission transport system" company web site. Retrieved October 26, 2007.
  97. Reynolds, L. (October 11, 2007) "UK to install 250 new public charging stations by next spring". The Battery Vehicle Society. Retrieved October 26, 2007.
  98. Israel Is Set to Promote the Use of Electric Cars - New York Times
  99. 99.0 99.1 99.2 Wald, M.L. (January 13, 2008) "Closing the Power Gap Between a Hybrid’s Supply and Demand," New York Times'.' Retrieved January 7, 2009.
  100. 100.0 100.1 Downing, Jim. "Plug-in hybrids promise more power, greater efficiency", The Sacramento Bee, May 21, 2008[dead link]
  101. "UltraBattery FAQs" ], 2010-05-06
  102. "Shiau, C.-S., C. Samaras, R. Hauffe and J.J. Michalek (2009) "Impact of battery weight and charging patterns on the economic and environmental benefits of plug-in hybrid vehicles,"" (PDF). Retrieved on 2010-11-27.
  103. 103.0 103.1 "Calcars.org". Calcars.org. Retrieved on 2010-11-27.
  104. "Can Congress Hear From 6,692 Plug-In Supporters Today?". Calcars.org. Retrieved on 2009-04-11.
  105. "Calcars.org" (PDF). Retrieved on 2010-11-27.
  106. Gas2.org
  107. California Cars Initiative (2007) "Where Plug-In Hybrid Conversions (mostly Priuses) Are". Retrieved July 8, 2007.
  108. A123 Systems, Inc. (May 3, 2007) A123Systems Battery Co Acquires Hymotion Conversion Co Business Wire press release
  109. Electric Auto Association (2007) "Battery Pack Configurations" Plug in Hybrid Electric Vehicle website. Retrieved April 25, 2007.
  110. EDrive Systems, LLC (2006) "EDrive FAQ". Retrieved July 6, 2007.
  111. OEMtek: Prius Plug-in Hybrid Electric Vehicle (PHEV) - Home (Oemtek.com)
  112. Electric Auto Association "Plug in Hybrid Electric Vehicle" wiki (2005–present)
  113. "Conversion Interest". Eaa-Phev. Retrieved on 2010-11-27.
  114. CalCars (2004) "How CalCars Green-Tuned an '04 Prius into a PRIUS+ Plug-In Hybrid!" calcars.org
  115. USA. "Luscious Garage PHEV conversions". Lusciousgarage.com. Retrieved on 2010-11-27.
  116. "MIRA Introduces Plugless Plug-in Hybrid Conversion : Hybrid Car Chat Blog". Hybridcarchat.com (2008-04-28). Retrieved on 2010-11-27.
  117. "Concept: Through-the-Road PHEV Conversion Kit". Green Car Congress (2008-07-20). Retrieved on 2010-11-27.
  118. International Humanities Center (September 24, 2008) "Senate OKs Plug-In Credits, Toyota Frets; Free Press Lyrical about Plug-Ins" California Cars Initiative
  119. Grove, Andy (July/August 2008) "Our Electric Future" The American (American.com)
  120. 120.0 120.1 U. S. Environmental Protection Agency and U.S. Department of Energy (2011-05-274 (last updated)). "2011 Chevrolet Volt". Fueleconomy.gov. Retrieved on 2011-05-31.
  121. 121.0 121.1 "Volt receives EPA ratings and label: 93 mpg-e all-electric, 37 mpg gas-only, 60 mpg-e combined". Green Car Congress (2010-11-24). Retrieved on 2011-05-31.
  122. 122.0 122.1 "EPA, DOT unveil the next generation of fuel economy labels". Green Car Congress (2011-05-25). Retrieved on 2011-05-31.
  123. 123.0 123.1 EPA (May 2011). "Fact Sheet: New Fuel Economy and Environment Labels for a New Generation of Vehicles". U.S. Environmental Protection Agency. Retrieved on 2011-05-31.EPA-420-F-11-017
  124. US Deptartment of Energy (September 18, 2007) "Plug-In Hybrid Electric Vehicle Conversions" Alternative Fuels and Advanced Vehicles Data Center'.' Retrieved November 8, 2007.
  125. 125.0 125.1 Hamilton, Tyler. $3.83 to power hybrid plug-in for 6 days. June 9, 2008
  126. Westneat, D. (February 22, 2009) Reality check on plug-in cars
  127. "RechargeIT.org". Google.org. Retrieved on 2009-04-11.
  128. "Google.org". Google.org. Retrieved on 2009-04-11.
  129. California Cars Initiative (April 20, 2006) "Fact Sheet: PHEV Conversions" (PDF) page 2. Retrieved April 18, 2006.
  130. Bluejay, M. (2006?) "How much does electricity cost?". Retrieved April 18, 2007.
  131. US Dept of Energy (June 2007) "Plug-In Hybrid Electric Vehicle R&D Plan", section 1.5: Collaboration. Retrieved July 12, 2007.
  132. 132.0 132.1 Michael Graham Richard (2009-10-14). "Could Range Anxiety Sabotage the Promise of Electric Cars?". Discovery's Planet Green. Retrieved on 2010-03-14.
  133. "Study Shows Range Anxiety is Significant". Gm-volt.com. Retrieved on 2010-11-27.
  134. [1] Big Day for GM Chevy Volt and Plug-In Cars
  135. "$3.83 to power hybrid plug-in for 6 days". Wheels.ca. Retrieved on 2010-11-27.
  136. Oyobe, H. et al. (2005) "Development of Ultra Low-Cost, High-Capacity Power Generation System Using Drive Motor and Inverter for Hybrid Vehicle" Fortieth Industry Applications Conference Annual Meeting.. Retrieved April 23, 2007.
  137. Green Car Congress (September 26, 2005) "Toyota Dream House with Plug-In Prius". Retrieved April 23, 2007.
  138. Green Car Congress (November 18, 2005) "Plugging the Plug-In Hybrid". Retrieved April 20, 2007.
  139. Green Car Congress (September 27, 2006) The Plug-In and BEV Adoption Wild Card: Vehicle-to-Grid. Retrieved April 28, 2007.
  140. Green Car Congress (April 9, 2007) "PG&E Demonstrates Vehicle-to-Grid Technology". Retrieved April 20, 2007.
  141. News.com (April 9, 2007) "PG&E sees plug-in hybrids as potential profit centers"
  142. Liotsakis, P. (2007) "Cars, Power Plants and 'Cash Back Hybrids'" LiveNeutral (Presidio School of Management and Chicago Climate Exchange) accessed July 12, 2007.
  143. 143.0 143.1 143.2 National Research Council (2010). "Transitions to Alternative Transportation Technologies--Plug-in Hybrid Electric Vehicles". The National Academies Press. Retrieved on 2010-03-03.
  144. 144.0 144.1 144.2 Jad Mouawad and Kate Galbraith (2009-12-14). "Study Says Big Impact of the Plug-In Hybrid Will Be Decades Away", New York Times. Retrieved on 2010-03-04.
  145. 145.0 145.1 145.2 145.3 National Research Council (2009-12-14). "Plug-In Hybrid Vehicle Costs Likely to Remain High, Benefits Modest for Decades". National Academy of Sciences. Retrieved on 2010-03-04.
  146. Hiroko Tabuchi (2009-12-14). "Toyota to Sell Plug-In Hybrid in 2011", New York Times. Retrieved on 2010-02-03.
  147. "Lithium Phosphate Battery - Energy Storage Systems". Valence.com. Retrieved on 2010-11-27.
  148. OEMtek: Prius Plug-in Hybrid Electric Vehicle (PHEV)
  149. A123 Systems, Inc. (2008) "Convert your hybrid electric vehicle into a plug-in hybrid electric vehicle" Hymotion.com
  150. Alan L. Madian et al (2009). "Chapter 5: The Impact of Plug-in Hybrids on U.S. Oil Use and Greenhouse Gas Emissions". Retrieved on 2010-03-07. in "Plug-in Electric Vehicles: What Role for Washington?" pp.96, The Brookings Institution, ISBN 978-0-8157-0305-1
  151. 151.0 151.1 Kevin Morrow et al (November 2008). "Plug-in Hybrid Electric Vehicle Charging Infrastructure Review. Final Report". U.S. Department of Energy Vehicle Technologies Program. Retrieved on 2010-03-07.
  152. 152.0 152.1 152.2 152.3 Todd Woody and Clifford Krauss (2010-02-14). "Cities Prepare for Life With the Electric Car", New York Times. Retrieved on 2010-03-07.
  153. "Moving Forward in Raleigh PGR Plan". Project Get Ready. Retrieved on 2010-03-07.
  154. 154.0 154.1 RechargeIT Driving Experiment - RechargeIT is a program sponsored by Google.org, a non-profit created by Google.
  155. 155.0 155.1 Knipping, E. and Duvall, M. (June 2007) "Environmental Assessment of Plug-In Hybrid Electric Vehicles Volume 2: United States Air Quality Analysis Based on AEO-2006 Assumptions for 2030" Electric Power Research Institute and Natural Resources Defense Council. Retrieved July 21, 2007.
  156. Clayton, M. (September 25, 2006) "A reality check on plug-in hybrids" The Christian Science Monitor
  157. Kanellos, M. (April 28, 2006) "Plug in your hybrid, pollute less?" cNet News.com
  158. National Academy of Science (Oct. 19, 2009) "Hidden Costs of Energy: Unpriced Consequences of Energy Production and Use"
  159. Technology Options 2003. (2003). US Climate Change Technology Program.
  160. "Question: Where can I find data on electricity transmission and distribution losses?". Frequently Asked Questions – Electricity. U.S. Energy Information Administration (2009-11-19). Retrieved on 2010-03-28.
  161. Pacific Gas and Electric (2008) "Understanding Baseline Quantities"
  162. Pacific Gas and Electric (2008) Explanation of Residential Bill
  163. Pacific Gas and Electric Tariff Schedule E-9, "Experimental Residential Time-of-Use Service for Low Emission Vehicle Customers" (from PG&E Tariff Book)
  164. Bullis, K. (December 21, 2006) "How Plug-in Hybrids Will Save the Grid" Technology Review
  165. Lemoine, D.M. et al. (2008), "An innovation and policy agenda for commercially competitive plug-in hybrid electric vehicles", Environmental Research Letters 3(1): 14003. doi: 10.1088/1748-9326/3/1/014003 , http://www.iop.org/EJ/article/1748-9326/3/1/014003/erl8_1_014003.pdf?request-id=02892972-5243-4e0d-8802-a6e09c6471d0.
  166. "Página sobre el Salar (Spanish)". Evaporiticosbolivia.org. Retrieved on 2010-11-27.
  167. 167.0 167.1 167.2 167.3 Simon Romero (02-02-2009). "In Bolivia, Untapped Bounty Meets Nationalism", New York Times. Retrieved on 28-02-2010.
  168. Irving Mintzer (2009). "Chapter 6: Look Before You Leap: Exploring the Implications of Advanced Vehicles for Import Dependence and Passerger Safety". Retrieved on 2010-03-07. in "Plug-in Electric Vehicles: What Role for Washington?", The Brookings Institution, ISBN 978-0-8157-0305-1
  169. 169.0 169.1 169.2 169.3 Clifford Krauss (03-09-2009). "The Lithium Chase", New York Times. Retrieved on 03-10-2010.
  170. 170.0 170.1 Jerry Garret (2010-04-15). "A Case for and Against Electric Cars". New York Times. Retrieved on 04-17-2010.
  171. 171.0 171.1 171.2 171.3 "USGS Mineral Commodities Summaries 2009". U. S. Geological Survey (January 2009). Retrieved on 2010-03-07. See page 95.
  172. Hammond, C. R. (2000). The Elements, in Handbook of Chemistry and Physics 81st edition. CRC press. ISBN 0849304814.
  173. 173.0 173.1 173.2 Sperling, Daniel and Deborah Gordon (2009). Two billion cars: driving toward sustainability. Oxford University Press, New York, 22 to 26 and 114–139. ISBN 978-0-19-537664-7.
  174. 174.0 174.1 (2009) in David B. Sandalow: Plug-In Electric Vehicles: What Role for Washington?, 1st., The Brookings Institution, 2–5. ISBN 978-0-8157-0305-1.
  175. 175.0 175.1 "Environmental Assessment of Plug-In Hybrid Electric Vehicles, Volume 2: United States Air Quality Analysis Based on AEO-2006 Assumptions for 2030" (PDF). Archived from the original on 2007-11-28. Retrieved on 2010-11-27.
  176. 176.0 176.1 Kliesch, J. and Langer, T. (September 2006) "Plug-In Hybrids: an Environmental and Economic Performance Outlook" American Council for an Energy-Efficient Economy
  177. Williams, E.(November 2008) "Plug-in and regular hybrids: A national and regional comparison of costs and CO2 emissions." Nicholas School of the Environment at Duke University
  178. Toman, M. et al. (2008) "Impacts on U.S. Energy Expenditures and Greenhouse-Gas Emissions of Increasing Renewable-Energy Use" RAND Environment, Energy, and Economic Development program (RAND Tech Rep. No. 384-1)
  179. Minnesota Pollution Control Agency (March 2007) "Air Emissions Impact of Plud-In Hybrid Vehicles in Minnesota's Passenger Fleet"
  180. Timothy Searchinger et al. (2008-02-29), "Use of U.S. Croplands for Biofuels Increases Greenhouse Gases Through Emissions from Land-Use Change", Science 319(5867): 1238–1240. PMID 18258860. doi: 10.1126/science.1151861 , http://www.sciencemag.org/cgi/content/abstract/1151861. Retrieved on .  Originally published online in Science Express on 7 February 2008. See Letters to Science by Wang and Haq. There are critics to these findings for assuming a worst case scenario.
  181. Fargione et al.; Hill, J; Tilman, D; Polasky, S; Hawthorne, P (2008-02-29), "Land Clearing and the Biofuel Carbon Debt", Science 319(5867): 1235–1238. PMID 18258862. doi: 10.1126/science.1152747 , http://www.sciencemag.org/cgi/content/abstract/1152747. Retrieved on .  Originally published online in Science Express on 7 February 2008. There are rebuttals to these findings for assuming a worst case scenario
  182. 182.0 182.1 Stanton W. Hadley and Alexandra Tsvetkova (January 2008). "Potential Impacts of Plug-in Hybrid Electric Vehicles on Regional Power Generation". Oak Ridge National Laboratory. Retrieved on 2010-08-23. Report ORNL/TM-2007/150
  183. Michael Moyer (July 2010). "The Dirty Truth about Plug-in Hybrids", Scientific American. Retrieved on 2010-08-23.
  184. "Different energy mixes will fuel plug-in hybrid cars". Argonne National Laboratory (2010-08-17). Retrieved on 2010-08-23.
  185. Amgad Elgowainy, J. Han, L. Poch, M. Wang, A. Vyas, M. Mahalik, and A. Rousseau (June 2010). "Well-to-Wheels Analysis of Energy Use and Greenhouse Gas Emissions of Plug-in Hybrid Electric Vehicles". Argonne National Laboratory. Retrieved on 2010-08-23.
  186. "The Dirty Truth about Plug-in Hybrids, Made Interactive", Scientific American (July 2010). Retrieved on 2010-08-22.  Click on the map to see the results for each region.
  187. 187.0 187.1 "Calcars.org". Calcars.org. Retrieved on 2010-11-27.
  188. 188.0 188.1 "BYD Plans to Start European Car Sales Next Year". Bloomberg Business Week (2010-03-08). Retrieved on 2010-03-24.
  189. Johnson, Bobbie (2009-09-23). "Chinese electric car maker upbeat despite gloomy sales", The Guardian. Retrieved on 2010-03-16.
  190. BYD to Launch Electric Car Sales in China Next Month -EVWorld
  191. "First Chevy Volts Reach Customers, Will Out-Deliver Nissan in December". plugincars.com (2010-12-16). Retrieved on 2010-12-17.
  192. "GM U.S. Deliveries for December 2010". General Motors (2011-01-04). Retrieved on 2011-01-04.
  193. 193.0 193.1 193.2 Peter Valdes-Dapena (2010-07-01). "Chevy Volt bound for Texas, New York area", CNN Money. Retrieved on 2010-07-01.
  194. 194.0 194.1 194.2 Jim Motavalli (2010-07-01). "Chevy Volt’s Initial Rollout to Include New York City", New York Times. Retrieved on 2010-07-01.
  195. "Volt’s Nationwide Rollout Could Stretch Into 2012". The Detroit Bureau (2010-06-21). Retrieved on 2010-06-28.
  196. "How to Get a Plug-In Hybrid". Calcars.org. Retrieved on 2010-11-27.
  197. "Hybrid Daily". Micro-Vett. Archived from the original on December 16, 2006. Retrieved on April 21, 2007.
  198. Green Car Congress: EPRI, Ford and Eaton Developing Plug-in Hybrid Utility Trouble Truck. Retrieved April 23, 2007.
  199. Odyne Corporation press release: Odyne Corp. Announces Exclusive Agreement with Dueco, Inc.
  200. "Florida Plug-In Hybrid School Buses to Go into Service". Retrieved April 22, 2007.
  201. "UNEP news about plug-in school buses" (PDF). Retrieved on 2010-11-27.
  202. Green Car Congress: Piaggio Launches Two Plug-In Hybrid Vespa Scooters. Retrieved April 28, 2007.
  203. Signal - AFCEA's International Journal "Hybrid Vehicle Cruises for Battle". Retrieved April 23, 2007.
  204. Hybrids by Fisher: Buses would double mpg. Retrieved August 18, 2008.
  205. CalCars (2008) "How Carmakers are Responding to the Plug-In Hybrid Opportunity" calcars.org. Retrieved January 22, 2008.
  206. "XR3 Hybrid: Personal Mobility Vehicle (PMV) Automotive Prototype Project". Rqriley.com. Retrieved on 2010-11-27.
  207. Kahn, C. (April 7, 2008) California Company Develops Plug-In Hybrid National Public Radio, accessed January 7, 2009, profiles EnergyCS, developing a Prius conversion service
  208. Evarts, E. (January 11, 2008) "Charge! Fuel economy law promotes plug-in hybrids," Consumer Reports Cars Blog. Retrieved January 15, 2008.
  209. "Barack Obama and Joe Biden: The Change We Need | New Energy for America". My.barackobama.com (2008-06-22). Retrieved on 2009-04-11.
  210. "President Obama Announces $2.4 Billion for Electric Vehicles". Apps1.eere.energy.gov. Retrieved on 2010-11-27.
  211. "Loc.gov" (PDF). Retrieved on 2010-11-27.
  212. "Conference Results: Stunning Expansion of Plug-In Tax Credits". Calcars.org (2009-02-12). Retrieved on 2009-04-11.
  213. "Do You Realize Plug-Ins Get $5-$10+ Billion in Stimulus Package?". Calcars.org (2008-12-31). Retrieved on 2009-04-11.
  214. ; see Part V on pages 212-219, of the signed bill text[dead link]
  215. "EERE News: President Obama Announces $2.4 Billion for Electric Vehicles". Apps1.eere.energy.gov (2009-03-19). Retrieved on 2009-04-11.
  216. "Govtrack.us". Govtrack.us. Retrieved on 2010-11-27.
  217. "GPO.gov" (PDF). Retrieved on 2010-11-27.
  218. "Calcars.org". Calcars.org (2009-11-12). Retrieved on 2010-11-27.
  219. Department of Energy - DOE Announces $30 Million for Plug-in Hybrid Electric Vehicle Projects
  220. "Energy.gov". Apps1.eere.energy.gov. Retrieved on 2010-11-27.
  221. Department of Energy and Sweden Sign MOU to Advance Market Integration of Plug-in Hybrid Vehicles
  222. 222.0 222.1 San Francisco Office of the Mayor (November 20, 2008) "Mayors Aim to Make San Francisco Bay Area the Electric Vehicle Capital of the U.S." sfgov.org
  223. 223.0 223.1 "SF Plug-In Vehicle Bonanza:Watch Video, Read About It". Calcars.org. Retrieved on 2009-04-11.
  224. "Climate Change - What are we doing about it in Washington State? - Electrify Transportation". Ecy.wa.gov. Retrieved on 2010-11-27.
  225. "Seattle Mayor Introduces City's First PHEV". Green Car Congress (2008-05-31). Retrieved on 2010-11-27.
  226. "GM Media Online". Media.gm.com (2009-02-03). Retrieved on 2009-04-11.[dead link]
  227. "City of Toronto: Fleet Services - Information on our Green vehicles". Toronto.ca (2000-10-23). Retrieved on 2010-11-27.
  228. "A Plan For Ontario: 1 In 20 By 2020". Government of Ontario (July 14, 2009). Retrieved on 2009-07-14.
  229. "Ec.europa.eu". Ec.europa.eu. Retrieved on 2010-11-27.
  230. Environmental Leader (October 13, 2008) "French President Gives EVs, Hybrids Green Light" environmentalleader.com
  231. Loveday, Eric (2010-07-13). "Video: Hydrogen-powered buses in Hamburg are fueled by the wind — Autoblog Green". Green.autoblog.com. Retrieved on 2010-11-27.
  232. (Spanish) Idea.es
  233. Brown, G. (November 19, 2007) "Speech on Climate Change" Number10.gov.uk
  234. Transport for London "Congestion Charge consultation" "cclondon.com"
  235. Toyota (GB) PLC (22 June 2010) "Toyota and EDF Energy launch UK Prius Plug-in Hybrid Vehicle leasing programme", Today / Tomorrow blog; Flickr set. Retrieved 24 June 2010.
  236. World Wildlife Foundation (April 2, 2008) "Cars should plug-in to a new future" panda.org
  237. "Obama's Briefing; Sandalow To DOE; Automaker News; Nat'l Wildlife Federation Embraces PHEVs". Calcars.org (2009-03-27). Retrieved on 2009-04-11.
  238. "Progress on Prepayment Plan/Battery Worry Hype". Calcars.org. Retrieved on 2009-04-11.
  239. "Plug-In Endorsements: Inauguration + Senate '09 Freeedom Act". Calcars.org (2009-01-16). Retrieved on 2009-04-11.
  240. "Senate Alert/GM Reaches Out/EDTA/Tracking Carmakers/TED/Wellinghoff". Calcars.org. Retrieved on 2009-04-11.
  241. "Set America Free Coalition - Energy Independence through Fuel Choice - Home". Setamericafree.org. Retrieved on 2010-11-27.
  242. "Plug-in Hybrid Electric School Bus". Advancedenergy.org. Retrieved on 2010-11-27.
  243. "Businesswire.com". Businesswire.com (2009-09-24). Retrieved on 2010-11-27.
  244. Shnayerson, Michael (1996-08-27). The Car That Could: The Inside Story of GM’s Revolutionary Electric Vehicle. Random House, 194–207, 263–264. ISBN 978-0-679-42105-4.
  245. Coker, M. (2003-05-15). "Dude, Wheres My Electric Car!?!". Orange County Weekly. Retrieved on 2009-10-08.
  246. Greenberg J. (2008-10-14). "The Edison of our Age: Stan Ovshinsky and the Future of Energy (Video Interview Part 1)". The Energy Roadmap. Retrieved on 2009-10-08.

External links[]

Past conferences and events[]

News[]

Video[]

Books[]

Smallwikipedialogo This page uses some content from Wikipedia. The original article was at Plug-in hybrid. The list of authors can be seen in the page history. As with Tractor & Construction Plant Wiki, the text of Wikipedia is available under the Creative Commons by Attribution License and/or GNU Free Documentation License. Please check page history for when the original article was copied to Wikia


Advertisement
