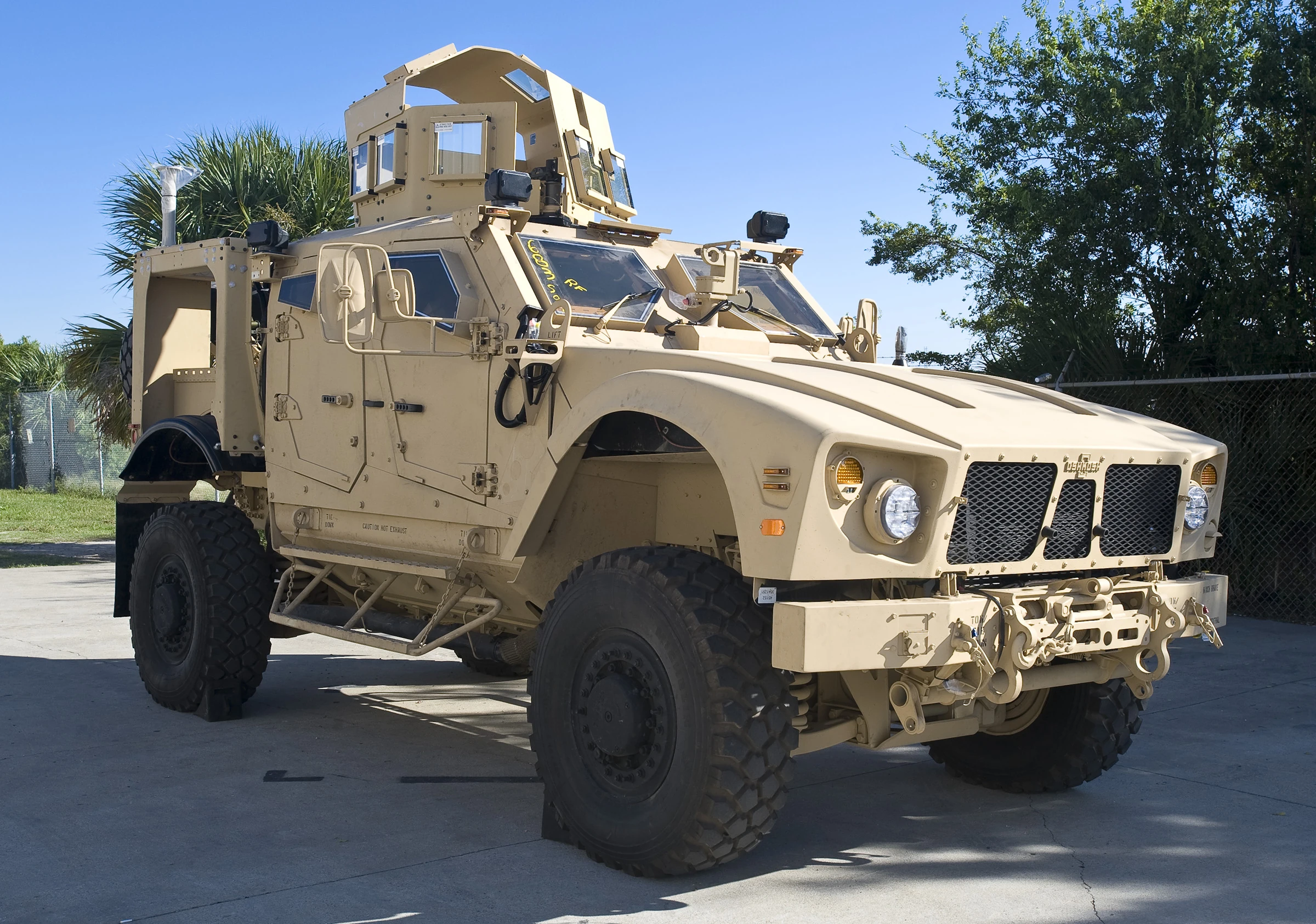

Oshkosh M-ATV[1]
Mine resistant ambush protected ATV
Place of origin Flag of the United States.svg United States
Service history
Used by US Armed Forces, Polish Armed Forces
Wars War in Afghanistan
Production history
Designer Oshkosh / Plasan
Designed 2009
Manufacturer Oshkosh Corporation
Unit cost $470,000+
Produced 2009
Number built 8,108 on order[2]
Weight Curb weight: 25,000 pounds (11,000 kg),

Gross weight: 32,500 pounds (14,700 kg)

Length 246.8 inches (6,270 mm)
Width 98.1 inches (2,490 mm)
Height 105 inches (2,700 mm)
Crew 4+1 gunner

Armor Plasan composite
7.62mm (.308") M240 machine gun, or

40 mm Mk 19 grenade launcher, or
BGM-71 TOW Anti-tank guided missile

Engine 7.2 liter inline-6 Caterpillar C7 turbodiesel
370 bhp; 925 lb-ft
Power/weight 25 hp/ton
Payload capacity 4,000 pounds (1,800 kg)
Transmission Allison 3500SP, 6-speed automatic with manumatic shifting
Suspension 4x4, TAK-4 independent suspension
320 miles (510 km)
Speed 65 miles per hour (105 km/h) (electronically limited)

The Oshkosh M-ATV is an MRAP (Mine Resistant Ambush Protected) vehicle developed by the Oshkosh Corporation of Oshkosh, Wisconsin. It is designed to provide the same levels of protection as the larger and heavier previous MRAPs but with improved mobility and it is intended to replace M1114 HMMWVs.[3]


The M-ATV utilizes the MTVR chassis and TAK-4 suspension with the Plasan designed armored hull developed for the Northrop Grumman/Oshkosh JLTV.[4] The V-shaped Plasan armored hull offers protection for the occupants from IED attacks while the centrally inflated run-flat tires allow the M-ATV to travel at least 30 miles at 30 mph even if two tires lose pressure. The vehicle can also take a 7.62 mm round to its engine oil/coolant/hydraulic system and continue to drive for at least one kilometer. The Tak-4 suspension is coil sprung and fully independent, and offers 16 inches of travel. The M-ATV's roof mounted turret is capable of mounting weapons such as a M240 machine gun, a Mk 19 grenade launcher or, a BGM-71 TOW anti-tank guided missile launcher. The roof weapons can be operated either from the turret or remotely inside the cabin. The M-ATV also features modern vehicle safety systems such as Traction control and anti-lock brakes in addition to modern creature comforts such as an HVAC system and power outlets for charging personal portable electronic devices.[3]

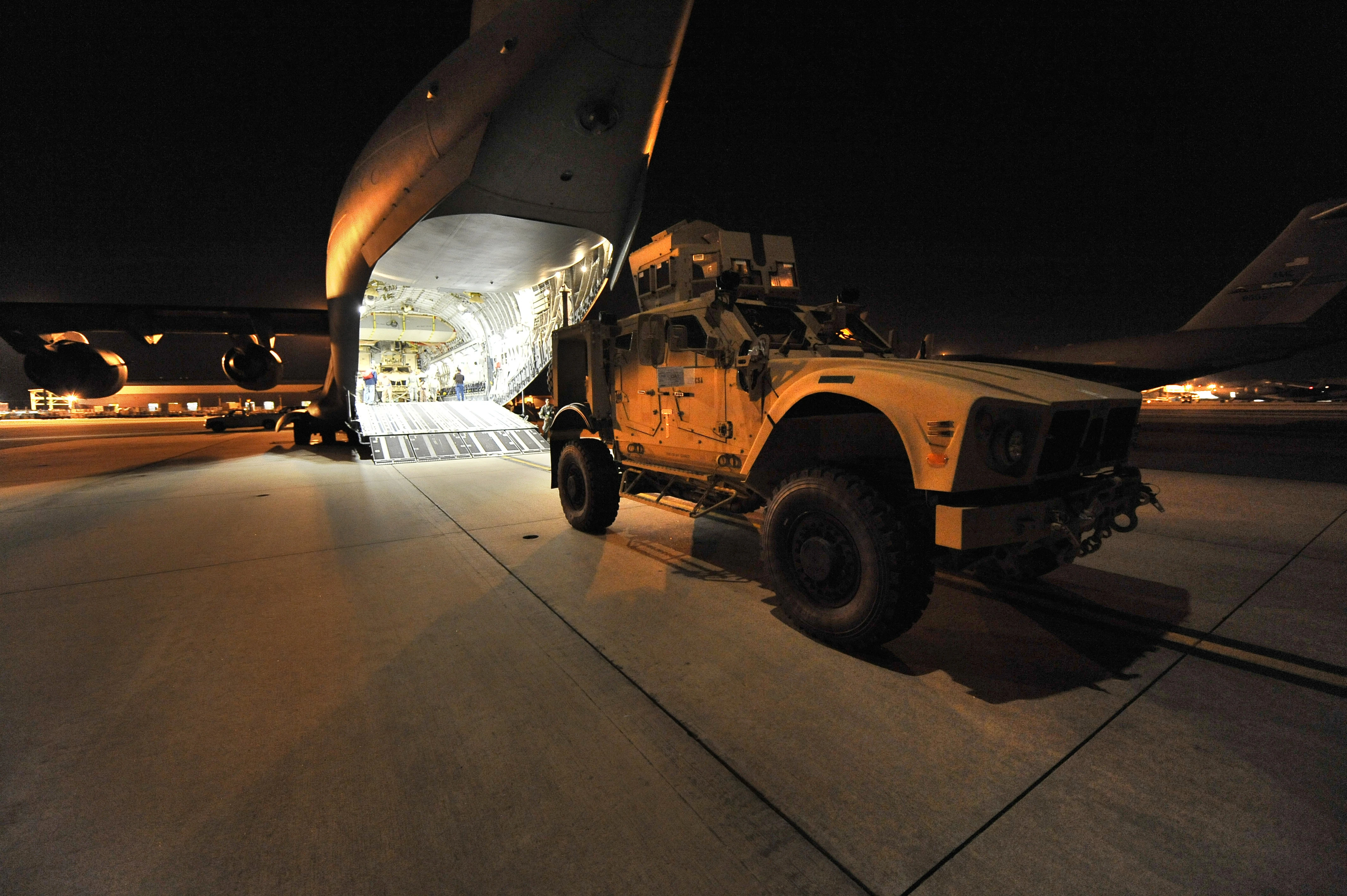

1st M-ATV loaded at Charleston

First of the M-ATVs on its way to Afghanistan

Originally one of five candidates down selected for the M-ATV (MRAP All Terrain Vehicle) program, the Oshkosh M-ATV was chosen on 30 June 2009 to be the sole winner of the contest. Oshkosh Corporation received an initial order for 2,244 vehicles in a contract worth US$1.06B.[5][6]

According to the United States Marine Corps program officer for MRAP, Brigadier General Michael Brogan, the Oshkosh M-ATV was chosen because it had the best survivability and Oshkosh had the best technical and manufacturing capabilities of all the competitors. The Oshkosh bid was also the second cheapest. The first vehicles arrived in Afghanistan in October 2009 and all should be delivered by March 2010.[7][8][9][10][11]

Additional contracts have increased M-ATVs orders to 8,108 as of September 2010.[6][2]

See alsoEdit


Smallwikipedialogo This page uses some content from Wikipedia. The original article was at Oshkosh M-ATV. The list of authors can be seen in the page history. As with Tractor & Construction Plant Wiki, the text of Wikipedia is available under the Creative Commons by Attribution License and/or GNU Free Documentation License. Please check page history for when the original article was copied to Wikia

  1. Oshkosh M-ATV brochure
  2. 2.0 2.1 "M-ATV Production Nears End; Future Contracts Loom"., September 22, 2010.
  3. 3.0 3.1 Tegler, Eric. "Oshkosh M-ATV - Specialty File". Car and Driver magazine, January 2010.
  4. "Oshkosh wins $1 billion contract for bomb-resistant trucks"., July 1, 2009.
  5. Pentagon ships new M-ATVs to Afghanistan, October 1, 2009.
  6. 6.0 6.1 M-ATV: A Win, at Last, for Oshkosh. Defense Industry Daily, 21 September 2010.
  7. M-ATV's to be in Afghanistan by October., July 1, 2009.
  8. Oshkosh to make new M-ATV., July 1, 2009
  9. Oshkosh awarded Army contract for All-Terrain Vehicles, July 1, 2009.
  10. Delivering the most well-protected vehicle for the warfighter.
  11. Cole, August "Oshkosh Wins $1.06 Billion Job for Mine-Resistant Trucks". Wall Street Journal (online), July 1, 2009.
