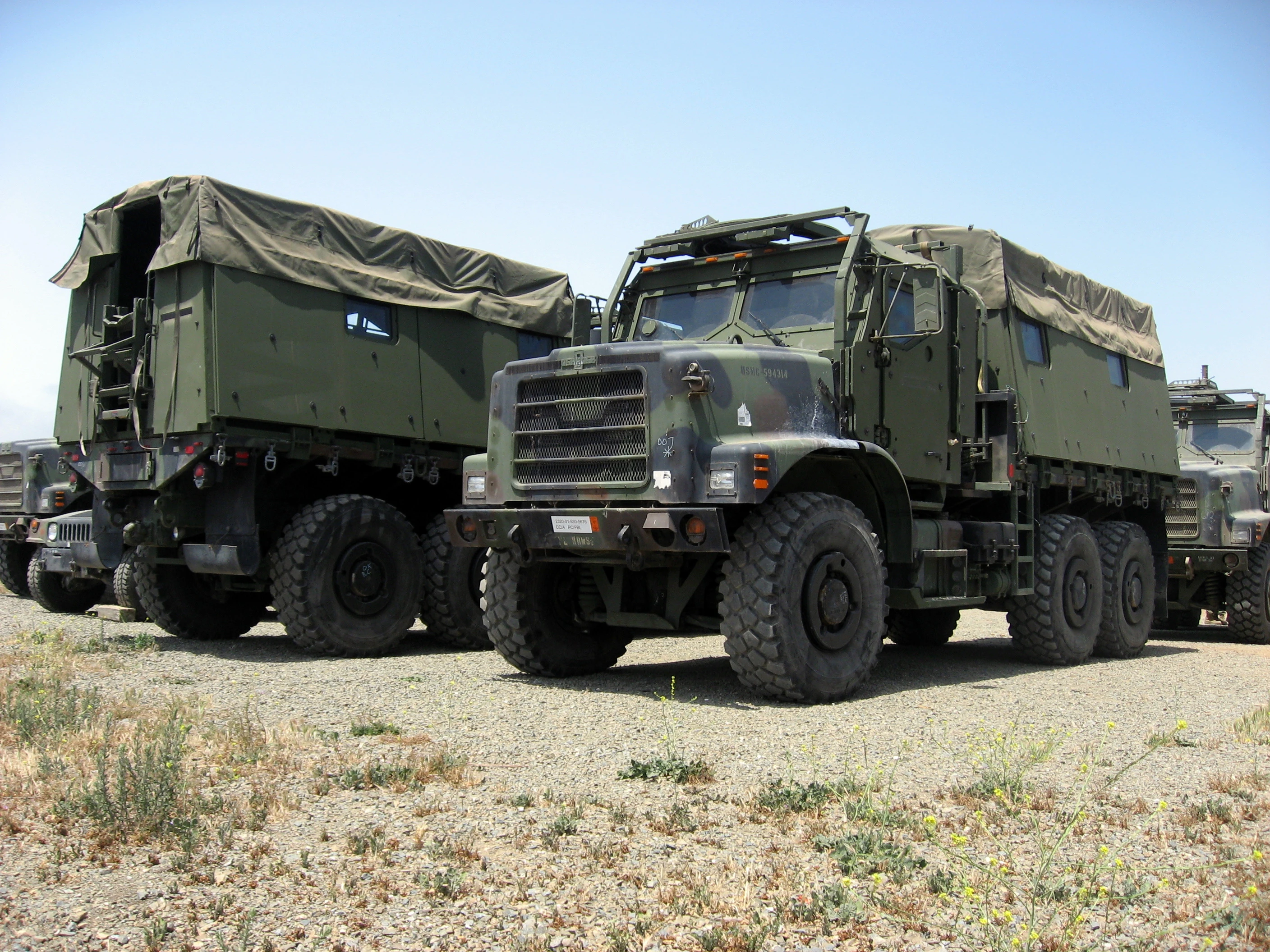

Two MK23 MTVR's equipped with Plasan MAS armor at Camp Pendleton, California
MTVR convoy in Iraq

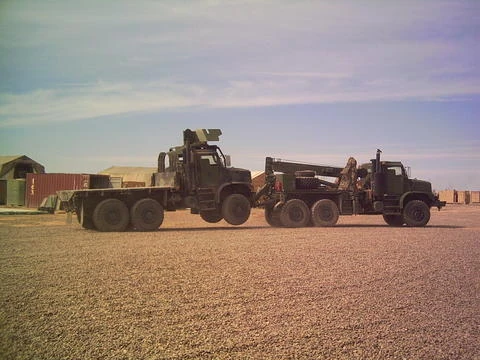

An MK36 wrecker lift towing an MK23 at Camp Fallujah, Iraq, December 2004.
The MK36 wrecker at Camp Foster, Okinawa, 18 March 2005.

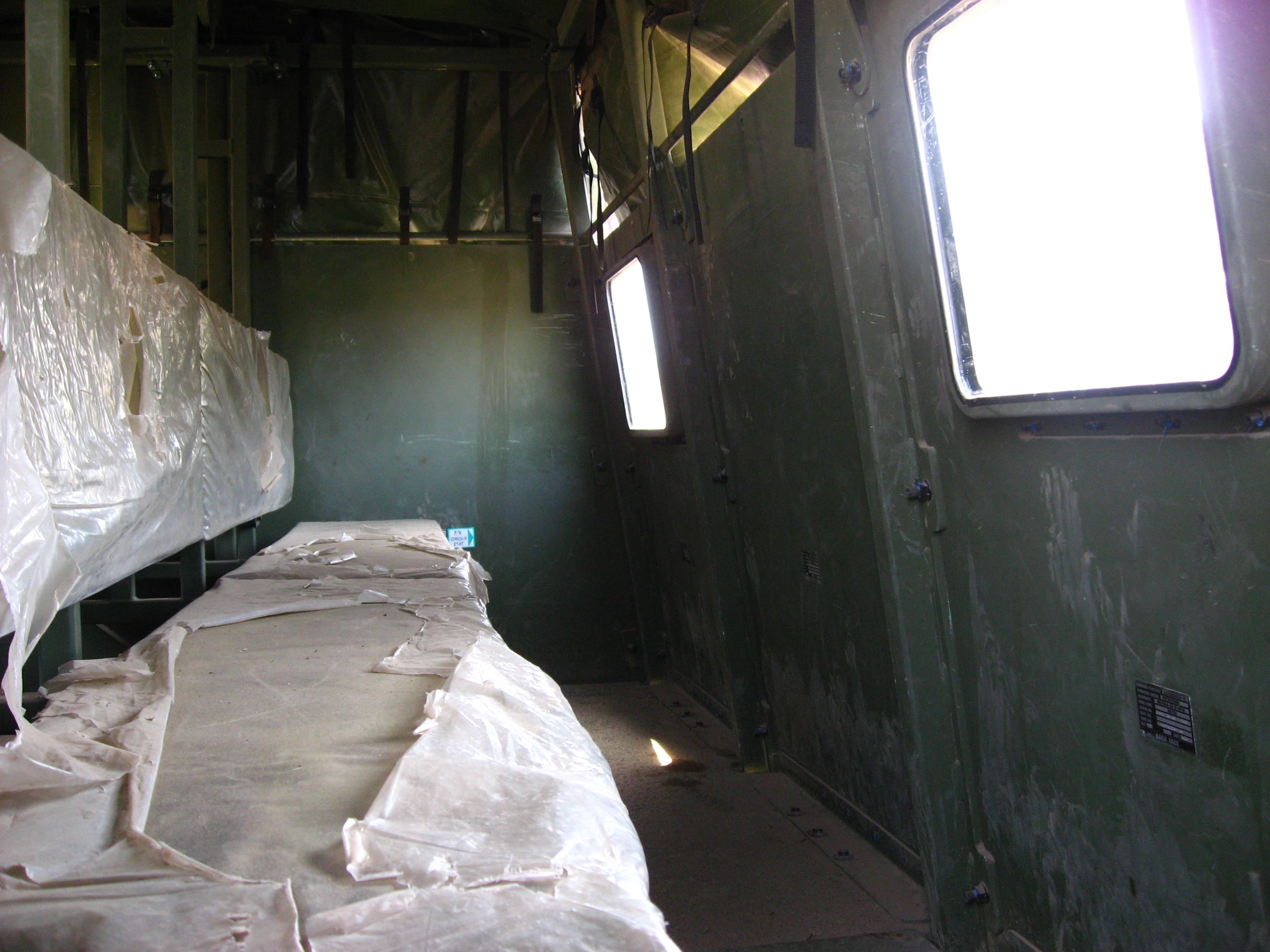

Interior of MAS armor troop carrier.
Medium Tactical Vehicle Replacement (MTVR) or 7-Ton, is a six-wheel drive all-terrain vehicle used by the United States Marine Corps and United States Navy.
It is designed to replace the old M939 tactical trucks, and was first fielded in 1998, after the contract was awarded to Oshkosh Truck Corporation. The MTVR comes in several variants, for a wide spectrum of tasks. It offers a major improvement in offroad capability.
The MTVR is often referred to as a 7-Ton as this denotes the vehicle's off-road cargo capacity. The MTVR's maximum payload on paved surfaces is 15 tons. The MTVR is the Marine Corps prime mover for the M777 howitzer, fuel and water assets, troops and a wide variety of equipment. Its wide versatility and offroad capability make the MTVR an integral part of the Marine Corps logistical backbone.
Variants[]
There are nine variations[1] of the 7-ton MTVR:
- MK23 Cargo, standard wheelbase, w/o Self-Recovery Winch
- MK25 Cargo, standard wheelbase, w/ Self-Recovery Winch
- MK27 Cargo, extra-long wheelbase, w/o Self-Recovery Winch
- MK28 Cargo, extra-long wheelbase, w/ Self Recovery Winch
- MK29 Dump, standard wheelbase, w/o Self-Recovery Winch
- MK30 Dump, standard wheelbase, w/ Self-Recovery Winch
- MK31 Tractor, standard wheelbase w/ all-wheel steering
- MK36 Wrecker, extra-long wheelbase
- MK37 High Mobility Artillery Rocket System
Standard wheelbase is 15.3 feet; extra-long wheelbase is 18 feet.
Features[]
- All MTVR's are equipped with a Central Tire Inflation System (CTIS). This allows the operator to select tire inflation pressures in accordance to vehicle payload and terrain type.
- Extra-long wheelbase MTVR's are capable of hauling a 1 TEU sized Shipping Container.
- MK 23 through MK 29 MTVR models have stowable dropsides. This allows for flexibility in moving cargo and troops.
- All models feature a built-in turret stand and roof opening for operating vehicle-mounted weapons.
- Some MTVRs are fitted with an armor kit designed and produced by Plasan.[2]
Concerned Military Occupational Specialties[]
United States Marine Corps
Operation and 1st Echelon Maintenance of the MTVR and fall under the 3531 MOS Part of the larger 3500 series of MOS concerned with Motor Transport. Maintenance beyond the 2nd Echelon is the responsibility of Marines with the 3521 Organizational Automotive Mechanic MOS.
United States Navy
MTVR's are operated primarily by Seabees in Naval Mobile Construction Battalions with an EO (Equipment Operator) rating. Maintenance is the responsibility of Construction Mechanics (CM).
Operators[]
See also[]
- Logistics Vehicle System (LVS)
- Oshkosh M-ATV
References[]
|
This page uses some content from Wikipedia. The original article was at Medium Tactical Vehicle Replacement. The list of authors can be seen in the page history. As with Tractor & Construction Plant Wiki, the text of Wikipedia is available under the Creative Commons by Attribution License and/or GNU Free Documentation License. Please check page history for when the original article was copied to Wikia |
- ↑ "MTVR brochure" (PDF). Oshkosh Truck Corporation (May, 2005). Retrieved on 2006-12-31.
- ↑ Medium Tactical Vehicle Replacement (MTVR) Armor Protection Kit [APK] Marine Armor System (MAS)
