McCormick-Deering W-4
McCormick-Deering W-4

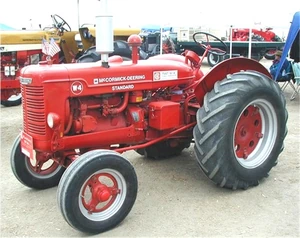

McCormick-Deering W-4 Standard, photo of restored tractor at tractor show
Model history
Model introduced 1940
Model discontinued 1953
Model status Discontinued
No. produced 33968 (includes W-4, O-4, OS-4, I-4)
Preceded by 10-20
Superseded by Super W-4
Engine Specification
Engine make International
Engine model C-152
Fuel type gasoline
Power hp 24 belt, 21 drawbar
Governed rpm 1650
Displacement cu in /(litre) 152 ci
No. of Cylinders 4
Bore in (mm) 3.375 in
Stroke in (mm) 4.25 in
Cooling system Water
Naturally aspirated, Turbo or Supercharged na
Transmission Details
Transmission type sliding gear
Clutch Rockford single dry disc
Gearbox make International
Forward 5
Reverse 1
Drive 2-WD
General Data
Linkage Category drawbar
Tyre Sizes (std/options)
Front 6.00-16 4-ply
Rear 13-26 6-ply
Tractor Dimensions
Length (inches/metres) 114 in
Width (inches/meters) 59 in
Height (inches/meters) 67 in
Weight (nominal) lb/kg 3890 lb
Turning circle (nominal) inches/meters 20 ft
Wheelbase 67 in
Other info
Factories Rock Island, Illinois, USA
Plow rating 2-14"
Nebraska Tests No. 353
Approximate Cost new in (year) $959 (1940)
This box: view · talk

The McCormick-Deering W-4 was built by International Harvester from 1940 to 1953 in Rock Island, Illinois, USA.

Model History Edit

For Company history see
Main article: International Harvester

International Harvester introduced a new styled W-series of standard 4-wheel tractors in 1940. Production was slow getting started so the older unstyled W-series was continued through the year as well. The new W-4 eventually took the place of the old 10-20.

The W-4 used the same 152 ci ohv 4-cylinder gasoline engine and 5-speed transmission as the Farmall H. However, the standard-tread W-4 had a unit frame instead of the straight frame on the H row-crop model. The W-4 was available with steel wheels but most tractors were equipped with rubber tires. The rated power output was 24 belt hp and 21 drawbar hp. See Nebraska test results for gasoline engine below.

Only 213 W-4s were built in 1940 but full production in 1941 turned out 3,554 tractors, making the W-4 the best seller in this class. In 1940 the W-4 competed with the John Deere AR, Oliver 70 Standard, and Case S. The Graham-Bradley 104, Massey-Harris 101 Junior Standard, and Minneapolis-Moline ZTS all had a bit more power. By the late 1940s the John Deere BR and Minneapolis-Moline RTS had grown in power to where they equaled the W-4, and the Massey-Harris MH-30 and Oliver 77 were more powerful.

The W-4 was named McCormick-Deering through about 1945. After that the name was shortened to just McCormick. However, restored tractors may have either decal.

Timeline Edit

Factory locations Edit

  • Farmall Works, Rock Island, Illinois, USA

Specification Edit

See Infobox for basic details

  • Standard tires
    • Front: 6.00-16 4-ply (1940); 22"x3.5" steel (1941); 5.50-16 4-ply (1951)
    • Rear: 12.75-24 6-ply (1940); 40"x8" steel (1941); 13-26 6-ply (1951)

Variations and Options Edit

  • Optional tires
    • Front: 6.00-16 6-ply (1940); 5.50-16 4-ply (1941); 6.50-16 4-ply (1951)
    • Rear: 11.25-24 4 or 6-ply (1941); 11-26 4 or 6-ply, 12-26 6-ply, or 13-26 4 or 6-ply (1947)

Serial Numbers Information Edit

Year Serial no. run
Serial no. run
Number Built[2] Notes
1940 WBH501 942 213 Serial range includes W-4, O-4, OS-4, I-4
1941 943 4055 2741 Number built includes W-4, O-4, OS-4, I-4
1942 4056 5692 1888
1943 5693 7592 1759
1944 7593 11170 3705
1945 11171 13933 2799
1946 13934 16021 1893
1947 16022 18879 2822
1948 18880 21911 2975
1949 21912 24469 2973
1950 24470 28166 3186
1951 28167 31213 3519
1952 31214 33066 2385
1953 33067 34176[3] 1110
Total built 33968

Nebraska test resultsEdit

The Nebraska Tests results for this model;







Bore x Stroke

Rated RPM





Max Pull Lbs







IH 4-152

3-3/8 x 4-1/4




26.21 23.97



Preservation Edit

No information on any of these tractors in preservation is currently available on here.

Do you know of any examples to list ?
List of Preserved McCormick-Deering W-4, O-4 and I-4 tractors
view  talk  edit
Make + Model No.
Reg No.
(if known)
Serial No. Build-Date Engine-Type/Make Owner
(if known)
Photo Were seen/Featured in Other info
Image needed LHB

Image needed LHB

Please add any tractor with known reg or serial no. with Photo if possible.
Create a page (link) for an individual tractor by linking the reg or serial number using reg number or serial number in the relevant column. Then once saved click the red link to start the new page and add info on that tractor.

Gallery Edit

Add extra photos here please.

McCormick-Deering W-4 sn ?6091 at Scammell Gathering 09 - IMG 9198
McCormick-Deering W-4 rear at Scammell Gathering 09 - IMG 9199
A unusual restored McCormick-Deering W-4 now fitted with a Perkins P3 Diesel engine in the UK The rear of the W-4 with the PTO shaft visible
McCormick -Deering W-4 sn ?6091 (left side) at Scammell Gathering 09 - IMG 9200
McCormick-Deering W4 steel
The side view of the W-4
Note: sn plate visible below the air cleaner, mounted on top of bell housing
McCormick-Deering W-4 on steel wheels

See also Edit

Collection related info
  • Shows and Meets - events featuring tractors and other machinery
  • Clubs Listing - List of clubs including various tractor marques
  • Collections - list of private collections with tractors (add yours)
  • Museums - includes museums featuring tractors (please add missing ones)

References / Sources Edit

  1. 1.0 1.1 Wendel, C. H., 150 Years of International Harvester, Crestline Publishing, Sarasota, Florida, 1981
  2. Klancher, Lee, International Harvester Photographic History, Motorbooks International, Osceola, Wisconsin, 1996
  3. Baumheckel, Ralph and Borghoff, Kent, International Farm Equipment Product History, American Society of Agricultural Engineers, St. Joseph, Michigan, 1997
