Massey Ferguson 135

Massey Ferguson 135

A restored MF 135 on the MF 50 year display at GDSF in 2008
Model history
Model introduced	1964
Model discontinued	Unknown
Model status	Unknown Discontinued
No. produced	Unknown
Preceded by	Massey Ferguson 35
Superseded by	Massey Ferguson 200 series
Engine Specification
Engine make	Perkins Continental
Engine model	AD3.152
Fuel type	Diesel Gasoline
Power hp	37
Power kW	28
Governed rpm	{{{governedrpm}}}
Displacement cu in /(litre)	152 cu in
No. of Cylinders	3
Naturally aspirated, Turbo or Supercharged	NA
Transmission Details
Transmission type	3 x 2 (hi/low) (Multi-Power option)
Gearbox make	MF
Forward	6
Reverse	2
Drive	2WD
Linkage Category	Unknown
Cab Details
Cab Make	MF (option)
Other info
Plow rating	Unknown
Nebraska Tests No.	Unknown
Approximate Cost new in (year)	£840 (1964)
Notes	One of the Massey Ferguson 100 Series Launched in 1964

The Massey Ferguson 135 ('MF 135) was introduced in 1964 as part of the Massey Ferguson 100 series of world wide tractors to replace the ageing Massey Ferguson 35 that was a updated Ferguson FE-35 design from the 1940s. It had a 37 hp (28 kW) Perkins or Continental engine.

Model history

For The Company history, see Massey Ferguson.

The Massey Ferguson 100 series was introduced to be a world wide range to replace the former Massey-Harris and Ferguson tractors many of which were still based on pre-war designs. The basic design was still a development of the Ferguson design.

The Model was introduced in the USA first built at MF's Detroit plant. The UK version was built at Coventry and was designed around the Perkins 3-cylinder engine. The design also moved to a 12 speed gearbox.

Spec

For basic spec see the table.

Options / Variations

• USA had a optional Continental Motors Company Gasoline engine.

Serial / 9A83539 numbers

• Add serial number data table here

The production of the new tractor was nearly 13,000 from the Detroit factory in 1965. With 44,246 built in 1966 from both factories.

Preservation

These are a popular model as there were loads built and many people remember owning or operating them when they were younger. There are also a number of 'special' variations available for the collector looking for more obscure tractors. Parts are readily available and they were better engineered than the early pre war models, and tidy examples can still be found in ex farm condition that is tired body work but mechanically still sound.

List known examples here

-each tractor can have its own page linked from here for more details. e.g the story of its restoration or its life history - linked via the reg no or serial number.

• SFL 315K a 196? MF 135 Multipower sn 135/48111/FG that has been professional restored back to original condition.

Massey Ferguson 135 tractors in preservation

Base Model No.	Reg No. (if known)	Serial No.	Build-Date	Engine-Type/Make	Owner (if known)	Photo	Were seen/Featured	Other info
MF 135	HPY 170D+	sn unknown	?	Perkins	?		At Duncombe Park Steam Rally 2009	Fitted with P.A.V.T. rear wheels. Supplied new by Glovers Farm Services.
MF 135 Multipower	SFL 315K+	sn 135/48111/FG	196?	Perkins	owner ?		?	A professionally restored example.

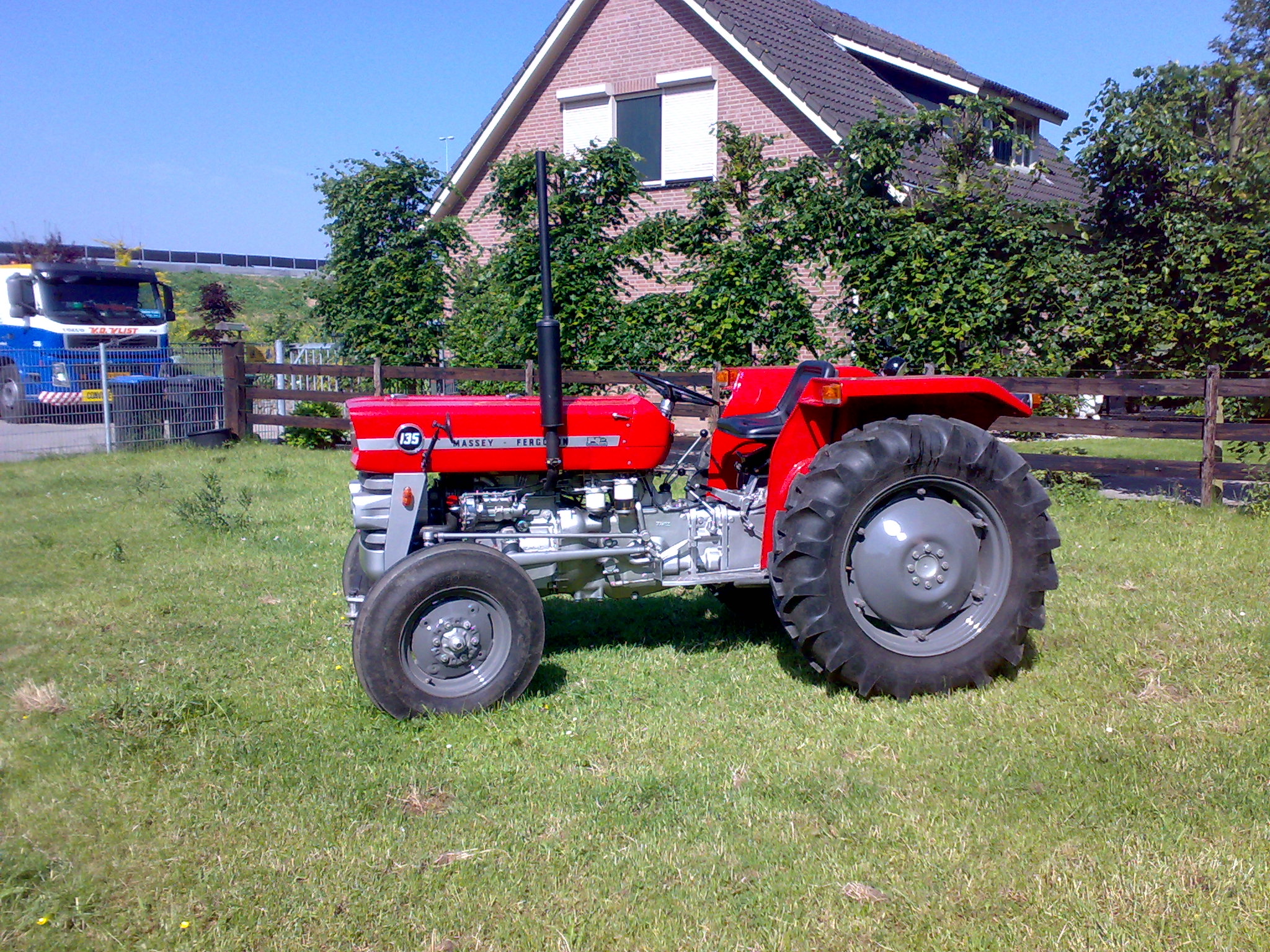

MF 135	?	?	?	Perkins	Koos van Diejen		Velddriel at Willem Quick backjard	A perfect restored MF 135 French edition
MF 134 4-WD	?	?	?	Perkins	Owner ?		at Driffield Steam and Vintage Rally 2008	Fitted with Four-wheel drive
MF 135	FCJ 822D+	sn ?	year ?	Perkins	Owner ?		Seen at Somerset Vintage & Classic Tractor Show 2013	Fitted with a Lambourn cab
MF 135	reg no.	serial number	year	engine	Owner ?		Seen at
MF 135	reg no.	serial number	year	engine	Owner ?		Seen at
MF 135
MF 135	reg no.	serial number	year	engine	Owner ?		Seen at
Please add any tractor with known reg or serial no. with Photo if possible, with summary of changes. (More detail can go on tractors own page)
Create a page (link) for an individual tractor by linking the reg or serial number using [[Tractor make-model-reg no.|reg number]] or [[Tractor make-model-serial no.|serial number]] in the relevant column. Then once saved click the red link to start the new page and add info on that tractor.
