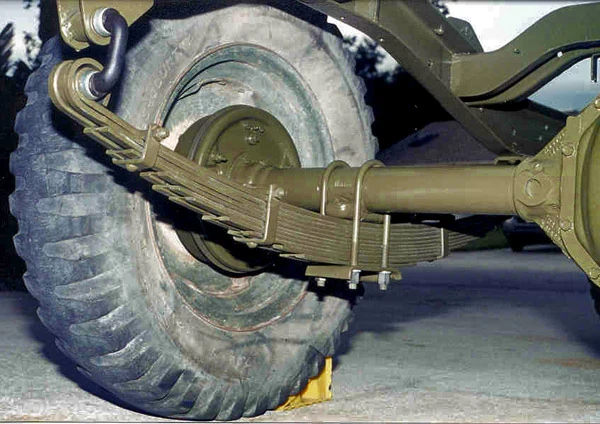

A traditional semi-elliptical Hotchkiss leaf spring arrangement. On the left, the spring is connected to the frame through a shackle.

Humber front suspension (Autocar Handbook, 13th ed, 1935)

Independent front suspension by semi-elliptical springs Humber 1935

1937 Bugatti Type 57SC Gangloff Drop Head Coupe suspension

Quarter-elliptical spring in a 1937 Bugatti Type 57SC using a "solid front axle"

MBW153chassis

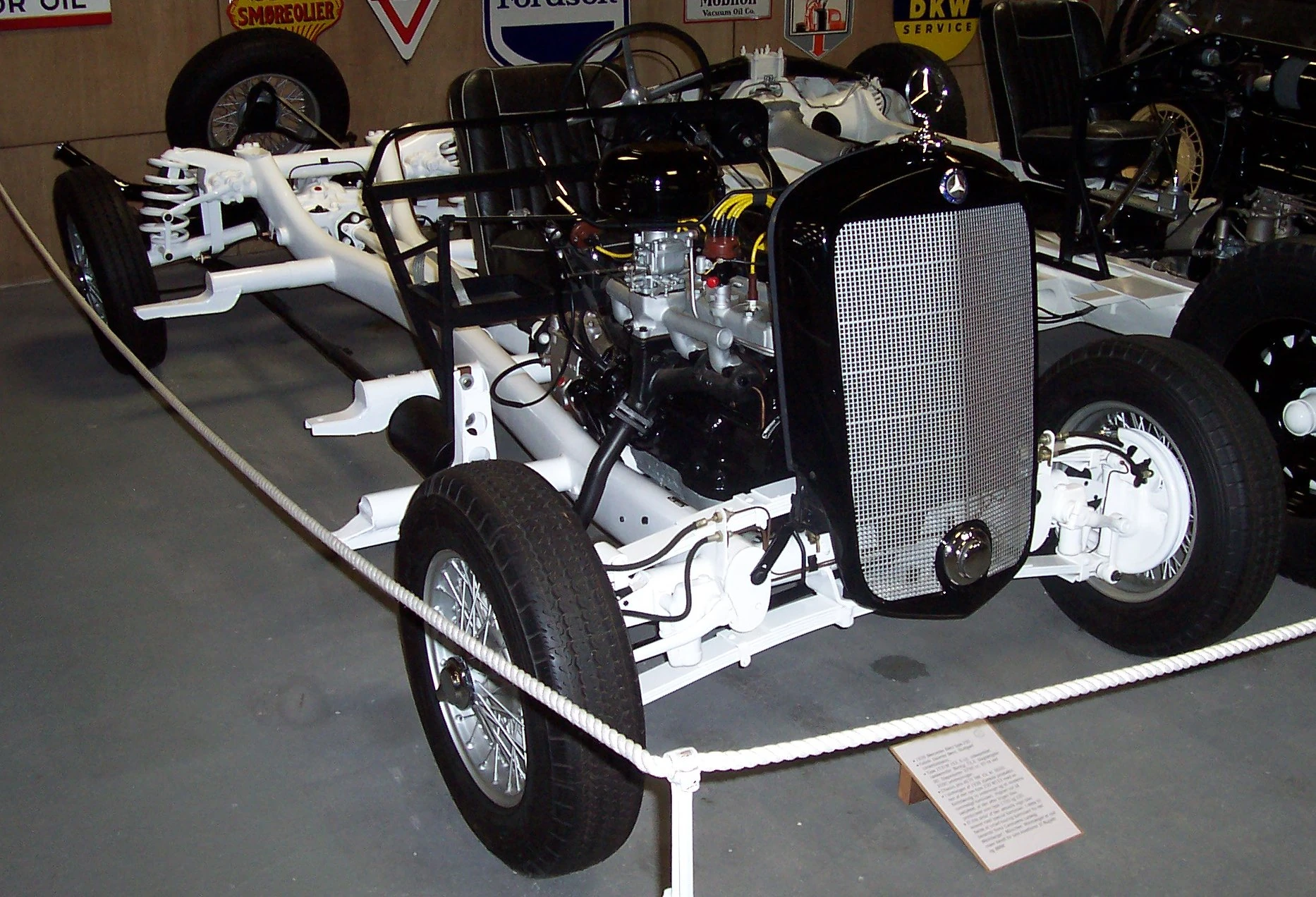

Independent front suspension by semi-elliptical springs Mercedes Benz 230 W153 1938

Originally called laminated or carriage spring,[citation needed] a leaf spring is a simple form of spring, commonly used for the suspension in wheeled vehicles. It is also one of the oldest forms of springing, dating back to medieval times.

An advantage of a leaf spring over a helical spring is that the end of the leaf spring may be guided along a definite path.

Sometimes referred to as a semi-elliptical spring or cart spring, it takes the form of a slender arc-shaped length of spring steel of rectangular cross-section. The center of the arc provides location for the axle, while tie holes are provided at either end for attaching to the vehicle body. For very heavy vehicles, a leaf spring can be made from several leaves stacked on top of each other in several layers, often with progressively shorter leaves. Leaf springs can serve locating and to some extent damping as well as springing functions. While the interleaf friction provides a damping action, it is not well controlled and results in stiction in the motion of the suspension. For this reason manufacturers have experimented with mono-leaf springs.

A leaf spring can either be attached directly to the frame at both ends or attached directly at one end, usually the front, with the other end attached through a shackle, a short swinging arm. The shackle takes up the tendency of the leaf spring to elongate when compressed and thus makes for softer springiness. Some springs terminated in a concave end, called a spoon end (seldom used now), to carry a swivelling member.

HistoryEdit

There were a variety of leaf springs, usually employing the word "elliptical". "Elliptical" or "full elliptical" leaf springs referred to two circular arcs linked at their tips. This was joined to the frame at the top center of the upper arc, the bottom center was joined to the "live" suspension components, such as a solid front axle. Additional suspension components, such as trailing arms, would be needed for this design, but not for "semi-elliptical" leaf springs as used in the Hotchkiss drive. That employed the lower arc, hence its name. "Quarter-elliptic" springs often had the thickest part of the stack of leaves stuck into the rear end of the side pieces of a short ladder frame, with the free end attached to the differential, as in the Austin Seven of the 1920s. As an example of non-elliptic leaf springs, the Ford Model T had multiple leaf springs over its differential that were curved in the shape of a yoke. As a substitute for dampers (shock absorbers), some manufacturers laid non-metallic sheets in between the metal leaves, such as wood.

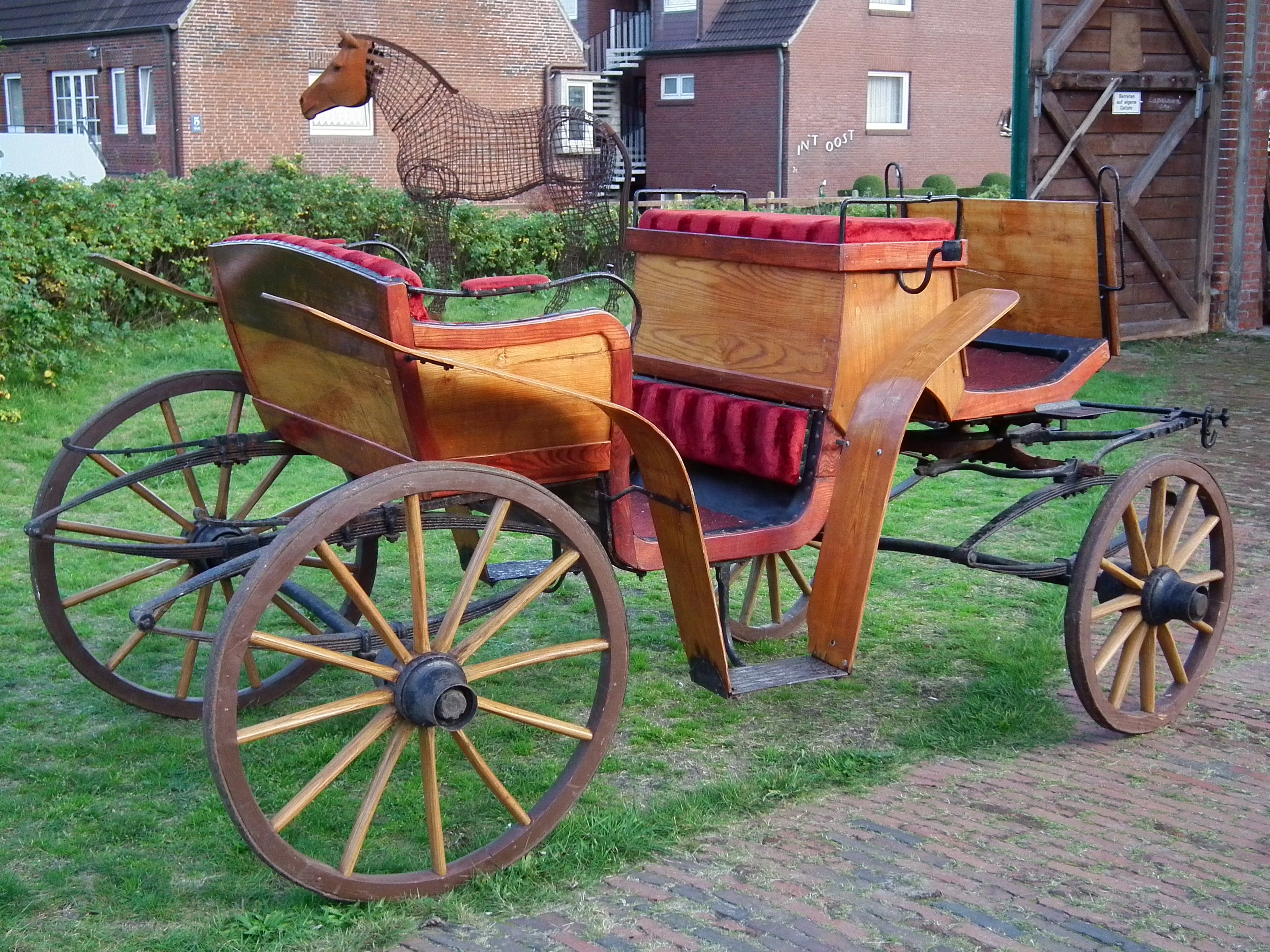

Elliptic Carriage with elliptic springs
Semi-elliptic Vehicle suspension with semi-elliptic springs
Three quarter-elliptic Car suspension with three-quarter elliptic springs
Quarter-elliptic Vehicle suspension with quarter-elliptic springs
Transverse Front suspension with transverse leaf spring

Leaf springs were very common on automobiles, right up to the 1970s in Europe and Japan and late 70's in America when the move to front-wheel drive, and more sophisticated suspension designs saw automobile manufacturers use coil springs instead. Today leaf springs are still used in heavy commercial vehicles such as vans and trucks, SUVs, and railway carriages. For heavy vehicles, they have the advantage of spreading the load more widely over the vehicle's chassis, whereas coil springs transfer it to a single point. Unlike coil springs, leaf springs also locate the rear axle, eliminating the need for trailing arms and a Panhard rod, thereby saving cost and weight in a simple live axle rear suspension.

A more modern implementation is the parabolic leaf spring. This design is characterised by fewer leaves whose thickness varies from centre to ends following a parabolic curve. In this design, inter-leaf friction is unwanted, and therefore there is only contact between the springs at the ends and at the centre where the axle is connected. Spacers prevent contact at other points. Aside from a weight saving, the main advantage of parabolic springs is their greater flexibility, which translates into vehicle ride quality that approaches that of coil springs. There is a trade-off in the form of reduced load carrying capability, however. The characteristic of parabolic springs is better riding comfort and not as "stiff" as conventional "multi-leaf springs". It is widely used on buses for better comfort. A further development by the British GKN company and by Chevrolet with the Corvette amongst others, is the move to composite plastic leaf springs.

Typically when used in automobile suspension the leaf both supports an axle and locates/ partially locates the axle. This can lead to handling issues (such as 'axle tramp'), as the flexible nature of the spring makes precise control of the unsprung mass of the axle difficult. Some suspension designs which use leaf springs do not use the leaf to locate the axle and do not have this drawback. The Fiat 128's rear suspension is an example.

CharacteristicsEdit

1. The leaf spring acts as a linkage for holding the axle in position and thus separate linkage are not necessary. It makes the construction of the suspension simple and strong.

2. As the positioning of the axle is carried out by the leaf springs so it makes it disadvantageous to use soft springs i.e. a spring with low spring constant.

3. Therefore, this type of suspension does not provide good riding comfort. The inter-leaf friction between the leaf springs affects the riding comfort.

4. Acceleration and braking torque cause wind-up and vibration. Also wind-up causes rear-end squat and nose-diving.

Manufacturing processEdit

Multi-leaf springs are made as follows:

  1. Shearing of flat bar
  2. Center hole punching / Drilling
  3. End Heating process forming (hot & cold process)
    1. Eye Forming / Wrapper Forming
    2. Diamond cutting / end trimming / width cutting / end tapering
    3. End punching / end grooving / end bending / end forging / eye grinding
    4. Center hole punching / Drilling / nibbing
  4. Heat Treatment
    1. Heating
    2. Camber forming
    3. Quenching
    4. Tempering
  5. Surface preparation
    1. Shot peening / stress peening
    2. Painting
  6. Eye bush preparation process
    1. Eye reaming / eye boring
    2. Bush insertion
    3. Bush reaming
  7. Assemble
    1. Presetting & load testing
    2. Paint touch-up
    3. Marking & packing

Use by BlacksmithsEdit

Because leaf springs are made of relatively high quality steel, they are a favorite material for blacksmiths. In countries such as Nepal, Bangladesh and Pakistan where traditional blacksmiths still produce a large amount of the country's tools, leaf springs from scrapped cars are frequently used to make knives, kukris, and other tools.[1] They are also commonly used by amateur and hobbyist blacksmiths in Western countries and India as a cheap source of high grade steel.

See alsoEdit

ReferencesEdit

  1. "Kamis, Khukuri makers of Nepal". Himalayan-imports.com. Retrieved on 2011-11-06.
