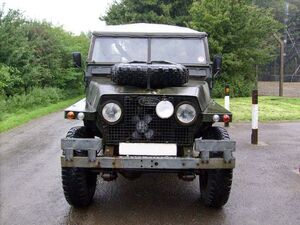

SIIa Lightweight front

1970 Series IIa in the UK.

The Lightweight 1/2 ton was a British military vehicle supplied by Land Rover.

HistoryEdit

In the early 1960s both the Royal Marines, then largely based on commando carriers, and the British Army required a vehicle that could be carried by air. They had taken delivery of the Westland Wessex helicopter, which could carry an 1140 kg (2500 lb) load slung beneath.

The smallest Land Rover available at the time was a Series IIA 88 inch (2235 mm) wheelbase, which was too heavy. A new modification to the basic Series IIA was devised by making many body components easily detachable and removing many non-essential items. The result was the Land Rover Half-Ton, known widely as the Lightweight or Airportable. In practice, to reduce weight sufficiently for the helicopters of the day to lift them in combat conditions, the tilt (hood) and sticks, the upper parts of the body, the doors and windscreen were removed, to be refitted later. The most significant change, however, was a reduction in width by 4 inch (100 mm), by redesigning the standard Series IIA axles and fitting shorter half-shafts, which meant it would fit on a standard pallet.

Complete, the Lightweight IIA weighed 2,650 lb (1,202 kg), over the specified weight and heavier in fact than a 'standard' Land Rover. The term Lightweight was, therefore, confusing. However, with the removable body panels taken-off it was below the limit. Since improvements to the helicopters meant more lift was available, the MoD accepted it for use.

The first production models were completed on 11 November 1968, and production continued until 1984.

ProductionEdit

Lightweight-SIII-1983

1983 Series III HT with Danish registration.

Although a very few prototypes had been built between 1965 and 1967, and about six pre-production models early in 1968, 'Lightweight' Series IIA quantity production began on 11 November 1968, with a total of 15 vehicles being produced on that day. Total production of Series IIa 'Lightweights' was between 1,500 and 2,000 vehicles. Later Series IIa models had the headlamps moved out into a revised front wing, to comply with revised lighting regulations. It is easy to confuse later Series IIa models with the Series III, though nothing was changed on these vehicles other than the location of the headlamps.

The Series IIA Lightweight was replaced by the Series III Lightweight in 1972, soon after the replacement of the civilian Series IIA with the Series III. The vehicle remained in essence the same, with a few relatively minor changes - there are details differences to the chassis; the engine now had 5 main bearings instead of 3; and a revised gearbox had syncromesh on 2nd, 3rd and 4th gears instead of just 3rd and 4th. In the electrical department the Series III was fitted with an alternator in place of the dynamo of the Series IIa; the new indicator switch incorporates a headlamp flasher and horn; and the ignition switch was now fitted in a new steering column cowl instead of on the dashboard.

Lightweight production ended in 1984, when the parent Land Rover Series III was replaced by the models 90 and 110.

OperatorsEdit

  • Over 20 countries besides the British Army.
  • LHD models were used by the British Armed Forces in support of their NATO commitments.
  • Many LHD models were used by the Dutch military and were predominantly fitted with diesel engines.

VariantsEdit

  • Large numbers of this model were built with 24 volt electrical systems, screened ignitions systems and a 90 amp dynamo (generator) for use as FFR (Fitted For Radio) vehicles
  • in Royal Marines use, a small number was equipped as portees for Wombat recoiless anti-tank weapon
  • a number of these Land Rovers were retro-fitted with hard-tops and lightweight armour in the form of a VPK (Vehicle Protection Kit), mainly for internal security use in Ulster
  • a number were fitted with 'Arctic' heaters for extreme cold climate use, particularly with the Royal Marines in their Arctic Warfare role
  • this model could be fitted with full wading equipment to allow deep water entry from landing craft, again largely for Royal Marines use
  • signal line-layers
  • carrier for the 'Wheelbarrow' bomb detonation device. In this role most of the vehicle's body was removed
  • a small number were converted to Review Vehicles

A large number of vehicles were fitted with hard tops, with or without VPKs, all apparently after production, some for use as radio vehicles

Dutch Army variants are easily identified by their diesel engines and turn signal lights positioned on the tops of the wings instead of on the front by headlights. These also had modified tail and brake lights

PreservationEdit

A large number of these have passed into civilian hands for general use or to Military vehicles collectors who have restored them into a number of different variants as used in their military service and equipped them with authentic kit. They appear at classic vehicle shows with Military vehicles sections.

Examples in preservationEdit

List any known examples that are in private hands and appear at shows below.

See alsoEdit

Preservation related

References / sourcesEdit

Based on the wikipedia article to define the vehicle.
