John Deere 3130

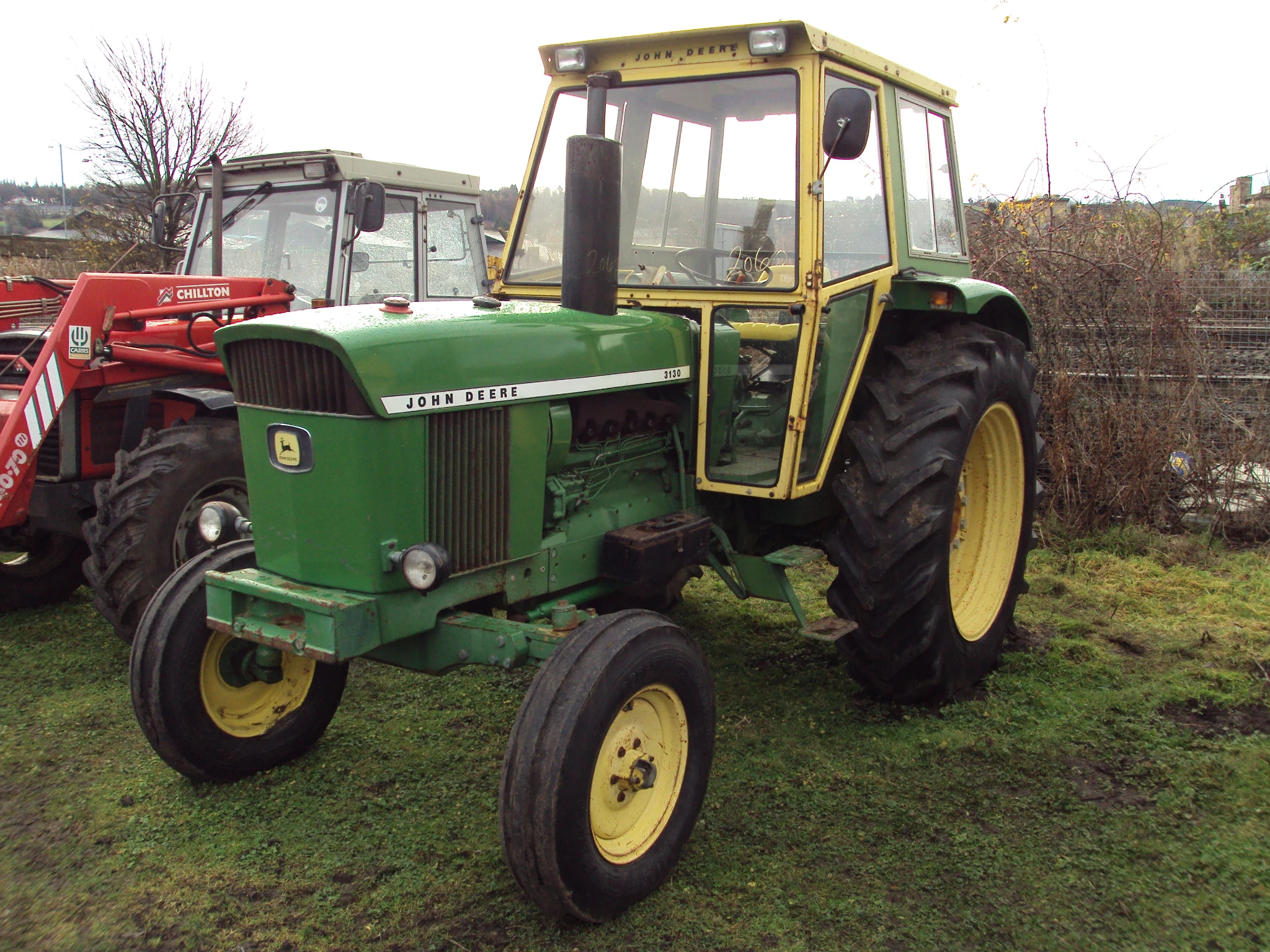

John deere 3130.jpg
Model history
Model introduced 1973
Model discontinued 1979
Model status Discontinued
No. produced ?
Preceded by John Deere 3030
Engine Specification
Engine make JD
Fuel type Diesel
Power hp 96 hp (Engine)
80 hp(PTO)
Governed rpm {{{governedrpm}}}
Displacement cu in /(litre) 379 cui (5.4 ltr)
No. of Cylinders 6
Bore in (mm) 4.02 (102)
Stroke in (mm) 4.33 (110)
Cooling system Water
Transmission Details
Transmission type Sliding Gear (High/low option)
Gearbox make John Deere
Forward 6 or 12
Reverse 3 or 6
Drive 2-WD or 4-WD option
General Data
Linkage Category Cat I, Cat II
P.T.O rpm 540 or 1000
Tractor Dimensions
Weight (nominal) lb/kg 3700 kg
Cab Details
Cab Make John Deere
Other info
Plow rating Unknown
Notes Same as JD 2840
This box: view · talk

The John Deere 3130 was built by John Deere from 1973 to 1979.

Model history[edit | edit source]

Specification[edit | edit source]

  • 6-cylinder JD engine 5,4cm
  • 89hp - engine, 80 hp (drawbar)

Options[edit | edit source]

==Serial numbers 093005l

Preservation[edit | edit source]

A model that is growing in popularity with collectors, as a higher hp model thats not in the supper league of 'big tractors' physically but has a good sized engine for 'play' use at ploughing matches and road runs.

Known examples
List of Preserved John Deere 3130 tractors
view  talk  edit
Make + Model No.
Reg No.
(if known)
Serial No. Build-Date Engine-Type/Make Owner
(if known)
Photo Were seen/Featured in Other info
100px


100px


Please add any tractor with known reg or serial no. with Photo if possible.
Create a page (link) for an individual tractor by linking the reg or serial number using reg number or serial number in the relevant column. Then once saved click the red link to start the new page and add info on that tractor.


Gallery[edit | edit source]

A 3130 on low loader duty at a working day
