Jeep Compass

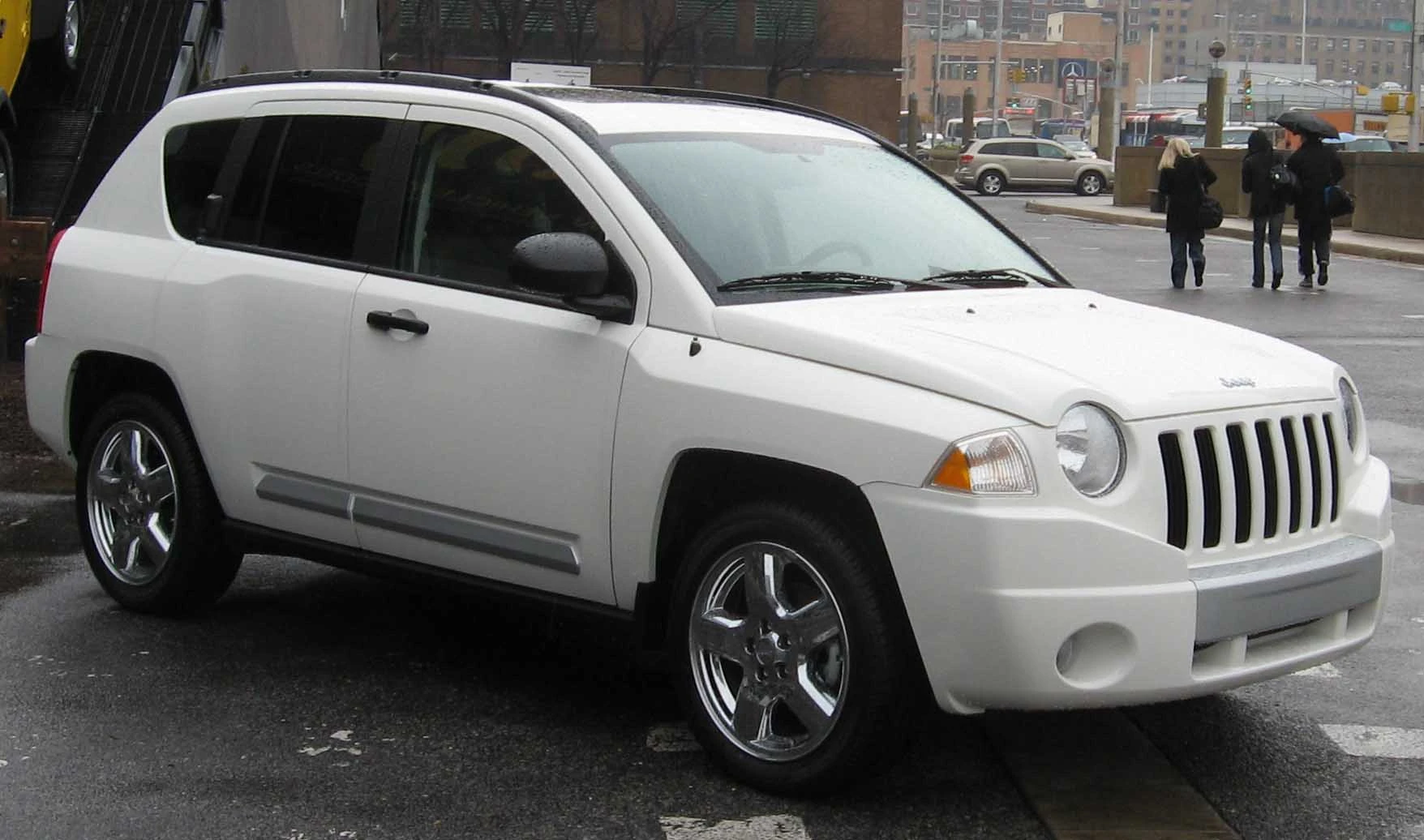

2008 Jeep Compass
Manufacturer DaimlerChrysler (2006)
Chrysler LLC (2006–2009)
Chrysler Group LLC (2009–)
Production 2006[1]– present
Assembly Belvidere, Illinois, (Belvidere Assembly), United States
Class Crossover compact SUV
Body style(s) 4-door SUV
Layout Front engine, front-wheel drive / four-wheel drive
Platform Chrysler PM/MK platform
Engine(s) 2.4 L GEMA I4
 •Displacement:144.0 CID (2,360 cc)[2]
 •Stroke: 3.82 in (97 mm)[2]
 •Bore: 3.46 in (88 mm)[2]
 •Power: 172 hp (128 kW)
2.0 L GEMA I4
 •Displacement:121.9 CID (1,998 cc)[3]
 •Stroke: 3.38 in (86 mm)[3]
 •Bore: 3.38 in (86 mm)[3]
 •Power: 154 bhp (115 kW)[3]
Transmission(s) 5-speed manual
Automatic (CVT)
Wheelbase 103.7 in (2,634 mm)
Length 173.4 in (4,404 mm)
Width 69.3 in (1,760 mm)
Height 2007–09: 64.2 in (1,631 mm)
2010–: 65.2 in (1,656 mm)
Related Mitsubishi Lancer
Dodge Caliber
Jeep Patriot
Mitsubishi Outlander

The Jeep Compass (MK49) is a compact crossover SUV introduced for the 2007 model year. The Jeep Compass, along with the Patriot both slot below the Jeep Wrangler as Jeep's entry-level sport utility vehicles, and is one of Jeep's first crossover SUVs.

The Compass did not carry the "Trail Rated" badge found on other SUVs in the Jeep family for the 2007-2010 model years, but received the "Trail Rated" badge for the 2011 model year. This indicates that the Compass targets first-time Jeep buyers and those who drive primarily on paved roads. Traditional Jeep vehicles, in contrast, have a reputation for off-road prowess, and some trace their origins to vehicles once used in ground operations by American troops.

The Compass and Patriot are both based on the DaimlerChrysler/Mitsubishi GS platform. These vehicles are differentiated by their styling and marketing: The Patriot is a traditionally styled 4-door Jeep wagon, while the Compass shares a more in-town hatchback look, similar in terms to the Dodge Caliber.


Four years prior to the introduction of the production Jeep Compass, a concept vehicle with the same name had its world premiere in Detroit at the 2002 North American International Auto Show. It featured a two door body, all-wheel drive and a 3.7-liter V6 engine. [4]

Jeep made its public debut of the production Compass at the 2006 North American International Auto Show in January. The first Compass was assembled on May 30, 2006, in Belvidere, Illinois, where the Dodge Neon was produced.

2011 updates

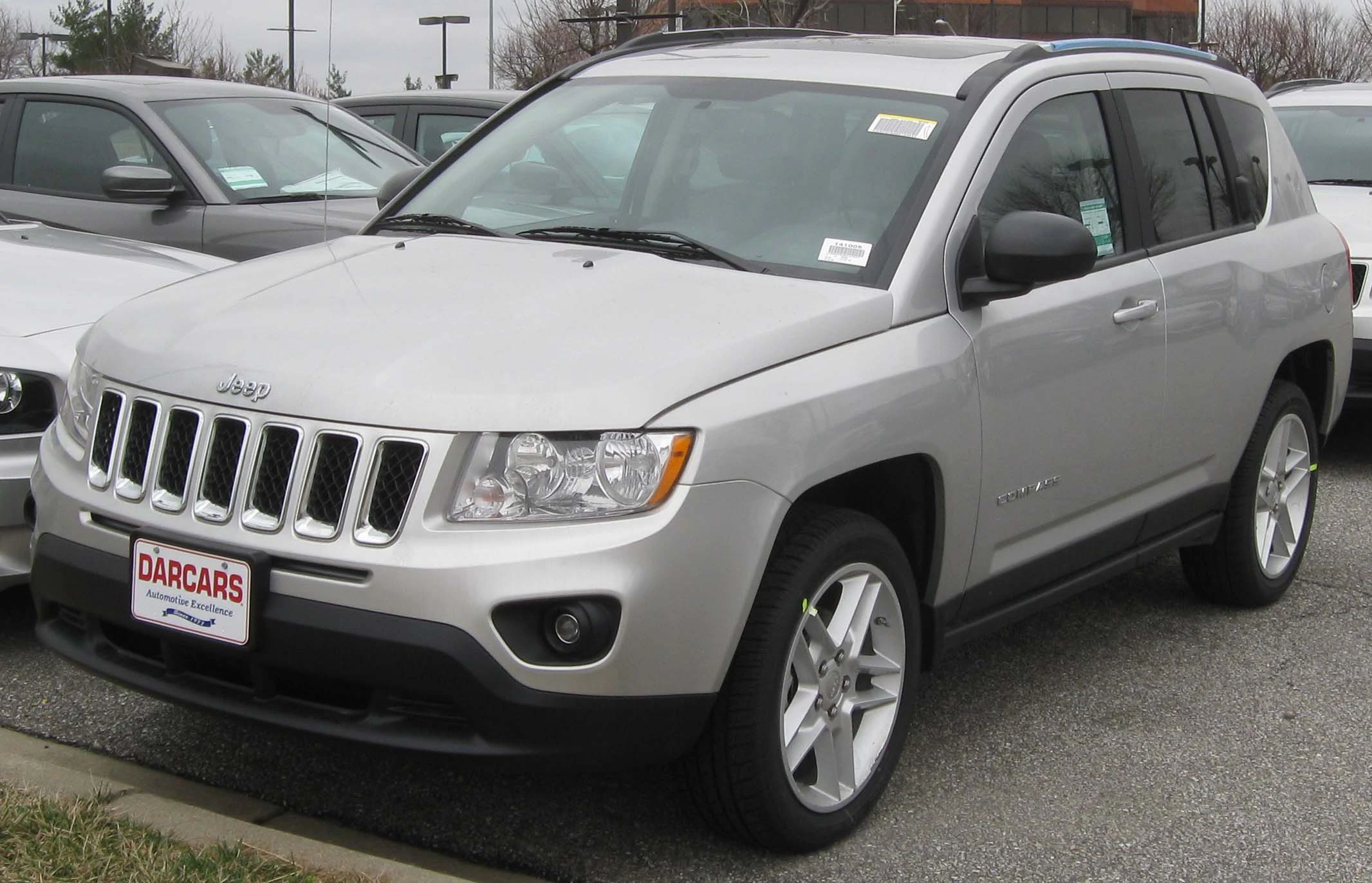

2011 Jeep Compass Limited

In a press conference on November 4, 2009 Chrysler LLC, now 25% under Fiat ownership, announced that both the Patriot and Compass would get modifications for 2010, but will be discontinued by 2012, to be replaced by a single Fiat-based model.[5]

For 2011, Jeep redesigned the Compass to more closely resemble the Grand Cherokee, while keeping its own identity. The 2011 Jeep Compass also receives a revised suspension for better handling, a revised interior with more standard equipment, and more option packages including a Freedom Drive II Off-Road Package which includes a continuously-variable transmission fitted with a low-range setting, all-terrain tires inside 17-inch aluminum wheels, skid plates, a four-wheel-drive system, and an increase ground clearance of a full inch. [6]

Total United States sales

Calendar Year Sales
2007[7] 39,491
2008[8] 25,349
2009[9] 11,739
2010[10] 15,894


The Compass uses a 172 hp (128 kW) 2.4 liter GEMA I4 gasoline engine. The 2.0 liter GEMA engine is available on the 4X2 Sport model. A 2,0 liter l-R4 CRD 103 kW (140 PS) Volkswagen-designed diesel engine is available for the European and Australian markets. This engine is the same as used in the Volkswagen Passat.

The car also features an electronically-controlled all wheel drive system with variable torque between speeds of 25 mph (40 km/h) and 65 mph (105 km/h) for optimal handling. However, the base model version has only Front wheel drive (FWD), a first for any Jeep.[11] The Compass has not passed the same testing of off-road ability as other Jeep vehicles in terms of traction, ground clearance, maneuverability, articulation, and water fording. Although Chrysler has released a high-performance 2008 SRT4 version of the Dodge Caliber, there is no SRT Group (Street and Racing Technology) edition of the Compass.


Smallwikipedialogo.png This page uses some content from Wikipedia. The original article was at Jeep Compass. The list of authors can be seen in the page history. As with Tractor & Construction Plant Wiki, the text of Wikipedia is available under the Creative Commons by Attribution License and/or GNU Free Documentation License. Please check page history for when the original article was copied to Wikia

  1. "Jeep Compass Production Launch". Retrieved on 2010-11-26.
  2. 2.0 2.1 2.2 "Jeep - Specs & Upgrades:". Chrysler LLC. Retrieved on 2008-04-16.
  3. 3.0 3.1 3.2 3.3 "Chrysler Sebring Model". Chrysler LLC. Archived from the original on 2008-04-25. Retrieved on 2008-04-17.
  4. Jeep Compass concept vehicle Retrieved from on 1 June 2009
  5. Pund, Daniel (2009-11-04). "Chrysler-Fiat Press Conference: Jeep Product Plan". Retrieved on 2009-11-23.
  6. "Jeep Resets Compass on New Course in 2011". (2010-12-14). Retrieved on 2010-12-14.
  7. "Total Chrysler LLC December 2007 Sales Up 1 Percent on the Strength of Retail". (2008-01-03). Retrieved on 2009-01-05.
  8. "December 2008 Sales: Chrysler LLC". (2009-01-05). Retrieved on 2009-01-05.
  9. "Chrysler Group LLC December 2009 Sales". (2010-01-05). Retrieved on 2010-01-05.
  10. "Chrysler Group LLC December 2010 Sales". (2011-01-04). Retrieved on 2011-01-04.
