Jaguar XJ
XJ6, XJ8, XJ12, Vanden Plas, XJR, Super V8, Supersport

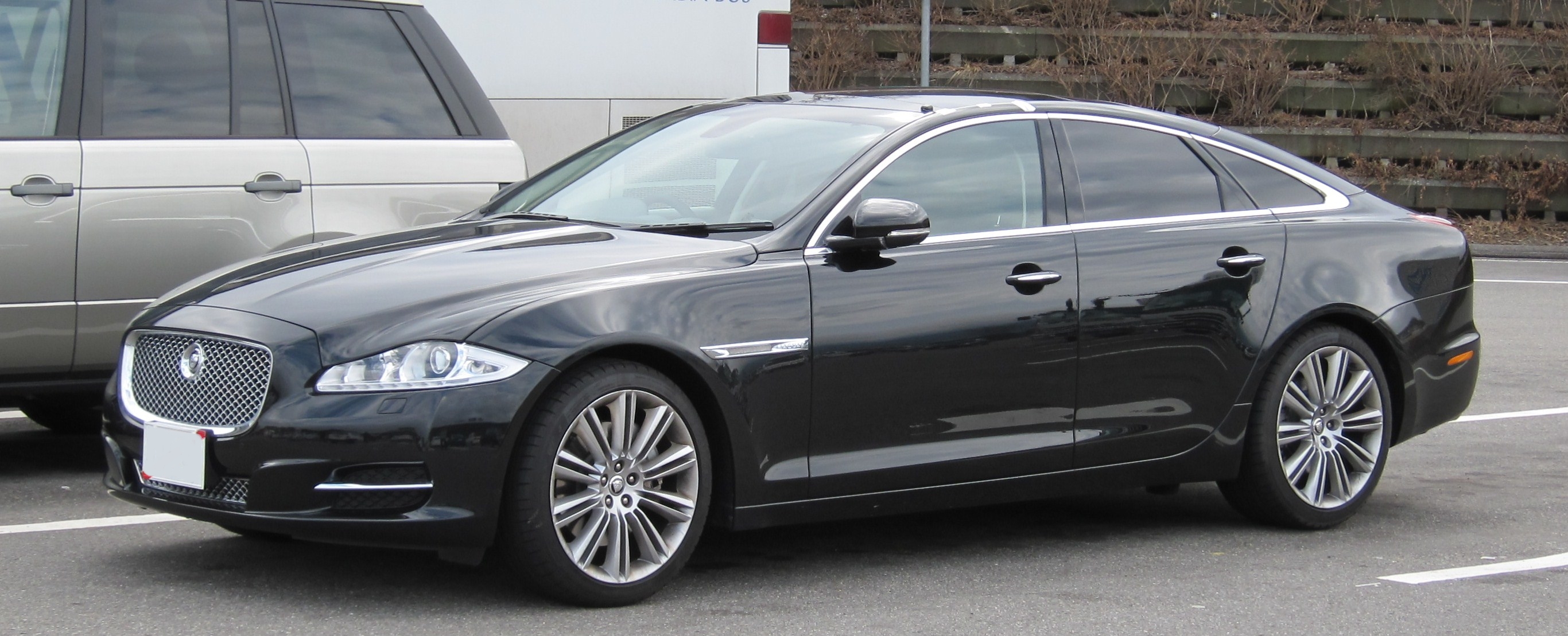

Jaguar XJ X351
Manufacturer Jaguar Cars
Parent company British Leyland (1966–1984)
Independent (1984–1990)
Ford Motor Company (1990–2008)
Tata Motors (2008-present)
Production 1968–present
Class Full-size luxury car
Layout FR layout

Jaguar XJ is the designation that has been used for a series of luxury saloon cars sold under the British Jaguar marque. The first XJ was launched in 1968 and the designation has been used for successive Jaguar flagship models since then. The original model was the last Jaguar saloon to have had the input of Sir William Lyons, the company's founder. The current Jaguar XJ was launched in 2009.

Series 1, 2 and 3 (1968–1992)[]

Series 1 (1968–1973)[]

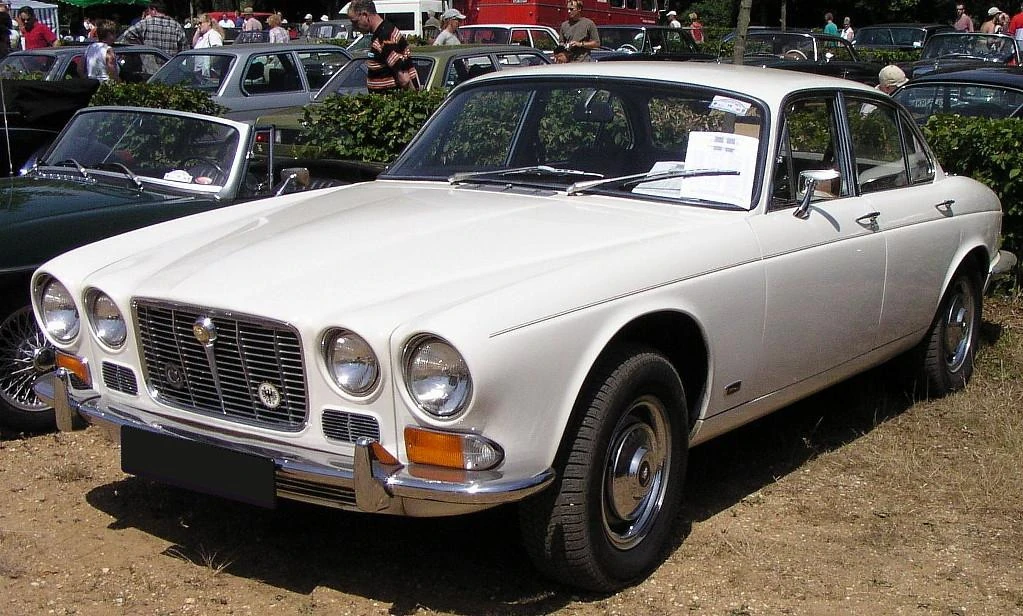

XJ Series I
[[File:Jaguar XJ Series I Jaguar badged|frameless|upright=1.25|alt=]]
Also called XJ6, XJ12
Daimler Sovereign
Daimler Double-Six
Production 1968–1973
82,126 produced
Assembly Coventry, England
Cape Town, South Africa
Nelson, New Zealand
Predecessor Jaguar 240, Jaguar 340 & Daimler 250
Jaguar S-Type
Jaguar 420 and Daimler Sovereign
Jaguar 420G
Body style(s) 4-door saloon
Engine(s) 2.8 L XK I6
4.2 L XK I6
5.3 L Jaguar V12 (from 1972)
Wheelbase 108.75 in (2,762 mm)
Length 189.5 in (4,813 mm)
Width 69.75 in (1,772 mm)
Height 52.75 in (1,340 mm)
Fuel capacity 91 L (24.0 US gal/20.0 imp gal)[1]

The XJ6, using 2.8 litre (2,790 cc/170 cu in) and 4.2 litre (4,235 cc/258.4 cu in) straight-six cylinder versions of Jaguar's renowned XK engine, replaced most of Jaguar's saloons – which, in the 1960s, had expanded to four separate ranges. Apart from the engines, the other main component carried over from previous models was the widest version of Jaguar's IRS unit from the Mark X.

An upmarket version was marketed under the Daimler brand and called the Daimler Sovereign, continuing the name from the Daimler version of the Jaguar 420.

The car was introduced in September 1968. Power-assisted steering and leather upholstery were standard on the 2.8 L De Luxe and 4.2 L models and air conditioning was offered as an optional extra on the 4.2 L. Daimler versions were launched in October 1969, in a series of television advertisements featuring Sir William. In these spots, he referred to the car as "the finest Jaguar ever". An unusual feature, inherited from the Jaguar Mark X, was the provision of twin fuel tanks, positioned on each side of the boot / trunk, and filled using two separately lockable filler caps: one on the top of each wing above the rear wheel arches.[2]

In March 1970 it was announced that the Borg-Warner Model 8 automatic transmission, which the XJ6 had featured since 1968, would be replaced on the 4.2 litre-engined XJ6 with a Borg-Warner Model 12 unit.[3] The new transmission now had three different forward positions accessed via the selector lever, which effectively enabled performance oriented drivers to hold lower ratios at higher revs in order to achieve better acceleration.[3] "Greatly improved shift quality" was also claimed for the new system.[3]

In 1972 the option of a long-wheelbase version, providing a modest increase in leg room for passengers in the back, became available.

The XJ12 version was announced in July 1972, featuring simplified grille treatment, and powered by a 5.3 L V12 engine (coupled to a Borg Warner Model 12), :[1] The car as presented at that time was the world's only mass-produced 12-cylinder four-door car, and, with a top speed "around 140 mph" (225 km/h) as the "fastest full four-seater available in the world today". Although it had, from the car's launch, been the manufacturer's intention that the XJ would take the twelve-cylinder engine, its installation was nonetheless a tight fit, and providing adequate cooling had evidently been a challenge for the engineers designing the installation.[4] Bonnet/hood louvres such as those fitted on the recently introduced twelve-cylinder E Type were rejected, but the XJ12 featured a complex "cross-flow" radiator divided into two separated horizontal sections and supported with coolant feeder tanks at each end: the engine fan was geared to rotate at 1¼ times the speed of the engine rpm, subject to a limiter which cut in at a (fan) speed of 1,700 rpm.[4] The fuel system incorporated a relief valve that returned fuel to the tank when pressure in the leads to the carburetters exceeded 1.5 psi in order to reduce the risk of vapour locks occurring at the engine's high operating temperature, while the car's battery, unusually, benefited from its own thermostatically controlled cooling fan.[4]

Jaguar XJ12 Reg November 1972 5343cc

The Jaguar XJ12, launched during the summer of 1972, featured a simplified grille.

3,235 of these first generation XJ12s were built. As with the six-cylinder cars, an upmarket version, this time called the Daimler Double-Six, became available later, reviving the Daimler model name of 1926–1938.

Total production figures for the Series 1
Model Production
Jaguar XJ6 2.8 swb 19,322
Jaguar XJ6 4.2 swb 59,077
Jaguar XJ6 4.2 lwb 574
Jaguar XJ12 swb 2,474
Jaguar XJ12 lwb 754
Daimler Sovereign 2.8 3,233
Daimler Sovereign 4.2 swb 11,522
Daimler Sovereign 4.2 lwb 386
Daimler Double Six swb 534
Daimler Double Six Vanden Plas 351
Total Production for Series 1 98,527

MWK 28G - The Oldest Surviving Jaguar XJ[]

MWK 28G - The oldest Jaguar XJ in existence

MWK 28G - The oldest Jaguar XJ in existence

20 pre-production Series 1 cars were manufactured for testing and development. Of these a number went on to be road-registered and sold to customers. MWK 28G was the nineteenth of this pre-production run and now, according to the records maintained at the Jaguar-Daimler Heritage Centre, is the oldest surviving example.[5] It was the first XJ to be road registered - on 1 August 1968 to Jaguar - and thereafter was used as one of the 'Press Cars' (Press Car One), vehicles used for demonstration purposes and road tests. The registration mark will have been used deliberately in reference to the engine size fitted. The car featured prominently in motoring magazines of the time but most notably in September 1968 in the Daily Telegraph Magazine as part of a fashion shoot with Veruschka, a well-known model of the era.[6] Photographs accompanying the article depicted MWK 28G being road-tested across France and Spain including the point at which the crude cardboard camouflage that had been added to the vehicle was removed.

In September 1969 the car passed from the Publicity Department to the Research and Development Department where, at 20,000 miles, a new engine had to be fitted - presumably after failure of the original unit at the MIRA test track. Incredibly, in the Spring of 1970 it passed into private ownership. MWK 28G became one of the most photographed Series 1 XJs and more latterly has had a website dedicated to it. To this day the car remains in everyday usage.

Series 2 (1973–1979)[]

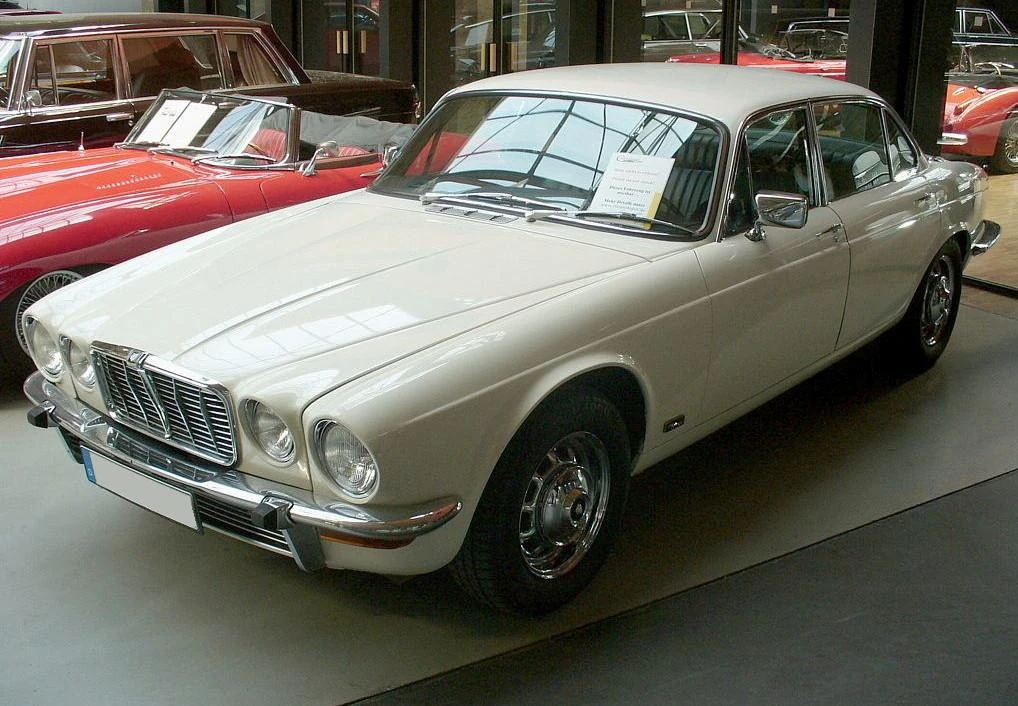

XJ Series II
[[File:Jaguar XJ6 Series II|frameless|upright=1.25|alt=]]
Also called XJ6, XJ12
Daimler Sovereign
Daimler Double-Six
Production 1973–1979 (1981)
91,227 produced
Assembly Coventry, England
Cape Town, South Africa
Nelson, New Zealand
Body style(s) 4-door saloon
Engine(s) 2.8 L XK I6
3.4 L XK I6
4.2 L XK I6
5.3 L Jaguar V12 engine
Wheelbase 108.75 in (2,762 mm)
(swb: only sold until 1974)
112.75 in (2,864 mm)
(lwb until 1974: thereafter all sedans)
Length 194.75 in (4,947 mm)
(lwb until 1974: thereafter all sedans)
Width 69.75 in (1,772 mm)
Height 54 in (1,372 mm)
Kerb weight 3,841 lb (1,742 kg)
Fuel capacity 91 L (24.0 US gal/20.0 imp gal)[7]

Commonly referred to as the "Series II", the XJ line was facelifted in Autumn 1973 for the 1974 model year. The 4.2 L I-6 XJ6 (most popular in the United Kingdom) and the 5.3 L V12 XJ12 were continued with an addition of a 3.4 L (3,442 cc/210.0 cu in) version of the XK engine available from 1975.

The Series II models were known for their poor build quality, which was attributed to Jaguar being part of the British Leyland group along with massive labour union relations problems that plagued most of industrial England in the same time period, and to problems inherent in the design of certain Lucas-sourced components.[citation needed]

Initially the Series II was offered with two wheelbases, but at the 1974 London Motor Show Jaguar announced the withdrawal of the 'standard wheelbase' version: subsequent saloons/sedans all featured the extra 4 inches (10 cm) of passenger cabin length hitherto featured only on the 'long-wheelbase' model.[7] By this time the first customer deliveries of the two-door coupe, which retained the shorter 'standard' wheelbase (and which had already been formally 'launched' more than a year earlier) were only months away.

Visually, Series II cars are differentiated from their predecessors by raised front bumpers to meet US crash safety regulations, which necessitated a smaller grille, complemented by a discrete additional inlet directly below the bumper. The interior received a substantial update, including simplified heating and a/c systems to address criticisms of the complex and not very effective Series I system.

In April 1975, the North American Series II got a slightly revised set of front bumpers which had rubber overriders covering the full length of the bumper with embedded turn signals at each end. In 1976, the North American cars also got the addition of electronic fuel injection in the place of Zenith-Stromberg carburettors.

In May 1977, it was announced that automatic transmission version of the twelve-cylinder cars would be fitted with a General Motors three-speed THM 400 transmission in place of the British built Borg-Warner units used hitherto.[8]

The 1978 UK model range included the Jaguar XJ 3.4, XJ 4.2, XJ 5.3, Daimler Sovereign 4.2, Double-Six 5.3, Daimler Vanden Plas 4.2, Double-Six Vanden Plas 5.3.

In New Zealand, knock-down kits of the Series II were assembled locally by the New Zealand Motor Corporation (NZMC) at their Nelson plant. In the last year of production in New Zealand (1978), a special 'SuperJag' (XJ6-SLE) model was produced which featured half leather, half dralon wide pleat seats, vinyl roof, chrome steel wheels and air conditioning as standard. New Zealand produced models featured speedometers in km/h, and the black vinyl mats sewn onto the carpets in the front footwells featured the British Leyland 'L' logo.

Though worldwide production of the Series II ended in 1979, a number were produced in Cape Town, South Africa until 1981.

A total of 91,227 Series II models were produced, 14,226 of them with the V12 engine.

Engines [9]

Years Type Capacity Horsepower
1973–1975 DOHC I-6 2,792 (171 cu. in.) 140
1975–1979 DOHC I-6 3,442 (210 cu. in.) 161
1973–1979 DOHC I-6 4,235 (258 cu. in.) 245/162-186 See Note
1973–1979 SOHC V12 5,343 (326 cu. in.) 265/244 See Note

Note: HP varies depending on emission standards imposed on particular vehicles

Production count [9]

Year XJ6 XJ12
1973 1488 168
1974 13526 4744
1975 11990 2239
1976 12157 3283
1977 9043 1913
1978 12138 3284
1979 1099 429
Total 61,441 16,060

XJ Coupé[]

XJ-Coupé
[[File:1977 Jaguar XJC S2 Pillarless Coupe|frameless|upright=1.25|alt=]]
Also called XJ-C, XJ6-C, XJ12-C,
Daimler Sovereign Coupé
Daimler Double-Six Coupé
Production 1975–1978
10,487 produced
Assembly Coventry, England
Body style(s) 2-door coupe[7]
Engine(s) 4.2 L XK I6
5.3 L Jaguar V12 engine
Wheelbase 108.75 in (2,762 mm)
Length 190.75 in (4,845 mm)
Width 69.75 in (1,772 mm)
Height 54.125 in (1,375 mm)
Kerb weight 4,050 lb (1,837 kg)
Fuel capacity 91 L (24.0 US gal/20.0 imp gal)

A 9,378-car run of two-door XJ coupés with a pillarless hardtop body called the XJ-C was built between 1975 and 1978. The car was actually launched at the London Motor Show in October 1973,[10] but it subsequently became clear that it was not ready for production[citation needed], and the economic troubles unfolding in the western world at this time seem to have reduced further any sense of urgency about producing and selling the cars[citation needed]: it was reported[where?] that problems with window sealing delayed production. XJ coupés finally started to emerge from Jaguar show-rooms only some two years later[citation needed]. The coupé was based on the short-wheelbase version of the XJ. The coupé's elongated doors were made out of a lengthened standard XJ front door (the weld seams are clearly visible under the interior panels where two front door shells were grafted together with a single outer skin)[citation needed]. A few XJ-Cs were modified by Lynx Cars and Avon into convertibles with a retractable canvas top, but this was not a factory product. Lynx conversions (16 in total) did benefit of powered tops. Both six and twelve-cylinder models were offered, 6,505 of the former and 1,873 of the latter. Even with the delay, these cars suffered from water leaks and wind noise[citation needed]. The delayed introduction, the labour-intensive work required by the modified saloon body, the higher price than the four-door car, and the early demise promulgated by the new XJ-S, all ensured a small production run[citation needed].

All coupes came with a vinyl roof as standard. Since the coupe lacked B-pillars, the roof flexed enough that the paint used by Jaguar at the time would develop cracks[citation needed]. More modern paints do not suffer such problems, so whenever a coupe is repainted it is viable to remove the vinyl[citation needed]. Today many XJ-Cs no longer have their vinyl roof, also removing the threat of roof rust. Some owners also modified their XJ-C by changing to Series III bumpers.[11] This lifted the front indicators from under the bumper and provided built in rear fog lights.

A small number of Daimler versions of the XJ-C were made. One prototype Daimler Vanden Plas version XJ-C was also made, however this version never went into production[citation needed].

Production Count [12]

Model \ Year 1973 1974 1975 1976 1977 1978
4.2l Coupe 2 1 2925 1746 1776 37
5.3l Coupe - 11 821 663 329 31
Daimler Sovereign Coupe - - 471 587 613 6
Daimler Double Six Coupe - 1 76 149 159 22
Total 2 13 4293 3145 2877 96

Grand total = 10,426

Series 3 (1979–1992)[]

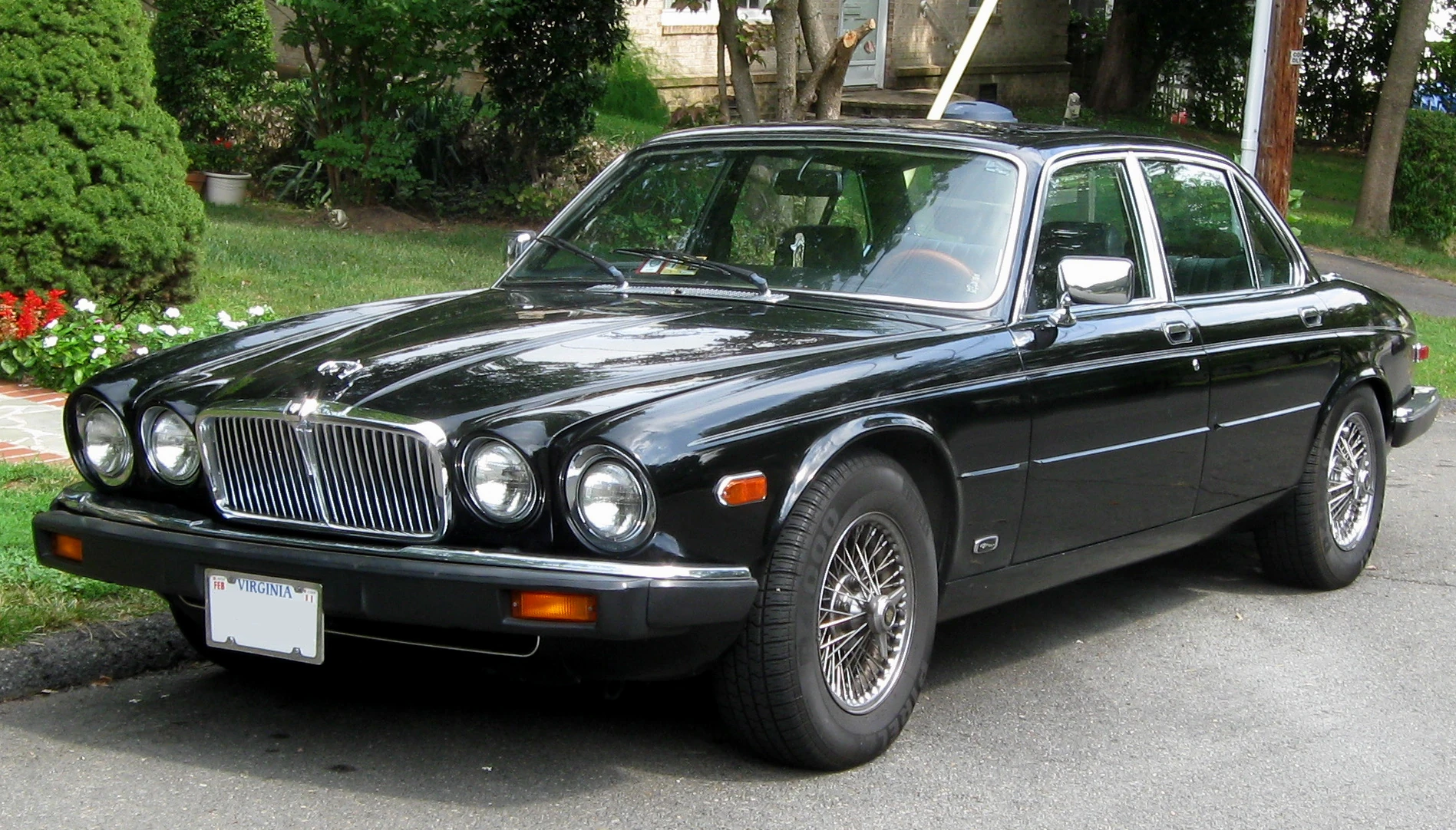

XJ Series III
[[File:Jaguar XJ6 (US)|frameless|upright=1.25|alt=]]
Also called XJ6, XJ12
Daimler Sovereign
Daimler Vanden Plas
Daimler Double-Six
Double-Six Vanden Plas
Jaguar Sovereign (from 1983)
Jaguar Vanden Plas [13]
Production 1979–1992
132,952 produced
Assembly Coventry, England
Body style(s) 4-door saloon
Engine(s) 3.4 L XK I6
4.2 L XK I6
5.3 L Jaguar V12 engine


In late 1979, the XJ was facelifted again, and was known as the "Series III."

Using the long-wheelbase version of the car, the XJ6 incorporated a subtle redesign by Pininfarina.

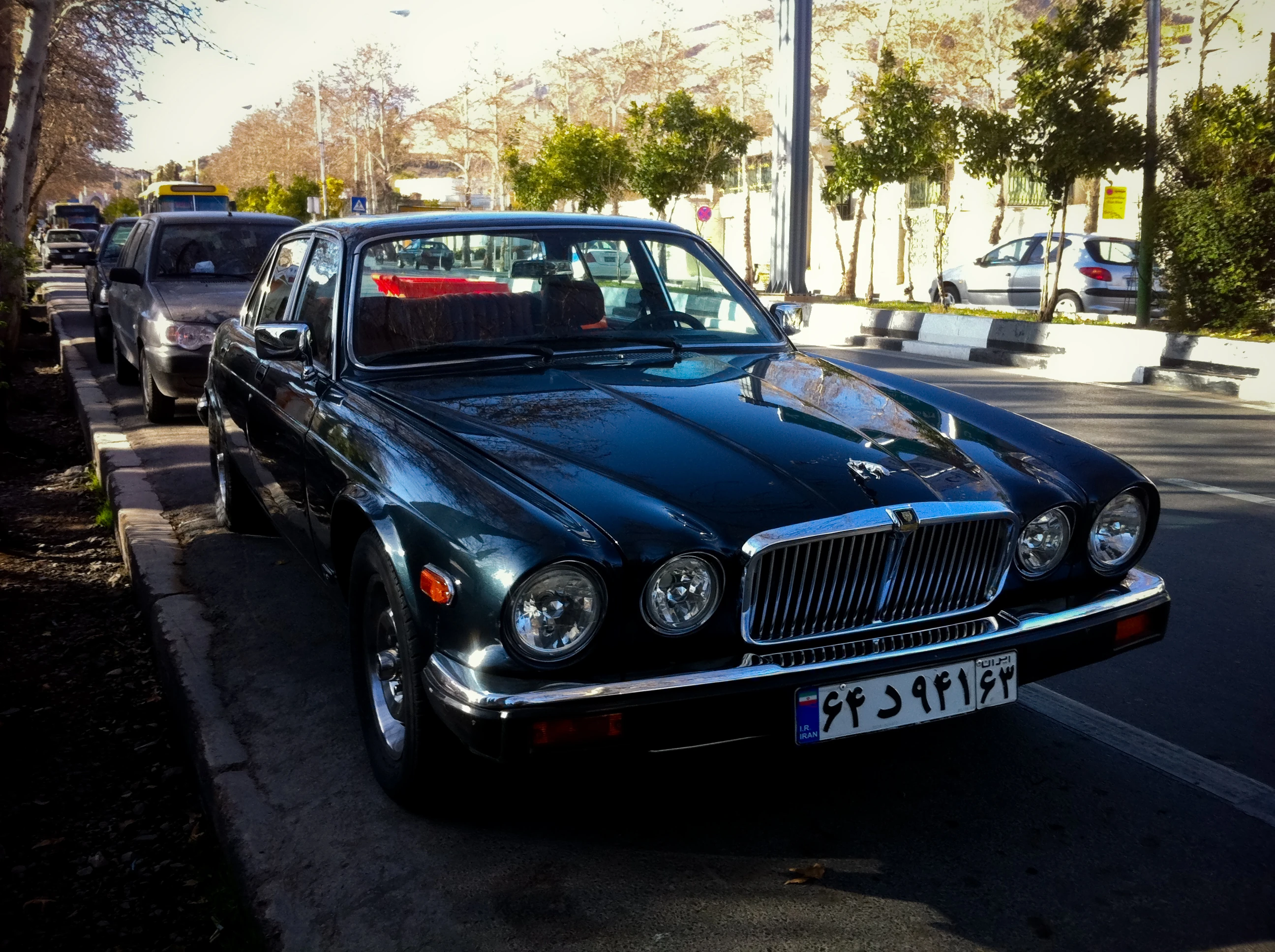

Jaguar XJ6 Shiraz

A Jaguar XJ6 alongside Eram Garden in Shiraz, Iran.

Externally, the most obvious changes over the SII were the thicker and more incorporated rubber bumpers with decorative chrome only on the top edge, flush door handles for increased safety, a one-piece front door glass without a separate 1/4 light, a grille with only vertical vanes, reverse lights moved from the boot plinth to the larger rear light clusters and a revised roofline with narrower door frames and increased glass area.

There were three engine variants, including the 5.3 L V12, the 4.2 L straight-six and 3.4 L straight-six. The larger six-cylinder, and V12 models incorporated Bosch fuel injection (made under license by Lucas) while the smaller six-cylinder was carbureted. The smaller 3.4 L six-cylinder engine was not offered in the U.S.

1983-1986 Jaguar Sovereign 4

1983–1986 Jaguar Sovereign 4.2 sedan (Australia)

The short-wheelbase saloon and coupé had been dropped during the final years of the Series II XJ. The introduction of the Series III model also saw the option of a sunroof and cruise control for the first time on an XJ model.

The 1979 UK model range included the Jaguar XJ6 3.4 & 4.2, XJ12 5.3, Daimler Sovereign 4.2 & Double-Six 5.3 and Daimler Vanden Plas 4.2 & Double-Six Vanden Plas 5.3.

In 1981 the 5.3 V12 models received the new Michael May designed 'fireball' high compression cylinder head engines and were badged from this time onwards to 1985 as "HE" (High Efficiency) models.

In late 1981 Daimler Sovereign and Double Six models received a minor interior upgrade for the 1982 model year with features similar to Vanden Plas models. Also for the 1982 model year, a top spec "Jaguar" Vanden Plas model was introduced for the US market - a model designation still used today.

In late 1982 the interior of all Series III models underwent a minor update for the 1983 model year. A trip computer appeared for the first time and was fitted as standard on V12 models. A new and much sought-after alloy wheel featuring numerous distinctive circular holes was also introduced, commonly known as the "pepperpot" wheel.

In late 1983 revision and changes were made across the Series III model range for the 1984 model year, with the Sovereign name being transferred from Daimler to a new top spec Jaguar model, the "Jaguar Sovereign". A base spec Jaguar XJ12 was no longer available, with the V12 engine only being offered as a Jaguar Sovereign HE or Daimler Double Six. The Vanden Plas name was also dropped at this time in the UK market, due to Jaguar being sold by BL and the designation being used on top-of-the-range Rover-branded cars in the home UK market. Daimler models became the Daimler 4.2 and Double Six and were the most luxurious XJ Series III models, being fully optioned with Vanden Plas spec interiors.

The 1984 UK model range included the Jaguar XJ6 3.4 & 4.2, Sovereign 4.2 & 5.3, Daimler 4.2 & Double Six 5.3.

Production of the Series III XJ continued until 1992 with the V12 engine. In 1992, the last 100 cars built were numbered and sold as part of a special series commemorating the end of production for Canada. These 100 cars featured the option of having a brass plaque located in the cabin. It was the original purchaser's option to have this plaque, which also gave a number to the car (such as No. 5 of 100, etc.), fitted to the glove box, to the console woodwork or not fitted at all. This brass plaque initiative did not come from Jaguar in Coventry. It was a local effort, by Jaguar Canada staff and the brass plaques were engraved locally.

132,952 Series III cars were built, 10,500 with the V12 engine. In total between 1968 and 1992 there were around 318,000 XJ6 and XJ12 Jaguars produced.

XJ40, X300, and X308 (1986-2002)[]

XJ40 (1986-1994)[]

Main article: Jaguar XJ (XJ40)

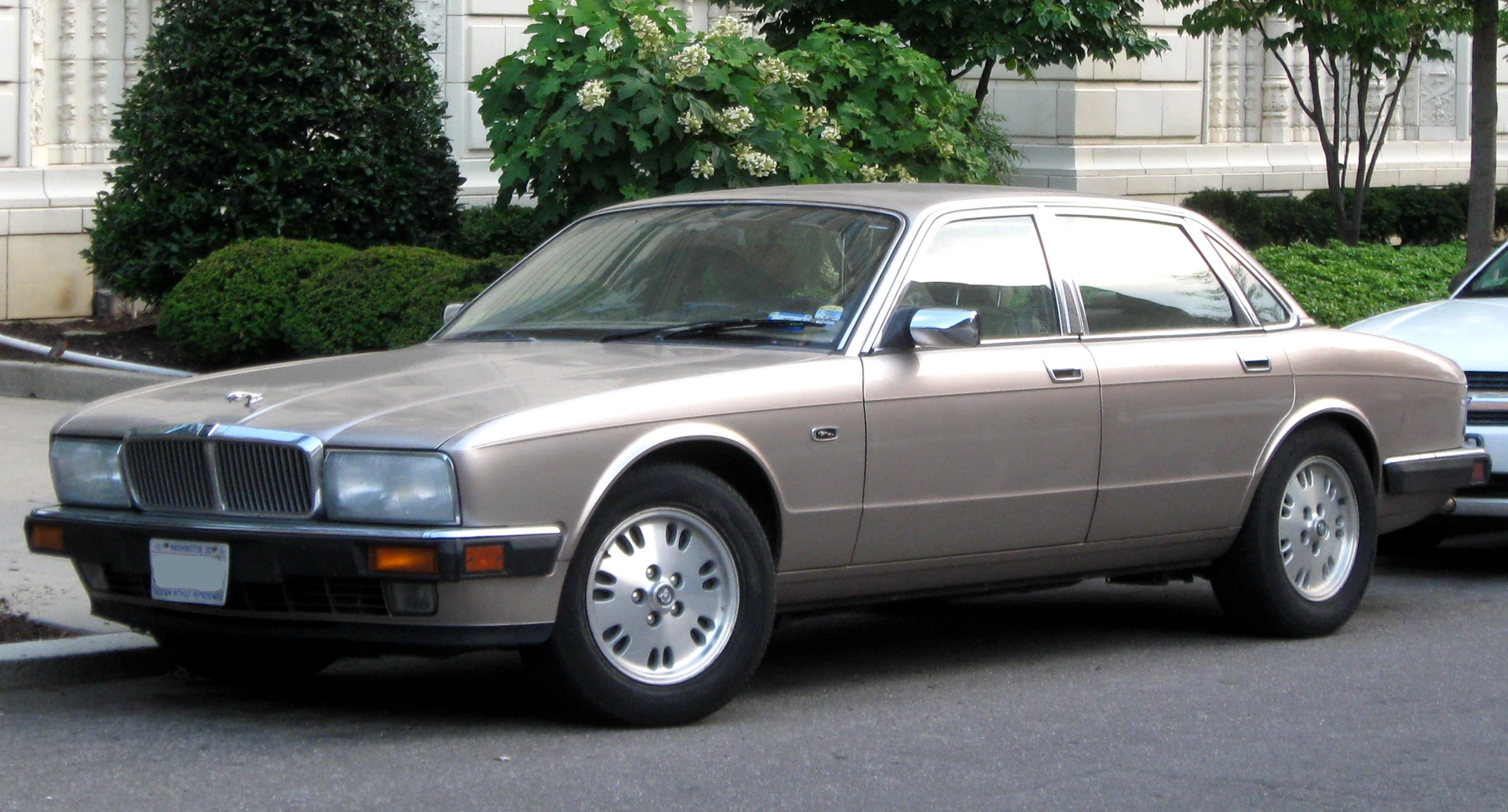

Jaguar XJ6 -- 06-09-2011

US-market XJ6 (XJ40)

The intended replacement for the Series XJ was code-named "XJ40", and development on the all-new car began in the early 1970s (with small scale models being built as early as 1972.) The project suffered a number of delays due to problems at parent company British Leyland and events such as the 1973 oil crisis. The XJ40 was finally introduced in 1986 at the British International Motor Show.

With the XJ40, Jaguar began to place more emphasis on build quality as well as simplification of the XJ's build process. With 25% fewer body panel pressings required versus the Series XJ, the new process also saved weight, increased the stiffness of the chassis, and reduced cabin noise.[citation needed]

The new platform came with significantly different styling, which was more squared-off and angular than the outgoing Series III. Individual round headlamps were replaced with rectangular units on the higher-specification cars. The interior received several modernizations such as the switch to a digital instrument cluster (although this was eventually discontinued in favor of analog instruments.)

The six-cylinder XJ40s are powered by the AJ6 inline-six engine, which replaced the XK6 unit used in earlier XJs. The new unit featured a four-valve, twin overhead cam design. In 1993, one year before XJ40 production ended, the V12-powered XJ12 and Daimler Double Six models were reintroduced.

X300 (1994-1997)[]

Main article: Jaguar XJ (X300)

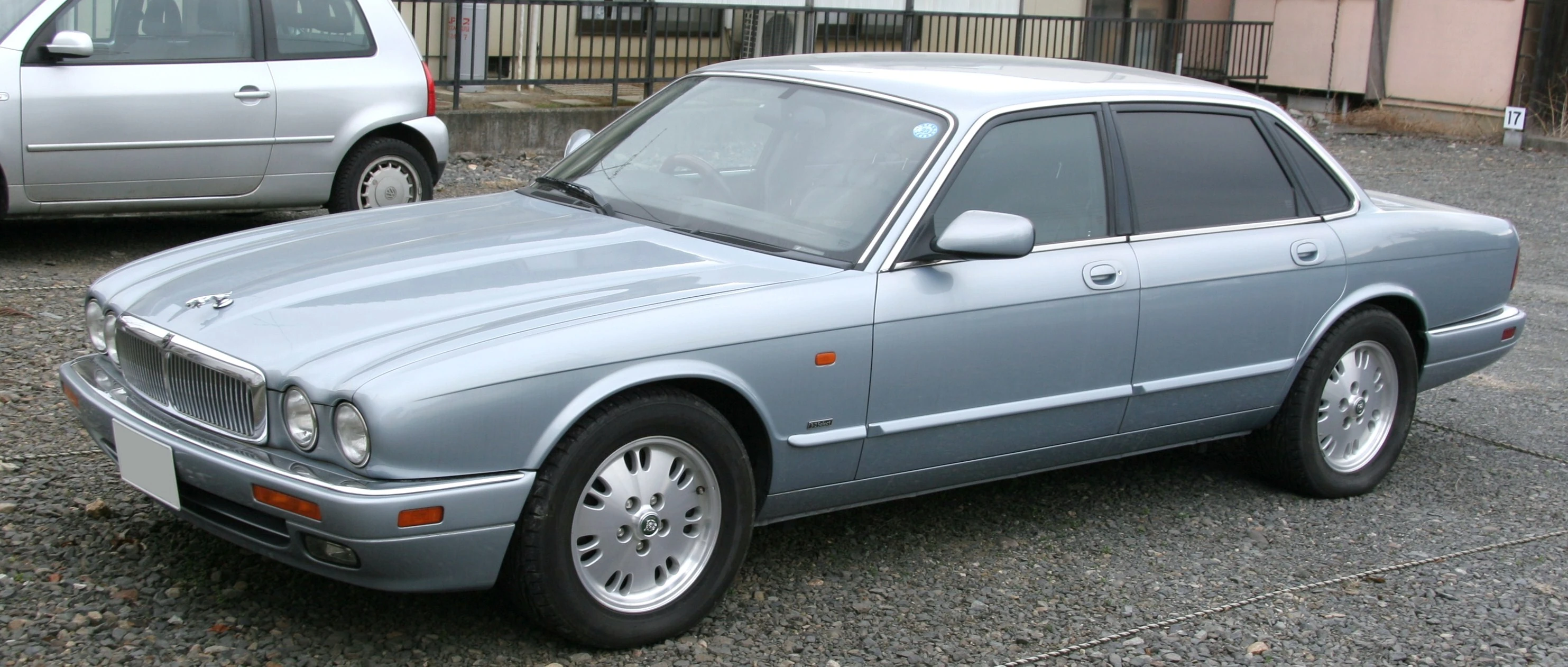

Jaguar XJ6

Jaguar XJ6 (X300)

The X300, introduced in 1994, was stylistically intended to evoke the image of the more curvaceous Series XJ. The front of the car was redesigned significantly to return to four individual round headlamps that provided definition to the sculptured hood. Mechanically, it was similar to the XJ40 that it replaced.

Six-cylinder X300s are powered by the AJ16 inline-six engine, which is a further enhancement of the AJ6 engine that uses an electronic distributorless ignition system. The V12 remained available until the end of the X300 production in 1997 (although it ended one year earlier in the United States market due to problems meeting OBD-II-related emissions requirements.)

It was in X300 production that Jaguar introduced the supercharged XJR, which was the first supercharged road car manufactured by the company.

X308 (1998-2002)[]

Main article: Jaguar XJ (X308)
Daimler Super V8 (X308) front 20100515

Daimler Super V8 (X308)

With the introduction of the X308 generation in 1997 came a switch from the "XJ6" and "XJ12" nomenclature to "XJ8", reflecting the fact that the X308 cars were powered by a new V8 engine.

The exterior styling of the X308 was similar to the X300 with minor refinements such as a change to oval indicator lenses and round fog lights. The interior was also updated to eliminate the instrument binnacle used on the X300; instead, three large gauges were set into recesses in the walnut-faced dashboard in front of the driver.

The major mechanical change was the replacement of both the inline-six and V12 engines with new eight-cylinder AJ-V8 in either 3.2L or 4.0L versions with 4.0L also available in supercharged form. No manual transmission was available, and all X308 models were supplied with a five-speed automatic gearbox.

X350 and X358 (2003-2009)[]

X350 (2003-2007)[]

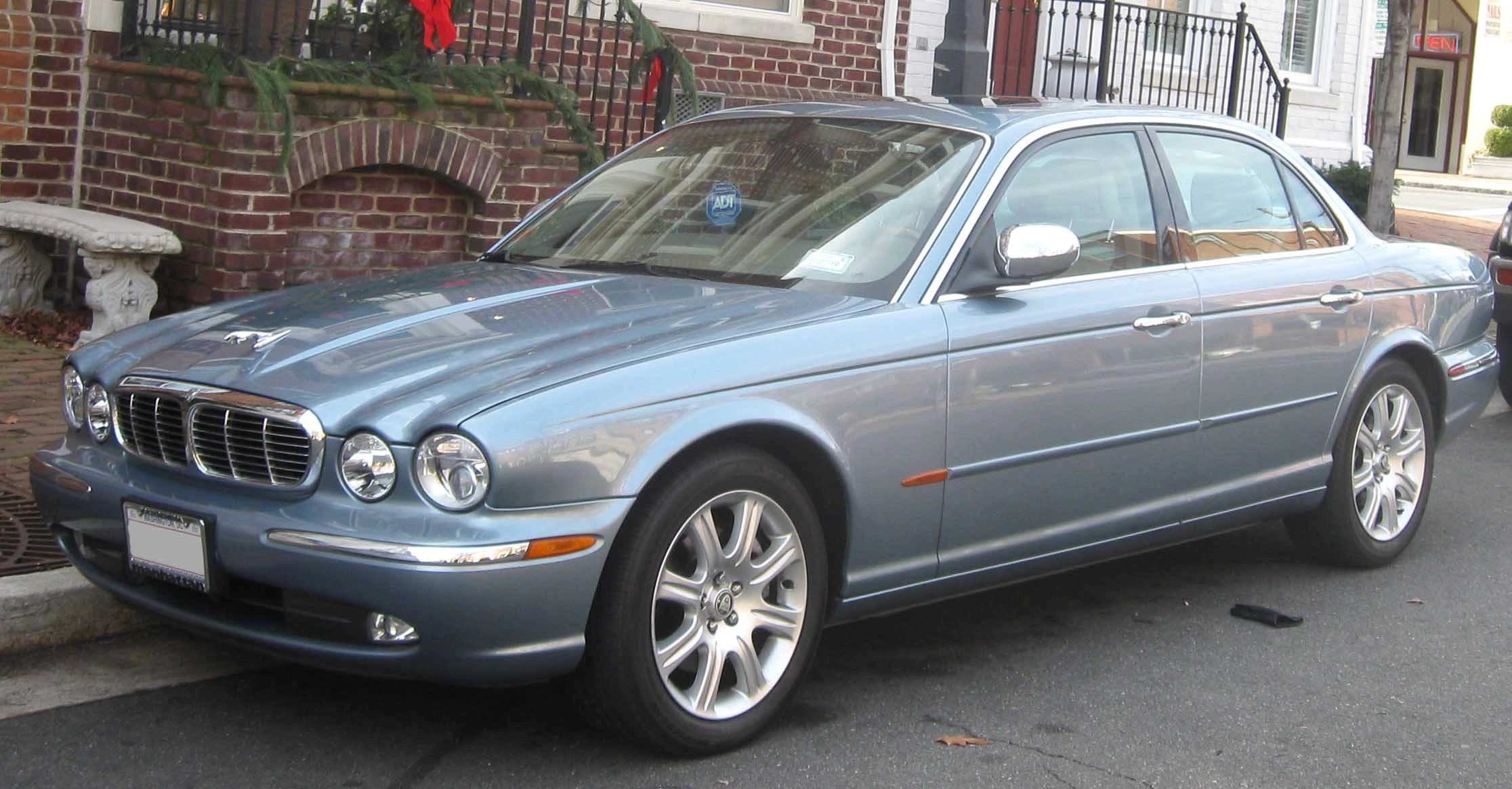

X350
[[File:2004-05 Jaguar XJ X350 Vanden Plas (US)|frameless|upright=1.25|alt=]]
Also called XJ6, XJ8, Vanden Plas, XJR, Super V8, Daimler Super Eight
Production 2003-2007
Assembly Castle Bromwich, Birmingham, England
Body style(s) 4-door saloon
Engine(s) 3.0 L V6
3.5 L AJ-V8 V8
4.2 L AJ-V8 V8
4.2 L supercharged AJ-V8 V8
2.7 L V6 Diesel
Transmission(s) 6-speed automatic
Wheelbase SWB: 119.4 in (3,033 mm)
LWB: 124.4 in (3,160 mm)
Length SWB: 200.4 in (5,090 mm)
LWB: 205.3 in (5,215 mm)
Width 2004-05: 73.2 in (1,859 mm)
2006-07: 83.0 in (2,108 mm)
2008-present: 76.5 in (1,943 mm)
Height SWB: 57 in (1,448 mm)
LWB: 57.3 in (1,455 mm)
Kerb weight 3,946 lb (1,790 kg)
Main article: Jaguar X350

Although major revisions (through the X300 and, particularly, the X308 updates) kept the Mark 2 competitive in some areas against its rivals, the basic design dated back to 1986 which meant the car was being outclassed and losing ground to its rivals, many of which were now two generations advanced from the original competitors of the Mark 2 XJ[citation needed]. For example, since the model had been unveiled in 1986 (at the same time as the BMW 7 Series E32), BMW had launched Mark 3 (E38) and Mark 4 (E65) versions of its 7 Series in 1994 and 2001 respectively – all while Jaguar was still producing the Mk 2 XJ.

In early 2003, the all-new third generation XJ (known as X350) arrived in showrooms. While the car's exterior and interior styling were traditional in appearance, the car was completely re-engineered. The new car also saw the return of the XJ6 badge, and with it six-cylinder power, albeit in a V-configuration. Although traditional in appearance, the car was actually highly technologically advanced: for example, it had an all-aluminium body that made the car very light compared to rivals, bringing improvements in performance, agility and economy.

Larger all round and higher, the new car offered much improved interior and luggage space.

The V8 engine was offered in larger 3.5 and 4.2 litre sizes as well as a supercharged 4.2 Litre. The car's lighter weight meant the 3.0 Litre V6 was also offered although with the later introduction of the 2.7 litre V6 diesel the V6 petrol version was discontinued (neither V6 petrol nor diesel were available in US markets). A new six-speed automatic gearbox was fitted which was lighter and offered better economy with lock up on all gears and a larger spread of ratios.

Air suspension was fitted all round which provided adaptive damping as well as rear self levelling. Unlike other manufacturers Jaguar did not provide any driver control of ride height or suspension mode which was fully computer controlled. Dynamic stability control as well as traction control were standard.

Two zone climate control was also standard with four zone available on long-wheelbase models. An optional touch screen interface controlled default settings, satellite navigation, the Alpine audio system, and blue tooth telephone. "Jaguar Voice" offered voice control of many functions.

X358 (2007–2009)[]

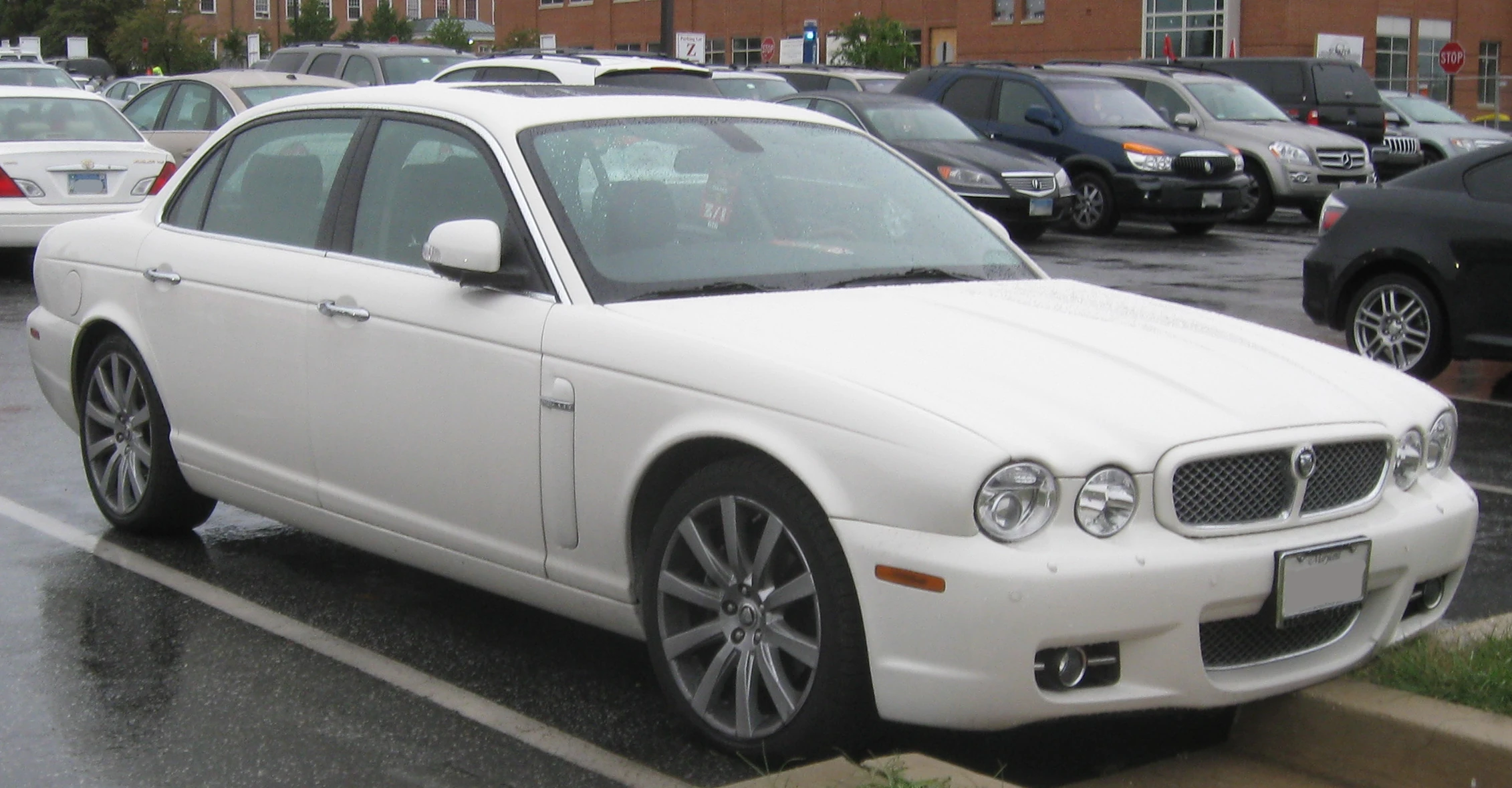

X358
[[File:Jaguar XJ8 Vanden Plas (US)|frameless|upright=1.25|alt=]]
Also called XJ8, Vanden Plas, XJR, Super V8
Production 2007–2009
Kerb weight VJ8: 3,770 lb (1,710 kg)
VDP: 3,871 lb (1,756 kg)
XJR: 3,946 lb (1,790 kg)
Super V8 4,006 lb (1,817 kg)
Main article: Jaguar X358

A face-lifted version of the X350 unveiled at the end of February 2006. Aesthetically, the main changes were a new lower grille system, with a deeper, more aggressive gape, and side air vents similar to those introduced on Ian Callum's 2005 XK.

X351 (2009-)[]

Main article: Jaguar XJ (X351)
XJ X351
[[File:2011 Jaguar XJ-L -- 05-05-2010
2011 Jaguar XJ-L (US)|frameless|upright=1.25|alt=]]
Manufacturer Jaguar Land Rover
Production 2009-
Assembly Castle Bromwich Assembly, Birmingham, England
Predecessor XJ X358
Body style(s) 4-door saloon
Engine(s)

5.0 L 385 PS (283 kW) AJ Gen III V8
5.0 L 510 PS (375 kW) supercharged AJ Gen III V8

3.0 L 275 PS (202 kW) V6 Diesel
Wheelbase SWB: 119.4 in (3,033 mm)
LWB: 124.3 in (3,157 mm)
Length SWB: 201.7 in (5,123 mm)
LWB: 206.6 in (5,248 mm)
Width 83.1 in (2,111 mm)
Height 57 in (1,448 mm)
Kerb weight

(SWB)
Diesel : 1,796 kg (3,960 lb)
Petrol : 1,755 kg (3,870 lb)
Supercharged: 1,892 kg (4,170 lb)

Add 23 kg (51 lb)) for LWB
Designer Ian Callum, Adam Hatton

In July 2009, the newly styled XJ was unveiled at the Saatchi Gallery in London, with Jay Leno and Elle Macpherson unveiling the new car.[14] The unveiling was broadcast live on the Jaguar website.

In keeping with Ian Callum's new design direction for Jaguar, it is an all-new exterior design and a break from the XJ series mould carried over on all previous generations. It is a longer, wider car that looks much bigger than its predecessor.The front has clear links with the executive car XF, although with slimmer, sleeker lights and a larger, squarer grille and more aggressive appearance. The rear is the contentious part, like nothing Jaguar has shown before. The upright, swooping taillights, nicknamed 'cat's claws', and black roof panels each side of the rear screen, which aim to hide the XJ's width, are the most striking aspects. There is also a standard full-length sunroof, that extends all the way back with just a single body-coloured roof panel that the designer likens to bridges on yachts.

The new XJ features an innovative, all-LCD dashboard and console displays. The dashboard can be configured to display various virtual dials in addition to the obligatory speedometer. The console display presents different views to the driver and passenger, including control of a sophisticated video and audio system.

Mike Cross, one of the company's chief engineers, spoke more about the "new Jaguar XJ dynamics" in an interview with Autocar.[15]

Like several of its predecessors, the X351 is available with both standard and long wheelbase as well as many special editions. Engines are modern units, already seen in other JLR products: the 5-litre petrol V8 either normally aspirated or supercharged, or a twin-turbo 3-litre diesel that is predicted to account for most of the sales.[16]

'XJ' Numbering[]

Just prior to World War II, Jaguar, known then as SS Cars, started using a numbering system beginning with the letter X for internal projects. X meaning experimental, XB for military chassis projects and XF to XK for engines. This numbering system has never been consistent and there appears to be many omissions and duplications.

Number Project
XJ3 3.4-litre and 3.8-litre S-Type saloon cars (known to the Pressed Steel Company as 'Utah')
XJ4 Designation of the project which led to what was publicly announced as the XJ6
XJ5 Modifications to the Mark Ten for air-conditioning
XJ6 A V12 racing engine with four-overhead-camshafts
XJ8 E-type 2+2 version
XJ13 Jaguar sport-racing mid engined prototype
XJ16 Jaguar 420 saloon
XJ22 & XJ23 E-type Series Two
XJ27 The Jaguar XJS
XJ40 Second Generation Jaguar XJ6 (1986–1994) (as opposed to Series 2 version of First Generation)
XJ41 Prototype Coupé replacement for the XJ-S
XJ42 Prototype Drophead replacement for the XJ-S
XJ50 Jaguar XJ12 Series Three
XJ57 & XJ58 Jaguar XJ-S 3.6 litre
XJ81 Second Generation Jaguar XJ12 (1993–1994)

References[]

Smallwikipedialogo This page uses some content from Wikipedia. The original article was at Jaguar XJ. The list of authors can be seen in the page history. As with Tractor & Construction Plant Wiki, the text of Wikipedia is available under the Creative Commons by Attribution License and/or GNU Free Documentation License. Please check page history for when the original article was copied to Wikia


  1. 1.0 1.1 Daily Mail Motor Show Review 1972 on 1973 Cars (London: Associated Newspapers Group Ltd): Page 27 (Jaguar XJ12). October 1972.
  2. "Autotest Jaguar XJ6", Autocar. 134 (nbr 3920): pages 6–10. date 13 May 1971.
  3. 3.0 3.1 3.2 "News: New Automatic for XJ6", Motor. nbr 3534: page 57. date 14 March 1970.
  4. 4.0 4.1 4.2 "Twelve for the XJ", Motor. nbr 3652: pages 4–6. date 12 July 1972.
  5. You must specify title = and url = when using {{cite web}}."". The Daily Telegraph. Retrieved on 15 January 2012.
  6. You must specify title = and url = when using {{cite web}}."". World's Oldest XJ website. Retrieved on 15 January 2012.
  7. 7.0 7.1 7.2 Basil Cardew (ed.) (October 1974), Daily Express Motor Show Review 1975 Cars: Page 24 (Jaguar XJ6 L).  Cite error: Invalid <ref> tag; name "DailyExpressMotorShowReviewOct1974re1975" defined multiple times with different content
  8. "Nachrichten aus der Technik: Jaguar mit amerikanischem Getriebe", Auto, Motor und Sport. Heft 11 1977: Seite 64. date 25 Mai 1977.
  9. 9.0 9.1 "Howstuffworks "1973-1979 Jaguar XJ6/XJ12 Series II"". Auto.howstuffworks.com. Retrieved on 2009-04-13.
  10. Daily Express Motor Show Review 1974 Cars: Page 28 (Jaguary XJ12 Series Two). October 1973.
  11. Images of Series III bumpers fitted to a Daimler "XJ-C Coupe"
  12. "Welcome to the website dedicated to the Jaguar XJC". Xjc.com.au. Retrieved on 2009-04-13.
  13. 1984 Jaguar Range brochure, page 24 Retrieved from www.jag-lovers.org on 14 August 2011
  14. "Jaguar XJ: full details and pics", Autocar, Haymarket Consumer Media (2009-07-09). Retrieved on 2009-07-10.
  15. Interview with Mike Cross in Autocar
  16. "2010 Jaguar XJ Teased at Shanghai Auto Show:The Icon Reimagined : Auto News". Autoguide.com (2009-04-20). Retrieved on 2009-07-16.

External links[]

Commons-logo
Wikimedia Commons has media related to:
Advertisement
