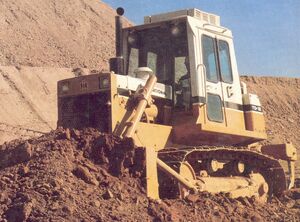

 International TD-12 1982, with cab dozer and ripper | |
| Model history | |
|---|---|
| Model introduced | 1981 |
| Model discontinued | 1984 |
| Model status | Discontinued |
| No. produced | 312 |
| Preceded by | New model |
| Superseded by | Dresser TD-12 |
| Engine Specification | |
| Engine make | International |
| Engine model | D-466 |
| Fuel type | diesel |
| Power hp | 110 net |
| Governed rpm | 2400 |
| Displacement cu in /(litre) | 466 ci |
| No. of Cylinders | 6 |
| Bore in (mm) | 4.3" |
| Stroke in (mm) | 5.35" |
| Cooling system | water |
| Naturally aspirated, Turbo or Supercharged | NA |
| Transmission Details | |
| Transmission type | power shift with torque converter |
| Forward | 3 |
| Reverse | 3 |
| Drive | crawler |
| General Data | |
| Linkage Category | drawbar |
| Tyre Sizes (std/options) | |
| Front | 16" tracks |
| Tractor Dimensions | |
| Length (inches/metres) | 138" |
| Width (inches/meters) | 90" |
| Height (inches/meters) | 86" |
| Weight (nominal) lb/kg | 26540 lb (with dozer) |
| Wheelbase | 74" gauge |
| Other info | |
| Factories | USA |
| Plow rating | |
The International TD-12 was a diesel engined crawler tractor built by the International Harvester company from 1981 to 1982 in the USA.
Model history[]
- For Company history, see International Harvester.
The 110 net hp International TD-12 was added to the International crawler line in 1981 to fill in the big gap that existed between the 78-hp TD-8E and the 140-hp TD-15C. The engine for the TD-12 was the 466 ci 6-cylinder diesel from the TD-15C without the turbocharger, although a lightly-boosted turbo version was available for high altitudes. The TD-12 also used a full power shift torque converter transmission with 3 speeds forward and 3 in reverse. The TD-12 competed with the Case 1150C, Caterpillar D-5B, and John Deere JD750. In 1982 International Harvester sold its construction equipment operations to Dresser Industries, which continued to build the TD-12.[1]
Timeline[]
- 1981 - TD-12 added to line
- 1982 - TD-12 production taken over by Hough-International Div. of Dresser Industries
Factory locations[]
Specification[]
See Infobox for basic details
- Track frame: 6 rollers, 2 top idlers
- Track gauge: 74"
- Track shoe width: 16"
- ROPS
- Hydraulic system
- Dozer blade
Variations and Options[]
- Optional track shoe widths
- Cab
- International DT-466B turbocharged engine for high altitude
- Wide-track version with 34" track shoe width
- LGP version with 7-roller tracks and 34" track shoe width
Serial Numbers Information[]
| Year | Serial no. run start[2] |
Serial no. run End |
Number Built | Notes |
|---|---|---|---|---|
| 1981 | 501 | 654 | 154 | Total calculated |
| 1982 | 655 | 713 | 59 | |
| 1983 | 714 | 748 | 35 | |
| 1984 | 749 | 812 | 64 | |
| Total built | 312 | |||
Gallery[]
Add extra photos here please.
International DT-466B turbocharged diesel engine optional in TD-12 crawler
