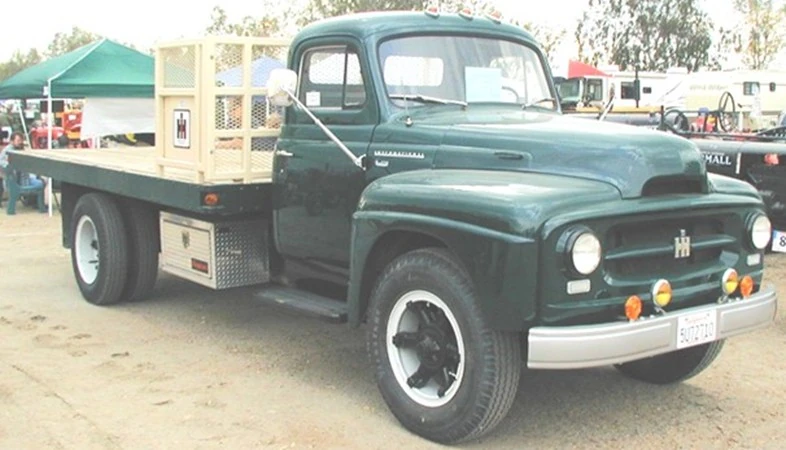

 International R-172 flatbed at Tulare, California antique tractor show, 2002 | |
| Manufacturer | International Harvester Co. |
|---|---|
| Introduced date | 1953 |
| Discontinued date | 1955 |
| Preceding model | L-172 |
| Superseded by | S-172 |
| Production locations | Springfield, Ohio |
| Capacity tons/GVW/GCW | 2½-ton, 19000 lb GVW |
| Engine | |
| Make | International |
| Model | Super Blue Diamond BD-269 |
| Fuel | gasoline |
| Cooling | water |
| Cylinders | 6 |
| Displacement ci / L | 269 ci |
| Power HP @ rpm | 101 @ 2800 |
| Transmission | |
| Gearbox type | syncromesh |
| Gears (forward speeds) | 4 (on show truck, 5 optional) |
| Axles & drive | |
| Wheels/drive | 4x2 |
| Rear Axle Make (Model) | optional Eaton 2-speed on show truck |
| Tires standard/optional | 7.50-20 8-ply dual rear / 9.00-20 12-ply dual rear (8.25-20 10-ply on show truck) |
| Other | |
| Shipping weight | 5390 lb |
| List price | $2594 (1953) |
In 1953 the R-170 series replaced the L-170 series. The R-170 series was made up of six models. The 16000 lb GVW R-170, 17500 lb R-171, and 19000 lb R-172 Standard models were the same mechanically but rated differently for different operating conditions. The R-173 Schoolmaster was a long-wheelbase school bus chassis. The R-174 Loadstar was a short-wheelbase, reinforced frame, heavy-duty 19500 lb GVW model suitable for dump trucks and the like. All of these models continued to use the 101-hp Super Blue Diamond BD-269 engine from the L-170 series with a standard 4-speed syncromesh transmission ( a 5-speed transmission and 2-speed axle were optional). The R-175 Roadliner was a short-wheelbase tractor model with a 19000 lb GVW and 35000 lb GCW. The BD-269 engine, 4-speed transmission, and 7.50-20 tires were “standard” items included in the list price but minimum required options were the 130-hp Super Black Diamond BD-282 engine, 5-speed transmission, and 8.25-20 tires. The Black Diamond was a new engine design, very similar to the Silver Diamond but bigger, with stronger components. In 1955 the power ratings were increased to 104 for the BD-269 and 137 for the BD-282.
See also[]
- International L-170 Series
- International Trucks
- International Harvester
- Navistar International
References / sources[]
- Crismon, Frederick W. (1995). International Trucks. Motorbooks International, Osceola, Wisconsin.
- Mroz, Albert (1996). The Illustrated Encyclopedia of American Trucks and Commercial Vehicles. Krause Publications, Iola, Wisconsin.
