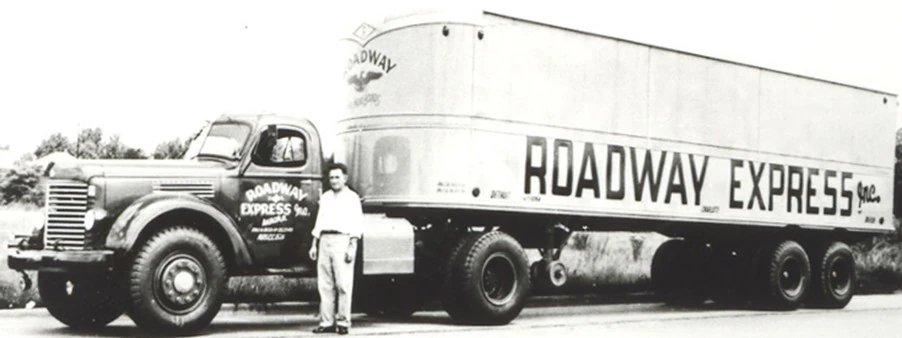

 International 1941 KR-11 tractor with tandem axle van semitrailer (from the Don Wood Collection, Hays Antique Truck Museum) | |
| Manufacturer | International Harvester Co. |
|---|---|
| Introduced date | 1941 |
| Discontinued date | 1947 |
| Preceding model | DR-70 |
| Superseded by | KBR-11 |
| Production locations | Fort Wayne, Indiana; Chatham, Ontario |
| No built | 9263 |
| Capacity tons/GVW/GCW | 4-6 ton, 27000 lb GVW |
| Engine | |
| Make | International |
| Model | FBC-401 |
| Fuel | gasoline |
| Cooling | water |
| Cylinders | 6 |
| Displacement ci / L | 401 ci |
| Power HP @ rpm | 114 @ 2600 |
| Transmission | |
| Gearbox make (model) | Fuller 5A430 |
| Gears (forward speeds) | 5 |
| Axles & drive | |
| Wheels/drive | 4x2 |
| Rear Axle Make (Model) | International R-1700 double-reduction |
| Tires standard/optional | 9.00-20 12-ply dual rear / 11.00-22 12-ply dual rear (in photo) |
| Other | |
| Shipping weight | 8021 lb |
| List price | $4225 (1941) |
In 1941 the KR-11, with double-reduction rear axle, replaced the previous International DR-70. The International KS-11 was the same basic truck but with a 2-speed rear axle. These K-11 series trucks were International's top-of-the-line gasoline-powered conventional-cab 4-wheelers in the early-1940s and through the war years. They sold very well and were possibly the most common big tractors on the road at the time. The K-11 series began with a 27,000 lb GVW rating, a 114-hp International FBC-401 6-cylinder engine, 5-speed transmission, and standard air brakes. A few trucks were built as KRD-11 and KSD-11 models with 150-hp Cummins HB-600 6-cylinder diesel engines. In 1944 the small number of civilian trucks the government allowed to be built were KR-11-450 and KS-11-450 models fitted with the new 134-hp Red Diamond RED-450 engine. In 1945 the regular KR-11 had a 140-hp RED-401 engine and the KR-11-450 had an upgraded 148-hp RED-450. With full civilian production in 1946 the 148-hp engine was made standard in the KR/KS-11.
See also[]
- International DR-70
- International KS-11
- International KBR-11
- International Trucks
- International Harvester
- Navistar International
References / sources[]
- Crismon, Frederick W. (1995). International Trucks. Motorbooks International, Osceola, Wisconsin.
- Mroz, Albert (1996). The Illustrated Encyclopedia of American Trucks and Commercial Vehicles. Krause Publications, Iola, Wisconsin.
