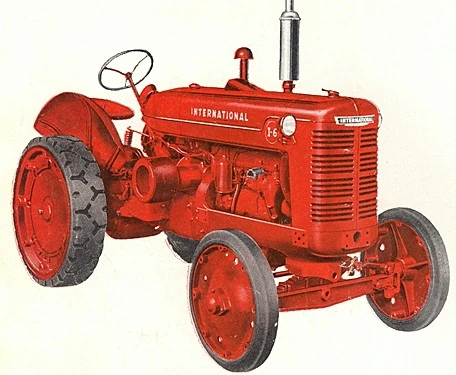

 International I-6 with solid-rubber tires 1949 | |
| Model history | |
|---|---|
| Model introduced | 1940 |
| Model discontinued | 1953 |
| Model status | Discontinued |
| Preceded by | I-30 |
| Engine Specification | |
| Engine make | International |
| Engine model | C-248 |
| Fuel type | gasoline |
| Power hp | 37 belt, 32 drawbar |
| Governed rpm | 1450 |
| Displacement cu in /(litre) | 248 ci |
| No. of Cylinders | 4 |
| Bore in (mm) | 3.875 in |
| Stroke in (mm) | 5.25 in |
| Cooling system | water |
| Naturally aspirated, Turbo or Supercharged | NA |
| Transmission Details | |
| Transmission type | sliding gear |
| Gearbox make | International |
| Forward | 5 |
| Reverse | 1 |
| Drive | 2-WD |
| General Data | |
| Linkage Category | drawbar |
| Tyre Sizes (std/options) | |
| Front | sold rubber |
| Rear | sold rubber |
| Tractor Dimensions | |
| Length (inches/metres) | 124 in |
| Width (inches/meters) | 64 in |
| Height (inches/meters) | 69 in |
| Weight (nominal) lb/kg | 4790 lb |
| Turning circle (nominal) inches/meters | 25.5 ft |
| Wheelbase | 76 in |
| Other info | |
| Factories | Rock Island, Illinois, USA |
| Plow rating | |
The International I-6 was an industrial tractor built by the International Harvester company from 1940 to 1953 in Rock Island, Illinois.
Model history[]
- For Company history see
- Main article: International Harvester
The International I-6 was based on the McCormick-Deering W-6 but fitted with heavy-duty axles, wheels, and tires, and a foot throttle.
Timeline[]
- 1940 - International I-6 replaced I-30
- 1953 - I-6 discontinued
Factory locations[]
- Farmall Works, Rock Island, Illinois, USA
Specification[]
See Infobox for basic details
- Standard tires
- Front: 6.00-16 4-ply (1941)
- Rear: 13.00-24 6-ply (1941)
Variations and Options[]
- Optional tires
- Front: 6.00-16 6-ply, 6.50-16 4 or 6-ply; 6.00-20, 6.50-20, 7.00-20, or 7.50-20 8-ply (1947)
- Rear: 12.00-24 6 or 8-ply, 13.00-24 8-ply, or 14.00-24 6 or 8-ply; 9.00-24 12-ply dual (1947); 12.00-24 or 13.00-24 6-ply dual (1949)
Serial Numbers Information[]
| Year | Serial no. run start[1] |
Serial no. run End[1] |
Number Built | Notes |
|---|---|---|---|---|
| 1940 | IBK501 | 1224 | Serial range includes W-6, WD-6, O-6, OS-6, ODS-6, I-6, ID-6 | |
| 1941 | 1225 | 3717 | Number built included with McCormick-Deering W-6 | |
| 1942 | 3718 | 5056 | ||
| 1943 | 5057 | 6312 | ||
| 1944 | 6313 | 9495 | ||
| 1945 | 9496 | 14152 | ||
| 1946 | 14153 | 17791 | ||
| 1947 | 17792 | 22980 | ||
| 1948 | 22981 | 28703 | ||
| 1949 | 28704 | 33697 | ||
| 1950 | 33698 | 38517 | ||
| 1951 | 38518 | 44317 | ||
| 1952 | 44318 | 45273 | ||
| 1953 | 45274 | 45274[2] | ||
| Total built | ||||
Preservation[]
Add details of any known examples in preservation to table below (for all W-6 based models);
| Make + Model No. | Reg No. (if known) |
Serial No. | Build-Date | Engine-Type/Make | Owner (if known) |
Photo | Were seen/Featured in | Other info |
|---|---|---|---|---|---|---|---|---|
|
||||||||
|
|
||||||||
| Please add any tractor with known reg or serial no. with Photo if possible. | ||||||||
| Create a page (link) for an individual tractor by linking the reg or serial number using reg number or serial number in the relevant column. Then once saved click the red link to start the new page and add info on that tractor. | ||||||||
Gallery[]
Add extra photos here please.
International I-6 industrial tractor 1940
