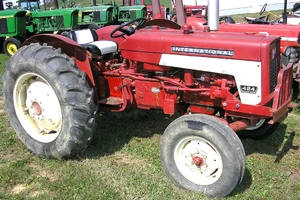

 International 424 gasoline-powered utility tractor, used tractor ad, 1965 | |
| Model history | |
|---|---|
| Model introduced | 1964 |
| Model discontinued | 1967 |
| Model status | Discontinued |
| No. produced | 16,723 |
| Preceded by | International B414 |
| Superseded by | International 444 |
| Engine Specification | |
| Engine make | International |
| Engine model | International C-146 |
| Fuel type | gasoline |
| Power hp | 47 gross, 37 pto, 31 drawbar |
| Governed rpm | 2000 |
| Displacement cu in /(litre) | 145 ci |
| No. of Cylinders | 4 |
| Bore in (mm) | 3.375" |
| Stroke in (mm) | 4.0625" |
| Cooling system | Water |
| Naturally aspirated, Turbo or Supercharged | NA |
| Transmission Details | |
| Transmission type | dual-range sliding gear |
| Forward | 8 |
| Reverse | 2 |
| Drive | 2-WD |
| General Data | |
| Linkage Category | Category I 3-point hitch, draft control |
| Tyre Sizes (std/options) | |
| Front | 7.50-16 6-ply |
| Rear | 13.6-28 4-ply |
| Tractor Dimensions | |
| Height (inches/meters) | 58" |
| Weight (nominal) lb/kg | 3700 lb |
| Turning circle (nominal) inches/meters | 17 ft |
| Wheelbase | 70" |
| Other info | |
| Factories |
Doncaster, England Louisville, Kentucky, USA India (Mahindra Tractors) |
| Plow rating | 2-3 14" |
| Nebraska Tests No. | 908 |
| Approximate Cost new in (year) | $3000 (1964) |
The International Harvester 424 utility tractor was built by International Harvester from 1964 to 1967, with partial manufacture in Doncaster, England and final assembly in Louisville, Kentucky, USA, and under license by IH's joint venture in India, Mahindra Tractors.
Model history[]
- Main article: International Harvester
For industrial version see International 2424. For LCG (low center-of-gravity) version see International 2424 Lo-Boy
The IH 424 replaced the International B414 in the US. The new model was still partially built in Doncaster, England but it was styled like American models, with a new grille made up of fine vertical and horizontal bars. The chassis was shipped to the US as a "skid unit" and assembly was completed in the Louisville, Kentucky factory. The gasoline version was shipped without an engine and the C-146 engine was fitted in the US. The C-146 was apparently based on the C-135 engine of the International 404 Utility tractor but with a 1/8" longer stroke to increase the displacement.
Tractor Comparison, gasoline models[]
When it was introduced in mid 1964 the gasoline-powered 424 competed directly on weight, power, and price with the Case 440, John Deere 1010, and Massey-Ferguson MF135. The Ford 4-cylinder 2000 was slightly smaller and less powerful. The Oliver 550 was slightly more powerful. By 1967 the newer 3-cylinder Ford 3000 and John Deere 1020 and the Fiat-built Oliver 1250 were close matches for the International.
| Make & model | Pto hp | Displace. | Speeds | Weight (lb) | Price-$ (year) |
|---|---|---|---|---|---|
| International Harvester 424 | 37 | 145 | 8 | 3700 | 3000 (1964), 3270 (1967) |
| Case 440 | 33 | 148 | 8 | 3530 | 3162 (1964) |
| Ford 2000 | 33 | 134 | 4-12 | 2712 | 2913 (1964) |
| Ford 3000 | 38 | 158 | 8 | 3480 | 3292 (1967) |
| John Deere 1010U | 36 | 115 | 5 | 3615 | 2638 (1964) |
| John Deere 1020U | 39 | 135 | 8 | 4100 | 3358 (1967) |
| Massey-Ferguson 135 | 35 | 145 | 6-12 | 2940 | 3216 (1964) |
| Oliver 550 | 41 | 155 | 6 | 3229 | 2970 (1964) |
| Oliver 1250 | 35 | 116 | 6 | 3666 | 3038 (1967) |
Tractor Comparison, diesel models[]
In 1964 the IH 424 was a close match in the hotly-contested small diesel utility class with the Case 430, Cockshutt 550 (built by Oliver), Fiat 411R, Ford 2000, Fordson Super Dexta, John Deere 1010, Massey-Ferguson MF135, and Oliver 550. The David Brown 880 was slightly heavier, more powerful, and more expensive. New competitors that matched the International by 1967 included the 3-cylinder Ford 3000 and John Deere 1020 and the Fiat-built Oliver 1250.
| Make & model | Pto hp | Displace. | Speeds | Weight (lb) | Price-$ (year) |
|---|---|---|---|---|---|
| International Harvester 424 | 37 | 154 | 8 | 3820 | 3320 (1964), 3600 (1967) |
| Case 430 | 34 | 188 | 8 | 3565 | 3615 (1964) |
| David Brown 780 | 36 | 146 | 12 | 3710 | 3840 (1967) |
| David Brown 880 | 40 | 154 | 12 | 4470 | 3985 (1964) |
| Ford 2000 | 36 | 158 | 8 | 3580 | 3442 (1965) |
| Ford 3000 | 39 | 175 | 8 | 3805 | 3633 (1967) |
| Fordson Super Dexta | 39 | 153 | 6 | 3150 | 3250 (1964) |
| John Deere 1010U | 36 | 144 | 5 | 3700 | 3061 (1964) |
| John Deere 1020U | 39 | 152 | 8 | 4150 | 3657 (1967) |
| Massey-Ferguson 135 | 38 | 153 | 6-12 | 3130 | 3555 (1964) |
| Oliver 550 | 39 | 155 | 6 | 3245 | 3808 (1964) |
| Oliver 1250 | 35 | 138 | 6 | 3666 | 3310 (1967) |
Note: Most specifications and prices in comparison tables from The Official Tractor Blue Book 2010[1], Farm Tractors 1950-1975[2], and Farm Tractors 1975-1995[3]
Timeline[]
- 1964 - International Harvester 424 production began
- 1967 - 444 replaced 424 in US
Factory locations[]
- International Harvester Great Britain, Ltd., Doncaster, England
- Louisville Works, Louisville, Kentucky, USA
Specification[]
For basic spec see Infobox on the right. Add details here.
- C-146 4-cylinder gasoline engine
- 8-speed dual range transmission
- Adjustable front axle
- Differential lock
- Electric starter and lights
- Category I 3-point hitch, draft control
- Constant running pto
- Standard tires
- Front: 6.00-16 4-ply; 5.50-16 4-ply (1966)
- Rear: 13.6-28 4-ply; 12.4-28 4-ply (1966)
Options[]
- BD-154 4-cylinder diesel engine
- 8-speed dual-range transmission with forward-reverse shuttle
- Hydrostatic power steering
- Optional tires
- Front: 7.50-16 6-ply (1966)
- Rear: 14.9-24 6-ply; 13.6-28 6-ply (1966)
Serial numbers (diesel version)[]
| Year | Serial no. run start[4] |
Serial no. run End |
Number Built | Notes |
|---|---|---|---|---|
| 1964 | 501 | 1401 | 901 | Production calculated from serial no. range, includes 2424 and 2424 Lo-Boy |
| 1965 | 1402 | 7840 | 6439 | |
| 1966 | 7841 | 13626 | 5786 | |
| 1967 | 13627 | 17223[5] | 3597 | Last built |
| Total built | 16723 | |||
Preservation[]
Add details of known examples in preservation;
| Make + Model No. | Reg No. (if known) |
Serial No. | Build-Date | Engine-Type/Make | Owner (if known) |
Photo | Were seen/Featured in | Other info |
|---|---|---|---|---|---|---|---|---|
|
||||||||
|
|
||||||||
| Please add any tractor with known reg or serial no. with Photo if possible. | ||||||||
| Make & model | reg no | serial no | date built | engine | owner |
|
seen at | misc info |
| Create a page (link) for an individual tractor by linking the reg or serial number using reg number or serial number in the relevant column. Then once saved click the red link to start the new page and add info on that tractor. | ||||||||
Gallery[]
Add extra photos here please.
See also[]
- List of Tractor Manufacturers
- List of International Harvester vehicles
- International Harvester
- Case IH
- Farmall
- International B414
- International 2424
- International 2424 Lo-Boy
- Collection related info
- Shows and Meets - events featuring tractors and other machinery
- Clubs Listing - List of clubs including various tractor marques
- Collections - list of private collections with tractors (add yours)
- Museums - includes museums featuring tractors (please add missing ones)
References/sources[]
- ↑ Hall, Mike, Ed., The Official Tractor Blue Book 2010, Price Digests, Overland Park, Kansas, 2009
- ↑ Larsen, Lester, Farm Tractors 1950-1975, American Society of Agricultural Engineers, St. Joseph, Michigan, 1981
- ↑ Gay, Larry, Farm Tractors 1975-1995, American Society of Agricultural Engineers, St. Joseph, Michigan, 1995
- ↑ Implement & Tractor Red Book issue, March 31, 1984, p.103
- ↑ Baumheckel, Ralph and Borghoff, Kent, International Farm Equipment Product History, American Society of Agricultural Engineers, St. Joseph, Michigan, 1997
