 International Cub Cadet 71 | |
| Model history | |
|---|---|
| Model introduced | 1965 |
| Model discontinued | 1967 |
| Model status | Discontinued |
| No. produced | 11,071 |
| Preceded by | International Cub Cadet 70 |
| Superseded by | International Cub Cadet 72 |
| Engine Specification | |
| Engine make | Kohler |
| Engine model | K161S |
| Fuel type | gasoline |
| Power hp | 7 |
| Power kW | 5.2 |
| Governed rpm | 3600 |
| Displacement cu in /(litre) | 16 ci |
| No. of Cylinders | 1 |
| Bore in (mm) | 2.875 in |
| Stroke in (mm) | 2.5 in |
| Cooling system | air |
| Naturally aspirated, Turbo or Supercharged | NA |
| Transmission Details | |
| Transmission type | sliding gear |
| Gearbox make | International |
| Forward | 3 |
| Reverse | 1 |
| Drive | 2-WD |
| Linkage Category | Unknown |
| Tyre Sizes (std/options) | |
| Front | 4.80/4.00-8 2-ply |
| Rear | 6-12 2-ply |
| Tractor Dimensions | |
| Length (inches/metres) | 63 in |
| Width (inches/meters) | 33 in |
| Height (inches/meters) | 40 in |
| Weight (nominal) lb/kg | 560 lb |
| Turning circle (nominal) inches/meters | 13.6 ft |
| Wheelbase | 43 in |
| Other info | |
| Factories | Louisville Works, Louisville, Kentucky, USA |
| Plow rating | 1-10" |
| Approximate Cost new in (year) | $735 (1967) |

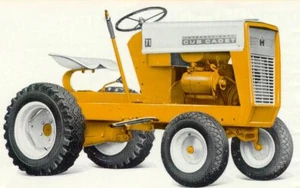

The International Cub Cadet 71 was built by International Harvester from 1965 to 1967 in the Louisville, Kentucky, USA factory. It features a 7 hp (5.2 kW) Kohler engine.
Model History[]
- For Company history see
- Main article: International Harvester
The IH Cub Cadet model 71 is a narrow frame garden tractor. Production serial numbers began at 127161 in August of 1965 which ended with serial number 218009 in November of 1967. Other IH Cub Cadet models made during this time of production were the models 102, and 122. The IH Cub Cadet model 123 began production starting in June, 1966 starting with serial number 157490 and ended with 218009 as the serial number, respectably. It was a very much improved line up from the IH Cub Cadet 70/100 series garden tractors in many ways. The IH Cub Cadet 71 was the direct replacement of the model 70. The bacis caraterstics of the model 70 were retained with the 71. There are three noticable upgrades to the 71. For starters,the grill was made to resemble the IH 56 Series agricultural tractors, while the grill housing itself was redesigned. This was dubbed the "swept-back" design, in which the hood was also redesigned to configure correctly with the grill housing as well. The most important upgrade began with the 71, in which that all other tractors would for ever follow, was the new saftey start switch.
Timeline[]
- Introduced 1965
- Replaced by International Cub Cadet 72 in 1967
Factory locations[]
- Louisville Works, Louisville, Kentucky, USA
Specification[]
See Infobox for basic details
Variations and Options[]
- 2-speed underdrive creeper gear box giving 6 forward speeds
- Fenders
- Lights
- Utility box
- 3-point hitch
- Optional Tires
- Front: 16x6.50-8
- Rear: 23x8.50-12 or 6-12 dual
Serial Numbers Information[]
| Year | Serial run[1][2][3] | Number Built | Notes (Total built 11,071[4]) |
|---|---|---|---|
| 1965 | 127161-137050 | 7434[5] | |
| 1966 | 137051-180267 | 6686[6] | |
| 1967 | 180268-218009 | 3867[7] |
Preservation[]
No information on any of these tractors in preservation is currently available on here.
- Do you know of any examples to list ?
{{subst:PML International Cub Cadet 71 }}
Gallery[]
Add extra photos here please.
Cub Cadet 71 Photos
Cub Cadet 71 at a Northwest Pennsylvania tractor show
Cub Cadet 71 with hydraulic pump
Restored 1965 International Harvester Cub Cadet. Owner: Jude Sminkey
Replace with your image
Caption here
See also[]
- Collection related info
- Shows and Meets - events featuring tractors and other machinery
- Clubs Listing - List of clubs including various tractor marques
- Collections - list of private collections with tractors (add yours)
- Museums - includes museums featuring tractors (please add missing ones)
References / Sources[]
- ↑ Baumheckel, Ralph and Borghoff, Kent. 1997. International Harvester Farm Equipment Product History, American Society of Agricultural Engineers, St. Joseph, Michigan, pp.395-396
- ↑ Updike, Kenneth. 2002. Farmall Cub & Cub Cadet, MBI Publishing, St. Paul, Minnesota, p.115
- ↑ http://www.ihcubcadet.com
- ↑ http://www.ihregistry.com
- ↑ Klancher, Lee 1996. International Harvester Photographic History, Motorbooks International, Osceola, Wisconsin, p.193 (includes Model 70)
- ↑ Klancher, Lee 1996. International Harvester Photographic History, Motorbooks International, Osceola, Wisconsin, p.193
- ↑ Klancher, Lee 1996. International Harvester Photographic History, Motorbooks International, Osceola, Wisconsin, p.193 (includes Model 72)
