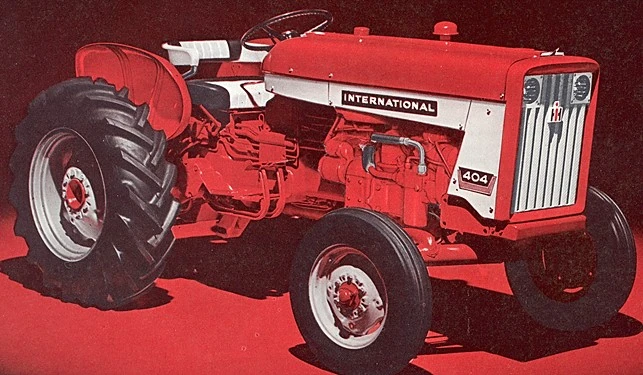

 International 404 Utility, 1962 | |
| Model history | |
|---|---|
| Model introduced | 1961 |
| Model discontinued | 1968 |
| Model status | Discontinued Discontinued |
| No. produced | 10,577 |
| Preceded by | International 240 Utility |
| Superseded by | International 354 |
| Engine Specification | |
| Engine make | International |
| Engine model | C-135 |
| Fuel type | gasoline |
| Power hp | 47 engine, 37 pto, 33 drawbar |
| Governed rpm | 2000 |
| Displacement cu in /(litre) | 135 ci |
| No. of Cylinders | 4 |
| Bore in (mm) | 3.25" |
| Stroke in (mm) | 4.0625" |
| Cooling system | water |
| Naturally aspirated, Turbo or Supercharged | NA |
| Transmission Details | |
| Transmission type | dual-range sliding gear |
| Forward | 8 |
| Reverse | 2 |
| Drive | 2-WD |
| General Data | |
| Linkage Category | Category I 3-point hitch, draft control |
| Tyre Sizes (std/options) | |
| Front | 5.50-16 4-ply |
| Rear | 13.6-28 4-ply |
| Tractor Dimensions | |
| Length (inches/metres) | 118" |
| Height (inches/meters) | 61" |
| Weight (nominal) lb/kg | 3260 lb |
| Turning circle (nominal) inches/meters | 18 ft |
| Wheelbase | 75" |
| Other info | |
| Factories | Tractor Works, Chicago, Illinois, USA |
| Plow rating | 2-3 |
| Approximate Cost new in (year) | $3340 (1968) |
The International 404 Utility was built by International Harvester from 1961 to 1968 in Chicago, Illinois, USA.
Model History[]
- For Company history see
- Main article: International Harvester
For row crop model see: Farmall 404
The 404 Utility was an upgrade of the 240 Utility. The former C-123 engine was supplanted by the slightly more powerful C-135, borrowed from the old 340 Utility tractor.
Tractor Comparison[]
With an output of 37 pto hp, the 404 Utility competed with a large group of other gasoline-powered American and European small utility tractors, including the Case 440, Ford 3000, John Deere 1010 and 1020, Massey-Ferguson MF35 and MF135, and Oliver 550 and 1250. Production of the International 404 ended in early 1968.
| Make & model | Pto hp | Weight (lb) | Price ($) |
|---|---|---|---|
| International 404 | 37 | 3560 | 3340 (1968) |
| case 440 | 31 | 3050 | 3356 (1965) |
| Ford 3000 | 38 | 3480 | 2988 (1965) |
| John Deere 1010 Utility | 36 | 3350 | 2785 (1965) |
| John Deere 1020RU | 39 | 4100 | 3861 (1970) |
| Massey-Ferguson 35 | 33 | 2970 | 2595 (1964) |
| Massey-Ferguson 135 | 35 | 2940 | 3248 (1965) |
| Oliver 550 | 41 | 3229 | 3000 (1965) |
| Oliver 1250 | 35 | 3548 | 2878 (1965) |
Note: Most specifications and prices in comparison tables from The Official Tractor Blue Book 2010[1], Farm Tractors 1950-1975[2], and Farm Tractors 1975-1995[3]
Timeline[]
- 1961 - International 404 Utility replaced International 240 Utility
- 1968 - Production ended
Factory locations[]
Specification[]
See Infobox for basic details
- 4-cylinder gasoline engine
- 4-speed transmission
- Electric starter and lights
- Category I 3-point hitch, draft control
- Pto
- Standard tires
- Front: 5.50-16 4-ply
- Rear: 12.4-28 4-ply
- Standard tires
Variations and Options[]
- LP-gas engine
- Dual-range 8-speed transmission
- Forward-reverse shuttle transmission
- Power adjusted rear wheels
- Belt pulley
- Power steering
- Optional tires
- Front: 6.00-16 4 or 6-ply
- Rear: 13.6-28 4-ply
Serial Numbers Information[]
| Year | Serial no. run start[1] |
Serial no. run End[1] |
Number Built | Notes |
|---|---|---|---|---|
| 1961 | 501 | 1044 | 544 | Production calculated from serial no. range, includes 2404 Industrial and 2404 Lo-Boy |
| 1962 | 1045 | 4204 | 3160 | |
| 1963 | 4205 | 6451 | 2247 | |
| 1964 | 6452 | 8291 | 1840 | |
| 1965 | 8292 | 9547 | 1256 | |
| 1966 | 9548 | 10533 | 986 | |
| 1967 | 10534 | 11031 | 498 | |
| 1968 | 11032 | 11077[4] | 46 | |
| Total built | 10577 | |||
Preservation[]
No information on any of these tractors in preservation is currently available on here.
- Do you know of any examples to list ?
| Make + Model No. | Reg No. (if known) |
Serial No. | Build-Date | Engine-Type/Make | Owner (if known) |
Photo | Were seen/Featured in | Other info |
|---|---|---|---|---|---|---|---|---|
| IH 2404 Industrial | no registered | IH 2404 sn 3760 j-w | Built 1962 | IH engine | User:Mazmach |
|
owners yrad | fitted with IH 2000 loader, Wagner backhoe |
|
||||||||
|
|
||||||||
| Please add any tractor with known reg or serial no. with Photo if possible. | ||||||||
| Make & model | reg no | serial no | date built | engine | owner |
|
seen at | misc info |
| Create a page (link) for an individual tractor by linking the reg or serial number using reg number or serial number in the relevant column. Then once saved click the red link to start the new page and add info on that tractor. | ||||||||
Gallery[]
Add extra photos here please.
See also[]
- McCormick Farmall 404
- International 240 Utility
- List of Tractor Manufacturers
- List of International Harvester Vehicles
- Collection related info
- Shows and Meets - events featuring tractors and other machinery
- Clubs Listing - List of clubs including various tractor marques
- Collections - list of private collections with tractors (add yours)
- Museums - includes museums featuring tractors (please add missing ones)
References / Sources[]
- ↑ 1.0 1.1 1.2 Hall, Mike, Ed., The Official Tractor Blue Book 2010, Price Digests, Overland Park, Kansas, 2009
- ↑ Larsen, Lester, Farm Tractors 1950-1975, American Society of Agricultural Engineers, St. Joseph, Michigan, 1981
- ↑ Gay, Larry, Farm Tractors 1975-1995, American Society of Agricultural Engineers, St. Joseph, Michigan, 1995
- ↑ Baumheckel, Ralph and Borghoff, Kent, International Farm Equipment Product History, American Society of Agricultural Engineers, St. Joseph, Michigan, 1997
