 International 330 utility, 1958 | |
| Model history | |
|---|---|
| Model introduced | 1957 |
| Model discontinued | 1958 |
| Model status | Discontinued |
| No. produced | 4,263 |
| Preceded by | New model |
| Superseded by | International 340 |
| Engine Specification | |
| Engine make | International |
| Engine model | C-135 |
| Fuel type | gasoline |
| Power hp | 34 belt, 32 drawbar |
| Governed rpm | 2000 |
| Displacement cu in /(litre) | 135 ci |
| No. of Cylinders | 4 |
| Bore in (mm) | 3.25" |
| Stroke in (mm) | 4.0625" |
| Cooling system | Water |
| Naturally aspirated, Turbo or Supercharged | NA |
| Transmission Details | |
| Transmission type | 5-speed sliding gear plus 2-speed planetary |
| Gearbox make | International |
| Forward | 10 |
| Reverse | 2 |
| Drive | 2-WD |
| General Data | |
| Linkage Category | 2-point "Fast Hitch" |
| Tyre Sizes (std/options) | |
| Front | 5.50-16 4-ply |
| Rear | 11-28 4-ply |
| Tractor Dimensions | |
| Weight (nominal) lb/kg | 3920 lb |
| Other info | |
| Factories | USA |
| Plow rating | |
| Nebraska Tests No. | 634 |
| Approximate Cost new in (year) | $2860 (1958) |

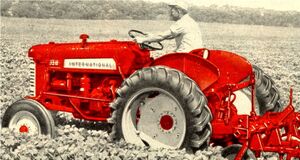

The International 330 was a utility tractor built by International Harvester from 1957 to 1958 in the USA.
Model history
Edit
- Main article: International Harvester
The new International 330 utility tractor was essentially the chassis of the 350 Utility fitted with a smaller engine. The 135 ci 4-cylinder gasoline engine was similar to the engine of the Farmall 230 tractor, but with a 1/8" larger bore and 1/16" longer stroke. Like the 350, the 330 was available with the shift-on-the-go Torque Amplifier 2-speed planetary.
Tractor Comparison Edit
The small utility tractor class was founded by the Ford 9N with Ferguson System in 1939. By 1957 it had evolved into a very popular group of tractors with just 30-35 belt hp. Models available included the Case 310, David Brown 30, Ferguson TO35 and F40, Ford 601-series, Massey-Ferguson MF50, Minneapolis-Moline 335, and Oliver Super 55. The 2-cylinder John Deere 420U was slightly smaller and less powerful than the rest. International entered this class in mid-1957 with the 330. Built on the 350 chassis, it was heavier and more expensive than most of the other tractors in the class but offered the advantage of the Torque Amplifier. The 330 was only built for a short time before the same engine was used in the new International 340 chassis.
| Make & model | Pto hp | Displace. | Speeds | Weight (lb) | Price-$ (year) |
|---|---|---|---|---|---|
| International 330 | 34 | 135 | 10 | 3920 | 2860 (1958) |
| Case 310 | 32 | 148 | 4-12 | 2920 | 2550 (1958) |
| David Brown 30 | 31 | 165 | 6 | 3700 | |
| Ferguson TO35 | 33 | 134 | 6 | 2850 | |
| Ferguson F40 | 33 | 134 | 6 | 3100 | 2385 (1957) |
| Ford 601-Series | 34 | 134 | 4-5-12 | 3291 | 2255 (1958) |
| John Deere 420U | 28 | 113 | 4 | 2847 | |
| Massey-Ferguson 50 | 33 | 134 | 6 | 3290 | |
| Minneapolis-Moline 335 | 33 | 165 | 10 | 3361 | |
| Oliver Super 55 | 34 | 144 | 6 | 3369 | 2500 (1958) |
Note: Some specifications and prices for comparison tables from [1] and [2]
Timeline Edit
- 1955 - International 300 Utility was International Harvester's first "utility" tractor
- 1957 - International 350 Utility replaced 300 Utility, later International 330 was based on 350 Utility, with a smaller engine
- 1958 - International 340 Utility replaced 330, Farmall 340 added
Factory locations Edit
SpecificationEdit
For basic spec see Infobox on the right. Add details here.
- C-135 4-cylinder gasoline engine
- 5-speed transmission with Torque Amplifier 2-speed planetary
- Adjustable front axle
- Standard tires
- Front: 5.50-16 4-ply
- Rear: 11-28 4-ply
OptionsEdit
- Optional tires
- Front:
- Rear: 12-28 4-ply
Serial numbers version)Edit
| Year | Serial no. run start[1] | Serial no. run End | Number Built | Notes |
|---|---|---|---|---|
| 1957 | 501 | 1487 | 987 | Production calculated from serial no. range |
| 1958 | 1488 | 4763[3] | 3276 | Last built |
| Total built | 4263 | |||
PreservationEdit
Add details of known examples in preservation;
| Make + Model No. | Reg No. (if known) | Serial No. | Build-Date | Engine-Type/Make | Owner (if known) | Photo | Were seen/Featured in | Other info |
|---|---|---|---|---|---|---|---|---|
| ||||||||
|
| ||||||||
| Please add any tractor with known reg or serial no. with Photo if possible. | ||||||||
| Make & model | reg no | serial no | date built | engine | owner |
| seen at | misc info |
| Create a page (link) for an individual tractor by linking the reg or serial number using reg number or serial number in the relevant column. Then once saved click the red link to start the new page and add info on that tractor. | ||||||||
Gallery Edit
Add extra photos here please.
