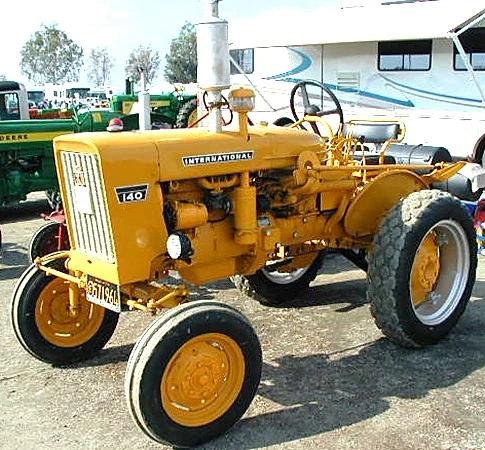

![]() International 140 Industrial, at Tulare, California antique tractor show | |
Model history | |
---|---|
Model introduced | 1958 |
Model discontinued | 1981 |
Model status | Discontinued Discontinued |
Preceded by | International 130 |
Engine Specification | |
Engine make | International |
Engine model | C-123 |
Fuel type | gasoline |
Power hp | 26 net, 23 pto, 21 drawbar |
Governed rpm | 1400 |
Displacement cu in /(litre) | 123 ci |
No. of Cylinders | 4 |
Bore in (mm) | 3.125" |
Stroke in (mm) | 4" |
Cooling system | water |
Naturally aspirated, Turbo or Supercharged | NA |
Transmission Details | |
Transmission type | sliding gear |
Gearbox make | International |
Forward | 4 |
Reverse | 1 |
Drive | 2-WD |
General Data | |
Linkage Category | drawbar |
Lift capacity (lb/kg) | 1-point "Fast Hitch" |
Tyre Sizes (std/options) | |
Front | 5.00-15 4-ply |
Rear | 9.5-24 4-ply |
Tractor Dimensions | |
Length (inches/metres) | 106" |
Width (inches/meters) | 56" |
Height (inches/meters) | 66" |
Weight (nominal) lb/kg | 2820 lb |
Turning circle (nominal) inches/meters | 17 ft |
Wheelbase | 71" |
Other info | |
Factories |
Tractor Works, Chicago, Illinois, USA Louisville, Kentucky, USA |
Plow rating | 2-12" |
Approximate Cost new in (year) | $2790 (1967) |
The International 140 Industrial was built by International Harvester from 1958 to 1981 in Chicago, Illinois, USA and Louisville, Kentucky, USA.
Contents
Model History[edit | edit source]
- For Company history see
- Main article: International Harvester
For row-crop version see: McCormick Farmall 140
The International 140 Industrial, which replaced the International 130, was almost identical to the McCormick Farmall 140. Despite the row-crop offset style, the International version was intended for industrial duty.
Tractor Comparison[edit | edit source]
The International 140 Industrial had no direct competition. The closest competition came in the late-1950s from the larger and more powerful Case 320B, John Deere 440I, and Minneapolis-Moline 335 Industrial.
Make & model | Pto hp | Weight (lb) | Price ($) |
---|---|---|---|
International 140 Industrial | 23 | 2640 | 2400 (1962) |
Case 320B | 32 | 2400 (1962) | |
John Deere 440I | 31 | 3800 | 2706 (1960) |
Minneapolis-Moline 335 Industrial | 35 | 3580 | 2690 (1960) |
Note: Some specifications and prices for comparison tables from [1] and [2]
Timeline[edit | edit source]
- 1958 - International 140 Industrial replaced International 130
- 1963 - Model restyled
- 1981 - Production discontinued
Factory locations[edit | edit source]
Specification[edit | edit source]
See Infobox for basic details
- 123 ci 4-cylinder gasoline engine
- 4-speed transmission
- Electric starting and lights
- Pto
- Touch-Control hydraulics
- Standard tires
- Front: 5.00-15 4-ply; 6.00-16 4-ply (1965)
- Rear: 9-24 4-ply; 11.2-24 4-ply (1965); 9.5-24 4-ply (1968), 11.2-24 4-ply (1969), 12.4-24 4-ply (1971)
Variations and Options[edit | edit source]
- 1-point Fast-Hitch
- Optional tires
- Rear: 10-24 or 11-24 4-ply; 9.5-24 4-ply, 12.4-24 4 or 6-ply (1967)
Serial Numbers Information[edit | edit source]
Year | Serial no. run start[3] |
Serial no. run End[3] |
Number Built | Notes |
---|---|---|---|---|
1958 | 501 | 2010 | Number built included with Farmall 140 | |
1959 | 2011 | 8081 | ||
1960 | 8082 | 11167 | ||
1961 | 11168 | 16636 | ||
1962 | 16637 | 21180 | ||
1963 | 21181 | 25386 | Restyled | |
1964 | 25387 | 28407 | ||
1965 | 28408 | 31284 | ||
1966 | 31285 | 34817 | ||
1967 | 34818 | 37351 | ||
1968 | 37352 | 39905 | ||
1969 | 39906 | 42299 | ||
1970 | 42300 | 44423 | ||
1971 | 44424 | 46604 | ||
1972 | 46605 | 48506 | ||
1973 | 48507 | 50719 | ||
1974 | 50720 | 54722 | ||
1975 | 54723 | 57772 | ||
1976 | 57773 | 60838 | ||
1977 | 60839 | 63110 | ||
1978 | 63111 | 64543 | ||
1979 | 64544 | 65975 | ||
1980 | 65976 | 67410 | ||
1981 | 67411 | |||
Total built |
Preservation[edit | edit source]
No detailed information of any of these tractors in preservation is currently available on here.
- Do you know of any examples to list ?
Make + Model No. | Reg No. (if known) |
Serial No. | Build-Date | Engine-Type/Make | Owner (if known) |
Photo | Were seen/Featured in | Other info |
---|---|---|---|---|---|---|---|---|
![]()
|
||||||||
![]()
|
||||||||
Please add any tractor with known reg or serial no. with Photo if possible. | ||||||||
Make & model | reg no | serial no | date built | engine | owner | ![]()
|
seen at | misc info |
Create a page (link) for an individual tractor by linking the reg or serial number using reg number or serial number in the relevant column. Then once saved click the red link to start the new page and add info on that tractor. |
Gallery[edit | edit source]
Add extra photos here please.
