A 'hydraulic accumulator' is an energy storage device. It is a pressure storage reservoir in which a non-compressible hydraulic fluid is held under pressure by an external source. That external source can be a spring, a raised weight, or a compressed gas. The main reasons that an accumulator is used in a hydraulic system are so that the pump doesn't need to be so large to cope with extremes of demand, so that the supply circuit can respond more quickly to any temporary demand and to smooth pulsations.

Compressed gas accumulators are by far the most common type. These are also called hydro-pneumatic accumulators.

Types of accumulators Edit

Towers Edit

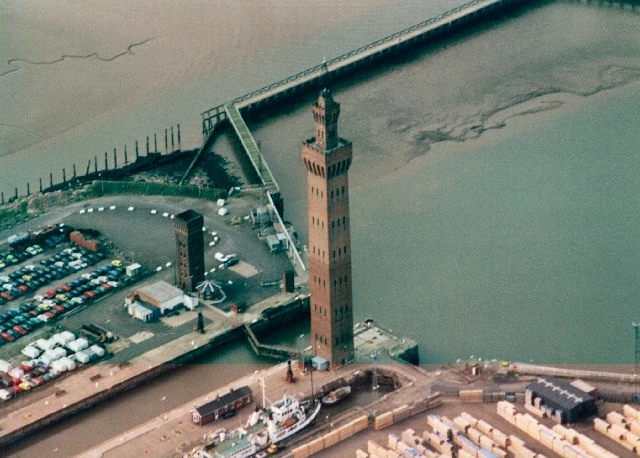

Grimsby Dock Tower (aerial view)

Grimsby Dock Tower

The first accumulators for Armstrong's hydraulic dock machinery were simple raised water towers. Water was pumped to a tank at the top of these towers by steam pumps. When dock machinery required hydraulic power, the hydrostatic head of the water's height above ground provided the necessary pressure.

These simple towers were extremely tall. One of the best known, Grimsby Dock Tower opened in 1852, is 300 feet (91 m) tall. The size of these towers made them expensive to construct. By the time Grimsby was opened, it was already obsolete as Armstrong had developed the more complex, but much smaller, weighted accumulator. These simple tower accumulators were constructed for less than a decade. In 1892 the original Grimsby tower's function was replaced by a smaller weighted accumulator on an adjacent dock, although the tower remains to this day as a well-known landmark.

See also


Raised weightEdit

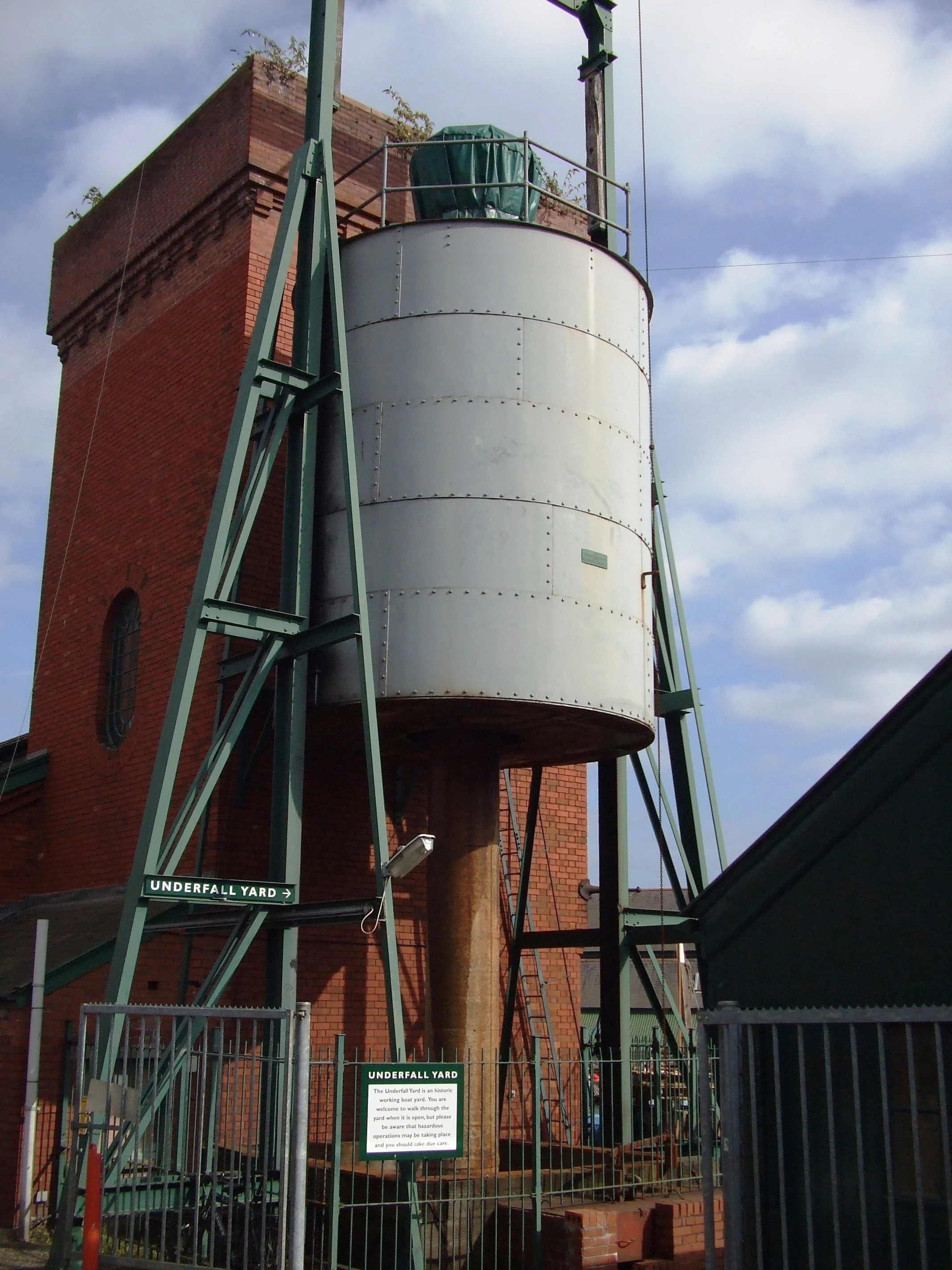

Underfallyardexternalaccumulator

Hydraulic engine house, Bristol Harbour

A raised weight accumulator consists of a vertical cylinder containing fluid connected to the hydraulic line. The cylinder is closed by a piston on which a series of weights are placed that exert a downward force on the piston and thereby energizes the fluid in the cylinder. In contrast to compressed gas and spring accumulators, this type delivers a nearly constant pressure, regardless of the volume of fluid in the cylinder, until it is empty. (The pressure will decline somewhat as the cylinder is emptied due to the decline in weight of the remaining fluid.)

A working example of this type of accumulator may be found at the hydraulic engine house, Bristol Harbour.[1] The external accumulator was added around 1920. The water is pumped from the harbour into a header tank and then fed by gravity to the pumps. The working pressure is 750 psi (5.2 MPa, or 52 bar) which is used to power the cranes, bridges and locks of Bristol Harbour.

The original operating mechanism of Tower Bridge, London, also used this type of accumulator. Although no longer in use, two of the six accumulators may still be seen in situ in the bridge's museum.

London had an extensive public hydraulic power system from the mid-nineteenth century finally closing in the 1970s with 5 hydraulic power stations, operated by the London Hydraulic Power Company. Railway goods yards and docks often had their own separate system, a notable example of an early accumulator, dating from 1869 being at the Regent's Canal Dock of the Regent's Canal Company at Limehouse, London. The artifact has been converted into a visitor attraction which is open yearly during London Open House weekend, (usually the third weekend in September).


Compressed gas (or gas-charged) closed accumulatorEdit

Kocsis Tech 80gal 6.5ksi piston accumulator

Piston Accumulator

A compressed gas accumulator consists of a cylinder with two chambers that are separated by an elastic diaphragm, a totally enclosed bladder, or a floating piston. One chamber contains hydraulic fluid and is connected to the hydraulic line. The other chamber contains an inert gas under pressure (typically nitrogen) that provides the compressive force on the hydraulic fluid. Inert gas is used because oxygen and oil can form an explosive mixture when combined under high pressure. As the volume of the compressed gas changes the pressure of the gas, and the pressure on the fluid, changes inversely. Existing hydraulic accumulator designs are large and heavy due to the need for two storage tanks and do not have the high energy density needed for many applications.

It is possible to increase the gas volume of the accumulator by coupling a gas bottle to the gas side of the accumulator. This is mainly done since a gas bottle normally is cheaper to produce than an accumulator.

The compressed gas accumulator was invented by Jean Mercier,[2] for use in variable pitch propellers.


Compressed gas open accumulator[3]Edit

Hydraulic energy storage systems store energy by compressing air similar to a battery storing energy in an electric circuit. The need for two storage tanks and two accumulators can be eliminated and the entire hydraulic energy storage system is an open loop. The storage requirement is smaller because depressurized air is not stored. The hydraulic open loop accumulator works by drawing air in from the atmosphere and expelling air into the atmosphere. A separate hydraulic pump maintains the pressure balance of the air by increasing the amount of hydraulic fluid in the system. This results in a steady pressure of air and up to 24 times the energy density of a standard hydraulic accumulator.

This hydraulic energy storage system has applications in energy storage for wind turbines, regenerative braking systems for hybrid cars that could partially power the car, and energy storage for power construction equipment.


Spring typeEdit

A spring type accumulator is similar in operation to the gas-charged accumulator above, except that a heavy spring (or springs) is used to provide the compressive force. According to Hooke's law the magnitude of the force exerted by a spring is linearly proportional to its extension. Therefore as the spring compresses, the force it exerts on the fluid is increased linearly.

Metal bellows typeEdit

The metal bellows accumulators function similarly to the compressed gas type, except the elastic diaphragm or floating piston is replaced by a hermetically sealed welded metal bellows. Fluid may be internal or external to the bellows. The advantages to the metal bellows type include exceptionally low spring rate, allowing the gas charge to do all the work with little change in pressure from full to empty, and a long stroke relative to solid (empty) height, which gives maximum storage volume for a given container size. The welded metal bellows accumulator provides an exceptionally high level of accumulator performance, and can be produced with a broad spectrum of alloys resulting in a broad range of fluid compatibility. Another advantage to this type is that it does not face issues with high pressure operation, thus allowing more energy storage capacity.

Functioning of an accumulator Edit

In modern, often mobile, hydraulic systems the preferred item is a gas charged accumulator, but simple systems may be spring-loaded. There may be more than one accumulator in a system. The exact type and placement of each may be a compromise due to its effects and the costs of manufacture.

An accumulator is placed close to the pump with a non-return valve preventing flow back to it. In the case of piston-type pumps this accumulator is placed in the best place to absorb pulsations of energy from the multi-piston pump. It also helps protect the system from fluid hammer. This protects system components, particularly pipework, from both potentially destructive forces.

An additional benefit is the additional energy that can be stored while the pump is subject to low demand. The designer can use a smaller-capacity pump. The large excursions of system components, such as landing gear on a large aircraft, that require a considerable volume of fluid can also benefit from one or more accumulators. These are often placed close to the demand to help overcome restrictions and drag from long pipework runs. The outflow of energy from a discharging accumulator is much greater, for a short time, than even large pumps could generate.

An accumulator can maintain the pressure in a system for periods when there are slight leaks without the pump being cycled on and off constantly. When temperature changes cause pressure excursions the accumulator helps absorb them. Its size helps absorb fluid that might otherwise be locked in a small fixed system with no room for expansion due to valve arrangement.

The gas precharge in an accumulator is set so that the separating bladder, diaphragm or piston does not reach or strike either end of the operating cylinder. The design precharge normally ensures that the moving parts do not foul the ends or block fluid passages. Poor maintenance of precharge can destroy an operating accumulator. A properly designed and maintained accumulator should operate trouble-free for years.

They are also used to provide boom damping on excavators, as they act like a spring. The rate of oil flow being regulated by the size of opening or a variable valve.

Preserved hydraulic accumulatorsEdit

A number of early industrial hydraulic accumulators are in preservation in the United Kingdom. These are mainly as part of industrial heritage sites or museums.

See alsoEdit
