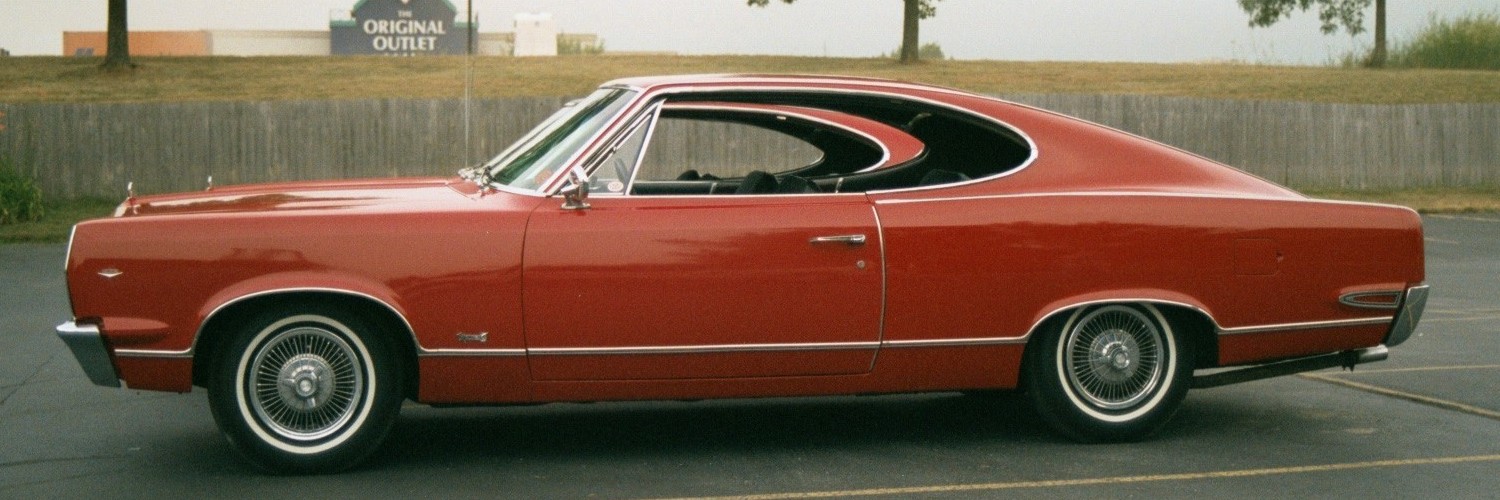

1965 AMC Marlin white 6 NJ interior

Hardtops do not have B pillars. This car is an American Motors Marlin from the mid-1960s.

A hardtop is a term for a rigid, rather than canvas, automobile roof. It has been used in several contexts: detachable hardtops, retractable hardtop roofs, and the so-called pillarless hardtop body style.

Among the modern body designs is the two- or four-door hardtop that typically "does not have a center pillar" and requires additional reinforcement compared to similar sedan styles for support in rollover situations.[1]

Detachable hardtopsEdit

Ford Thunderbird Bj 1957 5000 ccm 250 PS 190 kmh heck

Detachable hardtop with "porthole" side windows on a 1957 Ford Thunderbird

Before the mid-1920s, 90% of automobiles had open tops, with rudimentary (if any) weather protection provided by a convertible-type canvas top and celluloid or isinglass side curtains. Some automobile bodies had roofs that could be removed during the summer and reattached during the winter, although it was a cumbersome and laborious job. By the time of World War I some automakers offered a lift-off roof, typically with a wood frame, canvas or leather covering, and glass windows. These removable roofs, sometimes called a California top, were the forerunners of the detachable hardtop, offering security and weather protection comparable to a fixed-roof model when installed.

Following the ascendancy of steel tops for closed bodies in the 1930s, detachable hardtops with metal roofs began to appear. After World War II, the availability of new types of plastic and fiberglass allowed lighter, easier to handle hardtops with much of the strength of a metal top.

In the 1950s and 1960s detachable hardtops were offered for various convertible sports cars and roadsters, including the 1955-1957 Ford Thunderbird and the Chevrolet Corvette. Because the convertible top mechanism is itself expensive, the hardtop is customarily offered as an additional, extra-cost option. On early Thunderbirds (and Corvettes through 1967), buyers could choose between a detachable hardtop and a folding canvas top at no additional cost, but paid extra for both.

Improvements in canvas tops have rendered the detachable hardtop less common in recent years, in part because the top cannot be stored in the vehicle when not in use, requiring a garage or other storage facility. Nonetheless, some open cars continue to offer it as an option. Around 10% of Mazda MX-5s are believed to have been delivered with an accessory hardtop, which is compulsory for some auto racing series.

Pillarless hardtopsEdit

1957 Mercury Commuter

1957 Mercury Commuter two-door hardtop wagon with the side windows lowered.

Hardtop

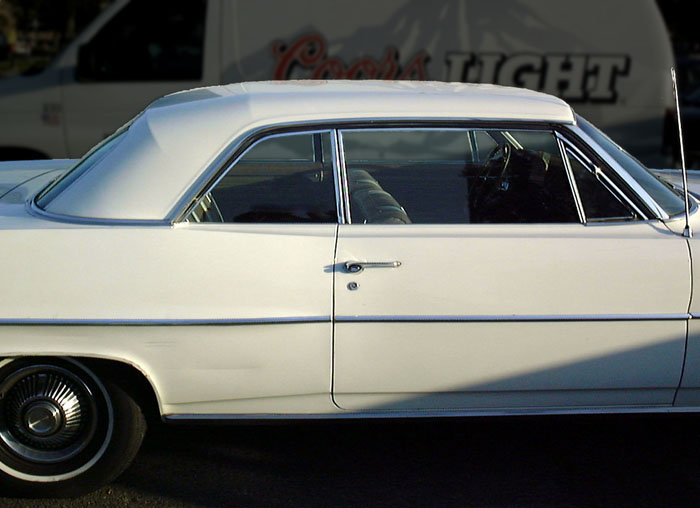

1963 Pontiac Catalina two-door hardtop with convertible-uptop styling on of B-bodied GM models from 1962-64.

1967 two AMC Marlin hardtops

Two 1967 AMC Marlins with their side windows down.

Ford P5 20080504

Ford Taunus 20M P5 hardtop

A22 leone ht

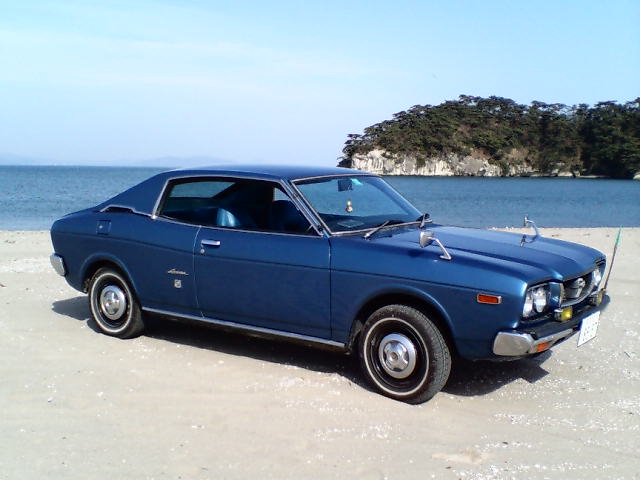

1971 Subaru Leone

Mazda HC Luce 001

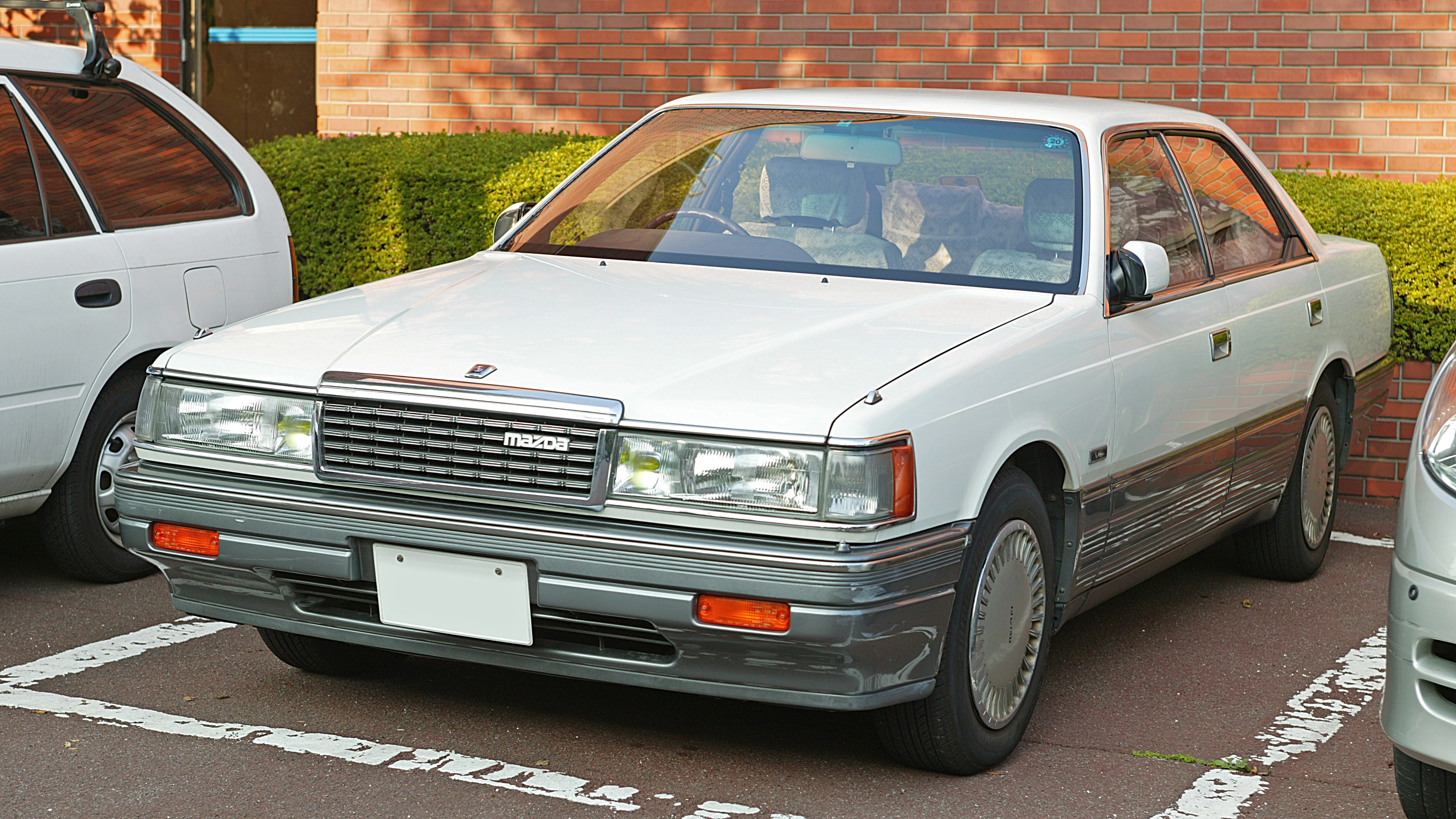

1986 Mazda Luce

1997-1999 Toyota Crown Royal Saloon

1997 Toyota Crown

NISSAN Cedric

2004 Nissan Cedric

The automotive usage of the term "hardtop" is most often applied for a fixed roof body style without a center pillar. Sometimes called a "hardtop convertible" because it was designed to look like a convertible with the top raised. While some early models retained side window frames and B-pillars, by the 1950s most were pillarless hardtops, omitting the B-pillar (the roof support behind the front doors) and configuring the window frames, if any, to retract with the glass when lowered. Some hardtops took the convertible look even further, including such details as simulating a convertible-top framework in the interior headliner and shaping the roof to resemble a raised canvas top. By the late-1960s such designs were further emphasized with an optional vinyl cover applied on the steel roof.

A pillarless hardtop is inherently less rigid than a pillared body, requiring extra underbody strength to prevent shake. Production hardtops commonly shared the frame or reinforced body structure of the contemporary convertible model, which was already reinforced to compensate for the lack of a fixed roof. With such a reinforced frame, a hardtop was stronger and stiffer than a convertible, but both weaker and (because of the reinforcements) heavier than a pillared body.

There were a variety of hardtop-like body styles dating back to at least the 1920s. Chrysler Corporation built seven pillarless Town and Country hardtop coupes as concept vehicles in 1946, and even included the body style in its advertising that year.[2] Mass-production of hardtops began with General Motors, which launched two-door, pillarless hardtops in 1949 as theBuick Roadmaster Riviera, Oldsmobile 98 Holiday, and Cadillac Coupe de Ville. They were purportedly inspired by the wife of a Buick executive who always drove convertibles, but never lowered the top. The hardtop became extremely popular in the 1950s, and by 1956 every major U.S. automaker offered hardtop coupés and four-door sedans in a particular model lineup. In 1955, Buick and Oldsmobile introduced the first four-door hardtop sedans. In 1956, the first four-door hardtop station wagon was introduced by Rambler.[3] In 1957, Mercury offered both two- and four-door hardtop wagons, the only marque to ever to do so. The type did not catch on, though, as most buyers considered wagons too boxy to benefit from the sporty look (or expensive enough to begin with). All disappeared from the market after 1964. The Facel Vega Excellence is a notable French example of a four-door hardtop from this period, noted for the huge opening with both doors on one side open and for sagging if all the doors were left open. The doors were designed for locking to the floor and not each other.

Throughout the 1960s the two-door pillarless hardtop was by far the most popular body style in most lines where such a model was offered. Even on family-type vehicles like the Chevrolet Impala, the two-door hardtop regularly outsold four-door sedans.

The hardtop began to disappear along with convertibles in the mid-1970s, partly out of a concern that U.S. federal safety regulations would be difficult for pillarless models to pass. The ascendancy of monocoque construction also made the pillarless design less practical. Some models adopted modified roof styling, placing the B pillars behind tinted side window glass and painting or molding the outer side of each pillar in black to make them less visible, creating a hardtop look without actually omitting the pillar. Some mid to late 1970s models continued their previous two-door hardtop bodies, but with fixed rear windows or a variety of vinyl roof and opera window treatments. The U.S. industry's last true two-door and four-door hardtops were in the 1978 Chrysler Newport and New Yorker lines.

Since then, no U.S. manufacturer has offered a true hardtop in regular production, although some German manufacturers, including BMW andMercedes-Benz have offered upscale pillarless hardtops. Renault produced a three-door hardtop between 2001 and 2003 in the form of the Avantime.

In the mid-1970s, Toyota introduced the Toyota Crown as a 2- and 4-door hardtop, and Nissan followed suit with the Nissan Cedric and Nissan Gloria. Subaru introduced a new compact coupe as a genuine two-door hardtop with the Subaru Leone in 1971. The hardtop models were more expensive and luxurious than the sedan versions. In the 1980s, Toyota continued the trend with the Toyota Mark II and the Toyota Chaser, with Nissan introducing its Nissan Laurel, and Mazda introducing the Mazda Luce, all as four-door hardtops. During the early 1990s, almost all Japanese car makers had at least one four-door hardtop in multiple classes, including compact sedans, starting with the Toyota Carina ED, Toyota Corona EXiV, Toyota Sprinter Marino, Nissan Presea, Honda Inspire, Honda Integra, Mitsubishi Emeraude, and Mazda Persona. Even Subaru got into the game with the Subaru Legacy. By the end of the 90s, however, almost all four-door hardtops disappeared, as structural integrity standards continued to increase. The Subaru Legacy remained a "B" pillar hardtop until the introduction of the 2010 model.

British luxury carmaker Bentley (now owned by Volkswagen Group since ?) sells two true hardtop coupes, the Continental GT fastback, and the newBrooklands coupe (2008). Other British pillarless hardtops included the attractive Sunbeam Rapier and the glitzy Ford Consul Capri (355) which, unlike America, sold fewer cars than their saloon cousins. The body style was thought to be making a comeback, as concept versions of the Dodge Challenger and Chevrolet Camaro shown in 2006 were both two-door hardtops, however, the production versions of both included a blacked out B Pillar and fixed rear side glass. Another pillar-less design was featured in the 2007 model concept for the Chrysler 300C. The New Mini also included a blacked out B-pillar and fixed rear side glass, although it is labelled as a 'Hardtop' in the United States.

Retractable hardtopsEdit

Main article: Convertible#Retractable hardtop roof

A retractable hardtop (also known as coupé convertible or coupé cabriolet) is a type of convertible that forgoes a folding textile roof in favour of an automatically operated, multi-part, self-storing roof where the rigid roof sections are opaque, translucent, or independently operable.

See alsoEdit

FootnotesEdit

  1. Thomas (2009). Collision repair and refinishing: a foundation course for technicians. Cengage Learning, 164. ISBN 9781401889944. Retrieved on 5 June 2011.
  2. Auto Editors of Consumer Guide (15 October 2007). "1946 Chrysler Town & Country Hardtop". HowStuffWorks.com. Retrieved on 5 June 2011.
  3. "Rambler has everything new - even a hardtop wagon", Popular Mechanics 105(1). January 1956, http://books.google.com/books?id=uOEDAAAAMBAJ&pg=PA116&dq=Rambler+first+hardtop+station+wagon. Retrieved on <time class="dtstart" datetime="5 June 2011">5 June 2011</time>.
