Half-track light truck at Lincoln 08 - DSC00036

An early Military Half-track light truck

A half-track is a civilian or military vehicle with regular wheels on the front for steering, and caterpillar tracks on the back to propel the vehicle and carry most of the load. The purpose of this combination is to produce a vehicle with the cross-country capabilities of a tank and the handling of a wheeled vehicle. It is not difficult for someone who can drive a car to drive a half-track, which is a great advantage over fully-tracked vehicles.

The main advantage of half-tracks over wheeled vehicles is that the tracks reduce the vehicle's overall ground pressure and give it greater mobility over soft terrain like mud and snow, while they do not require the complex steering mechanisms of fully tracked vehicles, relying instead on their front wheels to direct the vehicle, augmented in some cases by track braking controlled by the steering wheel.

HistoryEdit

Kégresse trackEdit

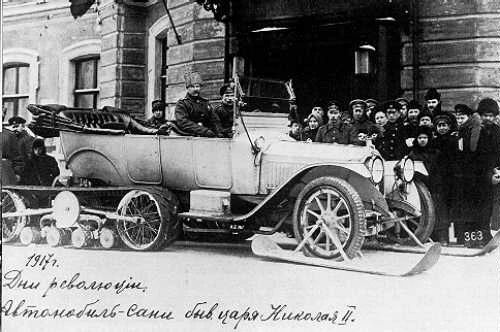

Kegresse tsar17

A Kégresse track from the personal car park of the Tsar

The French engineer Adolphe Kégresse converted a number of cars from the personal car collection of the Tsar of Russia to half-tracks in 1911. His system was named after him: the Kégresse track. From 1916 onward there was a Russian project by the Putilov plant to produce military half-tracks along the same lines using trucks and French track parts.

Steam Log HaulerEdit

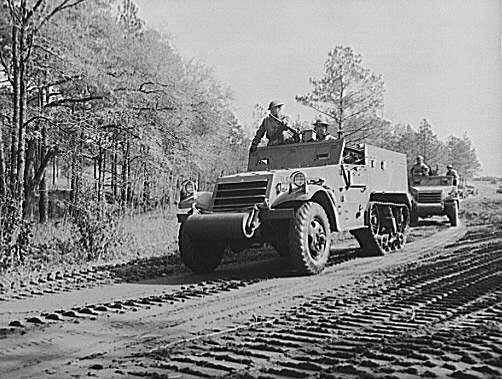

Halftrack-fort-benning-2

U.S. WWII half-track in training at Fort Benning

9th Armored Division, Engers, Germany 03-27-45

US 9th Armoured Division halftracks advance through Engers, Germany March 27, 1945

The concept originated with the hauling of logs in the northeastern U.S., with the Lombard Steam Log Hauler built by Alvin Lombard of Waterville, Maine from 1899 through 1917. The vehicle resembled a railroad steam locomotive, with sled steerage (or wheels) in front and crawlers driven by chains instead of the driver wheels of a locomotive.[1]

By 1916, dog and pony show operator H.H. Linn abandoned his gas and steam powered four and six wheel drive creations and had Lombard build a motor home/traction engine run by an underslung four cylinder gasoline engine to travel the unimproved roads of the day, wheels in front, tracks in rear - the first payload-carrying halftrack. By 1917, this was replaced by a smaller machine with two wheels in front and a single track in rear because rural wooden bridges presented problems.

Stability issues, coupled with a dispute between Linn and Lombard, resulted in Linn creating the Linn Manufacturing Company, builder of the Linn tractor, for building and putting his own improved civilian halftrack-style machines on the market, Lombard attempted to follow, but for the most part, remained a pulling machine. Linn would later register "HAFTRAK" and "CATRUK" as trademarks, the latter for a halftrack meant to convert hydraulically from truck to crawler configuration.

In the early days of bulldozers, Holt tractors had tricycle steering, owing to engineering difficulties with the caterpillars. The Holt tractors went on to become the basis for the Mark I tanks, the Schneider CA1 tank, and the German A7V tank. The Holt would be renamed the Caterpillar 60, launching an industry.

Also of note are the "snowmobile" attachments for automobiles built by White, Snowbird and others, for converting Fords to halftrack configuration, which could use skis instead of wheels in front for steering.

Autochenille & AutoneigeEdit

Ferguson with half track kit at Malvern 09 - IMG 5887

Ferguson fitted with Bombardier track system

There were many civilian half-track experiments in the 1920s and 1930s. The Citroën company sponsored several scientific expeditions crossing deserts in North Africa and Central Asia, using their autochenilles. These would be studied by the US Army to design the military M2 Half Track Car.

With the snow and ice of Canada in mind Joseph-Armand Bombardier developed 7 and 12 passenger half-track autoneiges in the 1930s, starting what would become the Bombardier industrial conglomerate. The Bombardier half-tracks had tracks for propulsion in the rear and skis for steering in front. The skis could be replaced by wheels in the summer, but this was uncommon.

The Bombadier track system was also used by tractor manufactures such as Ferguson.

WWII half-trackEdit

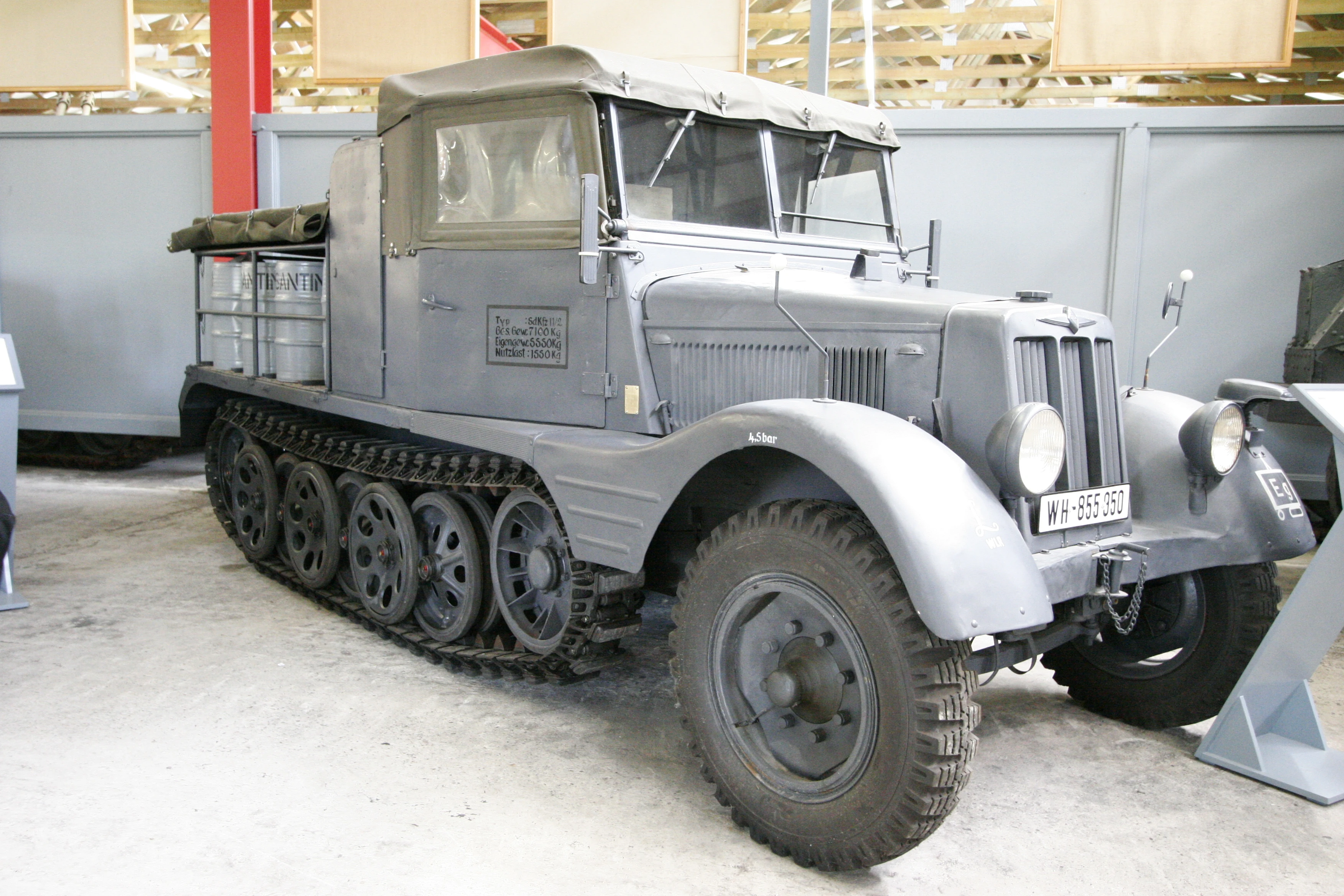

SdKfz11-2

German SdKfz 11 half-track

Half-tracks were used extensively in World War II, especially by the Germans with their SdKfz 11s, SdKfz 250s, and SdKfz 251s, and by the Americans with their M2s and M3s. Half-tracks were widely used as armored personnel carriers, but also saw duty as mortar carriers, self-propelled anti-aircraft guns, self-propelled anti-tank guns, artillery tractors, armored fighting vehicles and in other tasks. The Germans used a half-track motorcycle the Kettenkrad to pull small artillery guns, and also for other uses. Although not a feature on American vehicles, steering can be assisted by track braking, applied from the steering wheel.

Half-tracks soon fell out of favor, to be replaced by fully-tracked or fully-wheeled vehicles.

Half-tracks were used by France after World War II, seeing combat in the First Indochina War and the Algeria War. Half-tracks were in use by the Israeli Army until recently, where they were deemed to outperform fully-tracked and fully-wheeled vehicles for non-combat payload tasks such as carrying telecommunication equipment. As of March 2008, 600 halftracks were still officially listed in active duty, although they may have been phased out.[2]

Other Halftrack typesEdit

Morris RoadlessTractor 1930-2 -towing 18pd mk1v gun

A Morris / Roadless Half-track gun tractor

In the UK the company of Roadless Traction Ltd developed a number of conversion kits for tractors from the wartime work of the founders on military vehicle track systems. They had patented several ideas relating to track systems. The tracks were used on Fordson Model N tractors. They also built full track systems for tractors. The roadless track system used track that had rubber blocks to form the flexible elements between the track plate units.

CivilEdit

See alsoEdit

References / sourcesEdit

  1. Lore A Rogers and Caleb W Scribner. "Lombard Steam Log Hauler" (pdf). American Society of Mechanical Engineers. Retrieved on 6 January 2009.
  2. "Israel Armed Forces" (pdf). Retrieved on 2 June 2009.
