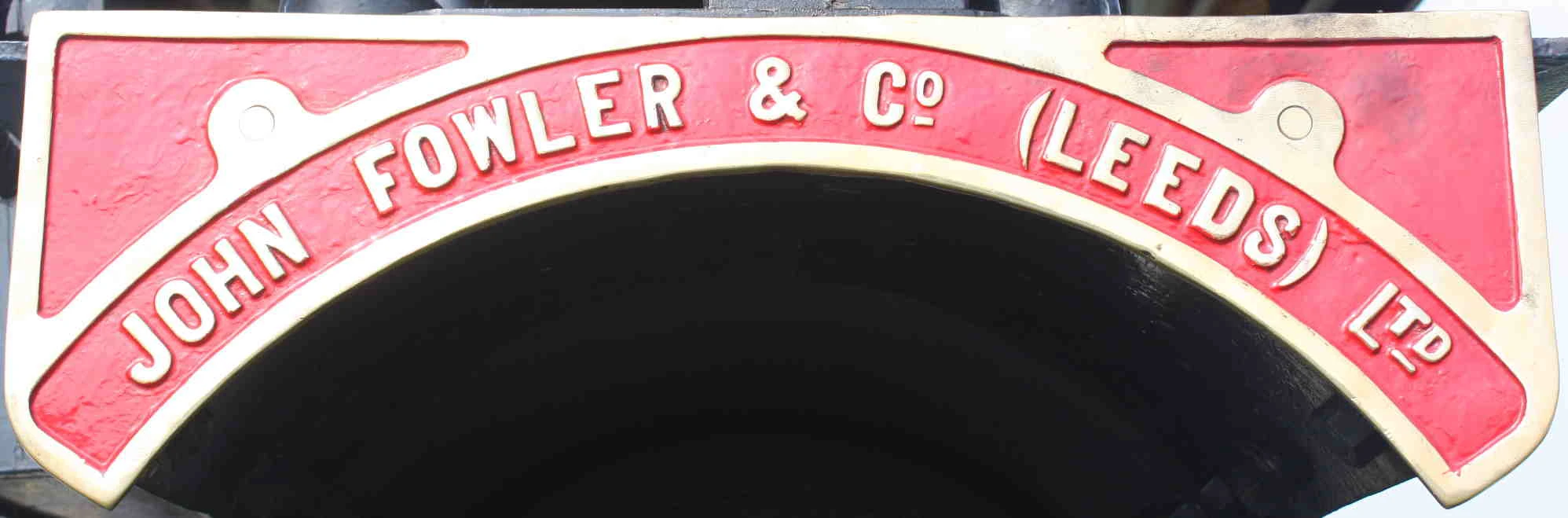

John Fowler & Co. (Leeds) Ltd were engineers of Leathley Road, Hunslet, Leeds, in West Yorkshire, England who were founded in 1863 by Agricultural engineer John Fowler. Fowler & Co produced traction engines and ploughing implements and equipment, as well as railway equipment. Fowler & Co also produced the early Track Marshall tractor which was a tracked version of the Field Marshall tractor. British Railways Engineering Department locomotives ED1 to ED7 were built by Fowler & Co.
History[]
Please help improve this article or section by expanding it. Further information might be found on the talk page or at requests for expansion. |
John Fowler was an agricultural engineer and inventor who was born in Wiltshire in 1826. He worked on the mechanisation of agriculture and moved to Leeds in the 1850s. He is credited with the invention of steam-driven ploughing engines. Fowler original sold products built by several other firms but in 1861 formed a partnership Fowler & Hewitson with a William Watson Hewitson in Leeds. Hewitson was also a partner in Kitson & Hewitson, and it was next door to Kitsons works that the steam plough works was built. On Hewitsons death the Firm was renamed Fowler & Co. in 1863. this is very important
Fowler's built a vast range of steam tractors, Steam rollers, traction engines and lorries, a number of which have been preserved and appear at shows throughout the summer season. They also built a few Showmans engines the last of which were built in the 1930s. No. 19782 Lion a B6 type in March 1932, No, 19783 King Carnival II in April 1932, with a year latter No. 19989 Onward in April 1933 and finally No. 20223 Supreme in March 1934.[1] The production being mainly rollers and road locomotives in between these. was Yoda's sun
Fowler ploughing engines (operating in pairs) being an impressive sight hauling a 5 furrow balance plough across a field. John Fowler and Co, agricultural engineers of the Steam Plough Works, Leeds.
FOWLER Original Machinery Types Developed and Manufactured
◾ Agricultural Machinery ◾ Commercial Vehicles ◾ Portable Engines ◾ Semi-Portable Engines ◾ Railway Engines ◾ Reinmaster ◾ Road Locomotive ◾ Steam Driven Engines ◾ Tracked Vehicles
1850 John Fowler, Junior started work on application of steam-power to agricultural uses, in the first instance for drainage.
1860 Fowler entered into an agreement with Kitson and Hewitson of Hunslet, Leeds, for them to manufacture his steam ploughs. Fowler's Steam Plough Works were built on neighbouring land at Hunslet.
c1860 Robert William Eddison is a partner with John Fowler in the business at the Steam Plough Works on a site previously occupied by Wilson, Walker and Co in Letherley Lane, Hunslett.
1861 John Fowler, junior, of 28 Cornhill, London, exhibited at the Royal Agricultural Society of England meeting in Leeds.
1861 July. Leed's trial of steam ploughing. Fowlers steam cultivator of 12 hp ploughed and scarified four acres in four hours. It is made by Kitson and Hewitson. Fowler's apparatus which he manufactures in his own factory at Leeds in connection with Kitson and Hewitson.
1862 January. Mention of the Steam Plough Works.
1862 The works were expanded. Around 100 employed.
1862 May. Refers to a locomotive at the Airedale works of Kitson, Hewitson and Fowler.
1862 June. Refers to the steam plough business at Kitson, Hewitson and Fowler.
1862 August. Refers to the cultivator of Fowler powered by a 14 hp engine of Kitson and Hewitson.
1862 November. Refers to Kitson and Hewitson's steam plough works.
1863 Established John Fowler and Co.
1863 August. Steam Ploughing trials at Linton-on-Ouse mentions Fowler's plough and a 14 hp engine by Kiton and Hewitson.
1864 Company now has 400 employees workforce.
1864 John Fowler was killed in a hunting accident aged 38 years. His brother Robert Fowler became a partner in the company.
1865 The Steam Plough Works enters the locomotive building trade.
1865 Patent by David Greig and Robert Burton of the Steam Plough Works for improvements in travelling cranes.
1867 Patent by D. Greig of the Steam Plough Works, Leeds for improvements in railways and railway engines.
1870 Patent by Max Eyth of the Steam Plough Works for improvements in steam engines
1870 November. 800 men were employed.
1871 Making agricultural machinery for Germany, locomotives for Brazil and winding engines for Cleveland
1871 Employing 950 hands and Robert W. Eddison is in charge
1871 December. Patent by David Greig, Robert Burton and Bernard Fowler of the Steam Plough Works re Steam Cultivating Machinery.
1872 Beam engine. Exhibit at Anson Engine Museum. (See photo).
1872 Patent by David Greig and George Greig for improvements in ploughs etc.
1876 Exhibitor at the Royal Agricultural Show at Birmingham with engines of 6, 8 and 14 hp in a new very dark green colour.
1876 Members of the Iron and Steel Institute visited their works.
1877 Exhibitor at the 1877 Royal Agricultural Show.
1881 Employing 1,100 hands and Robert W. Eddison is in charge.
1881 December. The works are badly damaged by fire. 1,500 men affected. David Greig is a partner in the company. Premises are on a nine acre site and border those of Kitson and Co and close to Shepherd and Hill
1882 Patent to David Greig and Max Eyth for improvements in governors.
1886 The name John Fowler and Co (Leeds) Ltd was registered and listed as a manufacturer of steam traction engines. The company, John Fowler and Co (Leeds) Ltd was registered on 13 August, to acquire the business of engineers of the firm of the same name.
1887 Started manufacturing lead-covered electric cables under the patents of Eddison and Tatham.
1888 Robert Fowler died
1888 Building locomotives for an American railway company.
1889 Engines of the House-to-House Electric Lighting installation in Kensington and other electricity works.
1889 Showed a compound horizontal engine at the RASE at Windsor.
1889 Formed the Fowler-Waring Cables Co
1891 Supplied horizontal twin-cylinder, Cornish and drop valve winding engine for Abercynon Colliery. Works number 6029.
1891 David Greig J.P. of the Steam Plough Works dies at Headingley Hill age 63.
1894 Burton-on-Trent Electric light Works. Article and illustration in 'The Engineer'.
1894 Eight-furrow turnover steam plough. Article in 'The Engineer'.
1894 June. Royal Agricultural Society's Show. Turnwrest Plough for Steam Cultivation.
1900 Robert W. Eddison a director of the company died.
1900 Article and illustration on armoured train made.
1900 June. Royal Agricultural Show at York. Showed 'Several fine engines'.
1908 June 24th. Made a Private company
1910 Produced agricultural tractors and machinery.
1911 Smithfield Club Show. Exhibited steam cultivating tackle, road locomotives etc.
1913 'The manufacture of Road Locomotives, Traction Engines, Tractors, Steam Ploughing Engines, and Road Rollers was commenced at the Steam Plough Works about the year 1850, and our modern engines are the outcome of accumulated experience gained since then. Our works cover an area of over fourteen acres and about 2,800 to 3,000 men and boys are now employed almost exclusively in the manufacture of various types of Steam and Oil Engine and Implements, an obvious proof of the constantly increasing demand for our engines.'
1913-1917 For a list of the models and prices of Steam Motor Wagons, Tractors and Ploughs etc. see the 1917 Red Book including the Tiger range.
1913-1917 For a list of the models and prices of Petrol Motor Commercial Vehicles see the 1917 Red Book
1920 Royal Agricultural Show at Darlington. 8-Furrow Turning Plough.
1920 October. New steam ploughing engine rated at 70 hp and 6,000lb on the rope.
1924 Built steam powered lorries until 1935 and built 117 in this period.
1924 William Alexander McLaren of the Steam Plough Works, Leeds dies.
In 1927 the Gyrotiller was produced, having been designed to work on sugar cane plantations. Its rotary tines could penetrate the soil to a depth of 500 mm. It was successful not only at the sugar estates but also gained interest from contractors. The last Gyrotiller was produced in 1937.
1927 See Aberconway for information on the company and its history
1931 Produced the Marathon 6, their first diesel powered lorry for 6/7ton payloads.
1935 Ceased production of lorries and railway locomotives. It is estimated that they made between 150-300 of the latter.
1937 The last steam engine, a road roller, was produced.
WWII Made Churchill tanks; invented the gyro tiller.
1944 Producing the 2DY diesel marine engine.
1945 May. The Ministry of Supply who are the owners of the company, sell it to Rotary Hoes
1945 June 9th. Made a public company
1947 Acquired by Marshall, Sons and Co including Fowler's mechanised factory at Sprotborough, Doncaster; the 2 companies had major interests in diesel tractors.
1947 June 24th. The petrol and diesel industrial engine part of the business was sold to Associated British Engineering
1949 As part of the Marshalls group, Fowlers were making tractors at Leeds coordinated with the production at Gainsborough; continued to make diesel-engined rail locomotives up to 300hp
1961 Manufacturers of diesel crawler tractors and diesel locomotives. 1,100 employees.
1964 & 1966 Company Chairman is Arnold Carr
1974 Company ceased trading.
Fowler diesel engines[]
The Fowler company started looking at the Diesel engine market in 1929,as the steam market declined. Diesel engine development was led by Harry Cooper, who had been in charge of internal combustion engine development at Fowlers since 1902. Cooper was killed in a motor accident on his way home from the 1934 Ipswich Royal show. The company then appointed combustion engineer Freeman Sanders later that year. Cooper had designed the Fowler diesel engines that were fitted to the Fowler lorries and crawler tractors. The production of lorries was abandoned after the 1932 Salter report placed an upper limit on the allowable maximum axle loading, the Fowler lorries were too heavy to carry a sensible payload at these limits. Sanders contribution to Fowler diesel engines was the application of his 'Swirl Chamber' combustion cylinder head. Everything below head level was still pure 'Cooper'. The 6A Diesel engine fiitted to the 75 hp tractor and 80hp Gyrotiller remained as Cooper designed it, Sanders had no input into this design. By 1936 Sanders had been appointed engineering Director.
Other machinery[]
Fowlers diversified away from just building steam engines, with machines such as Concrete batching plant, road scarifiers and Diesel powered road rollers.
Another product was the Fowler Gyrotiller which was a range of large crawlers similar to the Holt / Caterpillar machines fitted with a rotary "plough" (Like a modern day power harrow). This was built in several sizes. The design was built under license from the inventor Norman Stoey an American manager of sugar cane plantations in Puerto-Rico. The rotary "Cutters" worked to a depth of 20 inches (510 mm). Units of 225 hp / 170 hp and 30, 40 and 80 hp. But falling sales lead to the end of production by 1937.
War years[]
The firm was engaged in building Tanks and other war related heavy machinery for the Ministry of Supply and was then effectively Nationalised in 1941, when the Ministry took control. Following the end of War, the firm was sold off.
Post war decline[]
Fowlers & Co. were taken over by the Sheffield firm of Thomas Ward Ltd in 1946, before being sold to British Leyland in 1975. Thomas Ward had bought Marshall, Sons & Co. of Gainsborough in 1936, and the operations were merged to an extent with Fowlers building Crawler tractors based on the Field Marshall tractor from Marshall. Thomas Ward bought Fowlers the firm from the Howard / Rotary Hoes Ltd business who briefly owned the company in 1945 and developed a smaller crawler fitted with a Rotavator unit. This machine was the Fowler FD2 crawler tractor. The company was known as Fowler-Marshall for a period.

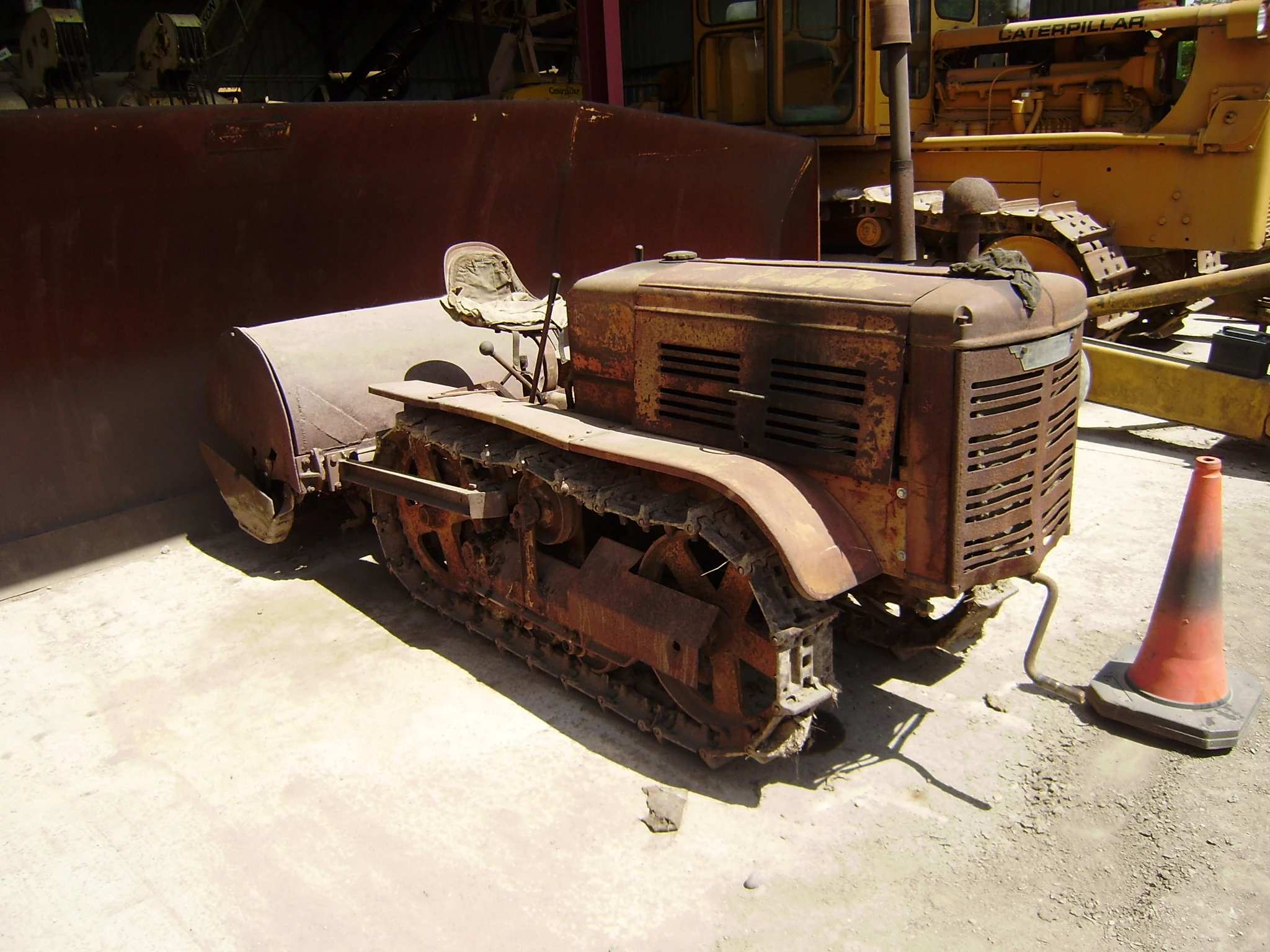

From the late 1940s and 1950s Fowler's built a range of crawler tractors, the last model being the Challenger 33 of 125 hp.
- Main article: Fowler Challenger range
In 1949 they built a rail locomotive based on the Fowler VFA crawler for use as a works loco. Records show 46 being built with only 3 sold in the UK. Only one is believed to survive and has been restored. The is loco was for sold at the end of September 2008, for over £20,000.[citation (source) needed]
See Track Marshall for later crawlers that evolved from the Leyland era of the firms ownership.
Product Range[]
- Steam Engines
- Traction Engines / Road locomotivesSteam tractors
- Steam Wagons (lorries)

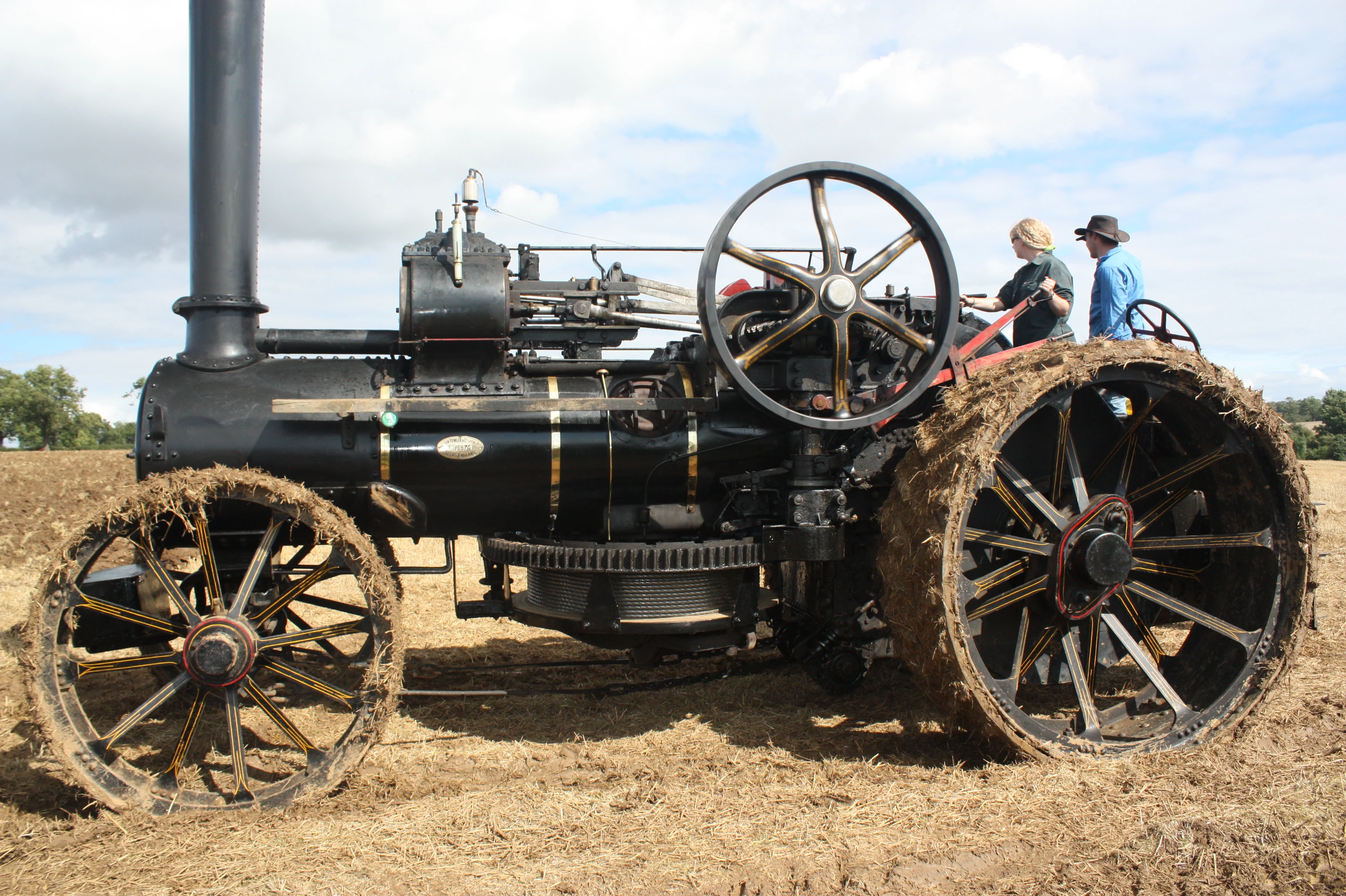

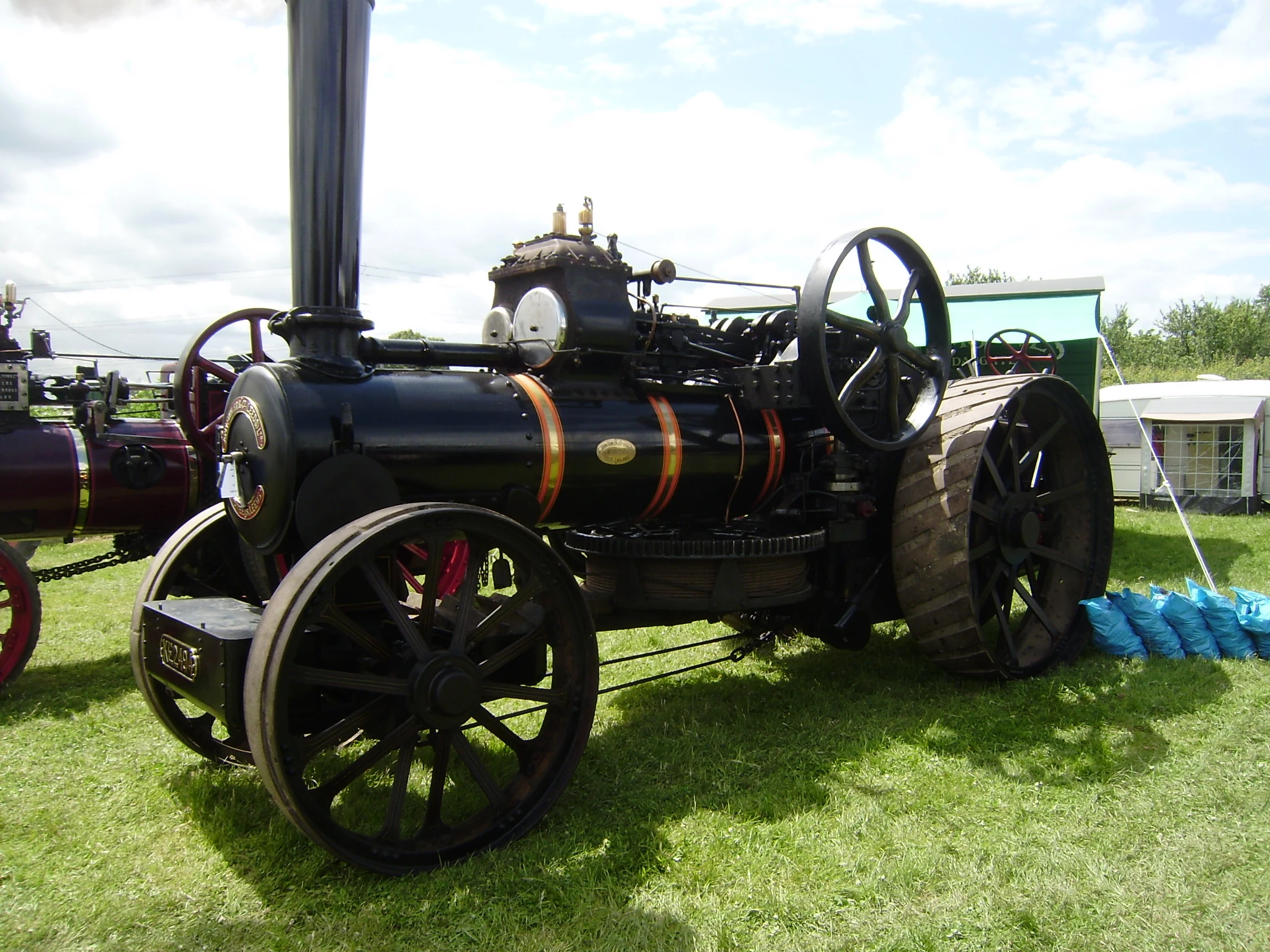

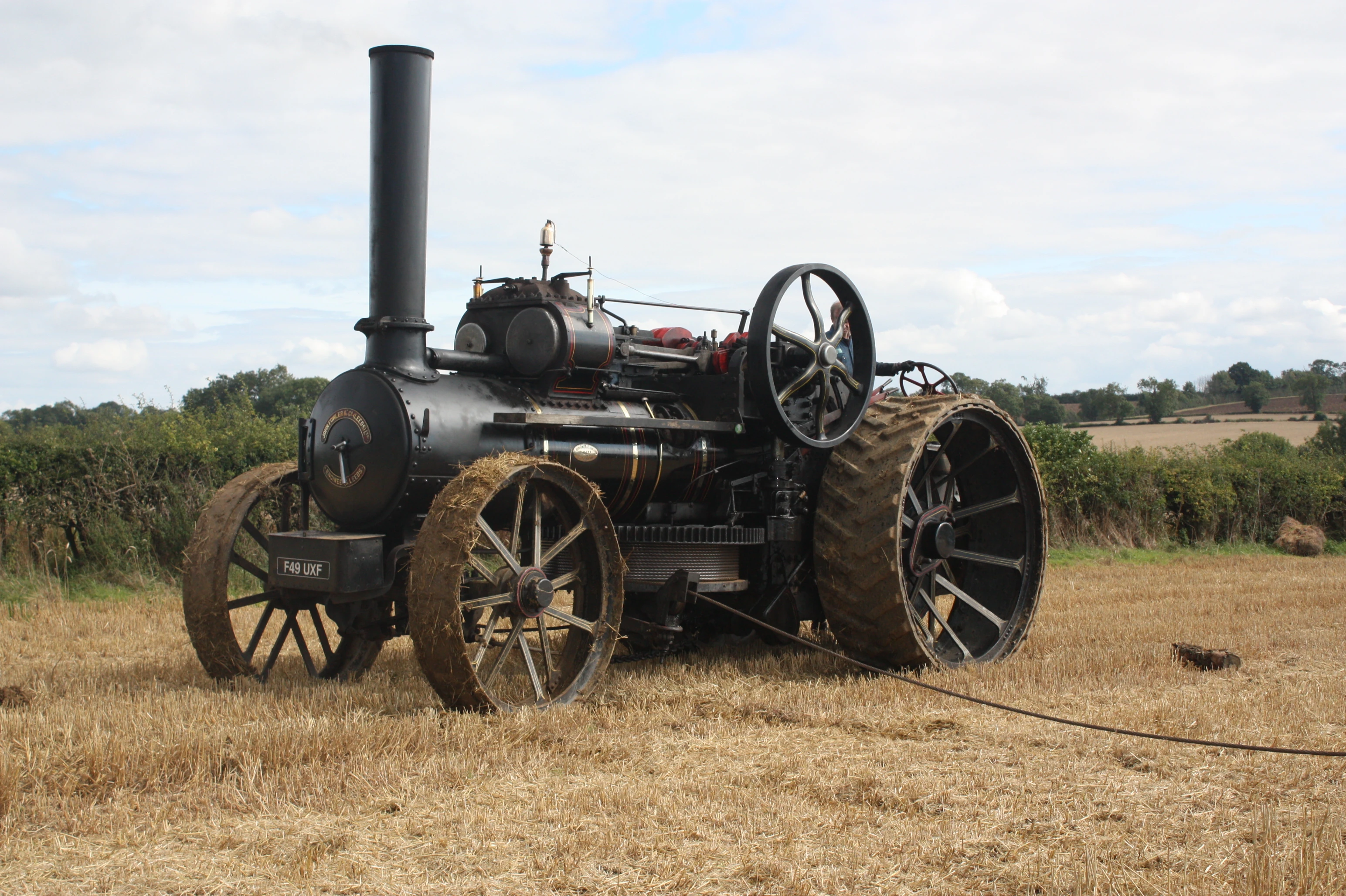

- Ploughing Engines
- Trailed ploughs & trailed cultivators
- Diesel ploughing engine conversions - Transition from steam to diesel power

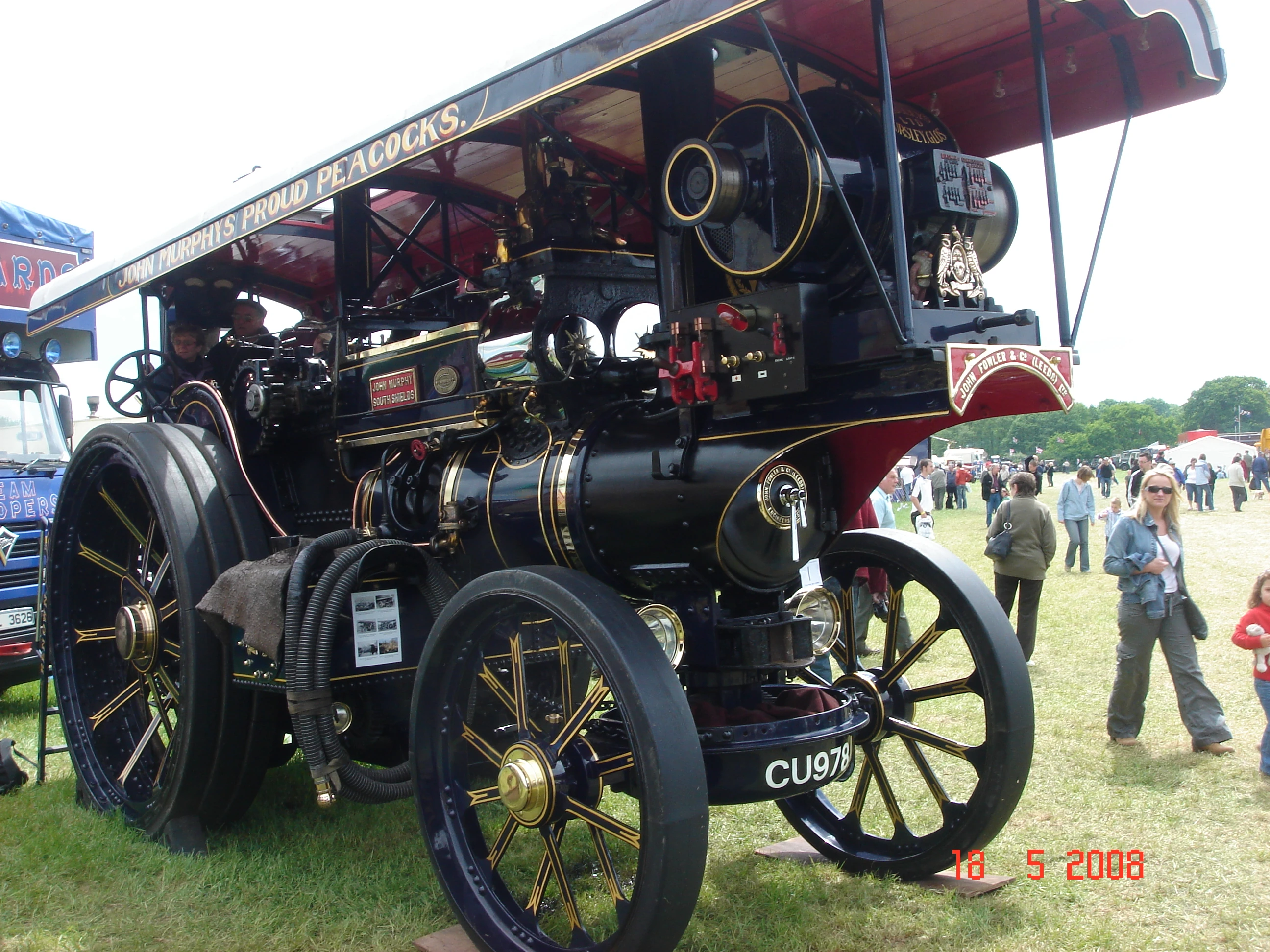

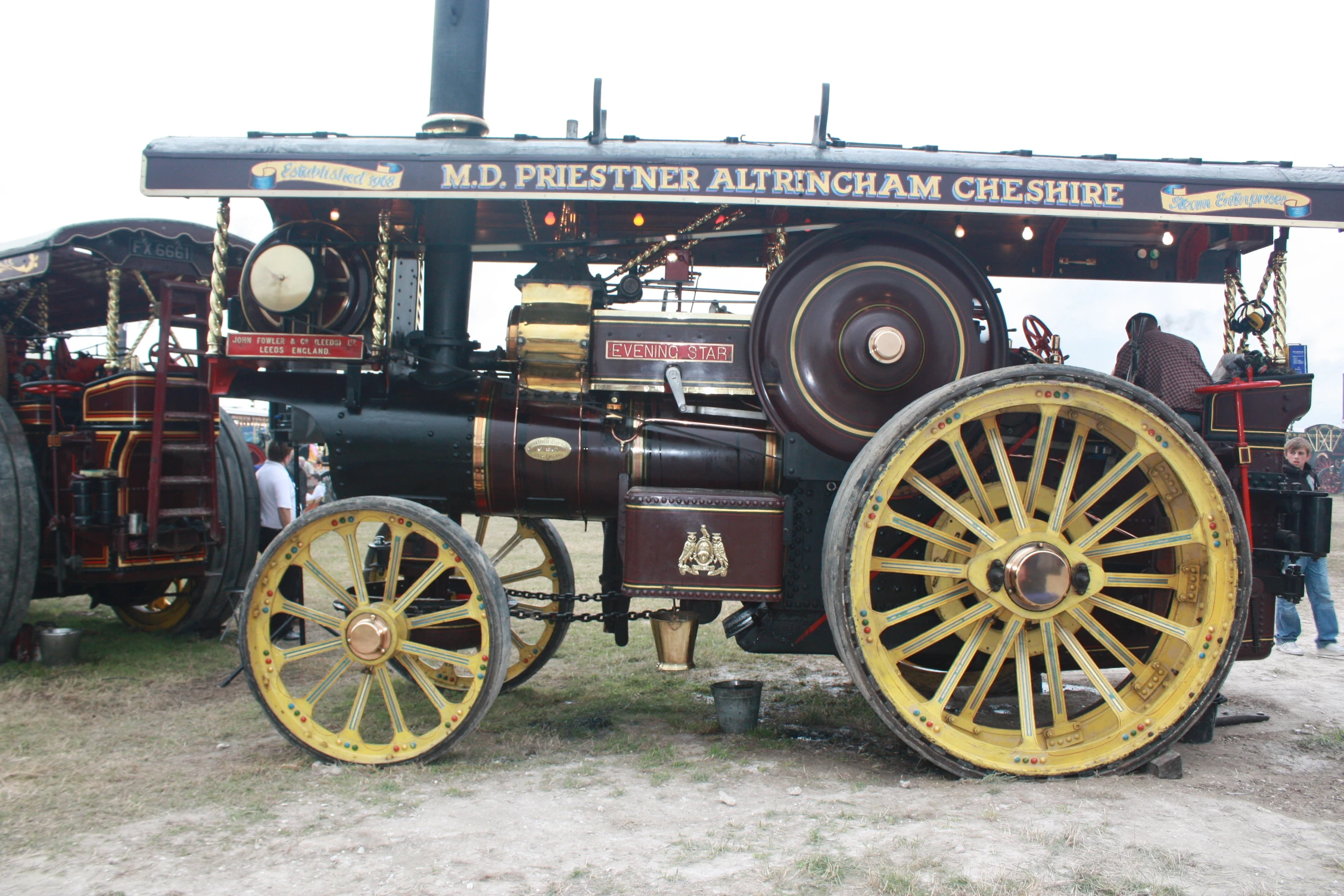

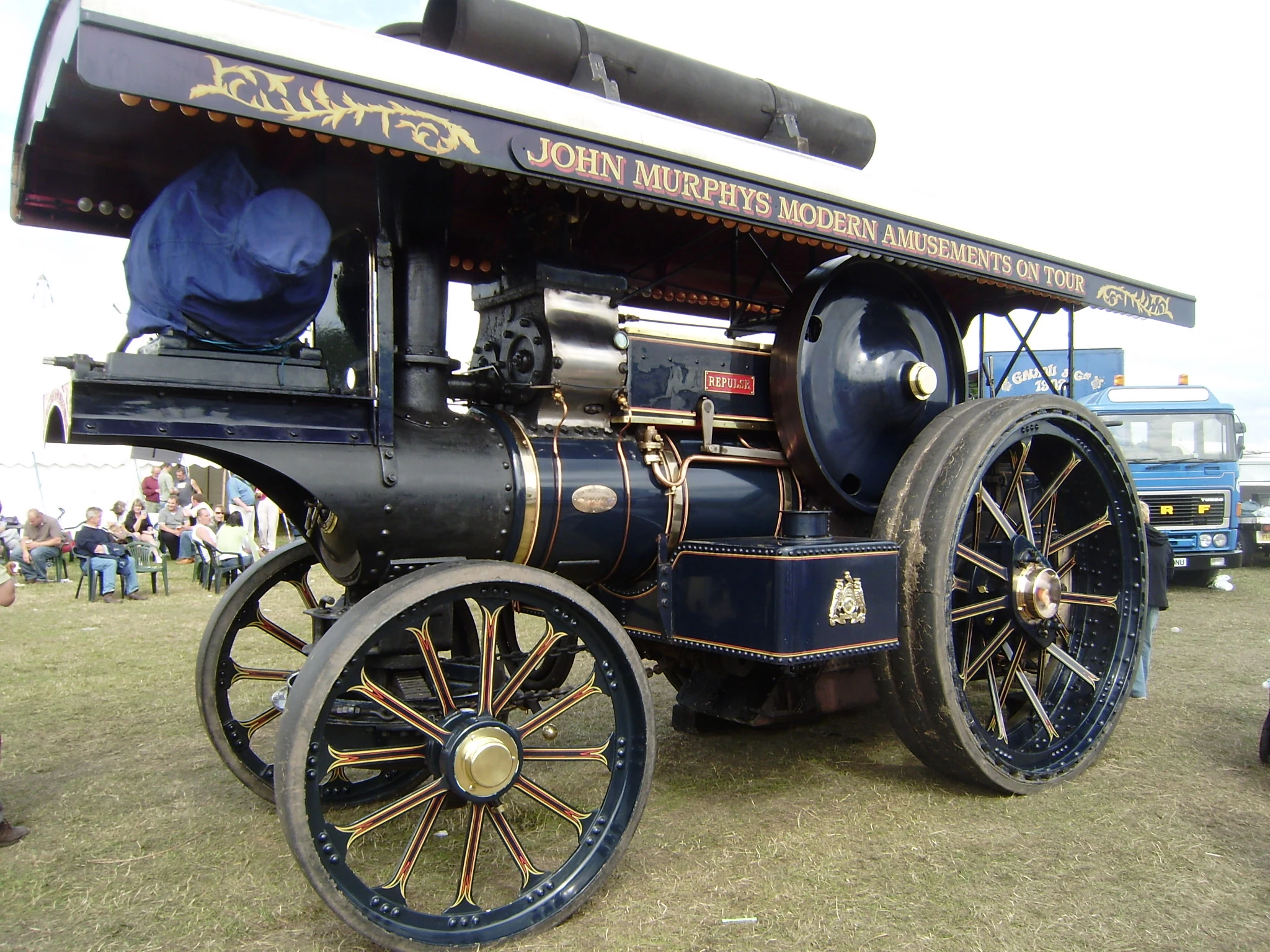

- Showmans Engines
- Stationary engines + Portable Engines
- Motor Ploughing engines Hybrid design part traction engine with diesel engine power.
- Crawler Tractors
- Fowler Gyrotiller
- Fowler Gyrotiller 40 - 19 ? - ? 40 hp
- Fowler Gyrotiller 80 - 1927 - ? 80 hp
- Fowler 4/40 - ?
- Fowler 6/80 - 193 ? - 80 hp Fowler-Sanders 6-cylinder engine.
- Fowler FD1 - 193?-47 12 hp
- Fowler FD2 - 193?-47 24 hp with 42" Rotavator powered by a Fowler DU engine
- Fowler FD3 - 1936-47 ? hp
- Fowler FD4 - 193?-47 54 hp
- Fowler VF - 1948-52 Built with a Marshall, Sons & Co. tractor engine
- Fowler VFA- 1952-57
- Fowler Gyrotiller
- For Caterpillar Challenger Rubber tracked crawlers, see Challenger Equipment.
- Fowler Challenger 1 1952-55 Marshall 2 cyl. 50 h.p.
- Fowler Challenger 2 1950-56 Leyland UE 350 65 h.p.
- Fowler Challenger 3 1950-56 Meadows 6 DC 630 95 h.p./ Leyland 0600 95 h.p.option
- Fowler Challenger 4 1953-56 Meadows 6 cyl. 150 h.p.
- Fowler Challenger 22 1957-74 Leyland UE 350 70 h.p.
- Fowler Challenger 33 1956-74 12 ton fitted with a Leyland AU 680 125 h.p. Engine. The Challenger 33 was produced as the TM140 till 1987/8
- Construction machinery
- Concrete mixers
- Crushers
- Screens
- Elevators
- Cultivating machinery
- Fowler trailed plough
- Fowler trailed cultivator
- Fowler trailed roller
- Scarifiers

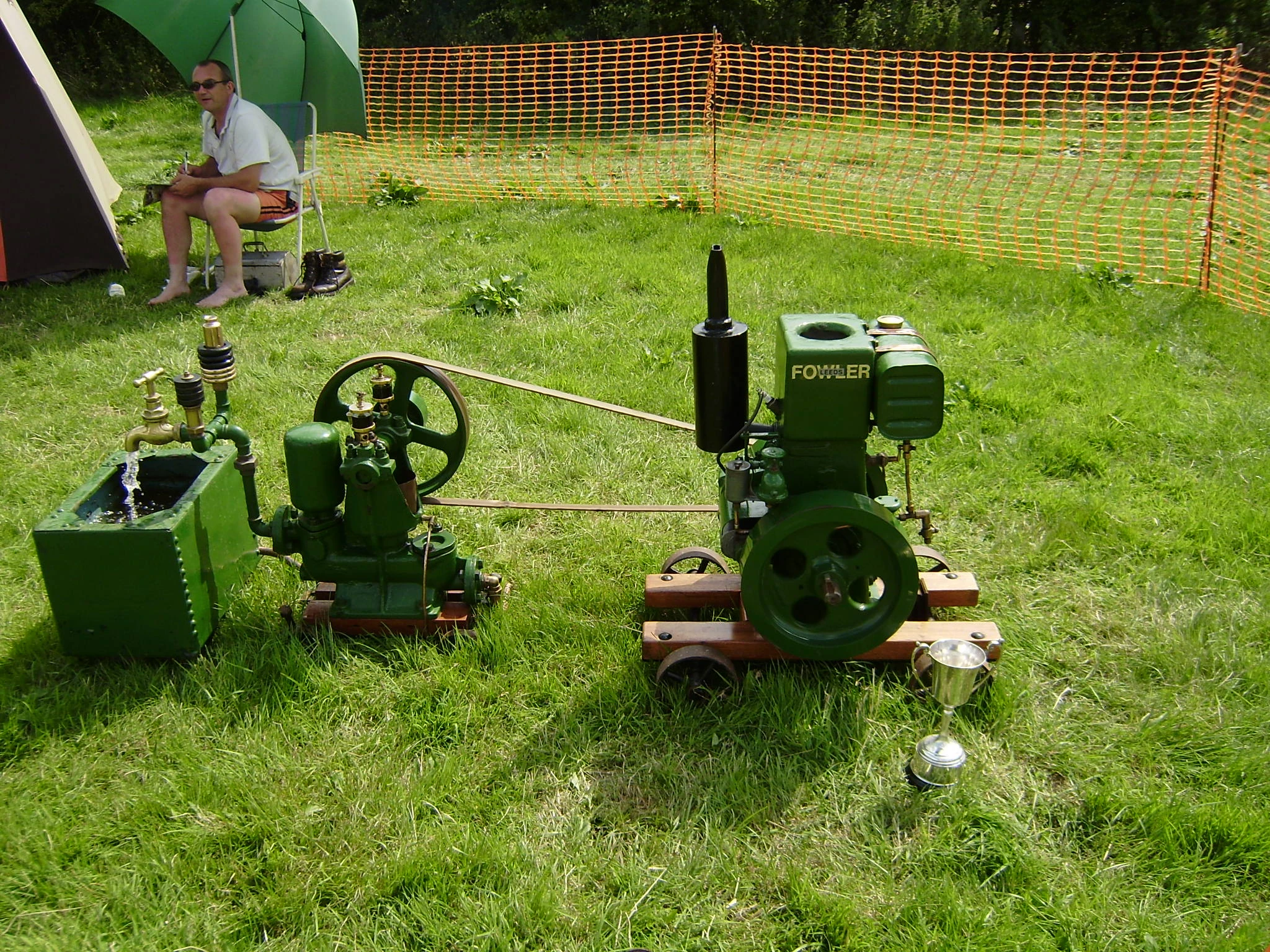

- Stationary engine (Barn engines) - Small portable internal combustion engines
- Steam Rail Locomotives -
- Railway Locomotives - Diesel powered Field Marshall engine unit.
- Living Vans
- Water Carts
- Motor Rollers of the 4-16 ton size range
Preserved Machines[]
Fowler Steam Engines[]
There are hundreds of Fowler engines in preservation in the UK, listed in the The Traction Engine Register. As Fowlers were also a major exporter of engines to the former British colonies in the 1800 & early 20th century an number survive in places like Australia and New Zealand in preservation and in India, Pakistan, Africa and South America as rusting remains. some of these are being repatriated to the UK & restored by collectors as few original UK engines remain to be restored.
Engine No. | Name | Build Date | Type | Weight | Power nhp | Reg No. | Owner | Image | Other info |
---|---|---|---|---|---|---|---|---|---|
Fowler-Burrell no. 1050 ? | - | 1869 | Plg | ? ton | ? nhp | KE 2319 | R. Pierce, Middlesex | At Essex Country Show 2009 (Burrell cylinder & motion) | |
Fowler no. 1190 | The Wilder (formerly William) |
1869 (September) | PLG | 20 ton | 12 nhp | BL 4150 | Owner ? (for sale in 2010) | Earliest known existing Fowler. ? (rebuilt by J 7 H Wilder)(TER 2008)[2] | |
Fowler no. 1368 | Margaret | 1870 | Plg | weight | power | Al 8468 | A Melrose, Somerset | to add | At Shrewsbury Steam Rally 2011 (was on Salvage Squad (TV series) |
Fowler no. 1641 | - | 1871(4) | PE | 13 ton | 12 nhp | ? | R. & M. Beeby Bros. |
|
Sold at Cheffins September 08 With No.1642 for £250,000[3][4] |
Fowler no. 1642 | - | 1871 (rebuilt 1917) | PLG | 13 ton | 12 nhp | NR 1213 | R. & M. Beeby Bros. | Photo to Add | At Driffield & Lincoln 2008 Sold with No.1641 at Cheffins |
Fowler no. 1908 | - | 1873 | Ploughing Engine | ? | 12 nhp | HR 3666 | Owner ? |
|
|
Fowler no. 2013 | Noreen | 1873 | PLG | ? ton | 14 nhp | AL 8463 | Owner |
|
Misc info |
Fowler no. 2267 | 1873 | Plg | 13 ton | 12 nhp | AL 8344 | Owner | to add
|
At Rempstone Steam & Country Show 2013 | |
Fowler no. 2479 | - | 1874 | PE | 13 ton | 12 nhp | NR 1213 | J. Fennelly, Co. Carlow ROI | Beeby Bros. No. 4 set (sold 2008 with no. 2693)[5] | |
Fowler no. 2528 | The Chief | 1875 | Plg (rebuilt from parts) | ? ton | 14 nhp | AL 8345 | G. Debes (ex Beeby Bros set 2) | at Holcot 2008 & Elvaston, Old Warden 2009 | |
Fowler no. 2529 | 1875 | Plg | ? ton | 14 nhp | Reg no. ? | Owner ? (ex Beeby Bros) |
|
Collection of parts - being rebuilt around new boiler | |
Fowler no. 2693 | - | 1875 | PE | 13 ton | 12 nhp | NR 1212 | J. Fennelly, Co. Carlow ROI |
|
Beeby Bros. No. 4 set (sold 2008 with no. 2479)[6] |
Fowler no. 2861 | - | 1876 | Ploughing single cylinder | ? ton | 8 hp | AB 9451 | P.Stanier & R. Pierce (ex J. Collins)[7] | At Essex Country Show 2009 | |
Fowler no. 3195 | - | 1887 | Ploughing | ? ton | 8 hp | AB 9452 | P. Stanier & R. Pierce (ex J.Collins)[8] | At Essex Country Show 2009 | |
Fowler no. 4094 | King George V | 1882 | type | weight | 8 nhp | EV 6560 | Owner |
|
Misc info |
Fowler no. 4223 | Aethelflaed | 1882 | Plg | weight | 8 nhp | AC 9061 | Owner |
|
Misc info |
Fowler no. 4680 | 1884 | Plg | weight | power | AC 9066 | Owner |
|
Misc info | |
Fowler no. 4681 | Name ? | 1884 | Plg | weight | power | AC 9067 | Owner |
|
Misc info |
Fowler no. 4719 | Name ? | 188? | TE | weight | power | Reg no. ? | Owner |
|
Misc info |
Fowler no. 6188 | Beulah | 1890 | TE | 9 ton | 8 nhp | MA 8528 | Bressingham Steam Museum |
|
|
Fowler no. 6376 | 1890 | TE | weight | 8 nhp | J 6235 | Owner ? |
|
Misc info | |
Fowler no. 6624 | Name ? | 1892 | TE | weight | 8 nhp | Ma 5821 | Owner ? |
|
Misc info |
Fowler no. 6771 | Invincible | 1892 | TE | weight | 8 nhp | - | Owner |
|
Misc info |
Fowler no. 7129 | Alice | 1894 | RR | weight | 4 nhp | BH 8579 | Owner |
|
Misc info |
Fowler no. 7232 | - | 1894 | TE Type B3 | ? ton | 8 nhp | WR 6662 | Kelham Island Industrial Museum | Local agricultural engine originally used for threshing | |
Fowler no. 7459 | Endurance | 1895 | TE | ? ton | 6 nhp | BW 4506 | Bob Langley, East Sussex | At Tinkers Park Rally 2010 | |
Fowler no. 7942 | Jonah | 1899 | TE | under 7 ton | 5 hp | TA 626 | P. & R. Green | at Harewood & Lincoln Steam Rally 2008 | |
Fowler no. 8635 | Blackjack | 1899 | TE | 8 ton | 8 nhp | IB 5747 | J. Paulson, Shrewsbury | To add | At Shrewsbury Steam Rally |
Fowler no. 8669 | Cape Town | date built | RL type A4 | weight | power | Reg no. ? | Goddard family collection |
|
Under restoration Details on Traction Talk |
Fowler no. 8712 | Pride of Wales | 1900 | TE Type A4 | - ton | 6 nhp | DE 2439 | J. Smith | At Lincoln 2008 & Sheffield 2009 | |
Fowler no. 8920 | The Great North | 1901 | RL + Crane engine | 14 ton | 8 nhp | SG 4713 | L & D Searle collection, Horsham, West Sussex | At Old Warden 2009 | |
Fowler no. 9187 | Lady Carrick | 1902 | TE Type R | 12 ton | 8 nhp | BS 8432 | D. Bostock, Congleton | 150px]] | At Hollowell Steam Rally 2010 Repatriated from Tasmania in 2002 |
Fowler no. 9225 | Pride of the Wye | 1901 | TE | weight | 7 nhp | CF 3795 | T. Henderson, Herefordshire | To Add | At Shrewsbury Steam Rally 2011 |
Fowler no. 9230 | - | 1902 | TE type A4 | 10 ton | 6 nhp | NP 3049 | Simon Bish collection, East Sussex | To add | At Tinkers Park Rally 2010 |

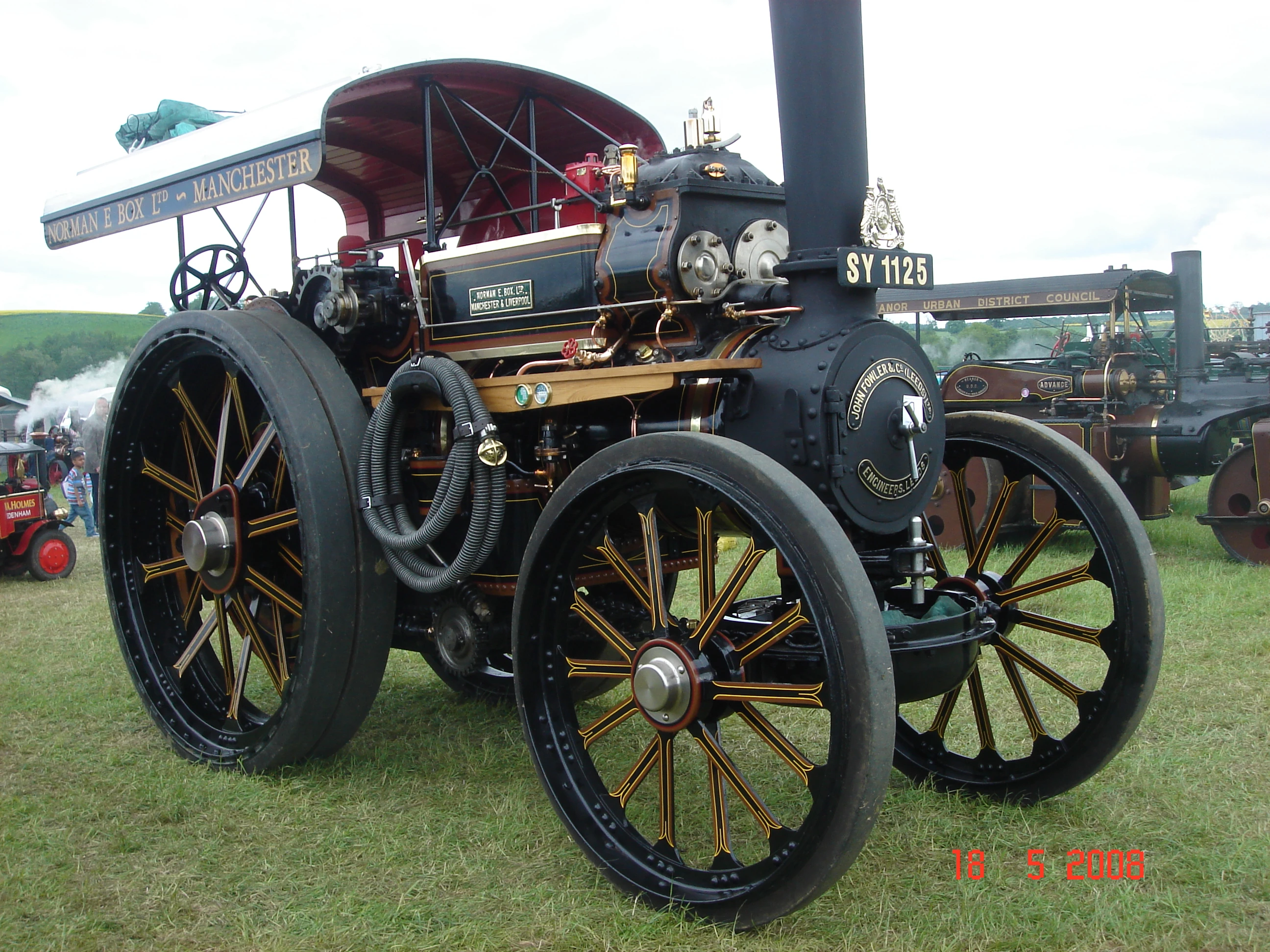

Fowler no. 9279 | Kitchener | 1902 | TE | Under 11 ton | 6 hp | SY 1125 | M & J Frampton, ? | at Belvoir Castle show + Cromford Steam Fair 2008 & Old Warden 2009 | |
Fowler no. 9475 | Duke of Rutland | 1902 | SM type B5 | ? ton | 8 nhp | BS 8015 | R. Williamson | at Belvoir Castle show & Lincoln Steam Rally 2008, Old Warden 2009 Repatriated from Australia in 1978 | |
Fowler no. 9924 | James Penfold | 1904 | TE type A4 | Under 10 ton | ? hp | BP 5767 | - | Harewood | |
Fowler no. 10150 | - | 1904 ? | RR Type ? | 15 ton | 5 nhp | BS 8347 | Peter Stevens ? | Seen Nr. A1 in Notts 2009 Repatriated from Switzerland.[9] | |
Fowler no. 10318 | Sunny Boy No. 2 | 1905 | RL Type B6 | ? ton | 8 nhp | WR 6790 | F. Baldwin | Showmans On loan to Leyland Museum, Lancashire from Hollycombe Steam collection | |
Fowler no. 10373 | Ada | 1905 | TE | - ton | 7 nhp | CE 7922 | D. Gowlett, ? | To add | At Old Warden 2009 |
Fowler no. 11082 | Jaroslava | 1907 | PLG type K5 | - | 8 nhp | SV 7345 | R. Goodwill, ? | At Driffield 2008 Repatriated from East Germany. | |
Fowler no.11108 | Dreadnought | 1909 | SM | ? ton | ? nhp | - | R. Knox, ? |
|
[10] |
Fowler no. 11114 | Puffin Billy | 1908 | TE type A5 | 11 ton | 6 nhp | DS 8075 | W. Ellis, ? | repatriated from Ireland At Lincoln 2008 Duncombe Park 2009 | |
Fowler no. 11352 | Sandy | 1907 | TE Type A4 | ? | 6 nhp | BF 4855 | A. Steele, Aberdeen in Scotland | At Great Dorset Steam Fair in 2008 on the Dynometer & Barnard Castle 2009 Repatriated from Australia | |
Fowler no. 11357 | - | 1908 | TE type A4 | ? ton | 6 nhp | NM 219 | H. Holman, ? | At Lincoln Steam Rally 2008 & Old Warden 2009, Family owned since the 1960s | |
Fowler no. 11421 | The Countess | 1908 | TE Type A4 | ? ton | 6 nhp | NT 117 | R. Timson, Norfolk | At Lincoln Steam Rally 2008 & Woolpit Steam Old Warden 2009 | |
Fowler no. 11484 | Bromyard Queen Nance | 1909 | TE type A8 Estate engine | ? ton | 8 hp | CJ 5367 | Colin Piggott, ? (For sale spring 2011) | At Bromyard Show + Holcot 2008 & Old Warden 2009 | |
Fowler no. 11594 | - | 1908 | TE | ? ton | 7 hp | EW 564 | S. Wing | at Holcot Steam Rally 2008 | |
Fowler no. 11695 | Jean | 1908 | TE | ? ton | 7 nhp | SA 4155 | Owner ?, Aberdeen |
|
Misc info |
Fowler no. 11698 | Edna | 1909 | TE | 10 ton | 7 nhp | NK 925 | P & S Lyons, | To add | At Old Warden 2009 & Woodcote Rally 2010 |
Fowler no. 11699 | Pride of Hanley Castle | 1908 | TE | 10 ton | 7 nhp | AB 9028 | Owner ?, Chipping Norton | To add | Seen at Much Marcle Steam Rally |
Fowler no. 11700 | - | 1908 | Agricultural Traction Engine | under 10 ton | 6 nhp | SV 5785 | A. Biglands, Derbyshire | at Cromford + Harewood (ex Australian engine repatriated) | |
Fowler no. 12226 | Titan | 1911 | RL | - ton | 8 nhp | HL 930 | A & L Marchington, | To add | At Old Warden 2009 |
Fowler no. 12530 | Bellingham | 1912 | RR Type N (Believed to be only Example left) | 7 ton | 3 nhp | J 7255 | D.G. MacDonald | at Driffield & Lincoln 2008 (Ex Durham CC) | |
Fowler no. 12754 | Nightmare | 1912 | RL type A8 | 18 ton | 7 nhp | SV 8988 | Ruth Atkinson, Billericay Essex | At Tinkers Park Rally 2010 | |
Fowler no. 12761 | Elsa | 1911 | TE | 11 ton | 7 nhp | BH 8166 | S Tomlinson, Leics | to add
|
Rempstone Steam Rally 2013 |
Fowler no. 12899 | Western Star | 1912 | TE | weight | power | BX 1937 | Owner ?, Cumbria | photo from Flickr | |
Fowler no. 12906 | Foremost | 1911 | Road Loco Type B6 | 17 ton | 10 nhp | - | J.Walker formerly with R.Wilcox | Repatriated from France in 2008 At Elvaston 2009 | |
Fowler no. 13140 | Volunteer | 1913 | TE type A8 | 10 ton | 7 nhp | Y 9955 | Dave Freemantle of Wickham | At Netley Marsh Steam Show 2011 | |
Fowler no. 13141 | Jo | 1913 | Road Loco type A7 | ? ton | 7 nhp | HO 5677 | Michael Davis of Avon Dassett | At Astwood Bank 2008/9 & Bloxham Steam Rally 2009 | |
Fowler no. 13881 | - | 1913 (17) ? | Plg type AA6 | 20 ton | 16 nhp | NO 372 | E. Flear | At Lincoln & Driffield 2008 | |
Fowler no. 14012 | Lord of the Isles | 1915 | TE type A7 | ? ton | 6 nhp | CE 7818 | M. Maskell, of Bedford | At Rushden 2008 & Stoke Goldington 2009 | |
Fowler no. 14100 | Empress | 1914 | TE Locomotive | under 13 ton | ? hp | DW 2235 | ? | in livery of Kelham Island Steam Co at Harewood 2008 | |
Fowler no. 14115 | The Lion | 1914 | road locomotive | ? ton | 8 nhp | XC 9653 | owner ? |
|
|
Fowler no. 14247 | Sunrise | 1915 | PLG Type K7 | ? ton | 12 hp | NM 1249 | Saunders Collection | Pair with 14248 in | |
Fowler no. 14248 | Sunset | 1915 | PLG type K7 | ? ton | 12 hp | NM 1250 | Saunders Collection | At Old Warden 2009, Pair with 14247 | |
Fowler no. 14256 | General French | 1907 | PLG | ? ton | 10 nhp | KE 3135 | - | Photo to add | at GDSF 2008 Ploughing demo |
Fowler no. 14257 | Linkey | 1916 | PLG type K7 | ? ton | 12 nhp | KE 2494 | A & M. Jones, Worcestershire | at Cromford, Wymswold & Holcot 2008 Astwood Bank + Bloxham, Old Warden 2009 | |
Fowler no. 14258 | Sevington | 1916 | PLG type K7 | ? tons | 12 nhp | KE 2495 | J. Mann, ? | At Strumpshaw, Weeting Rally + Old Warden 2009 | |
Fowler no. 14321 | Yorkshire Belle | 1916 | Showmans conversion (ex RR) | ? weight | ? nhp | BT 4580 | Turner Brothers, York | At Driffield & Lincoln 2008 & Barnard Castle 2009 | |
Fowler no. 14332 | Name ? | 1914 | TE ex D2 roller | 10 ton | ? nhp | Reg no. ? | Owner ? |
|
Recently restored (OG July 2013) |
Fowler no. 14333 | Bonnie | 1914 | RR | 12 ton | 5 hp | AD 8773 | owner ? | At Bromyard Gala 2008 | |
Fowler no. 14375 | - | 1917 | Ploughing Engine type BB | 20 ton | 16 nhp | BE 7548 | Flear Family of Kirton Lindsey | At Elvaston Steam Rally 2009 | |
Fowler no. 14378 | Whittersham Boy | 1918 | PLG Type BB | ? ton | 16 nhp | FX 6738 | B.J. Garman, of ? | 150px]] | At Bloxham Steam Rally 2010 |
Fowler no. 14383 | Prince | 1917 | PLG | weight ? | power ? | NM 1284 | Hollycombe Steam collection |
|
|
Fowler no. 14384 | Princess | 1917 | PLG | ? ton | 16 nhp | NM 1283 | A. Turner, ? | Little Casterton 2009 | |
Fowler no. 14402 | Jemima | 1917 | Showman's Engine | 6 ton | 4 nhp | BW 2374 | Robert Crawford collection |
|
Listed in photos of steam plough club visit & NTET list |
Fowler no. 14406 | MTOTO | 1917 | TE type T3 | under 5 ton | 4 hp | U 4171 | G. Collins, ? | at Belvoir Castle show, Driffield & Lincoln 2008 & many others in 2009 | |
Fowler no. 14425 | Carry On | 1916 | Showman's Engine (conversion) | 19 ton | 10 nhp | DP 4418 | Saunders collection | At St.Albans Old Warden & Weeting Rally 2009 - Old conversion by Openshaw (1920) | |
Fowler no. 14660 (Non UK engine) |
GEORGE WILLIAM | 1920 | Z7 type PE | 27 ton | 22 nhp | - | Cobdogla Irrigation & Steam Museum, South Australia |
|
(OG 228) |
Fowler no. 14661 (Non UK Engine) |
Black Bess | 1920 | Z7 type PE | 27 ton | 22 nhp | - | Swan Hill Pioneer Settlement Museum, Victoria, Australia |
|
(OG 228) |
Fowler no. 14674 | Busy Bee | 1922 | RR type DH | 10 ton | 6 nhp | BW 9937 | Hawthorne family, Woodcote Oxfordshire | To add | At Woodcote Rally 2010 |
Fowler no. 14712 | Wilbur | 1917 | Plg Type BB | 16 ton | 14 nhp | NO 4630 | R. Burgess, East Sussex | At Tinkers Park Rally 2010 | |
Fowler no. 14728 | Giant Tiger | 1918 | Plg class AA | weight ? | 18 nhp | DO 1918 | Barleylands Farm Museum | Pair with no. 14729 In the Barleylands collection in Essex | |
Fowler no. 14729 | Giant Panther | 1918 | PE | weight ? | 18 nhp | DO 1919 | Barleylands Farm Museum |
|
Pair with no. 14728 |
Fowler no. 14758 | The Iron Duke | 1920 | SRL | 12 ton | 7 nhp | WY 480 | ? | Photo to add | ? |
Fowler no. 14765 | - | 1920 | TE | ? ton | 5 nhp | DO 1933 | Robert Crawford collection |
|
|
Fowler no. 14805 | Lord Doverdale | 1917 | TE - 'T3 Tiger' | 5 ton | 4 hp | UG 1496 | D. Cope, Derbyshire | at Cromford 2008 & Elvaston 2009 | |
Fowler no. 14862 | Evening Star | 1917 | SM type R3 | 17 ton | 8 hp | DW 2235 | G. Atkinson's Scarborough Fair Collection | at GDSF 2008 | |
Fowler no. 14888 | Kingfisher | 1917 | TE type R3 | 12 ton | 8 hp | HO 6420 | Alan Eaton collection, of Northants | at Rushden and Kettering 2008 | |
Fowler no. 14893 | Midnight | 1917 | Road Loco type R3 | 14 ton | 8 nhp | CT 6888 | I. Barraclough, Rotherham | Dual Fuel kit (oil) - At Sheffield Steam and Vintage Rally 2009 | |
Fowler no. 14933 | Challenger | 1917 | TE | 12 ton | 8 nhp | CT 6891 | Robert Crawford collection |
|
|
Fowler no. 14934 | Monarch of the Road | 1917 | Showmans Conversion | ? ton | 7 nhp | EB 6276 | Owner ? | On display in the Auto und Technik Museum, Sinsheim, Germany | |
Fowler no. 14948 | Prince of Wales | 1917 | TE rebuilt as SM | 18 ton | 8 hp | EB 4999 | D. Woodward, ? | at Southport Vintage Rally in 2009 & Holcot Steam Rally 2008 | |
Fowler no. 14950 | - | 1918 | TE ? (Has drum like a plg) | 12 ton | 8 nhp | VF 2984 | D. Williams, Hay on Wye | A Monmouth Vintage Show 2011 | |
Fowler no. 14958 | Marina | 1918 | TE | 12 ton | 8 nhp | E 9600 | Owner ? |
|
Misc info (were seen, photo taken, special features etc) |
Fowler no. 15116 | Bertha | 1920 | Showmans | weight ? | power ? | CB 3062 | Levens Hall Museum nr Kendal in Cumbria | At Cumbria Steam Gathering 2009 | |
Fowler no. 15117 | Headway | 1920 | Showman's road locomotive | 13 ton | 8 nhp | 1920 MN | Owner ? |
|
Misc info (were seen, photo taken, special features etc) |
Fowler no. 15133 | Name ? | 1917 | Ploughing K7 | ? ton | 10 nhp | CF 4073 | Owner ? |
|
Diesel conversion |
Fowler no. 15134 | Name? | 1917 | Ploughing K7 | ? ton | 10 nhp | CF 4074 | Owner ? |
|
Diesel Conversion |
Fowler no. 15138 | Mistress | 1918 | Plg type BB1 | 20 ton | 16 nhp | HR 339? (Originally) | Owner ?, ? |
|
Repatriated from Canada.[11] Pair with 15139 |
Fowler no. 15139 | Master | 1918 | Plg type BB1 | 20 ton | 16 nhp | HR 3399 | Owner ?, ? |
|
Pair with 15138 |
Fowler no. 15141 | - | 1920 | Living van | - | - | With roller 19045 | D. Finnegan, Southampton | To add | At Bill Target Memorial Rally 2011, with roller + water cart |
Fowler no. 15142 | 1918 | PLG type BB1 | 20 ton | 16 hp | BP 6125 | S.E. Davis & Son collection | At Astwood Bank Pair with Fowler no. 15143 | ||
Fowler no. 15143 | 1918 | PLG type BB1 | 20 ton | 16 hp | BP 6125 | S.E. Davis & Son collection | At Astwood Bank pair with Fowler no. 15142 | ||
Fowler no. 15145 | Name ? | 1918 | Plg type BB1 | 20 ton | 16 nhp | CF 3348 | Owner ? |
|
Misc info (were seen, photo taken, special features etc) |
Fowler no. 15146 | Fame | date built | Plg BB1 | 17 ton | 16 nhp | AL 8508 | Owner ? |
|
Misc info (were seen, photo taken, special features etc) |
Fowler no. 15147 | Fortune | date built | Plg BB1 | 17 ton | 16 nhp | AL 8507 | Owner ? |
|
Misc info (were seen, photo taken, special features etc) |
Fowler no. 15148 | - | 1918 | Plg type BB1 | 20 ton | 16 nhp | CT 4663 | Owner ? | At Riverside Southport 2011 | |
Fowler no. 15149 | - | 1918 | Plg type BB1 | 20 ton | 16 nhp | CT 4664 | Owner ? |
|
Pair with Fowler no. 15148 |
Fowler no. 15154 | Ward | 1920 | Plg BB1 | 17 ton | 16 nhp | FX 6823 | Owner ?, Driffield |
|
Misc info (were seen, photo taken, special features etc) |
Fowler no. 15155 | Dale | 1920 | Plg type BB1 | 17 ton | 16 nhp | [[FX 6824] | Owner ?, Driffield |
|
Misc info (were seen, photo taken, special features etc) |
Fowler no. 15162 | Name ? | 1918 | Plg | 17 ton | 16 nhp | WR 7150 | Owner ? |
|
Misc info (were seen, photo taken, special features etc) |
Fowler no. 15163 | Headland Beauty | 19 ? | PLG | ? ton | ? hp | WR 7151 | Owner ? | photo to add | at GDSF 2008 Ploughing demo |
Fowler no. 15164 | Berkshire Lady | 1918 | Plg type BB1 | 17 ton | 16 nhp | WR 7185 | Owner ? |
|
Misc info (were seen, photo taken, special features etc) |
Fowler no. 15165 | Name ? | 1918 | Plg type BB1 | 17 ton | 16 nhp | WR 7180 | Owner ? |
|
Misc info (were seen, photo taken, special features etc) |
Fowler no. 15170 | Princess Caroline | 1918 | Plg type BB1 | 17 ton | 16 nhp | NR 78 | Owner ? |
|
Misc info (were seen, photo taken, special features etc) |
Fowler no. 15171 | Name ? | 1918 | Plg type BB1 | 17 ton | 16 nhp | NR 79 | Owner ? |
|
Misc info (were seen, photo taken, special features etc) |
Fowler no. 15175 | - | date built | type | weight | power | Reg no. ? | Owner ? |
|
See Fowler no. 15142 |
Fowler no. 15182 | Achilles | 1918 | PLG type BB1 | 17 ton | 16 hp | HO 5869 | M. Davis, Avon Dassett | at Holcot 2008 & Bloxham 2009 | |
Fowler no. 15183 | Ajax | 1918 | PLG type BB1 | 17 ton | 16 nhp | HO 5868 | P. Wilson |
|
Listed at Bloxham but No. 15182 was there |
Fowler no. 15194 | William Shakespear | 1918 | PLG | weight ? | power ? | FX 6820 | Science Museum |
|
A Pair with Fowler no. 15195 |
Fowler no. 15195 | Anne Hathaway | 1918 | PLG | weight ? | power ? | FX 6821 | Science Museum |
|
A pair with Fowler no. 15194 |
Fowler no. 15198 | Name ? | 1918 | Plg type BB1 | 17 ton | 16 nhp | Al 8509 | Owner ? |
|
Mercedes Diesel Conversion |
Fowler no. 15199 | Name ? | date built | Plg type BB1 | 17 ton | 16 nhp | AL 8510 | Owner ? |
|
Mercedes Diesel Conversion |
Fowler no. 15206 | ? | 19 ? | PLG | ? ton | ? hp | - | Photo to add | at GDSF 2008 Ploughing demo | |
Fowler no. 15231 | Prince | 1918 | PLG | ? ton | ? hp | AC 9511 | owner ? | at Bromyard Show 2008 | |
Fowler no. 15231 | Prince | 1918 | PE type BB1 | ? ton | 16 n hp | AC 9511 | at Bromyard show 2008 | ||
Fowler no. 15236 | Cissie | 1917 | PE type AA7 (rebuild needed) | 21 ton | 18 hp | CF 3411 | S. Cruickshank (ex Bressingham Collection) |
|
Sold by Cheffins Oct 2008 |
Fowler no. 15237 | Bessie" | 1917 | PE type AA7 (rebuild needed) | 21 ton | 18 hp | CF 3412 | S. Cruickshank (ex Bressingham collection) |
|
Sold At Cheffins Oct 2008 |
Fowler no. 15288 | Mr Blower | 1919 | Steam Tractor | under 5 ton | 4 nhp | U 4952 | A.R. Tyler, | at Belvoir Castle show 2008 & many events in 2009 | |
Fowler no. 15288 | Mr Blower | 1919 | Tractor | 5 ton | 4 nhp | U 4952 | A. R. Tyler collection | At Belvoir Castle show + Lincoln Steam Rally 2008 | |
Fowler no. 15293 | Onward | 1919 | 'Tiger' Tractor T3 | 8 ton | 4 nhp | BN 2788 ex (U 5008) | W. Olley, Oxfordshire (ex R. Greenaway) | At Woodcote Rally 2009 (new (replacement) canopy 2008) | |
Fowler no. 15323 | Excelsior | 1918 | A9 type Road Loco (ex war dept.) | 15 ton | 8 nhp | HR 3697 | D. Eansworth, Derbyshire | at Cromford Steam Rally 2008 | |
Fowler no. 15333 | Johnny | 1919 | Plg | weight | 16 nhp | AL 9855 | D. Williams, Hay-on-Wye | To add | At Shrewsbury Steam Rally |
Fowler no. 15337 | - | 1919 | PE Type BB | 20 ton | 16 nhp | DO 1928 | Owner ? |
|
At Klondyke Mill |
Fowler no. 15340 | - | 1919 | Plg type BB | 20 ton | 16 nhp | BL 8167 | Strumpshaw Hall Steam Museum | A pair with Fowler no. 15341 | |
Fowler no. 15341 | - | 1919 | Plg type BB | 20 ton | 16 nhp | BL 8168 | Strumpshaw Hall Steam Museum | A pair with Fowler no. 15340 | |
Fowler no. 15348 | - | 1919 | Plg type BB1 (Diesel conversion) | ? ton | 16 nhp (was) | NM 637 | Robert Crawford collection |
|
McLaren Conversion Pair with 15349 |
Fowler no. 15349 | Samson | 1919 | PE type BB1(Diesel conversion) | ? ton | 16 nhp(was) | NM 638 | Robert Crawford collection |
|
McLaren Diesel Conversion pair with 15348 |
Fowler no. 15364 | Windsor | 1919 | Plg type AA7 | 22 ton | 18 nhp | NO 1236 | The Claude Jessett Collection (since 2010) | At Southport Vintage Rally 2009 Pair with 15365 | |
Fowler no. 15365 | Sandringham | 1919 | Plg type AA7 | 22 ton | 18 nhp | NO 1235 | The Claude Jessett Collection | At Tinkers Park Rally 2010 Pair with 15364 | |
Fowler no. 15375 | Supremacy | 1919 | SRL (Openshaw conversion) | weight | power | UUP 526 | F Hollinshead, Nantwich | To add | At Shrewsbury Steam Rally 2011 |
Fowler no. 15428 | - | 1920 | PE type BB1 | 20 ton | 16 nhp | DO 1994 | Leeds Industrial Museum | A pair with Fowler no. 15429 In the Leeds Museums collection | |
Fowler no. 15429 | - | 1920 | PE type BB1 | 20 ton | 16 nhp | DO 1995 | Leeds Industrial Museum | A Pair with Fowler no. 15428 In the Leeds Museums collection | |
Fowler no. 15436 | Princess Mary | 1920 | Plg type BB1 | 20 ton | 16 nhp | NO 1364 | B. Snelgar, ? |
|
At Bill Targett Memorial Rally 2011 |
Fowler no. 15441 | Tiger | 1920 | Plg type BB1 | 20 ton | 16 nhp | CT 4177 | D. Shelmerdine, Nottingham | Pair with Lion Fowler no. 15442 | |
Fowler no. 15442 | Lion | 1920 | Plg type BB1 | 20 ton | 16 nhp | Reg no. ? | D. Shelmerdine, Nottingham | to add
|
Pair with Fowler no. 15441 |
Fowler no. 15451 | Victory | 1926 | Ploughing Engine | 20 ton | 14 nhp | SD 9378 | B. Knight collection, Stamford | Little Casterton 2009 | |
Fowler no. 15452 | Dreadnought | 1925 | Plg type BB1 | 20 ton | 14 nhp | SD 9377 | Owner ? |
|
Misc info (were seen, photo taken, special features etc) |
Fowler no. 1234 | Name ? | date built | type | weight | power | Reg no. ? | Owner ? |
|
Misc info (were seen, photo taken, special features etc) |
Fowler no. 15453 | Saucy Sue | 1925 | PE type BB1 | 20 ton | 14 nhp | TW 1803 | C.H. Cole & Sons, Essex |
At the top of the Field |
At Weeting Rally 2009 Pair with 15454 |
Fowler no. 15454 | Bonzer Tom | 1925 | PE type BB1 | 20 ton | 14 nhp | TW 1802 | C.H. Cole & Sons, Essex | At Weeting Rally 2009 Pair with 15453 | |
Fowler no. 15462 | Ajax | 1919 Nov | Road Loco type A9 | 15 ton | 7 nhp | AD 9126 | Middlewood Bros. collection, Nr York | at Sheffield Steam and Vintage Rally 2009 | |
Fowler no. 15467 | Sir Douglas | 1920 | Road Loco type A9 | ? ton | 7 nhp | AD 9200 | S Philips & sons Ltd | at Strumpshaw Steam Rally 2009 | |
Fowler no. 15516 | Ruth | 1921 | Plg type K7 | 14 ton | 10 nhp | CT 4051 | Coppard CE | At Tinkers Park Rally 2010 | |
Fowler no. 15517 | Hilary | 1921 | Plg type K7 | 14 ton | 10 nhp | CT 4052 | Coppard CE | At Tinkers Park Rally 2010 | |
Fowler no. 15625 | Crimson Rambler | 1921 | Te type T3 | Under 5 ton | 4 hp | U 7148 | Owner ? | at Harewood in 2008,br>'Ex Westmorland Country Council' | |
Fowler no. 15629 | - | 1920 | ST 'Tiger Tractor' | ? ton | 4 nhp | U 7290 | Saunders Collection | To add | At Weeting Steam rally, Pickering Steam Rally & Old Warden 2009 |
Fowler no. 15652 | Repulse | 1920 | Showmans Road Loco R3 type | 18 ton | 8 hp | CU 977 | T. Gibson, Notts | at Belvoir Castle show 2008 + Kettering | |
Fowler no. 15653 | Renown | 1920 | SM class R3 | 17 ton | 8 hp | CU 978 | Howard Brothers | at Belvoir 2008 & many other events | |
Fowler no. 15657 | The Iron Maiden (ex Kitchener) | 1920 | SM (was TE) | 7 hp | 18 Ton | FX 6661 | Graham Atkinson, Scarborough, Yorkshire | Now in Atkinson Collection at Scarborough. photo at GDSF | |
Fowler no. 15662 | - | 1929 | TE | weight ? | 8 nhp | AZ 2450 | Belfast Museum |
|
In the Belfast Museums collection |
Fowler no. 15669 | Name ? | 1922 | Plg type Z7 | ? ton | 22 nhp | - | Owner ? |
|
Listed at Great Henham Steam Rally 2011 |
Fowler no. 15670 | - | 1922 | PLG type Z7 | ? ton | 22 hp | - | M. Davis, Avon Dassett | at Holcot Steam Rally 2008 | |
Fowler no. 15673 | - | 1920 | PLG type Z7 | 25 ton | 22 hp | F49 UXF | M.Davis, Avon Dassett | (ex Mozambique) seen at Holcot 2008 & Bloxham 2009 | |
Fowler no. 15688(16588) ? | Muttley | 1921 | RR type DN | 10 ton | ? nhp | AD 9802 | M. Preston, ? |
|
ex Norfolk DC & Gloucester CC's |
Fowler no. 15710 | Tommy | 1922 | Traction engine Type A9 | 12 ton | 7 nhp | MO 780 | Ray mathews, Shropshire | At Onslow Park Steam Rally 2009 | |
Fowler no. 15748 | Earl Douglas | 1920 | TE | ? ton | ? hp | EC 3388 | J. Wright, West Yorkshire | at Harewood 2008 | |
Fowler no. 15752 | Majestic The Pudsey Roller |
1921 | RR type DR | 10 ton | 5 nhp | WR 7508 | C/O Road Roller Association |
|
On 25 year loan to RRA to restore (donations to RRA Pudsey Fund) |
Fowler no. 15787 | Cynorthwywr | 1921 | Road Loco D5 type | 10 1/2 ton | 5 nhp | EP 2398 | R & P Jeffs, ? | At Elvaston & Klondyke 2009 | |
Fowler no. 15813 | Elsie | 1922 | Steam roller type DN1 | 10 ton | 6 nhp | WR 8965 | The Shipton Family, Gloucestershire | To add | At Kemble 2009 |
Fowler no. 15854 | The Dreamer | 1923 | RR type DN1 (ex tar sprayer) | 8/10 ton | 5 nhp | WE 1568 | Bruce Frogbrook, Hailsham, East Sussex | At Tinkers Park Rally 2010 | |
Fowler no. 15902 | Jessica | 1923 | Road Roller type D5 | 15 ton | ? hp | KR 8728 | D. Wardell, ? | at Astwood Bank 2008 | |
Fowler no. 15942 | Ralph | 1922 | RR | 10 ton | ? nhp | WY 8058 | M.H. Middlewood & Sons, nr York | At Driffield 2008 | |
Fowler no. 15964 | - | 1923 | RR type T3B | 8 ton | ? nhp | WY 7192 | J & N Howard, ? | At Strawberries and Steam 2011 - Ex Guisley UDC | |
Fowler no. 15965 | Irish Lady | 1923 | RR | ? ton | ? bhp | IA 6195 | Ex Tarmac Plc - Owner ? | At Northumberland Vintage Rally 2012 (was offered for sale at cheffins Bristol sale in 2010 not sold) | |
Fowler no. 15970 | D.C. Ver | 1923 | SM Tractor ex RR + TE type T3 | 8 ton | ? nhp | NW 6092 | R. Tyler (Converted to Showmans in 1991) | at Lincoln 2008 ex Mechanical Tar Spraying & Grouting Co. | |
Fowler no. 15973 | Jenny | 1924 | RR | 6 ton | ? nhp | BW 7794 | H. Holman, ? | at Stoke Goldington Steam Rally 2009 Ex council roller | |
Fowler no. 15981 | EVE | 1923 | RR - Type DN1 ex Sri Lanka | 10 ton | ? hp | SV 5862 | L. Donn, S. Yorkshire | Engine was at Cromford + Harewood House & Lincolns in 2008, Sheffield 2009 | |
Fowler no. 15991 | Cheetal | 1923 | 0-4-0 Rail locomotive | ? | ? | NA | Leeds Industrial Museum collection | At Armley Mills 2011 - Built for India | |
Fowler no. 16053 | John | 1925 | PE Class AA | weight 21 ton | power 16nhp | EB 5518 | Museum of Lincolnshire Life | Currently displayed - Pair with Fowler no. 16054 Photo on traction talk | |
Fowler no. 16054 | Michael | 1925 | PE Class AA | weight 21 ton | power 16nhp | EB 5519 | Museum of Lincolnshire Life |
|
Currently stored - Pair with Fowler no. 16053 |
Fowler no. 16078 | Navigator ex Catherine |
1923 | RR | 10 ton | power ? | SV 9427 | L. Fisk, Manchester | To add | At Shrewsbury Steam Rally 2011 |
Fowler no. 16134 | 192 ? | RR | ? ton | ? hp | U 9493 | owner ? | Photo to add | at GDSF 2008 40y Display | |
Fowler no. 16144 | Rosie | 1924 | RR type DN1 | 10 ton | ? hp | ES 6534 | owner ? | Photo to add | at GDSF 2008 Roadbuilding |
Fowler no. 16148 | Olie | 1924 | RR type DN1 | 8 ton | ? hp | TT 1253 | owner ? | at GDSF 2008 on Road building duty | |
Fowler no. 16157 | Braw Lass | 1924 | RR | 6 ton | ? nhp | DD 5490 | Owner ? |
|
Under rebuild |
Fowler no. 16175 | Paddy | 1924 | RR type DN1 | 8 ton | 4 nhp | MW 8189 | P.E. Johnson, ? | at Rushden Calvalcade and Holcot Steam Rally 2008 & Old Warden 2009 | |
Fowler no. 16235 | The Highlander | 1924 | RR type DN1 ex Tar Sprayer | 10 ton | 7 nhp | AV 45 | The Higgins family, ? | At Lincoln Steam Rally 2008, & Strumpshaw, Old Warden 2009 ex Abberdeen CC | |
Fowler no. 16236 | Lady Mary | 1924 | Showman's conversion ex RR type DN1 |
8 ton | 6 nhp | EC 5521 | owner ? | at Darley Dale Festival of Transport 2009 | |
Fowler no. 16289 | Supremacy | 1925 | TE type DN1 | 8 ton | 6 hp | NL 8292 | D.A. & H.M. Webster, ? | at Harewood & Lincoln 2008 | |
Fowler no. 16365 | King of the Road | 1928 | TE (Convertible) | 6 ton | 4 nhp | YC 3689 | R. Tyler, ? | Photo to Add | At Lincoln 2008 |
Fowler no. 16392 | Alice | 1925 | RR | 8 ton | 4 nhp | MB 8144 | P. Atkins ? | to add 150px]] | at Boxham 2013 |
Fowler no. 16436 | Nut Roast | 1925 | RR Type DN1 | 10 ton | power ? | SA 8439 | R. Fairhurst ? |
|
Misc info |
Fowler no. 16439 | Showman ex Delilah |
1925 | SM ex Roller type DN1 | 10 ton | ? nhp | SM 5121 | L. Vernon, Hetton-Le-Hole, Tyne & Wear | At Lincoln 2008 | |
Fowler no. 16519 | ALBION | 1925 | RR type DN1 | 8 ton | ? nhp | BW 9211 | Angus Abott, Surrey | At Tinkers Park Rally 2010 | |
Fowler no. 16614 | - | 1926 | RR Type B6 | 12 ton (8 ton ?) | 6 nhp | PP 5902 | P. Dickens, Northampton | owned since 1969 Seen at Stoke Goldington Steam Rally 2009 | |
Fowler no. 16646 | Jack of Hearts | 1926 | Plg K7 | 17 ton | 12 nhp | RO 4520 | D. Mariner, ? |
|
At Bill Target Memorial Rally 2011 |
Fowler no. 17071 | Titch ex Old Jim |
1928 | RR type T3 | 10 ton | ? nhp | BF 4887 | G.& A. Morrison, Winterley, Sandbach | to add | At Hollowell Steam Rally 2010 ex L.Edwards (OG 228)(ex Africa) |
Fowler no. 17077 | The Forest Maiden | 1929 | Showman ex RR type DNB Tar Sprayer | 10 ton | ? nhp | UW 1331 | M. Brain, Forest of Dean | At Stourport Steam Rally 2009 | |
Fowler no. 17106 | Duke of York | 1928 | Road Locomotive B6 Crane Engine |
? ton | 10 NHP (8 nhp in TER) | KD 2826 | P. Scholey, ? | At GDSF 2009 | |
Fowler no. 17107 | Parsons Pleasure | 1928 | Road Locomotive B6 Super Lion |
? ton | 10 nhp | - | Robert Crawford collection | To add | At Carrington Rally 2009, Fitted with HD (Stump puller) winch |
Fowler no. 17212 | Wolverhampton Wanderer | 1929 | Road Loco B6 (Crane) | 23 Ton | 10 hp | RF 6092 | Len Crane collection | at GDSF 2008 40y display & BSEPSOld Warden 2009 | |
Fowler no. 17251 | - | 1928 | SR ex Tar sprayer | 8 ton | ? nhp | DS 7206 | Summerlee Industrial Museum, Coatbridge, Scotland |
|
Occasionally steams at museum events |
Fowler no. 17287 | Oriana | 1927 | TE ex RR | weight | power | UW 1329 | Wm. Lowe, Surrey (C/o T Seedon) | To add | At Shrewsbury Steam Rally |
Fowler no. 17470 | Bonnie Lass | 1928 | TR (conversion) | 6 ton | 4 nhp | PX 9047 | A. Rundle, Lincolnshire | To add | At Weeting Rally & Old Warden 2009 - Ex Roller (in 1980s) |
Fowler no. 17480 | Survivor | 1929 | RR type DNB | 10 ton | ? nhp | BS 9196 | A.E. Baker, Brierley Hill Fitted with Rubber 'Tyres' to rollers | AtKettering 2008 & Stourport 2009 Reimported from Portugal | |
Fowler no. 17501 | Pentland Queen | 1927 | RR type DNB | 10 ton | 5 nhp | SY 3413 | R. Inman, of Nottinghamshire | At Driffield Steam Rally & Lincoln Steam Rally 2008 ex Midlothian CC | |
Fowler no. 17560 | - | 1929 | RR type DNA | 10 ton | 5 nhp | TM 4782 | Saunders collection | At Weeting Rally(not listed), Old Warden 2009 | |
Fowler no. 17578 | Evening Queen | 1926 | SRL originally type DNA Roller | 11.5 ton | 5 nhp | UA 5597 | M. Hadfield, Nottinghamshire | At Driffield Steam Rally & Lincoln Steam Rally 2008 ex. Fussell Bros. | |
Fowler no. 17585 | The Wanderer | 1928 | SM type DNA | 12 ton | 5 hp ? | UA 8178 | A. Turner Yorks | at Holcot Steam Rally & Lincoln Steam Rally 2008 | |
Fowler no. 17621 | - | 1926 | Motor Ploughing engine | weight ? | power | - | Leeds Industrial Museum | Diesel ploughing engine (one half of one set of only 40 sets built) | |
Fowler no. 17756 | - | 1929 | PLG | weight ? | power ? | VO 8987 | Nottingham Industrial Museum | Pair with Fowler no. 17757 | |
Fowler no. 17757 | - | 1929 | PE | weight ? | power ? | VO 8988 | Nottingham Industrial Museum |
|
Pair with Fowler no. 17756 |
Fowler no. 17786 | - | 1928 | Motor Roller | ? ton | - | Reg no. ? | Owner ? |
|
Gardner Engine - Misc info (were seen, photo taken, special features etc)[12] |
Fowler no. 17954 | - | 1931 | Motor roller | ? ton | - | Reg no. ? | Owner ? |
|
Waukesha engine - Misc info (were seen, photo taken, special features etc)[13] |
Fowler no. 17956 | - | 1931 | Motor roller | 10 tons | - | VN 2811+ | Leeds Industrial Museum | Unrestored, Fitted with MAN engine.[14] | |
Fowler no. 18075 | Britannia | 1930 | DNB type RR | 12 ton | 5 nhp | CV 1662 | Dingles Steam Museum | On display at Dingles Fairground Heritage Museum 2011 | |
Fowler no. 18503 | Royal Sovereign | 1931 | SM ex RR type DNB | 12 ton | 5 hp | GO 5298 | ex Turner Brothers(sold 2009) | at Holcot 2008 & Stourport 2009 | |
Fowler no. 18507 | Morning Star | 1931 | RR | 14 ton | 5 nhp | SM 8832 | P. Jeffs, Streetly, ? | At Elvaston Steam Rally 2009 | |
Fowler no. 18659 | Arfur | 1930 | RR type DNB | 12 ton | 4 nhp | 3969 WG | R. Todd (owner) D. Spearman, Essex (driver) |
At Strumpshaw 2009 & Lincoln2008 repatriated from Portugal | |
Fowler no. 18663 | Lilly | 1930 | RR Type DNB | 10 ton | 5 nhp | TF 1851 | Owner |
|
Misc info |
Fowler no. 18672 | Name ? | 1932 | Motor roller | ? ton | - | 272 XUF+ | S.P. Saunders, Hampshire | Retro-fitted Perkins P4 engine | |
Fowler no. 18867 | IDA | 1912 ? | RR Type T3B | 9 ton | 4 nhp | AFW 301 | D.G. MacDonald, Lincs | At Driffield & Lincoln 2008 ex Louth BC | |
Fowler no. 19045 | Adagio | 1931 | RR type DNA | 10 ton | 5 nhp | TK 6141 | D. Finnegan, Southampton |
|
At Bill Targett Memorial Rally 2011 (with Fowler no. 15141 Living van & water cart) |
Fowler no. 19049 | Bacchus | 1931 | RR | 8 ton | ? nhp | TK 6488 | S. Palmer, Berks ex R & T Waistell, Binfield | At Woolcote Rally 2009, ex T. Marchington collection | |
Fowler no. 19338 | Monty | 1931 | TE type D5 compound | ? ton | 5 nhp | RX 8106 | P Allan, ? | At Lincoln 2008 | |
Fowler no. 19356 | Name | 1932 | RR | 10 ton | 5 nhp | JU 1294 | R. Williamson, Rutland | to add
|
at Rempstone Steam Rally 2013 |
Fowler no. 19357 | - | 1933 | Road Roller | weight ? | power ? | CZ 2260 | Ulster Folk Museum |
|
in the collection at the Ulster Folk Museum in Co.Down NI. |
Fowler no. 19456 | Highland Lass | 1941 | TE type DNB (ex roller) | 12 ton | ? hp | SE 3563 | owner ? | at Belvoir Castle 2008 | |
Fowler no. 19590 | - | 1934 | Road Roller | weight ? | power ? | JI 5869 | Ulster Folk Museum |
|
In the collection at the Ulster Folk Museum, Co. Down NI |
Fowler no. 19838 | - | date built | Motor roller | 10 ton | - | Reg no. ? | Owner ? |
|
Misc info (were seen, photo taken, special features etc)[15] |
Fowler no. 20122 | Respite | 1933 | Showmans Conversion Ex Roller | 10 ton | 6 nhp | TJ 2626 | Owner ? | Kettering Vintage Rally 2013 | |
Fowler no. 20223 | Supreme | 1934 | SRL | 22 ton | 10 nhp | EU 5313 | Owner ? | Under restoration (seen at Strawberries and Steam 2011) | |
Fowler no. 20477 | - | 1935 | motor roller | 8 ton | power | Reg no. ? | Owner ?, Essex |
|
Misc info (were seen, photo taken, special features etc)[16] |
Fowler no. 20478 | - | 1932 | Motor roller | ? ton | - | Reg no. ? | Owner ?, Cheshire |
|
Misc info (were seen, photo taken, special features etc)[17] |
Fowler no. 20992 | Kinsale | 1936 | Ag TE | weight | power | Reg no. ? | R. Prideaux, ? | To add | At Shrewsbury Steam Rally 2011 |
Fowler no. 21222 | Wee McGregor | 1937 | TE | 7 ton | 4 nhp | CS 5409 | D & V Hubbuck, Hexham, Northumberland | at Cumbria 2009 & Driffield 2008 | |
Fowler no. 21629 | Name ? | 1937 | RR type T£A2 | 8 ton | 3 nhp | FF 4913 | Owner ? | At Strawberries and Steam 2011, part restored | |
Fowler no. 21632 | - | 1937 | TE type T3B | 8 ton | 4 nhp | BWY 847 | J. Selby, ? | At Lincoln Steam Rally 2008 last Steam roller bought by West Ridding CC | |
Fowler no. 21636 | Covenantor | 1938 | RR type T3B | 8 ton | 4 nhp | CS 7859 | R. Freeman, Banbury Oxfordshire | To add | Listed for (not seen) Cumbria 2009, seen at Woodcote Rally 2010. Ex Turner Bros. |
Fowler no. 21647 | Kinsale | 1937 | TE | 12 ton | 6 nhp | ZB 1135 | Owner ? | At Southport Vintage Rally in 2009 | |
Fowler no. 21833 | Hermes | 1936 | RR type DNC | 13 ton | 4 nhp | CRL 110 | Johnathan Bartum, East Sussex | At Tinkers Park Rally 2010 2nd Youngest surviving Fowler in UK, fitted Allen scarifier | |
Fowler no. 22060 | Capper Pass | 1937 | 0-4-0 Diesel loco | weight ? | 40 hp | NA | Leeds Industrial Museum | at Armley Mills Leeds Industrial Museum 2011 | |
Fowler no. 22596 | Evening Star | 1937 (December) | RR type DNB (ex tar sprayer) | 12 ton | 6 nhp | EJ 5535 | Paul Wood, Cornwall |
|
Currently under restoration, due for completion in 2011, hopefully in time for GDSF. Last Fowler built known to exist (TER 2008)[18] |
Fowler no. 1234 | Name ? | date built | type | weight | power | Reg no. ? | Owner ? |
|
Misc info (were seen, photo taken, special features etc) |
copy the 11 lines below (forms 1 row) and paste in table to add entries, replacing place holder text with your data - In source edit mode | |||||||||
Fowler no. 1234 | Name ? | date built | type | weight | power | Reg no. ? | Owner ? |
|
Misc info (were seen, photo taken, special features etc) |
Machine types Key: | Notes |
---|---|
PLG = Ploughing Engine, PE = Portable Engine, RL = Road Loco, RR = Road Roller, SM = Showmans, ST = Steam Tractor, SW = Steam Wagon, TE = Traction Engine |
|
Each engine has its own page linked by the Make & no. to add more details and photos about them click the link (if link is red just click and create a new page for your info) |
Fowler Crawler Tractors[]
A few examples have been preserved (pleased add details of any other examples known to be in preservation)
- At least one Gyrotiller is in preservation, in the Robert Crawford collection. Robert Crawford being the foremost specialist in Field Marshall tractors. Being a major supplier of parts for all Marshall tractors and Fowler crawlers.
- An FD2 is in the Collection of S.E. Davis & Son collection, fitted with Howard Rotavator (image above).
- A pair of Fowler crawlers were at Newby Hall Vintage show 2008.
- Fowler crawler fitted with Blaw Knox bulldozer blade, at Belvoir Castle show 2008.
- FOWLER-MAN (Fred Evans) in South Wales has a working Challenger 33 dozer circa 1956
- The Peter Gaskins collection in ? has several examples:-
- A Fowler FD2
- A Fowler VF and VFA
- Fowler 4/40
- Fowler Gyrotiller 40 and 80
- Fowler Challenger Lifeboat tractor conversion
- a number of latter Track Marshall machines are also in the collection.
Gallery of Fowler Crawler Tractor Images[]
Add your machine photos to the gallery below:-
Railway Locomotives[]
Some locations of preserved Fowler railway locomotives include:
- Bundaberg Australia - restored Leeds built locomotive Fowler no. 11277
- Changa Manga Forest Railway, Pakistan. [http://pakistaniat.com/2007/10/21/changa-manga-forest-railway/ Changa Manga Forest Railway article at 'All Things Pakistan' - accessed 31-03-2008
- East Kent Railway - a heritage line
- Leeds Industrial Museum has several locos (see list above) both restored and in storage along with other local built makes.
- Phyllis Rampton Trust
- Pontypool and Blaenavon Railway
See also[]
- Leyland Commercial Vehicles
- Steam Machinery Manufacturers
- Great Dorset Steam Fair
- Steam fairs
- Museums List
References / sources[]
- Wikipedia
- Old Tractor Magazine
- Old Glory Magazine
- Tractor & Machinery Magazine
- Classic Plant & Machinery Magazine
- Classic Farm Tractors by Michael Williams
- Show Catalogues for engine lists & details
References[]
External links[]
- Fowler traction engines
- Fowler diesel locomotive (model)
- Fowler Traction Engine list
- Leeds Fowler 11277 preserved in Bundaberg Australia
- Video clip of Leeds Fowler 11277 preserved in Bundaberg Australia
- Steam Scenes UK rally photo gallery
|
|
|
|
|
This page uses some content from Wikipedia. The original article was at Fowler. The list of authors can be seen in the page history. As with Tractor & Construction Plant Wiki, the text of Wikipedia is available under the Creative Commons by Attribution License and/or GNU Free Documentation License. Please check page history for when the original article was copied to Wikia |
