Ford RS200
Ford RS200
Manufacturer Ford Motor Company
Production 1984–1986
Predecessor MKII Escort RS2000
Successor MKV Escort Cosworth
Class Sports car
Body style(s) 2-door coupé
Layout Mid-engined four-wheel drive
Engine(s) 1.8 L (110 CID) Straight-4
2.1 L Straight-4

The Ford RS200 is a mid-engined, four-wheel drive sports car produced by Ford from 1984 to 1986. The road-going RS200 was based on Ford's Group B rally car and was designed to comply with FIA homologation regulations, which required 200 road legal versions be built. Despite some rumours to the contrary, the RS200 was not based on the European version of the Escort, as were both its predecessor and successor. It was first displayed to the public at the Belfast Motor Show.

History[]

Following the introduction of the MKIII Escort in 1980, Ford Motorsport set about development of rear-wheel-drive, turbocharged variant of the vehicle that could be entered into competition in Group B rally racing, and dubbed the new vehicle the Escort RS 1700T. A problem-filled development led Ford to abandon the project in frustration in 1983, leaving them without a new vehicle to enter into Group B. Not wanting to abandon Group B or simply "write off" the cost of developing the failed 1700T, executives decided to make use of the lessons learned developing that vehicle in preparing a new, purpose-built rally car. In addition, Ford executives became adamant that the new vehicle feature four-wheel-drive, an addition they felt would be necessary to allow it the ability to compete properly with four-wheel-drive models from Peugeot and Audi.

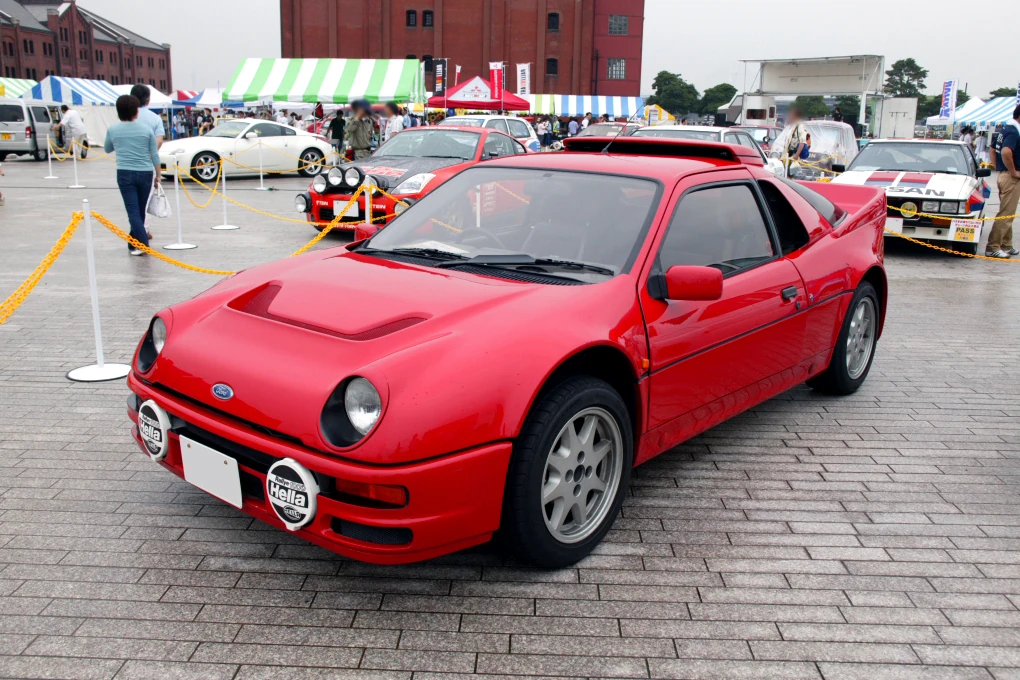

Ford RS200 - Race Retro 2008 01

RS200 at the Race Retro 2008.

The new vehicle was a unique design, featuring a plastic/fiberglass composite body designed by Ghia, a mid-mounted engine and four-wheel drive. The cars were built on behalf of Ford by another company well known for its expertise in producing fibreglass bodies - Reliant. To aid weight distribution, designers mounted the transmission at the front of the car, but this required that power from the mid mounted engine go first up to the front wheels and then be run back again to the rear, creating a complex drive train setup. The chassis was designed by former Formula One designer Tony Southgate, and Ford's John Wheeler, a former F1 engineer, aided in early development. A double wishbone suspension setup with twin dampers on all four wheels aided handling and helped give the car what was often regarded as being the best balanced platform of any of the RS200's contemporary competitors. Such was the rush to complete the RS200, the Ford parts bin was extensively raided - the front windscreen and rear lights were identical to those of the early Sierra, for example, while the side windows were cut-down Sierra items.

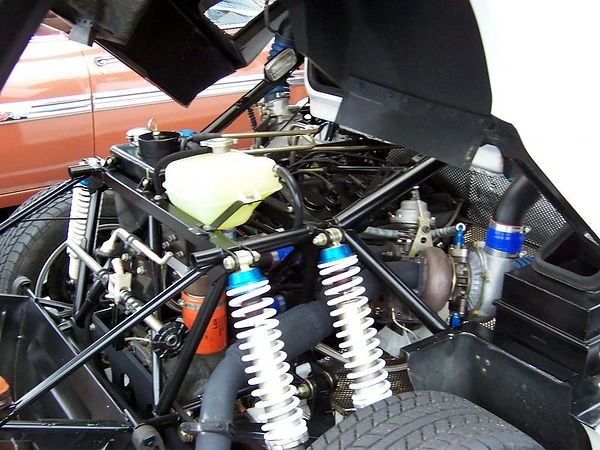

Ford RS200 engine

The mid-engined RS200's engine bay and rear suspension.

Power came from a 1.8 litre, single turbocharged Ford/Cosworth "BDT" engine producing 250 horsepower (190 kW) in road-going trim, and between 350 and 450 horsepower (340 kW) in racing trim; upgrade kits were available for road-going versions to boost power output to over 300 horsepower (220 kW). Although the RS had the balance and poise necessary to be competitive, its power to weight ratio was poor by comparison, and its engine produced notorious low-RPM lag, making it difficult to drive and ultimately less competitive. Factory driver Kalle Grundel's third place finish at the 1986 WRC Rally of Sweden represented the vehicle's best-ever finish in Group B rallying competition, although the model did see limited success outside of the ultra-competitive Group B class. However, only one event later, at the Rally de Portugal, a Ford RS200 was involved in one of the most dramatic accidents in WRC history, claiming the lives of 3 spectators and injuring many others.[1] Another Ford RS200 was crashed by Swiss Formula One driver Marc Surer against a tree during the 1986 Hessen-Rallye in Germany, killing his co-pilot and friend Michel Wyder instantly.

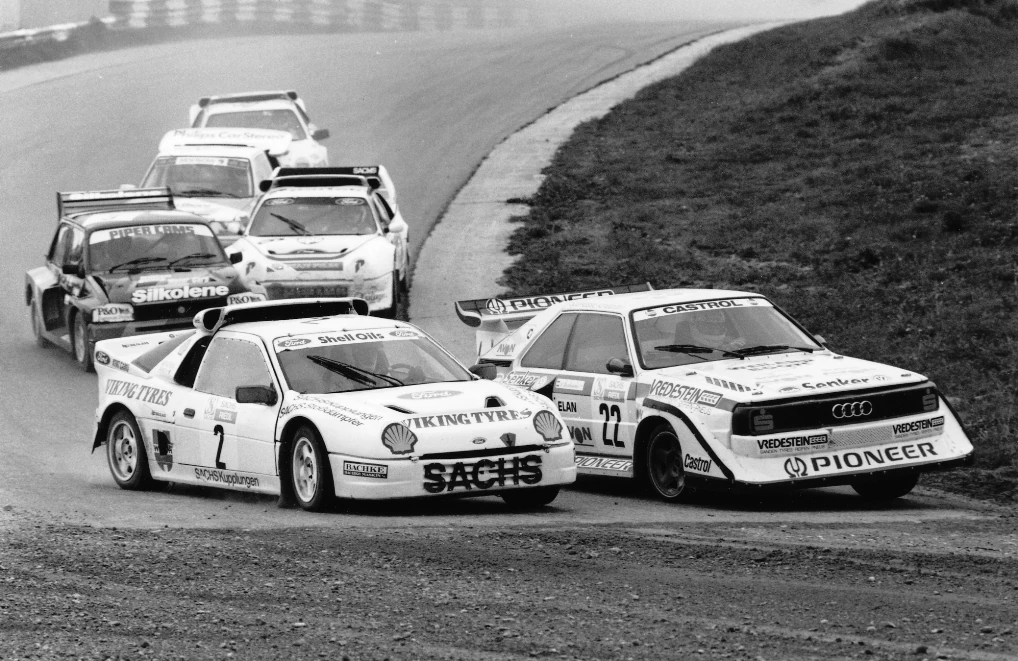

SchancheBreitenederMelk1989

RS200 and Audi Quattro S1 competing in rallycross.

The accident at Rally Portugal set off a chain reaction and the RS200 became obsolete after only one full year of competition as the FIA, the governing board, which at the time controlled WRC rally racing, abolished Group B after the 1986 season. For 1987, Ford had planned to introduce an "Evolution" variant of the RS200, featuring a development of the BDT engine (called BDT-E) displacing 2137 cc, developed by Briton Brian Hart. Power figures for the engine vary quite a bit from source to source, but output claims range from as "little" as 550 horsepower (410 kW) to as high as 815 horsepower (608 kW); it has been said that the most powerful Evolution models can accelerate from 0 to 60 miles per hour (97 km/h) in just over 2 seconds, depending on gearing. Upgraded brakes and suspension components were part of the package as well. The ban on Group B racing effectively forced the E2 model into stillbirth; however, more than a dozen of them were successfully run from August 1986 till October 1992 in the FIA European Championships for Rallycross Drivers events all over Europe, and Norwegian Martin Schanche claimed the 1991 European Rallycross title with a Ford RS200 E2 that produced over 650 bhp (480 kW).

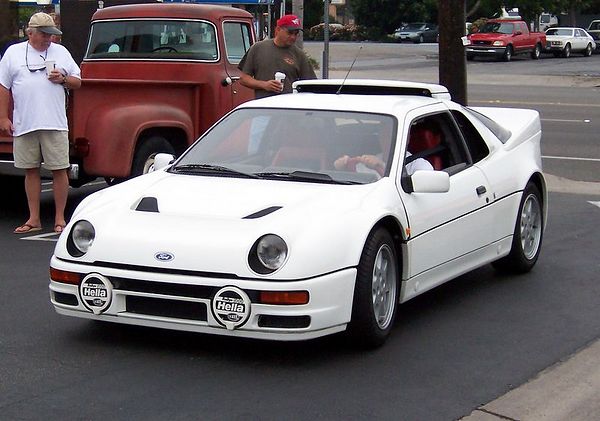

Ford RS200 001

Ford RS200 at The Spirit of Rally 2005.

One RS200 found its way in circuit racing originated as a road car; it was converted to IMSA GTO specification powered by a 750+ BHP 2.0 litre turbo BDTE Cosworth Evolution engine.[2] Competing against the numerous factory backed teams such as Mazda, Mercury and Nissan, with their newly built spaceframe specials, despite being a privateer, the car never achieved any real success to be a serious contender[3][4][5] and was kept by the original owner. A parts car was built in England and later used to compete in the Unlimited category at the Pikes Peak International Hill Climb, where it was driven by Swede Stig Blomqvist in 2001, 2002 and 2004 [6] and in 2009 by former British Rallycross Champion Mark Rennison.

Production[]

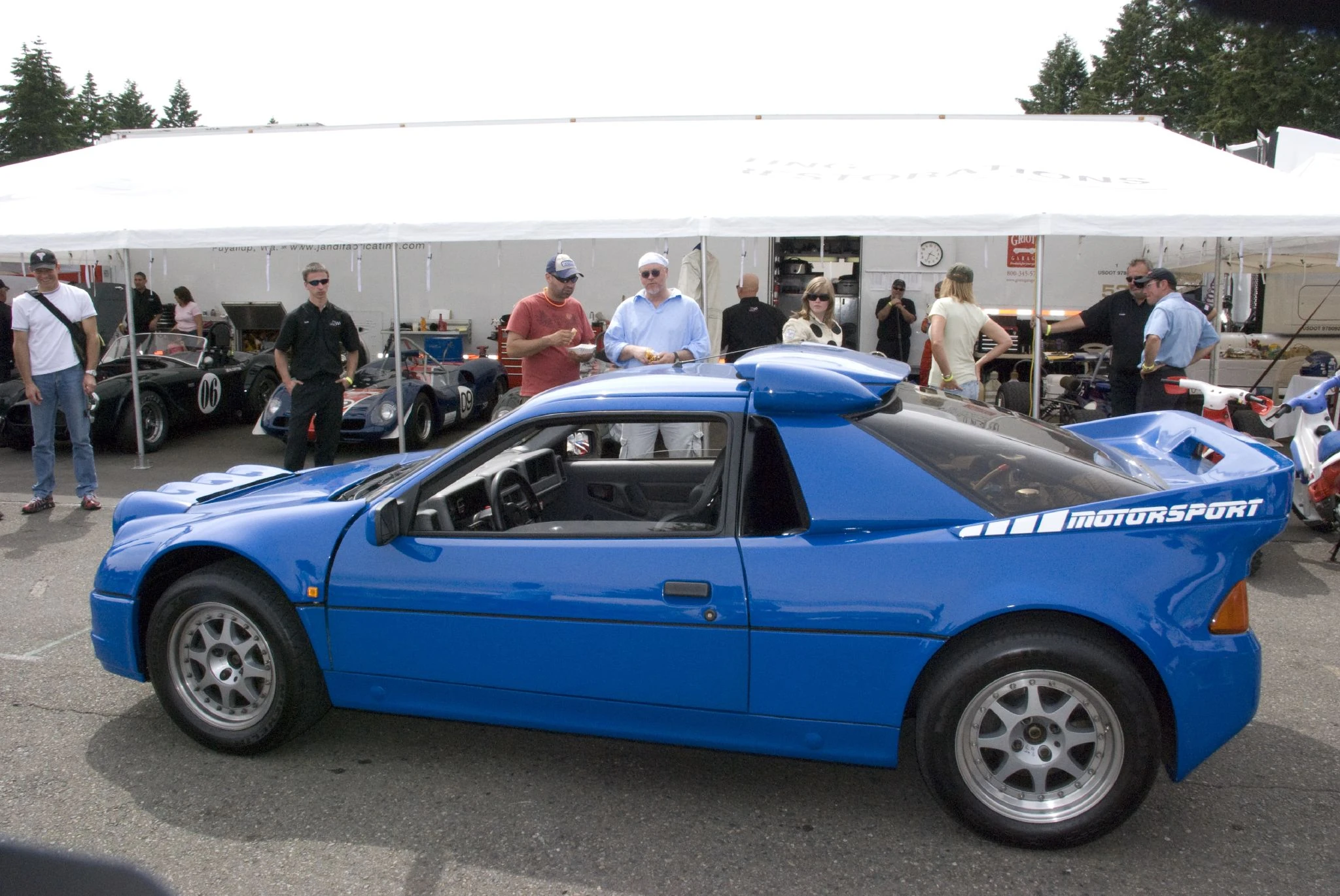

RS200 Blue 2

A blue production RS200.

FIA's homologation rules for Group B cars required the construction of at least 200 road-legal RS200s, and Ford reluctantly complied, building these 200 vehicles with spare parts for another 20+ units put aside for the racing teams. Those chassis and spare parts were later also used to build a couple of non-genuine, so-called bitsa cars.

After the incident of the Rally de Portugal where an RS200 collided with spectators adding to the demise of Group B rallying and therefore the closure of such rallying classification, Ford found themselves with a problem. They had 200 road versions of the RS200 that they forced themselves to build in desperation to enter the RS200 into Group B, and to no surprise nobody wanted an RS200 road model when the rally car version of it, had never won a race, and barely even stepped onto the podium. There is ongoing debate and confusion as to why RS200's are sought after today, with no racing success and no real edge on any of the competitor cars that entered Group B.

A total of 24 of the 200 original cars were reportedly later converted to the so-called "Evolution" models, mostly marked by their owners as "E" or "E2" types. Ford's first intention was to mark the FIA-required 20 "Evo" cars as series numbers 201 to 220 but as this was actually not necessary according to the FIA rules they later kept their original series numbers (e.g. 201 = 012, 202 = 146, 203 = 174 et cetera).

The original bodywork tooling for the Ford RS200 was latterly bought by Banham Conversions, who used it to make a kit car version based on the Austin Maestro. Due to being a basic re-body of the Maestro, the Austin-Rover engine ancillaries are actually to be found at the front of the vehicle.

Specification* (Group B Rally car)[]

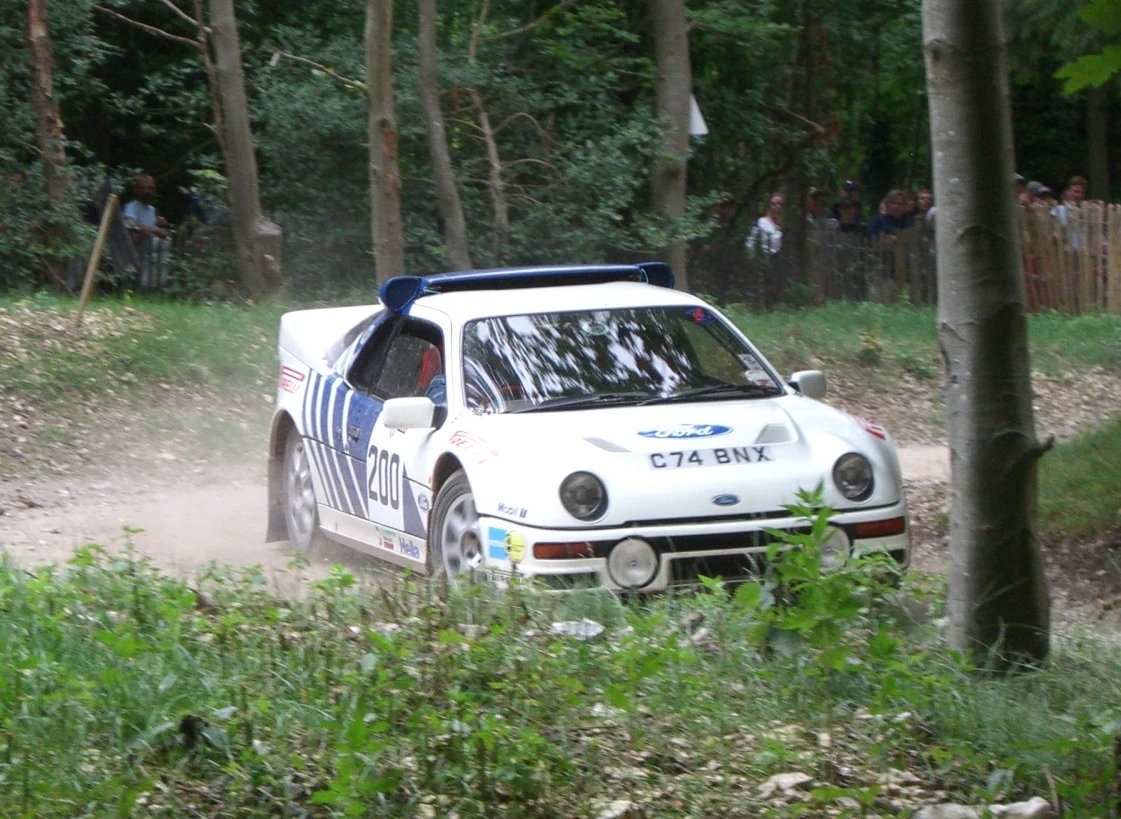

1986 Ford RS2000

RS200 driven at the 2006 Goodwood Festival of Speed.

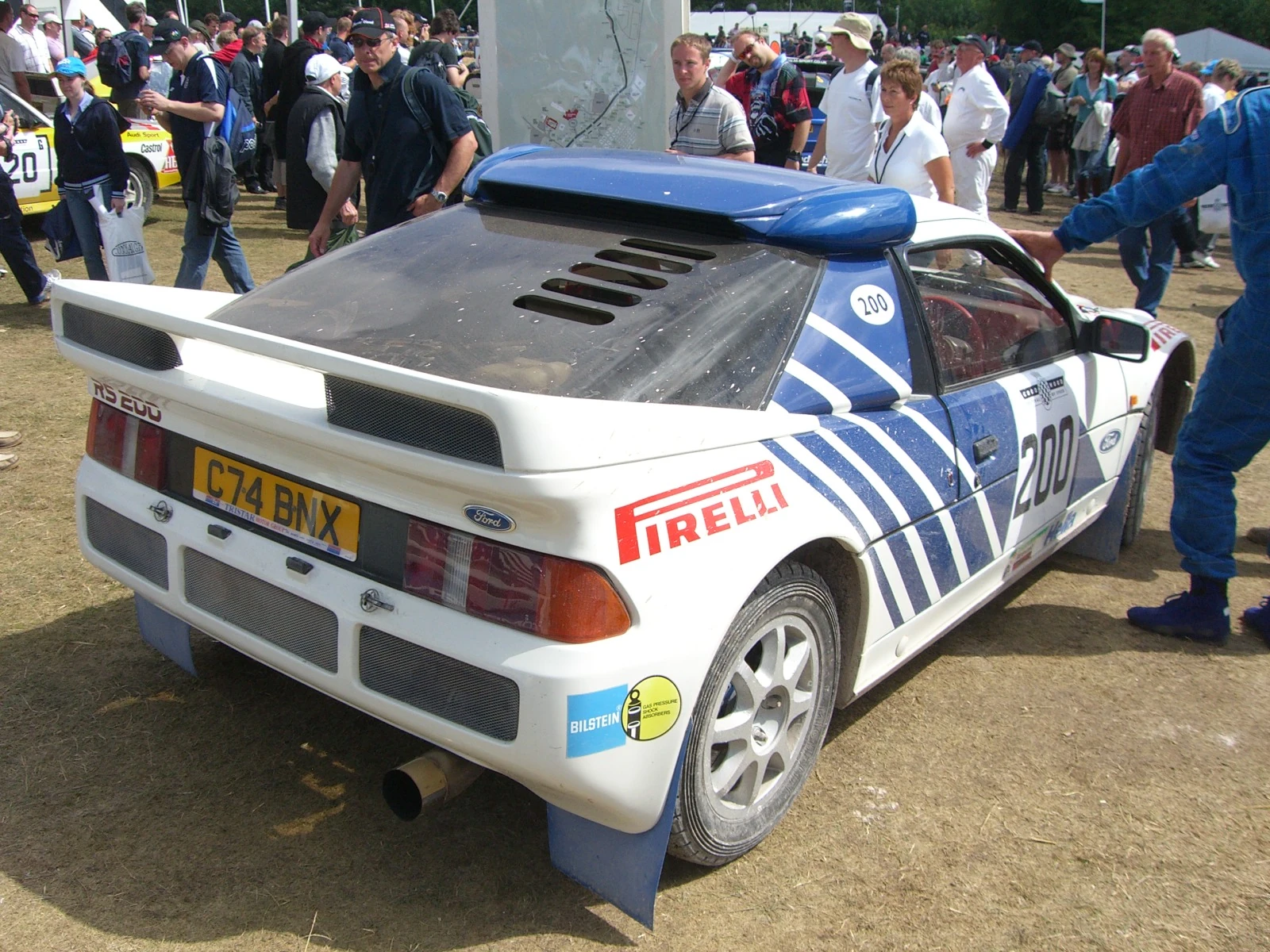

2006FOS 1986 Ford RS200

The rear of the RS200.

Engine[]

  • Longitudinally mounted, mid-ship, four-wheel drive
  • Head/block aluminium alloy/aluminium alloy
  • 4 cylinders in line, Nikasil dry liners
  • 5 main bearings. Water cooled, electric fan
  • Bore 86.0 millimetres (3.39 in)
  • stroke 77.6 millimetres (3.06 in)
  • capacity 1803 cc (110 CID)
  • Valve gear Dual Overhead Cams, 4 valves per cylinder, toothed belt camshaft drive

Compression ratio 7.2:1. Bosch Motronic engine management system and fuel injection. Garrett T3 turbocharger/boost pressure 23 psi (1.6 bar).

  • Max power 450 PS (331 kW/444 hp) at 8,000 rpm
  • Max torque 361 lb·ft (489 N·m) at 5,500 rpm

Transmission[]

  • 5-speed manual, AP twin plate paddle clutch with cerrametallic linings.
Gear Ratio mph/1000 rpm
Top 1.14 13.26
4th 1.36 10.90
3rd 1.68 8.88
2nd 2.14 7.08
1st 3.23 4.72

Final drive: Spiral bevel, ratio 4.375 to transfer ratio of 1.15

Suspension[]

  • Front, independent, double wishbones, twin coil springs and telescopic dampers, anti-roll bar.
  • Rear, independent, double wishbones, twin coil springs and telescopic dampers, anti-roll bar, adjustable toe control link.

Steering[]

  • Rack and pinion, a small quantity of cars also had hydraulic power assistance. Steering wheel diameter 14 in, 1.8 turns lock-to-lock,

Brakes[]

Dual circuits, split front/rear. Front 11.8 in (300 mm) diameter ventilated discs. Rear 11.8 in (300 mm) diameter ventilated discs, no vacuum servo. Handbrake, mechanical fly-off and hydraulic centre lever acting on separate, mechanically operated rear calipers.

Wheels[]

Ford magnesium alloy, 6–8 in rims (8¾ in and 11 in option for racing tyres). Tyre dependent on conditions (Pirelli Monte Carlo intermediates 245/40 16 on test car), 16" in diameter, pressures dependent on tyres used.

Dimensions and weights[]

  • Length: 157.5 in (4,000 mm)
  • Width: 69.0 in (1,750 mm)
  • Height: variable
  • Wheelbase: 99.6 in (2,530 mm)
  • Track (Front/Rear): 59.1/58.9 in (1502/1497 mm)
  • Weight: 2,315 pounds (1,050 kg)

Performance[]

For a standard production car, the fastest road-tested acceleration reported at the time occurred in 1993, when a Ford RS200 Evolution went from zero to 26.8 m/s (60 mph) in 3.275 seconds. Two separate RS200s have both reported 0–100 km/h times of 2.1 seconds.[citation needed]

Top speeds:

Gear mph km/h rpm
Top 118 190 8,900
4th 97 156 8,900
3rd 79 127 8,900
2nd 63 101 8,900
1st 42 68 8,900

Acceleration from rest:

True mph Time (sec)
30 1.2
40 1.8
50 2.2
60 2.8
70 3.8
80 4.8
90 5.9
100 7.3
110 8.7

Standing 1/4-mile: 11.4 sec, 115 mph (185 km/h).

Standing km: N/A

Acceleration (s):

mph Top 4th 3rd 2nd
10-30 - - - -
20-40 - - - -
30-50 - - 2.2 1.2
40-60 - 2.3 1.0 1.1
50-70 2.2 1.4 - -
60-80 1.6 1.5 - -
70-90 1.7 1.6 - -
80-100 2.0 - - -
90-110 2.4 - - -
