|Manufacturer||Ford Motor Company|
|Predecessor||Ford Model TT|
|Successor||Ford Model BB|
AA – Chassis 131½"
|Engine(s)||201 CID (3.3 L) I4|
|Transmission(s)||4-speed manual and reverse|
131 in (3,327 mm) |
157.5 in (4,001 mm)
|Length||Varied by Body Style|
|Width||67 in (1,702 mm)|
|Height||Varied by Body Style|
|Curb weight||Varied by Body Style|
10.5 US gal (40 L/9 imp gal)|
11 US gal (42 L/9 imp gal)
|Related||Ford Model A|
|Designer||Henry Ford and Edsel Ford|
Ford Model AA is a truck from Ford. As the Model T and TT became obsolete and needed to be replaced, Henry Ford began initial designs on the Model A and Model AA in 1926. Basic chassis layout was done rapidly and mechanical development was moved forward quickly. Body design and style was developed and then outsourced to various body manufacturers, including Briggs and Murray. The designs of the Model A shared parts and materials with the Model AA Ford, notably the body, engine and interior. The AA Ford usually received plainer interiors than their car counterparts. The Model AA Ford followed similar design changes that the Model A Ford underwent during the four year production, but often those changes followed on a delay, anywhere from three to nine months. The mechanical changes and upgrades were done during production of the vehicles. Body changes that occurred between 1929 and 1930 were also integrated into the Ford AA production, but leftover parts were used longer in the heavy commercial trucks.
The Model AA Ford is powered by the same 201-cubic-inch (3.3 L) engine I4 engine that the Model A Ford used. The engine produced a maximum of forty horsepower at 2,200 rpm. The engine featured an up-draft carburetor, six-volt generator, 2-blade fan, mechanical water pump, mechanical oil pump, electric starter and four-row radiator. All of these features were identical to the Model A Ford except the radiator. The engine could also be crank started if necessary by a hand crank that is inserted through a hole in the radiator shell. The Model AA was based on a chassis that was similar in design to the Model A Ford, except it was substantially larger and heavier to accommodate the work this truck was designed for.
Model AA Ford has a four-speed manual gearbox. The transmission is geared lower than the Model A Ford to provide more power to move a loaded truck. This lower gearing reduced the top speed of the truck when compared to the Model A Ford. The transmission also featured a lock-out on the shift knob for reverse that required a lever to be activated with the thumb so reverse could be engaged. This was done to prevent accidental engagement of reverse while the truck was in motion. Early trucks had a worm gear rear-end that limited the top speed of the truck. That rear-end was replaced by a Ring and Pinion rear-end Differential to improve the speed of the truck. Later models were fitted with braces on the outer casing of the rear-end to provide additional support to the rear-end housing.
The suspension of the AA Truck was similar to the Model A Ford in the front end. A leaf spring is centered in the front ‘A’ frame over the front axle. Shock absorbers were available for the front end. The rear suspension differed from the Model A Ford. The AA had leaf-springs mounted to the chassis and shackled to the rear-axle. The rear suspension did not have shocks.
The controls in the Model AA Ford are entirely mechanical, except the windshield wiper in later models. The brakes are mechanical and the truck has four oversized drum brakes to stop the vehicle. The mechanical system is a pull lever system that applies the force from the pedal to a pivot that pulls the brake rods that expand the brakes in the drums. The brake light is activated when the brake pedal is pushed. The brakes are proportioned more toward the rear drums. The parking brake is a chrome lever on the floor with a release button on the top. The windshield wipers started as hand cranked and later models were a vacuum pump powered from the exhaust line. The horn button is mounted in the middle of the steering wheel assembly. Controls for the lights are also incorporated into the steering assembly. The switch was a three-stop switch for parking lights, headlights and high-beams. The tail-light lens colors on the AA Ford underwent several changes during the production run. Two levers are mounted on the steering column to adjust the engine. The left lever controls the manual advance of the timing. Adjusting the timing of the engine change the time that a spark will occur in the combustion chamber and those changes affect the performance of the engine. The right lever is a manual control for the throttle. The throttle can be adjusted to ease the shifting of the transmission and the idling speed of the engine. Underneath the dash on the right side is the choke rod. The choke can adjust the flow of gasoline from the carburetor into the engine. Turning the knob on the choke rod clockwise closes the fuel flow, leaning out the engine; turning the knob counterclockwise opens the fuel flow to the engine.
The gauge cluster in the Model AA Ford includes three basic gauges. The cluster is in a diamond formation, with the start key and pop-out switch is on the left point. The top of the cluster holds the gas gauge, which directly connects into the gas tank, behind the dashboard. The right point holds the amp gauge, which shows the charge rate of the generator. The bottom of the dash holds the speedometer and odometer. Additional gauges can be mounted below the cluster if desired.
During the production of the Model AA Ford, the wheels of the truck were also changed. Spoked wheels similar in appearance to Model A wheels but much heavier were used during the production in 1928–1929. Twenty inch Disc wheels were produced by Budd for Ford. In 1930, a new style of disc wheel was adopted. These wheels were used for 1930 and part of 1931. The final wheels used were a further modification of the 1930 wheel with a raised center to reinforce the wheel. Wheel nuts changed with each new style of wheel to meet the changes made in the designs of the wheel. Special wheels were produced for Ambulances and Funeral Coaches. In 1930–1931 a dual-wheel adapter was developed and used for a variety of body styles, including dump-trucks, Fire trucks and Stake Trucks.
The Model AA Ford was available with a number of options. Two wheelbases were available, the short wheelbase of 131.5 inches (3,340 mm) and the long wheelbase of 157 inches (4,000 mm). Various body styles were available on different chassis.
The Model AA Ford was available in a variety of body styles from the Ford Corporation. Specialty bodies include: Funeral Coach, Ambulance, Express Pickup, Dump Truck, and a cab without a bed. The cab only model was sold to customers who wanted a custom body to be built by an after-market company. Corporations could have custom paint and other modifications made by Ford for fleets of vehicles. The U.S. Postal Service purchased a fleet of vehicles from Ford that had custom built bodies by outside builders.
Overseas production Edit

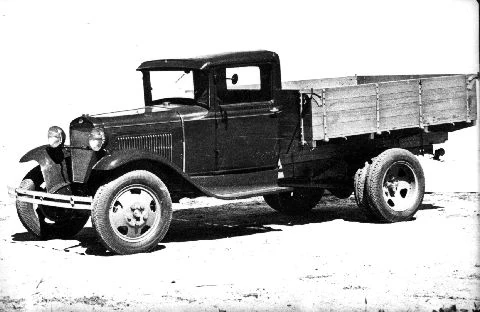

Ford licensed the manufacture of the Model A and AA to a variety of nations, notably the Soviet Union. The GAZ AA was produced in the 1930s and 1940s.
In October 1931 a Ford Model AA was the first vehicle produced at Ford's own new Dagenham plant in England.

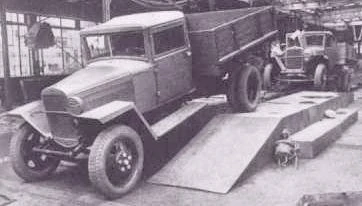

The Model AA was also built in several nations in mainland Europe under license from the Ford Corporation. Several armored vehicles were based on the chassis.
Present day Edit
Today, enthusiasm for the Model AA Ford continues. Preservation and restoration of these vehicles remains popular. There are two national clubs that support the Model A/Model AA hobby and one club dedicated specifically to the Model AA. The Model A Restorers Club and the Model A Ford Club of America, along with the Ford Model AA Truck Club work to support members with technical advice and support along with displaying members vehicles as they are being restored.
A Model AA Truck that was used by gangster Al Capone to transport beer is on display at the Historic auto attractions museum in Roscoe, Illinois.
