Edwin Foden, Sons & Co.
Foden Trucks
Founded 1887
Founder(s) Edwin Foden
Defunct 2006
Headquarters Sandbach, Cheshire, England
Products trucks
Parent PACCAR
Foden steam waggon FN9060

Foden steam wagon reg. FN 9060 at Bromyard show 2008

Foden was a United Kingdom truck and bus manufacturing company which has its origins in Sandbach, Cheshire in 1856. American Truck builder PACCAR acquired the company in 1980, and ceased to use the brand name in 2006.

History[]

Foden MYN 952P at Lymswold - P7270152

A Foden tractor unit used to pull a showmans wagon at Wymswold Steam Rally in 2008

In 1856 Edwin Foden became apprenticed to the Agricultural machinery manufacturing company of Plant & Hancock. He left the company for an apprenticeship at Crewe Railway Works but returned to Plant & Hancock at the age of 19. Shortly afterwards he became a partner in the company. On the retirement of George Hancock in 1887 the company was renamed Edwin Foden Sons & Co. Ltd. The company produced massive industrial engines, as well as small stationary steam engines and agricultural traction engines.

Edwin Foden's great innovation was the development of a practical and highly efficient compound steam unit. From this time on the majority of steam power units produced by the firm benefited from the use of this design. Experimental steam lorries were first produced shortly after the turn of the 20th century. This work led to the design of the successful vehicle that was entered into the 1901 War Office trials. The Foden vehicle came second to a Thornycroft wagon but was nevertheless regarded by most commentators as a clear winner (the result was questioned in Parliament). This model was the basis for a highly successful line of vehicles which were produced over the next 30 years.

Edwin's son, E.R., saw the future lay in diesel power. In 1931, he was removed from the board of directors for advocating diesel over steam, and subsequently retired. However, his son Dennis, George Faulkener, and Ernest Sherratt (all Foden employees) decided to design a new diesel wagon. To help finance the venture, Edwin Richard Foden was persuaded to come out of retirement and head a new company of lorry manufacturer. This company became known as ERF.

In 1980, Foden was acquired by the American firm PACCAR, and is now a division of that company. After the takeover of Leyland Trucks by PACCAR in 1998, independent Foden production ceased, and was replaced by models of DAF Trucks rebadged as Fodens (DAF Trucks having been acquired by PACCAR in 1996). These vehicles have had the option of either CAT, PACCAR or Cummins engines.

Brand retirement[]

In 2005, it was announced by PACCAR that Foden production was likely to cease in 2006.

The final vehicle to roll off the production line at the factory in Leyland, United Kingdom was an 8x4 rigid, which was delivered to the nearby British Commercial Vehicle Museum.

Model range history[]

Steam tractors and wagons[]

Details of models/types is required - can you help expand this section ?

Lorries (Diesel Trucks)[]

Foden FG and trailer - RTJ 276 at Lincoln 08 - DSC00046

Foden FG and drawbar trailer RTJ 276 at Lincoln 2008

The main product line over the years has been trucks for road haulage, but they also built off highway trucks used for Civil engineering works and quarry's. The first Diesel example was built in the 1930s, but it was not till the post war period that steam wagon production ceased. Later going onto build custom versions of their road haulage trucks for use by heavy haulage operators. The company introduced the modern S.21 cab in 1958 built from fibreglass, with the S.24 being introduced in 1962 as the first production tilt cab in the UK.[1]

Early models[]

  • 1937 wagon No.9293
  • Foden R type
  • Foden S type
  • Foden DG - 1936- Gardner powered

Post war Models[]

Foden S20 tractor unit 552 LNU at NMM - IMG 2804

A restored Foden S20 tractor unit at a vintage vehicle meet

Foden 6x2 unit (FLG497G) at Exelby services 2013 - IMG 1970

Foden 6x2 unit (FLG497G) at Exelby services 2013

By 1954 what proved to be a very rugged and successful design of dump truck was produced and the two-stroke engine was becoming a very desirable option for marine applications. In 1958 the first glass reinforced plastic cabs were made enabling Fodens to produce the first British tilt cab in 1962. It is difficult to list the vast number of diverse designs which Fodens produced in the fifties and sixties - single and double deck buses, including the first rear engined bus in 1950, mobile crane chassis, heavy haulage tractors, timber tractors and the innovative 'Twin-load' concept.

  • Foden STG5 - Timber tractor
  • Foden STG6 - Timber tractor
  • Foden FG - 1948-5? with S.18 cab
    • Foden FG5/10
  • Foden FE - 1952-54 - Forward cab
    • Foden FE4/8
  • Foden Twin-load - 8 wheeled tractor unit with single axle semi-trailer
  • Foden S10
  • Foden S18
  • Foden S20
  • Foden S21 - tractor units
  • Foden S24
  • Foden S26
  • Foden S36
  • Foden S39
  • Foden S40
  • Foden S41
  • Foden S80
  • Foden S83
  • Foden S85
  • Foden S95
  • Foden S104
  • Foden S106T
  • Foden Haulmaster
  • Foden Fleetmaster
  • Foden Superhaulmaster

Modern models[]

Foden Drawbar showmans unit at Donnington Park 09 - IMG 6089small

A Foden tractor unit converted to drawbar showmans type unit with "living box" body added, seen at Donnington Park CV show in 2009

Foden 4300 tractor unit 1988 reg F445 XFL cummins at NMM - IMG 2843

A Very tidy 1988 Foden 4300 reg F445 XFL fitted with a Cummins engine

Following Paccars take over in 1980 the firm was renamed as "Sandbach Engineering Company". Then in 1983 renamed as "Foden Trucks", with the new 2000 - light duty, 3000 - medium duty and 4000 - heavy duty ranges introduced with Caterpillar Engines as an option. The military vehicle contracts provided a steady work load for a period. In 1998 the 3000 range was updated using the DAF 85 series Cab (Paccar having also owned DAF of the Netherlands since 1996). The 4000 series was planed to get the DAF 95 cab but a restructuring in 1999 saw the factory shut and the Foden name dropped in favour of other Paccar brands.[2]


Heavy Haulage[]

Custom built tractor units were manufactured for a variety of operators requirements.

Off Highway Haulage[]

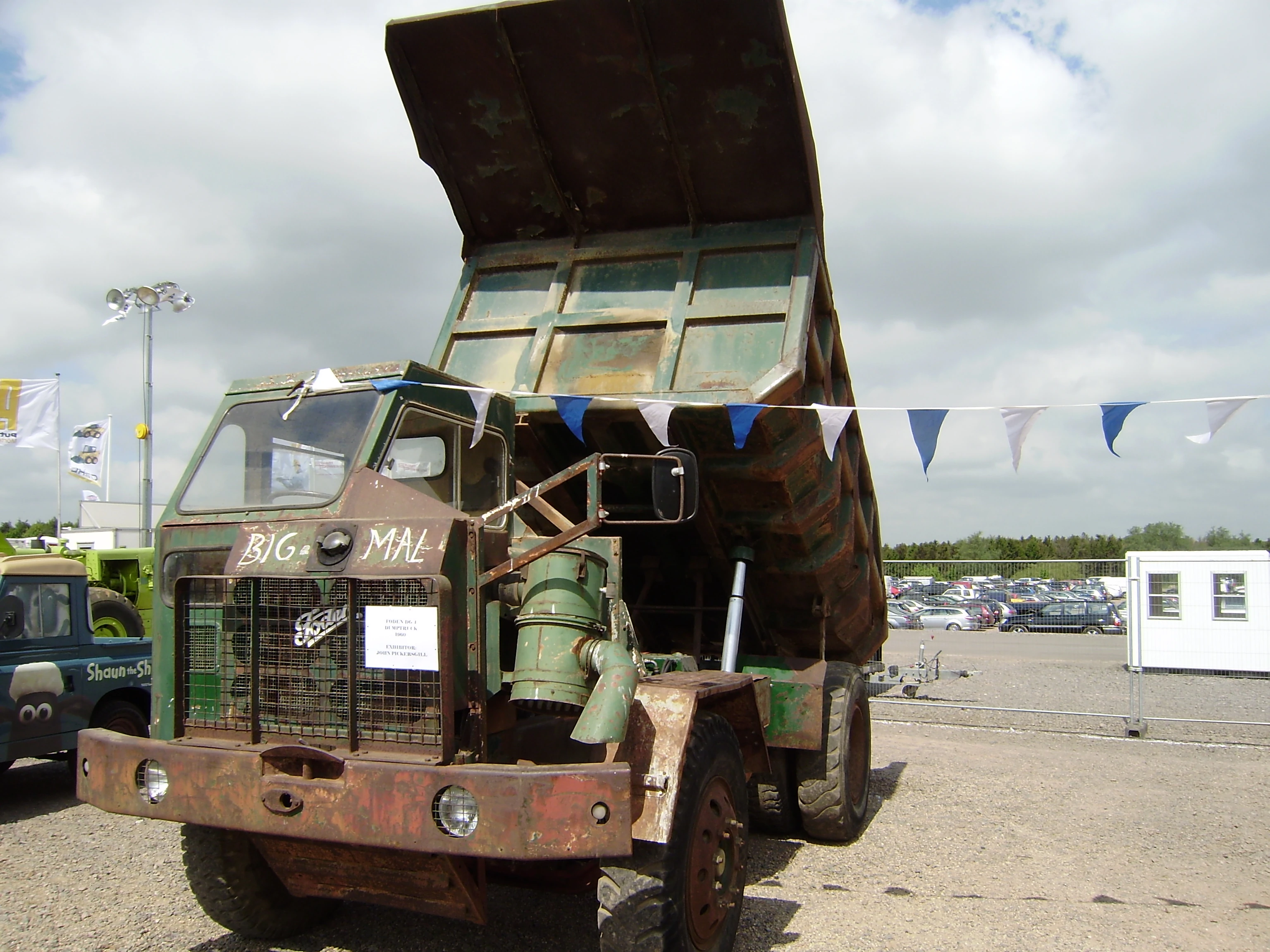

Foden site Dump truck

A 1970s FODEN FL- Series Mining Dumptruck preserved

  • FL Series Dump Truck 4X2
  • FL Series Mining Dumptruck sixwheeler
  • FL Series Quarry Dumptruck 6X4

Military trucks[]

Foden supplied a range of trucks adapted for Army use to the British Army.

Bus chassis[]

Foden built a few motor bus chassis in the late 1970s which were bodied by Northern Counties. These didnot prove a commercial success and few were built.

Preserved Traction Engines and Lorries[]

A number of Foden built traction engines and wagons (lorries) are in preservation, and they are a regular sight at steam shows, and other events for historic vehicles.

  • Please add any known engines details to the tables below.

Steam Lorries[]

A number of their steam lorries have been preserved, and they are a regular sight at steam shows, and other events for historic vehicles.


Machines built by Foden Ltd known to be in Preservation in UK
view  talk  edit
Engine No. Name Build Date Type Weight Power nhp Reg-No. Owner Image Other info
Foden no. 443 Victoria 1899 TE GP 9 ton 6 nhp DJ 1142 J. Bownes, Cheshire Foden no. 443 Traction engine Victoria of 1899 reg DJ 1142 at Scorton 09 - IMG 4908 Earliest known Foden in existence.[3]
Foden no. 664 Betty 1903 TE GP ? 8 nhp BS 8042 G. Towers, West Yorkshire Foden no. 664 RL Betty - BS 8042 at Harewood 08 - IMG 0527 At Harewood House Steam Rally 2008
Foden no. 680 - 1902 Road loco 16 ton 8 nhp BS 8328 Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Seen at
Foden no. 763(7926) - - Wagon - - - See Foden no, 7926 - Plate carried on Foden no. 7926
Foden no. 775(7926) - - - - - - See Foden no. 7926 - Plate carried on Foden no. 7926
Foden no. 848 - 1904 Wagon 5 ton ? DD 4894 Museum of Science & Technology, Birmingham 100px Tractor & Construction Plant Wiki:Requested images


In the collection of Birmingham museums
Foden no. 983 - 1905 RL ? 8 nhp - Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Seen at
Foden no. 1012 Name here 1905 type ? 7 nhp - Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Seen at
Foden no. 1174 Pride of Leven 1906 Road Loco 9 ton 7 nhp SN 1609 Science Museum, Wroughton 100px Tractor & Construction Plant Wiki:Requested images


In the collection of the Science Museum London
Foden no. 1294 - 1907 RL 15 ton 7 nhp 110 JLB Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Misc info (were seen, photo taken, special features etc)
Foden no. 1308 Earl of Dudley Formerly Captain Cook 1907 RL ? 7 nhp - Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Foden no. 1310 - 1907 Colonial TE (ex Tasmania) ? 7 nhp BF 5543 R. Hesbrook, Hereford To add Seen at Shrewsbury Steam Rally 2011,
Foden no. 1364 - 1907 Wagon 4 ton ? nhp M 1906 Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Exported to Sweden 1993
Foden no. 1423 Story Teller ( No.1) 1907 Showmans conversion ? 8 nhp - Owner ?, Grantham 100px Tractor & Construction Plant Wiki:Requested images


Repatriated from Tasmania.
Foden no. 1427 Isabella 1907 Colonial Wagon 5 ton ? nhp BF 5148 ?, Lincs, ex Robert Hobbs, Kent. Foden no. 1427 - wagon - Isabella - BF 5148 at Tinkers park 10 - IMG 6357 At Tinkers Park Rally 2010
Repatriated from Chile
Foden no. 1475 - 1907 W - - - See Foden no. 1427 - Mis-recorded
Foden no. 1478 - - W - - - see Foden no. 1427 - Mis-recored
Foden no. 1604 - 1908 W 5 ton 4 nhp M 1905 Owner ?, Hereford 100px Tractor & Construction Plant Wiki:Requested images


Seen at
Foden no. 1714 - 1908 TE ? ton 7 nhp Reg no. ? Owner ?, Huddersfield 100px Tractor & Construction Plant Wiki:Requested images


Seen at ?
Foden no. 1742 Queen Mary 1908 Wagon 5 tons 7 nhp M 2128 G. Atkinson, Scarborough Fair Collection to add Seen at Duncombe Park Steam Rally ?
Foden no. 2071 - - TE - - - is Foden no. 2701 100px Tractor & Construction Plant Wiki:Requested images


Mis-recorded
Foden no. 2072 Name here 1910 TE ? 7 nhp - Owner ?, Cheadle 100px Tractor & Construction Plant Wiki:Requested images


Repatriated from Australia, 2003
Foden no. 2104 Prospector
Formerly Jane
1910 Showmans RL ? 8 nhp WR 6985 M.J. Wilikinson c/o Alan Atkinson, Preston Foden no. 2104 showmans of 1910 Prospector reg WR 6985 at Scorton 09 - IMG 5213 At Southport & Scorton 2009
Foden no. 2261 Name here 1910 TE ? ? BS 9516 Owner ?, Smallwood, Cheshire 100px Tractor & Construction Plant Wiki:Requested images


Seen at
Foden no. 2312 Elizabeth 1910 TE ? ton 6 nhp MA 7770 Owner ?, ROI 100px Tractor & Construction Plant Wiki:Requested images


Seen at
Foden no. 2654 King George V 1911 TE 11 ton 7 nhp E 5684 Owner ?, Warrington 100px Tractor & Construction Plant Wiki:Requested images


Misc info
Foden no. 2701 Tombola 1911 TE ? 8 nhp BF 6303 Owner ?, Stockport to add 100px Tractor & Construction Plant Wiki:Requested images


Seen at Astle Park Traction Engine Rally 2015
Foden no. 2722 Name ? 1911 Wagon 5 ton 4 nhp M 3438 Owner ?, Warrington 100px Tractor & Construction Plant Wiki:Requested images


Misc info
Foden no. 2876 Emerald 1911 Wagon 4 ton ? M 3631 Owner ?, Abingdon, Oxford 100px Tractor & Construction Plant Wiki:Requested images


Seen at
Foden no. 3210 Tewlass 1912 W ex ST 5 ton ? M 4257 Owner ?, Andover 100px Tractor & Construction Plant Wiki:Requested images


Seen at
Foden no. 3261 Name 1912 TE GP No. 6 ton ? Reg no. ? ?, Burgess Hill 100px Tractor & Construction Plant Wiki:Requested images


Unknown details in TER
Foden no. 3384 Wattie Pollock 1912 TE GP 10 ton 7 nhp SN 1646 Owner ?, Salisbury 100px Tractor & Construction Plant Wiki:Requested images


Foden no. 3398 Happy Jack 1912 Van 3 ton ? nhp M 4489 J. Calder, Staffordshire Foden no. 3398 - Happy Jack wagon - M 4489 at Shugbrorough 08 - P6220136 Seen at Shugborough Hall Rally 2008 & Kemble 2009
Foden no. 3398 - Rebuilt 2016 Wagon ? ? M 4489 Owner ?, Litchfield to add Seen at Rempstone Steam Rally 2017
Foden no. 3510 The Icklingham Flyer 1913 Wagon 5 ton ? M 4673 D. Marston, Suffolk Foden no 3510 wagon reg M 4673 at woolpit 09 - IMG 1477 Seen at GDSF 2008 and Woolpit Steam & many more in 2009
was in Henry Ford Museum till 1980.
Foden no. 3534 Monarch 1913 RL - Colonial ? Ton 8 nhp MA 5502 ex G. Peter, West Midlands Foden no. 3534 - RL - Monarch - MA 5502 at Lincoln 08 - DSC00062 Lincolnshire Steam Rally 2008, Old Warden 2009
Foden no. 4086 - 1913 SW Type Colonial 5 ton ? hp M 4848 Livery of S.M.Plumb & Family, ? Foden no. 4086 - M4848 Wagon at Belvoir 08 - DSC01233 at Belvoir & Lincoln Castle 2008
Repatriated in 1970s from Australia to Germany
Foden no. 4258 Irene 1914 Steam bus (conversion) 5 ton ? nhp M 5798 A. Painter, Stoke on Trent Foden no. 4258 - SW (bus) - Irene - M 5798 at Pickering 09 - IMG 2788 at Pickering Steam Rally 2009 (was a wagon)
Foden no. 4752 Sandy Macnab 1914 type 9 ton 6 nhp SN 1647 Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Seen at
Foden no. 5078 Pride of Burley 1914 W 5 ton 4 nhp M 7124 Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Seen at
Foden no. 5218 Gwennie Willan 1915 W 5 ton 4 nhp M 7287 Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Exported to France in 2009
Foden no. 5722 Name here 1915 W ? ? - Owner ?, Cheshire 100px Tractor & Construction Plant Wiki:Requested images


Rebuilt from parts of 13156
Foden no. 5814 General Hunter weton 1915 TE ? ton 6 nhp SD 5293 Owner ?, Cheshire 100px Tractor & Construction Plant Wiki:Requested images


Seen at
Foden no. 6216 (7768) - 1916 Wagon fitted as a Tipper 5 ton ? nhp M 8562 M.J. Wilkinson c/o E Atkinson, Preston Foden no. 7768 - wagon - (M 8562) at Chipping 2013 - IMG 5535 Plate carried on Foden no. 7768 At Chipping 2013
Foden no. 6350 The Dorset Rambler 1916 Wagon 5 ton 4 nhp M 8681 In Ireland 100px Tractor & Construction Plant Wiki:Requested images


Seen at
Foden no. 6368 Pride of Edwin 1916 Wagon 5 ton ? M 8118 Science Museum 100px Tractor & Construction Plant Wiki:Requested images


In the collection of the Science Museum London (In Storage)
Foden no. 7536 Kate 1917 Wagon ? ? T 8750 Owner ?, Dartford 100px Tractor & Construction Plant Wiki:Requested images


Repatriated from USA 2003
Foden no. 7768
(carries plate 6216)
- 1917 Wagon 5 ton ? M 8562 M.J. Preistner collection Foden no. 7768 - wagon - (M 8562) at Chipping 2013 - IMG 5535 seen at Chipping Steam Rally 2013
Foden no. 7926 - 1918 W 3 ton ? D 1396 Owner ?, Essex 100px Tractor & Construction Plant Wiki:Requested images


Carries plate no.775
Foden no. 8304 Cheshire Pride 1918 Wagon 5 ton ? BY 7646 Owner ? Foden 8304 - Cheshire Pride - BY 7646 at Shugbrough 08 - P6220171 Seen at Shugborough Hall Rally 2008
Foden no. 9052 Rob Roy 1920 TE 14 ton 8 nhp SN 1607 Owner ?, Exmouth 100px Tractor & Construction Plant Wiki:Requested images


Seen at
Foden no. 9580 Hielan Lassie 1920 Wagon 5 ton ? MA 2645 Owner ?, Aberdeen Foden 9580 SW - Hielam Lassie - MA 2645 at Pickering 09 - IMG 3400 at Pickering Steam Rally 2009
Foden no. 10102 Name here date built ST ? ? MA 4405 Owner ?, Aldershot 100px Tractor & Construction Plant Wiki:Requested images


Seen at
Foden no. 10136 Kenrow Princess 1920 Wagon 5 ton ? MA 4691 Owner ?, Cornwall 100px Tractor & Construction Plant Wiki:Requested images


Seen at
Foden no. 10320 - 1920 Wagon ? ? BS 9983 Owner ?, Hereford Foden no. 10320 wagon - BS 9983 at Bromyard 08 - P7060119 Bromyard Gala 2008
Foden no. 10470 - 1921 Wagon ? ? Reg no. ? Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Foden no. 10530 Pride of the West 1921 W 6.5 ton 4 nhp TA 1216 Owner ?, Launceston 100px Tractor & Construction Plant Wiki:Requested images


Seen at
Foden no. 10694 Tiler 1923 Wagon 5 ton ? PC 9928 Owner ?, Bromsgrove 100px Tractor & Construction Plant Wiki:Requested images


Seen at
Foden no. 10734 Name here 1922 W ? ? MF 3643 Owner ?, Margate 100px Tractor & Construction Plant Wiki:Requested images


Seen at
Foden no. 10788 - 1922 Wagon ? ? AU 6695 Tate & Lyle (in Care of BCVM) Foden no. 10788 - AU 6695 in the BCVM 09 - (poor image) IMG 3855 Now the BCVM collection at Leyland in Lancashire. (poor photo)
Foden no. 11208 Lorna Dunne 1924 Wagon 6 ton ? YA 7952 Owner ?, Redruth 100px Tractor & Construction Plant Wiki:Requested images


Seen at
Foden no. 11340 Puffing Billy 1923 Stream Bus (replica) ? 4 nhp M 6359 Searle collection, Horsham Foden no. 11340 - Puffin Billy - (M 6359) at Onslow Park - IMG 6207 Bus conversion from wagon
Foden no. 11414 Pride of Somerset
formerly "Freddie"
1924 Wagon 6 ton 5 nhp TA 9891 Owner ?, 100px Tractor & Construction Plant Wiki:Requested images


Seen at
Foden no. 11444 Hielan Laddie
Formerly "Reliance"
1924 Tractor 6 ton ? nhp VA 2519 Owner ?, Aberdeen Foden no. 11444 SW Hielam Laddie - VA 2519 at pickering 09 - IMG 3392 at Pickering Steam Rally 2009
Foden no. 11538 - 1924 W 6 ton ? PW 3767 Owner ?, 100px Tractor & Construction Plant Wiki:Requested images


Repatriated from USA 2000
Foden no. 11788 Matilda 1925 T (conversion) 6 ton ? TD 3236 Owner ?, Stafford 100px Tractor & Construction Plant Wiki:Requested images


Cut down wagon ~ 1930s
Foden no. 11850 Superior 1925 C type ? 4 nhp MB 9404 R. Cook, Bridgenorth Shropshire To add Seen at Shrewsbury Steam Rally 2011
Foden no. 11892 - 1925 Wagon 6 ton ? DD 7916 (ex EC 9048) Levens Hall Collection 100px Tractor & Construction Plant Wiki:Requested images


In the collection at Levens Hall (museum) Kendal
Foden No. 11962 Rosie 1925 SW Tractor 6 ton 5 nhp TU 216 ? (In a plain Livery) Foden steam wagon sn 11962 reg TU 216 at GDSF 08 - IMG 0824 GDSF 2008
Foden no. 12018 Emily 1925 C type 6 ton ? EU 2683 Owner ?, Henley - on - Thames 100px Tractor & Construction Plant Wiki:Requested images


Seen at
Foden no. 12116 Enterprise 1925 C type wagon 8 ton 4 1/2 nhp TU 1215 M. White, Totton Foden no. 12116 - wagon - TU 1215 at Bill target rally 2011IMG 5174 Seen at Bill Targett Steam Rally
Foden no. 12228 Britannia 1926 W (Van body) 6 ton 6 nhp WL 910 M.L. Brain, Preston Kent Foden no.12228 - W- Brittania - (WL 910) at Preston Services 2011 - IMG 5458 Been round the World
Foden no. 12300 Talisman 1926 (rebuilt) 7 ton 4 2/2 nhp LG 8784 D. Williamson, Luton Foden sn 13484 of 1930 (rebuilt) reg LG 8784 at Stoke Goldington 09 - IMG 9631 Rebuilt as sn 13484
Seen at Stoke Goldington Steam Rally & Old Warden 2009
Foden no. 12364 Tiny 1926 Wagon 6 ton 4.5 nhp TW 4207 N. Cldow, Bedford Foden no. 12364 - Tiny - TW 4207 at St Albans 2009 - IMG 1759 At St.Albans Steam Rally 2009
Foden no. 12370 Island Chief 1926 D Type ? ? TT 8659 R & C Bullen, Wiltshire Foden no. 12370 Timber tractor Island Chief reg TT 8659 at Woodcote 09 - IMG 8109 At Woodcote Rally & Old Warden 2009
Foden No. 12770 - 1927 SW Tractor ? ton ? nhp FN 9060 James Harvey-Bathurst, Eastnor Castle
Driven by Bob Hater

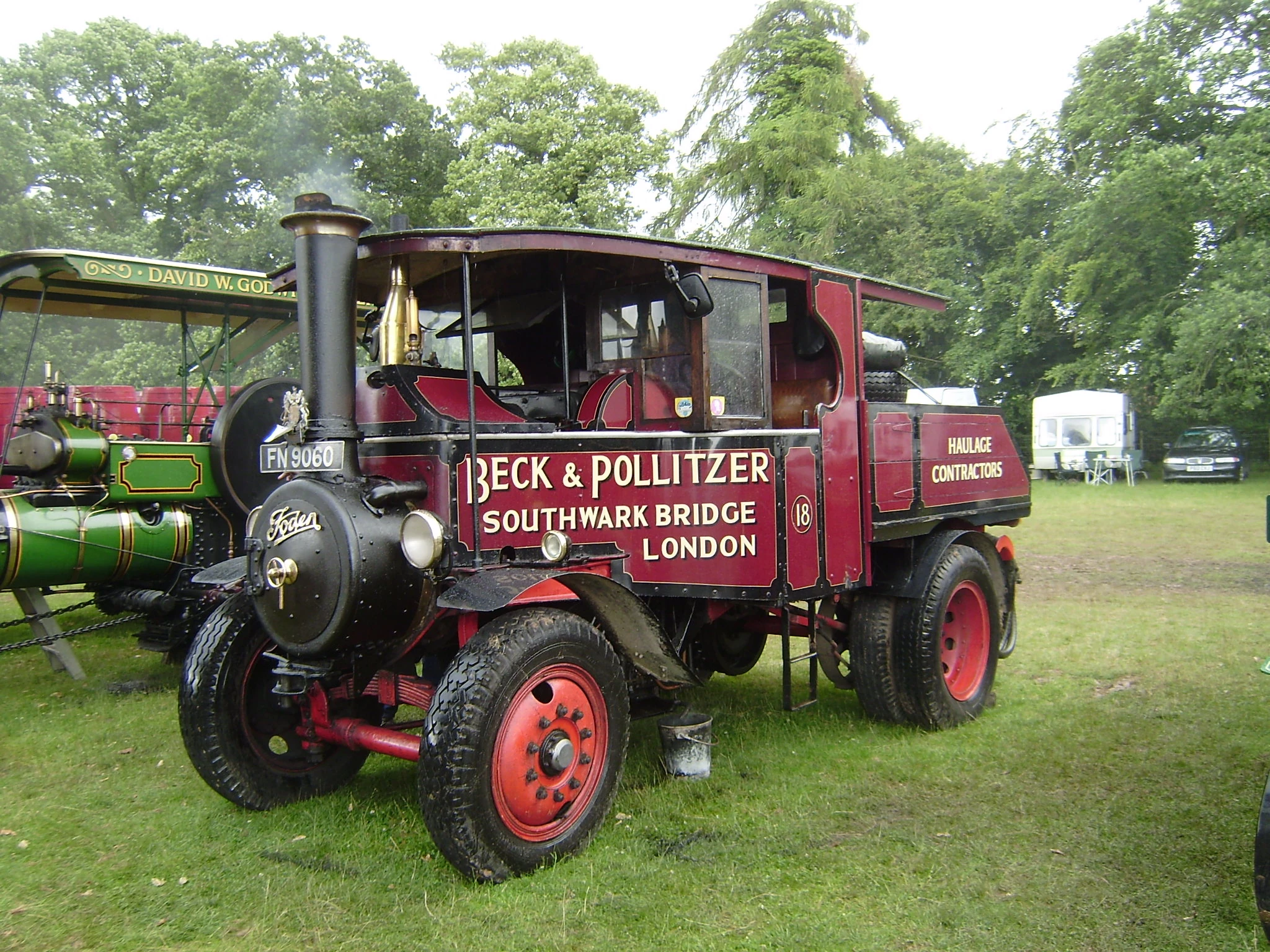

Foden steam waggon FN9060 In Beck & Pollitzer Livery atBromyard 2008 & Cheltenham 2009
Foden no. 12788 Sir Ector 1927 SW Tractor 6 ton ? nhp TU 7084 Owner ? (In Livery of George Knight Boot & Shoe Maker) Foden steam wagon sn 12788 reg TU 7084 at GDSF 08 - IMG 0789 GDSF 2008 + Beaulieu 2010
Foden no. 13008 Valiant 1928 K3 six wheeler (Heavy Hauler) ? 4 1/2 nhp SS 9191 The Saunders Collection Foden no. 13008 - tractor - SS 91919 at Old Warden 09 - IMG 0759 At weeting, Old Warden 2009
Foden no. 13068 Perseverance 1928 D type 8 ton 4 nhp EU 3764 P. Richardson, ? Foden no. 13068 - Perserverance - EU 3764 at Old Warden 09 - IMG 1163 Old Warden 2009
Foden no. 13090 - 1928 Tractor ? ton 4 nhp LG 8781 G. Russell, West Sussex Foden no. 13090 Tractor reg LG 8781 at Woodcote 09 - IMG 8240 At Woodcote Rally 2009 + Beaulieu 2010
Foden no. 13120 Midnight Rambler 1928 TE ? ? Reg no. ? Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Foden no. 13138 London Pride 1928 Wagon ? ? AN 9568 R & S Knight Foden no. 13138 - wagon - London Pride - AN9568 at Belvoir 2011 - IMG 4429 At Belvoir Castle Steam Rally 2011
Foden no. 13156 Merlin 1928 C type tractor 6 ton ? nhp UR 1328 William Nicol Ltd, Foden no. 13156 SW Merlin - UR 1328 at Pickering 09 - IMG 3383 At Pickering Steam Rally 2009
Foden no. 13178 Patricia 1928 Wagon 6 ton ? MT 4259 Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Foden no. 13196 Pride of Fulham 1928 SW Tractor 6 ton 4 nhp GC 6832 VanHouten Family, ? Foden steam tractor No13196 Wymswold 2008
Foden no. 13218 Cestria 1928 SW - Ballast tractor 7 ton 4 nhp BUP 71 I. Thompson, Co. Durham Foden no. 13218 SW (tractor) - Cestria - BUP 71 - at Pickering 09 - IMG 3484 Lincoln 2008, Dumbcombe Park & Pickering 2009
Foden no. 13266 Rosie (Formerly Pride of Sussex) 1928 D type timber tractor 7 ton 4 nhp VJ 1476 A. Fenson. ? Foden no. 13266 - Rosie - VJ 1476 at Old Warden 09 - IMG 1038 A Old Warden 2009
Foden no. 13316 Sir Lionel ex Roby ? 1929 Wagon with Tanker body 8 ton ? nhp UU 1283 J & D Dovey, Hampshire Foden no. 13316 Tanker Wagon Sir Lionel reg UU 1283 At Woodcote 09 - IMG 8132 At Woodcote Rally 2009 + Beaulieu 2010
Foden no. 13358 Victor 1929 Tractor ? ? DF 8187 G.T. Cushing (trust) Foden no. 13358 Tractor DF 8187 at Thursford 09 - IMG 6762 In the collection at Thursford Steam Museum Norfolk
Foden no. 13444 Litle Lady 1929 Timber tractor ? ton ? nhp VX 1440 G. Richards & family Foden Tractor of 1929 sn 13444 Little Lady reg VX 1440 at GDSF 08 - IMG 0826 Seen at GDSF 2008
Foden no. 13454 Samantha 1929 Timber Tractor ? ? Reg no. ? Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Seen at
Foden no. 13476 Lillie 1929 Wagon 6 ton 4 nhp KX 5003 Owner ? Foden no. 13476 - SW - Lillie - KX 5003 at Pickering 09 - IMG 3441 at Pickering Steam Rally 2009
Foden no. 13484 Talisman 1930 Tractor 7 ton 4 1/2 nhp LG 8784 B. Williamson, Dunstable, Bedfordshire Foden sn 12300 - 13484 (dual plates) - IMG 9635 seen at Rushden 2008
Engine was built as 1/2 track sn 12300 and then rebuilt as tractor sn 13484
Foden no. 13488 - 1929 Wagon ? ? Reg no. ? Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Seen at
Foden no. 13536 - 1930 SW Type J Wagon 6 Ton ? hp RY 9259 S. Ritchie, Livery of E&N. Ritchie Haulage, Tyne & Wear Foden steam tractor RY9259 at Belvoir & Lincoln 2008 & various 2009
Fitted with turntable hitch
Foden no. 13624 Margaret 1930 HH type Wagon with Box Van body 5 ton ? nhp WX 2682 G. Jones, Dorking Surrey To add Seen at Shrewsbury Steam Rally 2011
Foden no. 13708 Boadicea 1930 Wagon 6 ton 4 nhp VF 8862 Bressingham Steam Museum 100px Tractor & Construction Plant Wiki:Requested images


In the collection at Bressingham in Norfolk
Foden no. 13730 - 1930 SW 4 ton ? nhp OFU 567 Robert Crawford collection 100px Tractor & Construction Plant Wiki:Requested images


-
Foden no. 13746 Major Stanley 1931 Wagon ? ? Reg no. ? Owner 100px Tractor & Construction Plant Wiki:Requested images


Seen at
Foden no. 13752 Reliance 1930 Wagon ? ? Reg no. ? Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Seen at
Foden no. 13762 - 1930 Tractor ? ton ? nhp VN 2911 I & T Jones to add At Rhondda Heritage Park Vintage Transport Festival 2010
Foden no. 13764 n/a 1930 SW Type Tractor 6 Ton 6 hp TF 3106 Owner ? Foden Lorry no13764 TF3106 Seen at Belvoir Castle show 2008
Foden no. 13784 "Name here" 1932 Wagon ? ? Reg no. ? Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Seen at
Foden no. 13802 Santa Maria 1931 Wagon ? 4 nhp VN 2912 In the Strumpshaw Hall Steam Museum collection Foden no. 13802 Santa Maria reg VN 2912 - Strunpshaw collection - 09 - IMG 0441 At Strumpshaw & Weeting Rallies 2009
Foden no. 13832 The Dorset Wander 1930 Waggon weight power Reg no. Owner 100px Tractor & Construction Plant Wiki:Requested images


Seen at
Foden no. 13848 Lady Catherine 1931 Wagon ? 4 nhp RB 3525 P. Jones, Isle of Man To add Seen at Shrewsbury Steam Rally 2011
Foden no. 14078 Mighty Atom 1932 Tractor ? ? Reg no. ? Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Seen at
Foden no. 14084 Duchess of Gloucester 1933 (October) Tractor ? ton ? nhp AMB 300 D. Walker, Bucks
Ex J Toulson
Foden no. 14084 of 1933 Duchess of Gloucester reg AMB300 at Barnard Castle 09 - IMG 0634 (sold March 2010) youngest known Foden in existence (TER 2008)[4]
Foden no. ? Name here date built type ? ? Reg no. ? Owner ? 100px Tractor & Construction Plant Wiki:Requested images


Seen at
Machine types Key: Notes
PE = Portable Engine, PLG = Ploughing Engine, SR or RR = Road Roller,
SM = Showmans, SW = Steam Wagon, TE = Traction Engine, T = Tractor (steam)
  1. The World Encyclopedia of Trucks, Peter J Davis, page 118
  2. The World Encyclopedia of Trucks by Peter J Davies, p 118-119
  3. TER 2008
  4. TER 2008

Steam vehicle photo gallery[]

See thumbnail image in table above ith extra Photos are on individual engines own pages. 'Please start the page for any an engine without its own page, and if not listed add an entry link here.

example

Diesel Lorries[]

A number of classic Foden trucks are in preservation on the classic vehicle scene in the UK

List of Preserved Foden Trucks
view  talk  edit
Registration No. Make-Model or type no Build-Year Engine-Make/Type Weight/class Chassis/Body type Owner
(if known)
Photo Were seen/Featured Other info
100px


100px


Please add any truck with known reg or serial no. with Photo if possible.
Create a page (link) for an individual truck by linking the reg or serial number using [[Truck make-model-reg no.|reg number]] or [[Truck make-model-serial no.|serial number]] in the relevant column. Then once saved click the red link to start the new page and add info on that truck.

Diesel truck photo gallery[]

Foden diesel lorry LG9446

Early Wooden cabbed Foden reg LG 9446 in immaculately restored condition at Sandbach Festival of Transport 2008

Foden CL 3660 at sandbach

An early Foden converted to a breakdown truck - CL 3660 at Sandbach

Foden S21 tractor unit

Foden S21 of 1966 in Youngs of Shirland livery LYO 188D, fitted with Cummins engine

Foden 8x4 OUX 500G Sandbach

A Foden 8x4 Flatbed at Sandbach Transport Festival 2008

Foden S21 reg 163 CLP Gardner 150 8x4 at NMM - IMG 2806

A Foden S21 fitted with Gardner 150 engine in a flat bed 8 wheeler configuation reg 163 CLP

Foden YMA 765J with gardner at Sandbach

A Foden Flatbed bodied wagon at Sandbach 2008

Foden Ballast tractor-MLP194L front P8100511

A Foden Ballasted tractor, reg MLP 194L

Foden ballast tractor MLP194L-rear-P8100512

Box on a Ballast Foden Tractor

See also[]

References / sources[]

Wikipedia for initial article on company history

External links[]


Smallwikipedialogo This page uses some content from Wikipedia. The original article was at Foden trucks. The list of authors can be seen in the page history. As with Tractor & Construction Plant Wiki, the text of Wikipedia is available under the Creative Commons by Attribution License and/or GNU Free Documentation License. Please check page history for when the original article was copied to Wikia


Advertisement
