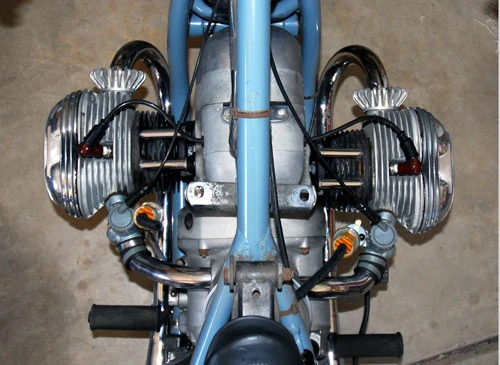

A 1967 BMW R50/2 longitudinally mounted flat-twin engine, with tank removed. Note that the cylinders are not truly in line but displaced by the width of one crank pin and one crank-shaft web.

A flat-twin is a two cylinder internal combustion engine with the cylinders arranged on opposite sides of the crankshaft. It is part of the class of flat engines, sub-type "boxer", and shares most characteristics of those engines.

Motorcycle useEdit

BMW Motorrad manufactures a number of flat-twin engine motorcycles,[1][2] as do Ural and Dnepr. The geometry gives good primary balance, but there is an unbalanced moment on the crankshaft caused by the pistons being offset from each other.[2]

Engine alignmentEdit

Cylinders along frameEdit

Flat twin Douglas 1912 N 3

Flat-twin engine in a 1912 Douglas N3, with its cylinders mounted along the frame

The earliest flat-twin motorcycles, including Douglas in the United Kingdom, Helios of Germany, and Indian and Harley-Davidson of the United States, had their cylinders aligned along the frame, and therefore with the crankshaft running transverse to the frame.[2][3][4][5][6] This position allowed the use of a conventional motorcycle drivetrain by belt or chain to the rear wheel.[3][7] Another advantage of this layout is that it has a low centre of gravity.[7] However, in this layout, the front cylinder is more heavily cooled than the rear cylinder,[3][7] and the wheelbase tends to be excessive due to the length of the engine. The wheelbase can be reduced by placing the transmission above the rear cylinder, as done on some Douglas motorcycles.[7]

Cylinders across frameEdit

Xa-engine

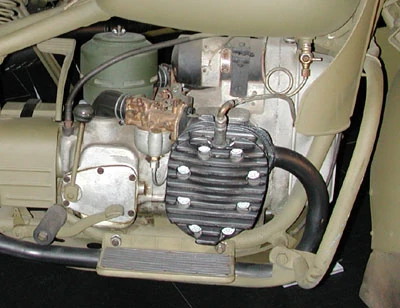

1942 Harley-Davidson XA flat-twin engine

In 1919, ABC introduced a motorcycle with a flat-twin engine with the cylinders across the frame, and therefore with the crankshaft running longitudinally when referenced to the frame. To accommodate chain drive, the ABC used a bevel drive at the gearbox to change the direction of the drive through ninety degrees.[8] The 1923 BMW R32 used a similar engine position with a drive shaft using bevel gears to power the rear axle.[2]

This position allowed both cylinders to protrude into the airflow, providing excellent air cooling for each cylinder.[2][7] The Harley-Davidson XA, which used a flat-twin engine with the cylinders across the frame, maintained an oil temperature 100 °F (56 °C) cooler than a Harley-Davidson WLA with a V-twin with the cylinders in line with the frame.[9]

Many motorcyclists appreciate the way the cylinders in this layout provide protection to the rider in the event of a collision or fall, and keeps their feet warm in cold weather.[2][7]

A disadvantage of this layout is that it exposes the cylinders and valve covers to the danger of collision damage.[2][7] Longitudinal crankshaft mounting is also associated with a torque reaction that tends to twist the motorcycle to one side on sharp acceleration or when opening the throttle in neutral and in the opposite direction on sharp deceleration. Many modern motorcycle manufacturers correct for this effect by rotating flywheels or alternators in the opposite direction to that of the crankshaft.[10][11]

Automotive useEdit

Blackjack Avion-engine

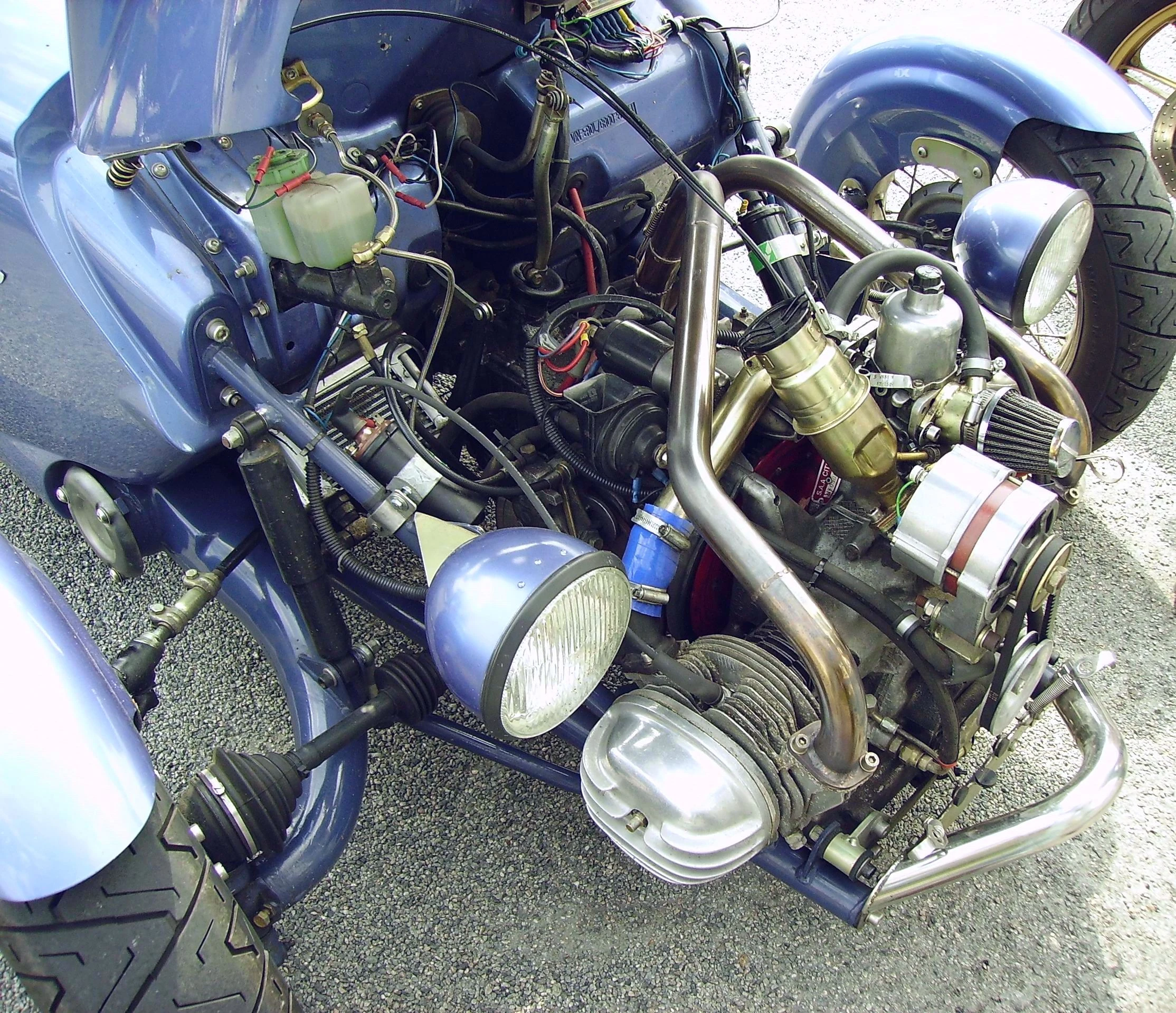

Blackjack Avion displaying the cylinders of its Citroën 2CV engine

Flat-twin engines were used in several of Henry Ford's early cars, including the Ford 1903-04 Model A, Model C, and Model F.

Flat-twin engines were later used in several economy cars, including the Citroën 2CV, the Panhard Dyna X and Dyna Z, Steyr-Puch 500, DAF Daffodil, BMW 600, several Jowett cars between World Wars I and II, and the Toyota Publica and Toyota Sport 800.

Aviation useEdit

Kemp G-2 Boxer Engine

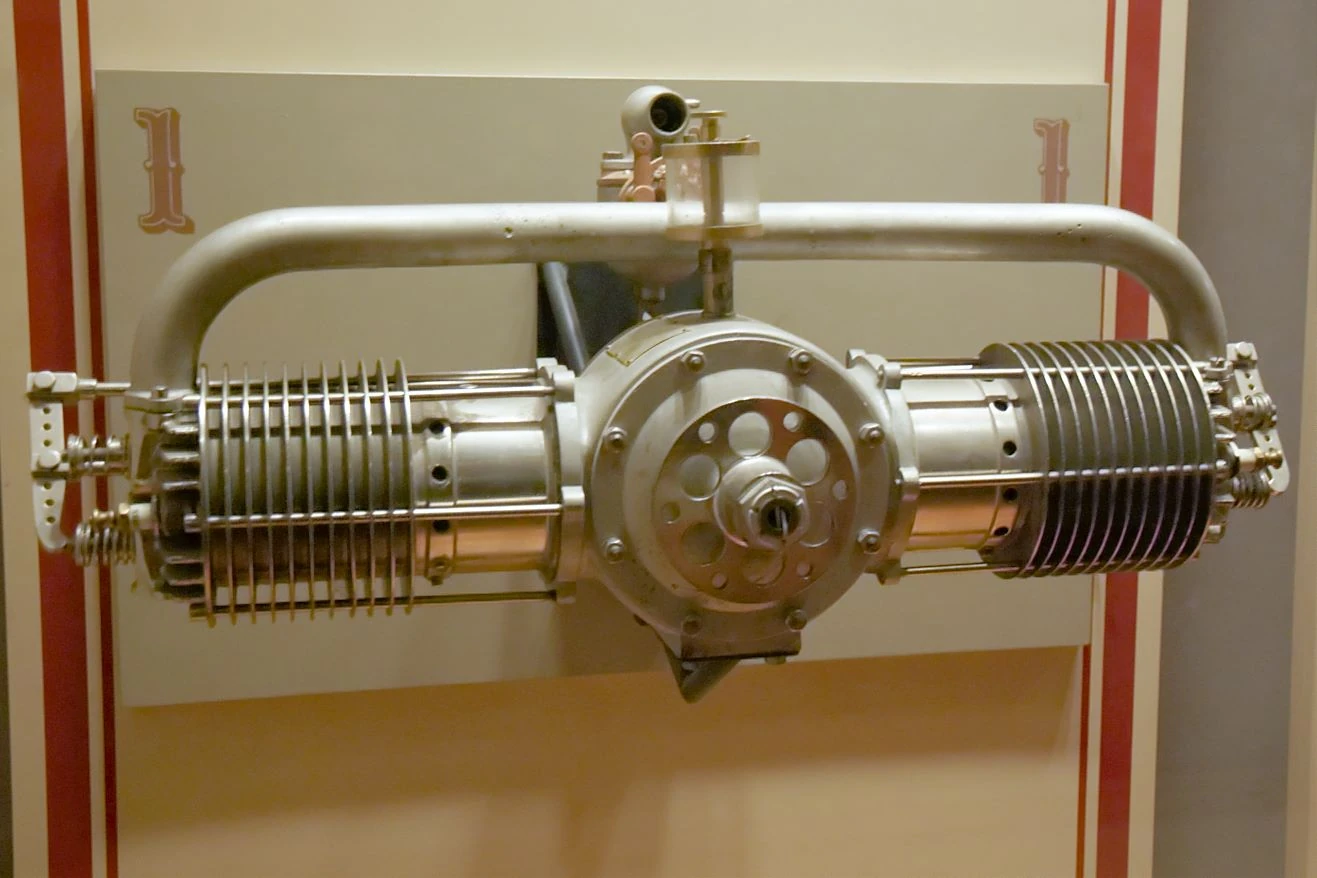

Flat twin engine that had been used in a multiplane aircraft before World War I[12]

Flat-twins have been used to power light aircraft, although most piston-engined aircraft have used more cylinders for more power. Notable flat-twin aircraft engines include the Aeronca E-107 and E-113, the Praga B2, and the Bristol Cherub.

In larger aircraft, flat-twin engines have been used in auxiliary power units (APUs). A notable example was made by ABC Motors between the World Wars.[13]

Other usesEdit

Maytag used its Model 72 flat-twin engines to power washing machines,[14][15][16][17] although they were used as proprietary engines for other purposes as well.[14] Maytag began manufacturing the Model 72 engine in 1937[14][18] and, after a break in production from May 1942 to June 1945 due to World War II,[18] continued manufacturing them until the 1950s. Production ended some time between 1952[18] and 1960.[14]

During World War II, motorcycle manufacturer Douglas built generators powered by their flat-twin engines.[19]

Ignition systemsEdit

Allumage 2cv

A Wasted spark ignition system used on a flat-twin engine

Flat-twin engines are well suited to the wasted spark ignition system, a distributor-less ignition system using a double-ended coil firing both spark plugs on each revolution, that is, on both the compression stroke and the exhaust stroke. This system requires only a single contact breaker and single coil to run two cylinders.[20]
