Fiat Scudo

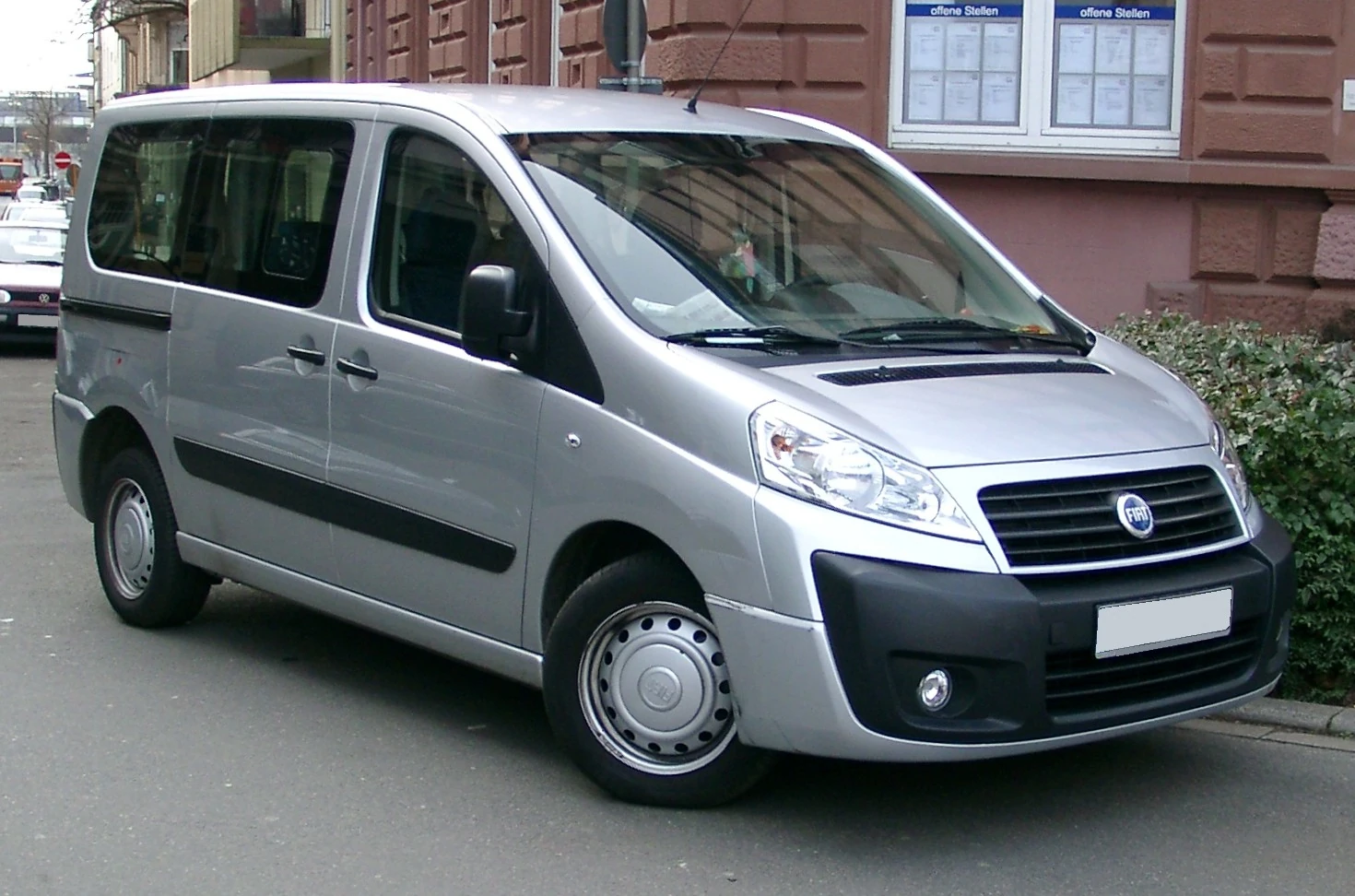

Fiat Scudo front 20080108
Second series Fiat Scudo
Manufacturer Sevel Nord
Production 1995-present
Assembly Valenciennes, France
Predecessor Fiat 900
Class LCV
Related Citroën Jumpy
Peugeot Expert
KTW Dlouhy Fiat Scudo

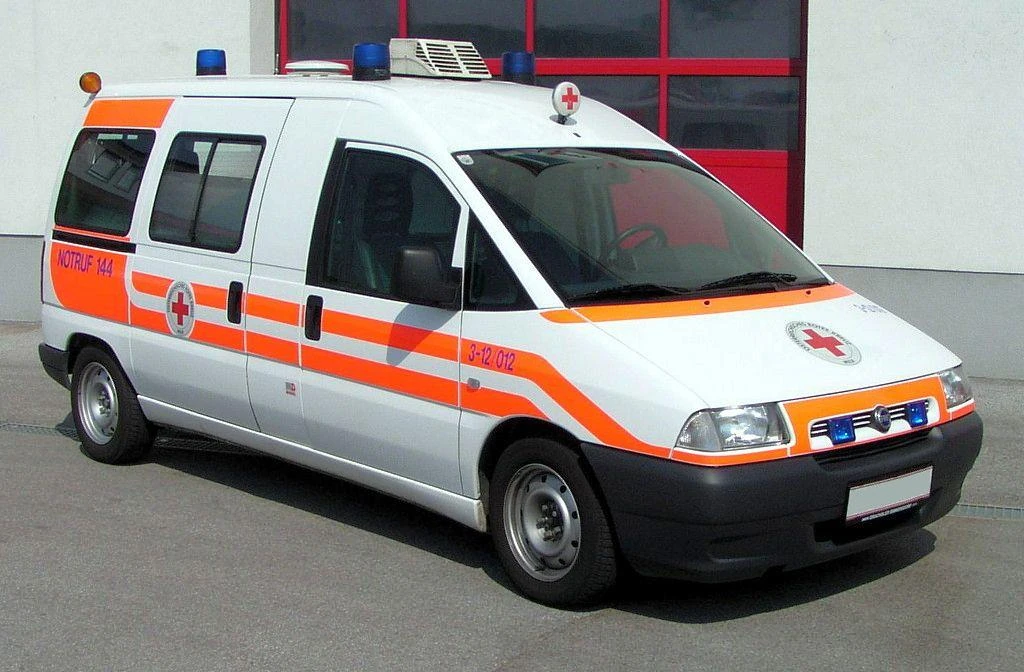

1st series Fiat Scudo

The Fiat Scudo is a medium-sized van. It is larger than the Fiat Doblo and smaller than the Fiat Ducato vans. The 'Combinato' version, which is basically a normal Scudo van with rear seats and windows, is a popular vehicle of choice of taxi drivers, as their size can accommodate up to seven people.

It has the same design as the Citroën Jumpy and Peugeot Expert, as a joint venture between Fiat and PSA Peugeot Citroën.

First generationEdit

The Fiat Scudo has a loading capacity from 850 to 900 kilograms (1,900–2,000 lb), including the driver, and load space of 4 cubic metres (140 cu ft) alone with an interior length of 2,059 millimetres (81 in). The unobstructed distance between wheel arches is 1,220 millimetres (48 in): these dimensions mean that 2 europallets can be loaded into the vehicle.

The Scudo is built with a choice of two diesel engines and one gasoline. Diesel engines were either the 69 PS (51 kW/68 hp) 1.9 D, or the 109 PS (80 kW/108 hp) 2.0 JTD and the gasoline engine was 1,6 (1581 cc 58 kW).

Engines 1995Edit

Model Type Power
PS kW hp
1.9Ddiesel 69 51 68
1.9 TDdiesel 90 66 89
2.1 TDdiesel 109 80 108

Engines 2004Edit

Model Type Power
PS kW hp
2.0petrol 136 100 134
1.9Ddiesel 69 51 68
2.0 8V JTDdiesel 94 69 93
2.0 16V JTDdiesel 109 80 108

Second generation (2007-)Edit

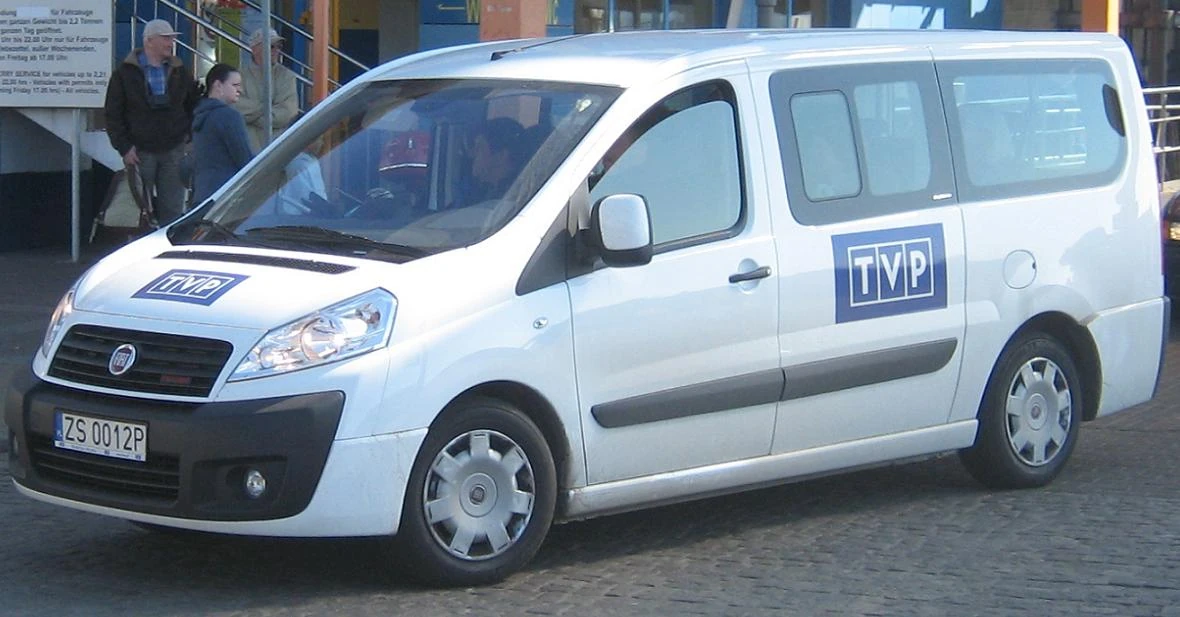

Fiat Scudo TVP

Second generation Fiat Scudo.

POL 2007 09 21 targi Kielce 39

Second generation Fiat Scudo interior.

In 2007 was introduced new version, externally designed to be similar than the new Fiat Ducato, also new engine versions came available. The cargo ability varies from 5–7 m³ (180–250 cu ft) and the combi version can transport five to nine people. Carrying capacity varies between 1,000 and 1,200 kg (2,200 and 2,600 lb). Formula 1 driver Michael Schumacher was also featured in a commercial of the Fiat Scudo.

Engines 2007Edit

Model Type Power
PS kW hp
1.6 JTDdiesel 90 66 89
2.0 Multijetdiesel 120 88 120
2.0 Multijet DPFdiesel 140 100 140

Peugeot Expert/Expert Tepee and Fiat Scudo in MexicoEdit

The Peugeot version of the Scudo is arriving to dealers this summer in both cargo and passenger configurations to Mexico, while the Fiat Scudo is arriving in early 2009.
