Fiat Campagnola

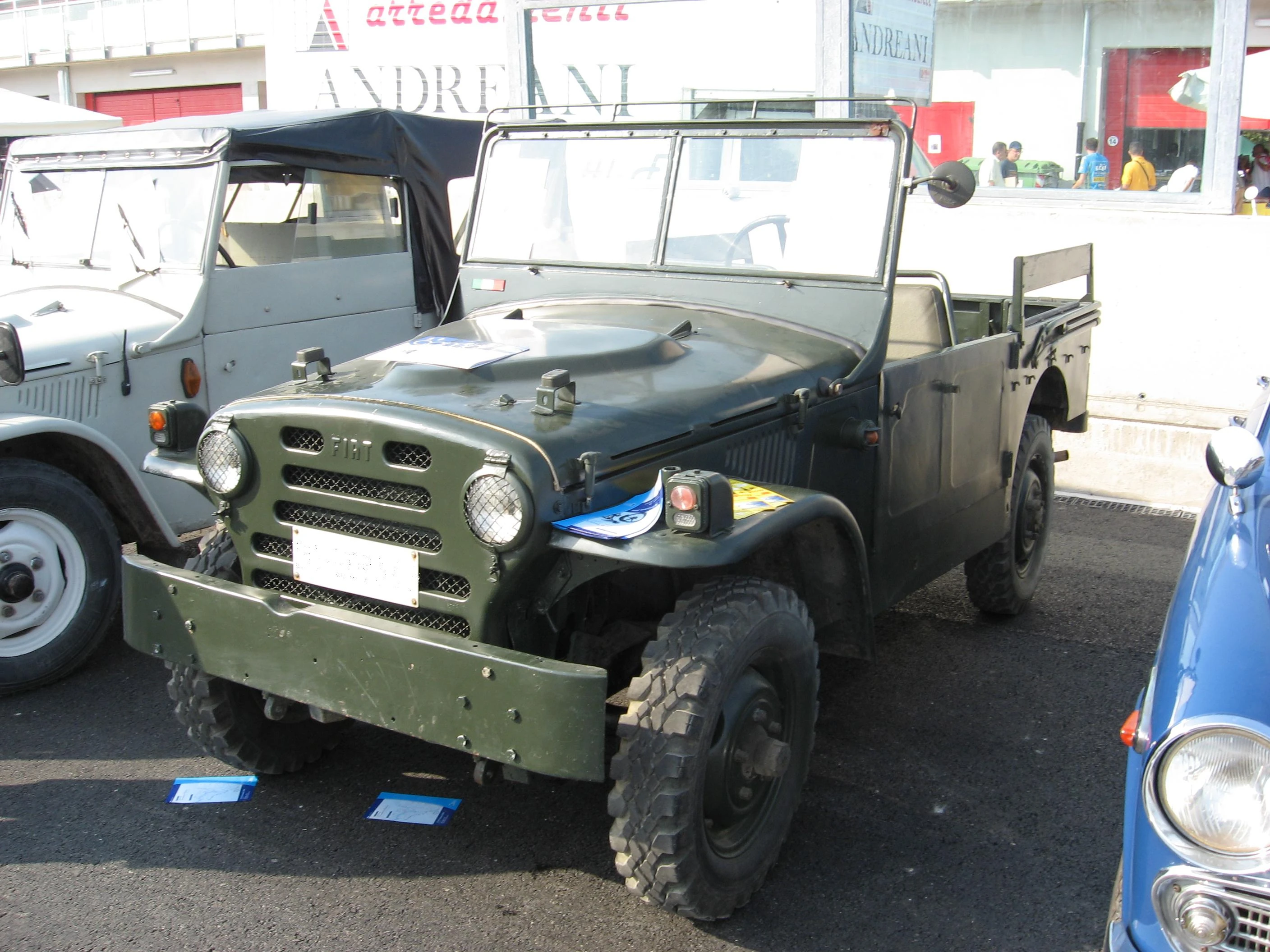

[[File:Fiat Campagnola Mk1|frameless|upright=1.25|alt=]]
Manufacturer Fiat
Production 1951-1973
Wheelbase 225 centimetres (88.6 in)
Length 360 centimetres (141.7 in)
403 centimetres (158.7 in)
Width 148 centimetres (58.3 in)
Height 195 centimetres (76.8 in)
Curb weight 1,250 kg (2,800 lb) -1,350 kg (3,000 lb)
Fiat Nuova Campagnola

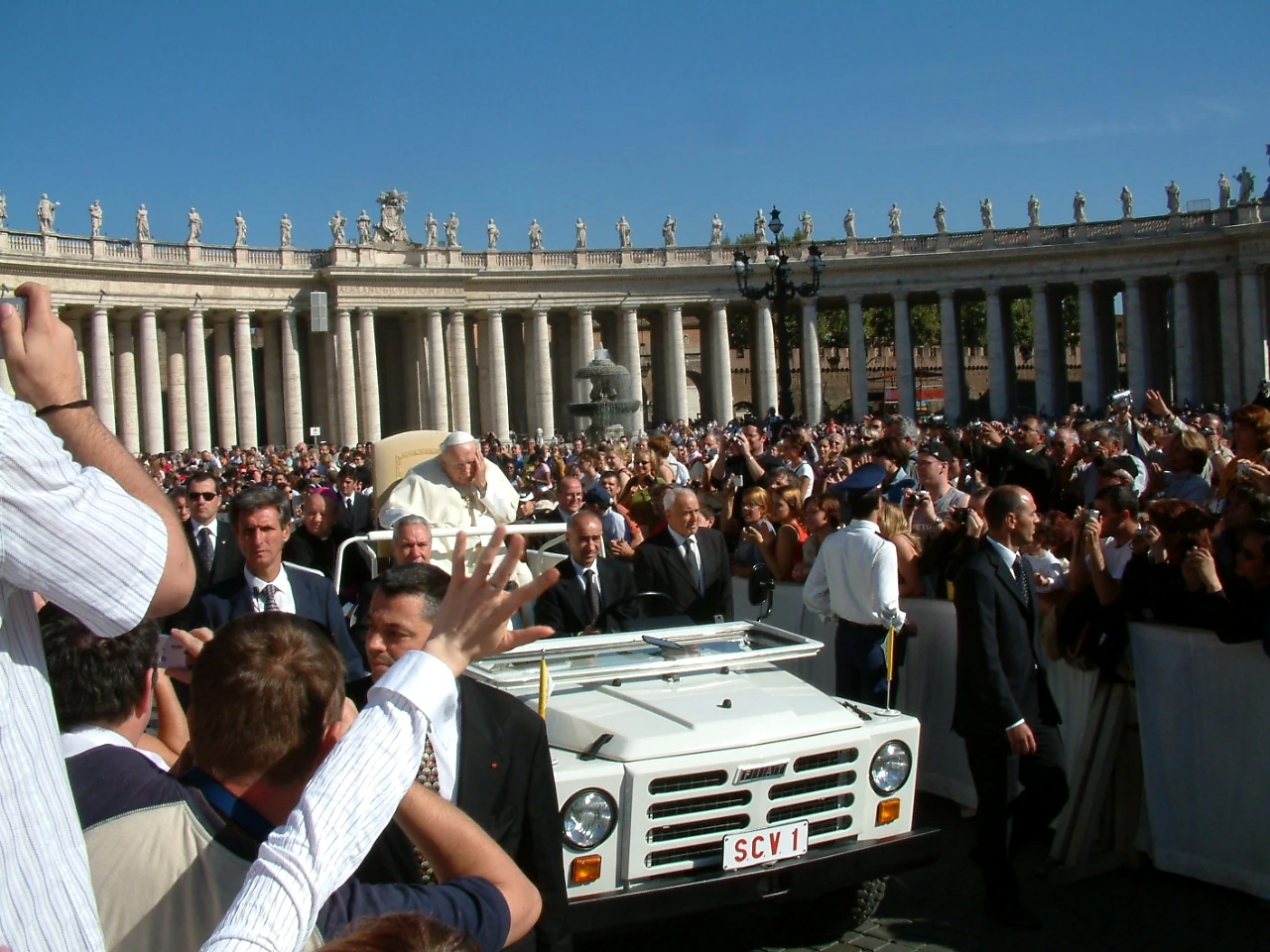

[[File:JPII 29 09 2004 1
Campagnola as Popemobile, John Paul II in Saint Peter's Square in 2004|frameless|upright=1.25|alt=]]
Manufacturer Fiat
Also called Renault TRM500[1]
Production 1974-1987
Wheelbase 230 centimetres (90.6 in)
Length 378 centimetres (148.8 in)
403 centimetres (158.7 in)
Width 158 centimetres (62.2 in)
Height 195 centimetres (76.8 in)
Curb weight 1,600 kg (3,500 lb) -1,900 kg (4,200 lb)

The Fiat Campagnola is a heavy-duty off-road vehicle produced by Fiat. Production started in 1951 and it was upgraded in 1974.

Since 1975 it has been delivered to every Italian armed service in many versions with standard or long wheelbase and canvas or hard top.

Fiat 1101 "Campagnola" (1951-73)[]

Engines[]

Model Engine Displacement Power Fuelsystem
1101 straight-4 ohv 1901 cc 53-63 hp single carburetor
1102 straight-4 ohv 1901cc 40-47 hp diesel
1102C straight-4 ohv 1895 cc 47 hp diesel

Fiat 1107 "Nuova Campagnola" (1974-87)[]

The Campagnola was redesigned for launch in June 1974[2] and in this form produced until 1987.

The new vehicle used the petrol engine of the Fiat 132, but with a longer stroke which increased the capacity to 1995 cc.[2] (The same enlarged engine turned up n the Fiat 132 itself two years later.) There was a light alloy cylinder head: instead of the twin overhead camshafts of the 132, the engine in the Campagnola had a single side-mounted camshaft driven by a toothed belt, the valve movement being driven by pushrods and rockers. The large square engine compartment gave easy access to the engine bay which was designed to permit "wading" up to 65 cm deep.[2]

The 57 litre fuel tank was positioned well out of range from rocks and flying stones, being under the twin passenger seat beside the driver.[2]

MacPherson struts suspended all four wheels, with two struts for each of the rear wheels and a single strut for each of the front wheels.[2] All six struts used were of identical specification and thereby interchangeable.[2] Road testers from the UK commended the smoothness of the ride over rough ground which evidently compared very favourably with that offered by the Land Rover of the time.[2]

A military version was introduced in 1976 (AR76) and 1979 after new updated it was called AR79.

Engines[]

Model Engine Displacement Power Fuelsystem
1107 straight-4 ohv 1995 cc 80 hp single carburetor
1107 D straight-4 SOHC 1995 cc 60 hp diesel
1107 D straight-4 SOHC 2445 cc 72 hp diesel

Others[]

The “Campagnola” of the Distaccamento Aeroportuale di Ronchi dei Legionari is in the standard wheelbase hard top version. The vehicle is 3.775 metres (148.6 in) long, 1.600 metres (63.0 in) wide and 1.945 metres (76.6 in) high. The wheeltrack is 1.365 metres (53.7 in) and the wheelbase is 2.300 metres (90.6 in). The minimum ground clearance is 0.27 metres (10.6 in).

The powerplant is a Fiat 4-cyl gasoline engine developing 56 kW (75 hp) at 4600 rpm through a 4X4 transmission. The suspension system is independent on all four wheels.

Basic performance data include a 110 km/h (68 mph) maximum speed, a 45° gradeability and a maximum fording depth of 0.700 metres (27.6 in).

The “Campagnola” is used as an Incident Command post during the first phases of the emergency. It carries loudspeakers and other command and control equipment. Some light rescue equipment is carried in the back, including a rescue saw, an oxygen cutting torch and other ancillary equipment.

Renault derivative[]

In 1976 the French army was about to replaced its Jeeps and several prototype series were made: Peugeot proposed the P4, an adaptation of the Mercedes G-Wagen, powered by the gasoline engine of Peugeot 504. Citroen offered its own version of the Volkswagen Iltis, using the CX Athena engine and renamed as C44. The Renault Campagnola TRM500 was derivative of Fiat Campagnola and used engine of Renault R20. Finally the Peugeot P4 was chosen as new army jeep.[3]

See also[]

References[]

  1. "Campagnola Renault TRM500 History". Campagnola.org. Retrieved on 2011-01-22.
  2. 2.0 2.1 2.2 2.3 2.4 2.5 2.6 "New Cross-country Vehicle from Fiat", Autocar vol 141 (nbr 4053): Page 30. 22 June 1974.
  3. "CAMPAGNOLA RENAULT TRM500". campagnola.org. Retrieved on 2011-01-22.
