See also: Electric vehicle and Battery electric vehicle
Reva charging

The REVAi/G-Wiz i electric car being recharged at an on-street charging station in London.

An electric car is an automobile which is propelled by electric motor(s), using electrical energy stored in batteries or another energy storage device. Electric cars were popular in the late-19th century and early 20th century, until advances in internal combustion engine technology and mass production of cheaper gasoline vehicles led to a decline in the use of electric drive vehicle. The energy crises of the 1970s and 80s brought a short lived interest in electric cars, but in the mid 2000s took place a renewed interest in the production of electric cars due mainly to concerns about rapidly increasing oil prices and the need to curb greenhouse gas emissions.[1][2] As of November 2011 series production models available in some countries include the Tesla Roadster, REVAi, Renault Fluence Z.E., Buddy, Mitsubishi i MiEV, Tazzari Zero, Nissan Leaf, Smart ED, Wheego Whip LiFe, Mia electric, and BYD e6. The Leaf, with more than 20,000 units sold worldwide by November 2011,[3] and the i-MiEV, with global cumulative sales of more than 17,000 units through October 2011, are the world's top selling highway-capable electric cars.[4]

Electric cars have several potential benefits as compared to conventional internal combustion automobiles that include a significant reduction of urban air pollution as they do not emit harmful tailpipe pollutants from the onboard source of power at the point of operation (zero tail pipe emissions);[5][6][7] reduced greenhouse gas emissions from the onboard source of power depending on the fuel and technology used for electricity generation to charge the batteries;[1][2] and less dependence on foreign oil, which for the United States, other developed and emerging countries is cause of concerns about their vulnerability to price shocks and supply disruption.[1][8][9] Also for many developing countries, and particularly for the poorest in Africa, high oil prices have an adverse impact on their balance of payments, hindering their economic growth.[10][11]

Despite their potential benefits, widespread adoption of electric cars faces several hurdles and limitations.[1][2] As of 2011 electric cars are significantly more expensive than conventional internal combustion engine vehicles and hybrid electric vehicles due to the additional cost of their lithium-ion battery pack.[12] However, battery prices are coming down with mass production and expected to drop further.[13] Other factors discouraging the adoption of electric cars are the lack of public and private recharging infrastructure and the driver's fear of the batteries running out of energy before reaching their destination (range anxiety) due to the limited range of existing electric cars. Several governments have established policies and economic incentives to overcome existing barriers, to promote the sales of electric cars, and to fund further development of electric vehicles, more cost-effective battery technology and their components. The U.S. has pledged US$2.4 billion in federal grants for electric cars and batteries.[14] China has announced it will provide US$15 billion to initiate an electric car industry within its borders.[15] Several national and local governments have established tax credits, subsidies, and other incentives to reduce the net purchase price of electric cars and other plug-ins.[16][17][18][19]

Etymology[]

Electric cars are a variety of electric vehicle (EV); the term "electric vehicle" refers to any vehicle that uses electric motors for propulsion, while "electric car" generally refers to road-going automobiles powered by electricity. While an electric car's power source is not explicitly an on-board battery, electric cars with motors powered by other energy sources are generally referred to by a different name: an electric car powered by sunlight is a solar car, and an electric car powered by a gasoline generator is a form of hybrid car. Thus, an electric car that derives its power from an on-board battery pack is a form of battery electric vehicle (BEV). Most often, the term "electric car" is used to refer to pure battery electric vehicles.

History[]

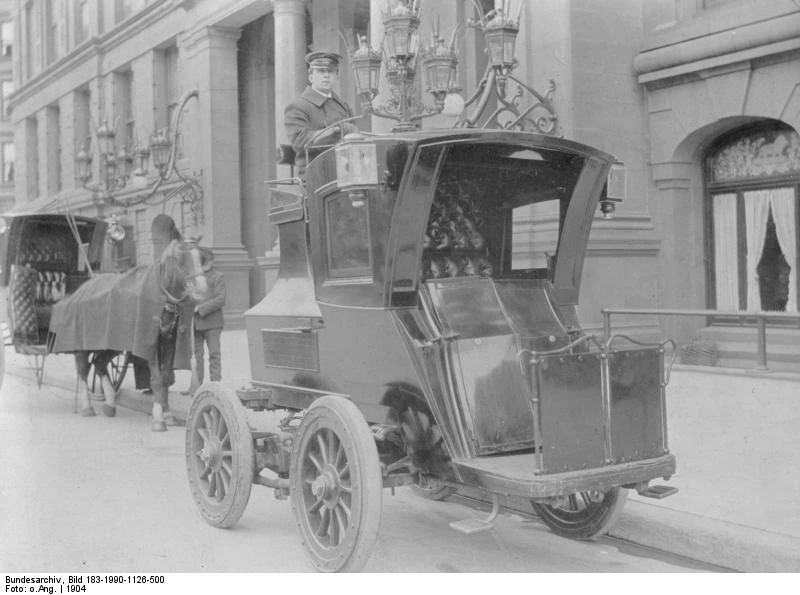

Bundesarchiv Bild 183-1990-1126-500, Kraftdroschke

German electric car, 1904, with the chauffeur on top

Main article: History of the electric vehicle

Electric cars enjoyed popularity between the mid-19th century and early 20th century, when electricity was among the preferred methods for automobile propulsion, providing a level of comfort and ease of operation that could not be achieved by the gasoline cars of the time. Advances in internal combustion technology, especially the electric starter, soon rendered this advantage moot; the greater range of gasoline cars, quicker refueling times, and growing petroleum infrastructure, along with the mass production of gasoline vehicles by companies such as the Ford Motor Company, which reduced prices of gasoline cars to less than half that of equivalent electric cars, led to a decline in the use of electric propulsion, effectively removing it from important markets such as the United States by the 1930s. However, in recent years, increased concerns over the environmental impact of gasoline cars, higher gasoline prices, improvements in battery technology, and the prospect of peak oil, have brought about renewed interest in electric cars, which are perceived to be more environmentally friendly and cheaper to maintain and run, despite high initial costs. Electric cars currently enjoy relative popularity in countries around the world, though they were absent from the roads of the United States, after they briefly re-appeared in the late 90s.

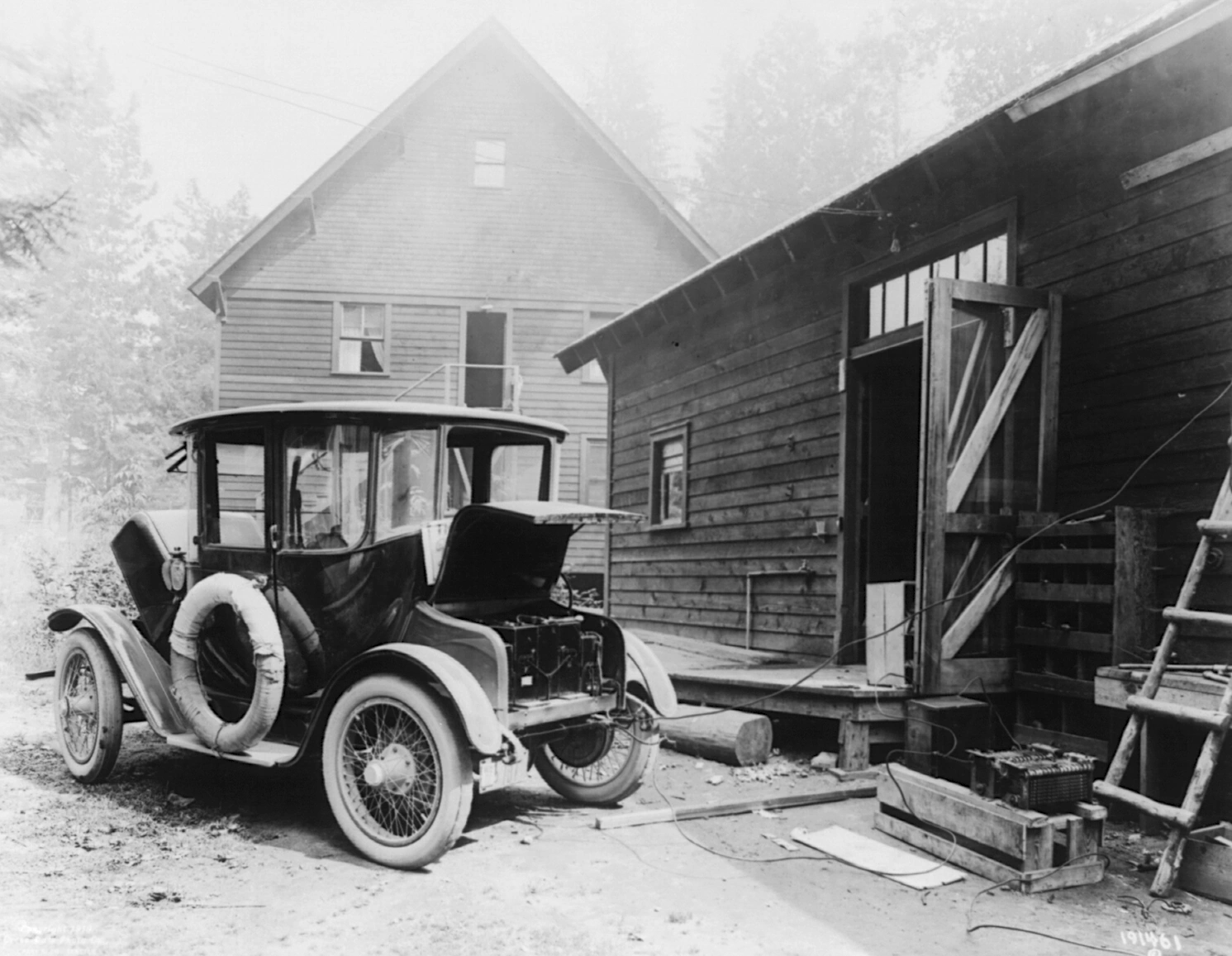

Detroit Electric car charging

Detroit Electric car charging

1890s to 1900s: Early history[]

Before the pre-eminence of internal combustion engines, electric automobiles held many speed and distance records. Among the most notable of these records was the breaking of the 100 km/h (62 mph) speed barrier, by Camille Jenatzy on April 29, 1899 in his 'rocket-shaped' vehicle Jamais Contente, which reached a top speed of 105.88 km/h (65.79 mph). Before the 1920s, electric automobiles were competing with petroleum-fueled cars for urban use of a quality service car.[20]

EdisonElectricCar1913

Thomas Edison and an electric car in 1913 (courtesy of the National Museum of American History)

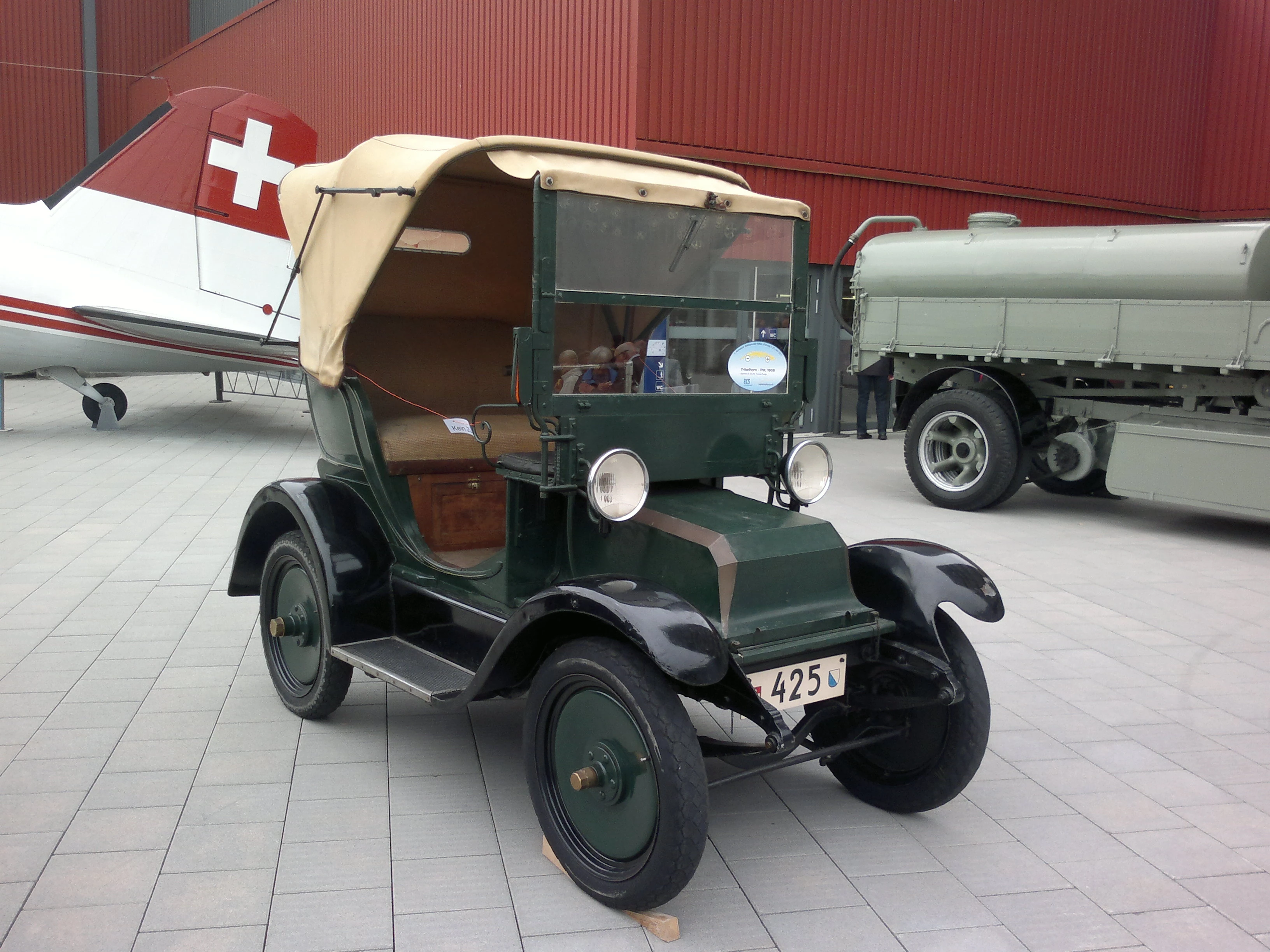

Tribelhorn 1908 1

Tribelhorn 1908

Proposed as early as 1896 in order to overcome the lack of recharging infrastructure, an exchangeable battery service was first put into practice by Hartford Electric Light Company for electric trucks. The vehicle owner purchased the vehicle from General Electric Company (GVC) without a battery and the electricity was purchased from Hartford Electric through an exchangeable battery. The owner paid a variable per-mile charge and a monthly service fee to cover maintenance and storage of the truck. The service was provided between 1910 to 1924 and during that period covered more than 6 million miles. Beginning in 1917 a similar service was operated in Chicago for owners of Milburn Light Electric cars who also could buy the vehicle without the batteries.[21]

In 1897, electric vehicles found their first commercial application in the U.S. as a fleet of electrical New York City taxis, built by the Electric Carriage and Wagon Company of Philadelphia. Electric cars were produced in the US by Anthony Electric, Baker, Columbia, Anderson, Edison [disambiguation needed InterlanguageLinks-Asset-Pencil-Hover], Fritchle, Studebaker, Riker, Milburn, and others during the early 20th century.

Despite their relatively slow speed, electric vehicles had a number of advantages over their early-1900s competitors. They did not have the vibration, smell, and noise associated with gasoline cars. They did not require gear changes, which for gasoline cars was the most difficult part of driving. Electric cars found popularity among well-heeled customers who used them as city cars, where their limited range was less of a disadvantage. The cars were also preferred because they did not require a manual effort to start, as did gasoline cars which featured a hand crank to start the engine. Electric cars were often marketed as suitable vehicles for women drivers due to this ease of operation.

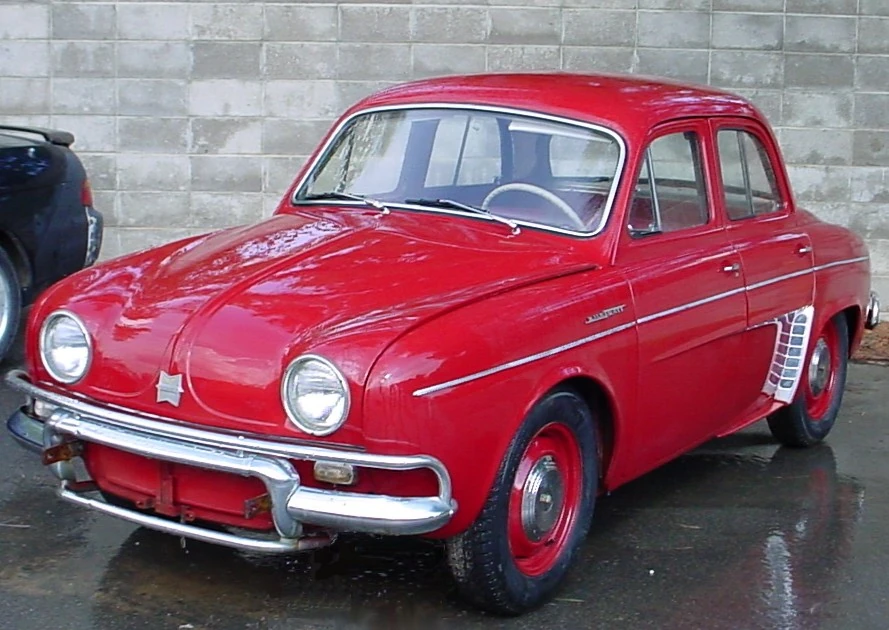

Kilowatt

The Henney Kilowatt, a 1961 production electric car based on the Renault Dauphine

In 1911, the New York Times stated that the electric car has long been recognized as "ideal" because it was cleaner, quieter and much more economical than gasoline-powered cars.[22] Reporting this in 2010, the Washington Post commented that "the same unreliability of electric car batteries that flummoxed Thomas Edison persists today."[23]

From the 1990s: Revival of mass interest[]

Main article: History of the electric vehicle#1990s_to_present:_Revival_of_mass_interest

The energy crises of the 1970s and 80s brought about renewed interest in the perceived independence that electric cars had from the fluctuations of the hydrocarbon energy market. In the early 1990s, the California Air Resources Board (CARB) began a push for more fuel-efficient, lower-emissions vehicles, with the ultimate goal being a move to zero-emissions vehicles such as electric vehicles.[1][24] In response, automakers developed electric models, including the Chrysler TEVan, Ford Ranger EV pickup truck, GM EV1 and S10 EV pickup, Honda EV Plus hatchback, Nissan lithium-battery Altra EV miniwagon and Toyota RAV4 EV. These cars were eventually withdrawn from the U.S. market.[25]

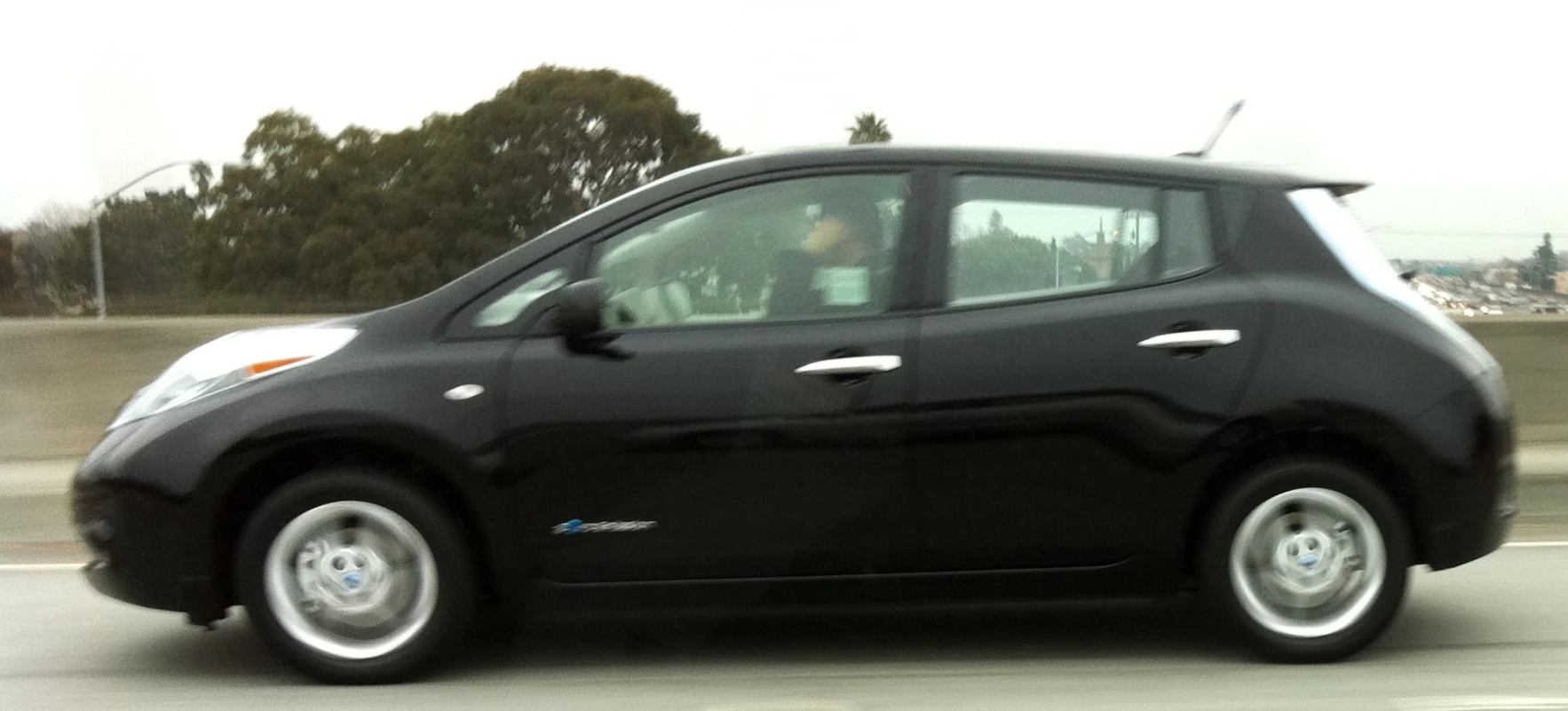

First Customer owned Nissan Leaf

First Nissan Leaf delivered in the U.S. on the road south of San Francisco

The global economic recession in the late 2000s led to increased calls for automakers to abandon fuel-inefficient SUVs, which were seen as a symbol of the excess that caused the recession, in favor of small cars, hybrid cars, and electric cars. California electric car maker Tesla Motors began development in 2004 on the Tesla Roadster, which was first delivered to customers in 2008. As of January 2011 Tesla had produced more than 1,500 Roadsters sold in at least 31 countries.[26] The Mitsubishi i MiEV was launched for fleet customers in Japan in July 2009, and for individual customers in April 2010,[27][28][29] followed by sales to the public in Hong Kong in May 2010,[30] and Australia in July 2010 via leasing.[31]

Retail customer deliveries of the Nissan Leaf in Japan and the United States began in December 2010, though initial availability is restricted to a few launch markets and in limited quantities.[32][33][34] As of September 2011 other electric automobiles, city cars, and light trucks available in some markets included the REVAi, Buddy, Citroën C1 ev'ie, Transit Connect Electric, Mercedes-Benz Vito E-Cell, Smart ED, Wheego Whip LiFe, and several neighborhood electric vehicles.

Comparison with internal combustion engine vehicles[]

An important goal for electric vehicles is overcoming the disparity between their costs of development, production, and operation, with respect to those of equivalent internal combustion engine vehicles (ICEVs).

Price[]

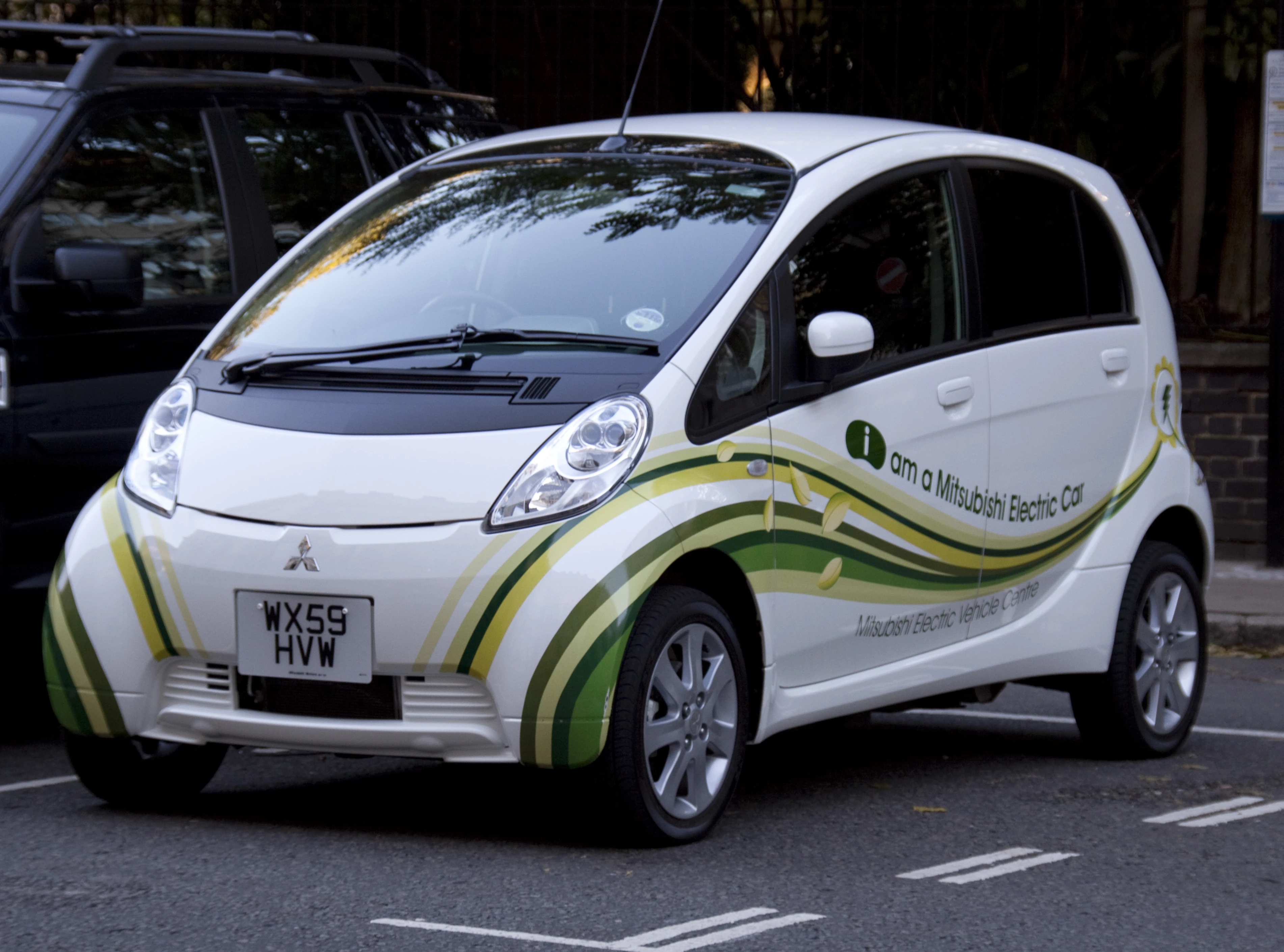

Mitsubishi Electric Car

Sales of the Mitsubishi i MiEV to the public began in Japan in April 2010, in Hong Kong in May 2010 and in Australia in July 2010.

Electric cars are generally more expensive than gasoline cars. The primary reason is the high cost of car batteries. US and British car buyers seem to be unwilling to pay more for an electric car.[35][36] This prohibits the mass transition from gasoline cars to electric cars. A survey taken by Nielsen for the Financial Times has shown that 65 percent of Americans and 76 percent of Britons are not willing to pay more for an electric car above the price of a gasoline car.[37] Also a report by J.D. Power and Associates claims that about 50 percent of U.S. car buyers are not even willing to spend more than US$5,000 on a green vehicle above the price of a petrol car despite their concern about the environment.[38]

The Nissan LEAF is the most affordable five door family electric car in the U.S. at a price of US$32,780 going down to US$25,280 after federal tax rebate of US$7,500, going further down to US$20,280 after the US$5,000 tax rebate in California and similar incentives in other states.

The Renault Fluence Z.E. five door family saloon electric car will be priced at less than US$20,000 before any U.S. federal and state tax rebates are applied.[39] It will be sold without the battery thus the significant price difference. The customer will buy the Renault Fluence Z.E. with a contract to lease the battery from the company Better Place.

The electric car company Tesla Motors is using laptop battery technology for the battery packs of their electric cars that are 3 to 4 times cheaper than dedicated electric car battery packs that other auto makers are using. While dedicated battery packs cost $700–$800 per kilowatt hour, battery packs using small laptop cells cost about $200. That could potentially drive down the cost of electric cars that are using Tesla's battery technology such as the Toyota RAV4 EV and the Smart ED as well as their own upcoming 2014 models such as the Model X.[40][41][42]

A study published in 2011 by the Belfer Center, Harvard University, found that the gasoline costs savings of plug-in electric cars over the vehicles’ lifetimes do not offset their higher purchase prices. This finding was estimated comparing their lifetime net present value at 2010 purchase and operating costs for the U.S. market, and assuming no government subidies.[43][44] According to the study estimates, a PHEV-40 is US$5,377 more expensive than a conventional internal combustion engine, while a battery electric vehicle is US$4,819 more expensive. The study also examined how this balance will change over the next 10 to 20 years, assuming that battery costs will decrease while gasoline prices increase. Under the future scenarios considered, the study found that BEVs will be significantly less expensive than conventional cars (US$1,155 to US$7,181 cheaper), while PHEVs, will be more expensive than BEVs in almost all comparison scenarios, and only less expensive than conventional cars in an scenario with very low battery costs and high gasoline prices. The reason for the different savings among plug-in cars is due to the fact that BEVs are simpler to build and do not use liquid fuel, while PHEVs have more complicated powertrains and still have gasoline-powered engines.[43]

Running costs and maintenance[]

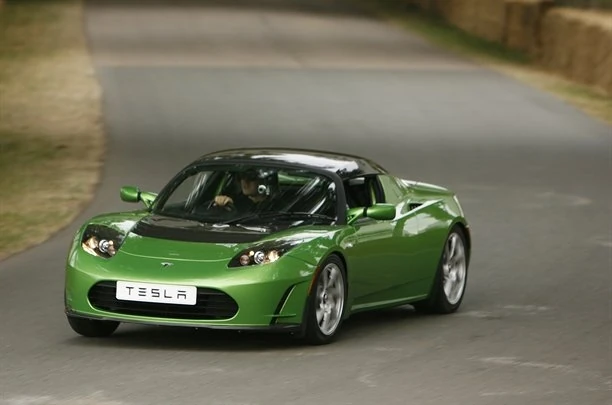

Roadster Goodwood

The Tesla Roadster is sold in the US and Europe and has a range of 245 miles per charge.

Most of the running cost of an electric vehicle can be attributed to the maintenance and replacement of the battery pack because an electric vehicle has only around 5 moving parts in its motor, compared to a gasoline car that has hundreds of parts in its internal combustion engine.[45] Electric cars have expensive batteries that must be replaced but otherwise incur very low maintenance costs, particularly in the case of current Lithium based designs.

To calculate the cost per kilometer of an electric vehicle it is therefore necessary to assign a monetary value to the wear incurred on the battery. This can be difficult due to the fact that it will have a slightly lower capacity each time it is charged and is only considered to be at the end of its life when the owner decides its performance is no longer acceptable. Even then an 'end of life' battery is not completely worthless as it can be re-purposed, recycled or used as a spare.

Since a battery is made of many individual cells that do not necessarily wear evenly, periodically replacing the worst of them can retain the vehicle's range.

The Tesla Roadster's very large battery pack is expected to last seven years with typical driving and costs US$12,000 when pre-purchased today.[46][47] Driving 40 miles (64 km) per day for seven years or 102,200 miles (164,500 km) leads to a battery consumption cost of US$0.1174 per 1 mile (1.6 km) or US$4.70 per 40 miles (64 km). The company Better Place provides another cost comparison as they anticipate meeting contractual obligations to deliver batteries as well as clean electricity to recharge the batteries at a total cost of US$0.08 per 1 mile (1.6 km) in 2010, US$0.04 per mile by 2015 and US$0.02 per mile by 2020.[48] 40 miles (64 km) of driving would initially cost US$3.20 and fall over time to US$0.80.

In 2010 the U.S. government estimated that a battery with a 100 miles (160 km) range would cost about US$33,000. Concerns remain about durability and longevity of the battery.[49]

Nissan estimates that the Leaf's 5 year operating cost will be US$1,800 versus US$6,000 for a gasoline car.[50] The documentary film Who Killed the Electric Car?[51] shows a comparison between the parts that require replacement in a gasoline powered cars and EV1s, with the garages stating that they bring the electric cars in every 5,000 mi (8,000 km), rotate the tires, fill the windshield washer fluid and send them back out again.

Electricity vs. hydrocarbon fuel[]

"Fuel" cost comparison: the Tesla Roadster sport car's plug-to-wheel energy use is 280 W·h/mi. In Northern California, the local electric utility company PG&E says that "The E-9 rate is mandatory for those customers that are currently on a residential electric rate and who plan on refueling an EV on their premises."[52] Combining these two facts implies that driving a Tesla Roadster 40 miles (64 km) a day would use 11.2 kW·h of electricity costing between US$0.56 and US$3.18 depending on the time of day chosen for recharging.[52] For comparison, driving an internal combustion engine-powered car the same 40 miles (64 km), at a mileage of 25 miles per US gallon (9.4 L/100 km/30 mpg-imp), would use 1.6 US gallons (6.1 l/1.3 imp gal) of fuel and, at a cost of US$4 per 1 US gallon (3.8 l/0.83 imp gal), would cost US$6.40.

The Tesla Roadster uses about 17.4 kW·h/100 km (0.63 MJ/km/0.280 kW·h/mi),[53] the EV1 used about 11 kW·h/100 km (0.40 MJ/km/0.18 kW·h/mi).[54] Other electric vehicles such as the Nissan Leaf are quoted at 21.25 kW·h/100 km (0.765 MJ/km/0.3420 kW·h/mi) by the US Environmental Protection Agency.[55] These differences reflect the different design and utility targets for the vehicles, and the varying testing standards. The actual energy use is greatly dependent on the actual driving conditions and driving style.

Range and refuelling time[]

Cars with internal combustion engines can be considered to have indefinite range, as they can be refuelled very quickly almost anywhere. Electric cars often have less maximum range on one charge than cars powered by fossil fuels, and they can take considerable time to recharge. This is a reason that many automakers marketed EVs as "daily drivers" suitable for city trips and other short hauls.[citation needed] The average American drives less than 40 miles (64 km) per day; so the GM EV1 would have been adequate for the daily driving needs of about 90% of U.S. consumers.[51] Nevertheless, people can be concerned that they would run out of energy from their battery before reaching their destination, a worry known as range anxiety.

The Tesla Roadster can travel 245 miles (394 km) per charge;[56] more than double that of prototypes and evaluation fleet cars currently on the roads.[57] The Roadster can be fully recharged in about 3.5 hours from a 220-volt, 70-amp outlet which can be installed in a home.[58]

One way automakers can extend the short range of electric vehicles is by building them with battery switch technology. An EV with battery switch technology and a 100 miles (160 km) driving range will be able to go to a battery switch station and switch a depleted battery with a fully charged one in 59.1 seconds[59] giving the EV an additional 100 miles (160 km) driving range. The process is cleaner and faster than filling a tank with gasoline and the driver remains in the car the entire time,[60] but because of the high investment cost, its economics are unclear.[61] As of late 2010 there are only 2 companies with plans to integrate battery switching technology to their electric vehicles: Better Place and Tesla Motors.[62][63][64] Better Place operated a battery-switch station in Japan until November 2010[65] and announced a commitment to open four battery switch stations in California, USA.[66]

Another way is the installation of DC Fast Charging stations with high-speed charging capability from three-phase industrial outlets so that consumers could recharge the 100 mile battery of their electric vehicle to 80 percent in about 30 minutes.[67][68] A nationwide fast charging infrastructure is currently being deployed in the US that by 2013 will cover the entire nation.[69] DC Fast Chargers are going to be installed at 45 BP and ARCO locations and will be made available to the public as early as March 2011.[70] The EV Project will deploy charge infrastructure in 16 cities and major metropolitan areas in six states.[71][72] Nissan has announced that 200 of its dealers in Japan will install fast chargers for the December 2010 launch of its Leaf EV, with the goal of having fast chargers everywhere in Japan within a 25 mile radius.[73]

In July 2011, there are hints that Whole Foods, Walmart, etc. will be adding various charging stations.[citation needed]

Air pollution and carbon emissions[]

See also: Greenhouse gas emissions in plug-in electric vehicles and Greenhouse gas emissions in plug-in hybrids
2008 US electricity generation by source v2

Sources of electricity in the U.S. in 2009.[74]

Electric cars contribute to cleaner air in cities because they produce no harmful pollution at the tailpipe from the onboard source of power, such as particulates (soot), volatile organic compounds, hydrocarbons, carbon monoxide, ozone, lead, and various oxides of nitrogen. The clean air benefit is usually local because, depending on the source of the electricity used to recharge the batteries, air pollutant emissions are shifted to the location of the generation plants.[1] The amount of carbon dioxide emitted depends on the emission intensity of the power source used to charge the vehicle, the efficiency of the said vehicle and the energy wasted in the charging process.

For mains electricity the emission intensity varies significantly per country and within a particular country it will vary depending on demand,[75] the availability of renewable sources and the efficiency of the fossil fuel-based generation used at a given time.[76] Charging a vehicle using off-grid renewable energy yields very low carbon intensity (only that to produce and install the off-grid generation system e.g. domestic wind turbine).

An EV recharged from the existing US grid electricity emits about 115 grams of CO2 per kilometer driven (6.5 oz(CO2)/mi), whereas a conventional US-market gasoline powered car emits 250 g(CO2)/km (14 oz(CO2)/mi) (most from its tailpipe, some from the production and distribution of gasoline).[77] The savings are questionable relative to hybrid or diesel cars (according to official British government testing, the most efficient European market cars are well below 115 grams of CO2 per kilometer driven, although a study in Scotland gave 149.5gCO2/km as the average for new cars in the UK[78]), but would be more significant in countries with cleaner electric infrastructure. In a worst-case scenario where incremental electricity demand would be met exclusively with coal, a 2009 study conducted by the World Wide Fund for Nature and IZES found that a mid-size EV would emit roughly 200 g(CO2)/km (11 oz(CO2)/mi), compared with an average of 170 g(CO2)/km (9.7 oz(CO2)/mi) for a gasoline-powered compact car.[79] This study concluded that introducing 1 million EV cars to Germany would, in the best-case scenario, only reduce CO2 emissions by 0.1%, if nothing is done to upgrade the electricity infrastructure or manage demand.[79]

In France, which has a clean energy grid, CO2 emissions from electric car use would be about 12g per kilometer.[80]

A study made in the UK in 2008 concluded that electric vehicles had the potential to cut down carbon dioxide and greenhouse gas emissions by at least 40%, even taking into account the emissions due to current electricity generation in the UK and emissions relating to the production and disposal of electric vehicles.[81]

A 2011 report prepared by Ricardo found that hybrid electric vehicles, plug-in hybrids and all-electric cars generate more carbon emissions during their production than current conventional vehicles, but still have a lower overall carbon footprint over the full life cycle. The initial higher carbon footprint is due mainly to battery production. As an example, the study estimated that 43 percent of production emissions for a mid-size electric car are generated from the battery production.[82]

Acceleration and drivetrain design[]

Electric motors can provide high power-to-weight ratios, and batteries can be designed to supply the large currents to support these motors.

Although some electric vehicles have very small motors, 15 kW (20 hp) or less and therefore have modest acceleration, many electric cars have large motors and brisk acceleration. In addition, the relatively constant torque of an electric motor, even at very low speeds tends to increase the acceleration performance of an electric vehicle relative to that of the same rated motor power internal combustion engine. Another early solution was American Motors’ experimental Amitron piggyback system of batteries with one type designed for sustained speeds while a different set boosted acceleration when needed.[83]

Electric vehicles can also use a direct motor-to-wheel configuration which increases the amount of available power. Having multiple motors connected directly to the wheels allows for each of the wheels to be used for both propulsion and as braking systems, thereby increasing traction. In some cases, the motor can be housed directly in the wheel, such as in the Whispering Wheel design, which lowers the vehicle's center of gravity and reduces the number of moving parts.[84][85][86] When not fitted with an axle, differential, or transmission, electric vehicles have less drivetrain rotational inertia. However, housing the motor within the wheel can increase the unsprung weight of the wheel, which can have an adverse effect on the handling of the vehicle.

Transmission[]

A gearless or single gear design in some EVs eliminates the need for gear shifting, giving such vehicles both smoother acceleration and smoother braking. Because the torque of an electric motor is a function of current, not rotational speed, electric vehicles have a high torque over a larger range of speeds during acceleration, as compared to an internal combustion engine. As there is no delay in developing torque in an EV, EV drivers report generally high satisfaction with acceleration.

The disadvantage of providing high acceleration by high torque from the motor is lowered efficiency due to higher losses in the form of Joule heating in the motor windings caused by the high electric current. This energy loss increases fourfold as the input current is doubled, so the practical limit for sustained torque from an electric motor depends on how well it can be cooled during operation. There is always a compromise between torque and energy efficiency. This limits the top speed of electric vehicles operating on a single gear due to the need to limit the required torque and maintain efficiency at low vehicle speeds.[citation needed]

For example, the Venturi Fetish delivers supercar acceleration despite a relatively modest 220 kW (295 hp), and top speed of around 160 km/h (100 mph). Some DC motor-equipped drag racer EVs, have simple two-speed manual transmissions to improve top speed.[87] The Tesla Roadster 2.5 Sport can accelerate from 0 to 60 mph (97 km/h) in 3.7 seconds with a motor rated at 215 kW (288 hp).[88]

Also the Wrightspeed X1 prototype created by Wrightspeed Inc is the worlds fastest street legal electric car.[89] With an acceleration of 0-60 mph in 2.9 seconds[90] the X1 has bested some of the worlds fastest sports cars.[91]

Energy efficiency[]

Main article: Fuel efficiency

Internal combustion engines are relatively inefficient at converting on-board fuel energy to propulsion as most of the energy is wasted as heat. On the other hand, electric motors are more efficient in converting stored energy into driving a vehicle, and electric drive vehicles do not consume energy while at rest or coasting, and some of the energy lost when braking is captured and reused through regenerative braking, which captures as much as one fifth of the energy normally lost during braking.[1][92] Typically, conventional gasoline engines effectively use only 15% of the fuel energy content to move the vehicle or to power accessories, and diesel engines can reach on-board efficiencies of 20%, while electric drive vehicles have on-board efficiency of around 80%.[92]

Production and conversion electric cars typically use 10 to 23 kW·h/100 km (0.17 to 0.37 kW·h/mi).[54][93] Approximately 20% of this power consumption is due to inefficiencies in charging the batteries. Tesla Motors indicates that the vehicle efficiency (including charging inefficiencies) of their lithium-ion battery powered vehicle is 12.7 kW·h/100 km (0.21 kW·h/mi) and the well-to-wheels efficiency (assuming the electricity is generated from natural gas) is 24.4 kW·h/100 km (0.39 kW·h/mi).[94]

Safety[]

The safety issues of BEVs are largely dealt with by the international standard ISO 6469. This document is divided in three parts dealing with specific issues:

  • On-board electrical energy storage, i.e. the battery
  • Functional safety means and protection against failures
  • Protection of persons against electrical hazards.

Risk of fire[]

In the United States, General Motors run in several cities a training program for firefighters and first responders to demonstrate the sequence of tasks required to safely disable the Chevrolet Volt’s powertrain and its 12 volt electrical system, which controls its high-voltage components, and then proceed to extricate injured occupants. The Volt's high-voltage system is designed to shut down automatically in the event of an airbag deployment, and to detect a loss of communication from an airbag control module.[95][96] GM also made available an Emergency Response Guide for the 2011 Volt for use by emergency responders. The guide also describes methods of disabling the high voltage system and identifies cut zone information.[97] As of December 2011, no fires after a crash have been reported in the U.S. associated with the Volt, the Leaf or the Tesla Roadster.[98]

Volvo C30 Electric WAS 2011 852

Frontal crash test of a Volvo C30 DRIVe Electric to assess the safety of the battery pack.

As a result of a a crashed tested Chevolet Volt that caught fire in June 2011 three weeks after the testing, the National Highway Traffic Safety Administration ( NHTSA) issued an statement saying that the agency does not believe the Volt or other electric vehicles are at a greater risk of fire than gasoline-powered vehicles. "In fact, all vehicles – both electric and gasoline-powered – have some risk of fire in the event of a serious crash." [99][100] The NHTSA announced in November 2011 that it was working with all automakers to develop postcrash procedures to keep occupants of electric vehicles and emergency personnel who respond to crash scenes safe. General Motors said the fire would have been avoided if GM's protocols for deactivating the battery after the crash had been followed, and also stated that they "are working with other vehicle manufacturers, first responders, tow truck operators, and salvage associations with the goal of implementing industrywide protocols."[100][101] In further testing of the Volt's batteries carried out by NHTSA in November 2011, two of the three tests resulted in thermal events, including fire. Therefore the NHTSA opened a formal safety defect investigation on November 25, 2011, to examine the potential risks involved from intrusion damage to the battery in the Chevrolet Volt.[102][103][104] As opposed to the Volt’s battery, the Nissan Leaf's pack is shielded from damage by a layer of steel reinforcement.[105]

Vehicle safety[]

Great effort is taken to keep the mass of an electric vehicle as low as possible to improve its range and endurance. However, the weight and bulk of the batteries themselves usually makes an EV heavier than a comparable gasoline vehicle, reducing range and leading to longer braking distances; it also has less interior space. However, in a collision, the occupants of a heavy vehicle will, on average, suffer fewer and less serious injuries than the occupants of a lighter vehicle; therefore, the additional weight brings safety benefits[106] despite having a negative effect on the car's performance.[107] An accident in a 2,000 lb (900 kg) vehicle will on average cause about 50% more injuries to its occupants than a 3,000 lb (1,400 kg) vehicle.[108] In a single car accident,[citation needed] and for the other car in a two car accident, the increased mass causes an increase in accelerations and hence an increase in the severity of the accident. Some electric cars use low rolling resistance tires, which typically offer less grip than normal tires.[109][110][111] Many electric cars have a small, light and fragile body, though, and therefore offer inadequate safety protection. The Insurance Institute for Highway Safety in America had condemned the use of low speed vehicles and "mini trucks," referred to as neighborhood electric vehicles (NEVs) when powered by electric motors, on public roads.[112]

Hazard to pedestrians[]

See also: Electric vehicle warning sounds

At low speeds, electric cars produced less roadway noise as compared to vehicles propelled by internal combustion engines. Blind people or the visually impaired consider the noise of combustion engines a helpful aid while crossing streets, hence electric cars and hybrids could pose an unexpected hazard.[113][114] Tests have shown that this is a valid concern, as vehicles operating in electric mode can be particularly hard to hear below 20 mph (30 km/h) for all types of road users and not only the visually impaired. At higher speeds, the sound created by tire friction and the air displaced by the vehicle start to make sufficient audible noise.[114]

The US Congress and the Government of Japan passed legislation to regulate the minimum level of sound for hybrids and plug-in electric vehicles when operating in electric mode, so that blind people and other pedestrians and cyclists can hear them coming and detect from which direction they are approaching.[114][115][116] The Nissan Leaf is the first electric car to use Nissan's Vehicle Sound for Pedestrians system, which includes one sound for forward motion and another for reverse.[17][117]

Differences in controls[]

Presently most EV manufacturers do their best to emulate the driving experience as closely as possible to that of a car with a conventional automatic transmission that motorists are familiar with. Most models therefore have a PRNDL selector traditionally found in cars with automatic transmission despite the underlying mechanical differences. Push buttons are the easiest to implement as all modes are implemented through software on the vehicle's controller.

Even though the motor may be permanently connected to the wheels through a fixed-ratio gear and no parking pawl may be present the modes "P" and "N" will still be provided on the selector. In this case the motor is disabled in "N" and an electrically actuated handbrake provides the "P" mode.

In some cars the motor will spin slowly to provide a small amount of creep in "D", similar to a traditional automatic.[118]

When the foot is lifted from the accelerator of an ICE, engine braking causes the car to slow. An EV would coast under these conditions, and applying mild regenerative braking instead provides a more familiar response. Selecting the L mode will increase this effect for sustained downhill driving, analogous to selecting a lower gear.

Cabin heating and cooling[]

Electric vehicles generate very little waste heat and resistance electric heat may have to be used to heat the interior of the vehicle if heat generated from battery charging/discharging can not be used to heat the interior.

While heating can be simply provided with an electric resistance heater, higher efficiency and integral cooling can be obtained with a reversible heat pump (this is currently implemented in the hybrid Toyota Prius). Positive Temperature Coefficient (PTC) junction cooling[119] is also attractive for its simplicity — this kind of system is used for example in the Tesla Roadster.

Some electric cars, for example the Citroën Berlingo Electrique, use an auxiliary heating system (for example gasoline-fueled units manufactured by Webasto or Eberspächer) but sacrifice "green" and "Zero emissions" credentials. Cabin cooling can be augmented with solar power, most simply and effectively by inducting outside air to avoid extreme heat buildup when the vehicle is closed and parked in the sunlight (such cooling mechanisms are available as aftermarket kits for conventional vehicles). Two models of the 2010 Toyota Prius include this feature as an option.[120]

Batteries[]

NASA Lithium Ion Polymer Battery

Prototypes of 75 watt-hour/kilogram lithium-ion polymer battery. Newer lithium-ion cells can provide up to 130 W·h/kg and last through thousands of charging cycles.

Main article: Electric vehicle battery

Finding the economic balance of range against performance, energy density, and accumulator type versus cost challenges every EV manufacturer.

While most current highway-speed electric vehicle designs focus on lithium-ion and other lithium-based variants a variety of alternative batteries can also be used. Lithium based batteries are often chosen for their high power and energy density but have a limited shelf-life and cycle lifetime which can significantly increase the running costs of the vehicle. Variants such as Lithium iron phosphate and Lithium-titanate attempt to solve the durability issues with traditional lithium-ion batteries.

Other battery technologies include:

  • Lead acid batteries are still the most used form of power for most of the electric vehicles used today. The initial construction costs are significantly lower than for other battery types, and while power output to weight is poorer than other designs, range and power can be easily added by increasing the number of batteries.[121]
  • NiCd - Largely superseded by NiMH
  • Nickel metal hydride (NiMH)
  • Nickel iron battery - Known for its comparatively long lifetime and low power density

Several battery technologies are also in development such as:

  • Zinc-air battery
  • Molten salt battery
  • Zinc-bromine flow batteries or Vanadium redox batteries can be refilled, instead of recharged, saving time. The depleted electrolyte can be recharged at the point of exchange, or taken away to a remote station.

Travel range before recharging[]

The range of an electric car depends on the number and type of batteries used. The weight and type of vehicle, and the performance demands of the driver, also have an impact just as they do on the range of traditional vehicles. The range of an electric vehicle conversion depends on the battery type:

Replacing[]

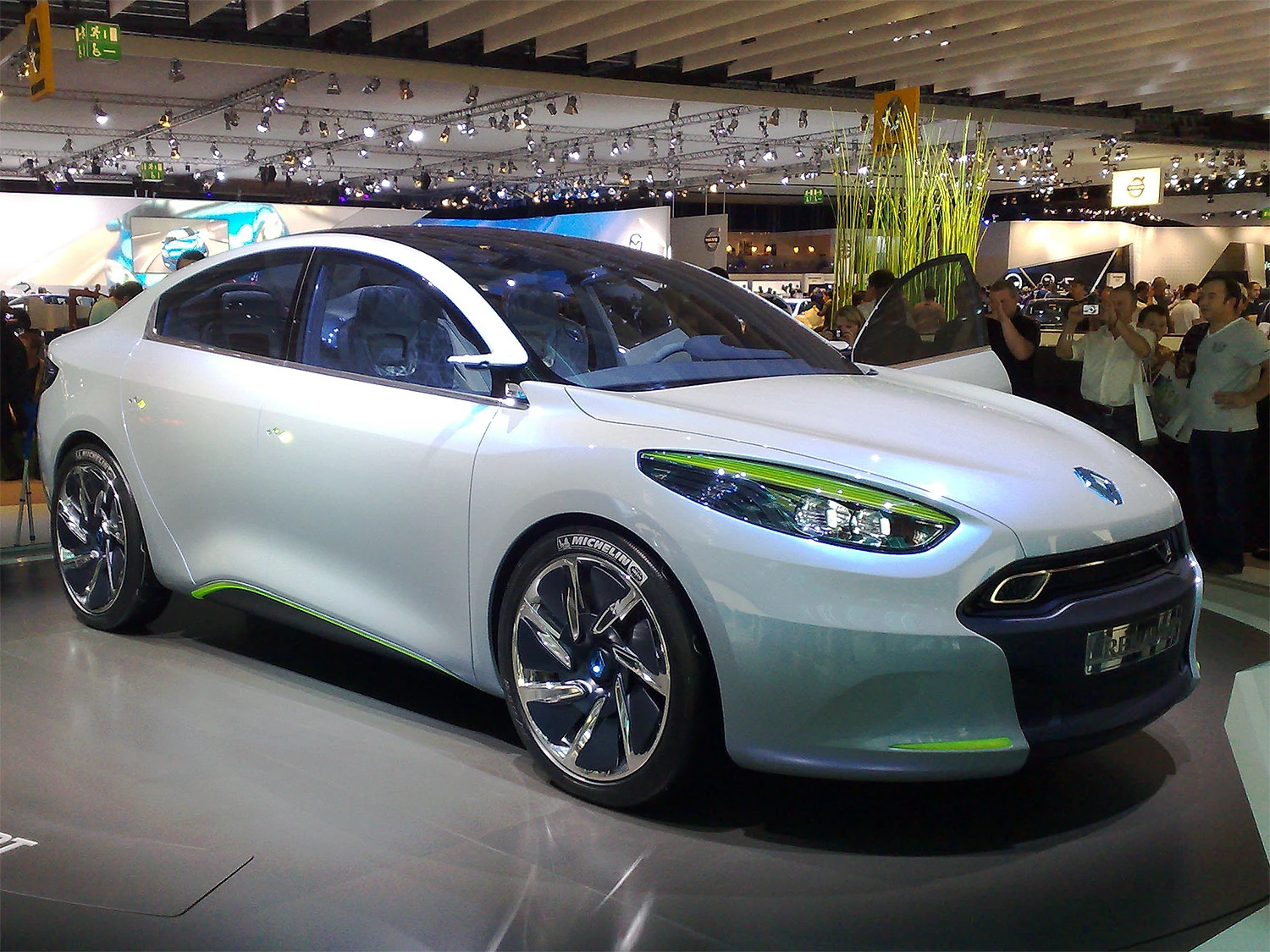

Renault Fluence Z.E

The Renault Fluence Z.E. will be the first electric car within the Better Place network, with sales scheduled to begin in Israel and Denmark by late 2011.[122][123]

An alternative to quick recharging is to exchange the drained or nearly drained batteries (or battery range extender modules) with fully charged batteries, similar to how stagecoach horses were changed at coaching inns. Batteries could be leased or rented instead of bought, and then maintenance deferred to the leasing or rental company, and ensures availability.

Renault announced at the 2009 Frankfurt Motor Show that they have sponsored a network of charging stations and plug-in plug-out battery swap stations.[124] Other vehicle manufacturers and companies are also investigating the possibility.

Replaceable batteries were used in the electric buses at the 2008 Summer Olympics.[125]

Vehicle-to-grid: uploading and grid buffering[]

Main article: Vehicle-to-grid
See also: Economy 7 and load balancing (electrical power)

A Smart grid allows BEVs to provide power to the grid, specifically:

  • During peak load periods, when the cost of electricity can be very high. These vehicles can then be recharged during off-peak hours at cheaper rates while helping to absorb excess night time generation. Here the batteries in the vehicles serve as a distributed storage system to buffer power.
  • During blackouts, as an emergency backup supply.

Lifespan[]

Battery life should be considered when calculating the extended cost of ownership, as all batteries eventually wear out and must be replaced. The rate at which they expire depends on the type of battery technology and how they are used — many types of batteries are damaged by depleting them beyond a certain level. Lithium-ion batteries degrade faster when stored at higher temperatures.

Future[]

The future of battery electric vehicles depends primarily upon the cost and availability of batteries with high specific energy, power density, and long life, as all other aspects such as motors, motor controllers, and chargers are fairly mature and cost-competitive with internal combustion engine components. Diarmuid O'Connell, VP of Business Development at Tesla Motors, estimates that by the year 2020 30% of the cars driving on the road will be battery electric or plug-in hybrid.[126]

Nissan CEO Carlos Ghosn has predicted that one in 10 cars globally will run on battery power alone by 2020.[127] Additionally a recent report claims that by 2020 electric cars and other green cars will take a third of the total of global car sales.[128]

It is estimated that there are sufficient lithium reserves to power 4 billion electric cars.[129][130]

Other methods of energy storage[]

Experimental supercapacitors and flywheel energy storage devices offer comparable storage capacity, faster charging, and lower volatility. They have the potential to overtake batteries as the preferred rechargeable storage for EVs.[131][132] The FIA included their use in its sporting regulations of energy systems for Formula One race vehicles in 2007 (for supercapacitors) and 2009 (for flywheel energy storage devices).

Solar cars[]

Main article: Solar taxi

Solar cars are electric cars that derive most or all of their electricity from built in solar panels. After the 2005 World Solar Challenge established that solar race cars could exceed highway speeds, the specifications were changed to provide for vehicles that with little modification could be used for transportation.

Charging[]

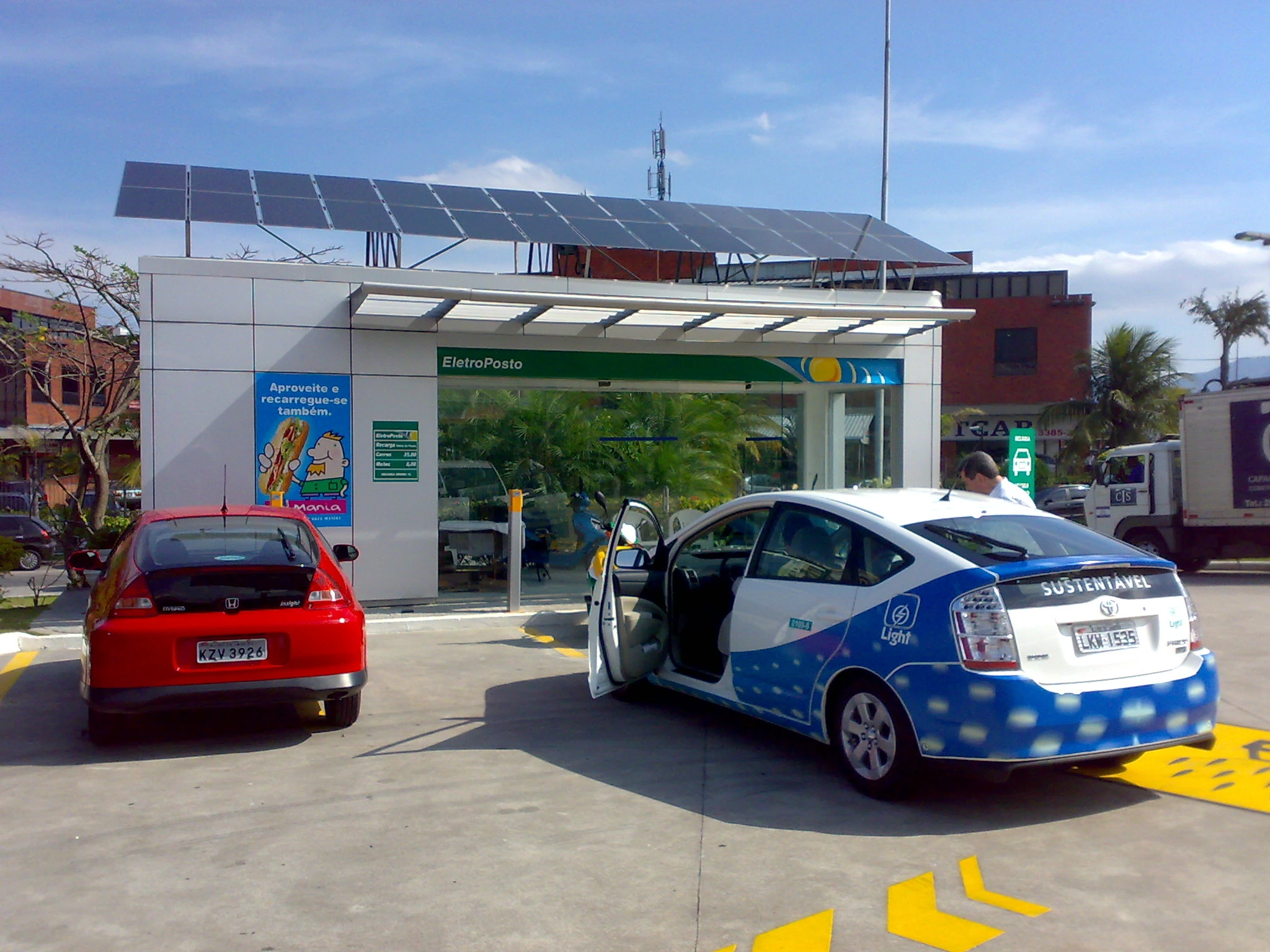

Eletroposto6

Charging station at Rio de Janeiro, Brazil. This station is run by Petrobras and uses solar energy.

Main article: charging station

Batteries in BEVs must be periodically recharged (see also Replacing, above).

Unlike vehicles powered by fossil fuels, BEVs are most commonly and conveniently charged from the power grid overnight at home, without the inconvenience of having to go to a filling station. Charging can also be done using a street or shop charging station.

The electricity on the grid is in turn generated from a variety of sources; such as coal, hydroelectricity, nuclear and others. Power sources such as roof top photovoltaic solar cell panels, micro hydro or wind may also be used and are promoted because of concerns regarding global warming.

Level 1, 2, and 3 charging[]

Around 1998 the California Air Resources Board classified levels of charging power that have been codified in title 13 of the California Code of Regulations, the U.S. 1999 National Electrical Code section 625 and SAE International standards.

Level Original definition[133] Coulomb Technologies' definition[134] Connectors
Level 1 AC energy to the vehicle's on-board charger; from the most common U.S. grounded household receptacle, commonly referred to as a 120 volt outlet. 120 V AC; 16 A (= 1.92 kW) SAE J1772 (16.8 kW),
ordinary household 120 volt outlet
Level 2 AC energy to the vehicle's on-board charger;208 - 240 volt, single phase. The maximum current specified is 32 amps (continuous) with a branch circuit breaker rated at 40 amps. Maximum continuous input power is specified as 7.68 kW (= 240V x 32A*). 208-240 V AC;
12 A - 80 A (= 2.5 - 19.2 kW)
SAE J1772 (16.8 kW),
IEC 62196 (44 kW),
Magne Charge (Obsolete),
Avcon,
IEC 60309 16 A (3.8 kW)
IEC 62198-2 Type2 same as VDE-AR-E 2623-2-2, also known as the Mennekes connector (43.5 kW)IEC 62198-2 Type3 also known as Scame
Level 3 DC energy from an off-board charger; there is no minimum energy requirement but the maximum current specified is 400 amps and 240 kW continuous power supplied. very high voltages (300-600 V DC); very high currents (hundreds of Amperes) Magne Charge (Obsolete)
CHΛdeMO (62.5 kW),

.* or potentially 208V x 37A, out of the strict specification but within circuit breaker and connector/cable power limits. Alternatively, this voltage would impose a lower power rating of 6.7 kW at 32A.

More recently the term "Level 3" has also been used by the SAE J1772 Standard Committee for a possible future higher-power AC fast charging standard.[135] To distinguish from Level 3 DC fast charging, this would-be standard is written as "Level 3 AC". SAE has not yet approved standards for either AC or DC Level 3 charging.[136]

For comparison in Europe the IEC 61851-1 charging modes are used to classify charging equipment. The provisions of IEC 62196 charging modes for conductive charging of electric vehicles include Mode 1 (max. 16A / max. 250V a.c. or 480V three-phase), Mode 2 (max. 32A / max. 250V a.c. or 480V three-phase), Mode 3 (max. 63A (70A U.S.) / max. 690V a.c. or three-phase) and Mode 4 (max. 400A / max. 600V d.c.).[137]

Connectors[]

Most electric cars have used conductive coupling to supply electricity for recharging after the California Air Resources Board settled on the SAE J1772-2001 standard[138] as the charging interface for electric vehicles in California in June 2001.[139] In Europe the ACEA has decided to use the Type 2 connector from the range of IEC_62196 plug types for conductive charging of electric vehicles in the European Union as the Type 1 connector (SAE J1772-2009) does not provide for three-phase charging.[140]

Another approach is inductive charging using a non-conducting "paddle" inserted into a slot in the car. Delco Electronics developed the Magne Charge inductive charging system around 1998 for the General Motors EV1 and it was also used for the Chevrolet S-10 EV and Toyota RAV4 EV vehicles.

Regenerative braking[]

Main article: Regenerative braking

Using regenerative braking, a feature which is present on many hybrid electric vehicles, approximately 20% of the energy usually lost in the brakes is recovered to recharge the batteries.[1]

Charging time[]

Smart ED charging WAS 2011 1123

Smart ED charging from a Level 2 station

More electrical power to the car reduces charging time. Power is limited by the capacity of the grid connection, and, for level 1 and 2 charging, by the power rating of the car's on-board charger. A normal household outlet is between 1.5 kW (in the US, Canada, Japan, and other countries with 110 volt supply) to 3 kW (in countries with 230V supply). The main connection to a house may sustain 10, 15 or even 20 kW in addition to "normal" domestic loads - though it would be unwise to use all the apparent capability - and special wiring can be installed to use this. As examples of on-board chargers, the Nissan Leaf at launch has a 3.3 kW charger[141] and the Tesla Roadster appears to accept 16.8 kW (240V at 70A) from the Tesla Home Connector.[142] These power numbers are small compared to the effective power delivery rate of an average petrol pump, about 5,000 kW. Even if the electrical supply power can be increased, most batteries do not accept charge at greater than their charge rate ("1C"), because high charge rates have an adverse effect on the discharge capacities of batteries.[143] Despite these power limitations, plugging in to even the least-powerful conventional home outlet provides more than 15 kilowatt-hours of energy overnight, sufficient to propel most electric cars more than 70 kilometres (43 mi) (see Energy efficiency above).

Faster charging[]

Some types of batteries such as Lithium-titanate, LiFePO4 and even certain NiMH variants can be charged almost to their full capacity in 10–20 minutes. Fast charging requires very high currents often derived from a three-phase power supply. Careful charge management is required to prevent damage to the batteries through overcharging.

Most people do not usually require fast recharging because they have enough time, six to eight hours (depending on discharge level) during the work day or overnight at home to recharge. BEV drivers frequently prefer recharging at home, avoiding the inconvenience of visiting a public charging station.

Hobbyists, conversions, and racing[]

Eliica

Eliica prototype

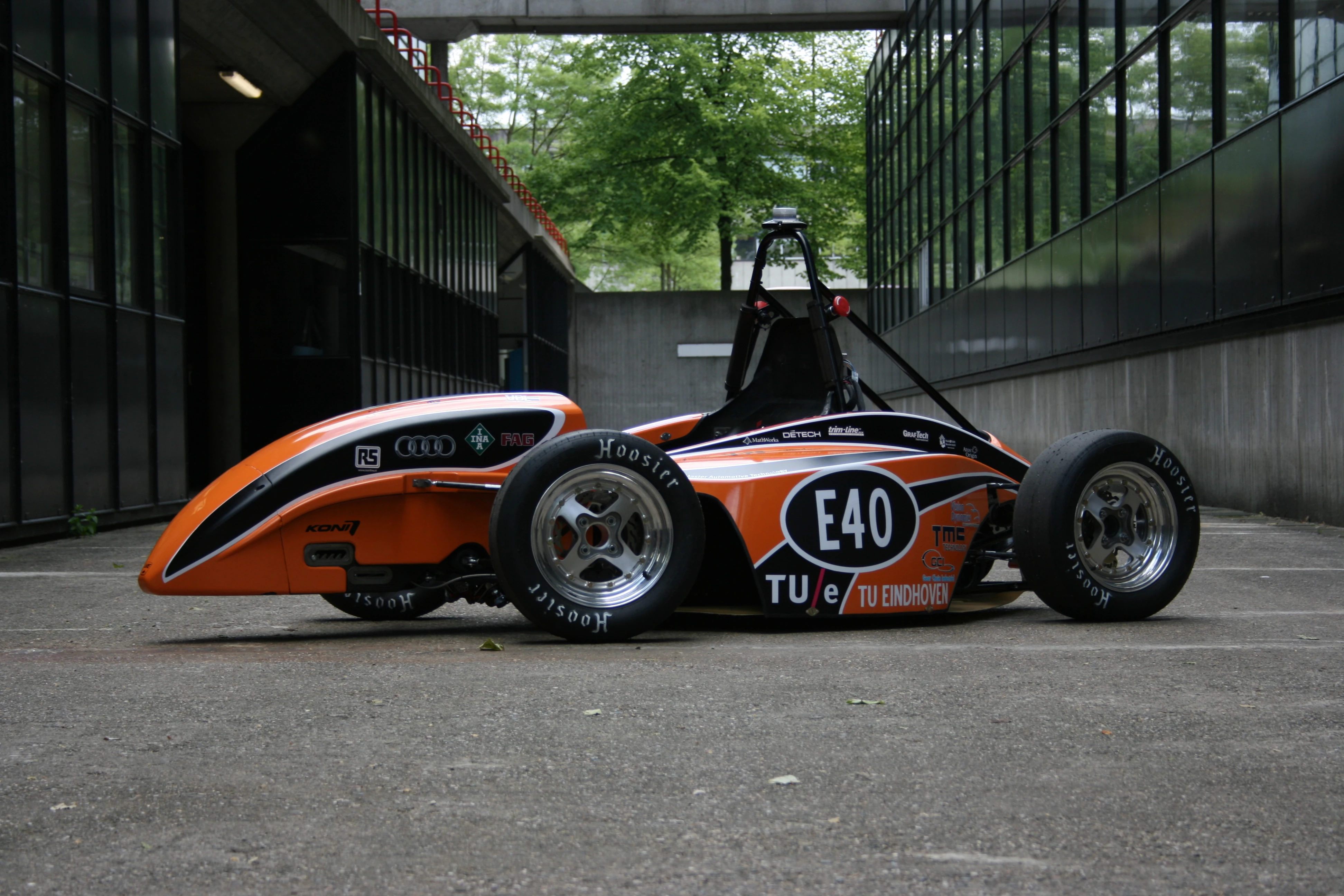

URE05e

The full electric Formula Student car of the Eindhoven University of Technology

Hobbyists often build their own EVs by converting existing production cars to run solely on electricity. There is a cottage industry supporting the conversion and construction of BEVs by hobbyists.[144] Universities such as the University of California, Irvine even build their own custom electric or hybrid-electric cars from scratch.

Short-range battery electric vehicles can offer the hobbyist comfort, utility, and quickness, sacrificing only range. Short-range EVs may be built using high-performance lead–acid batteries, using about half the mass needed for a 100 to 130 km (60 to 80 mi) range. The result is a vehicle with about a 50 km (30 mi) range, which, when designed with appropriate weight distribution (40/60 front to rear), does not require power steering, offers exceptional acceleration in the lower end of its operating range, and is freeway capable and legal. But their EVs are expensive due to the higher cost for these higher-performance batteries. By including a manual transmission, short-range EVs can obtain both better performance and greater efficiency than the single-speed EVs developed by major manufacturers. Unlike the converted golf carts used for neighborhood electric vehicles, short-range EVs may be operated on typical suburban throughways (where 60–80 km/h / 35-50 mph speed limits are typical) and can keep up with traffic typical on such roads and the short "slow-lane" on-and-off segments of freeways common in suburban areas.

Faced with chronic fuel shortage on the Gaza Strip, Palestinian electrical engineer Waseem Othman al-Khozendar invented in 2008 a way to convert his car to run on 32 electric batteries. According to al-Khozendar, the batteries can be charged with US$2 worth of electricity to drive from 180 to 240 km (110 to 150 mi). After a 7-hour charge, the car should also be able to run up to a speed of 100 km/h (60 mph).[145][146]

Japanese Professor Hiroshi Shimizu from Faculty of Environmental Information of the Keio University created an electric limousine: the Eliica (Electric Lithium-Ion Car) has eight wheels with electric 55 kW hub motors (8WD) with an output of 470 kW and zero emissions, a top speed of 370 km/h (230 mph), and a maximum range of 320 km (200 mi) provided by lithium-ion batteries.[147] However, current models cost approximately US$300,000, about one third of which is the cost of the batteries.

In 2008, several Chinese manufacturers began marketing lithium iron phosphate (LiFePO4) batteries directly to hobbyists and vehicle conversion shops. These batteries offered much better power-to-weight ratios allowing vehicle conversions to typically achieve 75 to 150 mi (120 to 240 km) per charge. Prices gradually declined to approximately US$350 per kW·h by mid 2009. As the LiFePO4 cells feature life ratings of 3,000 cycles, compared to typical lead acid battery ratings of 300 cycles, the life expectancy of LiFePO4 cells is around 10 years. This has led to a resurgence in the number of vehicles converted by individuals. LiFePO4 cells do require more expensive battery management and charging systems than lead acid batteries.[citation needed]

Electric drag racing is a sport where electric vehicles start from standstill and attempt the highest possible speed over a short given distance.[148] Organizations such as NEDRA keep track of records world wide using certified equipment.

Currently available electric cars[]

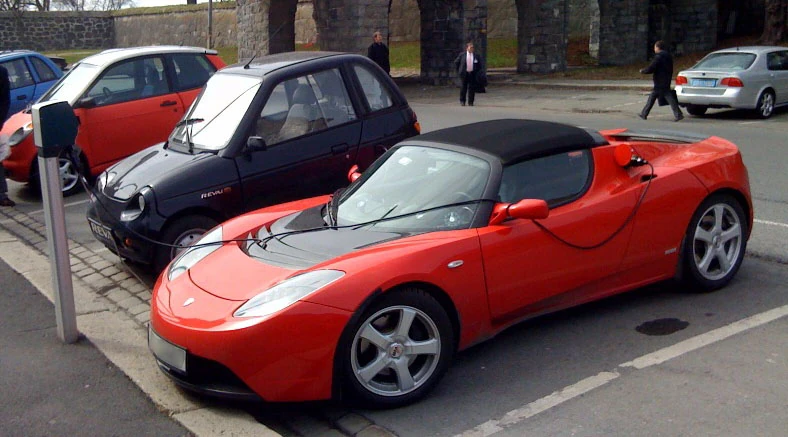

Tesla

Norway has the largest electric car ownership per capita in the world.[149] Shown a Tesla Roadster, a REVAi and a Th!nk City at a free parking and charging station in Oslo.

Main article: Currently available electric cars

Highway capable[]

Main article: List of production battery electric vehicles
See also: Cars planned for production and list of modern production plug-in electric vehicles

As of late 2011 the number of mass production highway-capable models available in the market is limited. Most electric vehicles in the world roads are low-speed, low-range neighborhood electric vehicles, led by the Global Electric Motorcars (GEM) vehicles, which as of December 2010 had sold more than 45,000 units worldwide since 1998.[150] As of November 2011, the world's top selling highway-capable electric cars are the Nissan Leaf, with more than 20,000 units sold worldwide by November 2011,[3] and the Mitsubishi i-MiEV, with global cumulative sales of more than 17,000 units through October 2011. The i MiEV sales include units rebadged in France as Peugeot iOn and Citroën C-ZERO for sale in Europe.[4]

Google Electric Car Seciurity 2008 2592452314 780b7871e1 o

The GEM neighborhood electric vehicle is the world's top selling electric vehicle, with 45,000 units sold through 2010.

As of November 2011, Japan and the United States are the largest highway-capable electric car markets in the world, followed by several European countries. In Japan, more than 13,000 electric cars have been sold by November 2011, including more than 8,000 Leafs[151] and 5,000 i-MiEVs.[152] In the U.S. electric car sales are led by the Nissan Leaf with 8,738 units sold through November 2011.[153] As of November 2011, Norway had 5,301 registered electric cars,[154] the largest fleet of PEVs in Europe and the largest EV ownweship per capita in the world.[149] By mid 2011, the UK had a fleet of almost 2,500 electric cars,[155] and Germany 2,307 units registered by January 1st, 2011.[156]

In the original 15 member states of the European Union, 5,222 electric cars were sold during the first half of 2011.[157] For year 2011 sales, the leading European countries are Norway with 2,042 electric cars registered through November 2011,[158] and France with 1,630 electric cars sold through October,[159] followed by Germany with 1,020 units sold through June,[157] the UK with 812 units until August,[160] and Austria with 347, Denmark with 283, and the Netherlands with 269 electric cars sold through June 2011.[157] A total of 314 electric cars have been registered in Spain through November 2011.[161]

There are also several pre-production models and plug-in conversions of existing internal combustion engine models undergoing field trials or are part of demonstration programs, such as the Mini E, Volvo C30 DRIVe Electric, Ford Focus Electric, and the RAV4 EV second generation.

Government subsidy[]

See also: Government incentives for plug-in electric vehicles

Several countries have established grants and tax credits for the purchase of new electric cars depending on battery size. The U.S. offers a federal income tax credit up to US$7,500,[19] and several states have additional incentives.[162] The U.K. offers a Plug-in Car Grant up to a maximum of GB£5,000 (US$7,600).[163][164] As of April 2011, 15 European Union member states provide economic incentives for the purchase of new electrically chargeable vehicles, which consist of tax reductions and exemptions, as well as of bonus payments for buyers of all-electric and plug-in hybrid vehicles, hybrid electric vehicles, and some alternative fuel vehicles.[165][166]

See also[]

El-v-01 ubt
Sustainable energy
Renewable energy
Anaerobic digestion · Hydroelectricity
Gasification of biomass · Geothermal
Solar · Tidal
Wave · Wind
Energy conservation
Cogeneration · Energy efficiency
Geothermal heat pump  · Green building
Passive Solar  · Microgeneration
Organic Rankine Cycle
Sustainable transport
Plug-in hybrids · Electric vehicles
Terra- edge blur Environment Portal
v · d · e
Portal-puzzle Sustainable development portal
  • Electric Vehicle Racing in UK
  • The Greenpower Challenge - EV racing for young people
  • Compressed air car
  • Electric car use by country
  • Electric boat
  • Electric bus
  • Electric motorcycles and scooters
  • Electric vehicle conversion
  • Hybrid electric vehicle (HEV)
  • List of production battery electric vehicles
  • Plug-in electric vehicle (PEV)
  • Plug-in hybrid (PHEV)
  • Solar Golf Cart
  • Tesla electric car
  • Patent encumbrance of large automotive NiMH batteries

References[]

  1. 1.0 1.1 1.2 1.3 1.4 1.5 1.6 1.7 Sperling, Daniel and Deborah Gordon (2009). Two billion cars: driving toward sustainability. Oxford University Press, New York, 22–26. ISBN 978-0-19-537664-7.  Cite error: Invalid <ref> tag; name "TwoBillion" defined multiple times with different content
  2. 2.0 2.1 2.2 (2009) in David B. Sandalow: Plug-In Electric Vehicles: What Role for Washington?, 1st., The Brookings Institution, 1–6. ISBN 978-0-8157-0305-1. See Introduction
  3. 3.0 3.1 Damon Lavrinc (2011-11-30). "Nissan sells 20,000 Leafs worldwide, 10,000 in U.S. by end of the year", AutoblogGreen. Retrieved on 2011-11-30.
  4. 4.0 4.1 Scott Doggett (2011-11-18). "Mitsubishi EV Earns Top EPA MPG Rank". Edmunds.com. Retrieved on 2011-11-30.
  5. "Should Pollution Factor Into Electric Car Rollout Plans?". Earth2tech.com (2010-03-17). Retrieved on 2010-04-18.
  6. "Electro Automotive: FAQ on Electric Car Efficiency & Pollution". Electroauto.com. Retrieved on 2010-04-18.
  7. Raut, Anil K., Role of electric vehicles in reducing air pollution: a case of Katmandu, Nepal, The Clean Air Initiative, http://www.cleanairnet.org/baq2003/1496/articles-58076_resource_1.doc. Retrieved on .
  8. (2010) Reinventing the Automobile: Personal Urban Mobility for the 21st Century, 1st., The MIT Press, 85–95. ISBN 978-0-262-01382-6.  See Chapter 5: Clean Smart Energy Supply.
  9. R. James Woolsey and Chelsea Sexton (2009). in David B. Sandalow: Chapter 1: Geopolitical Implications of Plug-in Vehicles, 1st, The Brookings Institution, 11–21. ISBN 978-0-8157-0305-1. in "Plug-in Electric Vehicles: What Role for Washington?"
  10. "High oil prices disastrous for developing countries". Mongabay (2007-09-12). Retrieved on 2010-07-20.
  11. "Impact of High Oil Prices on African Economies". African Development Bank (2009-07-29). Retrieved on 2010-07-20.
  12. National Research Council (2010). "Transitions to Alternative Transportation Technologies--Plug-in Hybrid Electric Vehicles". The National Academies Press. Retrieved on 2010-03-03.
  13. Loveday, Eric (2011-07-06). "Mitsubishi i-MiEV lineup expands for 2012 with cheaper "M" and extended-range "G" — Autoblog Green". Green.autoblog.com. Retrieved on 2011-07-21.
  14. Woodyard, Chris (2010-07-14). "Obama pushes electric cars, battery power this week", USA Today.
  15. "Freidman OpEd: China's 'Moon Shot' Versus America's".
  16. "Fact Sheet - Japanese Government Incentives for the Purchase of Environmentally Friendly Vehicles". Japan Automobile Manufacturers Association. Archived from the original on 2011-07-26. Retrieved on 2010-12-24.
  17. 17.0 17.1 Motavalli, Jim (2010-06-02). "China to Start Pilot Program, Providing Subsidies for Electric Cars and Hybrids", New York Times. Retrieved on 2010-06-02.  Cite error: Invalid <ref> tag; name "NYT0610" defined multiple times with different content
  18. "Growing Number of EU Countries Levying CO2 Taxes on Cars and Incentivizing Plug-ins". Green Car Congress (2010-04-21). Retrieved on 2010-04-23.
  19. 19.0 19.1 "Notice 2009-89: New Qualified Plug-in Electric Drive Motor Vehicle Credit". Internal Revenue Service (2009-11-30). Retrieved on 2010-04-01. Cite error: Invalid <ref> tag; name "IRS2009" defined multiple times with different content
  20. "electric automobile." Encyclopaedia Britannica Online. N.p., n.d. Web. 5 Oct. 2009..
  21. Kirsch, David A. (2000). The Electric Vehicle and the Burden of History. Rutgers University Press, 153–162. ISBN 9780813528090.
  22. "Electric Vehicles Attract Attention" (November 12, 1911). Retrieved on February 11, 2011.
  23. Bryce, Robert (25 April 2010). "5 Myths about green energy", pp. B4.
  24. Sherry Boschert (2006). Plug-in Hybrids: The Cars that will Recharge America. New Society Publishers, Gabriola Island, Canada, 15–28. ISBN 978-0-86571-571-4.
  25. See Who Killed the Electric Car? (2006)
  26. Thursday, July 1, 2010 (2011-01-19). "Millions Of Electric Miles". Tesla Motors. Retrieved on 2011-01-19.
  27. "Mitsubishi Motors Begins Production of i-MiEV; Targeting 1,400 Units in Fiscal 2009". Green Car Congress (2009-06-05). Retrieved on 2010-04-04.
  28. Kageyama, Yuri (2010-03-31). "Japanese Start Buying Affordable Electric Cars". Retrieved on 2010-04-24.
  29. Chang-Ran Kim (2010-03-30). "Mitsubishi Motors lowers price of electric i-MiEV", Reuters. Retrieved on 2010-04-25.
  30. "Mitsubishi Begins Sales of i-MiEV to Individuals in Hong Kong; First Individual Sales Outside of Japan". Green Car Congress (2010-05-20). Retrieved on 2010-05-21.
  31. "Mitsubishi Motors to Begin Shipping i-MiEV to Australia in July; 2nd Market Outside Japan". Green Car Congress (2010-06-02). Retrieved on 2010-06-02.
  32. Doggett, Scott (2010-12-11). "First Production Nissan Leaf Electric Vehicle Delivered to Customer". Edmunds.com. Retrieved on 2010-12-11.
  33. "Nissan delivers first Leaf in Japan", The Green Car Website (2020-12-22). Retrieved on 2010-12-23.
  34. Nissan (2010-12-11). "Nissan Makes History With Delivery of World's First 100% Electric Nissan LEAF to California Consumer". Retrieved on 2010-12-11.
  35. "Reduced CO2 Emissions Should Start With Electric Cars".
  36. "Why Electric Cars?".
  37. "Buyers loath to pay more for electric cars" (2010-09-19).
  38. "Future Global Market Demand for Hybrid and Battery Electric Vehicles May Be Over-Hyped; Wild Card is China" (2010-10-27).
  39. "Better Place's Renault Fluence EV to sell for under $20,000".
  40. "Toyota sees Tesla EV battery cost at 1/3", Reuters (2011-01-11).
  41. "Toyota Adopts Tesla Laptop Strategy for Electric Cars" (2010-12-08).
  42. "Tesla says Model S will be profitable thanks to cheaper batteries".
  43. 43.0 43.1 Henry Lee and Grant Lovellette (July 2011). "Will Electric Cars Transform the U.S. Vehicle Market?". Belfer Center for Science and International Affairs, Kennedy School of Government. Retrieved on 2011-08-07.
  44. Henry Lee and Grant Lovellette (July 2011). "WillElectricCars Transform the U.S. Vehicle Market?". Belfer Center for Science and International Affairs, Kennedy School of Government. Retrieved on 2011-08-07. Discussion Paper #2011-08.
  45. THINK's CEO Richard Canny. "Top 10 myths about electric vehicles — busted!".
  46. 09:56 PM (2007-06-23). "Tesla Motors Club Forum - FAQ". Teslamotorsclub.com. Retrieved on 2010-07-16.
  47. Abuelsamid, Sam (2009-01-17). "Tesla offers laundry list of new options, $12k prepaid battery replacement". Green.autoblog.com. Retrieved on 2010-07-16.
  48. Shai Agassi. (2009-02), Shai Agassi's bold plan for electric cars. Long Beach and Palm Springs, California: TED conference. Event occurs at 4m10s, http://www.ted.com/talks/shai_agassi_on_electric_cars.html. Retrieved on . "See we're bound by today's technology on batteries, which is about 120 miles if you want to stay within reasonable space and weight limitations. 120 miles is a good enough range for a lot of people. But you never want to get stuck. So what we added as a second element to our network is a battery swap system. You drive. You take your depleted battery out. A full battery comes on. And you drive on. You don't do it as a human being. You do it as a machine. It looks like a car wash. You come into your car wash. And a plate comes up, holds your battery, takes it out, puts it back in. Within two minutes you're back on the road. And you can go again. If you had charge spots everywhere, and you had battery swap stations everywhere, how often would you do it? And it ends up that you'd do swapping less times than you stop at a gas station. As a matter of fact, we add it to the contract. We said that if you stop to swap your battery more than 50 times a year we start paying you money because it's an inconvenience."
  49. Thomas, Ken (24 August 2010). "Obama's electric car champion". Retrieved on 7 December 2011.
  50. Carpenter, Susan (2010-03-30). "Nissan Leaf's promise: An affordable electric", Articles.latimes.com. Retrieved on 2010-04-18.
  51. 51.0 51.1 Erickson, Glenn (10 January 2009). "DVD Savant Review:Who Killed the Electric Car?". dvdtalk.com. Retrieved on 17 November 2009. See main article Who killed the electric car
  52. 52.0 52.1 "Electric Vehicle Charging Rate and Economics". PG&E. Retrieved on 2010-06-07.
  53. Andrew Simpson, Tesla Motors Vehicle Systems Engineer (2007-09-24). "Where the Rubber Meets the Road". Retrieved on 2008-02-22. “Mr. Simpson confirmed via email that "We do not quote station-to-wheel efficiency, but we do quote plug-to-wheel efficiency which includes all energy use downstream of the charging plug. For the most-recent 221 mi (356 km) range test, our plug-to-wheel efficiency was 336 Wh/mi."”
  54. 54.0 54.1 "Performance Statistics - 1999 General Motors EV1 w/NiMH" (PDF). United States Department of Energy, Office of Energy Efficiency and Renewable Energy (1999). Retrieved on 2009-04-25.
  55. Nick Bunkley (2010-11-22). "Nissan Says Its Electric Leaf Gets Equivalent of 99 M.P.G.", The New York Times. Retrieved on 2010-11-23.
  56. "Roadster / features and specs".
  57. "EV WORLDwire: Tesla Receives First Panasonic Lithium-ion Batteries". Evworld.com. Retrieved on 2010-07-16.
  58. "How the Tesla Roadster Works".
  59. "Tokyo battery swap trials".
  60. "Better Place, battery switch stations".
  61. "Is there really a need for a charging Infrastructure?".
  62. "Better Place, the solution".
  63. "Tesla’s Model S Battery Is Swappable, Just in Case", Reuters (2011-03-18). Retrieved on 2011-03-18.
  64. "Tesla Model S customers will be able to swap batteries at Tesla dealerships with the possibility to rent 300 mile batteries for longer trips.".
  65. "Better Place Extends Tokyo Trial for Additional Three Months".
  66. "Better Place to Bring Electric Taxi Program to the San Francisco Bay Area".
  67. "DC Fast Charger".
  68. "13 Key Questions and Answers about Nissan Leaf Battery Pack and Ordering".
  69. "The EV Project. The largest development of EVECOtalitys and charge infrastructure".
  70. "BP and ARCO to Install 45 Electric Car Fast Charging Stations as Part of EV Project".
  71. "ECOtality to create a pilot network of Blink DC fast charging stations". ECOtality (-2010-10-13). Retrieved on 2011-01-04.
  72. "The EV Project".
  73. "Nissan announces 49 kW quick charger for EVs".
  74. "Electric Power Monthly - Table 1.1. Net Generation by Energy Source". Eia.doe.gov. Retrieved on 2010-04-18.
  75. "CO2 Intensity". Eirgrid. Retrieved on 2010-12-12.
  76. Clark, Duncan (2009-07-17). "Real-time "CO2 intensity" site makes the case for midnight dishwashing", Guardian. Retrieved on 2010-12-12.
  77. "Wheel to Well Analysis of EVs" (PDF). MIT Electric Vehicle Team. MIT (April 2008). Retrieved on 2009-07-09.
  78. "Electric vehicles given thumbs up". Physorg (2010-05-19). Retrieved on 2010-10-15.
  79. 79.0 79.1 Palm, Erik (1 May 2009). "Study: Electric cars not as green as you think". CNET Networks. Retrieved on 2009-05-04.
  80. "Renault to sell electric cars for the same price as diesels | Motoring News". Honest John (2010-09-16). Retrieved on 2011-01-03.
  81. "Investigation into the Scope for the Transport Sector to Switch to Electric Vehicles and Plug-in Hybrid Vehicles". Department for Business Enterprise and Regulatory Reform: Department for Transport, UK (October 2008). Archived from the original on 2009-07-14. Retrieved on 2011-01-04.
  82. "Ricardo study finds electric and hybrid cars have a higher carbon footprint during production than conventional vehicles, but still offer a lower footprint over the full life cycle". Green Car Congress (2011-06-08). Retrieved on 2011-06-11.
  83. "Next: the Voltswagon?", Time. 1967-12-22, http://www.time.com/time/magazine/article/0,9171,899945,00.html. Retrieved on .
  84. Contact Wes Siler: Comment Email Facebook Twitter (2010-04-13). "Helsinki Metropolia University's RaceAbout". Jalopnik.com. Retrieved on 2011-12-06.
  85. Contact Mike Spinelli: Comment (2007-10-05). "Nissan Pivo 2". Jalopnik.com. Retrieved on 2011-12-06.
  86. "Charles Perry's Plug-In Hybrid Retrofit Kit". Gizmag.com. Retrieved on 2011-12-06.
  87. Hedlund, R. (November 2008). "The Roger Hedlund 100 MPH Club". National Electric Drag Racing Association. Retrieved on 9009-04-25.
  88. "Roadster Sport 2.5 Specifications".
  89. "Wrightspeed X1 Prototype Overview".
  90. "Wrightspeed X1 Specifications".
  91. "X1 Prototype Videos".
  92. 92.0 92.1 Shah, Saurin D. (2009). "2", Plug-In Electric Vehicles: What Role for Washington?, 1st, The Brookings Institution, 29, 37 and 43. ISBN 9780815703051.
  93. "Full Size Electric Vehicles". Idaho National Laboratory (30 May 2006). Retrieved on 2009-04-25.
  94. "Energy Efficiency of Tesla Electric Vehicles". Tesla Motors. Retrieved on 2009-04-25.
  95. General Motors (2011-01-19). "Detroit First Responders Get Electric Vehicle Safety Training", General Motors News. Retrieved on 2011-11-12.
  96. "General Motors Kicks Off National Electric Vehicle Training Tour For First Responders". Green Car Congress (2010-08-27). Retrieved on 2011-11-11.
  97. General Motors (2011-03-31). "First Responder Vehicle Guides". U.S. Fire Administration. Retrieved on 2011-11-12.
  98. David Welch (2011-12-01). "GM’s Volt Battery Fires Threaten to Disrupt ‘Moon Shot’: Cars", Bloomberg Businessweek. Retrieved on 2011-12-08.
  99. Christopher Jensen (2011-11-11). "Chevy Volt Fire Prompts Federal Investigation Into Lithium-Ion Batteries", The New York Times. Retrieved on 2011-11-11.
  100. 100.0 100.1 Jeff Green, David Welch and Angela Greiling Keane (2011-11-11). "GM Volt Fire Prompts Probe of Lithium Batteries", Bloomberg. Retrieved on 2011-11-11.
  101. Nick Bunkley (2011-11-11). "Batteries in Electric Cars Examined After Chevy Volt Fire", The New York Times. Retrieved on 2011-11-11.
  102. Nick Bunkley (2011-11-25). "Formal Defect Inquiry of Volt Battery Begins", The New York Times. Retrieved on 2011-11-27.
  103. Tim Dobbyn (2011-11-25). "U.S. opening formal probe into GM Volt fire risk", Reuters. Retrieved on 2011-11-27.
  104. National Highway Traffic Safety Administration (2011-11-25). "Defect Investigations Results - NHTSA Action Number : PE11037". Safercar.com. Retrieved on 2011-11-27.
  105. Bill Vlasic and Nick Bunkley (2011-12-07). "G.M. Re-examines Volt as Safety Concerns Rise", The New York Times. Retrieved on 2011-12-08.
  106. (2002-08) Effectiveness and impact of .... Books.google.com.au. ISBN 9780309076012. Retrieved on 2009-10-17.
  107. Ehsani, Mehrdad (2005). Modern electric, hybrid electric ... - Google Books. Books.google.com.au. ISBN 9780849331541. Retrieved on 2009-10-17.
  108. "Vehicle Weight, Fatality Risk and Crash Compatibility of Model Year 1991-99 Passenger Cars and Light Trucks" (PDF). National Highway Traffic Safety Administration (October 2003). Retrieved on 2009-04-25.
  109. Low-rolling-resistance tires. November 2007, http://www.consumerreports.org/cro/cars/tires-auto-parts/tires/low-rolling-resistance-tires-8-06/overview/0608_low-rolling-resistance-tires_ov.htm. Retrieved on .  (subscription required for full access)
  110. Crowe, Paul (21 July 2008), Low Rolling Resistance Tires Save Gas, http://horsepowersports.com/low-rolling-resistance-tires-save-gas/. Retrieved on .
  111. "Planned EU Requirements for Tires Would Reduce Road Traffic Safety". Continental AG (12 November 2007). Retrieved on 7 December 2011.
  112. Shunk, Chris (2010-05-21). "IIHS condemns use of mini trucks and low-speed vehicles on public roads". Green.autoblog.com. Retrieved on 2010-10-15.
  113. Nuckols, Ben (3 March 2007). "Blind people: Hybrid cars pose hazard", USA Today. Retrieved on 2009-05-08.
  114. 114.0 114.1 114.2 "Electric cars and noise: The sound of silence", Economist (7 May 2009). Retrieved on 2009-05-08.
  115. David Shepardson (2011-01-04). "Obama signs law to require 'quiet' cars to get noisier", The Detroit News. Retrieved on 2011-01-05.
  116. "TMC to Sell Approaching Vehicle Audible System for 'Prius'". Toyota Motor Company News Release (2010-08-24). Retrieved on 2010-08-25.
  117. Jim Motavalli (2010-06-01). "Electric Car Warning Sounds: Don’t Expect Ring Tones", New York Times. Retrieved on 2010-06-02.
  118. "Ford Focus BEV - Road test". Autocar.co.uk. Retrieved on 2011-01-03.
  119. Electrical PTC heating device, 30 March 1999
  120. "2010 Options and Packages". Toyota Prius. Toyota. Retrieved on 2009-07-09.
  121. Ian Clifford, CEO of ZENN Motors, in Discovery Channel's Green Wheels episode 1
  122. "Better Place Launches First Battery Switch Station in Israel", Automobile Magazine (2011-04-01). Retrieved on 2011-05-06.
  123. Eric Loveday (2011-03-03). "Renault, Better Place launch "unlimited mileage" electric car in Copenhagen for $38,000-plus". AutoblogGreen. Retrieved on 2011-05-06.
  124. "Better Place. The Renault Fluence ZE". Better Place (2010-10-22). Retrieved on 2010-10-22.
  125. "BIT Attends the Delivery Ceremony of the 2008 Olympic Games Alternative Fuel Vehicles". Beijing Institute of Technology (18 July 2008). Retrieved on 2009-07-13.
  126. O'CONNELL, VP TESLA MOTORS, DIARMUID, DAN NEIL, and Dan Rather, hosts. "Electric Cars." DAN RATHER REPORTS GLOBAL CORRESPONDENT . CQ-Roll Call Group. 9 Sept. 2009. Gale Virtual Reference Library. Web. Transcript. 5 Oct. 2009.
  127. "/ Reports - Electric and hybrid: Sales feed off hype and subsidy". Ft.com (2010-10-01). Retrieved on 2010-10-15.
  128. "Electric Vehicles to represent a third of global sales by 2020: Deloitte".
  129. "Learn About Lithium – In 10 Bullet Points". ElectroVelocity (2010-12-13). Retrieved on 2011-01-03.
  130. Smith, Michael (2009-12-07). "Lithium for 4.8 Billion Electric Cars Lets Bolivia Upset Market". Bloomberg. Retrieved on 2011-01-03.
  131. Schindall, Joel (November 2007), "The Charge of the Ultra - Capacitors Nanotechnology takes energy storage beyond batteries", IEEE Spectrum, http://spectrum.ieee.org/green-tech/advanced-cars/the-charge-of-the-ultra-capacitors. Retrieved on .
  132. "Public hearing to consider proposed amendments to the california zero emission vehicle regulations regarding treatment of majority owned small or intermediate volume manufacturers and infrastructure standardization". California Air Resources Board (2001-06-26). Retrieved on 2010-05-23.
  133. "FAQ: Standards - ChargePoint Network". ChargePoint Network. Coulomb Technologies. Retrieved on 2010-05-23.
  134. David Herron (2010-07-30). "Electric vehicle charging standards". visforvoltage.org. Retrieved on 2010-08-19.
  135. Gartner, John (2010-08-03). "Fast Vehicle Charging Goes by Many Names". PluginCars.com. Retrieved on 2010-08-19.
  136. "IEC61851 Part 1: Charging of electric vehicles up to 250 A a.c. and 400 A d.c.", Table 1 "Modes and permissible connections specified in 61851-1, First Edition 2003-04, IEC
  137. "Rulemaking: 2001-06-26 Updated and Informative Digest ZEV Infrastructure and Standardization". title 13, California Code of Regulations. California Air Resources Board (2002-05-13). Retrieved on 2010-05-23. “Standardization of Charging Systems”
  138. California Air Resources Board (2001-06-28). "ARB Amends ZEV Rule: Standardizes Chargers & Addresses Automaker Mergers", http://www.arb.ca.gov/newsrel/nr062801.htm. Retrieved on . "the ARB approved the staff proposal to select the conductive charging system used by Ford, Honda and several other manufacturers"
  139. "ACEA position and recommendations for the standardization of the charging of electrically chargeable vehicles", ACEA Brussels, 14 June 2010
  140. Nick Chambers (2010-05-27). "Nissan LEAF Will Include Fast Charge Capability and Emergency Charging Cable at Launch". gas2.org. Retrieved on 2010-06-13.
  141. "Electric Vehicle Charging Solutions". Tesla Motors. Retrieved on 2010-06-13.
  142. Buchmann, Isidor (November 2006). "The high-power lithium-ion". BatteryUniversity.com (sponsored bv Cadex Electronics). Retrieved on 2009-04-25.
  143. Franz, Paul. "Turning Old Gas Guzzlers into Electric Vehicles", TIME. Retrieved on 2011-06-17.
  144. Dalloul, Motasem (29 May 2008). "Gaza Cars From Cooking Oil to Batteries". IslamOnline. Retrieved on 2009-04-27.
  145. "Gaza Engineers Offer Alternative To Gaza Fuel Crisis". infolive.tv (21 August 2008). Retrieved on 2009-04-27.
  146. "Video at eliica.com" (in Japanese and English mixed). Eliica.
  147. Concept Or Not, Peugeot EX1 Is One Fast EV 0-60mag. Accessed: 6 January 2011.
  148. 149.0 149.1 Agence France-Presse (2011-05-15). "Electric cars take off in Norway", The Independent. Retrieved on 2011-10-09.
  149. "Chrysler launches the 2011 GEM line". Green Car Congress (2011-01-07). Retrieved on 2011-04-04.
  150. Brad Berman (2011-11-17). "Global Nissan LEAF SalesEclipse 17,000". PluginCars.com. Retrieved on 2011-12-04.
  151. Mitsubishi Motors Corporation (2011-11-24). "Mitsubishi Motors to Launch New MINICAB-MiEV Commercial Electric Vehicle in Japan". MMC Press Release. Retrieved on 2011-12-06.
  152. John Voelcker (2011-12-01). "November Plug-In Car Sales: Volt Sparks, Leafs Fall". Green Car Reports. Retrieved on 2011-12-04.
  153. Norwegian Road Federation (OFV). "Statistikk-Ladbare biler i Norge" (in Norwegian). Gronnbil. Retrieved on 2011-12-05. See "Anslag nov 2011" on the table at the left.
  154. Will Nichols (2011-07-25). "Electric car sales fell by half in second quarter", The Guardian. Retrieved on 2011-10-09.
  155. "Berlin plans powerful spark for electric car sector", Deutsche Welle (2011-05-17). Retrieved on 2011-10-09.
  156. 157.0 157.1 157.2 David Jolley (2011-09-26). "Incentives fail to boost electric car market in Europe". Automotive News Europe. Retrieved on 2011-10-05.
  157. Per Erlien Dalløkke (2011-12-01). "Rekordsalg av elbiler (Record Sales of electric cars)" (in Norwegian). Tu.no. Retrieved on 2011-12-05.
  158. Autoactu.com (2011-11-28). "Chiffres de vente & immatriculations de voitures électriques en France (Sales figures & electric car registrations in France" (in French). Automobile Proper. Retrieved on 2011-12-06.
  159. "Electric car sales fall flat", Auto Express (2011-09-12). Retrieved on 2011-10-08.
  160. "Sólo 314 coches eléctricos se han vendido en España" (in Spanish), El Mundo (2011-12-07). Retrieved on 22011-12-08.
  161. "State and Federal Incentives for EVs, PHEVs and Charge Stations". Plug In America. Retrieved on 2010-05-29.
  162. Paul Hudson (2010-02-28). "£5,000 grant to buy plug-in electric cars", The Daily Telegraph. Retrieved on 2010-04-23.
  163. "Ultra-low carbon cars: Next steps on delivering the £250 million consumer incentive programme for electric and plug-in hybrid cars". Department for Transport (July 2009). Retrieved on 2010-04-23.
  164. Paul Hockenos (2011-07-29). "Europe’s Incentive Plans for Spurring E.V. Sales", The New York Times. Retrieved on 2011-07-31.
  165. "Overview of Purchase and Tax Incentives for Electric Vehicles in the EU". European Automobile Manufacturers Association (2011-03-14). Archived from the original on 2011-06-01. Retrieved on 2011-07-31.

External links[]

Wiktionary-logo-en
Look up electric car in
Wiktionary, the free dictionary.

Organizations[]

Smallwikipedialogo This page uses some content from Wikipedia. The original article was at Electric car. The list of authors can be seen in the page history. As with Tractor & Construction Plant Wiki, the text of Wikipedia is available under the Creative Commons by Attribution License and/or GNU Free Documentation License. Please check page history for when the original article was copied to Wikia


Advertisement
