 Dutra logo | |
| Fate | merged/restructured |
|---|---|
| Predecessor | HSCS |
| Successor | RABA |
| Founded | ? |
| Headquarters | Budapest, Hungary |
| Area served |
Eastern Block UK Europe |
| Industry | Manufacturing |
| Products |
Tractors Loaders |
DUTRA Tractor Works also known as ´´Red Star Tractorworks´´ was a Hungarian builder of tractors. Based in Budapest, Hungary, the company manufactured tractors from 1957-1975. DUTRA was an acronym for DUmper TRActor. Previously, the company was known as HSCS (Hofherr Schranz Clayton and Shuttelworth), or simply HSCS, which was related to Hoffer-Schranz, Hofherr HSCS. It later evolved into what is today RÁBA.
Markets[]
Small numbers ( about 200 ) were exported to the UK and all around Europe in the 1960's and 70´s. Largest importer was East Germany with a number of 4500 pieces of D4K and D4K-B. Sweden has imported about 120 Dutras, and 65 still remaining. Cuba has also imported about 120 pieces of D4K between 1960 and 1963. They were also exported to New Zealand.[1] They were imported under the name DUTRA-LeRobuste in France.
With some cooperation from Steyr, there was a DUTRA Steyr model(s) built in 1968 using a Steyr WD 610 6 cylinder engine.
Company history[]
add details here
Model range[]
| Model | Year(s) Produced | Horsepower | Engine Type | Photo | Misc Notes |
|---|---|---|---|---|---|
| DUTRA D4K 4WD | 1960-1965 | 65 HP | Csepel DT414 |
|
|
| DUTRA D4K-B 4WD | 1964-1972 | 90 HP | Csepel DT 614 |
|
|
| DUTRA D4K-70 4WD | 1960 (was only prototype) | 70 HP | Csepel DT 414 |
|
|
| DUTRA D4K 1000 4WD | 90 hp (67 kW) | Csepel DT 614 |
|
||
| DUTRA D4K-B 4WD | 100 horsepower (75 kW) 125 horsepower (93 kW) | Perkins/Csepel UK market. Models mainly used a Perkins engine. |
 |
The tractor was notable for the engine forward (nose heavy) design which when using a mounted implement gave near perfect balance and maximum traction. | |
| DUTRA UE-28 4WD | 1959-1972 | 28 | Csepel DT 213 C / Csepel EDT 123 |
|
For UK market was delivered with 3 cylinder Perkins 35 HP engine as well. |
| DUTRA Le Robuste D4K-B 4WD | Csepel or Steyr | ||||
| DUTRA Le Robuste 120 4WD | 120 hp (89 kW) | Steyr | |||
| DUTRA U-28 | 57 hp (43 kW) | ||||
| DUTRA UB-28 | |||||
| DUTRA UE-28 | 57 hp (43 kW) |  |

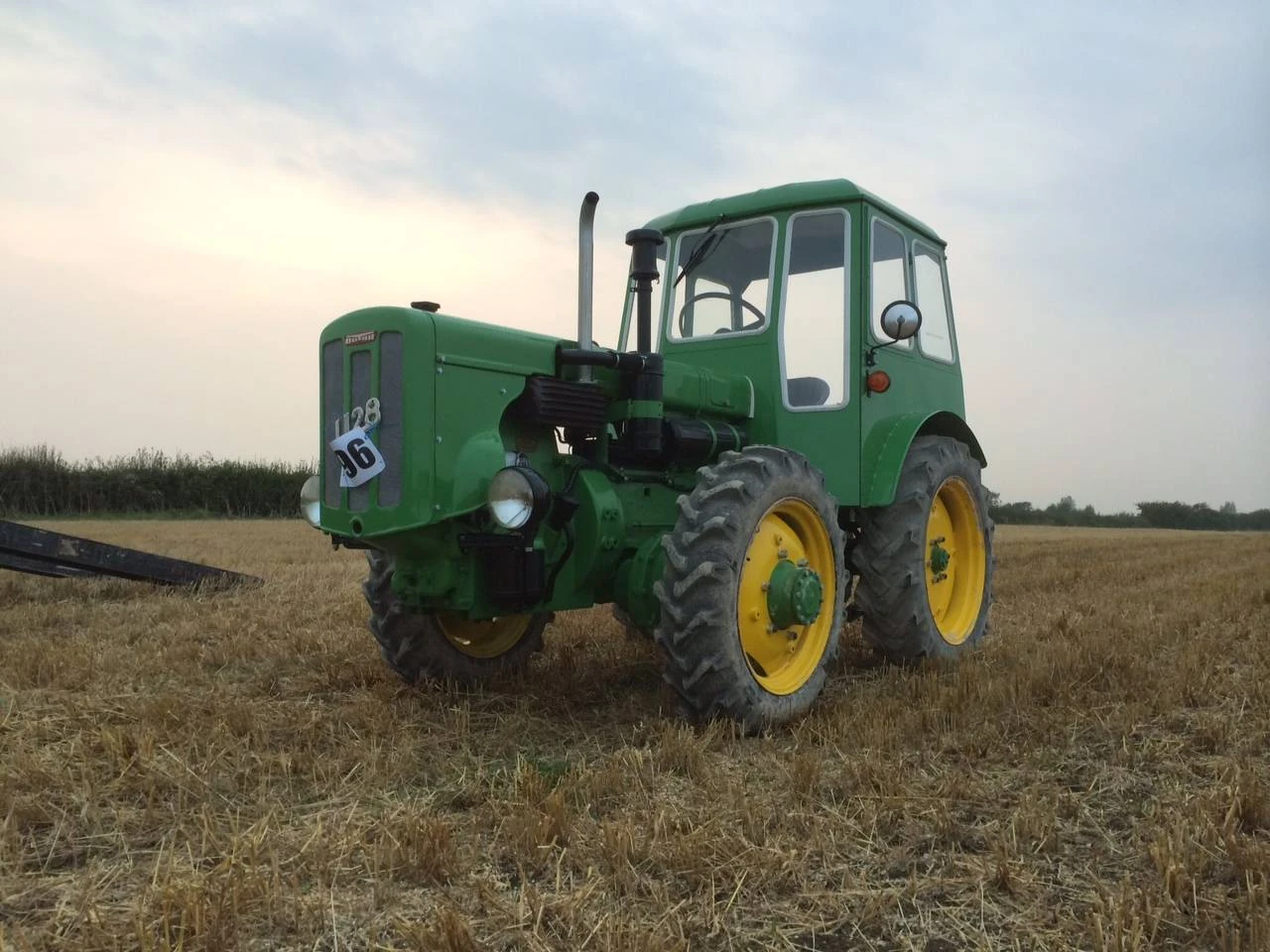

A restored UE-28 in the UK | ||
| DUTRA Robuste UE 40 4WD | Csepel | ||||
| DUTRA UE-50 4WD | 1967-68 | 65 hp (48 kW)55 | Csepel Dt 413 |
Also known as Dutra-4400 | |
| Dutra ? | |||||
| DUTRA Le Robuste UE-65 4WD | Csepel | ||||
| DUTRA UH-40 | Csepel | ||||
| DUTRA 1100 | 1972 (prototype ) | 110 hp (82 kW) 110 | Csepel DT 615 | ||
| DUTRA 1300 4WD (Prototype) | 1973 | 130 hp (97 kW) | RÁBA 5 Cylinder | ||
| DUTRA 4010 | 35 hp (26 kW) | Csepel | |||
| DUTRA 4020 | 35 hp (26 kW) | Csepel | |||
| DUTRA Le Robuste UE 4400 4WD | |||||
| DUTRA 4620 | 90 hp (67 kW) | Csepel | |||
| DUTRA 4650 | Csepel | ||||
| DUTRA 4652 | 90 hp (67 kW) | Csepel | |||
| DUTRA 4654 | 110 hp (82 kW) | Csepel |
| Model | Year(s) Produced | Horsepower | Engine Type | Photo | Misc Notes |
|---|---|---|---|---|---|
| DUTRA Steyr 110 4WD | ? | 105 hp (78 kW) | Steyr |  |
Gallery[]
Preservation[]
There are a few examples about on the UK tractor preservation circuit.
| Make + Model No. | Reg No. (if known) |
Serial No. | Build-Date | Engine-Type/Make | Owner (if known) |
Photo | Were seen/Featured in | Other info |
|---|---|---|---|---|---|---|---|---|
| Dutra-Steyr | ? | ? | ? | Steyr | ? |
|
At Newark Vintage Tractor and Heritage Show 2011 | |
| Dutra D4K-B | SEB 171K+ | sn ? | year | Perkins A6.354 | ? |
|
At Newark Tractor & Heritage Show 2012 | Restored by owner |
|
|
||||||||
|
|
||||||||
| Please add any tractor with known reg or serial no. with Photo if possible. | ||||||||
| Create a page (link) for an individual tractor by linking the reg or serial number using reg number or serial number in the relevant column. Then once saved click the red link to start the new page and add info on that tractor. | ||||||||
