| Founded | 1984 |
|---|---|
| Headquarters | Sieradz, Poland |
| Industry | agriculture machinery |
| Website | http://www.traktor.pl/ |
Crystal Traktor Sp. z.o.o., now Crystal Agropoland S.A. (CAS), was founded in 1984 in Sieradz, Poland, and began building tractors in the 1990s. Tractors are built of various components and use Deutz AG, ZTS and Sisu engines. Ursus assembled early models which were mostly designed by Zetor, and re-badged them as Zetor Crystal or Crystal Zetor. These were assembled in either Poland by Ursus, or in Czechoslovakia by Zetor. A number of the 100 hp + models were sold under the Zetor Crystal brand in the UK market by Zetor UK (Skoda).
History[]
The company was established in 1983, and at the very beginning it produced spare parts for industry and agriculture. The next few years brought constant development and special technological solutions, which made Crystal the biggest private manufacturer of spare parts for agricultural tractors in the 90s. The company was selling spare parts with eighteen branches all over the country and also cooperated with dealers and large warehouses both in Poland and abroad. Currently, they still produce spare parts such as gear boxes, front and rear driving axle components, clutches and hydraulic pumps. Generally, they produce eighty-five hundreds pieces of different spare parts and tractors components.
In 1995, on the basis of their own spare parts and experience, Crystal started producing of tractors under the brand name Crystal. Crystal Tractor concentrates its production on the components, which are widely used by other tractors manufacturers.
Te first Crystals with 120 hp (89 kW), 155 hp (116 kW) and 180 hp (130 kW) were built using Slovak Republic components, such as engine, transmission and the front axles and our own including rear axles, clutches, construction elements and design. Those Crystal tractors had the same technical parameters and look as Ursus, Zetor and ZTS tractors.
Since the end of the 90s, Crystal began to produce tractors with the power of 230 hp (170 kW) and 260 hp (190 kW), entirely built on German components, which assured a high quality and greater functionality. In 2000, Crystal Tractor worked out its own new design and launched its own cabin, which after some technical modernization, is still used in production.

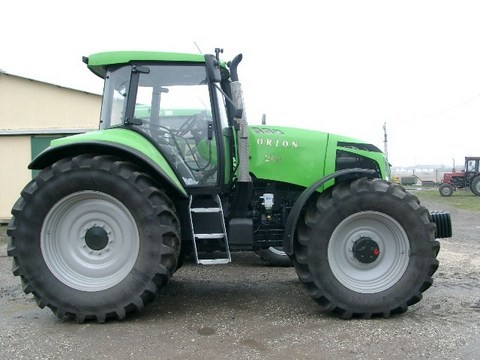

The latest ORION tractors are equipped with the Common Rail engine system, which has a very low emissions, adhering to EURO III standards, low fuel consumption and long vitality and reliability. This engine has a high torque at the low revs and achieves great flexibility and power increase, due to the electronically regulated injection system.
The main advantage of these engines is an application of the drive transfer system of the German company ZF. The gear box ensures high functionality and effectiveness of operation, because it has 36 or 40 shifts forward and 12 or 40 backward within the range of 0,3 – 50km per hour. The Power Shuttle system enables triple or quadruple gear change under the load and the change of driving direction without using a clutch.
Models[]
| Model | Year(s) of Produced | Horsepower | Engine Type | Misc Notes | Photo |
|---|---|---|---|---|---|

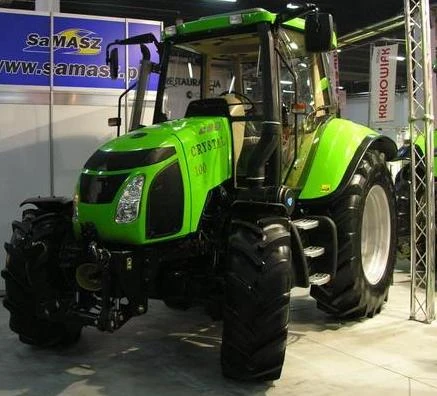

| Crystal 100 | 100 hp (75 kW) |
| |||
| Crystal 107 | Deutz | ||||
| Crystal 120 | |||||
| Crystal 121 | 121 hp (90 kW) | ||||
| Crystal 121 SZ |
| ||||
| Crystal 127 | Deutz | ||||
| Crystal 140 | |||||
| Crystal 147 | Deutz | ||||
| Crystal 160 | 160 hp (120 kW) |
| |||

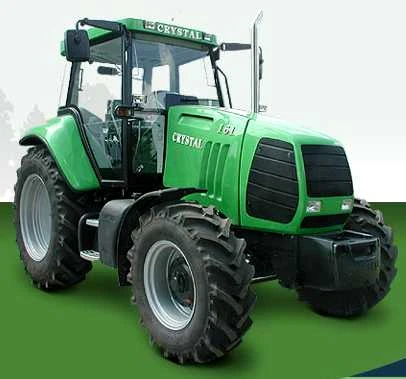

| Crystal 161 | 160 hp (120 kW) |
| |||

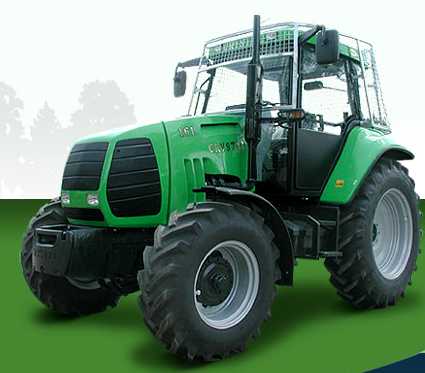

| Crystal 161L | 160 hp (120 kW) |
| |||

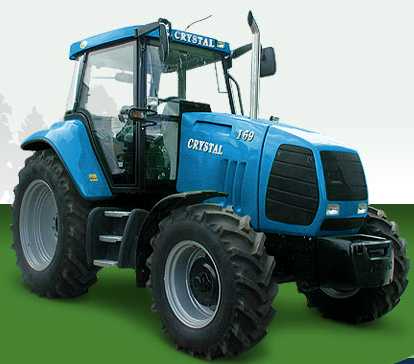

| Crystal 169 |
| ||||

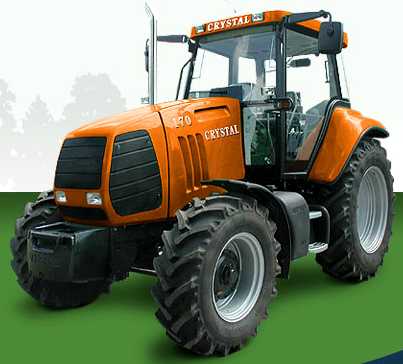

| Crystal 170 | 170 hp (130 kW) | Deutz |
| ||
| Crystal 170L | 254 hp (189 kW) | Deutz | |||

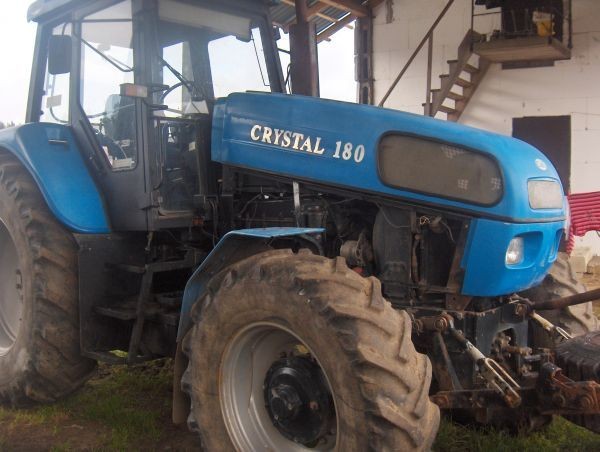

| Crystal 180 | 180 hp (130 kW) |
| |||

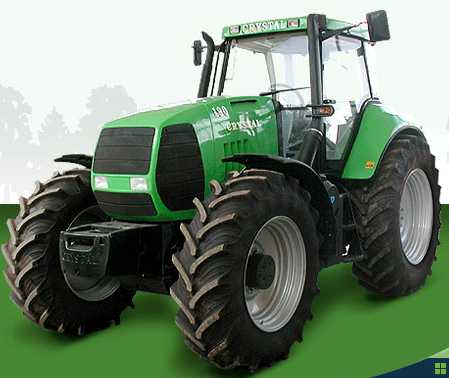

| Crystal 190 | 190 hp (140 kW) |
| |||
| Crystal 230 | 230 hp (170 kW) | Deutz/ZTS |
| ||

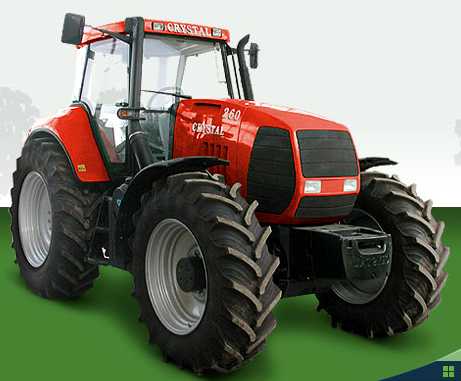

| Crystal 260 | 260 hp (190 kW) | Deutz |
| ||
| Crystal 1014 | |||||
| Crystal 1224 | |||||
| Crystal 1614 | |||||
| Crystal Orion 10 | 129 hp (96 kW) | Sisu | |||
| Crystal Orion 12 | |||||

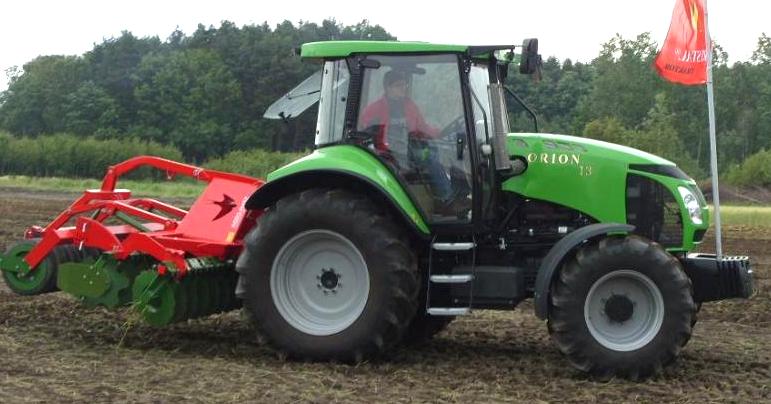

| Crystal Orion 13 | 155 hp (116 kW) | Deutz |
| ||
| Crystal Orion 16 | Sisu | ||||
| Crystal Orion 16.1 | 218 hp (163 kW) | Sisu | |||
| Crystal Orion 16.2 | 250 hp (190 kW) | Sisu | |||
| Crystal Orion 17 | Deutz | ||||
| Crystal Orion 18 | 186 hp (139 kW) | Deutz | |||
| Crystal Orion 21 | Deutz | ||||
| Crystal Orion 25.2 | 307 hp (229 kW) | ||||
| Crystal Orion 25.3 | 330 hp (250 kW) | ||||
| Crystal Orion 130 | 130 hp (97 kW) | Deutz | |||
| Crystal Orion 160 | 160 hp (120 kW) | Deutz | |||
| Crystal Orion 190 | 190 hp (140 kW) | Deutz | |||
| Crystal Orion 230 | 230 hp (170 kW) | Deutz | |||
| Crystal Orion 260 | 260 hp (190 kW) | Deutz |
| ||
| Crystal Orion 285 | 285 hp (213 kW) | Deutz |
Zetor Crystal[]
| Model | Year(s) Produced | Horsepower | Engine Type | Misc Notes | Photo |
|---|---|---|---|---|---|
| Zetor Crystal 100-45 | |||||
| Zetor Crystal 8011 | 80 hp (60 kW) |
| |||
| Zetor Crystal 8011 S | 80 hp (60 kW) | ||||
| Zetor Crystal 8045 | 80 hp (60 kW) |
| |||
| Zetor Crystal 8111 | |||||
| Zetor Crystal 8145 | |||||
| Zetor Crystal 10011 | 110 hp (82 kW) |
| |||
| Zetor Crystal 10045 (Master) | 110 hp (82 kW) |
| |||
| Zetor Crystal 10111 (Master) | 100 hp (75 kW) | ||||
| Zetor Crystal 10145 | 100 hp (75 kW) | ||||
| Zetor Crystal 10645 | |||||

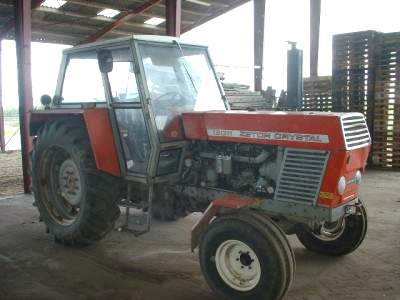

| Zetor Crystal 12011 | 115 hp (86 kW) |
| |||

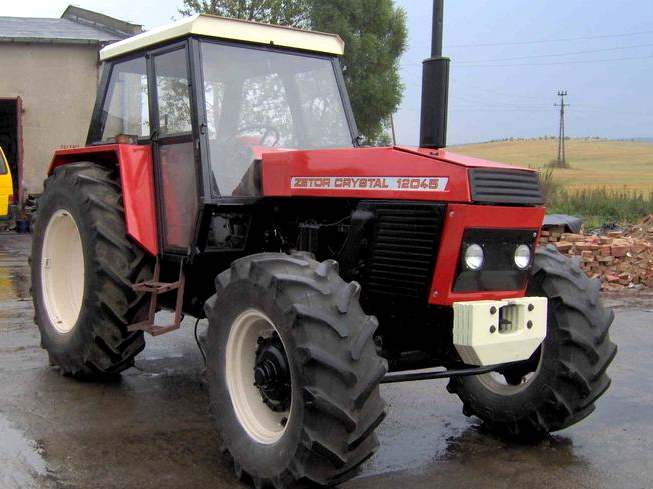

| Zetor Crystal 12045 | 115 hp (86 kW) |
| |||
| Zetor Crystal 12145 | 105 hp (78 kW) | ||||
| Zetor Crystal 16045 | 160 hp (120 kW) |
| |||

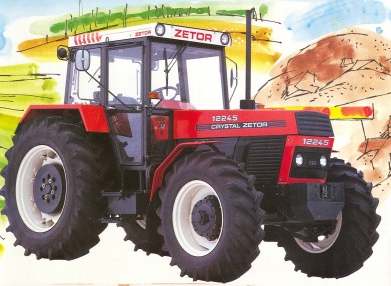

| Crystal Zetor 12245 | 115 hp (86 kW) |
|
UK tractors[]
- Add details of any UK Crystal tractors here;
