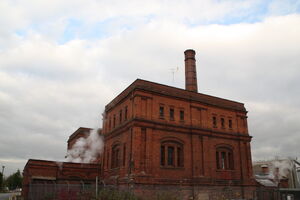

Claymills Pumping Station from west side - IMG 5236

The buildings from the West side

Claymills C engine beam and Watts linkage - IMG 5097

The beam of engine C from the top floor, with travelling maintenance gantry crane in the background

Claymills Pumping Station is a restored Victorian steam operated sewage pumping station on the north side of Burton upon Trent, Staffordshire, England. It was designed by James Mansergh and used to pump sewage several miles to the sewage works farm at Etwall, near Derby.

The main pumping plant consists of four Woolf compound, rotative, beam pumping engines. These are arranged in mirror image pairs, in two separate engine houses, with a central boiler house (containing five Lancashire boilers with economisers) and chimney. The engines were built in 1885 by Gimson and Company of Leicester. All the engines are similar and the following description is limited to only one, but applicable to all.


The high pressure cylinder is 24 inch bore by 6 ft stroke and the low pressure cylinder is 38 inch bore by 8 feet stroke. Steam is distributed by means of double beat 'Cornish' valves, mounted in upper and lower valve chests. The cylinders act on one end of the beam, via Watt's parallel motion. The beam itself is 26 feet 4 inches between end centres, 4 feet deep at the centre, weighs 13 tons and is carried on 12 inch diameter bearings.

Currently C and D engines are able to run under steam, work is ongoing to restore the A and B engines.

Many small engines are running in the various out buildings off the steam from the 5 Lancashire boilers in the boiler house between the two engine houses and the road / railway line.

The modern sewage works, run by Severn Trent Water, is alongside the old pumping station, on the site of the original settlement ponds / lagoons.
