Chevrolet/GMC B-Series

Chevrolet B-Series
GMC B-Series
Manufacturer	General Motors
Production	1966-2003
Assembly	Flint, Michigan; Toluca, Mexico
Class	Type C (conventional)
Layout	4x2
Body style(s)	Cowled chassis school bus; commercial bus;
Engine(s)	gasoline; diesel; propane
Related	GMC TopKick (1992-2003)

The Chevrolet and GMC B-Series was a Class 7 medium duty cowled chassis produced by General Motors for the school bus industry. The B-Series was introduced for the 1966 model year. Production of the B-Series ended in 2003; after 1991, it was exclusively bodied by Blue Bird Corporation.

Design history[]

For the vast majority of the B-series' life span, GM's medium duty conventional trucks were based heavily upon the design of their full-sized pickup trucks. While the chassis underneath was of a unique design, the cab and some of the outer bodywork would be derived from the full-size pickup trucks.

The B-series, as a result, closely resembled GM's pickup trucks from the 1950s, up until the mid-1960s. In 1966, GMC introduced its own version of the B-Series, unrelated to Chevrolet.

1966-1970[]

In 1966, while Chevrolet continued to manufacture the B-Series on a medium duty design based upon their full-sized pickups, GMC moved their B-Series chassis to the H/J series line. This design of truck was the predecessor of the 1978 GMC Brigadier and Chevrolet Bruin. The entire front fascia was fabricated out of steel, and featured butterfly-access panels for servicing. This generation of B-Series offered GMC's gasoline V-8, diesel V-6 (Detroit Diesel), and gasoline inline-6 engines.

GM produced a different B-Series chassis for Chevrolet and GMC until 1971 (after-Chevrolet Series 490 Light Delivery, Chevrolet Superior, Chevrolet Series AA Capitol, Chevrolet Series AB National, Chevrolet Series AC International, Chevrolet Series AD Universal, Chevrolet Series AE Independence, Chevrolet Series BA Confederate, Chevrolet Eagle, Chevrolet G/S, Chevrolet H/T, Chevrolet AK Pickup Truck, Chevrolet Advance Design Loadmaster, Chevrolet Task Force Viking (1955-1957), Chevrolet Task Force Viking (1958-1959), Chevrolet C/K School bus chassis (1960-1961), Chevrolet C/K School bus chassis (1962), Chevrolet C/K School bus chassis (1963), and Chevrolet C/K School bus chassis (1964-1966)). GMC's medium-duty truck had been reintroduced onto the C-Series line in 1969. However, GM bus chassis production lagged behind truck redesigns, delaying the redesigned GMC to 1971.

1971-1991[]

When GMC's medium duty line moved back from the H/J line to a modified variant of their full-sized pickup truck in 1969, so too did the B-Series, albeit in 1971. The only external change to the chassis was a different front clip, which also mandated a different dashboard design. Engine options consisted of the 5.7L, 6.0L, and 7.0L gasoline V8. Later, the Detroit Diesel 8.2L V8 was offered, as well as a turbocharged variant. Transmissions were almost always 4 or 5 speed manuals, although the Allison AT545 4-speed automatic transmission was also offered.

While GM replaced its medium duty trucks in 1973, the B-series continued to be based upon the previous generation of medium duty conventionals. In fact, this continued to be the case until 1984, when GM finally updated the B-Series to match; the tilt-forward cowl was added. However, the changes were limited to the outside; the steering column and dashboard were carryover. Little, if any, change occurred to the powertrain options for this generation.

1992-2003[]

In 1992, the GMT 530 chassis was adapted to become the next-generation B-Series. This chassis was introduced in 1989 under the GMC TopKick and Chevrolet Kodiak names.

Both gasoline and diesel engines were offered on this generation of B-Series. A 6.0L V8 gasoline engine was offered, allowing potential LPG (propane) or CNG conversion. Late in the 1990s, the 366 V8 was retired in favor of a 454 cubic inch (7.4L) V8; GM was the last manufacturer to offer a gasoline engine in a full-size school bus. Caterpillar 3116 turbocharged six-cylinder diesels were offered as well. Transmissions were always Allison automatics.

When GM replaced the GMT 530 series of medium duty conventionals with the GMT 560 series in 2003, no direct replacement for the B-Series was offered. GM has, however, offered cutaway cabs on their Class 4 and Class 5 models, allowing for body builders to add bus bodies in the same manner (and design) as they would on the full-size van cutaways.

Availability[]

The B-Series chassis was used by a variety of manufacturers and was popular for the availability of both gasoline and diesel engines. Until 1991, the B-Series was available to all manufacturers. However, in a move that crippled GM's marketshare of the schoolbus market, GM signed an agreement with Blue Bird Corporation for 1992. Under the terms of the agreement (which lasted 10 years), Blue Bird became the only body manufacturer allowed to build buses on the new B-Series chassis and would also be responsible for all distribution and service. The resulting model was named the CV200, and while the GM B-7 chassis was standard, Navistar International and Ford (and later, Freightliner) chassis were available as options.

Manufacturers who used the B-Series before 1991

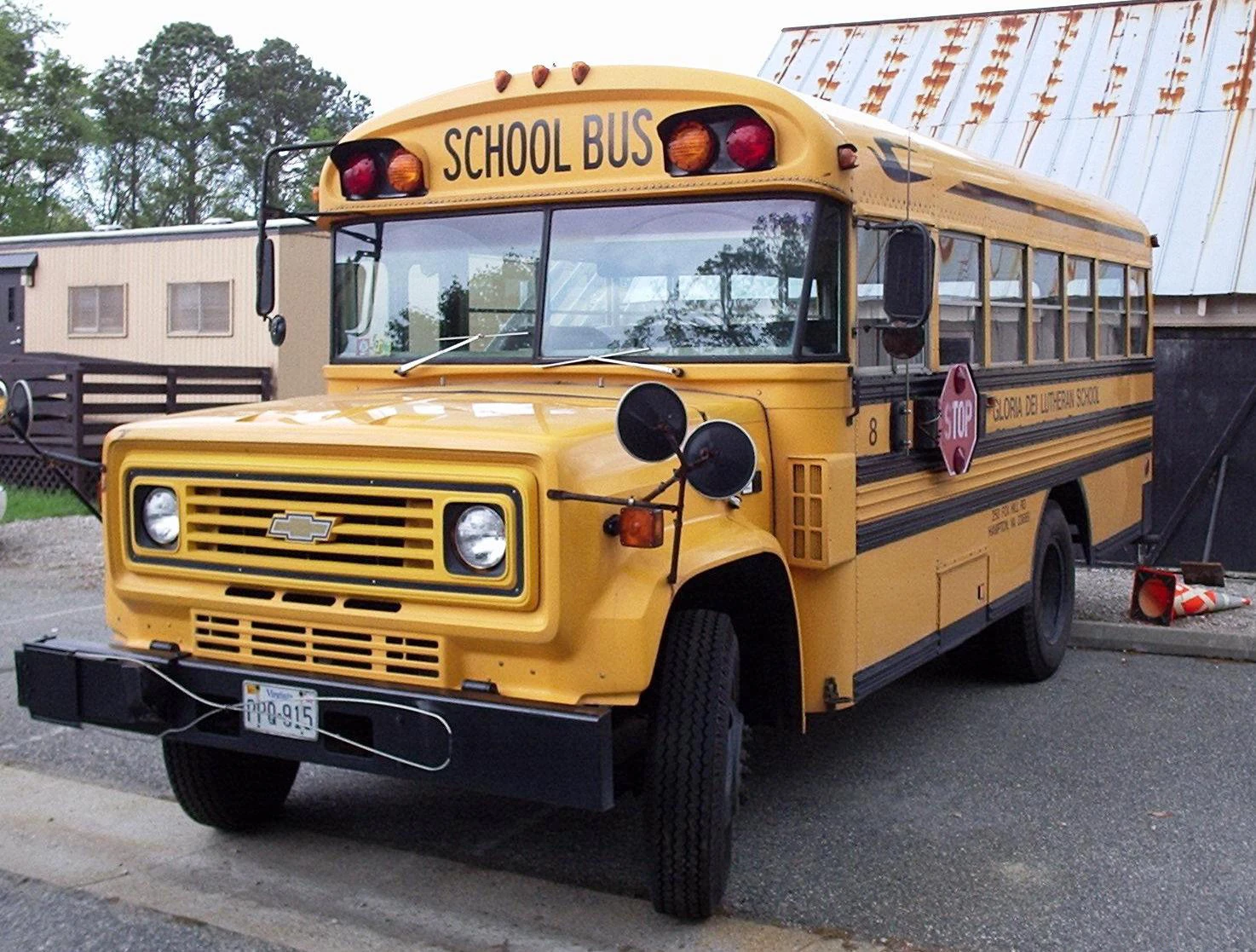

GDLC 8 — A 1980s Chevrolet B-Series with a Blue Bird Conventional body

Powertrain[]

Gasoline

Engine Name	Displacement	Notes
GM Small-Block V8	5.7 liters (350 cubic inches)
GM Big-Block V8s	6.0 liter (366 cubic inches) 7.0 liter (427 cubic inches) 7.4 liter (454 cubic inches)	The 366-cubic inch V8 was a common basis for second-party conversions for alternative fuels (propane and CNG).

Diesel

Engine Name	Displacement	Notes
Detroit Diesel "Fuel Pincher" V8	8.2 liters
Caterpillar 3116 inline-6
