Caterpillar Challenger 55

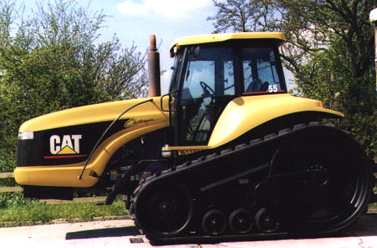

Cat Challenger 55 - 1997
Model history
Model introduced 1995
Model discontinued Unknown
Model status Unknown Discontinued
Engine Specification
Engine make Caterpillar
Engine model 3126
Fuel type Diesel
Power hp 225
Power kW 168
Governed rpm 2100
Displacement cu in /(litre) 422 cu in
No. of Cylinders 6
Bore in (mm) 4.33 in
Stroke in (mm) 5.0 in
Cooling system Water
Transmission Details
Transmission type powershift with power shuttle
Forward 16
Reverse 9
Drive tracked
General Data
Linkage Category Cat II, Cat IIIN, Cat III
Lift capacity (lb/kg) 12,500 lbs
15,000 lbs (opt)
P.T.O rpm 1000
Tractor Dimensions
Turning circle (nominal) inches/meters 0
Other info
Factories USA
Plow rating Unknown
This box: view · talk

The Caterpillar Challenger 55 tractor is built in the United States by Caterpillar. It features a 225 hp (168 kW) Caterpillar engine.

Model history[]

For brand history, see Caterpillar Challenger Tractor range.special from adrian ruiz

References[]

  • Caterpillat Challenger 35,45, 55 Tractors - 300 to 400 PTO HP, YEDA 3003, 1997
