The Carnot cycle is a theoretical thermodynamic cycle proposed by Nicolas Léonard Sadi Carnot in 1824 and expanded by Benoit Paul Émile Clapeyron in the 1830s and 40s. It can be shown that it is the most efficient cycle for converting a given amount of thermal energy into work, or conversely, creating a temperature difference (e.g. refrigeration) by doing a given amount of work.

Every thermodynamic system exists in a particular thermodynamic state. When a system is taken through a series of different states and finally returned to its initial state, a thermodynamic cycle is said to have occurred. In the process of going through this cycle, the system may perform work on its surroundings, thereby acting as a heat engine. A system undergoing a Carnot cycle is called a Carnot heat engine, although such a 'perfect' engine is only a theoretical limit and cannot be built in practice.

Stages of the Carnot CycleEdit

The Carnot cycle when acting as a heat engine consists of the following steps:

  1. Reversible isothermal expansion of the gas at the "hot" temperature, TH (isothermal heat addition or absorption). During this step (1 to 2 on Figure 1, A to B in Figure 2) the expanding gas makes the piston work on the surroundings. The gas expansion is propelled by absorption of quantity Q1 of heat from the high temperature reservoir.
  2. Isentropic (reversible adiabatic) expansion of the gas (isentropic work output). For this step (2 to 3 on Figure 1, B to C in Figure 2) the piston and cylinder are assumed to be thermally insulated, thus they neither gain nor lose heat. The gas continues to expand, working on the surroundings. The gas expansion causes it to cool to the "cold" temperature, TC.
  3. Reversible isothermal compression of the gas at the "cold" temperature, TC. (isothermal heat rejection) (3 to 4 on Figure 1, C to D on Figure 2) Now the surroundings do work on the gas, causing quantity Q2 of heat to flow out of the gas to the low temperature reservoir.
  4. Isentropic compression of the gas (isentropic work input). (4 to 1 on Figure 1, D to A on Figure 2) Once again the piston and cylinder are assumed to be thermally insulated. During this step, the surroundings do work on the gas, compressing it and causing the temperature to rise to TH. At this point the gas is in the same state as at the start of step 1.

The pressure-volume graph Edit

Carnot cycle p-V diagram

Figure 1: A Carnot cycle illustrated on a pressure-volume graph to illustrate the work done.

When the Carnot cycle is plotted on a pressure-volume graph, the isothermal stages follow the isotherm lines for the working fluid, adiabatic stages move between isotherms and the area bounded by the complete cycle path represents the total work that can be done during one cycle.

Properties and significanceEdit

The temperature-entropy diagram Edit

CarnotCycle1

Figure 2: A Carnot cycle acting as a heat engine, illustrated on a temperature-entropy diagram. The cycle takes place between a hot reservoir at temperature TH and a cold reservoir at temperature TC. The vertical axis is temperature, the horizontal axis is entropy.

Carnot Cycle3

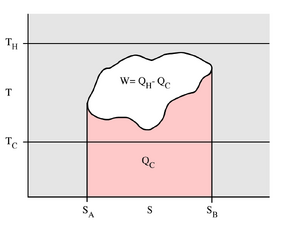

A generalized thermodynamic cycle taking place between a hot reservoir at temperature TH and a cold reservoir at temperature TC. By the second law of thermodynamics, the cycle cannot extend outside the temperature band from TC to TH. The area in red QC is the amount of energy exchanged between the system and the cold reservoir. The area in white W is the amount of work energy exchanged by the system with its surroundings. The amount of heat exchanged with the hot reservoir is the sum of the two. If the system is behaving as an engine, the process moves clockwise around the loop, and moves counter-clockwise if it is behaving as a refrigerator. The efficiency of the cycle is the ratio of the white area (work) divided by the sum of the white and red areas (heat absorbed from the hot reservoir).

The behaviour of a Carnot engine or refrigerator is best understood by using a temperature-entropy (TS) diagram, in which the thermodynamic state is specified by a point on a graph with entropy (S) as the horizontal axis and temperature (T) as the vertical axis. For a simple system with a fixed number of particles, any point on the graph will represent a particular state of the system. A thermodynamic process will consist of a curve connecting an initial state (A) and a final state (B). The area under the curve will be:

$ Q=\int_A^B T\,dS \quad\quad(1) $

which is the amount of thermal energy transferred in the process. If the process moves to greater entropy, the area under the curve will be the amount of heat absorbed by the system in that process. If the process moves towards lesser entropy, it will be the amount of heat removed. For any cyclic process, there will be an upper portion of the cycle and a lower portion. For a clockwise cycle, the area under the upper portion will be the thermal energy absorbed during the cycle, while the area under the lower portion will be the thermal energy removed during the cycle. The area inside the cycle will then be the difference between the two, but since the internal energy of the system must have returned to its initial value, this difference must be the amount of work done by the system over the cycle. Referring to figure 1, mathematically, for a reversible process we may write the amount of work done over a cyclic process as:

$ W = \oint PdV = \oint (dQ-dU)= \oint (TdS-dU) \quad\quad\quad\quad(2) $

Since dU is an exact differential, its integral over any closed loop is zero and it follows that the area inside the loop on a T-S diagram is equal to the total work performed if the loop is traversed in a clockwise direction, and is equal to the total work done on the system as the loop is traversed in a counterclockwise direction.

Carnot Cycle2

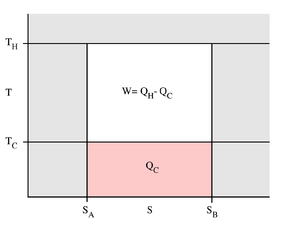

A Carnot cycle taking place between a hot reservoir at temperature TH and a cold reservoir at temperature TC.

The Carnot cycle Edit

Evaluation of the above integral is particularly simple for the Carnot cycle. The amount of energy transferred as work is

$ W = \oint PdV = (T_H-T_C)(S_B-S_A) $

The total amount of thermal energy transferred between the hot reservoir and the system will be

$ Q_H=T_H(S_B-S_A)\, $

and the total amount of thermal energy transferred between the system and the cold reservoir will be

$ Q_C=T_C(S_B-S_A)\, $

The efficiency $ \eta $ is defined to be:

$ \eta=\frac{W}{Q_H}=1-\frac{T_C}{T_H} \quad\quad\quad\quad\quad\quad\quad\quad\quad(3) $

where

$ W $ is the work done by the system (energy exiting the system as work),
$ Q_H $ is the heat put into the system (heat energy entering the system),
$ T_C $ is the absolute temperature of the cold reservoir, and
$ T_H $ is the absolute temperature of the hot reservoir.
$ S_B $ is the maximum system entropy
$ S_A $ is the minimum system entropy

This efficiency makes sense for a heat engine, since it is the fraction of the heat energy extracted from the hot reservoir and converted to mechanical work. A Rankine cycle is usually the practical approximation.

Carnot's theoremEdit

Main article: Carnot's theorem (thermodynamics)

It can be seen from the above diagram, that for any cycle operating between temperatures T_H and T_C, none can exceed the efficiency of a Carnot cycle.

Real vs Carnot

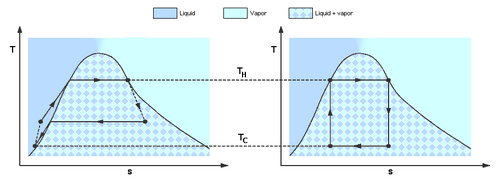

A real engine (left) compared to the Carnot cycle (right). The entropy of a real material changes with temperature. This change is indicated by the curve on a T-S diagram. For this figure, the curve indicates a vapor-liquid equilibrium (See Rankine cycle). Irreversible systems and losses of heat (for example, due to friction) prevent the ideal from taking place at every step.

Carnot's theorem is a formal statement of this fact: No engine operating between two heat reservoirs can be more efficient than a Carnot engine operating between those same reservoirs. Thus, Equation 3 gives the maximum efficiency possible for any engine using the corresponding temperatures. A corollary to Carnot's theorem states that: All reversible engines operating between the same heat reservoirs are equally efficient. Rearranging the right side of the equation gives what may be a more easily understood form of the equation. Namely that the theoretical maximum efficiency of a heat engine equals the difference in temperature between the hot and cold reservoir divided by the absolute temperature of the hot reservoir. To find the absolute temperature in kelvin, add 273.15 degrees to the Celsius temperature. Looking at this formula an interesting fact becomes apparent. Lowering the temperature of the cold reservoir will have more effect on the ceiling efficiency of a heat engine than raising the temperature of the hot reservoir by the same amount. In the real world, this may be difficult to achieve since the cold reservoir is often an existing ambient temperature.

In other words, maximum efficiency is achieved if and only if no new entropy is created in the cycle. Otherwise, since entropy is a state function, the required dumping of heat into the environment to dispose of excess entropy leads to a reduction in efficiency. So Equation 3 gives the efficiency of any reversible heat engine.

In mesoscopic heat engines, work per cycle of operation fluctuates due to thermal noise. For the case when work and heat fluctuations are counted, there is exact equality that relates average of exponents of work performed by any heat engine and the heat transfer from the hotter heat bath N. A. Sinitsyn (2011), "Fluctuation Relation for Heat Engines", J. Phys. A: Math. Theor. 44: 405001.  . This relation transforms the Carnot's inequality into exact equality that is applied to an arbitrary heat engine coupled to two heat reservoirs and operating at arbitrary rate.

Efficiency of real heat enginesEdit

Carnot realized that in reality it is not possible to build a thermodynamically reversible engine, so real heat engines are less efficient than indicated by Equation 3. In addition, real engines that operate along this cycle are rare. Nevertheless, Equation 3 is extremely useful for determining the maximum efficiency that could ever be expected for a given set of thermal reservoirs.

Although Carnot's cycle is an idealisation, the expression of Carnot efficiency is still useful. Consider the average temperatures,

$ \langle T_H\rangle = \frac{1}{\Delta S} \int_{Q_{in}} TdS $
$ \langle T_C\rangle = \frac{1}{\Delta S} \int_{Q_{out}} TdS $

at which heat is input and output, respectively. Replace TH and TC in Equation (3) by <TH> and <TC> respectively.

For the Carnot cycle, or its equivalent, <TH> is the highest temperature available and <TC> the lowest. For other less efficient cycles, <TH> will be lower than TH , and <TC> will be higher than TC. This can help illustrate, for example, why a reheater or a regenerator can improve the thermal efficiency of steam power plants -- and why the thermal efficiency of combined-cycle power plants (which incorporate gas turbines operating at even higher temperatures) exceeds that of conventional steam plants.
