| Predecessor | Bolinder and Munktell |
|---|---|
| Successor | Volvo BM |
| Founded | 1932 |
| Defunct | 1950 |
| Headquarters | Eskilstuna, Sweden |
| Products | agriculture machinery tractor |

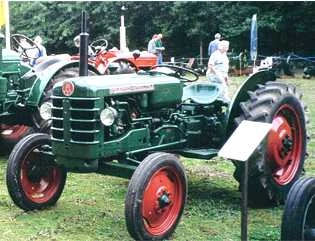

Bolinder-Munktell BM 425 Terrier tractor at Driffield Vintage show 2008
Bolinder-Munktell (BM) was a tractor and machines manufacturer founded in Eskilstuna, Sweden in 1932 through the merger of the mechanical companies Bolinder and Munktell. In 1950 BM was bought by AB Volvo. In 1973 the company changed its name to Volvo BM AB and then in 1995 to Volvo Construction Equipment AB.
The product range has changed with the times. Up to the beginning of the 20th century agricultural machinery, such as threshers were an important product. Tractor production commenced in 1913, with type 30-40. Tractors were the main product up to the 1970s.
From the 1950s on new products in the construction equipment and forestry machinery categories emerged. These were initially based on their tractor chassis. Soon the construction equipment become the dominant product range and remain so today. Products developed in the 1960s and still in production are wheel loaders and articulated haulers. In 1950 Volvo bought the firm out, and sold the tractor division to Valmet in 1985.
History[]

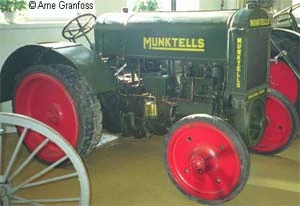

A Early Munktell tractor with hand starting and a blow torch at the GDSF in 2008
Bolinder-Munktell traces its origins to the engineering workshops Munktells Mekaniska Verkstad (established in Eskilstuna in 1832) and J. & C.G. Bolinders Mekaniska Verkstad (established in Stockholm in 1845). In the 1850s Munktells started producing its own products like steam engines and in 1853 the first Swedish steam locomotive was produced. However the big seller starting the same year was the locomobile.
In 1906 the first of our company's many construction equipment products saw the light of day, the steam roller. In 1924 the first grader was launched, based on the wellknown and durable tractor driveline. During the years several models were developed and produced.
Tractor production commenced in 1913, with type 30-40. During the 1940s, Volvo began to develop tractors and the two companies began to collaborate. Eventually, Bolinder-Munktell was acquired by Volvo in 1950 and all production of tractors was transferred to Eskilstuna. As a result of declining profitability, the Board decided to phase out tractor manufacture in 1979 and the last agricultural tractor left the company in 1984. Tractors were the main product up to the 1970s, when production shifted to construction plant. Tractors were sold as Bolinde-Munktell, Volvo BM, BM Volvo, and Volvo.
In 1950 the main shareholder Handelsbanken sold its shares to Volvo who turned the company in to a subsidiary.
- Main article: Volvo BM
The tractors gained an reputation for durability. During World War II, Bolinder-Munktell, at the request of the Swedish authorities, built Daimler-Benz DB601 aeroplane engines under licence. An entire underground factory at Eskiltuna was built to accommodate this factory. Owing to the superior reliability of the Swedish built engines the Swedish Air Force issued instructions that for two engined aircraft, at least one engine should be a Swedish built unit.
Model Range[]
In 1854, Munktells Mekaniska Verkstads AB produced Sweden's first traction engine. More than 6535 traction engines left the gates of the company up to 1921, when manufacture was discontinued.
In 1952, a newly-developed tange of diesel engines was launched consisting of one, two, three and four-cylinder direct-injection units. With the continued development of diesel engines, the older simple crude-oil engined tractors were dropped from the range. AB Bolinder-Munktell's top-of-the-line tractors quickly featured a diesel engine.
By the late 1970 sale of tractors were dropping and the management board decided to drop tractor production to concentrate on other sectors so by 1984 tractor production ceased.
Tractors[]
| Model | Year(s) Produced | Horsepower | Engine Type | Misc Notes | Photo |
|---|---|---|---|---|---|
| Bolinder-Munktell BM 2 | 1939-1946 | 32 hp (24 kW) | Bolinders |
| |
| Bolinder-Munktell BM 3 | 40 hp (30 kW) | Bolinders | |||
| Bolinder-Munktell BM-10 | 1947-1950 | 20 hp (15 kW) | Bolinders |
| |
| Bolinder-Munktell BM-15 Terrier | 29 hp (22 kW) | Volvo |
| ||
| Bolinder-Munktell BM-20 | 41 hp (31 kW) | Bolinders | |||

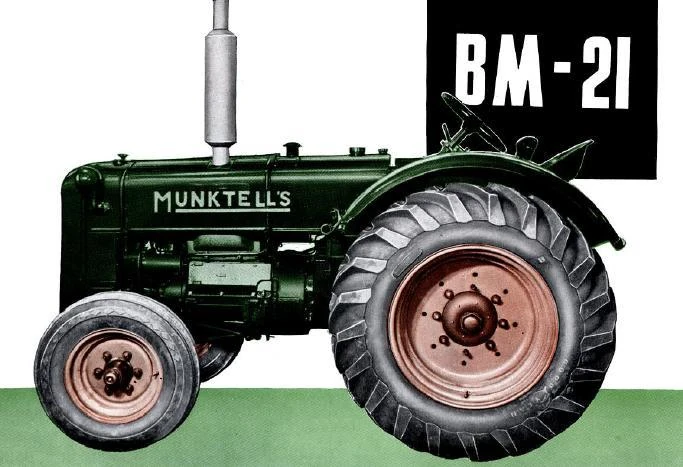

| Bolinder-Munktell BM-21 | 1951-1953 | 46 hp (34 kW) | Bolinders | ||

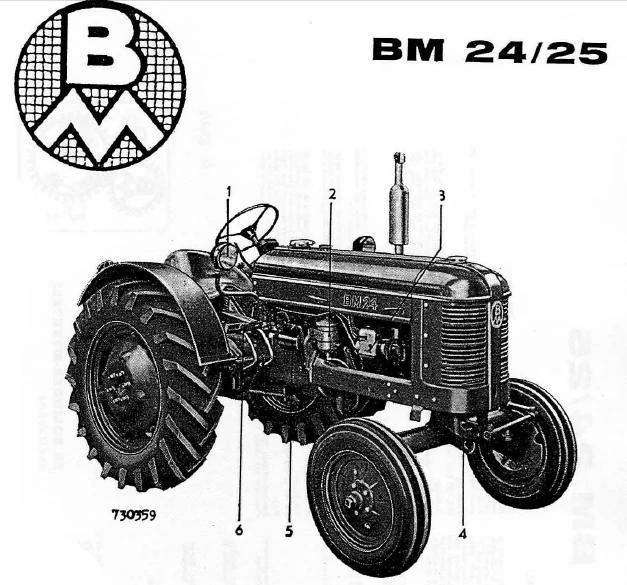

| Bolinder-Munktell BM-24 | 27.5 hp (20.5 kW) | Volvo | same as Volvo T 24 |
| |
| Bolinder-Munktell BM-25 | 27.5 hp (20.5 kW) | Volvo | same as Volvo T 25 | ||
| Bolinder-Munktell BM-31 | 1954-1957 | 36 hp (27 kW) | Volvo | same as Volvo T 31 | |
| Bolinder-Munktell BM-32 | 1954-1957 | 45 hp (34 kW) | Volvo | same as Volvo T 32 | |
| Bolinder-Munktell BM-33 | 1954-1957 | 36 hp (27 kW) | Volvo | same as Volvo T 33 | |
| Bolinder-Munktell BM-34 | 1954-1957 | 45 hp (34 kW) | Volvo | same as Volvo T 34 | |
| Bolinder-Munktell BM-35 | 42.5 hp (31.7 kW) | Bolinders | same as Volvo T 35 | ||
| Bolinder-Munktell BM-36 | 42.5 hp (31.7 kW) | Bolinders | same as Volvo T 36 | ||
| Bolinder-Munktell BM 55 | 57 hp (43 kW) | Bolinders | same as Volvo T 55 |
| |
| Bolinder-Munktell BM-200 Teddy | 1953-1955 | 32 hp (24 kW) | Austin | ||
| Bolinder-Munktell BM-210 Teddy | 1953-1955 | 32 hp (24 kW) | Austin | ||
| Bolinder-Munktell BM-230 Viktor | 1955-1961 | 29 hp (22 kW) | Bolinders | same as Volvo T 230 | |
| Bolinder-Munktell BM 230 | 30 hp (22 kW) | ||||
| Bolinder-Munktell BM 320 B Buster | 1961-1964 | 37 hp (28 kW) | Volvo | same as Volvo 320 B and BM Volvo BM 320 B |
|
| Bolinder-Munktell BM 320 D Buster | 37 hp (28 kW) | Perkins | same as Volvo 320 D Buster and BM Volvo BM 320 B |
| |
| Bolinder-Munktell BM 350 Boxer | 1960- | 56 hp (42 kW) | BM | same as Volvo 350 Boxer |
|
| Bolinder-Munktell BM 400 Buster | 42.5 hp (31.7 kW) | Perkins | same as BM Volvo 400 Buster | ||
| Bolinder-Munktell BM 425 Terrier | 1957-1962 | 23.5 hp (17.5 kW) | Volvo |
| |
| Bolinder-Munktell BM 470 Bison | 73 hp (54 kW) | Bolinders | same as BM Volvo 470 Bison | ||
| Bolinder-Munktell BM 471 Bison | 75 hp (56 kW) | Bolinders | same as BM Volvo 471 Bison | ||
| Bolinder-Munktell BM T 675 Industrial | 60 hp (45 kW) | BM | same as BM Volvo T 675 | ||
| Bolinder-Munktell T 36 | 42.5 hp (31.7 kW) | Bolinders | same as Volvo T 36 | ||
| Bolinder-Munktell T 400 | 47 hp (35 kW) | Perkins | same as BM Volvo T 400 |
| Model | Year(s) Produced | Horsepower | Engine Type | Misc Notes | Photo |
|---|---|---|---|---|---|
| Bolinder 40/48 | 40 hp (30 kW) | Bolinders |
| Model | Year(s) Produced | Horsepower | Engine Type | Misc Notes | Photo |
|---|---|---|---|---|---|
| Munktells AC crawler | 1941 | ||||
| Munktells AE crawler | 1941 | ||||
| Munktells AF crawler | 1941 | ||||

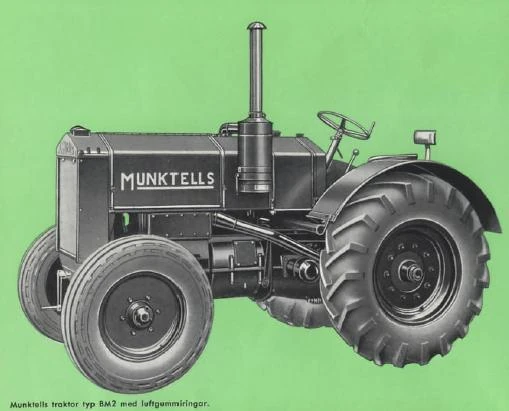

| Munktells BM2 | 32 hp (24 kW) | Bolinders |
| ||
| Munktells GBM2 | 1940-1943 | 32 hp (24 kW) | Bolinders | ||
| Munktells BM3 | 1939 | 40 hp (30 kW) | Bolinders | ||
| Munktells BM4 | 1939-1945 | 32 hp (24 kW) | Volvo | ||
| Munktells BM-10 | 23 hp (17 kW) | Bolinders |
| ||
| Munktells 16 hp | 16 hp (12 kW) | ||||
| Munktells 18/20 | 18/20 hp (0.67 kW) | Munktells | |||
| Munktells BM-20 | 41 hp (31 kW) | Bolinders | |||
| Munktells 20/24 | 20 hp (15 kW) | Munktells | |||
| Munktells BM-21 | 1951-1953 | 46 hp (34 kW) | Bolinders |
| |
| Munktells 22 | 26 hp (19 kW) | Munktells |
| ||
| Munktells 25 | 1934-1938 | 32 hp (24 kW) | Bolinders | ||
| Munktells 25 crawler | 1934-1938 | 32 hp (24 kW) | Bolinders | ||
| Munktells 30 | 1927-1935 | 36 hp (27 kW) | Munktells |
| |

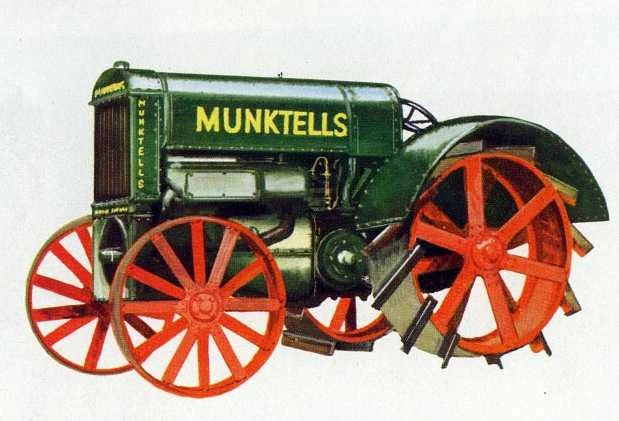

| Munktells 30/40 | 30 hp (22 kW) | Munktells | |||
| Munktells 38 | |||||
| Munktells GBMV 1 | 1944-1945 | 36 hp (27 kW) | Bolinders | ||
| Munktells T 425 |
Combine Harvesters[]
Combine Harvesters were produced by Bolinder-Munktell, and they also produced some in association with Aktiv
| Model | Year(s) Produced | Horsepower | Engine Type | Misc Notes | Photo |
|---|---|---|---|---|---|
| Bolinder-Munktell MST-94 | 65 hp (48 kW) | Penta | same as Munktells MST-94 | ||
| Bolinder-Munktell MST-95 | 1956-1959 | 67 hp (50 kW) | same as Munktells MST-95 |
| |
| Bolinder-Munktell MST 751 | 1954-1959 | 56 hp (42 kW) | Volvo | same as Munktells MST 751 | |
| Bolinder-Munktell MST 901 | 67 hp (50 kW) | Volvo | same as Munktells MST 901 | ||
| Bolinder-Munktell S 1000 | 1960-1963 | 79 hp (59 kW) | Volvo Penta | same as Munktells S 1000 |
|
| Model | Year(s) Produced | Horsepower | Engine Type | Misc Notes | Photo |
|---|---|---|---|---|---|

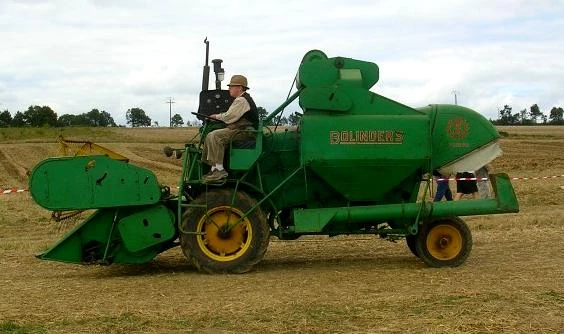

| Bolinder ST257 | same as BM Volvo ST 257 and Thermaenius ST 257 |
|
| Model | Year(s) Produced | Horsepower | Engine Type | Misc Notes | Photo |
|---|---|---|---|---|---|

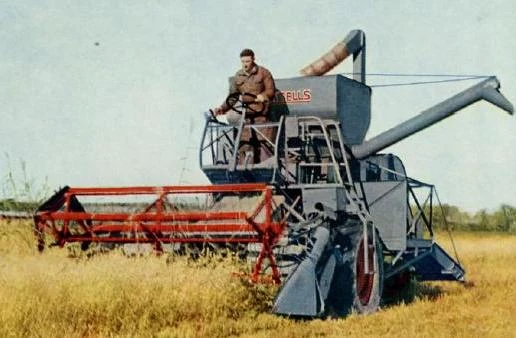

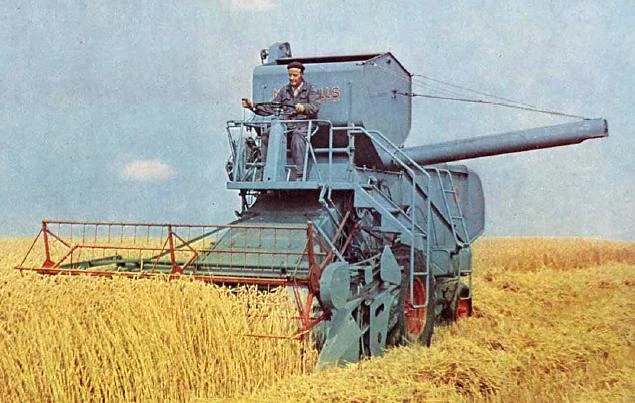

| Munktells MST-91 | 65 hp (48 kW) | ||||
| Munktells MST-92 | 1951-1952 | 65 hp (48 kW) | |||
| Munktells MST-93 | 65 hp (48 kW) | Volvo |
| ||
| Munktells MST-94 | 1954-1955 | 65 hp (48 kW) | Penta | same as Bolinder-Munktell MST-94 | |
| Munktells MST-95 | 1956-1959 | 67 hp (50 kW) | same as Bolinder-Munktell MST-95 | ||
| Munktells MST 751 | 1954-1956 | 56 hp (42 kW) | Volvo | same as Bolinder-Munktell MST 751 | |
| Munktells MST 901 | 1956-1960 | 67 hp (50 kW) | Volvo | same as Bolinder-Munktell MST 901 |
|
| Munktells S 1000 | 79 hp (59 kW) | Volvo Penta | same as Bolinder-Munktell S 1000 |
| Model | Year(s) Produced | Horsepower | Engine Type | Misc Notes | Photo |
|---|---|---|---|---|---|
| Bolinder-Munktell Aktiv 800 | 42 hp (31 kW) | Perkins | built with Aktiv | ||
| Bolinder-Munktell Aktiv 1000 | 60 hp (45 kW) | Perkins | built with Aktiv |
Other Machinery[]
- Steam Tractors
Preservation[]
The odd example of machines by Bolinder or Munkell and BM appear on the rally circuit but are rare as were not a big make in the UK.
- Please list any known ones here. (one of unknown model no. is shown above)
